Used Milling machines - univ.conv. 700-999mm X-axis travel for sale (79)

Condition: used, Year of construction: 1976, x-travel 1100 mm y-travel 700 mm Bwoln Siuswgn Aaopsl z-travel 550 mm surface area 1435 x 700 mm distance spindle /table -10 / 540 mm Number of grooves - width - spacing 8 - 16 - 80 mm min/max distance top edge table - bottom edge spin 0 - 540 mm spindle taper ISO 40 spindle turning speed range 30 - 2066 U/min feed - longitudinal/cross 1,6 - 820 mm/min vertical feeds: 0,8 - 410 mm/min Rapid traverse speed lengthwise and crosswise 2800 mm/min. vertical rapid traverse speed 1400 mm/min total power requirement 15 kW weight of the machine ca. 4,2 t dimensions of the machine ca. 2,7 x 1,435 x 1,74 m The ‘MU’ universal console milling machine is designed for the fully universal machining of complicated workpieces made of steel, cast iron or non-ferrous metal with the heaviest clamping. The large square working area enables the economical machining of bulky workpieces with surfaces in different planes, often in just one clamping operation. With the Huron fully universal milling head, the milling spindle can be swivelled in quickly and safely in any direction to the workpiece or work table, so that practical and reliable solutions can be found for a wide variety of work tasks while limiting manual and non-productive times. The double control stand - on the machine and front side - allows the machine to be operated while monitoring the tool in operation, even at extreme positions of the milling spindle.

Condition: ready for operation (used), Table clamping area: 1100 x 255 mm Table movement x: 700 mm Table movement y: 250 mm Table movement z: 430 mm Beln Sjv Dh Iroiupowl Spindle speeds: 38 - 1500 rpm Feeds longitudinal and transverse: 12 - 1000 mm/min Feeds vertical: 1.75 m/min Electrical connection: 380 V, approx. 4 kW kW Space required: 1700 x 1600 x 1650 mm Weight: 1650 kg

Condition: used, Year of construction: 1980, Technical details: x-travel: 850 mm y-travel: 280 mm z-travel: 355 mm spindle taper ISO: SK 45 / SK 45 spindle head swivable left - right: je 90° ° range of revolution per miute: 28 - 1400 / 18 step U/min distance table/horizontal spindle: min.: 60 / max.: 180 mm table surface area: 1070 x 270 mm table load: 1000 kg table swivelling +/-: je 45° Grad feed:: X+Y: 16 - 800 und Z: 5 - 250 mm/min total power requirement: 8,0 kW machine weight approx.: 3100 kg dimension machine xH: 2,1 x 1,8 x 2,15 m dimensions electric cabinet: L: 0,8 x B: 0,45 x H: 1,65 m clamping surface area: 315 x 1250 mm Belnsu Ndf Ie Siupjwl Horizontal beam adjustment manual 650 mm mounted on table: clamping head with 3-jaw chuck Ø 200 mm with inner jaws, center height 165 mm Coolant system Hand crank Milling arbor Ø 22 x 620 mm with form cutter 80 x Ø 8 mm *

Condition: new, The versatile multi-purpose milling machine combines all the advantages of the world's best-selling milling machine with additional stability. The top model of the MF series has an SK 40 tool holder and a 30 percent higher unladen weight. The X and Y axis are equipped with infinitely variable feed devices. The swiveling vertical milling head offers a wide speed range for machining steel and non-ferrous metals. The equipment also includes a four-stage, automatic quill feed, pneumatic tool clamping and a large clamping table for workpieces and clamping devices. Boljp Dty Don Siupowl

Condition: used, Year of construction: 2000, x-travel 700 mm y-travel 315 mm z-travel 495 mm table surface area 1.230 x 410 mm quill travel 180 mm control Heidenhain TNC 426 tool taper SK 30 total power requirement 20 kW weight of the machine ca. 3,2 t In our opinion, the machine is in very good condition and can be viewed under power by appointment. The chuck on the 4th axis and on the table are not included in delivery. Technical features: - incl. 4th axis - Operating hours: 66,200 h - Spindle hours: 21,900 h Bsljwf D Atsn Siupowl Accesories: - Renishaw measuring probe Accessories, tools and clamping devices shown are only included in the scope of delivery if this is noted in the additional information. Changes and errors in the technical data and information as well Subject to prior sale!

Year of construction: 1981, Condition: used, Make cover Type FP 4 Table: dimensions 1000 x 470 mm longitudinal movement X - axis 700 mm transversal movement Y - axis 400 mm vertical movement Z - axis 450 mm projection spindle 50 450 mm spindle mounting ISO 40 Number of spindle speeds 18 Spindle speed range 31,5 1600 rpm Number of revolutions horizontal spindle 18 pcs. Bweln Siusihp U Djpsl Speed range horizontal spindle 31,5 1600 rpm Weight machine 2000 kg feeds X Y Z axis 18 pcs 10 500 mm/min Accessories milling head with quill Table 1000 x 470 mm

Condition: used, Year of construction: 2014, Functionality: fully functional, machine/vehicle number: 9244/158, feed length X-axis: 870 mm, feed length Y-axis: 330 mm, feed length Z-axis: 480 mm, travel distance X-axis: 870 mm, travel distance Y-axis: 330 mm, travel distance Z-axis: 480 mm, feed rate X-axis: 3,000 m/min, feed rate Y-axis: 3,000 m/min, feed rate Z-axis: 1,000 m/min, spindle speed (max.): 3,000 rpm, spindle speed (min.): 55 rpm, quill stroke: 75 mm, rapid traverse X-axis: 3,000 m/min, rapid traverse Y-axis: 3,000 m/min, rapid traverse Z-axis: 1,000 m/min, table width: 320 mm, table length: 1,300 mm, rotational speed (max.): 30,000 rpm, rotational speed (min.): 55 rpm, table load: 300 kg, overall weight: 2,700 kg, PEDERSEN VPF-940TI with Heidenhain TNC 320 – Top Condition from Training Workshop Bjln Siujwa S Itepewl Used PEDERSEN VPF-940TI CNC milling machine (2014 model) from a school's training workshop. Good condition, no maintenance backlog, immediately available and ready for demonstration. Equipment: • Heidenhain TNC 320 control • SK 40 DIN 2080 / 7.5 kW / 55–3000 rpm • Travels: X/Y/Z = 874 / 337 / 480 mm • Work table: 1300 x 320 mm • Air-operated glass scales • Stainless steel coolant tank • Manual + CNC operation at the touch of a button • Hi/Lo gears, mechanical handwheels Condition: Well-maintained, regularly used (training company) Availability: Immediately, ex works, packaged PEDERSEN VPF-940TI, TNC 320, Heidenhain, used CNC milling machine, universal milling machine, tool milling machine, manual CNC milling machine, SK40 milling machine, training machine, school milling machine, milling machine with glass scales, milling machine with coolant system, milling machine from stock Milling machine available immediately, milling machine

Condition: good (used), Table size 1100x300 mm Working travels 700x250x470 mm Spindle taper 40 Spindle speeds 22-2000 rpm With DRO. Misc. accessories Bwjln Siobwb Uysupol MARCELS MASCHINEN AG

Condition: used, Year of construction: 1976, Technical details: x-travel: 815 mm y-travel: 400 mm z-travel: 410 mm range of revolution per miute: 67 - 2300 / 8ste U/min feed continuous: 0,04; 0,08; 0,2 mm/U quill stroke vertical: 130 mm spindle taper: SK40 spindle head: drehen: 90° links/rechts spindle head: ausfahrbar: 315 mm spindle head swivable left - right: 40° vor / zurück ° distance spindle nose and table: max. 450 mm distance spindle center to column: min./max.: 170 / 600 mm table surface area: 1120 x 255 mm total power requirement: ca. 1,17 kW weight of the machine ca.: 1100 kg machine dimensions LxWxH: ca. 1,7 x 1,6 x 2,2 m dimensions of hydaulic: L: 550 x B: 330 x H: 800 mm This machine is currently in the technical department. Boln Siju R Uk Roupjwl *

Condition: new, This versatile tool and milling machine has become indispensable in the mechanical manufacturing of tools and molds. Its compact design offers a great deal of flexibility while being very easy to operate. This has proven highly effective and is given a modern interpretation here. Equipped with electronic stops, electronic handwheels and additional milling functions, the Servomill makes the advantages of CNC large-scale technology accessible even without programming. The machines are mainly used in toolmaking, production and training. Beln Siewa Ahwoupswl

Condition: good (used), travel distance X-axis: 775 mm, travel distance Y-axis: 250 mm, travel distance Z-axis: 425 mm, spindle speed (max.): 1,500 rpm, spindle speed (min.): 48 rpm, X-axis: 775 mm Y-axis: 250 mm Z-axis: 425 mm Table size: 1100 x 240 mm Spindle nose: ISO40 Spindle speeds: 48 - 1500 rpm Featured with: - Feed on all axis - Millingclamp - Protection hatch - Toolholders - Support bearings Bweln Siustt A U Ropjl - Horizontal milling spindle Motor power: 2,2 kW Country of origin: Spain Machine LxWxH: 1600 x 1300 x 1600 mm Machine weight: 1200 kg

Condition: not inspected (used), Year of construction: 1986, machine/vehicle number: 212, Well-maintained universal milling machine from the training workshop Spindle mount: SK50 Speed: 12 levels from 31.5-1400 rpm Feed: 13 levels from 14-900 mm/min Rapid traverse: X+Y - 2800mm/min Z - 800mm/min Table size: 320x1250mm (with 4 flutes 18x63) Max. table load: 300 kg travel: - X: 850mm - Y: 300mm - Z: 420mm With Eleska digital display Machine number: 212 Total power consumption: 6.825 kW Machine weight: 2600 kg Control cabinet weight: 185 kg Space required: 3410 x 2400 x 1720 mm Incl. - Documentation + wiring diagram - Device for changing the spindle (horizontal + vertical) Boln Siushx Nqnepowl Machine can be demonstrated on site. Free truck from the Hessisch Lichtenau warehouse

Condition: good (used), Parts shown by hand not come. Technical details shown on picture. Bwsln Ssvmupzoiupjl

Condition: used, Manufacturer: Friedrich Engels Bslsv Tmlzjn Siupowl Table size: 1400x320mm x:850mm y:320mm z:360mm

Condition: used, Year of construction: 1972, x-travel 0650 mm y-travel 400 mm z-travel 450 mm table-size 940 x 515 mm turning speed range - horizontal 20 - 1400 U/min turning speed range - vertical 32 - 2600 U/min feeds 8 - 400 mm/min rapid traverse 1 m/min total power requirement 4,7 kW weight of the machine ca. 2,9 t dimensions of the machine ca. 2,2 x 2,9 x 2,2 m With universal table. Bjlev Ank Rjn Siupowl

Condition: good (used), Year of construction: 1980, - Table size: 1250x350 mm - Travels X / Y / Z: 850 x 250 x 470 mm - Spindle mount: ISO40 - Spindle speeds: 45-2000 rpm. / à 24 steps - Horizontal and vertical spindle in the same milling head - Swiveling in the head: +/- 90 ° Bolnjdux Hgj Siupewl - Gear bar displaceable (Y axis) - digital display Heidenhain (3 axes) - Coolant pump - div. on accessories - Weight: about 2150 kg - Space required: approx. 1900 x 2000 x 1700 mm

Condition: good (used), travel distance X-axis: 930 mm, travel distance Y-axis: 300 mm, travel distance Z-axis: 500 mm, spindle speed (max.): 1,500 rpm, X-axis: 930 mm Y-axis: 300 mm Z-axis: 500 mm Table size: 1450 x 320 mm Spindle nose: ISO40 Spindle speeds: 1500 rpm Digital readout: Sony 3 axis Country of origin: Spain Bwjln Sstt Dakoiupsl Machine weight: 3000 kg Machine LxWxH: 1900 x 1800 x 2000 mm

Condition: new, The multi-purpose milling machine series MF1 impresses with its design and is indispensable in many repair workshops as well as training and production departments. The X-axis is steplessly adjustable with a feed device and the swiveling vertical milling head with a wide steplessly adjustable speed range processes steel up to non-ferrous metals. The standard accessories include an automatic quill feed and pneumatic tool clamping as well as a mounted position indicator. Bweljuyic Tsn Siupjl

Condition: used, Year of construction: 1970, Technical details: x-travel: 1000 mm y-travel: 320 mm z-travel: 350 mm Bweln Siju Ndgfeupol spindle taper ISO: MK4 / SK50 spindle head swivable left - right: 90 ° Distance rear edge of table to column guideway: min.: 45 / max.: 365 mm throat: 270 mm distance spindle center to table: min. 50 / max. 400 mm range of revolution per miute: 31,5 - 1.600 / 18 step U/min feed:: 25 - 1120 horizontal und 8,3 - 416 vertical mm/min rapid traverse : 3000 horizontal / 1000 vertikal m/min clamping surface area: 1340 x 320 mm machine weight approx.: 3000 kg dimension machine xH: 2,2 x 2,8 x 1,7 m Coolant system 2x counter bearing arbor holder Ø 18 / Ø 60 mm and other accessories in the tool cabinet. i.D. *

Condition: new, This universal milling machine is one of the top models of the UWF series, which is characterized by a large work area, universal milling head and horizontal spindle. The feed in all axes is provided by an electrically switchable servomotor with stepped control. Your milling head can be swiveled on two planes and the horizontal spindle has its own drive with a finely graduated gear shift. With its extensive equipment, this model is perfect for repair shops as well as training and production departments Beln Siujp Aucwjpjwl

Condition: used, Year of construction: 1977, Technical details: x-travel: 850 mm y-travel: 270 mm z-travel: 355 mm control: konventionell spindle taper ISO: SK 50 distance table/horizontal spindle: min./max.: 30 / 420 mm range of revolution per miute: horizontale Spindel: min./max.: 28 7 1400 - 18 step U/min Table dimensions: 1630 x 500 mm Beln Ssu Nddkoiupjwl clamping surface area: 1070 x 270 mm feed:: 16 - 800 / 18 step mm/min total power requirement: 8,0 kVA machine weight approx.: 3100 kg dimension machine xH: 2,2 x 2,0 x 2,1 m dimensions electric cabinet: 0,8 x 0,5 x 1,7 m Counterholder beam extendable = 650mm Cooling system with pump *

Condition: used, Year of construction: 1984, Technical details: x-travel: 950 mm Bjln Siusu Ndcyopewl y-travel: 255 mm z-travel: 250 mm spindle taper ISO: 40 / MK 4 range of revolution per miute: 45 - 2000 / 12 step U/min headstock swivable +/-: 90° vertikal = 90° rechts/links ° headstock swivable +/-: 45° vertical = 90° rechts/links ° feed:: (table) Tischvorschub: X/Y: 16 - 132 mm/min feed:: (table) Tischvorschub: Z: 8 - 66 mm/min clamping table: 1200 x 300 mm total power requirement: 5,4 kW kW machine weight approx.: 1,7 kg dimension machine xH: 1,6 x 2,0 x 2,0 m The spindle head can be swung out. Equipment: with coolant system with cooling water collecting tray Accessories div. milling cutters and milling shafts (comparable in the photo) *

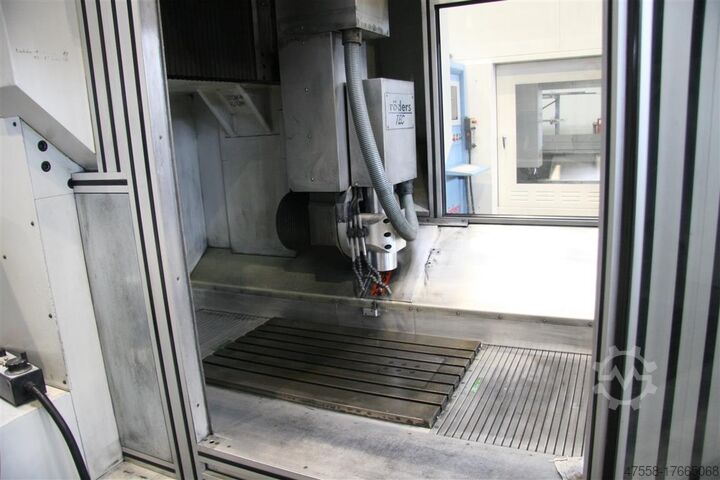

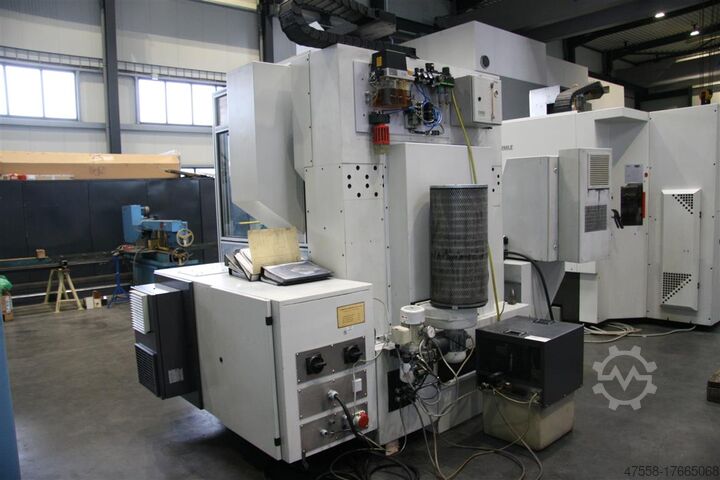

Condition: used, Year of construction: 1998, Technical details: x-travel: 760 mm y-travel: 550 mm z-travel: 300 mm control: Röders RMS 6 Vers. 2.70 spindle taper ISO: HSK E40 turning speed range: 42.000 stufenlos U/min spindle head swivable left - right: -52 ° / +5° (B-Achse) ° feed:: 0 - 30.000 mm/min Tool changer: 18-fach Werkzeuge + 2 places for Werkzeugvermessung Table dimensions: 860 x 550 mm table load capacity: 800 kp Number of working hours: siehe Foto h compressed air: 6,5 bar total power requirement: 20 kW weight approx.: 7000 kg dimension machine xH: 3,1 x 2,4 x 2,6 m dimension coolant device: ca. 0,6 x 0,8 x 0,7 m other features: Highspeed direct spindle digital axis drives AC servo motors ball screw spray cooling (microjet cooling jet and lubrication unit) working spindle Fischer MFW - 1230/42 up to 42.000 rpm tool measuring laser and probe system PS 25.00 Manual control unit Climatic cabinet Cooling water recooler Hyfra Bwsln Sou Ndbpeiupel The machine can be demonstrated under power. *

Condition: used, Year of construction: 1992, Technical details: x-travel: 800 mm y-travel: 550 mm z-travel: 500 mm spindle taper ISO: SK 40 control: Philips 532 quill stroke vertical: 80 mm turning speed range: 0-600 und 600-4000 steples U/min feed:: 1 - 3000 mm/min. rapid traverse: 6 m/min table surface area: 1100 x 600 mm table feed: 1 - 3000 /stufenlos mm/min switched on hours: 82194 h total power requirement: 9,6 (12 kVA) kW weight approx.: 4200 kg dimension machine xH: 2,9 x 2,2 x 2,5 m Bjln Sieu Nda Ejupjwl The machine is located in the technical department. further technical data: - vertical adjustment table (z-axis) 500mm - Headstock throat depth: min./max.: 200 / 750 mm Equipment: -coolant tank with pump -Manual control unit (hand operated) -linear measuring system Heidenhain *

Condition: used, Technical details: x-travel: 700 mm y-travel: 450 mm z-travel: 450 mm spindle cone ISO: 40 (SK 40) table surface area: 760 x 420 mm table feed: längs: 10 - 500 (Eilgang: 1,4 m/min.) mm/min table feed: vertical: 5 - 250 (Eilgang: 1,4 m/min.) mm/min spindle turning speed - continuous: 32 - 1600 / 18 step U/min spindle head swivable left - right: 10 ° links / rechts ° quill stroke vertical: 125 mm feed continuous: 10 - 500 / 8 step mm/min rapid traverse: 1,4 m/min Total power requirement: 6,5 kW weight of the machine ca.: 3,0 t dimension machine xH: 2,3 x 2,0 x 1,85 m Further features: Headstock projection min./max.: 2094 / 2544 mm Equipment: -cooling water pump with feed -Linear path measuring system - Heidenhain ND750 Accessories: -Machine vice Bslsvc Avhsn Siupswl *
