Used Wmw Bt 2 for sale (481)

Condition: excellent (used), 1 used, very well-maintained horizontal boring and milling machine / table drilling machine with point-to-point and contour control HEIDENHAIN TNC 145 and facing head Manufacturer: WMW UNION, Origin Germany Model: BFT 130/7-TNC 145 Year of manufacture: 1984 Technical data: Spindle diameter: 130 mm Spindle shank: SK 50 Table surface: 2000 x 1800 mm Travel: X-axis, transverse 2785 mm Y-axis, vertical 2520 mm Z-axis, longitudinal 2345 mm W-axis, quill 900 mm B-axis, table 360° Table load: 8000 kg Speed range: 5-1000 rpm Facing head speed: 5-2500 rpm Feed force X/Y/Z: 20000/20000/25000 N Feed rate X/Y/Z: 5-2500/5-2500/2-2500 mm/min Rapid traverse X/Y/Z: 5/5/3.15 m/min Total connected power: 100 kVA Total power consumption: 70 kW Footprint L x W x H: approx. 8.40 x 5.9 x 5.5 m Weight: 35,300 kg Accessories / Special features: • Point-to-point and contour control HEIDENHAIN TNC 145 • Spindle Ø 130 mm with SK 50 with motorized tool clamping • Facing head • Feed and rapid traverse • Lateral table supports R + L with hardened guides • Coolant system • Guide rail telescope covers • Swiveling control panel • Separate control cabinet and hydraulic unit Djdpfxjz Euuze Ailecn TOP condition! Siegfried Volz Werkzeugmaschinen Rüschebrinkstr. 151-153 DE - 44143 Dortmund - Wambel / Germany

Condition: used, The Modul KF 250 HSC bevel gear milling machine was designed as a universal machine for flexible machining of gears and is used by manufacturers of gear and transmission technologies for the milling process of bevel gears. Djdpfx Asxz Eg Aeilecn Technical data: Gear diameter: 300 mm Max. module: 10 Tooth width: 60 mm Space required approx.: 4.2 x 2.6 x 2.2 m Machine weight approx.: 11,000 kg *The image shows the machine in its current condition as a used machine. Upon request, it can be offered partially modernised or as a complete retrofit, fully modernised with new CNC control (SIEMENS ONE).

Condition: refurbished (used), Single-column hydraulic press (completely overhauled) PYE 250 S1M with draw cushion - Pressing force: 2500 kN - Installation height: 800 mm - Stroke: 500 mm Dcodpsycl Evsfx Ailen - Speed: downwards 200 mm/s - Draw cushion: 1000 kN, stroke: 200 mm - Drive: 20.5 kW - Dimensions: 3500 x 2000 x 1200 mm can be retrofitted with: - new control system, new control cabinet, light curtain (1 cycle, 2 cycles, protection), new hydraulics, - new seals - new occupational safety inspection

Condition: ready for operation (used), Facing lathe DP 2000 Dsdpfxjv Hx R No Ailecn Chuck diameter 2000 mm Length 4500 mm 2 tool posts included with the machine Weight approx. 22 tons Video of the machine in operation available!

Condition: used, Technical details: grinding length: 300 mm grinding spindle - swivable: 350 ° grinding head adjustable: senkrecht: 250 mm adjustment of spindle-head: quer: 230 mm grinding head adjustable: neigbar +/-15° ° grinding diameter: Ø 250 mm spindle revolutions per minute : 2200 - 3500 - 5200 U/min work table:: B:120 x L: 950 mm Dcsdpfx Aju Ng Npjilsn table movement: Obertisch schräg: recht/links 45° mm table movement: größter Tischweg: 500 manuell mm surface of magnetic-table: 305 x 130 x 100 mm dimensions of grinding wheel: Topfscheibe 125 x 20 Ø 32mm mm total power requirement: 1,8 kW weight of the machine ca.: 1,0 t dimension machine xH: 1,6 x 1,3 x 1,7 m dimensions of hydaulic: 600 x 550 x 870 mm Accessories: Universal clamping head cone MK5 Drill grinding holder Ø 10mm *

Condition: used, Technical details: z-travel: 1250 mm swing diameter over bed: 260 mm workpiece dia. over bed: 500 mm workpiece dia. over support: 250 mm center height over bed: 260 mm Dcjdpfx Aijv U Un Helen hobbing length: 2000 mm module max. : 8 / 12 total power requirement: 9,5 kW weight of the machine ca.: 3,8 t

Condition: used, Technical details: center height over bed: 260 mm workpiece dia. over bed: 500 mm workpiece dia. over support: 250 mm Dodsv U T Dyopfx Ailocn hobbing length: 2000 mm number of teeth: 2 - 50 feed:: 0,023 - 5,17 / mm/min module max. : 8 / 12 spindle bore diameter: 102 mm workpiece rpm : 18 - 224 U/min tailstock quill adjustment: 100 mm total power requirement: 9,5 kW weight of the machine ca.: 5,2 t dimension machine xH: 3,6 x 2,1 x 2,0 m

Year of construction: 1980, condition: used, table length 2000 mm table width 1800 mm table load 12,5 t total power requirement 10 kW weight of the machine ca. 7,5 t dimensions of the machine ca. m Table size approx. 2,000 x 1,800 mm Max. weight of workpiece, approx. 12,500 kg Table travel, longitudinal 1,250 mm Table height above floor 920 mm Longitudinal feed 0.63 - 2,000 mm/min Turning feed, with Ø 1,000 mm 1 - 3,150 mm/min Longitudinal quick feed 2,000 mm/min Turning quick feed, with Ø 1,000 mm 3,150 mm/min Weight of machine 7,500 kg External dimensions of machine 3,700 x 2,100 x 920 mm Total electrical load 10 KW - 180 V - 50 Hz Accessories / Special Features * Telescopic covers for the guides. * Infinitely variable table feed. * Optical display for setting and reading the longitudinal adjustment. * Optical display for setting and reading the angle. Dodpjt Hwq Rsfx Ailocn Condition : Satisfactory to good. Machine can be inspected under power. Delivery : Ex stock as inspected Payment : Net, after conclusion of contract Thank you for your interest.

Condition: used, Technical details: Pressure: 2,3 t stroke: 280 mm throat: 155 mm Dsdpfx Asu Nfwlsilocn max. ram stroke: Vorlauf: 0,08 m/sec daylight dimension with clamping plate Slide/ up: 355 mm distance table/ram: max. 355 mm clamping plate on table: 280 x 280 mm passage opening in table: Ø 100 mm ram speed - forward: 0,08 m/s ram speed - reverse: 0,32 m/s mortise hole in ram: Ø 20 x 45 mm height over floor: 725 mm total power requirement: 1,1 kW weight of the machine ca.: 0,5 kg dimension machine xH: 0,6 x 0,7 x 1,6 m Press with mechanical 2-hand operation. Pressure test up to 2,3to performed. Good condition. *

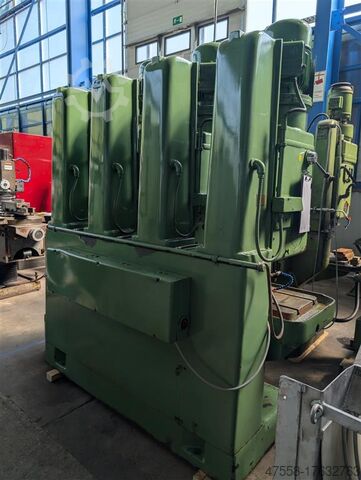

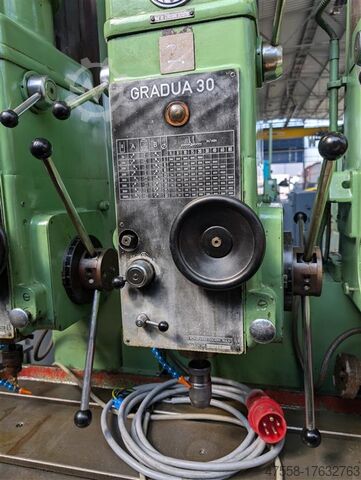

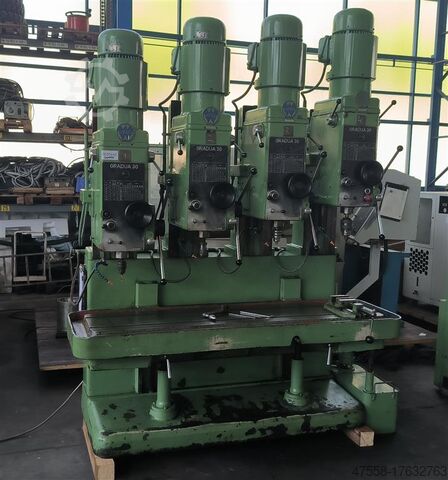

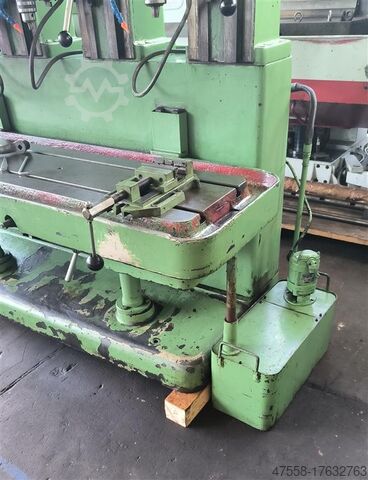

Condition: used, Technical details: number of spindles: 1000 bore capacity in steel (diameter): 32 mm bore stroke: 200 mm range of revolution per miute: 63 - 1000 U/min bore capacity in cast iron: 50 mm drill spindle - Morse Taper: MK4 spindle throat: 315 mm spindle distance: 475 mm number of drilling stations: 3 headstock adjustment: 280 mm feed:: 0,08 - 1,25 (9 Steps) mm/U distance between table/spindle: 710 mm table surface area: 450 x 560 mm total power requirement: 12,4 kW Dedpfxsw Th Nlo Ailjcn weight of the machine ca.: 3,1 t dimension machine xH: 2,15 x 1,40 x 2,65 m The previous owner removed a drill spindle with box from the gang drilling machine! *

Condition: used, Technical details: sheet width: 250 mm plate thickness: 2 mm number of rolls: 11 straightening feed: 5...30 m/min infeed height: 1250 mm total power requirement: 4,0 kW weight of the machine ca.: 620 kg dimensions of machine: 1,15x1,02x1,5 mm dimensions electric cabinet LxWxH: 0,66x0,53x0,32 m Band Leveling Machine with feed equipment: - sideways band guidance rolls model: - band intake height horizontal:1250mm Dcjdpfx Aju Ic Eweilsn - tiltable: positiv 30°; negativ 15° *

Condition: used, Centerless grinders SASL 125 1A, 200x300, 125x250, KCH 63 Djdpfx Aocup D Noiljcn

Condition: used, functionality: fully functional, 1. Machine specifications * Pallet changer with 6 pallets - Clamping area: 4 x 800 x 800 mm 2 x 800 x 1000 mm - Max. clamping weight: 2000 kg - Interference circle: D = 1200 mm - Changeover time: 35 sec. * Travel ranges - Workpiece (x): 1140 mm - Support vertical adjustment (y): 910 mm - Column transverse adjustment (z): 875 mm * Max. feed force: 20,000 N * Rapid traverse: 24 m/min * Working spindle - tool holder - SK 50 DIN - Drive power 100/40 % duty cycle: 22/32 kW - Torque 100/40 % duty cycle: 720/1040 Nm - Speed range, stepless: 20 ... 6000 rpm * Coolant supply through the spindle center: 10 bar * Tool magazine (cassette): 186 positions - Average chip-to-chip time: 11 sec. * Control system: Siemens 840C * Work area protection Dsdpfx Ajz H Tqdjilocn 2. Year of manufacture: 1995 The machine was only used in production until February 2011!!! 3. Warranty: none 4. Prices: * Machine: €30,000.00 5. Delivery conditions: * Payment terms: 100% before collection * Delivery date: ex-stock

Condition: used, Technical details: turning length: 630 mm swing diameter over slide rest: Hinterdrehschlitten: 250 mm center height over bed: 270 mm centre distance: 900 mm spindle bore: 26 mm range of revolutions per minute - continous: 1,8 - 450 U/min return movement speed: 23 / 32 / 46 / 370 / 510 / 740 U/min cross feed: 0,07 - 1,11 / 36 step mm/U longitudinal feeds:: 0,063 - 0,63 / 12 step mm/U tailstock quill taper MT: 5 quill travel: 250 mm Total power requirement: 7,0 kW machine weight approx.: 3,9 t dimension machine xH: 3,2 x 1,2 x 1,8 m Application: Mainly for relief turning and relief grinding of cutting tools (especially hobs with and without thread pitch). Back turning and relief grinding is possible from the front, the back and in the axial direction of the machine. Main drive via 8-stage manual gearbox. Feed gearbox is designed as a 12-stage manual gearbox. Swiveling range of the rear slide = 360deg. Swiveling range of the cross slide = 360degrees Equipment: lathe chuck driving disc Ø 210 mm with fixed tip fixed tip in tailstock Djdpfevbh N Rsx Ailecn with 4 pieces machine feet 3 jaw chuck Ø 250 mm i.D. *

Condition: used, Single-Column - Eccentric Press AMBOLD Type PEEV 25.2 Machine No. 11734 / Year of manufacture: 20 Press force: 25 tons Throat depth: 200 mm Table size: 520 x 400 mm Ram area: 155 x 155 mm Through hole in table: 185 x 155 mm Dsdpstx E N Tjfx Ailscn Stroke adjustment: 4–80 mm Ram adjustment distance: 40 mm Max. installation height: 270 mm (maximum stroke at BDC, table at lowest position) Clamping shank bore: Ø 32 mm Table height adjustment: approx. 150 mm Ram strokes: 160 strokes/min Motor power: 2.2 kW Power supply: 400 Volt, 50 Hz - Pneumatic clutch-brake combination ORTLINGHAUS - Press safety valve HERION - Press control PILZ - Electric foot switch and two-hand control - Height-adjustable press table via 2 threaded spindles - Automatic central lubrication VOGEL - UVV according to VBG 7n 5.1 for manual loading - Free-standing control cabinet L x W x H = 600 x 310 x 1500 mm Required space L x W x H: 1450 x 1000 x 1850 mm Weight: 1.9 tons Very good condition

Year of construction: 2020, condition: ready for operation (used), functionality: fully functional, WMW Niles, Czech Republic Made, CNC(Siemens Controls, Retrofitted in 2020) Floor Type Heavy Duty Lathe ,With heavy Duty Tail Stock, Steady Rest, Rollers, and with 6000 MM X 4000 MM Floor plates Dcjdpfxszww R Se Ailsn

Condition: used, Technical details: Pressure: 2,5 t throat: 155 mm max. ram stroke: 280 mm distance table/ram: 450 mm clamping plate on table: 260 x 1000 mm Dcjdpeu Nfv Usfx Ailsn ram speed - forward: 0,08 m/s ram speed - reverse: 0,32 m/s mortise hole in ram: Ø 20 x 45 mm height over floor: 930 mm total power requirement: 1,1 kW weight of the machine ca.: 500 kg dimension machine xH: 0,85 x 1,0 x 17 m The machine is equipped for straightening work. *

Condition: used, Technical details: travel -y axis: Schlitten auf Balken: 200 mm spindle taper ISO: SK 40 spindle head swivable left - right: je 90° ° quill stroke: 80 mm turning speed range: 90 - 900 / 5 step U/min distance table - lower edge spindle: min./max.: 50 / 400 mm table surface area: Anbaufläche:760 x 200 mm table surface area: Spannfläche: 630 x 200 mm max. table load: 100 kg x-travel: Tisch längs: 320 mm z-travel: Tisch vertical 350 mm table swivelabel +/-: re/li je 30° distance table - lower edge spindle: min./max.: 50 / 400 mm feed:: Tisch: stufenlos 14 - 71 mm/min total power requirement: 4,0 kW weight approx.: 1.200 kg dimension machine xH: 1,3 x 1,5 x 1,8 m Dedpfx Aou Ndb Ajilocn Equipped with Heidenhain DRO for X and Y travel Swiveling work spindle The feed works via variator gear. The table is swivelable. Spindle speeds operate in 3 levels via gears and in 2 levels electrically. Cooling device diverse tool holders SK40 Der Fräsbalken ist um ca. 350mm ausfahrbar. The machine vise is not included in the delivery scope (see picture), but can be purchased additional! *

Condition: used, Technical details: pressure: 25 t stroke: 500 mm daylight dimension : table/slide up: 800 mm throat: 360 mm ram stroke: 500 mm ram speed - forward: 0,100 m/s ram speed - reverse: 0,45 m/s Table dimensions: 630 x 500 x 75 mm passage inside table: Ø 180 mm surface area of ram: 450 x 360 mm mortise hole in ram: Ø 32 mm height over floor: 710 mm total power requirement: 8,75 kW weight of the machine ca.: 2,2 t Dcodpfx Aisvc Awxjlon dimension machine xH: 1,7 x 1,1 x 2,95 m Operation via two-hand control panel. (and one-hand operation) *

Condition: used, Technical details: Dsdpfx Aou N Ddwoiljcn pressure: 250 t stroke: Dauerlauf-Leerlauf 40 mm slide stroke: verst./adjust. 36 - 126 mm adjustability of Ram: 110 mm clamping surface ram: 630 x 500 (lxb) mm clamping surface area: 1000 x 750 x 100 mm distance table/ram: 400- 526 mm passage opening in table: 400 x 360 mm operating pressure: 0,6 MPa MPa ejector path: 63 mm throat: 400 mm total power requirement: ca. 20,0 kW dimensions electric cabinet LxWxH: 1,2x0,65x2,1 m dimension machine xH: 2,9x1,2x3,4 m - two hand control - operation panel accessory: - foot plate 2200x1500x40mm *

Condition: used, Technical details: weight: 1900 kg 2 x steady rests for WMW DP2 No.1 & No.2 price per piece Dcodpfx Aieyyb Ntelon *

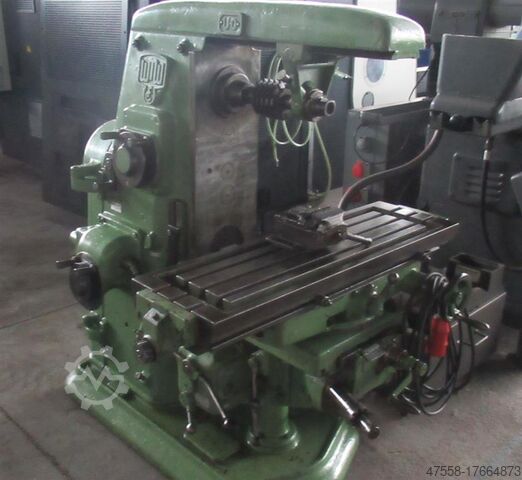

Condition: good (used), Manufacturer: WMW VEB Type: FW 200×630 x-y-z travel: 380 – 140 – 230 mm Dcodpfx Asik Hcueilon Table size: 200x630mm

Condition: refurbished (used), functionality: fully functional, 1. Machine specifications: * Travel ranges - Table longitudinal travel (x) 1190 mm - Cross slide transverse travel (y) 530 mm - Column vertical travel (z) 540 mm * Table surface area 480 x 1600 mm * T-slots 18 mm at 80 mm spacing 5 * Table load capacity 1500 kg * Tool holder SK 50 DIN 2080 * Diameter in the front bearing 100 mm * Milling spindle drive power 15 kW * Speed range 35.5 ... 1800 min-1 * Number of speeds 18 * Step ratio, automatic shifting 1.25 * Max. torque 2200 Nm * Feeds 3 ... 2000 mm/min * Rapid traverse longitudinal and transverse 10000 mm/min vertical 5000 mm/min Dsdpfx Aijz H Ttxolecn * Coolant system 40 l/min * CNC control TNC 360 Heidenhain, feed motors SIEMENS * Connected load 35 kW * Machine weight 5400 kg 2. Technical condition The machine was only used in production until May 2009!!! Due to the overhaul, the machine meets the acceptance conditions for new machines. All guideways have been re-scraped. Ball screw drive and measuring systems in all axes have been replaced. All motors have been checked and repaired in the authorized workshop. The milling spindle has been checked and repainted. A milling head can be provided for vertical machining. 3. Warranty: last inspection 04/2026 3 months 4. Prices * Machine 59,000.00 € * Assembly/Commissioning 5,250.00 € 5. Delivery conditions: * Pricing: Prices are quoted net for delivery or service ex works, excluding value-added tax. We reserve the right to sell the machine in the meantime. Our terms and conditions of delivery and service apply. * Payment terms: 30% down payment upon order 60% upon delivery 10% after handover * Delivery date: ex warehouse

Condition: used, Guide rail and surface grinding machine WMW FRITZ HECKERT Aschersleben Type SZ 1000 x 1250 x 3000 / 344 Manufacturer's No. 13.2236.2 Year of manufacture 1989 Nominal grinding area 3000 x 1250 mm Table clamping surface 3240 x 1000 mm Dcodpfshv A A Dox Ailen Grinding length max. 3300 mm Processing width 1250 mm Processing height 1250 mm Grinding wheel diameter (surface grinding support) max. 600 mm Grinding wheel width (surface grinding support) max. 100 mm Grinding wheel diameter (swiveling support) max. 450 mm Mains connection 400 Volt, 50 Hz - Swiveling grinding support, motor power 16.5 kW, infinitely variable speed - Grinding support for surface grinding, motor power 15 kW, infinitely variable speed - New electrical control system, based on SIEMENS S7, year of manufacture 2001 - New electrical control cabinet located nearby, year of manufacture 2001 - Infinitely variable grinding wheel speed on both grinding supports - Swiveling grinding spindle for guide rail and profile grinding - Control panel swiveling and height-adjustable - Coolant system located nearby - Hydraulic system located nearby - Oil circulation lubrication system located nearby - Various grinding wheels and arbors Space requirement (complete) L x W x H 11900 x 7700 x 4600 mm Weight 45 tons Very good condition

Condition: used, Technical details: turning diameter over bed: 350 mm turning diameter over support: 200 mm turning length: 560 mm centre height: 170 mm spindle bore: Ø 32 mm range of revolution per miute: 36...1.800 / 8 step U/min range of feed in x - axis: längs: 0,02..0,8 m/min range of feed in y - axis: plan: 0,01..0,4 m/min tailstock quill taper MT: MK 4 tailstock quill adjustment:: 140 mm total power requirement: 5,5 kW weight of the machine ca.: 2,0 t dimension machine xH: 2,1x 1,1 x 1,4 m -Working stroke longitudinal support=580mm; plan support=170mm; top support 130mm; -Workpiece support via 3-jaw chuck Niles Ø 160mm, speed 2,800 rpm. -Tool holder quick change steel holder Multifix. Equipment: Cooling water pump 4 pieces machine feet Copying device * Dodpfx Aovadd Isilscn
