Used High Precision Lathe for sale (28,015)

Condition: excellent (used), Year of construction: 2005, Schaublin 102N-VM-CF high precision Swiss lathe Year: 2005 max. admitted diameter over the bed 200 mm max. admitted diameter over the slides 120 mm Height of centers 102 mm Distance between centers 450 mm Bed length 1000 mm Bed height 168 mm Power 4.2 KW Spindle speed 100 - 3000 RPM Spindle W25 Transverse stroke, X axis 100 mm Resolution, X axis (radius) 0,01 mm Longitudinal stroke, Z axis 90 mm Resolution, X axis (radius) 0,01 mm Lead screw - 8 longitudinal feeds - Larger feeds possible when using the thread control for turning Max. cross section of tool shank (Multifix system) 10x10 mm Bar holder (MULTIFIX system) diameter 20 mm Height and side-adjustable tailstock: Internal taper of the sleeve Mk2 Spindle OD 30 mm Spindle stroke 80 mm Coolant tank capacity 23 L Electrical power supply voltage 400 V Overall dimensions: length x depth x height: 1500 x 510 x 1550 mm Accessories / options: - ACU-RITE digital readout unit, 3 axis X-Z-Z1 X resolution 0.001[mm] Z resolution 0.005[mm] Z1 resolution 0.005[mm] - Coolant system - Rear sheetmetal guard - Double Start/Stop pedal and spindle rotation direction inversion - Schaublin W25 collet set - Cast iron chuck W25 Ø110[mm] with jaws - Quick-change toolholder turret MULTIFIX-A with holders - Driving system for auxiliary equipment with BELT adjustable and swivelling belt-tensioning attachment drive device complete with motor belt Ø6x2’500[mm] - Tailstock Bsdpfx Aew N Rh Aomrewu - etc... Under power in our warehouse.

Condition: new, schinfa Machinerevisie has been the specialist in revision for over 27 years. We do all this in-house. We can grind up to 2700 mm. We bring the machines far back within the DIN standard. Bwodpfx Ajfhnr Ismrju We can overhaul a machine from you or deliver a machine from us.

Condition: used, New precision lathe chuck, precision chuck 3-jaw high precision power chuck High Precision Air Chuck KITAGAWA KPC63C100 EP 3-jaw pneumatic precision chuck with integrated cylinder Chuck No. L1208 - P - EP Year of manufacture: 2011 External diameter: 150 mm External clamping range: approx. 3-135 mm Internal clamping range: approx. 6-149 mm Jaw stroke: Ø 2.5 mm Max. clamping force: 11.6 kN Repeatability: 0.0010 mm Bwsdpfjyif I Ijx Amreu Jaw mounting bolts: M5 x 16 mm, 4 units per jaw Chuck mounting bolts: 6 units, M6 x 65 mm Max. speed: 4000 rpm - Unused, packed in original box - Box only opened for photos Weight (chuck): 6.3 kg Weight with box: 8.5 kg New, unused, as-new from stock Suitable for DMG WASINO G series and many Japanese lathes

Condition: like new (used), functionality: fully functional, Year of construction: 2012, laser source manufacturer: Rofin, laser power: 200 W, overall weight: 1,000 kg, total length: 2,300 mm, total width: 770 mm, total height: 1,800 mm, Equipment: CE marking, documentation/manual, StarCut Tube Precision CNC cutting for tubes and flat parts Precision cutting for tubes and flat materials From catheter shafts to stents, hypotubes, and more A highly stable cutting platform – the SL uses a mineral cast base – delivers contour cutting accuracy better than ±5 µm. Bjdpfjzt A H Rjx Amrjwu The machine was manufactured in 2012 but never used in production. It was only checked to ensure that everything was functioning correctly. Weight (kg) 1000 Length (m) 2.3 Height (m) 1.8 Depth (m) 0.77 Other dimensions Pallet not included in the dimensions We can assist with delivery to any location. The machine is in very good technical condition. The machine can be inspected and tested in Poland at the following address: 33-350 Piwniczna Zdrój, Poland.

Condition: good (used), Benzinger TNL / TRP I CNC Precision Lathe Manufacturer's specifications, deviations are possible. Center height: 80.5 mm Max. turning length: 100 mm Max. swing diameter over bed: 220 mm Max. swing diameter over cross slide: 130 mm Max. travel length in x direction: 300 mm Max. travel length in z direction: 240 mm Power supply: 380 V 50 Hz CNC Numerical Control: Bosch CC 100 T Accessories/Special Equipment: TRP Swing Loader Complete factory closure, large selection of storage platforms, pallet racks, shelving units, and paternosters. Bwedpfxjhufc Eo Amrju High-quality industrial machines, lathes, grinders, and hand tools Financing through our bank is also possible. komplett-konzept.leasingo.de Find more items - new and used - in our shop! International shipping costs upon request!

Condition: used, Precision Lathe BOLEY Type 4 LE Conventional High-Precision Universal Multi-Function Machine Tool Serial No. 42562 Centre Distance 500 mm Swing over bed 240 mm Centre height over bed 120 mm Swing over cross slide 140 mm Centre height over cross slide 70 mm Spindle bore 23 mm Chuck mounting M40 x 3.5 mm external thread Tailstock taper MK 2 Quill stroke / travel 80 mm Spindle speed 30 - 1300 rpm Drive power 1.1 kW Power supply 400 V, 50 Hz - 3-axis digital readout RSF ELECTRONIC, Type Z503ST-220 - Position display HEIDENHAIN, Type VRZ 136B for rotary encoder - LCD display unit for measuring equipment on accessories - Spindle speed adjustable via 2 V-belt stages, 2 gear stages, and infinitely variable via variator belt drive - Longitudinal feed via change gears + set of change gears - Several 3-jaw and 4-jaw chucks Ø 100, 125, and 140 mm with chuck jaws - MULTIFIX quick-change tool post size A with 8 exchangeable tool holders - Vertical slide with clamp - Several clamps and vices - Clamping plates + fixture tables - Indexing table as dividing attachment - Dividing head with collets and tailstock - Heavy dividing attachment with clamping plate and handwheel drive Bwedow Dvv Aopfx Amrju - WOHLHAUPTER spindle tools and milling cutters + collets - Rapid-traverse spindle with pneumatic drive - Milling slide with collet chuck - External cylindrical grinding attachment - Live centre - Steady rest - VOGEL central oil lubrication - Built-in mini compressor (3.5 bar) in machine base - Compressed air maintenance unit for tooling - Operating manual - Machine mounted on steel plate (steel plate 1200 x 540 x 20 mm) Required space (L x W x H) 1650 x 950 x 1750 mm Weight lathe 660 kg (with steel plate) Weight of accessories 325 kg Very good condition

Condition: refurbished (used), Year of construction: 2018, ALUMINIUM PRECISION HIGH-SPEED CUT-TO-LENGTH LINE 1500.3.12, made AUXMET Revamped and upgraded 2018 for aluminium. Thickness: 0,4 – 2 mm Coil width: 500 – 1.510 mm Exit sheet length: 500 – 4.000 mm Outer coil diameter: 800 - 1.800 mm Coil weight: 12 Tn N° of straightening rolls: 19 rolls Diameter of leveling rolls: 45 mm Bwjdpfx Amevtpdgjrsu

Condition: new, Year of construction: 2025, turning diameter over cross slide: 250 mm, turning length: 730 mm, turning diameter: 500 mm, spindle speed (max.): 1,800 rpm, CNC lathe machine CK 6150 with flat bed We offer a new CNC lathe machine model CK6150. We use this machine in our production and you can see it in operation before ordering. The CK 6150 lathe has a flat bed and hardening guides, which ensures a long period of operation of the equipment. The machine is equipped with a CNC system, the GSK CNC system is installed as standard. Optionally, the machine can be equipped with a Fanuc or Siemens CNC system. The machine can have a tool holder for 4-6 or 8 tools, depending on the customer's wishes. It is possible to install a hydraulic chuck on the machine, which will greatly simplify the process of installing parts on it and a hydraulic tailstock. The CK 6150 lathe can be equipped with additional supporting frame for more accurate manufacturing of long parts. Technical specifications: Model CK 6150 x 1000 Maximum workpiece diameter over bed 500 mm Maximum workpiece diameter over support 250 mm Maximum workpiece length 1000 mm Maximum turning length 730 mm Spindle bore diameter 82 mm Spindle speed 150-1800 rpm Engine power 7.5 kW Mechanical chuck (hydraulic optional) Chuck size 250 mm. 4-position tool holder (6 or 8 optional) Maximum tool size for tool holder 25x25 mm Machine weight 2700 kg Machine dimensions 2650×1700×1820 mm We can also supply lathes CK 6140, CK 6150 and CK 6160 with other dimensions of the working part: CK 6140 dimensions of the working part 550/750 mm CK 6150 dimensions of the working part 1000/1500/2000 mm CK 6160 dimensions of the working part 1000/1500/2000 mm CK 6152E dimensions of the working part 1000/1500/2000/3000 mm CK 6165E dimensions of the working part 1000/1500/2000/3000 mm CK 6165E dimensions of the working part 1000/1500/2000/3000 mm CK 6185E dimensions of the working part 1000/1500/2000/3000/4000 mm CK 61100E dimensions of the working part 1000/1500/2000/3000 mm Bwodpfexdmgvsx Amrou CK 61125E dimensions of the working part 1000/1500/2000/3000 mm

Year of construction: 2021, condition: excellent (used), functionality: fully functional, machine/vehicle number: 4104064175, KITOTEC CT-12000-D high-precision cutting tool measuring machine (2021) KITOTEC CT-12000-D is universal high-precision measuring device for all cases: suitable for directly measuring of the special angles of drill, tap, end mill, reamer, inserts or saw, such as orthogonal rake, relief, helix, tool cutting edge angle, end cutting edge angle, pitch, core diameter, chisel edge, chisel edge angle relief, angle axial, radius centre measurement, crosshairs, simple and rotatable, chip angle and radial clearance angle. Measuring length 250 mm . Swivelling around 280 degrees with 300 mm sliding mounting plate. Dowel system can be repositioned. Bjdpovi Enajfx Amrjwu Measurement software Metric MT 9.02. The pixel resolution in the highest zoom level with conversion lens 0.5x is 2 microns. Included is Rollomatic Concentricity Pro with adapter plate. - Zoom system 12x with adapter 0,67x with angled optical system - attachment lense 0,5x - double guide rail system in Z and Y axis - Z axis 170 mm – pitch 1 mm with resolution, resolution 0.001 mm - X axis 100 mm – pitch 1 mm - Y axis 250 mm – pitch 5 mm (ball screw spindle) with measuring system resolution 0.001 mm - turning axis 280° with 150 mm with V-bloc, and rear stop, small V-bloc for smaller tools - LED cold light source with slot ring light and diffuser – movable - double LED spot light with goose neck arms - back light, parallel with holder movable blue for automatic measuring functions - measuring software Metric MT 9.02 - interface to read out XZ axis to software - incl. NUC-PC 4K WIN 10 GB

Condition: like new (used), Year of construction: 1992, Lathe WEILER Precision center lathe in ergonomic design The Weiler Ergodor is the first German ergonomically designed lathe. It creates a more humane workplace and prevents health problems. The key feature is that the employee can operate this lathe while standing or sitting. Technical data Center width 470 mm Turning length 430 mm Center height 145 mm Rotation Ø over cross slide 160 mm Rotation Ø over bed 300 mm Spindle head, short taper flange Bayonet mounting DIN 55022 size 5 or Camlock clamping D 1-ASA-4 Spindle bore 36 mm DIN 55022 size 5 Spindle inner taper Spindle speeds Speeds 30 - 3550 rpm S Speeds 15 - 3550 rpm Brake motor 3 kW Brake motor 1.5/3 kW Face slide travel 150 mm Travel of the top slide 100 mm Bwedpsvgqu Hofx Amrju Feed rates and thread pitches on the gearbox switchable steps 30 Section 2 1.5/3 kW 38 Gear ratio in headstock 3 20 Long feeds 150 mm via change gears 100 mm via toothed belt Face feeds = 1/2 Longitudinal feed values Metric pitches 0.2 - 12 mm Module pitches 0.1 - 4 Dimensions 1450 x 640 x 1500 mm Dimensions 1450 x 640 x 1500 mm Net weight 1000 kg Acceptance according to toolmaker's accuracy DIN 8605 20 Built according to the rules of occupational safety, official test no. A. EM 11 1545/80. Encombrement 1450 x 640 x 1500 mm

Condition: excellent (used), functionality: fully functional, High-Precision Leadscrew Lathe Schaublin 102N-VM Technical Data: >> Machine No. 283152 >> Centre height: 102 mm >> Centre distance: 450 mm >> Spindle bore: 25 mm >> Longitudinal feeds: 8 steps from 0.02 to 0.3 mm/rev >> Metric threads: 20 pitches from 0.25 to 4 mm >> Imperial threads: 25 pitches from 80 to 6 TPI >> Tailstock: Morse taper 2 >> Infinitely variable speeds from 270–3000 rpm Bodpfx Amswvq Tmorjwu >> Weight: approx. 700 kg Accessories: >> 3-jaw chuck, 2 sets of jaws >> Tool post with 6 tool holders >> Quick-clamping device, draw tube and 34 collets >> Coolant system >> Cutting tools, drill chuck (see images) >> Operating manual with spare parts list About the machine: For sale is a Schaublin 102VM leadscrew lathe in very good condition. The machine is, of course, fully functional. All slides operate smoothly and evenly. The 102VM runs quietly even at high speeds. The gear set for thread cutting is present, but is probably not complete. Take the opportunity to view and test the machine under power on site and see its good condition for yourself.

Condition: good (used), Year of construction: 1982, functionality: fully functional, Precision high-speed lathe make FEINBAU Machine No. 4891 Type PM1-FZB Year of manufacture 1982 Technical data : . Maximum turning length 90 mm Swing diameter over bed 220 mm Swing diameter over support 110 mm Center distance 160 mm Bore 23 mm Drive motor 0.65 / 1 / 1.3 kW Space requirement , length x width 1.6 x 0.8 x 1.2 m Scope of delivery : Collet chuck device for collets : K23 DIN 6341 Bsdpfxozp Uw He Amrswu Collets Hand lever cross support with adjustable stops Hand lever boring vise, with 2 x MK1 holders and stops . .. Ongoing purchase of used German machines without NC or CNC control .

Condition: good (used), functionality: fully functional, 1 x Repositioning Lathe Precision Engineering PM 1-FZ Bwedozl Dr Espfx Amrou Equipment: - Hand lever cross slide with Multifix quick-change system design - Electric tailstock for drilling and threading - Collet chuck with draw-in collets Technical Data: - Spindle bore: 23 mm - Spindle speeds: 700/1400/2800 (left/right) - Center height: 110 mm - Distance between centers: 160 mm - Largest swing over bed: 220 mm Accessories: 20 x Draw-in collets 359 E K 23 (1 - 20 mm, increasing in 1 mm increments) 1 x Draw-in collet in tailstock 319 E K 12 1 x Multifix type tool holder with 1 cassette Operating manual (copy) Additional accessories, such as collets, are available at an extra charge. The machine can be inspected while powered on.

Condition: ready for operation (used), functionality: fully functional, spindle bore: 28 mm, input voltage: 400 V, spindle nose: D1/4, spindle speed (max.): 4,000 rpm, spindle speed (min.): 45 rpm, overall weight: 955 kg, For sale: AI DR1L S lathe – very complete with accessories Bwodpozxgy Eefx Amreu For sale: an AI DR1 LS universal conventional lathe, complete with an extensive set of accessories. A robust and heavily built Dutch lathe, suitable for precise turning work and various tasks in a workshop, toolmaking shop, or for the serious hobbyist. Technical specifications AI DR1 LS Center height: 133 mm Center distance: 750 mm Turning diameter above the bed: 270 mm Turning diameter above the cross slide: 145 mm Main spindle bore: 26 mm Max. collet capacity: 18 mm Main spindle mount: Camlock D1-4" Main spindle taper: MC 4 Tailstock taper: MC 2 Longitudinal feed: 0.022 – 2.6 mm/rev. Metric thread: 0.2 – 7.5 mm Whitworth thread: 90 – 2 threads per inch Number of spindle speeds: 24 Spindle speeds: 45 – 4,000 rpm Motor power: 1 / 1¾ / 2½ hp Weight incl. standard accessories: approx. 855 kg Extensive accessories The lathe is supplied with, among other things: Various chucks Collets Taper attachment Tool holder Follow rest Various other accessories and tools And more The D1-4 Camlock spindle mount allows for quick and secure changing of chucks. With 24 spindle speeds from 45 to 4,000 rpm, a center distance of 750 mm, and a turning diameter of 270 mm above the bed, this is a particularly versatile lathe. With a weight of approximately 950 kg, it is a stable and well-built machine, suitable for both fine precision work and heavier turning operations. A great opportunity for someone looking for a complete AI DR1 S with many original and usable accessories. Condition: used Location: Emmeloord Asking price: € 6450 EX Inspection and demonstration are possible by appointment. If you are seriously interested or require additional information, please contact us.

Condition: good (used), Center height: 102 mm Distance between centers: 300 mm Maximum diameter above the carriage: 120 mm Maximum diameter above the bed: 200 mm Spindle bore: 20 mm Bwsdpfxsz Hwffj Amreu Collet type: W20 Weight: approximately 450 kg Dimensions: L1200 x W600 x H1400 mm Base: cast iron Equipment: Tailstock, digital cross slide, Tripan turret, tool holder x 3, microscope, chuck, set of 2 drawers, set of collets.

Condition: excellent (used), I am offering for sale a high-quality RÖHM KFD-HS 200/3 hydraulic lathe chuck, designed for professional CNC lathes. The chuck is in very good technical and visual condition. It looks practically new and appears to have been used only a few times. The working surfaces and guides show only minimal signs of use. The set includes: * RÖHM KFD-HS 200/3 lathe chuck, * 3 standard jaws, * 3 RÖHM 538-55 top jaws, * operating wrench, * sturdy wooden transport box (I am not sure if this is the original box for this chuck). Technical data: * Manufacturer: RÖHM * Model: KFD-HS 200/3 * Diameter: 200 mm * Type: hydraulic 3-jaw lathe chuck * Maximum clamping force per jaw (Fmax): 48 kN * Total clamping force (Fges): 110 kN * Maximum rotational speed: 6500 rpm * Identification number: 155099 Bwedezlaqkspfx Amrsu * Top jaws: RÖHM 538-55 * Country of manufacture: Germany The chuck is ideal for professional applications in machining and working on CNC lathes. It is a robust piece of equipment from the renowned German company RÖHM, which is valued for its high quality and precision.

Condition: good (used), Right & left rotation with knee reverse switch 2 steps Vario Headstock with reduction gearing Cross slide with 90 mm stroke Tripan steel holder 1 set of W20 collets 2 drawers lamp 380 VAC Centre distance: 350 mm Center height: 102 mm Turning-Ø over bed: 200 mm Turning-Ø over slide: 120 mm Spindle bore: 20 mm Spindle speed: 55 - 3000 rpm / infinitely variable Bwsdpjd Htvdjfx Amrou Tailstock quill: MK 2 Weight: approx. 500 kg Machine size W x D x H: approx. 1300 x 600 x 1300 mm Different "Schaublin 102" models in stock!

Condition: good (used), Center height: 130 mm Distance between centers: 450 mm Speed: about 55-3000 U / min Bsdpfx Amjcuhvuerowu Pneumatic clamping system Spindle nose: W 25 Div. W25 collets available Div. holder available BERGER LAHR axis motors Combitec EIP E-500 Control Manual control available Coolant system available Machine lamp available Machine feet Available Dimension (LxWxH): approx 1400x560x1230 mm Weight: approx 550 kg Different "Schaublin 102" models in stock!

Condition: good (used), functionality: fully functional, Center height 110 mm Center width 160 mm Bwodpoz E A D Defx Amrsu Spindle bore 23 mm 3 speeds for clockwise rotation and 3 speeds for anti-clockwise rotation

Condition: excellent (used), functionality: fully functional, spindle bore: 28 mm, input voltage: 400 V, spindle nose: D1/$, spindle speed (max.): 4,000 rpm, spindle speed (min.): 45 rpm, overall weight: 850 kg, For sale: AI DR1 S lathe – very complete with accessories Bwjdpfx Aezxg Agsmrsu For sale: an AI DR1 S universal conventional lathe, complete with a comprehensive set of accessories. A robust and heavy-duty Dutch lathe, suitable for precise turning work and a variety of tasks in a workshop, toolmaking shop, or for the serious hobbyist. Technical data AI DR1 LS Center height: 133 mm Distance between centers: 470 mm Swinging diameter over bed: 270 mm Swinging diameter over cross slide: 145 mm Spindle bore: 26 mm Max. collet capacity: 18 mm Spindle nose: Camlock D1-4" Spindle taper: MC 4 Tailstock taper: MC 2 Longitudinal feed: 0.022 – 2.6 mm/rev. Metric thread: 0.2 – 7.5 mm Whitworth thread: 90 – 2 threads per inch Number of spindle speeds: 24 Spindle speeds: 45 – 4,000 rpm Motor power: 1 / 1¾ / 2½ hp Weight incl. standard accessories: approx. 855 kg Extensive accessories The lathe comes with, among other things: Various chucks Collets DRO EASSON Tool holder Follow rest Various other accessories and tools And more Thanks to the D1-4 Camlock spindle nose, chucks can be changed quickly and easily. With 24 spindle speeds from 45 to 4,000 rpm, a distance between centers of 750 mm, and a swinging diameter of 270 mm over the bed, this is a particularly versatile lathe. Weighing approximately 855 kg, it is a stable and robustly built machine, suitable for both fine precision work and heavier turning operations. A great opportunity for someone looking for a complete AI DR1 S with many original and useful accessories. Condition: used Location: Emmeloord Asking price: €8750 EX Inspection and demonstration are possible by appointment. If you are seriously interested or would like additional information, please contact us.

Condition: used, centre height 102 mm centre distance 450 mm spindle bore 25 mm Bwedpswbi Hpofx Amrsu spindle speed: 220 - 2600 Accessories were not checked for completeness Cabinets are not included in the scope of delivery

Condition: used, Manual lever lathe SCHAUBLIN Type 102 Precision mechanic lathe Machine no. 208322 Year of manufacture: approx. 1970 Bwedjw Iq Umjpfx Amrju Total bed length: 650 mm Center height over bed: 102 mm Center height over carriage: 53 mm Medium spindle speed: approx. 2,800 rpm (3 speed stages) Drive motor: 0.37 kW, 2800 rpm Power supply: 380 Volt, 50 Hz - Manual lever parting and grooving slide with precisely adjustable stops - Tool holder with precise height adjustment - Collet chuck device (only one collet included) - Speed change by shifting the drive belt Space requirement with stand: L x W x H 1150 x 600 x 1200 mm Weight with stand: 130 kg Good condition

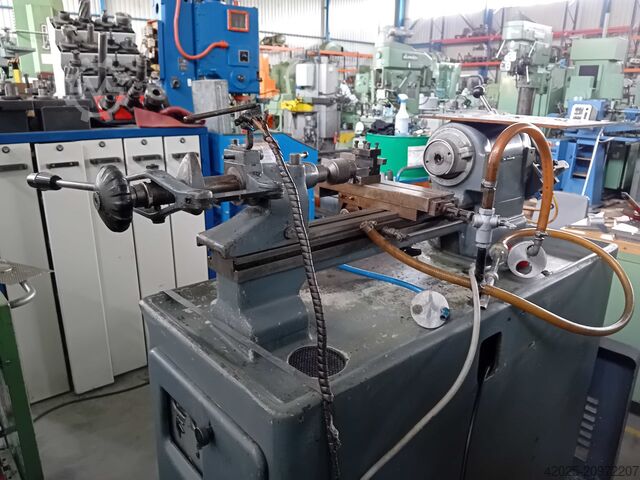

Condition: good (used), SCHAUBLIN 102 lathe, serial number 215617. Bsdpfeztc Dpsx Amrswu

Condition: good (used), SCHAUBLIN 70 lathe Bodpfxoztcz Ue Amrewu

Condition: excellent (used), Year of construction: 1990, High-precision drilling and milling machine Aciera 22 VA Good condition, from a school workshop Year of manufacture approx. 1990 Bjdpfshqm D Nsx Amrowu Table 600 x 320 mm Speed 40 - 3600 rpm Speed setting rpm 4 automatic feeds 40-280 80-560 275-1800 550-3600 Spindle diameter 65 mm Drilling spindle stroke 120 mm Spindle mount: Aciera quick-change system Automatic thread cutting Drilling capacity in solid material 25 mm Max. drilling capacity up to 30 mm Height adjustment via hand crank Motor: 1.1 kW Lamp Some quick-change chucks Dimensions WxDxH 90 x 130 x 185 cm Weight approx. 800 kg Technical specifications subject to change.
