Used Horizontal Jig Boring Machine for sale (65,510)

Condition: excellent (used), Year of construction: 2018, Heidenhain iTNC 640 CNC control Table dimensions: 1800 x 2200 mm Max. workpiece weight: 25,000 kg X-axis travel: 3,500 mm Y-axis travel: 2,500 mm Z-axis travel: 1,600 mm Spindle/cone diameter: 130 mm Speed range: 3,000 RPM Spindle power: 46 kW Max. torque at 100% duty cycle: 1,000 Nm Machine weight: 38,000 kg Power-on hours: 16,631 Hjdpfx Asw Hbnvedajh Spindle hours: 4,430 Accessories: – Controlled B-axis – 40-position tool changer / chain-type magazine – Belt filter system with high-pressure pump – Chip conveyor – Heidenhain TS 460 workpiece probe – Automatic milling head type HUI 50 – Movable operator cabin Yp = 1,600 mm, Zp = 600 mm – Centralized lubrication system – Pfannenberg oil cooler – Documentation

Condition: used, TECHNICAL DETAILS CAPABILITIES - Movement on X-Y : 400 x 250 [mm] - Vertical slide stroke : 400 [mm] - Drilling spindle stroke : 130 [mm] - Clearance between spindle nose and table : 570 [mm] - Clearance between mount and spindle center : 320 [mm] TABLE - Useful surface : 595 x 320 [mm] - Movement X-X : automatic with ball screws - Drilling head - Internal taper : Morse 2 - Spindle speed : 60-3000 [rpm] - Spindle feed : 0.03-0.06 [mm/r] Hodpjuhbprefx Adajh - Voltage : 3 x 380 V / 50 Hz - Installed power : 2.1 kW - Machine net weight : 1100 [kg] - Dimensions : 2050 x 1600 x 1900 [mm] EQUIPMENT - Digital display : X-Y - Circular table : Ø 300 - Machine lamp

Condition: used, machine/vehicle number: 52 / 519, spindle diameter:90 mm x-travel:700 mm distance between columns:900 mm size of table:770 x 900 mm x-Travel:700 mm y-travel:500 mm z-travel:1100 mm feed range - table:15 - 280 mm/min rapid traverse Z-axis:530 m/min spindle bore diameter / taper:MT4 (Morse) mm spindle bore diameter:max. 230 mm spindle stroke - max.:170 mm spindle speeds low range:10 U/min spindle speed high range:2000 U/min vertical feeds of spindle head::0.02 - 0,2 mm/r Hjdpfjh Ra Stjx Adajh feed steps:6 Main spindle capacity:3 kW total power requirement:4,2 kW weight of the machine ca.:4 t dimensions of the machine ca.:1,9 x 2,2 x 2,4 m Hauser (SIP) High Precision Co-ordinated Jig Boring Machine, Model - M5 Douple Column Design Boring machine Large table (900 x 770 mm) for bulky Objects. All Axis are equipped with Fine Dial for High Presion Boring. A Complete Accesseries and tools are Avilable with the machine ( Drill Bits, Drill Chucks, Multiple Boring heads, Boring Inserts and Bits, Small and large rotary index table for small and big loads).

Year of construction: 1987, condition: ready for operation (used), A complete Wagner WBX 1003 boring mill is available. Control: CNC Systems WB 1000, documentation is available. Hedpfx Aottv Uaedaoh

Condition: used, Year of construction: 1967, functionality: fully functional, table width: 1,000 mm, table length: 810 mm, overall weight: 11,000 kg, workpiece weight (max.): 1,200 kg, spindle speed (max.): 1,600 rpm, spindle speed (min.): 32 rpm, spindle diameter: 120 mm, space requirement height: 2,475 mm, space requirement length: 3,970 mm, space requirement width: 2,230 mm, Equipment: rotational speed infinitely variable, - Maximum power consumption: 14 kW - Rated spindle power: 8 kW - Spindle drive power: 8 HP - Control voltage: 110 V - Table rotation continuously 360 degrees in both directions - Transverse table stroke (X-axis): 760 (+20) mm - Longitudinal table stroke (Z-axis): 760 (+20) mm Hedowdwqnspfx Adaeh - Vertical headstock stroke (Y-axis), min. and max. height of the spindle axis above the table: 50-710 (+20) mm - Rapid traverse: 2 m/min - 9 adjustable feed rates: 0.04 - 0.6 mm/rev - Hydraulically continuously adjustable working feed rates in manual mode (strokes): 0 - 3000 mm/min - Optical reading accuracy: linear axes 0.001 mm / manual rotary axis 1 sec. arc - Positioning referenced Accuracy on the built-in scales: ± 0.0015 mm / ± 2 sec. arc - With central lubrication of the guideways - Internal spindle: ISA No. 40 steep taper with Dixi bayonet, diameter 75 mm - Extras: Various tool holders, accessories, and operating instructions are included.

Condition: ready for operation (used), Year of construction: 2010, functionality: fully functional, drilling depth: 660 mm, travel distance X-axis: 700 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 1,000 mm, drill diameter: 30 mm, TECHNICAL DETAILS Drilling depth: 660 mm Drill diameter: 30 mm X-axis travel: 700 mm Y-axis travel: 500 mm Z-axis travel: 1,000 mm W-axis travel: 250 mm Spindle speed: 60 - 60,000 rpm Table length: 900 mm Table width: 500 mm Table load capacity: 2,000 kg MACHINE DETAILS Control system: Heidenhain iTNC530 Dimensions & Weight Dimensions (L x W x H): 3,706 x 3,960 x 2,650 mm Total weight: 8,000 kg EQUIPMENT CNC rotary table (4th axis) Chip conveyor Hedpsya U U Uefx Adajh Paper band filter Electronic handwheel Original documentation

Condition: ready for operation (used), Year of construction: 2023, functionality: fully functional, spindle speed (max.): 14,000 rpm, number of slots in tool magazine: 133, TECHNICAL DETAILS Spindle speed: 14,000 rpm Coolant supply through the spindle: 70 bar MACHINE DETAILS Year of manufacture: 2023 EQUIPMENT Direct tapping Tool magazine with 133 storage positions Hedpjyarhrjfx Adash Pallet changer Two pallets with tapped hole grid Eight adjustable rinse nozzles at the spindle Flow monitor for coolant through the spindle Cooling system with chip conveyor BSW880 Interface for mist extraction Visual tool breakage monitoring BTS Toolholder HSK-A63 Coolant temperature control unit Direct measuring systems (glass scales) for X, Y, Z axes Three-axis workpiece probe (Marposs Mida T25G) Double-layer cooling system (BDW 880) Automatic central lubrication Programmable axis mirroring Tool offset storage with 400 memory slots 54 (6+48) freely selectable workpiece coordinate systems Three-color signal lamp

Condition: ready for operation (used), Year of construction: 2017, operating hours: 5,214 h, functionality: fully functional, travel distance X-axis: 730 mm, travel distance Y-axis: 730 mm, travel distance Z-axis: 880 mm, controller model: SINUMERIK 840 D sl/operate, spindle speed (max.): 20,000 rpm, TECHNICAL DETAILS Hedpfxjyapvaj Adaoh Travel X-axis: 730 mm Travel Y-axis: 730 mm Travel Z-axis: 880 mm Max. main spindle speed: 20,000 rpm Max. torque: 250/104 Nm Tool holder: HSK-A63 Distance spindle center to table: 80 - 810 mm Distance spindle nose to table center: 70 - 950 mm Number of pallets: 2 Pallet size: 500 mm x 500 mm Max. workpiece weight: 500 kg Pallet change time: 9.0 s Max. workpiece diameter: 800 mm Max. workpiece height: 1,000 mm Number of tool stations: 40 Tool change time (tool to tool): 2.5 s Tool change time (chip to chip): 4.4 - 10.0 s Max. tool diameter: 70 mm Max. tool length: 550 mm Max. tool weight: 12 kg Rapid traverse speed: 60,000 mm/min MACHINE DETAILS Control: SINUMERIK 840 D sl/operate High-pressure coolant: 70 bar Dimensions & Weight Floor space required: 6,000 mm x 4,000 mm x 2,700 mm Machine weight: 12.0 t Operating hours: 5,214 h EQUIPMENT Pallet changer Coolant tank Tool breakage monitoring

Condition: ready for operation (used), Year of construction: 1983, operating hours: 6,348 h, functionality: fully functional, drilling depth: 1,500 mm, travel distance X-axis: 1,250 mm, travel distance Y-axis: 900 mm, travel distance Z-axis: 900 mm, drill diameter: 50 mm, The machine was overhauled in 2009! TECHNICAL DETAILS Drilling depth: 1,500 mm Drill diameter: 5 - 50 mm Travel X-axis: 1,250 mm Travel Y-axis: 900 mm Travel Z-axis: 900 mm Table length: 1,000 mm Table width: 1,000 mm Max. table load: 3,000 kg Spindle speed: 100 - 6,000 rpm Spindle taper: SK 40 MACHINE DETAILS Control: Siemens 802 D Dimensions & Weight Dimensions (L x W x H): 5,000 x 2,600 x 2,000 mm Weight: 6,000 kg Operating hours: 6,348 h Hedsyfhciepfx Adash

Year of construction: 2005, condition: ready for operation (used), functionality: fully functional, working width: 2,400 mm, working height: 32 mm, working length: 800 mm, TECHNICAL DETAILS Working width X-axis: 267 - 2,400 mm Working length Y-axis: 120 - 800 mm Working height Z-axis: 16 - 32 mm 2 upper drilling heads + independent Y-axis grooving consisting of: Left head with 15 vertical spindles in X and Y-axis + one blade for grooving Right head with 15 vertical spindles in X and Y-axis + one automatic hinge installation unit 2 independent lower vertical drilling heads in Y-axis each with 5 + 5 independent spindles Hsdeydn A Tspfx Adaoh MACHINE DETAILS Control: Numerical control with WoodWop software EQUIPMENT Automatic loading system with motorized roller conveyor Tank with vibrator for hinge storage and automatic feeding Unloading system with automatic roller conveyor

Condition: ready for operation (used), Year of construction: 1998, functionality: fully functional, travel distance X-axis: 650 mm, travel distance Y-axis: 500 mm, travel distance Z-axis: 650 mm, controller model: Siemens 840 D, spindle speed (max.): 10,000 rpm, TECHNICAL DETAILS Hsdpfxoya Ed He Adash Travel X-axis: 650 mm Travel Y-axis: 500 mm Travel Z-axis: 650 mm B-axis: 360,000 x 0.001 mm Pallet size: 400 x 500 mm Spindle speed: 50 – 10,000 rpm Tool holding system: SK 40 Number of tools in magazine: 60 Rapid traverse: 40 m/min Feed rate: 1 – 20,000 mm/min MACHINE DETAILS Control system: Siemens 840 D Power requirement: 65 kW

Condition: used, Year of construction: 1997, Used machine Year of manufacture: 1997 Condition: well maintained Features and technical data: - Number of drilling spindles: 21 pcs., 32 mm pitch - Drilling direction: bottom & end face - Swivel range: 0-90 degrees by handwheel - Pneumatic material clamps: 3 pcs. - Passage: max. 100 mm in height and max. 640 mm in width Hodpfoygbprsx Adajh - Motor: 1.5 kW - Extraction port diameter: 120 mm - Includes a variety of stops (see pictures) Availability: promptly Storage location: 65439 Flörsheim

Condition: good (used), Year of construction: 1972, functionality: fully functional, travel distance X-axis: 290 mm, travel distance Y-axis: 170 mm, travel distance Z-axis: 310 mm, spindle speed (max.): 2,000 rpm, spindle speed (min.): 40 rpm, overall weight: 1,200 kg, x- travel: 290 mm y-travel: 170 mm z-travel: 310 mm Hsdpfx Adjyf H A Ueaoh Milling spindle number of milling spindle turning speeds: 16 milling spindle turning speeds: 40-2000 U/min inner taper of milling spindle: ISO 40 max. diameter of the vice bore: 25 mm dimensions: 1066 x 1048 x 1330 mm

Condition: excellent (used), functionality: fully functional, number of spindles: 35 pneumatic head inclination Hsdpfx Aow U Aiiedaeh

Condition: excellent (used), Year of construction: 2005, Travels X-travel 559 mm Y-travel 635 mm Z-travel 559 mm Spindle Max. rated power 22.4 kW Hsdpfx Adswmmz Ujaeh Max. speed 8100 rpm Max. torque 122.0 Nm 2000 rpm Drive system: Inline direct drive Taper: CT40 / BT 40 / HSK-A63 Bearing lubrication: Air/Oil Injection Cooling: Air-cooled Integrated 4th axis (B-axis) 90° rotation time (full 4th) 3.0 s Max. load capacity on clamping surface 400 kg Rotational torque (continuous) 575 Nm Backlash 30 arc-sec Gear ratio 106:1 Braking torque 3390 Nm Minimum resolution 0.001° Switching accuracy ± 15 arc-sec Repeatability 10 arc-sec Rapid traverse speed at B 150° sec Feed rate Max. feed for machining 21.2 m/min. Rapid traverse speed at X 35.6 m/min. Rapid traverse speed at Y 35.6 m/min. Rapid traverse speed at Z 35.6 m/min. Axis Drives Max. X Thrust 15035 N Max. Y Thrust 12500 N Max. Z Thrust 15035 N Tool Holder SK 40 Coolant Tank Capacity 360 L Tool Changer Capacity 30+1 Tools Max. Tool Diameter 64 mm Max. Tool Length 305 mm Max. Tool Weight: 5.4 kg Tool-to-Tool Change Time: 2.8 s Chip-to-Chip Change Time: 3.6 s Air Requirements Required Air Flow† 255 L/min. 6.9 bar Air Hose (inline) 1/2 in. Air Coupling 1/2 in. Minimum Air Pressure 6.9 bar Electrical Specifications Spindle Speed 8100 rpm Inline Direct-Drive Drive System Spindle Power 22.4 kW AC Input Voltage (Three-Phase) – Low 220 VAC Full Load Current (Three-Phase) – Low 70 A AC Input Voltage (Three-Phase) – High* 440 VAC Full Load Current (Three-Phase) – High* 35 A * The "High" specifications refer to machines designed for higher input voltages. Dimensions Length x Width x Height 4800 x 2540 x 2840 mm Weight 7947 kg

Condition: excellent (used), Year of construction: 1986, grinding length 800 mm grinding width 375 mm Hedsunt Iujpfx Adaoh workpiece height 375 mm magnetic clamping plate, electical 900 x 300 mm spindle turning speed range 1500 - 3000 U/min table surface area 1550 x 370 mm table longitudinal travel 100 - 1000 mm max. workpiece weight 350 kg dimensions of grinding wheel 300 x 50 mm total power requirement 9 kW weight of the machine ca. 4,6 t dimensions of the machine ca. 4,0 x 2,3 x 2,6 m

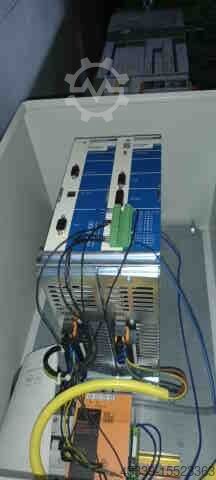

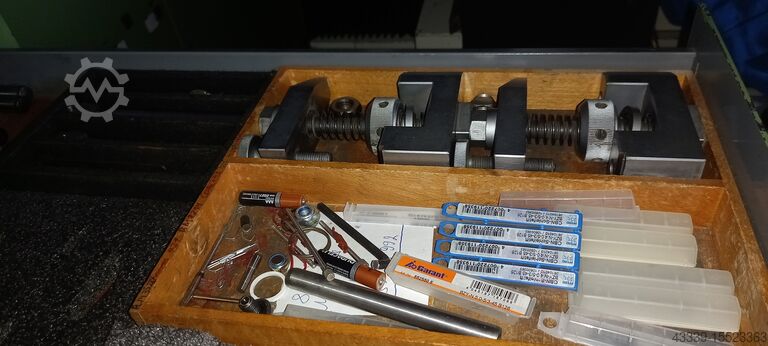

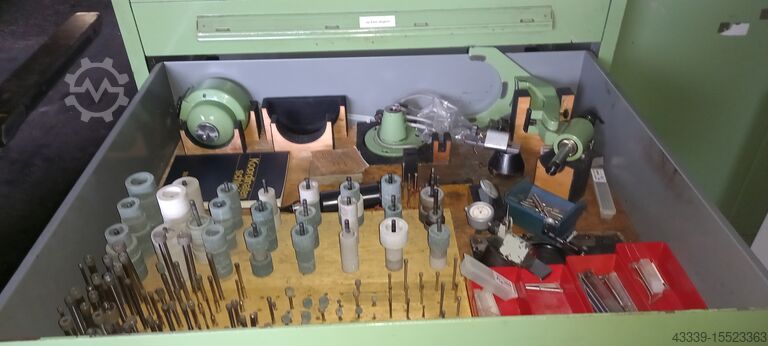

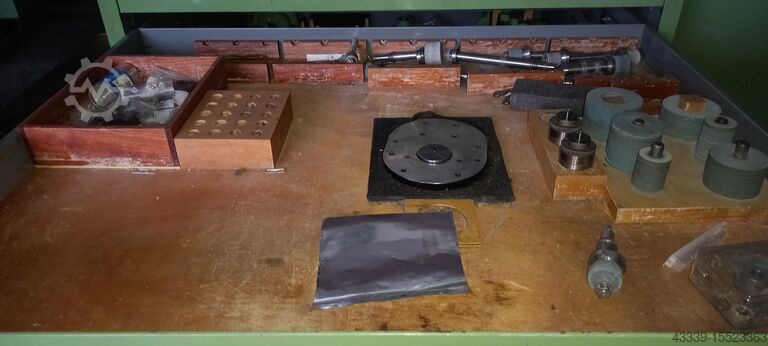

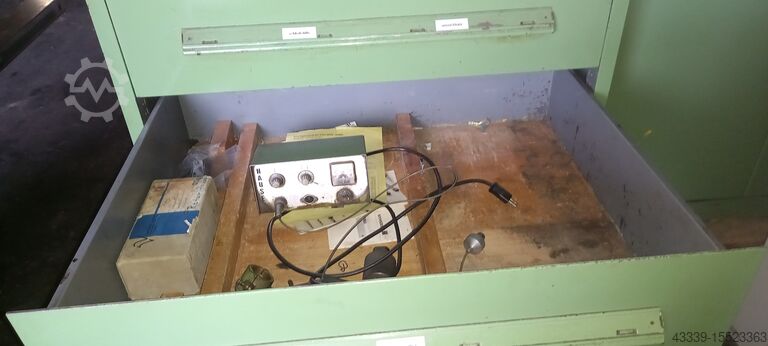

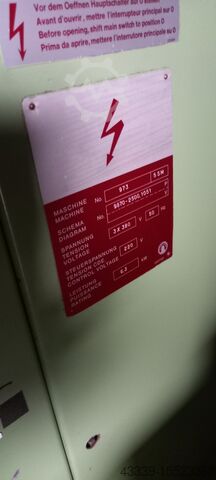

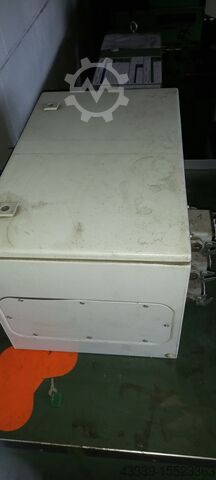

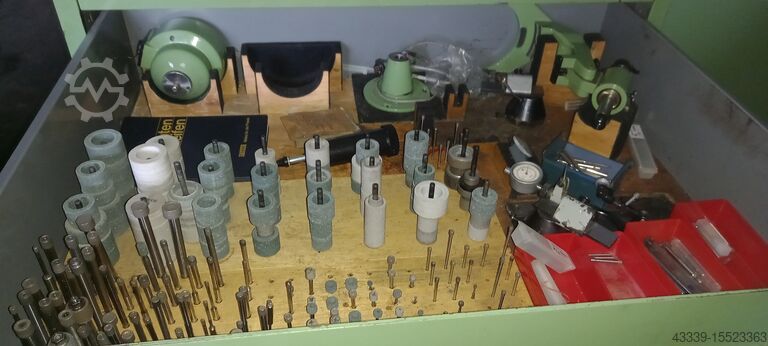

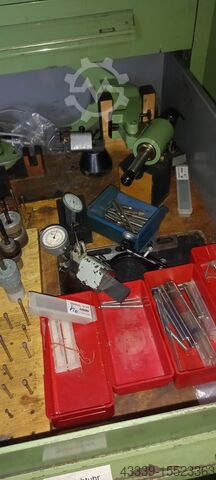

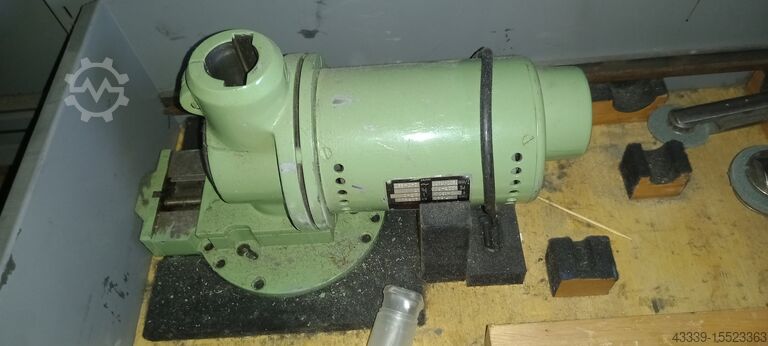

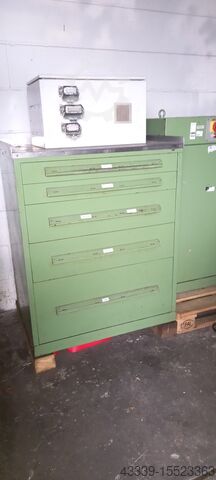

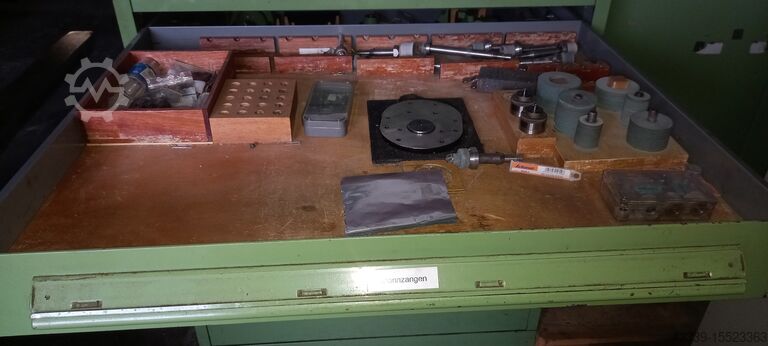

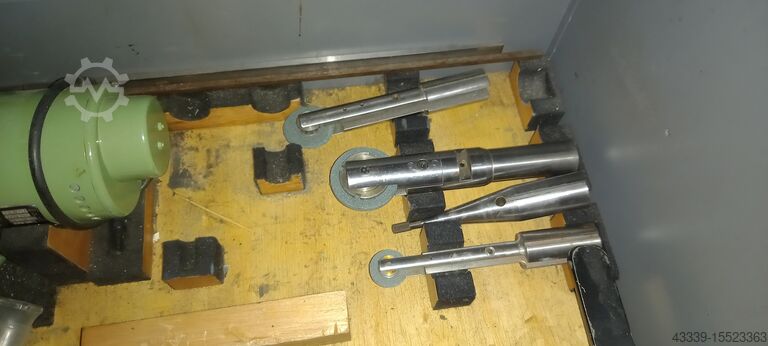

Condition: good (used), Year of construction: 1975, Coordinate Grinding Machine Manufacturer: HAUSER Type: 5 SM Year: 1975 with 2-axis digital readout Heidenhain. Table: 750 mm x 620 mm Travel: X 700 mm, Y 500 mm, Z 150 mm Grinding head speeds: 9,000 – 80,000 rpm Total power: 6.3 kW Good condition, in stock. Machine dimensions: 2,500 mm x 1,700 mm x 2,700 mm Hodpfsr H Dvdex Adaoh Weight approx. 5,100 kg. Includes tool cabinet, accessories, and documentation.

Condition: used, Year of construction: 1993, table-size 1500 x 550 mm grinding range 1500 x 500 mm Hodjxukn Ejpfx Adajh workpiece height 500 mm grinding width 550 mm grinding length 1250 mm voltage 400 V weight of the machine ca. 10 t Machine has cooling arrangement, dressing arrangement and auto. vert. feed. We supply a magnetic plate along with the machine 1500 x 500 mm and a rotary table.

Condition: used, Technical details: max. wheel diameter: 46 mm max. module: 1 weight of the machine ca.: 0,5 t Hsdpfx Adjx H Swboash

Condition: good (used), Year of construction: 2017, functionality: fully functional, Technical details core drilling diameter max. 3 - 28 mm bore depth 1000 mm control Heidenhain TNC 640 x-axis 1000 mm y-axis 800 mm z-axis 800 mm spindle head - swivable (W) +15°/-30° deg B-axis (table) 360.000° deg table surface area 1000 x 1000 mm table load 5,0 t tool taper SK 40 spindle turning speed range 60 - 6000 U/min spindle motor 12 kW total power requirement 58 kW weight of the machine ca. 14 t dimensions of the machine ca. 6,35 x 4,75 x 3,80 m Additional information 5 axes Deep Drilling-Milling-Machine A current geometry measurement report is available. Equipped with: HEIDENHAIN TNC 640 control 5 CNC AXES X – Y – Z – W – B NC rotary table 360.000 deg. Milling performance 150 cm3/min. Direct linear position measuring system Digital AC drives Table design with Hirschmann zero-point clamping system NC-controlled tilting of the deep hole drilling/milling unit (W) +15/-30 deg. Automatic tool changer for 24 tools Internal coolant supply High-pressure coolant system 1200 liters for deep hole drilling oil up to 140 bar Paper belt filter system SIEMENS extinguishing system Fire protection system Spindle cooling Oil temperature control Hedsydmmqjpfx Adajh 3D HEXAGON probe RENISHAW tool measurement Electronic handwheel OPT kinematics Chip conveyor Coolant pressure and flow control Collision and vibration monitoring Feed control Coolant gun MONTRONIX machine airbag Oil mist extraction 2 clamping plates Walk-in full enclosure with roof and opening for crane loading Included in delivery: Operating manual Documentation Machine parameters on USB stick

Condition: used, Year of construction: 2011, travel distance X-axis: 1,400 mm, travel distance Y-axis: 1,200 mm, travel distance Z-axis: 1,350 mm, controller manufacturer: Fanuc, controller model: i 31A, workpiece weight (max.): 2,200 kg, table width: 800 mm, table length: 800 mm, table load: 2,200 kg, spindle nose: MAS BBT 50, CNC Control MSX-701 lV (Fanuc i 31A) Pallet table size 800 x 800 mm Number of pallets 2x Table load 2200 kg Movement X-axis 1400 mm Movement Y-axis 1200 mm Movement Z-axis 1350 mm Table indexing 0,001° Hjdpsydmifjfx Adajh Spindle Taper MAS BBT 50 Spindle Speed 10 -8.000 R/min Spindle motor 37/30 kW Magazin capacity 100 If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Feel free to view our other advertisements for a complete overview of our stock.

Condition: used, Year of construction: 1999, x-travel 560 mm y-travel 510 mm z-travel 510 mm Control MSC 502 distance spindle center to table 50 - 650 mm distance Spindlenose and center of table 100 - 610 mm turning speed range - main spindle max. 12.000 min/-1 power capacity - main spindel 22 / 18,5 kW tool taper MAS BT-40 spindle bearing diameter 70 mm numbers of pallets 2 size of pallet 400 x 400 mm max. workpiecediameter 580 mm max. workpiece height 650 mm switching time 90°: 2,5 sec change time of pallets 6,0 sec number of toolpositions 60 pos. tool taper MAS BT-40 max. tool diameter 80 mm max. tool-dia with free toolbox 125 mm max. tool length 300 mm max. tool weight 8 kg change-time tool to tool 1,5 sec change-time chip to chip 3,7 sec rapid traverse ( X / Y / Z ) 32 m/min feed speeds 1 - 24.000 mm/min Tipp feed 0 - 1.260 mm/min total power requirement 63 kVA weight of the machine ca. 9,0 t dimensions of the machine ca. 5,5 x 4,5 x 2,7 m Hsdpfetqmt Tox Adash CNC - Machiningcenter Horizontal MORI SEIKI - SH 400

Condition: used, Year of construction: 2004, travel distance X-axis: 1,000 mm, travel distance Y-axis: 950 mm, travel distance Z-axis: 1,000 mm, controller manufacturer: Okuma, controller model: OSP-E100M, total height: 3,280 mm, total length: 6,500 mm, total width: 3,460 mm, table width: 630 mm, table height: 630 mm, spindle speed (min.): 12,000 rpm, power: 37 kW (50.31 HP), Okuma MA-600 HB Space Center Hjdpfxeydd Hbs Adaoh OSP E 100M control Dimensions pallet 630 x 630 mm Number of pallets 2x X-axis travel 1000 mm Y-axis travel: 950 mm Z-axis travel 1000 mm Indexing of table 1° Spindle holder MAS BT 50 Spindle speed 12,000 rpm Spindle motor 37/26 kW Positions in the tool magazine 60 If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Feel free to view our other advertisements for a complete overview of our stock.

Condition: used, Year of construction: 2001, travel distance X-axis: 710 mm, travel distance Y-axis: 610 mm, travel distance Z-axis: 660 mm, controller manufacturer: Mazatrol, controller model: Fusion 640 M, total height: 3,050 mm, total length: 7,109 mm, total width: 7,805 mm, table width: 500 mm, table length: 500 mm, table load: 500 kg, rotational speed (min.): 35 rpm, rotational speed (max.): 15,000 rpm, overall weight: 11,600 kg, spindle speed (min.): 35 rpm, spindle speed (max.): 15,000 rpm, Horizontal Machining Centre with Palletech Hedjydd D Topfx Adajh CNC Control Mazatrol Fusion 640M Pallet table size 500 x 500 mm Number of pallets 10x Table load 500 kg Movement X-axis 710 mm Movement Y-axis 610 mm Movement Z-axis 660 mm Table indexing 360 x 1° Spindle Taper DIN 69871A Spindle speed 35 - 15.000 R/min Magazin capacity 120 If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Feel free to view our other advertisements for a complete overview of our stock.

Condition: used, Year of construction: 2004, travel distance X-axis: 730 mm, travel distance Y-axis: 730 mm, travel distance Z-axis: 740 mm, controller manufacturer: Mazatrol, controller model: Fusion 640 M, total height: 3,050 mm, total length: 7,805 mm, total width: 7,109 mm, table width: 500 mm, table length: 500 mm, overall weight: 11,600 kg, spindle speed (max.): 12,000 rpm, tool weight: 700 g, Equipment: documentation/manual, CNC Horizontal Machining Centre CNC Control Mazatrol 640M Pallet table size 500 x 500 mm Number of pallets 10 Table load 700 kg Movement X-axis 730 mm Movement Y-axis 730 mm Movement Z-axis 740 mm Table indexing 360 x1 ° Spindle Taper CAT 40 Spindle 12.000 1/min Spindle motor 22/15 kW Hjdpfx Aoyddhxjdaeh Magazin capacity 80 Required floor space 9850 x 10145 mm If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Feel free to view our other advertisements for a complete overview of our stock.
