Used Homogenizer for sale (191)

Condition: used, Used SPX Flow Technology APV model R15-18.56 stainless steel homogenizer. Has three piece valve housing. Maximum capacity 400 l/h with maximum pressure 800 bar. Mounted on stainless steel mobile skid. Unit includes process control skid. Itodpfjxnl N Rjx Afien

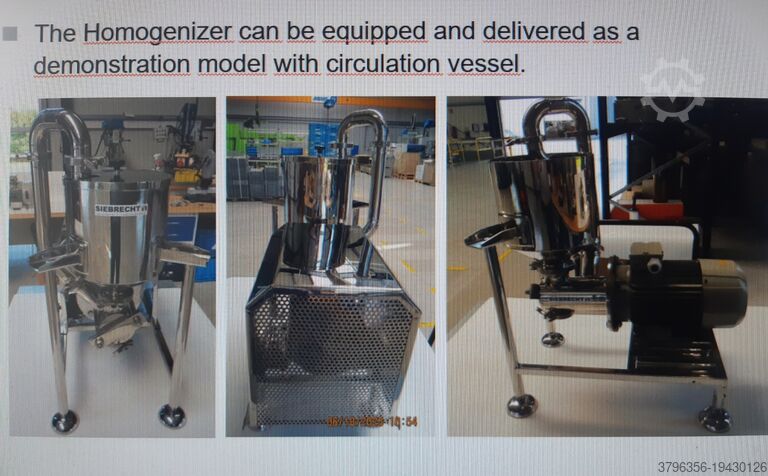

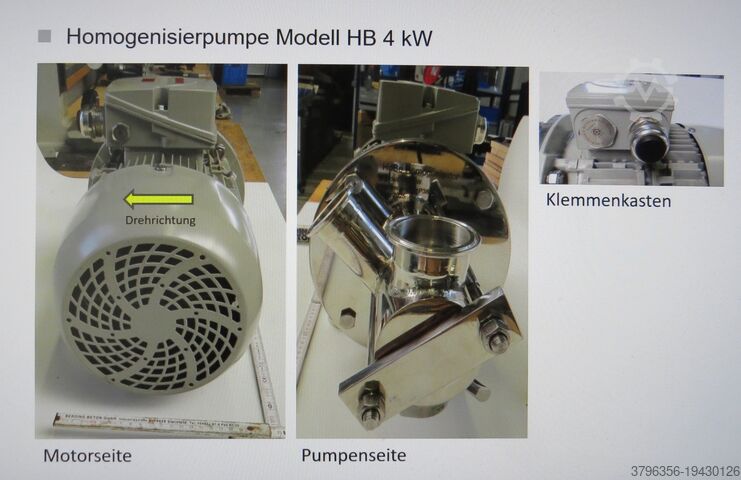

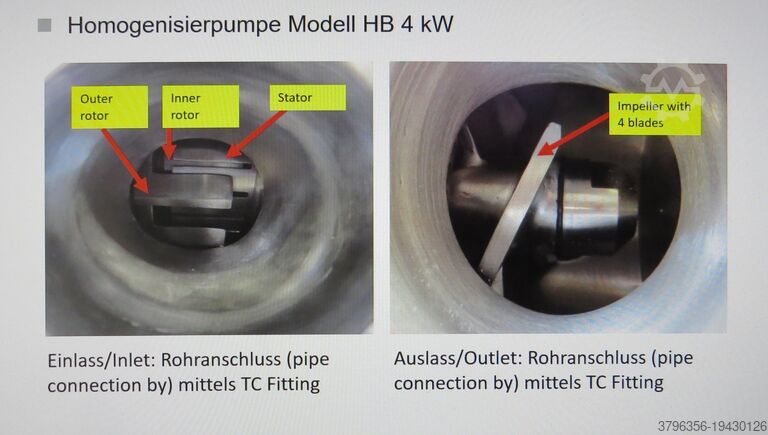

Year of construction: 2025, operating hours: 20 h, condition: as good as new (ex-display), functionality: fully functional, machine/vehicle number: HB 4 kW, Company Siebrecht is offering a used inline homogenizer pump from its portfolio of homogenizer pumps, as shown in the photographic documentation. The homogenizer pump has only very few operating hours, as it has so far been used exclusively as a demonstration unit. Our machines are manufactured and distributed with a focus on high quality and long service life – Not Made in China. Itsdpowu T Drjfx Afien Reduced price. For further details, please visit our website at siebrecht-gmbh. Description: - Siemens 4 kW drive motor - Model HB 4 with a throughput of approx. 5,000 l/h at 3,000 rpm - Design: Rotor & stator with integrated pump impellers; no additional feed pump required - Dimensions: L 520 x H 260 x W 250 mm, weight approx. 40 kg - Manufactured in 2024 - Constructed from food-grade materials - Suitable for use in the food, pharmaceutical, and cosmetics industries; capable of processing highly viscous liquids and solids The machine is also available for rental for testing or trial purposes – please contact us for more information.

Condition: excellent (used), Year of construction: 2015, pressure: 450 bar, 5.000 liter per hour - 450 bar - High Pressure homogenizer Itedsxnl Exopfx Afien High pressure homogenizer. 2 stages with pneumatic pressure control. 3 Ceramic pistons, piston diameter: 55 mm and stroke: 100 mm. Stainless steel cladded with sound reducing material. Connections: 2 x 3" Din. Current motor power: 132 kW and maximum pressure in current configuration with this motor 450 bar. Freestanding control panel with Siemens Simatic ET 200SP controls. Small control box on machine with Siemens Simatic ET 200SP controls. With overpressure valve (set on 540 bar). Manometer on 1st and 2nd stage. Electronic pressure transmitter on in- and outlet. Flowswitch on cooling water. Pulsation damper on inlet. Remote pressure control. With spare pulsation damper and overpressure valve. Documentation: operational manual, electrical diagram, parts list and service report. Dimensions control panel: 80x40x187 (lxwxh) cm.

Year of construction: 2009, condition: used, IKA in-line homogenizer model DR2000/30 ATEX Year 2009. Motor 55 kW 1783 rpm. Itjdpexlng Hofx Afisn With frequency converter. With mechanical seal. Technical specifications Model: DR2000/30 Year of manufacture: 2009 Motor: 55 kW 1783 rpm. ATEX configuration.

Condition: used, This listing is for the Avestin EmulsiFlex-C5 for homogenizer with sealed toolings and spares The unit is in full working condition and is ready for immediate use EmulsiFlex-C5 High Pressure Homogenizer The Avestin EmulsiFlex-C5 is a high-pressure, pneumatically powered homogenizer designed for laboratory-scale applications. It is ideal for processing small to medium sample volumes, from 7 mL up to 5 L/h, depending on the pressure applied. How It Works: High Pressure Homogenisation High pressure homogenisation is an efficient and easy-to-use technique for cell disruption and liposome/emulsion processing. The principle involves pumping the sample through a valve with a small aperture. The sample transitions from very high pressure (up to 30,000 psi) on the pump side to atmospheric pressure on the outlet side. This sudden drop in pressure creates intense shear forces, disrupting cell membranes or dramatically reducing liposome/emulsion sizes. For cells, the pressure-induced shear forces rupture the membranes, effectively lysing the cells. For liposomes and emulsions, this process reduces their size from micron to nanometer range, often resulting in uniform particles with narrow size distributions. Unique Features of the EmulsiFlex-C5 Ijdpfexhgawsx Afistn Dynamic Homogenising Valve The C5 uses a dynamic homogenising valve, which maintains constant pressure during sample processing. This consistency ensures the formation of highly uniform liposomes and micro-emulsions, with tight particle size distributions. Efficient Cell Disruption Most cells (including E. coli) can be lysed in a single pass, minimizing over-processing and reducing the risk of protein denaturation or degradation. Pressure Range: Adjustable from 500 to 30,000 psi Flow Rate: 1–5 L/h depending on pressure Minimum Sample Volume: 7 mL Holdback Volume: Less than 1 mL Temperature Control: Can be used with ice baths, external chillers, or in cold rooms Autoclavable: Easy cleaning and sterilization (SIP-compatible) Compact Size: 430 × 160 × 320 mm, 25 kg Power Source: Requires compressed or bottled air. For most applications (e.g., E. coli disruption or liposome formation), 100 psi air pressure is sufficient. Applications Disruption of bacterial, yeast, algal, insect, or mammalian cells Nano-sized liposome and emulsion formation Particle size reduction in pharmaceuticals, cosmetics, and food products Liposomal drug delivery systems Efficient homogenisation for biochemical and biophysical research

Condition: used, functionality: fully functional, pressure: 150 bar, Manufacturer: Alfa Laval Capacity: 1000 l/h Operating pressure: 120-150 bar Stages: single-stage machine Condition: tested and fully functional Iodpsxb Ebmofx Afiotn

Condition: used, Used LABOR-PILOT 2000/4 type in stainless steel-NR 03-4470H-Manufactured in 2003-With LABOR PILOT CONTROLLER-3 x 380 Volts-On mobile frame Itodpfx Aexlgkwofijn

Year of construction: 2005, condition: like new (used), machine/vehicle number: Serienr. 1-04, 252, APV/SPX Homogenizer for milk capacity 25.000 L APV Type: R132Q-85,595 Serienr. 1-04, 252 From 2005 Capacity 25.000 l/h Low press 60 bar Good working condition Isdpfx Asfg Tcaefijtn

Condition: used, Year of construction: 2018, NETZSCH Vakumix mobile homogenizer LambdaVita 3 mobile Itsdpfx Afet Er Hwjisn - condition: used - location: Bremen Other: - Manufacturer: NETZSCH Vakumix - Type: LambdaVita 3 mobile - Year of construction: 2018 - Drive power: 37 kW - Areas of application: Mixing/homogenizing and pumping around emulsions and pastes - total height: 930 mm - total length: 1.400 mm - total width: 500 mm

Condition: used, Volume: 700L Usable volume: 80-500L Internal diameter: 1100 mm Suitable for vacuum: -1 bar Double jacket: pressure proof + 3 bar Capacity: 18,5 kW with frequency converter Nominal speed: approx. 3000 rpm (with 50Hz) Protection: IP 54 suitable for heating and cooling Stainless steel 316L + Homogeniser Iedpfx Afewqfvroistn

Condition: used, This listing is for the APV Gaulin T Series Homogenizer Ijdpfxoxhf Tvs Afistn The unit is in full working condition and is ready for immediate use APV Gaulin T Series Homogenizer The Gaulin T Series homogenizers, developed by SPX FLOW under the APV brand, are high-pressure, positive displacement reciprocating plunger pumps designed for demanding applications in industries such as dairy, food and beverage, pharmaceuticals, chemicals, and cosmetics. Key Features High Pressure Capability: Models like the Gaulin 132T and 125T can handle pressures up to 600 bar (approximately 8,700 psi), making them suitable for applications requiring intense homogenization. Flow Rate: These homogenizers can process flow rates ranging from 1,000 to 25,000 liters per hour (LPH), accommodating various production scales. Design Options: The Gaulin T Series offers both mono-block and three-piece valve housing designs, allowing for flexibility in maintenance and customization. Hygienic Construction: Constructed with stainless steel or duplex materials, these homogenizers feature 3-A sanitary design, making them suitable for hygienic applications. Maintenance-Friendly: The design includes features like hydraulic valve actuators, easy access to key components, and modular electrical controls, simplifying maintenance and reducing downtime. Applications Gaulin T Series homogenizers are ideal for applications such as: Dairy Processing: Homogenization of milk, cream, and other dairy products. Food and Beverage: Processing of sauces, dressings, and beverages. Pharmaceuticals and Cosmetics: Manufacturing of emulsions, creams, and lotions. Chemical Processing: Production of paints, coatings, and other chemical products

Condition: excellent (used), functionality: fully functional, APV / RANNIE 30.60 ID.NO. 2802 Apv / Rannie mod 30.60 homogenizer for the production of e.g. Mustard, Sauces, Mayonnaise etc. Capacity approximately 2000 lit / hour, Max pressure 220 bar year mod 1994. Itodpfxsumbwne Afijn Dimensions 130 x 90 cm Height 145 cm.

Condition: used, Year of construction: 2013, Additional title: high pressure homogenizing Capacity range: 600 l/h Pressure: 250 bar Cellular particle size: 1 μm cellular particle Length: ca. 2,2 m Width: ca. 2,5 m Itjdpfxovcq Eds Afion Height: ca. 1,9 m Operation / Control: Integrated in a ProLeit process control, the motor was controlled by an external frequency converter. Features: CIP-able, SIP-able

Condition: excellent (used), A homogenizer is the machine that enables the size reduction of globules and fat particles of food products. In other words, it reduces variations in two heterogeneous substances, makes them uniformly consistent and reduces separation after mixing. Iedpfjwny Nzex Afiotn As a result, we obtain particles of micrometer and nanometer size. This size will always depend on the characteristics of the product in question and the results we seek to achieve. Homogenizers stabilize fat emulsions and disperse solids in aqueous solutions. In this way, we avoid that with the difference in density, some parts of the mixture remain on the surface and others precipitate to the bottom. Therefore, we are not only talking about mixing particles, but about a more complex process that can integrate emulsification, homogenization, solubilization, suspension, dispersion and disintegration of solid particles. To carry out this particle size reduction, the product is pumped under pressure by means of valves and pistons in monobloc compression blocks. These valves allow us to define the desired flow rate and pressure.

Condition: used, homogenizer - condition: used - location: Bremen Other: - Drive power: 11 kW Iodpet Etimefx Afiotn - Areas of application: Mixing / homogenizing and pumping of emulsions and pastes - total height: 650 mm - total length: 1.200 mm - total width: 460 mm

Condition: used, Year of construction: 1996, Item: AH-1253-Tetra-ALEX30 homogenizer Tetra Pak Homogenizer for milk capacity 12,000 L Type: TETRA ALEX Iedpfxswa Thhj Afiotn From 1996 Capacity 12,000 l/h Working pressure: 250 bar Power 110 kW/380-400V 50 Hz 1487 rpm Working condition

Year of construction: 2023, operating hours: 0 h, condition: new, machine/vehicle number: 12134, Teljesítmény: 1000 L/óra, 7,5 kW Maximum hőmérséklet: 90 °C Feszültség: 400 V Méret: 1300x1600x1500 mm Súly:1000 kg FBF 1000 High pressure homogeniser Specification: Capacity: 1000 L/h 7,5 kW Maximum temperature: 90 °C Two homogenizing phase: 1.: 200 bar, 2.: 50 bar Itjdpfeiu Hyzsx Afion Feeding pressure requested: 2 bar Voltage: 400 V Consumption of water: 70-90 L/h Consumption of air: 5 bar, 0,3 Nl/minute Gross size: 1300x1600x1500 mm Gross weight:1000 kg Compression head and valve: - milled from one block - high pressure resistant pistons - vibration-free Structure: - vibration free pump - power transmission through „V” belts, 1:2 - automatic oil lubrication with oil level indicator Accessories: - wearing part set - tools - oil FBF 1000 Hochdruckhomogenisator - Leistung: 1000 L / h 7,5 kW - Maximale Betriebstemperatur: 90 ° C. - Zweistufige Homogenisierung: 1 .: 200 bar, 2 .: 50 bar - Versorgungsdruck mindestens 2 bar - Stromspannung: 400V - Wasserbedarf: 70-90 L / h - Luftverbrauch: 5 bar, 0,3 Nl / min Kompressionskopf und Ventil: - Ein Block, der mit einer CNC-gesteuerten Maschine aus einem Block gefräst wurde, mit 5 Jahren Garantie. - Kolben aus speziell gehärtetem Edelstahl. - Energie- und kostengünstige Ventile sorgen aufgrund ihrer hohen Stabilität für einen vibrationsfreien Betrieb. Struktur: - Pumpe aus hochwertigem vibrationsfreiem Gusseisen - Die Übertragung erfolgt auf "Keilriemen" mit Doppelübertragung - 3-phasiger 4-poliger Motor - Ölgeschmiertes Gehäuse mit Ölstandsfenster Zubehör: - Verschleißteilset - Werkzeuge für die Wartung - Schmieröl - Anweisungen

Condition: ready for operation (used), functionality: fully functional, Homogenizer used in ice cream production Isdpfxsvtpw Hj Afiotn

Year of construction: 2000, condition: excellent (used), Used high pressure homogenizer NS5160HA made by GEA Niro Soavi with an operating pressure of 700 bar and a throughput of 7.000 l/h. Sanitary version with five ceramic pistons, an operating temperature of 40°C and a maximum viscosity of 12.000 cP. Powered by an electric motor with 160 kW which needs three-phase current at 380 V and 50 Hz. The homogenizer was regularily checked and maintained and is fully functional. Itsdpfshzcxrjx Afien

Condition: reconditioned (used), functionality: fully functional, Gaulin MC15-5TPS homogenizer, 3850 l/h, 350 bar. 2 stage, manual operated homogenizing valves, Itsdpfx Ajwf Ixfjfien Fully overhauled, as new condition.

Condition: used, Year of construction: 1998, NETZSCH Vakumix Continuous homogenizer condition: used location: Bremen Other - Continuous homogenizer GR2 DHOLF - Brand: VAKUMIX Iedpfx Afet Erpfeijtn - for mixing/homogenizing and pumping around emulsions and pastes - Electrical connection: 400 V / 50 Hz; 11kW - various technical documents available - total height: 800 mm - total length: 1.300 mm - total width: 400 mm

Condition: used, Year of construction: 2000, Item: A-6704-GEA-Niro-Soavi homogenizer Used GEA Niro Soavi Type NS 3075HA Stainless steel High Press Homogenizer Capacity 4.500 L'H Pressure: 40 MPa (400 Bar) Itedpfxju Ibp Ue Afion Max pressure 400 bar (3626 psi), Complete new Pistons packet on pallet.

Year of construction: 2023, operating hours: 0 h, condition: new, machine/vehicle number: 1234, Teljesítmény: 300 L/óra, 4 kW Maximum hőmérséklet: 90 °C Feszültség: 400 V Méret: 850 x 1150 x 920 mm Súly: 365 kg FBF 1000 High pressure homogeniser Specification: Capacity: 300 L/h , 4 kW Itodpfx Asiu Hypefion Maximum temperature: 90 °C Two homogenizing phase: 1.: 200 bar, 2.: 50 bar Feeding pressure requested: 2 bar Voltage: 400 V Consumption of water: 60 L/h Consumption of air: 5 bar, 0,3 Nl/minute Gross size: 850 x 1150 x 920 mm Gross weight: 365 kg Compression head and valve: - milled from one block - high pressure resistant pistons - vibration-free Structure: - vibration free pump - power transmission through „V” belts, 1:2 - automatic oil lubrication with oil level indicator Accessories: - wearing part set - tools - oil FBF 1000 Hochdruckhomogenisator - Leistung: 300 L / h 4 kW - Maximale Betriebstemperatur: 90 ° C. - Zweistufige Homogenisierung: 1 .: 200 bar, 2 .: 50 bar - Versorgungsdruck mindestens 2 bar - Stromspannung: 400V - Wasserbedarf: 60 L / h - Luftverbrauch: 5 bar, 0,3 Nl / min - Gewicht: 365 kg - Abmessungen: 850 x 1150 x 920 mm Kompressionskopf und Ventil: - Ein Block, der mit einer CNC-gesteuerten Maschine aus einem Block gefräst wurde, mit 5 Jahren Garantie. - Kolben aus speziell gehärtetem Edelstahl. - Energie- und kostengünstige Ventile sorgen aufgrund ihrer hohen Stabilität für einen vibrationsfreien Betrieb. Struktur: - Pumpe aus hochwertigem vibrationsfreiem Gusseisen - Die Übertragung erfolgt auf "Keilriemen" mit Doppelübertragung - 3-phasiger 4-poliger Motor - Ölgeschmiertes Gehäuse mit Ölstandsfenster Zubehör: - Verschleißteilset - Werkzeuge für die Wartung - Schmieröl - Anweisungen

Condition: excellent (used), pressure: 210 bar, Gaulin, Homogenizer model MC18 3TPSX. stainless steel clad, 2 stage hydraulic valve assembly, Itodpfxowf Itce Afien 54mm pistons, Tungsten Carbide coated. aseptic cylinder block, puppet valves.. Remote controlled homogenization pressure adjustment and read-out. Capacity 6000 l/h, 210 bar Maintenance history available. Spare parts available. Excellent working condition

Year of construction: 2018, condition: used, Manufacturer: Netzsch Vakumix Type: LambdaVita 3 mobile DHO 3 Year of manufacture: 2003 / 2018 Drive power: 37 kW Maximum pressure product: 2 bar (overpressure) Maximum temperature product: 133° C Fields of application: Mixing / homogenizing and transferring emulsions and pastes. Documentation available Product data Volume Ijdpsp S I U Sjfx Afistn 8 liters Total height 980 mm Total length 1,350 mm Total width 590 mm
