Cavity Sinking EDM - Machine

INGERSOLL Gantry 800

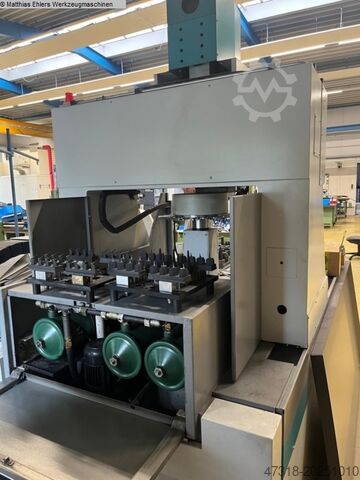

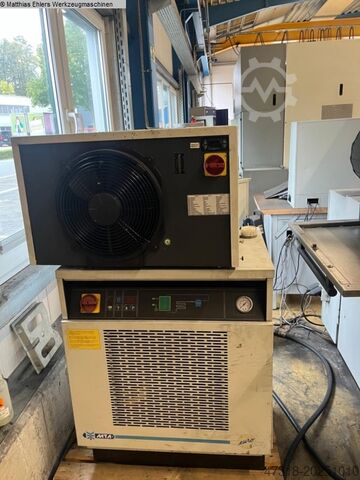

Condition: excellent (used), Year of construction: 2011, OPS Ingersoll Gantry Eagle 800 Year of manufacture: 2011 Operating hours: 1703 Ndodpfxsxiwz Ue Ag Asd Eagle Powertec control X, Y, Z travel: 550 x 850 x 450 mm Clamping plate: 760 x 1000 mm Max. workpiece weight: 2000 kg EROWA interface Submersible working tank C-axis Chiller Fire extinguishing system Remote control 20-station electrode changer 60 amp generator Incl. dielectric fluid (+/- 700 liters) Incl. probe Incl. probe on machine bed Incl. magnet 400 x 200 mm Incl. cabinet with accessories Incl. documentation Machine is powered up for inspection

Condition: used, x-travel:600 mm y-travel:fest mm z-travel:650 mm Nodpfx Aocxxrgeg Aodd weight of the machine ca.:ges. 0,124 t dimensions of the machine ca.:0,7 x 1,0 x 1,05 m surface measuring, testing and evaluating unit for roughness and unevenness parameters with measuring post and feed device, incl. data logger with profile memory and full digital measured-value processing, fully programmable, evaluation according to different evaluation programs with single measuring run, reference-plane measuring on badly aligned, curved and tilted surfaces, automatic correction of height offset and tilt, measuring program with permanent storage and quick access, clearly arranged control elements, universal by plug-in program module for special functions, measuring post PST-Se, large black granite base plate with a 14 mm T-slot, table 650 x 450 mm, PRK feed device, adaptable precision scanning device for roughness, unevenness and form measuring, tracing length 1,5-60 mm, guidance accuracy 2 µm, tracing speed 0,5 and 0,1 m/s, automatically adjustable, return speed 1,5 m/s, standard - interval and terminal contact operation, extensive accessories, exchange calliper, calliper height-adjustable, calliper holder, calliper, etc.

Condition: ready for operation (used), Year of construction: 2018, functionality: fully functional, machine/vehicle number: 575650, travel distance X-axis: 550 mm, travel distance Y-axis: 850 mm, travel distance Z-axis: 450 mm, TECHNICAL DETAILS Design: Lift tank Internal dimensions (W x D x H): 800 x 1100 x 480 mm Dielectric height programmable/automatic: max. 450 mm WORKING HEAD On ram clamping system UPC/H8000/Dynafix: 150 kg Min. distance electrode clamping system to worktable: 135 mm Max. distance electrode clamping system to worktable: 585 mm INTEGRATED C-AXIS Adjustable rotation speed: 1 - 20 rpm Measuring resolution: 0.001 degrees Load capacity with manual electrode change: 50 kg Load capacity with automatic electrode change: 15 kg Holding torque/clamping force: 120 Nm Njdpfx Agew T Thms Asdd Max. moment of inertia of electrode: 0.4 kgm² WORKTABLE Support surface (W x D): 760 x 1000 mm Load capacity: 2,000 kg TRAVEL PATHS X / Y / Z (inside work tank): 550 x 850 x 450 mm Y (for electrode change and loading position): 1180 mm CONTROL PC-NC dialog: 2 x 32 bit Drive type: digital AC servo motors Max. travel speed X, Y, Z: 5,000 mm/min High speed jump max.: 18,000 mm/min MACHINE DETAILS Main voltage: 400 V / 50 Hz Control voltage: 24 VDC Maximum fuse: 32 A Power consumption: 19 kVA Machine weight: 6,400 kg Main dimensions (W x H x D) including generator: 2760 x 2730 x 2940 mm Footprint with generator: 9 m² Generator weight: 640 kg Operating hours: 3,221 h

Condition: used, Year of construction: 2004, machine/vehicle number: 575259, travel distance X-axis: 550 mm, travel distance Y-axis: 850 mm, travel distance Z-axis: 450 mm, For sale is a high-quality sinker EDM machine from the renowned manufacturer OPS Ingersoll. This machine is ideal for precise EDM operations in tool and mold making, and comes equipped with an extensive range of features. 🔍 General Information: Nedpfjw Ig A Hex Ag Asdd Manufacturer: OPS Ingersoll Model: Gantry 800 Machine No.: 575259 Year of manufacture: 2004 Origin: Made in Germany Condition: Used, well-maintained, and fully operational ⚙️ Technical Specifications: Travel distances (X/Y/Z): 550 x 850 x 450 mm Worktable size: approx. 800 x 1000 mm Max. head load: 200 kg Max. clearance: 585 mm Max. traversing speed: 12,000 mm/min 💡 Equipment & Features: 30-position tool changer, EROWA Mitsubishi 64-bit CNC control (separate control panel) Programming software: MultiProg Control technology: Multipulse PRO Chuck: ER-016841 Integrated CO₂ fire extinguishing system Cartridge filter unit Dielectric cooling system by Weinreich Industriekühlung Extensive accessories and connection cables available ⚡ Electrical Data (as per type plate): Supply: 400 V / 3~ / 50 Hz Control voltage: 24 V AC / DC Power consumption: 17 A Fusing: 25 A Wiring diagram no.: 107258 Errors, typos and prior sale excepted.

Year of construction: 2008, condition: ready for operation (used), Control Unit Brand FANUC Model 310is-WA Main Drive Number of axis 5 Movement Nodpsv Rr Rdefx Ag Aedd X-Axis Movement 600 mm Y-Axis Movement 400 mm Z-Axis Movement 310 mm V-Axis Movement 200 mm U-Axis Movement 200 mm Workpiece Workpiece X 1050 mm Workpiece Y 775 mmm Workpiece Z 300 mm Additional Equipment Includes all accessories in the photos Includes digital documentation This 5-axis FANUC Alpha 1ID wire EDM machine was manufactured in 2008. It offers precision and efficiency for intricate metalworking tasks. If you are looking to get high-quality EDM capabilities, consider the FANUC Alpha 1ID machine we have for sale. Contact us for more information. Application Types EDM

Year of construction: 1974, condition: used, Pressure: 340 T Length of stroke: 200 mm Down table size: 100x800 mm Distance between up-down: - open 510mm (daylight) - closed 310mm Ndodpfxs Du Uwo Ag Ajd New hydraulic and electric systems

Condition: ready for operation (used), empty load weight: 22,000 kg, Type FTC75 Distance between centers: 8000 mm Swing over bed: 1500 mm Swing over cross-slide: 1100 mm Nodpfx Aewkw Umog Asdd Diametre of main spindle bore: 130 mm Number of speeds: 3,6 > 720 rpm Total power needed: 29,5 kW / 40 hp Max weight between centers: 11 ton

Condition: used, Year of construction: 1953, turning length / mm turning diameter over plate // mm faceplate diameter / mm Plane disc diameter: approx. 3600mm Ndjdpfx Aoua Iw Teg Aod Centre height above plate: approx. 1500mm Turning diameter over plate: 2600mm Turning diameter in the pit: 3600mm Turning diameter over bed: 1300mm Turning length: approx. 2400mm Max. Workpiece weight: 22000kg Max. Torque on the faceplate: 5000 mkg Faceplate gear rim pitch circle diameter: 1900mm Main spindle bore: 120mm Speed range normal: 0.71-35.5 rpm increased: 1-50 rpm increased: 1.4-71 rpm Total power: 38kW Total weight: approx. 42.5 tonnes

Year of construction: 2019, condition: ready for operation (used), Connected load: 84kVA, length: 5065mm, width: 1100mm, height: 1530mm. Nodpfx Aog A Trgsg Aedd

Condition: excellent (used), Year of construction: 2012, functionality: fully functional, overall weight: 250 kg, load capacity: 16 kg, We at Binici MB GmbH also have other industrial robots in-house. All our robots are fully functional (with complete accessories). We are at your disposal for good advice Nedpfjv Diuyjx Ag Aodd
