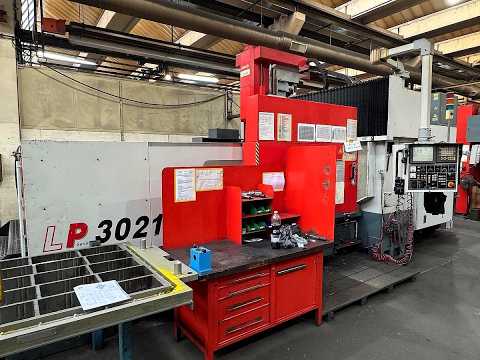

CNC gantry milling machine

AWEA LP-3021

Condition: ready for operation (used), Year of construction: 2004, operating hours: 61,082 h, functionality: fully functional, travel distance X-axis: 2,800 mm, travel distance Y-axis: 1,200 mm, travel distance Z-axis: 800 mm, controller model: HEIDENHAIN TNC 426, Equipment: chip conveyor, In January 2025, a new spindle was installed! The machine has been regularly maintained! TECHNICAL DETAILS Travel range X-axis: 2,800 mm Travel range Y-axis: 1,200 mm Travel range Z-axis: 800 mm Feed rates Rapid traverse: 35,000 mm/min Spindle speed S1 (continuous duty) Vertical: 10,000 rpm Spindle speed S1 (continuous duty) Universal swivel head, 2 axes: 18,000 rpm Lsdpfx Aeymw Rlsagsrh MACHINE DETAILS CNC Control: HEIDENHAIN TNC 426 Electrical data Supply voltage: 400 V (–15 %, +10 %) Frequency: 50 Hz Current draw: 101.1 A Installed total power: 59.8 kW Operating hours Power-on hours: 98,755 h Program run time: 61,082 h EQUIPMENT High-rigidity gantry design from the FPT DINO series Precision linear guides and ball screws Spacious work area with 2.8 m X-axis travel High feed rates for efficient machining Ideal for tool, mold, and machine construction Includes documentation and acceptance certificate according to ISO standards Tool changer Coolant system Chip conveyor Interchangeable milling head with 4th/5th axis

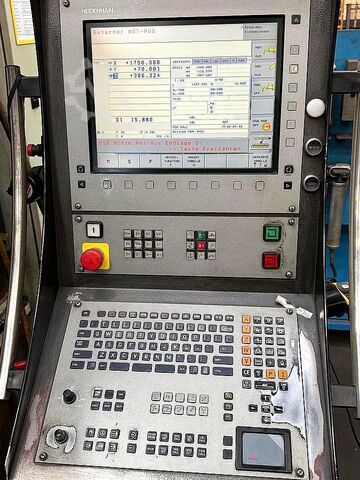

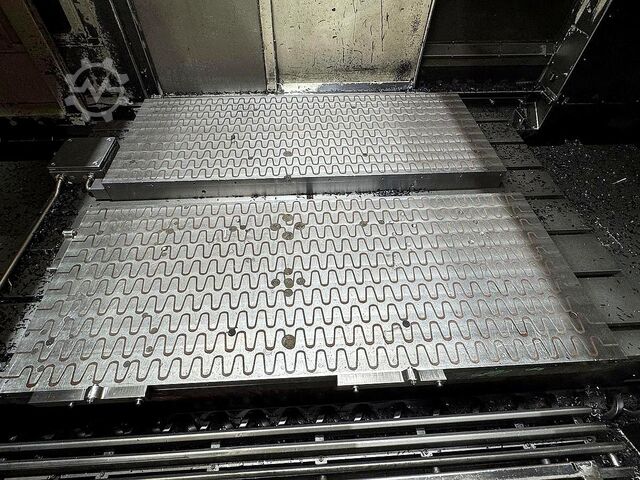

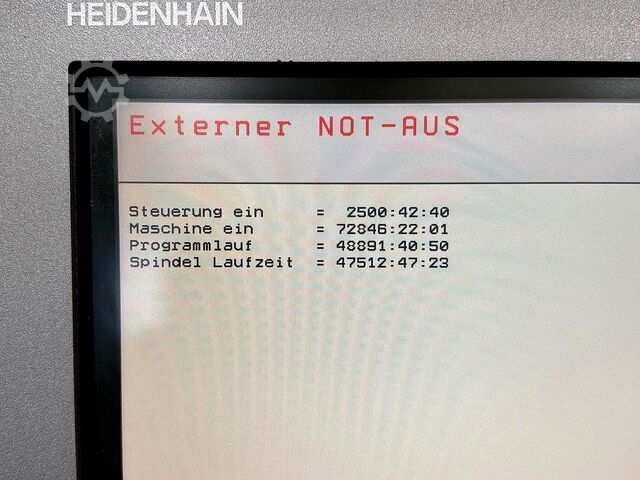

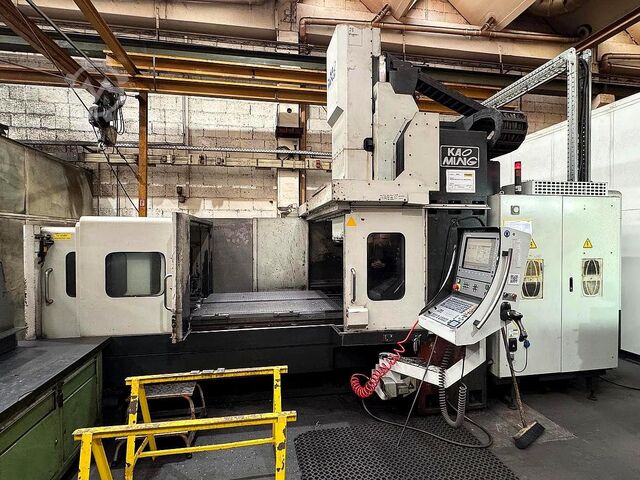

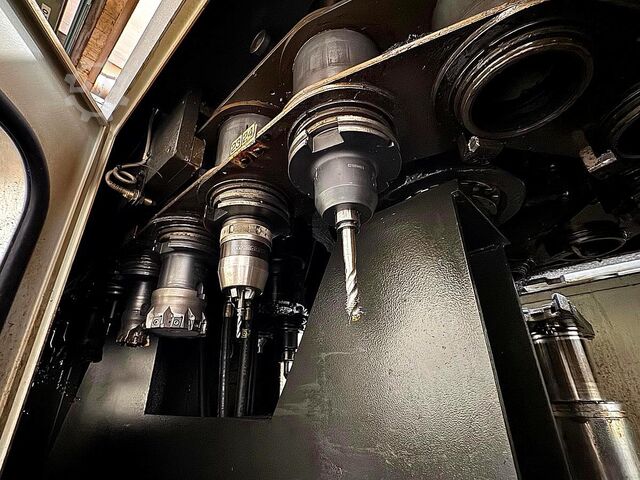

Condition: ready for operation (used), Year of construction: 2010, operating hours: 47,512 h, functionality: fully functional, travel distance X-axis: 2,230 mm, travel distance Y-axis: 1,400 mm, travel distance Z-axis: 850 mm, controller model: HEIDENHAIN iTNC 435, spindle speed (max.): 6,000 rpm, TECHNICAL DETAILS X-axis travel: 2,230 mm Y-axis travel: 1,400 mm Z-axis travel: 850 mm Table dimensions: 2,000 mm × 1,250 mm Maximum table load: 6,000 kg Spindle speed: 6,000 rpm Tool holder: SK50 Tool magazine capacity: 40 positions Rapid traverse in X / Y / Z directions: 12 m/min MACHINE DETAILS Control model: HEIDENHAIN iTNC 435 Spindle drive power: 38 kW Dimensions & Weight Dimensions (L × W × H): 6,135 mm × 4,338 mm × 4,150 mm Machine weight: 22,000 kg Operating hours (machine): 72,846 h Operating hours (program run): 48,891 h Operating hours (spindle running time): 47,512 h EQUIPMENT Coolant system Internal coolant supply (IKZ) Electronic handwheel Touch probe Lsdjymxqtopfx Aagjrh Automatic workpiece measurement Chip flushing Chip conveyor

Condition: ready for operation (used), Year of construction: 2004, operating hours: 47,870 h, functionality: fully functional, travel distance X-axis: 3,000 mm, travel distance Y-axis: 2,100 mm, travel distance Z-axis: 760 mm, table load: 10,000 kg, rotational speed (max.): 6,000 rpm, TECHNICAL DETAILS X-axis travel: 3,000 mm Y-axis travel: 2,100 mm Z-axis travel: 760 mm Distance between columns: 2,300 mm Table size: 3,020 mm × 2,010 mm Table load capacity: 10,000 kg Spindle taper: ISO 50 Standard spindle speed: 6,000 rpm Spindle motor (continuous / 30 min): approx. 22/26 kW Tool changer capacity: 32 tools Max. tool diameter: Ø 127 mm / Ø 215 mm Max. tool length: 350 mm Max. tool weight: 20 kg Rapid traverse X-axis: up to 20,000 mm/min Lrodpfxox Agh Rs Aageh Rapid traverse Y-axis: 15,000 mm/min Rapid traverse Z-axis: 15,000 mm/min Cutting feed: approx. 1 – 10,000 mm/min MACHINE DETAILS Program runtime hours: 47,870 h EQUIPMENT Extension of equipment to automatic head changer with angular milling head
