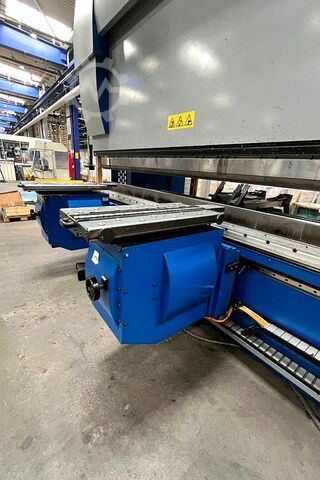

Hydraulic press brake

SALVAGNINI B3-220 / 4250 KinEtic

Condition: used, Year of construction: 2011, Press capacity approx.: 360 kN Bending length approx.: 1020 mm Distance between side frames: 932 mm Effective open height: 295 mm Throat depth: 150 mm Working speed: 25 mm / sec feeding speed: 220 mm / sec Control: TASC 6000 Working hours machine: 41422 h working time jacking beam: 4713 h Length: 1805 mm Width: 1330 mm Height: 2380 mm Weight of machine approx.: 2600 mm Standard configuration Machine - Stable machine frame - Optimized in terms of deformation - Highly-dynamic electro-mechanical direct drive (torque motor) - Inductive linear measurement system with temperature compensation - Switch cabinet air-conditioning- Ergonomic Machine designBack Gauge System - Highly-dynamic safety backgauge system - Gauge fingerControl - Integrated Machine controller TASC 6000 - Numerical workshop programming - Windows XPe, Pentium M with 1.1 GHz clock frequency - 1 GB RAM memory - 15 " Touch screen - Network capability - TeleserviceSafety - Safety doors, can be swung sideways - Rear cover - 2-button footswitch, for seated or standing operationOptions for ergonomy - Comfort supporting table (front)- Comfort foot rest - LED work area lighting, front - Operating unit, swivel-mounted - 1 shelf bracket and 2 document repositoriesOptions for productivity - BendGuard (with block laser) - Graphic workshop programming - Automatic tool clamps Extended machine accessories Extended Machine Accessoires Backgauge System - Backgauge system 6-axes Automation Codjyrf Dkepfx Ak Ejgt

Condition: as good as new (ex-display), functionality: fully functional, Year of construction: 2022, operating hours: 60 h, +++ Demo machine, approx. 60 operating hours +++ +++ Descending Die +++ Basic machine: TruPunch 3000 large format (S20) Machine: - Box frame - Hybrid axis system - Linear tool magazine with 24 stations for clamps and tools - Hydraulic clamps (3x) - Drives with maintenance-free three-phase motors - Repositioning with programmable presser foot - Foot switch to close clamps Cgsdpfx Aexmfc Uok Ejt - Part chute, right - Part removal flap, left - Sensor for part removal flap - SortMaster Compact retrofit-prepared Punching head: - Delta Drive - Rotating single-station tool adapter - Programmable presser foot position - Tool length compensation - Punch spray lubrication - Punching slug vacuum - Forming function - Punch stroke counter Control: - TRUMPF control based on Rexroth IndraMotion MTX - Touch panel with 19" TFT color display - Touchpoint - Auto-shutdown - Remote support interface - Program manager - Production plan Data transmission: - Central Link - Online Update Manager Safety: - CE marking and EC Machinery Directive - Double-beam safety light barrier Advanced standard configuration: - First index pin (inside right) - Ball tables - Part chute for finished part container - Chip container to rear for removal Advanced machine and punching features: - MultiTool function - MultiShear function - MultiBend function - Tapping function with thread counter - Forming tap breakage control - Lubricant level monitoring - Unlimited time license - Marking/Quick beading function (option) - Engraving function - Deburring and roller technology function - Adaptive stroke calibration - StripLine - Die spray lubrication with fill level monitoring - Descending Die - Integrated flattening function - Smart punch monitoring - Additional clamp - Height-adjustable clamp - Vibration damping - Chip container removed to front - Brush tables with loading and unloading assistance - Warped sheet detection Technical data TruPunch 3000 large format (S20) Dimensions / Weight: Width: 7644 mm Depth: 7666 mm Height: 2200 mm Weight (fully equipped): 13,800 kg Control / Hardware / Electrics: Hard disk type: SSD Number and size of hard disks: 2 x 120 GB Customer program memory: 10 GB Display: Touchscreen Display size: 21.5 in Interfaces: USB Network: RJ45 Control type: Bosch CML75 Operating system: Windows 10 IoT Axis data: X/Y/C axis drive: NC-controlled, maintenance-free three-phase servo motors Punching head drive: Electric Max. X axis speed: 90 m/min Max. Y axis speed: 60 m/min Max. simultaneous axis speed: 108 m/min Max. C axis speed (punching): 350 rpm Max. C axis speed (tapping): 350 rpm Max. punching stroke rate (E=1mm): 690 1/min Max. marking stroke rate: 1000 1/min Accuracy — positioning deviation Pa: +/- 0.1 mm Accuracy — position range Ps: +/- 0.03 mm Smallest programmable increment: 0.001 mm Working range / Workpiece size: Max. sheet thickness: 6.4 mm Max. workpiece weight: 230 kg X axis working range: 3000 mm Y axis working range: 1550 mm Punch-specific data: Max. punching force: 180 kN Max. presser foot force: 20 kN Max. tool size, punching (outer diameter): 76.2 mm Max. tool size, forming (outer diameter): 101.6 mm

Condition: not inspected (used), Press brake Darley Type EHP 260.43/37 year of construction 1992 converted to Delem control DA-56s Without light barriers, does not comply with current UVV regulations CNC back gauge Pressing force 2600KN Motor power 18.5 KW Working width max. 4300mm throat 300mm Weight approx. 23,000kg Cgsdpfx Aksuhf Tzs Eot The offer is aimed exclusively at traders within the meaning of §14 BGB No sale to private individuals!

Condition: as good as new (ex-display), 3000 kg welding rotary table, hydraulically height adjustable Speed 0.05-0.6 U/min Table diameter 1200 mm Inclination 0-120° Total height 700 mm Cgsdpfodvn E Uox Ak Eet Height adjustment with vertical pane until the mid- 960 mm ~ 1910mm Horizontal disc mass 1200mm up to 1900mm

Condition: used, Year of construction: 2008, Crowning CNC controlled Bending length 4250 mm 5-axis backgauge Work area lighting Parking position 900 mm Hydraulic lower tool clamping Hydraulic upper tool clamping CNC lower tool displacement Cgedpfxeyvr Ewo Ak Est Installation height 615 mm ACB preparation

Year of construction: 2001, condition: ready for operation (used), Max. cutting force: 220kN, laser power: 3200W, nitrogen connection: 30bar, oxygen connection: 20bar, connected load: 76kVA, operating hours at the beginning of 2025: 67,766h, with Trumpf TLF 3200 laser and RIEDEL L 15/21 TR3/19.00 cooler, refrigerant: R134a, filling weight: 11.5kg, high pressure: 20.2bar. Tools additionally available. An on-site inspection is possible. Cgodpfx Akjw Uk A Re Eot

Year of construction: 1988, condition: used, machine/vehicle number: 103.071.3156.78192, disk of circular saw-Ø: 400 u. 425 mm cutting area at 90° round: 130 mm cutting area at 90° square: 120 x 120 mm cutting area in mitre at 45° round: 130 mm cutting area in mitre at 45° square: 110 x 110 mm Cgsdpoz N Amjfx Ak Eet cutting speeds: 11 u. 22 m/min forward feed speeds: 670 mm/min cutting length: m. automat. Vorschub bis 1200 mm electrical connection: 380 V, ca. 4 kVA V sawing drive: 1,6/2,5 kW space needed: 1800 x 3800 x 2000 mm weight: ca. 1800 kg

Year of construction: 1992, condition: ready for operation (used), Working length: 4300mm, pressing force: 2000kN, connected load: 15kW, weight: 18t, including tools. Cgjdpfx Aji Dx Sbjk Eet

Condition: new, Year of construction: 2024, We convert laser cutting machines from CO2 to fiber laser Csdpfsnkal Dex Ak Eegt

Condition: good (used), functionality: fully functional, Year of construction: 2019, controller model: Rexroth IndraMotion MTX, laser type: CO₂ laser, laser hours: 980 h, laser power: 4,000 W, punching force: 22 t, Equipment: CE marking, nozzle changer, safety light barrier, Machine - C-frame - Coordinate guide - Linear magazine with 25 stations for clamps and tools - 4 x hydraulic clamps - Drives with maintenance-free three-phase motors - Repositioning system with programmable hold-down - Flap for punched parts 500x500mm incl. sensor - Foot pedal for closing clamps - FocusLine - NitroLine - FastLine - FlyLine - Additional XP and Yp axes - Ejector cylinder for laser parts - Fast flap for laser parts 500x500mm incl. sensor - Liftable laser cutting support TRUMPF Laser - TruFlow 4000 laser incl. LensLine and optimized standby - High-frequency excitation - Fine filtration of compressed air for beam tube ventilation - Closed beam guidance Cutting Head - Lens cutting head with 170mm focal length - Universal quick-change device for cutting head - LensLine - ControlLine Punching Head - Electro-hydraulic punching head - Rotatable mono-tool holder - Programmable hold-down position - Tool length compensation - Punch slug extraction - Calculation of fill level in the punching console - Stroke counter for punches - Spray lubrication for punches - Fill level monitoring for tool lubrication - Stripper position measuring system with sheet thickness measurement function Control System - TRUMPF control based on Rexroth IndraMotion Codpfx Akoyu S D As Eogt - Touch panel with 19" TFT color display - Integrated technology data - Programmable cutting gas pressure - Remote Support interface - Automatic shut-off with wake-up function - Production planner Functions - PlasmaLine Data Transmission - USB interface - RJ-45 network interface - Wireless Operation Point Safety - CE marking - Two-beam safety light barrier - Monitoring system for gas pressure, temperature and cooling water - Emergency stop for drives - Warp detection - Protection against stray radiation Extended Standard Equipment: - Network installation via Remote Support - Chiller (water-air) - Compact extraction system - 1st locating pin (inside right) - 2 finished parts containers - Chip container - 40 used RTC cassettes + die plate Punch Quality Package - MultiShear - Deburring and rolling technology - Adaptive stroke calibration - StripLine Forming Package - Thread forming incl. thread former breakage control - Marking/fast beading - MultiBend - Height-adjustable clamps - Automatic nozzle changer - MultiTool - Engraving - Smart Punch Monitoring with sheet format detection - 4 individually openable clamps - Automatic clamp closing with mechanical sensor zero stop - Repositioning cylinder - Vibration-damped installation - Chip conveyor with tilting container - Foot pedal start incl. rear-view mirror - Brush tables with loading and unloading support - Ejector unit for small parts - CO2 extinguishing system for compact extractor - Connection piece for exhaust air duct of compact extractor MobileControl App SheetMaster (AK08) UF - Loading station with spreader magnet - Simultaneous loading and unloading during main time - Peeling system incl. positioning aid for oversize formats - Additional positioning aids for medium format - Additional positioning aids for large format - First add-on package with 9 suction cups (incl. vacuum ejector) - Unloading monitoring for laser parts - Loading of blanks GripMaster 4000 x 1500 mm SortMaster Pallet 4 pallets longitudinal ToolMaster Linear 54 stations with simultaneous tool setup during main time - Safety devices for warehouse connection incl. 2nd light barrier circuit - Warehouse interface
