Used Schaublin for sale (58)

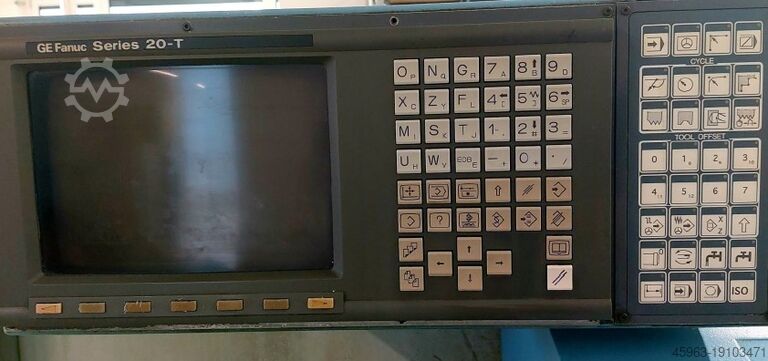

Condition: excellent (used), Year of construction: 1997, functionality: fully functional, LOW USAGE - GE FANUC 20-T Kdsdey U Ntpepfx Ap Aep

Condition: good (used), Swing over bed 270 mm Kedpstwpyajfx Ap Ajdp Center Height 125 mm Distance between centers 600 mm Spindle speeds 30-5000 rpm Control: FANUC 18i Manual Guide Misc. accessories MARCELS MASCHINEN CH

Condition: excellent (used), Year of construction: 1978, functionality: fully functional, machine/vehicle number: BL278700, center height: 150 mm, turning diameter over cross slide: 177 mm, spindle bore: 40 mm, turning diameter: 340 mm, spindle nose: Camlock D 1-4, type of input current: three-phase, total length: 1,730 mm, total height: 1,300 mm, total width: 970 mm, spindle speed (max.): 3,000 rpm, spindle speed (min.): 55 rpm, empty load weight: 1,250 kg, overall weight: 1,250 kg, For sale is a Schaublin 150 precision lathe from Switzerland. It is considered one of the best conventional lathes ever built. The machine has been overhauled. The spindle has been fitted with new bearings. The bearing set was ordered directly from Schaublin. The slides have been scraped. Turning tests with 30mm round steel resulted in a cylindricity of 0.002mm over 200mm. A large amount of accessories is included with the machine: - Reishauer 3-jaw chuck, 2x - Original Multifix B Mivesa tool holder - Collet chuck with lever clamp - Schaublin B32 collet set, 2 to 28mm, complete in 0.5mm increments, with MK5/B32 reducing sleeve and draw tube. - Steady rests - Machine documentation with catalog - Complete standard set of change gears, plus special gears - Conventional tool holder from Schaublin - Fixed and live center - Albrecht drill chuck - Coolant system - Digital readout The machine has not been used extensively in recent years and was only used sporadically. Kdodpoy Uqx Hefx Ap Aop Extremely robust construction, suitable for hard turning. Center height: 150mm Distance between centers: 630mm Spindle bore: Ø40mm Spindle speed, continuously variable: 55-3,000 rpm Feed rate: 0.05-0.35 mm/rev Spindle taper: MK5 Tailstock taper: MK3 Swinging diameter over cross slide: Ø177mm Swinging diameter over bed: Ø340mm Motor: 4.5kW Dimensions: 1,730x970x1,300mm Weight: 1250kg The machine can be inspected and tested under power by arrangement in 5023 Salzburg.

Condition: excellent (used), With DRO With step-down gear for spindle speeds Center height150 mm Distance between centers 630 mm Turning diameter over bed 340 mm Spindlespeeds 55-3000 rpm Spindle bore 40 mm Ksdpfxsy Iz Ixj Ap Ajdp Pitch of leading screw 4 mm Tail stock MK5 Misc.accessories MARCELS MASCHINEN CH

Condition: excellent (used), For sale is a set of steady rests for a Schaublin 150 lathe. Very good condition. Includes a set of 3 roller jaws. Price is for the complete set. Shipping available or collection in 5023 Salzburg. Ksdpfxey Rdaij Ap Aedp

Condition: used, Mechanic's Lathe SCHAUBLIN Type 102 Mach. No. 1998 Centre distance: 350 mm Bed length overall from headstock: 635 mm Swing over bed: 200 mm Centre height over bed: 102 mm Swing over cross slide: 120 mm Centre height over cross slide: 61 mm Spindle bore: 18/20 mm Spindle speed, gear stage 1: approx. 120 / 190 / 320 rpm Spindle speed, gear stage 2: approx. 590 / 970 / 1500 rpm Chuck mounting: external thread M38 x 3 mm Tailstock taper: MT 1 Drive motor: 0.55 kW, 920 rpm Power supply: 380 Volt, 50 Hz Kjdpfoy Dvf Rox Ap Asdp - Spindle speeds adjustable via 2 gearbox stages and 3-step drive belt shifting - Main spindle with forward and reverse operation - Spindle mount with M38 x 3 mm thread - 3-jaw scroll chuck Ø 128 mm with stepped jaws - Collet clamping system with 6 round collets Ø 3 / 4 / 5 / 6 / 8 / 20 mm - Integrated dividing plate on main spindle with 48 / 60 / 100 holes - Toolholder slot approx. 10 x 18 mm with clamping screw - Sturdy wooden base with 42 mm laminated board Required space (with stand): L x W x H: 1160 x 750 x 1300 mm Weight with stand: 150 kg Good condition

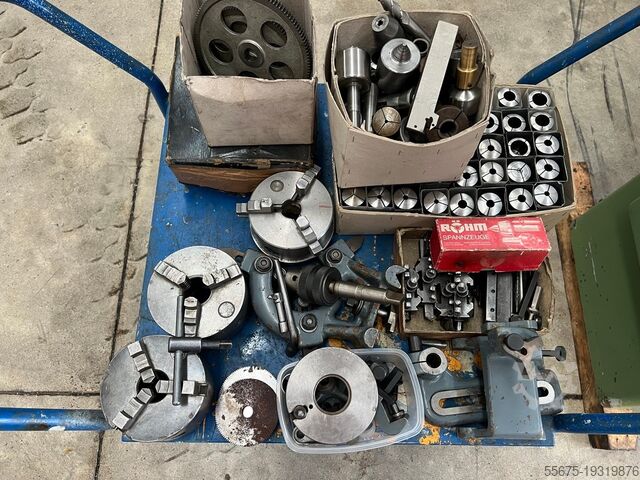

Condition: excellent (used), Year of construction: 1987, Schaublin 125 C precision lathe Year: 1987 Center height 125 mm Center width 500 mm Speed 45 - 3000 rpm Feed rate 4 - 260 mm/min Spindle nose Camlock D1-3" Tailstock cone MK 2 Turning diameter over bed 250 mm Turning diameter over face slide 120 mm Top slide travel 100 mm Cross slide travel 180 mm Dimension (W x D x H) 1500 x 850 x 1300 mm Weight approx. 950 kg Accessories/options: Kdedpfxjy Avyxj Ap Aep tool holders Röhm chuck 125mm documentations

Condition: excellent (used), Digital display Accessories available Table Usable table surface: 700 x 250 mm Travel paths X-axis travel: 320 mm Y-axis travel: 150 mm Z-axis travel: 370 mm Kjdpfoyywnfjx Ap Ajdp Automatic table movements 8 longitudinal feeds: 11 to 210 mm/min 8 vertical feeds: 11 to 210 mm/min Rapid feed of the table Longitudinal and vertical: 1000 mm/min Spindle taper: ISO 30

Condition: excellent (used), SCHAUBLIN 51 5AX CNC is a 5-axis machining center designed for precision, high accuracy and reliability. Working capacities: X300 Y400 Z430 mm; rotary table Ø210 mm; table load V50 H75 kg; A +30/−120°, C360°. Specs: HSK‑A63, 0–20,000 rpm, spindle motor 23 kW, feed 12,000 mm/min, rapid 30 m/min; weight ≈5750 kg; size 2700×1800×2600 mm. Tool magazine 20 places, Ø 80 mm (95 mm free), length 250 mm, tool change 3 s. Accessories: coolant system, water cooler, oil mist extractor FX4000, rinsing gun. Achieves tight tolerances; sectors: watchmaking, aerospace, medical, automotive, machine tools. Kdedpfxjyxn Hve Ap Asp

Condition: excellent (used), Universal Milling Machine Schaublin 53N Manufacturer: Schaublin Model: 53 N Table size: 1100 x 255 mm T-slots: 4 T-slot width: 14 mm T-slot pitch: 50 mm Longitudinal travel: 700 mm Longitudinal travel for spiral milling: 550 mm Vertical travel: 430 mm Cross travel: 250 mm Feeds, longitudinal/cross: 12 to 1000 mm/min Ksdpoyxgyhofx Ap Aedp Feeds, vertical: 6 to 500 mm/min Rapid traverse, longitudinal/cross: 3500 mm/min Rapid traverse, vertical: 1750 mm/min Spindle speeds: 18 steps, 38 to 1500 rpm Spindle taper: VSM 33831 Size 44 Collet chuck: P25 Main drive power: 4 HP Main drive speed: 1425 rpm Machine weight: 1650 kg Space requirement: 226 x 172 x 165 cm No guarantee is given for the accuracy, completeness, or timeliness of this information.

Year of construction: 1997, condition: ready for operation (used), - USED - CONVENTIONAL LATHE CENTRE HEIGHT: 102 mm DISTANCE BETWEEN CENTRES: 450 mm Kdedpeyvlxqefx Ap Ajp MAX TURNING DIAMETER OVER BED: 200 mm MAX TURNING DIAMETER OVER CARRIAGE: 120 mm BAR CAPACITY: 25 mm SPINDLE: 50 - 5000 rpm; 3 kW TAILSTOCK TAPER: CM 2 QUILL DIAMETER: 30 mm QUILL TRAVEL: 80 mm TURRET HEAD: MULTIFIX OVERALL DIMENSIONS: 1500 x 510 x 1550 mm

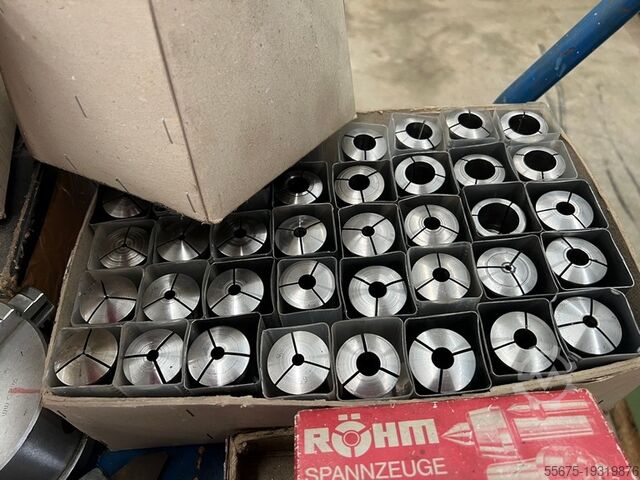

Condition: excellent (used), Very good condition Kdjdpsy Al Uxefx Ap Asp Digital, Multifix, collets W32

Condition: excellent (used), Center height 125 mm Distance between centers 500mm Spindle speeds 40-3000 rpm Several accessories MARCELS MASCHINEN CH Kdedelyrciopfx Ap Asp

Condition: as good as new (ex-display), Schaublin lunette steady rest, model 102VM. Ksdpfskw Drzex Ap Ajdp

Year of construction: 1998, operating hours: 1,339 h, condition: ready for operation (used), Control Unit Brand FANUC Model Series 18i-T Main Drive Kedpfxox D Itws Ap Aedp Number of axis 4 Spindle Speed 4000 RPM Tool taper VDI 30 This 4-axis SCHAUBLIN 65 TM-3 was manufactured in 1998. A robust horizontal turning machine, it features a maximum turning diameter of 380mm and a length of 534mm. With a spindle speed and rotating tool speed both up to 4,000 RPM, and a 12-piece turret with driven tools, consider the opportunity to buy this SCHAUBLIN 65 TM-3 horizontal turning machine. Contact us for more information. Application Types Turning

Condition: used, machine/vehicle number: 1023, Manufacturing origin Swiss Voltage 380/50/3 Netweight 740 kg Dimensions 155x110x160 cm Total power 2,1 kW Customs position 8459.6930 spindle ISO 30, with digital read-out Sony LM31 - 3 axes TECHNICAL DATA Geometrical characteristics VERTICAL RECTANGULAR TABLE - working surface 740x200 mm - number of T-slots 2 - width of T-slots 12-H7 mm - distance between slots 120 mm FIXED ANGULAR TABLE (accessory 13-5.421) - working surface 700x250 mm - number of T-slots 5 - width of T-slots 12-H7 mm - distance between slots 40 mm - provision for lateral traverse 250 mm in all INCLINABLE UNIVERSAL TABLE (accessory 13-5.300) - working surface 600x210 mm - number of T-slots 4 - width of T-slots 12-H7 mm - distance between slots 40 mm - provision for lateral traverse 350 mm in all Angular setting in all 3 planes, in either direction (horizontal-lateral-transverse) 30°-45°-30° SPINDLE INTERNAL TAPER - horizontal spindle head Iso 30 (40) - vertical spindle head Iso 30 (40) - universal high-speed head Schaublin E20 + ES 20 SWIVEL IN VERTICAL PLANE - vertical spindle head 360 ° Strokes and traverses  LONGITUDINAL STROKE : HANDWHEEL-OPERATED/AUTO. - table 320x300 mm - 1 turn of the wheel equals a long. traverse of 5 mm VERTICAL STROKE : HANDWHEEL-OPERATED/AUTOMATIC - knee 375/355 mm - 1 turn of the wheel equals a vert. traverse of 2 mm TRANSVERSE STROKE : ADJUSTING HANDLE - horizontal spindle head 150 mm - 1 turn of the wheel equals a cross traverse of 5 mm QUILL STROKE - vertical spindle head 60 mm ACCURACY ON READING ON MICROMETER VERNIERS - in all 3 traverses 0,02 mm Drive, motors, power feeds Main motor 1,5 kW 1500 rpm Approach-feed motor (rapid feeds) 0,45 kW 3000 rpm Coolant-system motor 0,15 kW 3000 rpm Spindle speeds (stepless) - 1st range 58-375 rpm - 2nd range 330-2000 rpm Kdjdpfefnrxwjx Ap Asp Working feeds - longitudinal or vertical 12-400 mm/min - 10 feeds, values in mm/min 12-18-26-38-57 85-125-185-270 400 Approach feed (rapid feed) - longitudinal or vertical 1200 mm/min errors and omissions, excepted data given without obligation Inventory Nr. 2180233 machine equipped with : 1 fix table with 4 T-slots 1 digital read-out Sony LM 31 - 3 axes 1 cooling device 1 lighting 1 chips vat 1 Rest 1 Mill fitter long long ISO 30 Ø 13x97 mm avec pivot 1 do Ø 16x97 mm 1 do Ø 22x137 mm 1 do Ø 27x156 mm 1 Mill fitter short ISO 30 Ø 16x29 1 do Ø 22x14 1 do Ø 22x37 1 do Ø 27x60 1 Mill fitter short ISO 30 for plates 1 Mill fitter cylindrical ISO 30 Ø 20 mm 1 do Ø 12 mm 1 do Ø 6 mm 1 Collet fitter ES-32 ISO 30 1 Set of 29 collets ES-32 various 1 Reduction sleeve Alesa ISO 30 / MT3

Condition: refurbished (used), Year of construction: 2026, functionality: fully functional, machine/vehicle number: 310435, Completely overhauled - new painting New workbench - new geometry Manufacturing origin Swiss Voltage 380V 50Hz 3Ph Customs position 8458.1930 TECHNICAL DATA Capacities : - height of centres 102 mm - distance between centre, standard headstock type W 470 mm - distance between centres, headstock type W with reduction unit 375 mm - swing over bed 200 mm - swing over carriage 120 mm Bed : - height-width-length 168-100-1000 mm cast-iron bed with ground inverted-V profile Headstocks : Kdsdpfx Asdr R Tcop Aop - spindle nose for collets W-25 - maximum bore through collet 19.0 mm - headstock with reduction unit, ratio 1:5 Carriages : - stroke of longitudinal tool slide 90 mm - stroke of transverse tool slide 100 mm - size of tools 12x12 mm Tailstocks : - internal taper of tailstock spindle Morse 2 - spindle stroke, screw- and handwheel-operated 80 mm errors and omission excepted-data given without obligation Inventory no. 2250023, machine comprising: 1 NEW workbench 2000x800 mm with blue Urphen worktop 2000x800x50 mm 1 leg, 1 B750 cabinet with 7 drawers 1xD50/2xD75/2xD100/1xD150/1x200 1 bench for overhead control 1 W-25 workpiece holder without gear reducer with clamping key, serviced 1 serviced cross slide 1 reconditioned aligned tailstock 1 380V/50Hz/3ph motor. 2 speeds 1 used W-25 solid centre 1 set of used W25 collets 1 used Reishauer ZMG 2x3 jaw chuck Ø 110 mm on w-25 flange 1 new set of used Multifix tool holders including -1 type A turret with AG20 stud -2 AD1675 chisel holders -2 AD2090 chisel holders 1 Albrecht self-tightening drill chuck, cap 1-13 mm on CM2 tenon, used 1 used CM2 solid centre point OPTION 1 used tensioner with new belt CHF 1000 + VAT 1 AS TYPE B-8 GRINDING MACHINE with 360° swivel quill max. speed 28,000 rpm, adjustable height, adjustment, ref. 800053 CHF 1,325 + VAT

Condition: refurbished (used), For sale is a Swiss Schaublin 13 precision milling machine in fully refurbished condition—better than new. The machine has been completely overhauled in Switzerland. Its geometry has been reworked and the electrical system brought up to the latest standard. Kdodsyw A Hzopfx Ap Aep All guideways are finely scraped and in perfect condition. All wear parts and spindles have been replaced. Belts are renewed, etc. The machine has not been used since the overhaul. In this condition, it is an absolute rarity and already considered an investment piece. Ideal for high-precision applications or collectors who appreciate a perfect machine tool.

Condition: new, schinfa Machinerevisie has been the specialist in revision for over 27 years. We do all this in-house. We can grind up to 2700 mm. We bring the machines far back within the DIN standard. We can overhaul a machine from you or deliver a machine from us. Kjdpfxsfhnr Ij Ap Ajdp

Condition: used, Manual lever lathe SCHAUBLIN Type 102 Precision mechanic lathe Machine no. 208322 Year of manufacture: approx. 1970 Total bed length: 650 mm Kjdpfx Aow Iq Umjp Aodp Center height over bed: 102 mm Center height over carriage: 53 mm Medium spindle speed: approx. 2,800 rpm (3 speed stages) Drive motor: 0.37 kW, 2800 rpm Power supply: 380 Volt, 50 Hz - Manual lever parting and grooving slide with precisely adjustable stops - Tool holder with precise height adjustment - Collet chuck device (only one collet included) - Speed change by shifting the drive belt Space requirement with stand: L x W x H 1150 x 600 x 1200 mm Weight with stand: 130 kg Good condition

Condition: excellent (used), Year of construction: 2005, Schaublin 102N-VM-CF high precision Swiss lathe Year: 2005 max. admitted diameter over the bed 200 mm max. admitted diameter over the slides 120 mm Height of centers 102 mm Distance between centers 450 mm Bed length 1000 mm Kedpfxew N Rh Ae Ap Aodp Bed height 168 mm Power 4.2 KW Spindle speed 100 - 3000 RPM Spindle W25 Transverse stroke, X axis 100 mm Resolution, X axis (radius) 0,01 mm Longitudinal stroke, Z axis 90 mm Resolution, X axis (radius) 0,01 mm Lead screw - 8 longitudinal feeds - Larger feeds possible when using the thread control for turning Max. cross section of tool shank (Multifix system) 10x10 mm Bar holder (MULTIFIX system) diameter 20 mm Height and side-adjustable tailstock: Internal taper of the sleeve Mk2 Spindle OD 30 mm Spindle stroke 80 mm Coolant tank capacity 23 L Electrical power supply voltage 400 V Overall dimensions: length x depth x height: 1500 x 510 x 1550 mm Accessories / options: - ACU-RITE digital readout unit, 3 axis X-Z-Z1 X resolution 0.001[mm] Z resolution 0.005[mm] Z1 resolution 0.005[mm] - Coolant system - Rear sheetmetal guard - Double Start/Stop pedal and spindle rotation direction inversion - Schaublin W25 collet set - Cast iron chuck W25 Ø110[mm] with jaws - Quick-change toolholder turret MULTIFIX-A with holders - Driving system for auxiliary equipment with BELT adjustable and swivelling belt-tensioning attachment drive device complete with motor belt Ø6x2’500[mm] - Tailstock - etc... Under power in our warehouse.

Condition: excellent (used), Center height 125 mm Center width 500 mm Speed 45 - 3000 rpm Feed rate 4 - 260 mm/min Spindle nose Camlock D1-3" Tailstock cone MK 2 Ksdpfx Apstzxh To Aedp Turning diameter over bed 250 mm Turning diameter over face slide 120 mm Top slide travel 100 mm Cross slide travel 180 mm Dimension (W x D x H) 1500 x 850 x 1300 mm Weight approx. 950 kg

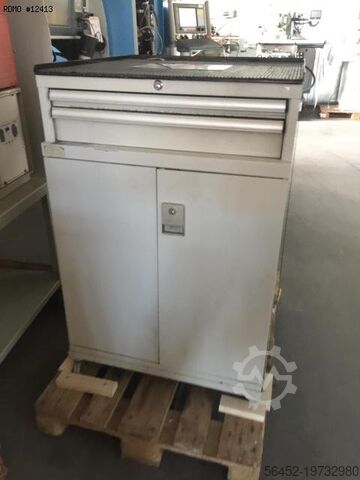

Condition: excellent (used), functionality: fully functional, Schaublin 135 High-Precision Lathe with 3-Axis K&C Digital Readout NEW and Accessory Cabinet in Excellent Ex-University Condition! Technical Data: >> Centre height: 135 mm >> Distance between centres: 630 mm >> Swing over bed: 315 mm >> Spindle mount: Camlock D1-4 >> Spindle bore: 40 mm >> Longitudinal and cross feeds: 0.025–0.35 mm/rev >> Metric thread pitches: 0.25–14 mm >> Tailstock: MT3 >> Infinitely variable speed range: 55–3000 rpm >> Total power requirement: 4.45 kW >> Weight: approx. 1200 kg Accessories: >> 3-axis digital readout by K&C (new), 12 months manufacturer’s warranty with user manual Functions: Switching mm/inch, coordinate selection ABS/INC, value halving, reference mark, tool programming for up to 200 tools, taper calculation, radius/diameter display, quick zeroing, count direction reversal >> Accessory cabinet containing: - 160 mm 3-jaw chuck with two sets of jaws - Multifix B toolholder with 3 pockets Kdjdsx H Szyspfx Ap Ajp - Internal and external collets with quick-change system - Change gears - 4-jaw chuck - Face plate - Fixed and travelling steady rests - Coolant system - Centres - Operating manual - And much more About the machine: For sale is a Schaublin 135 high-precision lathe. The machine is in excellent condition, coming from a university and only lightly used. Equipped with a NEW K&C 3-axis digital readout and a comprehensive range of accessories. You are invited to inspect the machine under power on site to verify its condition.

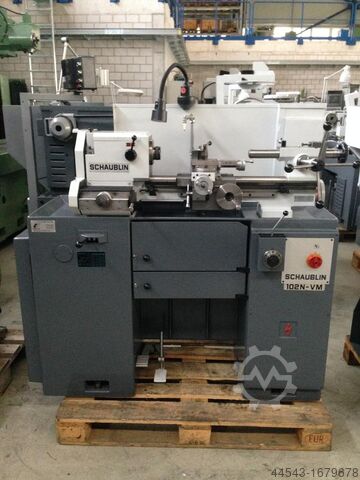

Condition: excellent (used), functionality: fully functional, High-Precision Leadscrew Lathe Schaublin 102N-VM Technical Data: >> Machine No. 283152 >> Centre height: 102 mm >> Centre distance: 450 mm >> Spindle bore: 25 mm >> Longitudinal feeds: 8 steps from 0.02 to 0.3 mm/rev >> Metric threads: 20 pitches from 0.25 to 4 mm >> Imperial threads: 25 pitches from 80 to 6 TPI >> Tailstock: Morse taper 2 >> Infinitely variable speeds from 270–3000 rpm Kedjwvq Tmepfx Ap Ajdp >> Weight: approx. 700 kg Accessories: >> 3-jaw chuck, 2 sets of jaws >> Tool post with 6 tool holders >> Quick-clamping device, draw tube and 34 collets >> Coolant system >> Cutting tools, drill chuck (see images) >> Operating manual with spare parts list About the machine: For sale is a Schaublin 102VM leadscrew lathe in very good condition. The machine is, of course, fully functional. All slides operate smoothly and evenly. The 102VM runs quietly even at high speeds. The gear set for thread cutting is present, but is probably not complete. Take the opportunity to view and test the machine under power on site and see its good condition for yourself.

Condition: good (used), Working travels 300 x 150 x 355 mm Table size 700 x 250 mm Spindle taper for collets ISO 30 Spindle speeds 58-2'000 rpm Kodpeu Eqixofx Ap Aedp Digital read-out Misc.accessories MARCELS MASCHINEN CH
