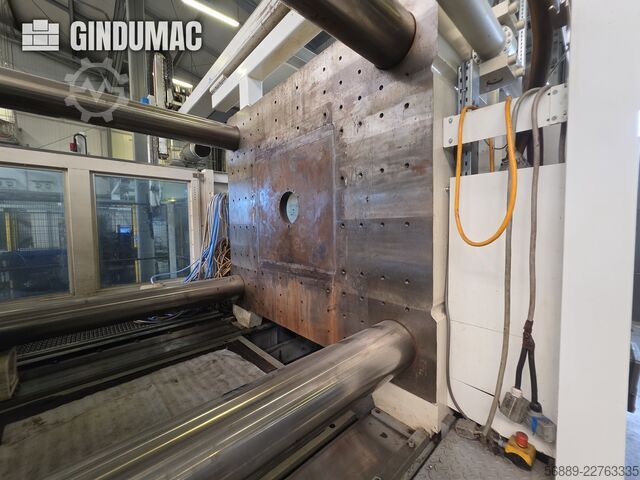

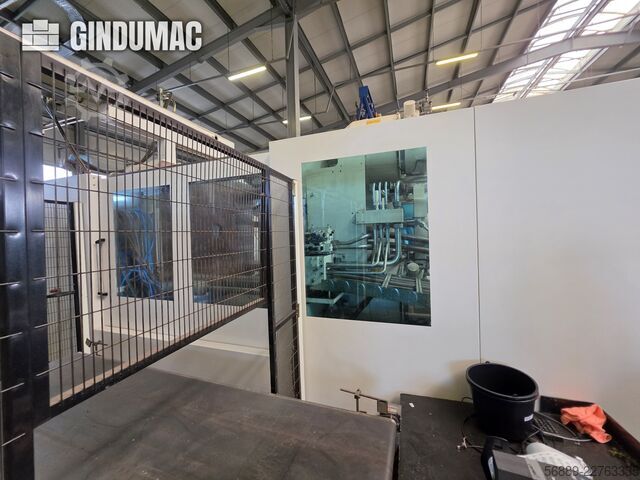

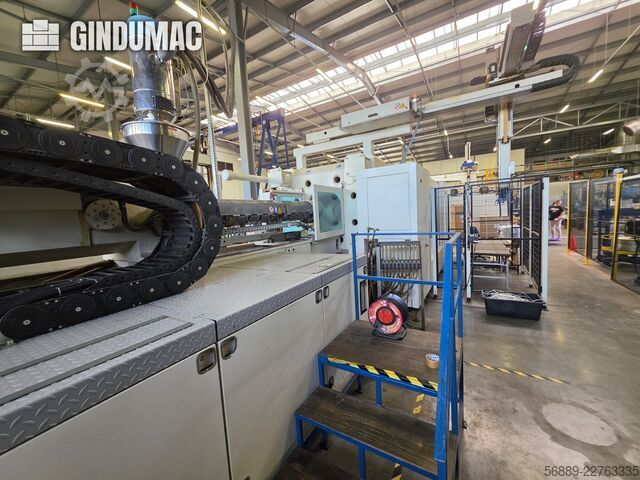

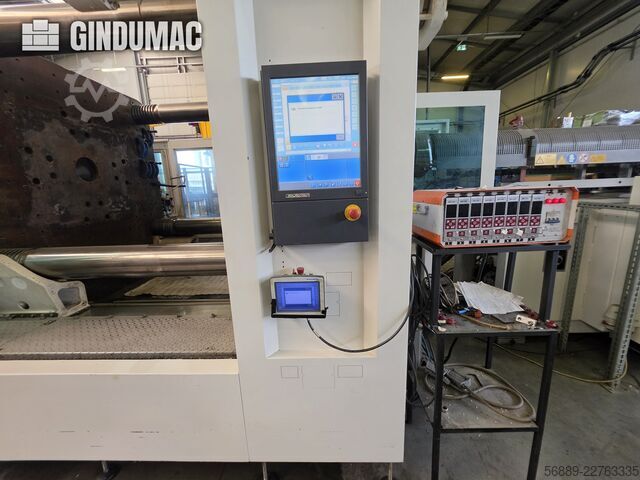

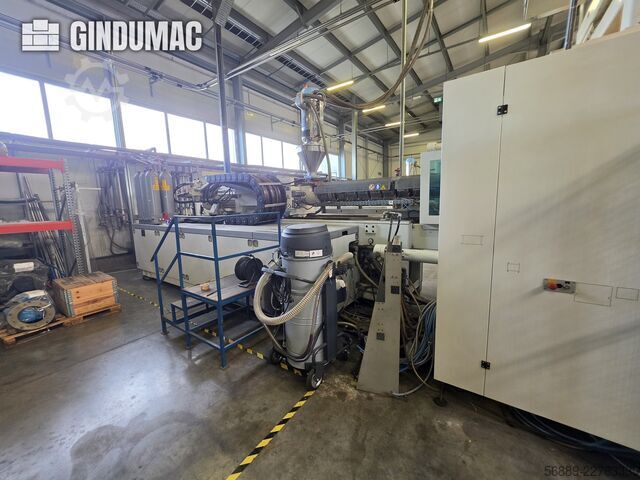

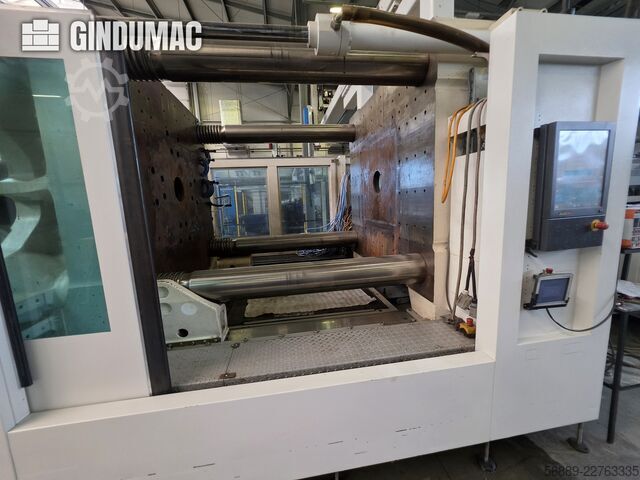

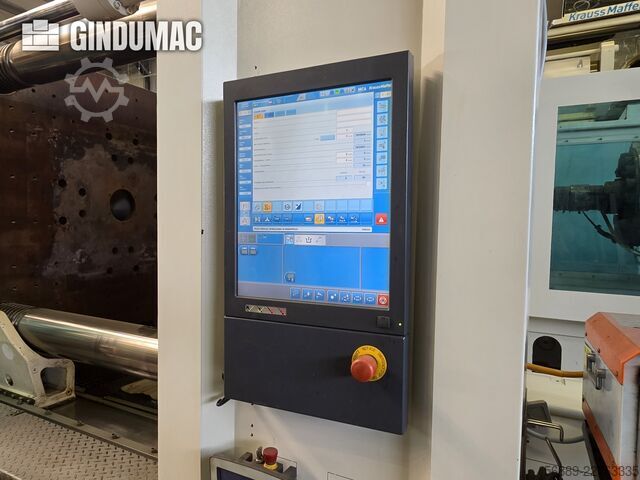

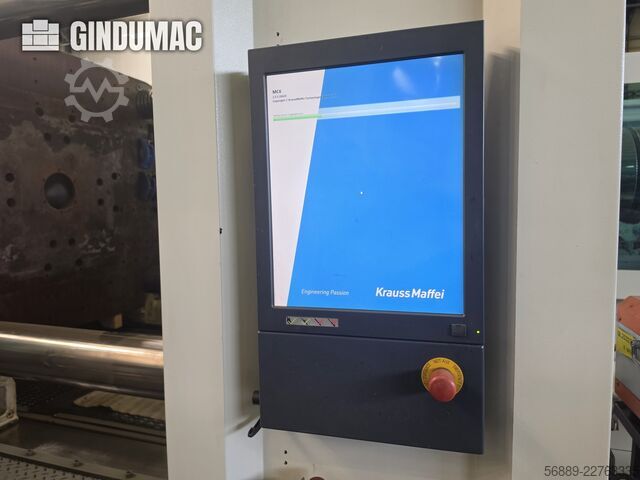

Krauss Maffei 1300-12000 MX

KraussMaffei 1300-12000 MX

Condition: excellent (used), Year of construction: 2007, operating hours: 81,000 h, functionality: fully functional, clamping force: 132 kN, screw diameter: 135 mm, injection pressure: 1,390 bar, injection weight: 7,729 g, KraussMaffei KM 1300-12000 MX + KUKA Robot! TECHNICAL DETAILS Bwsdpfx Akj Ah D Dyensw Clamping Unit Clamping force: 1,300 t Opening stroke / mounting height: max. 2,300 mm Distance between tie bars: max. 4,000 mm Mold mounting height: min. 1,000 mm / max. 1,700 mm Tie bar height: max. 1,910 mm Mold size: min. 1,000–1,700 mm Clear tie bar spacing: 1,500 mm Nozzle radius: R40 mm Mold weight: 29,000 kg Ejector stroke: 350 mm Injection Unit Screw diameter: 135 mm Displacement volume: 8,588 cm³ Injection pressure: 1,390 bar Shot weight: 7,729 g PS MACHINE DETAILS Core pulls, ejector side / nozzle side: 1 / 1 Pneumatic needle closures: 1 Operating hours: 81,000 h EQUIPMENT KUKA robot

Condition: new, Year of construction: 2025, Delivery ex works Turkey Bending length (A): 3050 mm Press force: 170 tons Sheet thickness 42kgf / mm: 8 mm Sheet thickness 72kgf / mm: 4 mm Upper tool: 1260 Top Tool 85 ° Lower tool: 50, 35, 22, 16 Distance between columns (B): 2550 mm Forward speed: 130 mm / s Working speed: 8 mm / s Retraction speed: 120 mm / s Crowning: manual (CNC-motorized available for an extra charge) X-axis travel: 750 mm X-axis speed: 250 mm / s Backgauge fingers: 2 pieces Front support arms: 2 pieces Oil tank capacity: 180 liters Main motor power: 11 kW Stroke length (C): 265 mm Installation height (D): 450 mm Projection stand (E): 410 mm Table height (F): 870 mm Table width (G): 170 mm Length (L): 4200 mm Height (H): 2800 mm Width (W): 2200 mm Weight: approx. 7500 kg Cybelec Cybtouch 12 2D Graphic CNC control 3 axes (Y1, Y2, X) expandable with optional R+Z-Axis Eurostamp 2067 lower tool (V: 50, 35, 22, 16) Eurostamp 1260 upper tool 85 ° Narrow table All-steel welded construction Promecam quick clamping system CNC-controlled motorized backgauge (X: 750 mm) Adjustable backgauge fingers Inch and metric system can be selected Ground and chrome-plated cylinders Swiveling control panel Foot control with anti-panic stop & emergency shutdown Lateral protective grille (secured with limit switch) Light curtain on the back of the machine (900 mm) DSP laser finger protection system at the front (CE) BOSCH / REXROTH or HOERBIGER / HAWE hydraulic system BOSCH / REXROTH or ECKERLE hydraulic pump Slidable front support arms (2 pieces) Electronics unit from: SIEMENS, SCHNEIDER, DELTA, ABB, OMRON 380 V 50 Hz Painting: RAL 7035, RAL 5015 Optional special accessories available at an additional cost: Bwjdpfjgu N Alsx Aknjw -CNC-controlled R-axis (250 mm) -CNC motorized crowning -Servo driven motors backgauge system for X + R axis (Mitsubishi) -Painting in special colors on customer request Documentation in German or English CE conformity

Condition: excellent (used), Year of construction: 2007, operating hours: 81,000 h, Technical Data Year of manufacture: 2007 Clamping side Clamping force: 1300 t Opening stroke/installation height max.: 2300 mm Distance between clamping plates max.: 4000 mm Bedpfe Afpalox Aknjww Tool installation height min./max.: 1000 - 1700 mm Clamping plate max. height: 1910 mm Tool size min.: 1000 - 1700 mm Distance between tie bars: 1500 mm Nozzle radius: R40 mm Tool weight: 29000 kg Ejector stroke: 350 mm Injection side Screw diameter: 135 mm Injection volume: 8588 cm³ Injection pressure: 1390 bar Injection weight: 7729 g/shot Core pulls AWS/DS: 1/1 Needle gate pneumatic: 1 The machine is supplied with a Kuka robot and can be inspected during production.

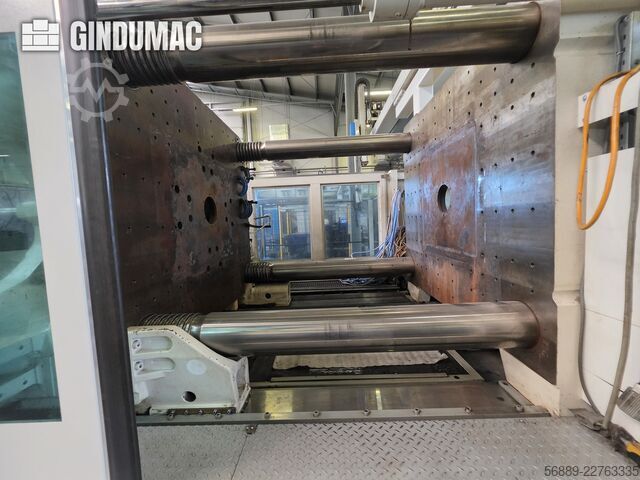

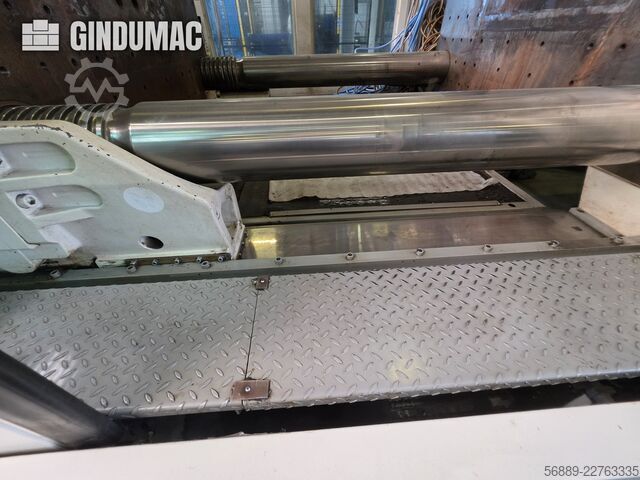

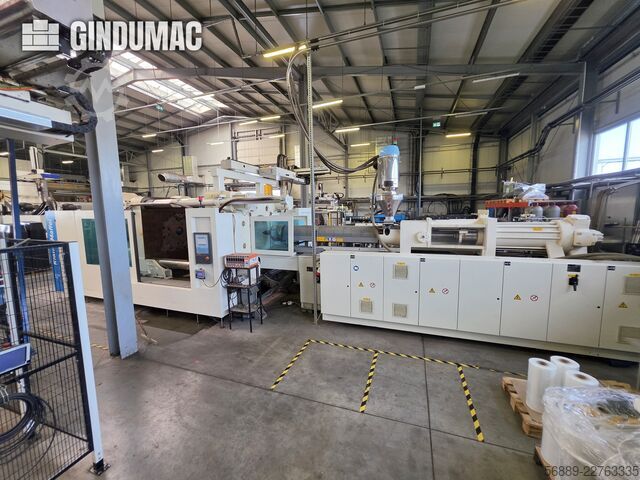

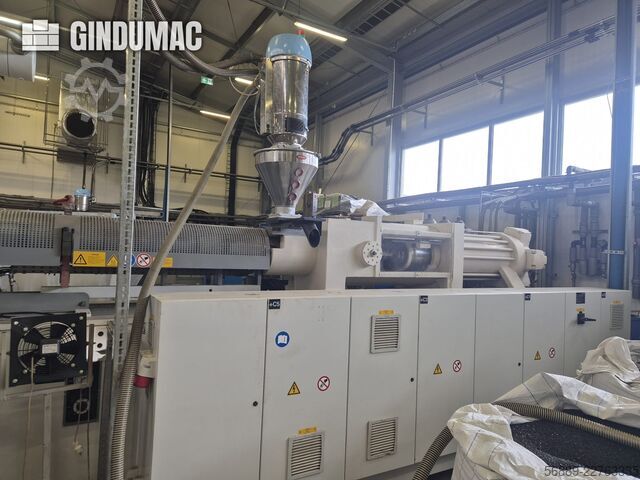

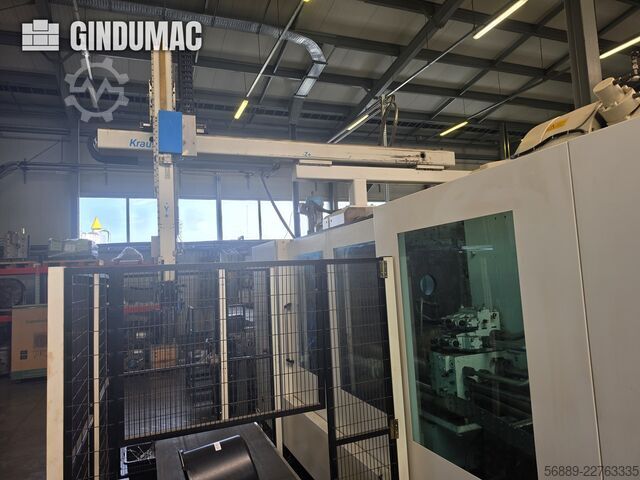

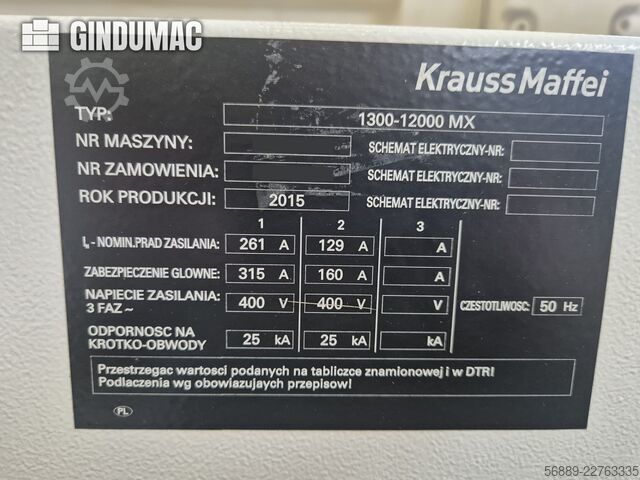

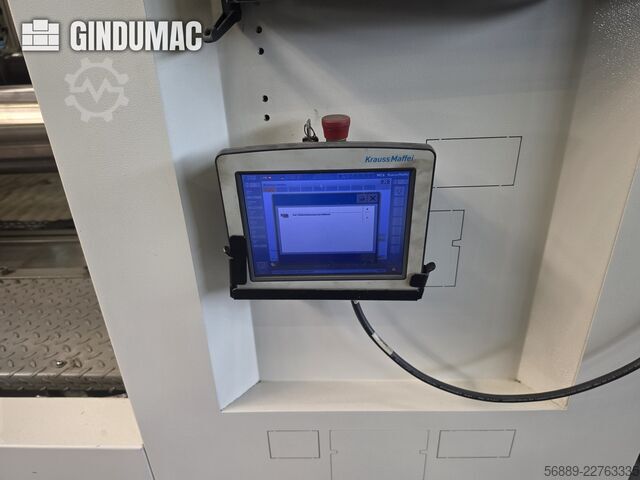

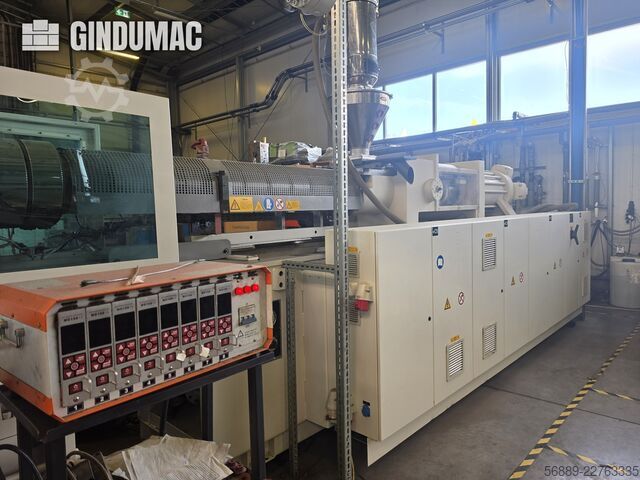

Condition: excellent (used), Year of construction: 2015, KRAUSSMAFFEI KM 1300-12000 MX + LRX 350 ROBOT Year of manufacture: 2015 | Clamping force: 1300 tons | Control: MC6 Hydraulic injection molding machine KraussMaffei KM 1300-12000 MX from 2015, equipped with a KraussMaffei LRX 350 linear robot. The machine features a two-platen hydraulic-mechanical clamping system, an abrasion-resistant plastification unit, and an MC6 control system with a 19-inch touchscreen. TECHNICAL DATA 1. CLAMPING UNIT Clamping force: 13,000 kN / 1300 tons Clamping system: hydraulic-mechanical, two-platen Design: 4 tie bars and 4 adjusting units Mounting plate dimensions: 2210 × 1910 mm Tie bar spacing: 1570 × 1270 mm Opening stroke: 2350 mm Maximum platen opening: 3050 mm Minimum mold height: 700 mm Maximum mold height: 1400 mm Ejector stroke: 350 mm Ejector force: 250 / 125 kN 2. INJECTION UNIT Unit type: 12000 Bedo Af Ndqepfx Akneww Screw diameter: 105 mm Injection volume: 5195 cm³ Injection shot weight (PS): 3689 g Maximum injection pressure: 2296 bar Maximum injection speed with accumulator: 150 mm/s Injection rate with accumulator: 1299 cm³/s Maximum screw speed: 144 rpm Plastification rate (PS): 130 g/s Abrasion-resistant plastification unit PV injection unit adjustment 3. KRAUSSMAFFEI LRX 350 LINEAR ROBOT Manufacturer: Krauss Maffei Model: LRX 350 Type: linear, servo-driven robot Payload: up to 35 kg Part removal on the side opposite the operator Range of motion: X-axis: 1200 mm Y-axis: 1000 / 1000 mm (telescopic) Z-axis: 3500 mm Drives for X, Y, Z axes: servo 4. CONTROL SYSTEM KraussMaffei MC6 19" color touchscreen Industrial computer Real-time Ethernet communication ProcessDesigner process visualization Machine diagnostics Adjustment and monitoring of injection parameters 5. HYDRAULIC AND ELECTRICAL SYSTEM Pump motor power: 132 kW Heater power: 75 kW Number of heating zones: 7 Oil tank capacity: 2440 l 6. DIMENSIONS AND WEIGHT Length: 13,650 mm Width: 3650 mm Height: 2820 mm Machine weight: approx. 70,000 kg / 70 tons

Condition: good (used), Year of construction: 1999, operating hours: 95,239 h, functionality: fully functional, machine/vehicle number: 173937, clamping force: 2,000 kN, screw diameter: 55 mm, clearance between the columns: 520 mm, mold height (min.): 250 mm, total length: 5,100 mm, total width: 1,800 mm, total height: 2,200 mm, overall weight: 6,630 kg, Equipment: documentation/manual, The machine ran perfectly until the last day before the new machine was delivered to us. The machine is therefore in good used condition. Due to a lack of space in the injection molding shop, the machine is being sold and is no longer powered. The pump / injection unit / clamping unit are sealed. The machine manual is available Videos of the machine are available Pump operating hours: 95239 Automatic operating hours: 86082 Bwodpfx Akov D Nxlenew Repairs from recent years: Filter replaced annually 05/2024 Fan in the control cabinet replaced 07/2023 New valve for Y201 and Y210 nozzle forward/backward 02/2023 New keypad installed. Field with motor and heater 12/2022 Ejector sealed. Injection unit sealed including new piston

Condition: excellent (used), Year of construction: 2007, operating hours: 81,000 h, Technical Data Year of manufacture: 2007 Bwjdpfx Aez Rmrdjknow Clamping side Clamping force: 1300 t Opening stroke/installation height max.: 2300 mm Distance between clamping plates max.: 4000 mm Tool installation height min./max.: 1000 - 1700 mm Clamping plate max. height: 1910 mm Tool size min.: 1000 - 1700 mm Distance between tie bars: 1500 mm Nozzle radius: R40 mm Tool weight: 29000 kg Ejector stroke: 350 mm Injection side Screw diameter: 135 mm Injection volume: 8588 cm³ Injection pressure: 1390 bar Injection weight: 7729 g/shot Core pulls AWS/DS: 1/1 Needle gate pneumatic: 1 The machine is supplied with a Kuka robot and can be inspected during production.

Condition: like new (used), Year of construction: 2023, Technical Data: Maximum clamping force: 3,500 kN Maximum locking force: 3,850 kN Opening stroke: 725 mm Minimum mold installation height: 400 mm Maximum mold installation height: 900 mm (extended) Clamping plate dimensions (h x v): 1,168 x 1,144 mm Clear tie bar spacing (width x height): 830 x 830 mm Maximum mold weight: 6,600 kg Maximum weight on moving platen: 3,800 kg Maximum weight on fixed platen: 5,100 kg Ejector stroke: 250 mm Ejector force (increased): 100 kN Max. ejector speed: 270 mm Screw diameter: 60 mm Injection pressure: 2,426 bar Max. injection volume: 891 cm³ Max. injection speed: 160 mm/s Max. dosing stroke: 315 mm Max. nozzle stroke: 520 mm Nozzle immersion depth: 20 mm Back pressure over dosing stroke programmable Installed cylinder heating: 23.1 kW Material hopper capacity: 110 l Machine weight: approx. 21 t Accessories: Robot: Manufacturer: SEPRO ROBOTIQUE (France) Model: 5T35 2000/900/TE-1800 Year of manufacture: 2023 Stroke: 2,000 mm Speed: 3.5 m/s Horizontal demolding stroke Y-axis: 900 mm Vertical demolding stroke X-axis: 1,800 mm Robot console on fixed platen Gripper function R1 (C) axis pneumatic 0° - 90°, including quick-change plate Weight: 583 kg MuCell Integration: The special option includes: Bedpfxoy Hmfyj Aknjww • Plasticizing cylinder with pneumatic shut-off nozzle without mixing element and without non-return valve; • Interface (communication, emergency stop interface); • Software with functional display pages for controlling the MuCell function; • Adapted nozzle guard; • Position-controlled high-speed screw (analog ZE388) Conveyor belt: Width: 870 mm Usable width: 800 mm Length: 3,500 mm Height: 880 - 1,220 mm Load capacity: 38 kg/m² Belt speed: 5.7 m/min Number of frames: 2 Clear tunnel height: 500 mm This injection molding machine is fully equipped!! Condition: As new condition, only 5,290 operating hours.

Year of construction: 1998, condition: good (used), functionality: fully functional, machine/vehicle number: 12254 B521 860, Overheadcrane ± 10.500 mm x 12.500 kg Bwodpfjv Ip Egsx Aknow

Condition: new, Year of construction: 2023, functionality: fully functional, machine/vehicle number: 61036946, clamping force: 800 kN, screw diameter: 40 mm, displacement volume: 201 cm³, injection pressure: 1,860 bar, injection weight: 183 g, mold height (min.): 150 mm, ejector force: 22,000 N, ejector stroke: 100 mm, opening stroke: 750 mm, installation height: 400 mm, total length: 4,750 mm, total width: 1,670 mm, total height: 1,850 mm, overall weight: 5,600 kg, heating capacity: 11.5 kW (15.64 HP), drive type: Vollelektrisch, clear span: 735 mm, tool weight: 600,000 g, Injection molding machines direct from the manufacturer! As the manufacturer KraussMaffei, we offer you our tested and flexible stock machines here: The basic injection molding machine, precisionMolding, offers the perfect entry-level solution for all-electric injection molding, enabling you to react quickly and innovatively to market requirements. It combines high performance, simple operation and short delivery times. It can be used in a wide range of applications, e.g. in the packaging industry, the electrical and electronics industry, medical technology and the automotive industry. Your benefits: - Optimized price-performance ratio for a wide range of applications - High energy efficiency thanks to all-electric machine concept - Realization of demanding delivery times thanks to basic machine concept with a wide range of options TECHNICAL DATA: KM 80 / 380 PA G01 (order 38670023) CONTROL  MC P1 with 15" TFT color screen with multi-touch functions CLAMPING UNIT  Clamping force kN 800  Mold opening force, max kN 120  Clear width (h x v) mm 470 x 420  Clamping platen (h x v) mm 610 x 560  Tool installation height min. - max. mm 150 - 400  Opening width mm 750  Mold opening stroke max. mm 350  Ejector drive electric  Ejector stroke mm 100  Ejector force forwards/backwards kN 22 / 22  Ejector speed forwards/backwards mm/s 300 / 300  Max. Mold weight kg 600 SPRING UNIT  Screw diameter / type mm 40 / standard  Effective Ls/D ratio 20.0  Injection pressure bar 1860  Stroke volume cm³ 201  Shot weight at max. stroke for PS g 183  Injection speed mm/s 200  Injection flow rate cm³/s 251  Screw drive/speed 1/min 334  Plasticizing flow (standard) g/s 24.7  Nozzle contact force kN 34 ELECTRICAL PARAMETERS  Connected load kW 20.6  Installed heat output kW 11.5  Power supply V / Hz 400 / 50 3 phases with neutral conductor WEIGHT AND DIMENSIONS  Net weight with switch cabinet t 5.6  Length x width x height m 4.75 x 1.67 x 1.85 ADDITIONAL EQUIPMENT  Low-wear plasticizing Bedpfx Ajud H Dmokneww  BluePower fully insulated plasticizing cylinder  Open nozzle  Air valve 1 - fold (BWAP)  Pneum. Control hot runner valve gate 1 - compartment  Electrical interface cascade 4-fold  Euromap interface handling E18, E63  Euromap interface (central computer) E67, E77  Water battery 4 - compartment  Automatic central lubrication  Adaptive Process Control (APC)  Spray embossing circuit  Graphic analysis package The machine is located in our factory in Parsdorf and is available at short notice. Further additional options can be offered on request. We look forward to your inquiry.

Condition: like new (used), Year of construction: 2006, operating hours: 33,107 h, functionality: fully functional, Equipment: documentation/manual, Top machine from cleanroom manufacturing (pharmaceutical industry) The machine can be inspected while powered on, by arrangement. Technical data Manufacturer: Engel Type: V 330H/80V/130 Combi 2-color with rotary table Serial number: 162036 Year of manufacture: 2006 Operating hours: 33107 h Control: CC 200 Extras - with rotary table, 820 mm diameter - with GEKU robot SR 500 ST x=600 y=1400 z=2500 mm - only 33,107 operating hours - protective enclosure/safety cage - horizontal conveyor belt - hardly any paint damage / almost new condition - fully functional Dimensions L/W/H: see drawing Weight: 10600 kg Functionality: fully operational Condition: excellent Clamping unit Clamping unit: hydraulic Clamping force: 1300 kN / 130 tons Tie bar distance: tie-bar-less Opening stroke: 606 mm Tool installation height: 250 mm Centering: 125 mm Platen distance max: 850 mm Platen size: 750 mm / 850 mm (W x H) Injection unit 2K Screw diameter: 25 / 22 mm Injection weight: 72/ 35 gr. Injection pressure: 2391/ 2066 bar Injection volume: 79 / 38 ccm Ejection stroke / force: 61 kN / 100 mm GEKU robot details SR 500 ST Control: Simotion X-axis: 600 mm Y-axis: 1400 mm vertical Z-axis: 2500 mm horizontal A-swivel axis: SWM 45 C-axis: servo Gripper: SWS16 B-axis: not available The machine is immediately available in our warehouse in Hanover/Germany and has been tested. Warranty Warranty until the first commissioning Loading/shipping Free loading onto the buyer's truck or free delivery to your location against reimbursement of shipping costs / worldwide delivery possible Bsdpeub Umqofx Aknoww from our warehouse in Hanover / Germany Financing - upon request - lease-purchase option Price: upon request
