Used Weiler Condor for sale (175)

Condition: excellent (used), Year of construction: 2020, Steady rest for WEILER E40 and E50 lathe In very good condition. Hsdpfx Agotx Avks Ijfg Price for E40 steady rest: €2,500 Price for E50 steady rest: €2,850 Clamping range: 10 – 150 mm.

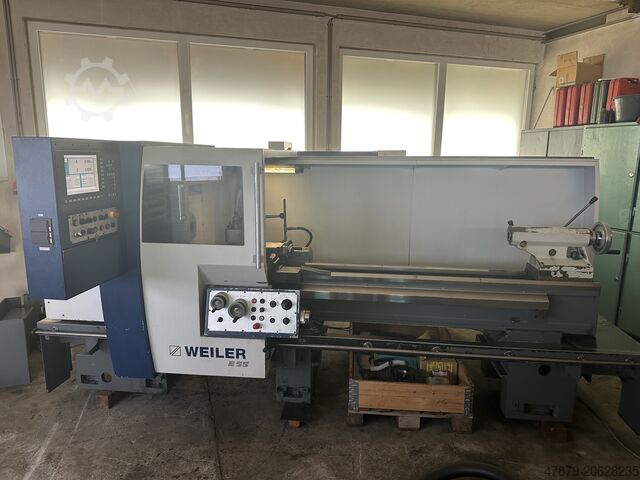

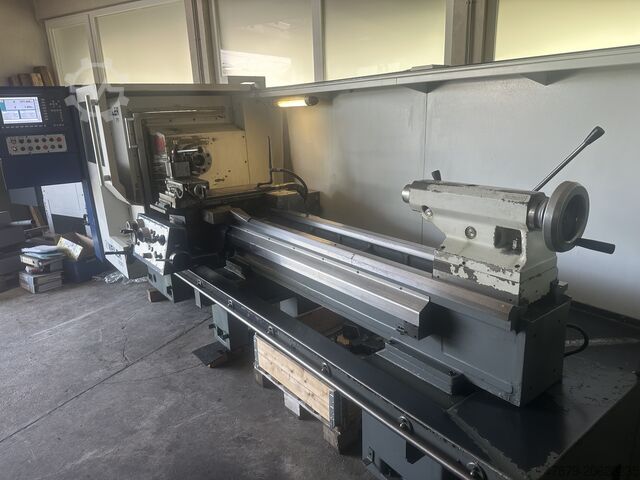

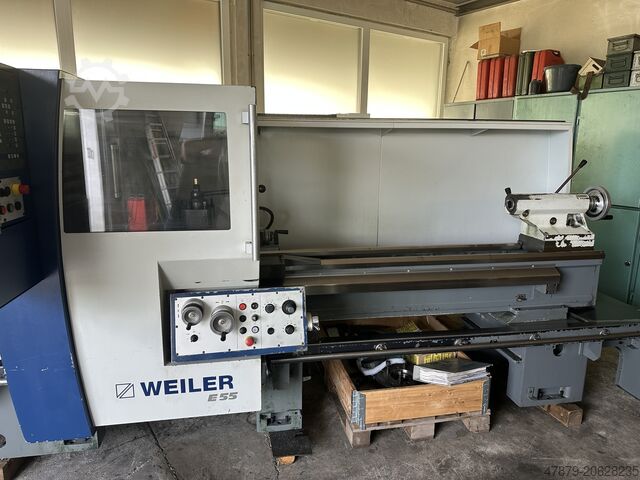

Condition: ready for operation (used), Year of construction: 2007, spindle speed (max.): 2,500 rpm, travel distance X-axis: 340 mm, travel distance Z-axis: 1,100 mm, overall weight: 3,800 kg, number of axes: 2, Horizontal turning machine manufactured in 2007. This Weiler E55X1000 features maximum turning diameter of 315 mm and a a center distance of 1100 / 2100 mm. It is equipped with a Sauter 8-fold tool system and a spindle speed range of 1 – 2500 rpm. If you are looking to get high-quality turning capabilities, consider the Weiler E55X1000 machine we have for sale. Contact us for further details regarding this machine. • Internal taper: Metric 90 • Spindle diameter in front bearing: 120 mm • Spindle bore: 83 mm Hfsdpfey Em A Aex Ag Ijg • Flange diameter: 500 mm • Maximum turning diameter: 315 mm • Maximum torque: 1600 Nm • Tool system: Sauter 8-fold • Number of tool positions: 8 • Tool shank size: 32 x 25 mm • Turret interface: Capto C4 • Number of face slides: 1 • Center distance: 1100 / 2100 mm • Turning length: 340 mm • Tailstock taper: MK 5 • Tailstock quill diameter: 80 mm • Tailstock quill stroke: 200 mm • Maximum tailstock travel: 1000 / 2000 mm • Continuous duty speeds (S1):Gear stage I: 89 rpmGear stage II: 355 rpm • Emission level: 80 dB(A) • Operating voltage: 400 V • Control voltage: DC 24 V • Connected load: 30 kVA • Nominal current: 43 A • Frequency: 50 Hz • Main fuses: 50 A • Condition note: Ball screw in Z axis makes noise, but dimensional accuracy is not affected Additional equipment • Extraction system Technical Specification Counter Spindle No Driven Tools No

Condition: ready for operation (used), Year of construction: 2004, spindle speed (max.): 2,500 rpm, travel distance X-axis: 340 mm, travel distance Z-axis: 1,100 mm, total height: 1,750 mm, total width: 1,850 mm, overall weight: 3,800 kg, product length (max.): 2,850 mm, number of axes: 2, Horizontal turning machine manufactured in 2004. This Weiler E55X1000 features a maximum chuck diameter of 315 mm and a spindle diameter of 120 mm. It includes a robust tool system with a turret and offers a cutting speed of 140 m/min. If you are looking to get high-quality turning capabilities, consider the Weiler E55X1000 machine we have for sale. Contact us for further details. • 20 kW = real power (mechanical/electrical output) • 27 kVA = apparent power (includes reactive power) • Internal taper: metric 90 • Spindle diameter in front bearing: 120 mm • Spindle bore: 83 mm • Max. faceplate diameter: 500 mm • Maximum chuck diameter: 315 mm • Maximum torque: 1600 Nm • Tool system: turret (VDI 40) • Tool shank size: 32 x 25 mm • Number of longitudinal slides: 1 • Number of cross slides: 1 • Center distance: 1100 • Cross travel: 340 mm • Tailstock taper: MK 5 • Tailstock quill diameter: 80 mm • Tailstock quill stroke: 200 mm • Maximum tailstock travel: 1000 / 2000 mm • Feed rate longitudinal: 0.001 – 20 mm/rev • Feed rate cross: 0.001 – 20 mm/rev • Rapid traverse longitudinal: 10 m/min • Rapid traverse cross: 5 m/min • Feed force longitudinal: 10000 N • Feed force cross: 7000 N • Metric thread range: 0.1 – 250 mm • Whitworth thread range: 1/4 – 56 threads/inch • Module range: 0.125 – 28 • DP range: 0.05 – 48 • Maximum cutting cross section: 2.25 mm² • Cutting speed: 140 m/min • Gear stage I: 89 rpm at 100% duty cycle • Gear stage II: 355 rpm at 100% duty cycle • Coolant consumption (normal): 30 l/min at 0.4 bar • Coolant consumption (increased): 30 l/min at 3.5 bar • Noise level: 80 dB(A) • Electrical: • Operating voltage: 400 V • Control voltage: DC 24 V • Connected load: 30 kVA • Nominal current: 43 A • Frequency: 50 Hz • Main fuses: 50 A • Condition note: A small actuator that switches between the gear stages is defective; both gear stages are functioning. Hsdpsy Em Avefx Ag Isfg Additional equipment • Chip conveyor Technical Specification Counter Spindle No Driven Tools No

Condition: good (used), Year of construction: 2000, Ref. -No.: 10623 Manufacturer: WEILER Type: E90 x 4500 Year of construction: 2000 Type of control: CNC Control: SIEMENS D1 - Zyklen Storage location: Halberstadt Country of origin: Germany Hsdoy Ed Rqspfx Ag Iofg Bed width: 600 mm Turning Length: 4500 mm Swing Diameter Over Bed Slide: 900 mm Spindle Bore: 128 mm Max. Torque: 6000 Nm Feed Capacity - Z: 20000 kN Feed Capacity - X: 20000 kN Rapid Speed: 10/5 RPM Tailstock Quill Diameter: 140 mm Tailstock Quill Stroke: 300 mm Lathe tool dimensions: 32 x 25 mm Front bearing diameter: 178 mm Circumferential diameter over facing slide: 530 mm Spindle head according to DIN 55027 (size): Gr. 11 Tailstock inner cone: MK 6 / 140 Type Machine length: 6900 mm Machine width: 2600 mm Machine Height: 2150 mm Weight Of The Machine Ca.: 10,5 t Further information: The machine can be viewed while powered up.

Condition: ready for operation (used), L&Z Lathe WEILER LZ 330 incl. new 3-axis digital readout (from educational facility) - "NEW" 3-axis digital readout - Center height 165 mm - Swing over bed 330 mm - Turning length 800 mm - Spindle speed range (gearbox) 25–2800 rpm - Automatic longitudinal/cross feeds - New Multifix toolpost with holders - Three-jaw chuck - Collet system with 20 collets - Original copy attachment - Various accessories - Documentation Dimensions (LxWxH): 1.8x0.7x1.6 meters / Weight: 800 kg Errors and omissions excepted. Hfjdpfx Aey Id Uheg Ieg

Condition: excellent (used), Year of construction: 1998, turning diameter 570 mm turning length 1000 mm control Siemens / Weiler D2 weight of the machine ca. 3,2 t Hedpfx Asy D T Uveg Iofg dimensions of the machine ca. 3,0 x 2,0 x 1,9 m

Condition: used, Year of construction: 1993, Internal item no.: 26036 Lathe Weiler Praktikant 160B Year of manufacture: 1993 Hfedey D N Daepfx Ag Ijg Centre height: 160 mm Centre distance: 650 mm Spindle speeds: 48–2,500 rpm Spindle bore: 40 mm The machine is equipped as follows: - 3-axis digital readout (Z0 display not working, likely scale is defective) - Multifix "A" toolpost - Drill chuck MK3 - 160 mm 3-jaw chuck Garant (including reversible jaws) - Steady rest - Various change gears - Operating manual / repair documents, etc. Condition: All gear stages shift smoothly. The main spindle runs very quietly, even at high speeds. The bedways have slight scoring. Dimensions (LxWxH): 180 x 90 x 170 cm Weight: approx. The machine is fully functional and can be inspected under power by arrangement at our premises, with over 500 m² of heated storage space.

Condition: ready for operation (used), Year of construction: 2005, L & Z Lathe / WEILER DA 210x1000 / With new 3-axis digital readout - Year of manufacture: 2005 - CE marking - Guideways in good condition - FULL TECHNICAL DATA SEE PHOTOS - Three-axis digital readout "NEW" - Quick-change collet system incl. 79 collets (173E) - Multifix base holder with inserts - 3-jaw chuck - Electrical chuck guard - Additional sliding guard Hedpfxoy H Ikqo Ag Isfg - Coolant system - Drill chuck / live center - Chip guard rear wall - Work light - Complete documentation Dimensions: LxWxH 2.8x1.2x1.8 meters / Weight 1600 kg Errors / input mistakes excepted.

Condition: used, For sale is a used Weiler Matador lathe. Version VS2 with pre-select gearbox. Comes with change gears and collet set. Good, fully functional condition. Centre height: 140 mm Swing over bed: 295 mm Distance between centres: 500 mm Spindle bore: 36 mm Spindle speeds: 15 - 3350 rpm Hodsy Hi A Ispfx Ag Iofg Inspection under power possible in 5023 Salzburg. Forklift available for loading.

Condition: used, WEILER Commodor incl. 3-axis digital readout Heidenhain - 3-axis digital readout / Heidenhain - Center height: 180 mm - Swing diameter over bed: 330 mm - Distance between centers: 1000 mm - Spindle bore: 56 mm - Spindle speeds: 25–2000 rpm Hodpfx Agey Dcppo Iofg - Automatic longitudinal / cross feeds - Thread cutting / metric / imperial / module etc. - Multifix toolpost with inserts - Chuck guard - 2x emergency stop - Three-jaw chuck - Chip guarding rear wall - Very well-maintained condition - Machine feet - Documentation Dimensions: LxWxH 2.3x1.2x1.6 m / Weight 1600 kg Errors and omissions excepted.

Condition: good (used), Please read the technical specifications in full. If the machine is a potential investment for you, we kindly request your complete credentials, including a valid telephone number and email address, for a quotation. WEILER Precision Lathe MATADOR with HEIDENHAIN 3-axis Digital Readout Year of manufacture: approx. 1980, retrofitted with emergency stop and electrically interlocked chuck guard. Centre height: 145 mm Centre distance: 500 mm Swing diameter over cross slide: 160 mm Spindle nose: DIN 55022 size 5 Spindle bore: 36 mm Speed range: 30 – 3,000 rpm Motor power: approx. 3.0 kW Tailstock quill: MK 3 Quill stroke: 90 mm Weight: approx. 620 kg Dimensions: 1420 x 700 x 1200 mm Technical data not binding! Robust lead and feed screw lathe for the workshop and the advanced DIY user. Condition: good Features: - 3-axis precision HEIDENHAIN digital readout - Quick-action lever collet chuck - Electrically interlocked chuck guard - Multifix tool post size A - 3-jaw chuck Hsdpfx Ajxx S Hdog Iofg - Coolant system - Machine feet - Chip guard/swarf shield - Machine lamp - Bed stop - Emergency stop button - Lockable tool compartment - Automatic feeds for longitudinal and cross slides Safety features: - Electrically interlocked chuck guard - Emergency stop button - Brake motor Available from March 2026

Condition: ready for operation (used), Year of construction: 1998, operating hours: 35,626 h, spindle speed (max.): 3,000 rpm, number of axes: 2, Horizontal turning machine manufactured in 1998. This Weiler E35 features a center distance of 950 mm and a swing over bed of 410 mm. It has a spindle bore of 54 mm and a maximum torque at spindle of 700 Nm. If you are looking to get high-quality turning capabilities, consider the Weiler E35 machine we have for sale. Contact us for further details. Center distance: 950 mmCenter height: 200 mmSwing over bed: 410 mmSwing over cross slide: 200 mmCross slide travel: 230 mmCarriage guide length: 480 mmSpindle nose: DIN 55025 size 6Spindle bore: 54 mmSpindle taper: Morse taper 6Drive power (100% / 60% duty): 7.5 / 9 kWMaximum torque at spindle: 700 NmSpeed range: 1–3000 rpmSpeed range gear stage I: 1–750 rpmSpeed range gear stage II: 4–3000 rpmTailstock quill diameter: 65 mmTailstock quill travel: 120 mmTailstock taper: Morse taper 4Tool system: Parat size 2Control: D2Number of axes: 2 (X, Z) Hfedpey Axu Sjfx Ag Ieg Technical Specification Counter Spindle No Driven Tools No

Condition: used, Year of construction: 1999, turning length: 1,000 mm, turning diameter: 500 mm, spindle bore: 80 mm, spindle speed (max.): 2,500 rpm, capacity 1000x570 mm, spindle bore 80 mm, Multifix turret, Siemens control Hfedpfxjy E Hvvj Ag Iog

Condition: good (used), Year of construction: 2008, Weiler DZ 40, Year of manufacture: 2008, Siemens 840 D control, Travel X/Z: 200/350 mm, Turning diameter: 180 mm, Max. swing diameter: 560 mm, Y-axis: +/-25 mm, Q-axis / programmable tailstock, Q-axis travel: 360 mm, Q-axis measuring system: rotary, Tailstock: MK 4, Main spindle max. bar capacity: 42 mm, Spindle bore: 52 mm, Rapid traverse X/Z/Q: 30/30/20 m/min, Turret: 16 stations – all driven, VDI 25, Shank diameter: 25 mm, Driven tools up to 4,500 rpm, Parts catcher, Hfedpfx Ajy Ev Iuog Isg Accessories, Driven tool holders, Fixed holders,

Condition: good (used), Year of construction: 1968, functionality: fully functional, machine/vehicle number: 1122, For sale is a robust and fully functional Weiler lead screw and feed shaft lathe from 1968. The machine comes from our workshop inventory and was in use until recently. Technically, it is in working condition; cosmetically, it shows signs of use consistent with its age. This is a classic, solidly built toolmaker's lathe of proven German industrial quality. Ideal for workshops, training, maintenance, or small manufacturing businesses. —— Hfodpfx Aoynwiwsg Ijg Condition • Used • Fully functional • Not refurbished • Age-related signs of wear —— Special Features • Heavy-duty construction • Renowned Weiler quality • Simple, low-maintenance technology • Ready for immediate use —— Location & Handover Location: Eisenach Collection preferred. Loading by arrangement possible. Sale is made under exclusion of any warranty and liability for material defects. The machine is sold as seen.

Condition: excellent (used), Year of construction: 1998, turning diameter 410/ 440 mm turning length 950 mm control Siemens / Weiler D2 workpiece weight max 900 kg Hfjdjyrh Apepfx Ag Isg spindle head Gr 6 MK 6 spindle bore 54 mm face stroke 230 dia. of quill MK 4 mm quill stroke 120 mm centre height 200 mm thread pitch max. in mm 0,1 - 250 mm spindle turning speed - stepless 1 - 3000 U/min total power requirement 12 kW weight of the machine ca. 2,1 t dimensions of the machine ca. 2,3 x 1,5 x 1,8 m

Condition: as good as new (ex-display), WEILER COMMODOR 180 GSD / New Machine – Exhibition Model - Available from stock - Exhibition machine / NEW – UNUSED - 3-axis digital readout - CE marking - Center height 180 mm - Swing over bed 380 mm - Swing over cross slide 215 mm - Distance between centers 1000 mm - Bar capacity 56 mm - Speeds / gearbox: 25 – 2000 rpm - Automatic longitudinal / cross feeds - Thread cutting inch / metric etc. Hodpfx Agsy Dc Tzj Iefg - Chuck guard - Tailstock / quill taper MK 4 - Quill stroke 150 mm - Coolant system - Multifix quick-change toolpost with insert - 3-jaw chuck 200 mm - Work lamp - Chip guard (rear) - Documentation Dimensions: LxWxH 2.6x1.6x1.7 meters / Weight 2000 kg Errors and omissions excepted

Condition: good (used), Year of construction: 2001, Weiler DA 210 Lathe Weiler DA 210 with Fagor digital readout, year of manufacture 2001, in very good original condition. The machine comes from the special production department of a renowned German mechanical engineering company. CE-compliant!! Technical Data: WORKING AREA Centre height: 210 mm Swing diameter over bed: 435 mm Swing diameter over cross slide: 245 mm Centre distance: 1,000 mm SPINDLE Spindle nose: DIN 55027 / DIN ISO 702-3 Size 6 Spindle bore: 52 mm Spindle bearing diameter (front): 83 mm Hsdsy Auyqopfx Ag Iefg MAIN DRIVE Drive power 60% / 100% duty cycle: – / 5.5 kW Speed range: 44 – 2,000 rpm Number of speeds: 12 FEED RANGE Number of feeds: 66 Longitudinal: 0.072 – 4 mm/rev Cross: 0.036 – 2 mm/rev THREAD CUTTING RANGE Metric threads: 0.5 – 28 mm TAILSTOCK Quill diameter: 65 mm Quill stroke: 120 mm Internal taper: DIN 228 MK 4 ACCEPTANCE ACCURACY DIN 8605 About the machine: HIGHEST PRECISION, USER-FRIENDLY OPERATION AND SOPHISTICATED TECHNOLOGY are advantages of the conventional Weiler DA series. Offered is a Weiler DA 210 lathe with Fagor digital readout, year 2001. This lathe is in very good original condition. It comes from a workshop where it was only occasionally used for special production. Very easy to operate controls. The guides are regularly lubricated via the central lubrication system. The Weiler DA 210 has been mechanically and electrically inspected by us. Take the opportunity to view and test the Weiler DA 210 under power at our facility. You can find further lathes from well-known manufacturers on our website.

Condition: excellent (used), Year of construction: 1992, functionality: fully functional, Weiler Matador VS-2 Lead and Feed Screw Lathe with 3-Axis Digital Readout by K&C—NEW in Special Light Grey Paintwork!!! Technical Data: >> Machine No. 92-027, Year of manufacture: 1992 >> Centre height: 140 mm >> Distance between centres: 500 mm >> Spindle speeds: 15 – 3550 rpm >> Spindle bore: 36 mm >> Short Taper Spindle Nose DIN 55022-5 with bayonet lock >> Tailstock taper: MT 3 >> Feed rates: 0.012 to 0.9 mm/rev >> Thread cutting: Metric, Inch, Module, and Diametral Pitch >> Metric thread pitches: 0.25 to 12 mm >> Weight: approx. 700 kg >> Length: 1.4 m, Height: 1.2 m, Depth: 0.55 m Hfedpfoyylq Usx Ag Ieg Accessories and Equipment: >> 3-axis digital readout by K&C, brand new, 12-month manufacturer’s warranty with operating manual Functions: mm/inch switching, coordinate selection ABS/INC, value halving, reference mark, tool programming for 200 tools, taper calculation, radius/diameter display, quick zeroing, count direction switching >> 1 piece 3-jaw chuck with 1 set of jaws >> 1 piece 4-jaw chuck with 1 set of jaws >> Electronic spindle protection >> Multifix size A with 2 tool holders >> Motor brake >> Bed stop About the machine: Offered here is a Weiler Matador VS-2 in very good condition. The machine is, of course, fully functional and has been freshly repainted in light grey. A very attractive machine. The 3-axis digital readout by K&C has been retrofitted. All measuring scales are new and fitted with protective covers to prevent contamination. The carriage movement is smooth and even throughout. Take the opportunity to view this machine under power on site and convince yourself of its condition.

Condition: excellent (used), Year of construction: 1992, functionality: fully functional, Weiler Matador VS-2 Lead and Feed Screw Lathe with 3-Axis Digital Readout by K&C - NEW - Special Light Grey Paint Finish!!! Technical Data: >> Machine no. 92-029 - Year of manufacture: 1992 >> Center height: 140 mm >> Center distance: 500 mm >> Spindle speed: 15 – 3550 rpm >> Spindle bore: 36 mm >> Short taper spindle nose DIN 55022-5 with bayonet lock >> Tailstock taper: MK 3 Hfjdpsyylqhefx Ag Ijg >> Feeds from 0.012 to 0.9 mm/rev >> Thread types: Metric, Imperial, Module, and Diametral Pitch >> Metric thread pitches from 0.25 to 12 mm >> Weight approx. 700 kg >> Length: 1.4 m, Height: 1.2 m, Depth: 0.55 m Accessories and Equipment: >> 3-axis digital readout by K&C, new, 12-month manufacturer's warranty, with operating manual Functions: Switching between mm/inch, ABS/INC coordinate selection, value halving, reference point, tool programming for up to 200 tools, taper calculation, radius/diameter display, quick zeroing, count direction switching >> 1 three-jaw chuck, 1 set of jaws >> 1 four-jaw chuck, 2 sets of jaws >> Electronic spindle protection >> Multifix size A with 2 tool holders >> Motor brake >> Bed stop About the machine: Offered here is a Weiler Matador VS-2 in very good condition. The machine is, of course, fully functional and has been newly painted in light grey. A very attractive machine. The 3-axis digital readout by K&C has been retrofitted. All scales are new and equipped with protective covers to shield them from dirt. The carriage runs smoothly and evenly. Take the opportunity to view this machine under power on site and see its condition for yourself.

Condition: like new (used), Year of construction: 2009, operating hours: 31,914 h, functionality: unexamined, machine/vehicle number: EK02, turning diameter over cross slide: 560 mm, turning length: 600 mm, turning diameter: 560 mm, spindle bore: 77 mm, spindle speed (max.): 5,000 rpm, travel distance X-axis: 205 mm, travel distance Y-axis: 530 mm, spindle motor power: 27 W, total height: 2,050 mm, total length: 3,900 mm, total width: 2,200 mm, type of input current: three-phase, overall weight: 6,300 kg, chuck outer diameter: 200 mm, Equipment: documentation/manual, rotational speed infinitely variable, The machine is in excellently restored condition. Hfjdpfjykzw Dox Ag Ijg

Condition: ready for operation (used), spindle bore: 56 mm, turning diameter: 360 mm, center height: 180 mm, WEILER Commodor B incl. 3-axis digital display Heidenhain Hfodpfxey Ak S As Ag Ijg -GS identification -3-axis digital readout / Heidenhain -Year of manufacture: 1991 -Center height: 180 mm -Swing diameter over bed: 330 mm -Distance between centers: 1000 mm -Spindle bore: 56 mm -Spindle speeds: 25-2000 rpm -Automatic longitudinal / cross feeds -Thread cutting / Metric / Inch / Module etc. -Multifix tool post with inserts -Chuck guard -2x Emergency stop -3-jaw chuck -Chip guard/rear wall -Very well maintained condition -Machine feet -Documentation Dimensions: LxWxH 2.3x1.2x1.6 meters / Weight 1600 kg Errors / omissions excepted.

Condition: used, Collets in special size – suitable for Weiler 260 and Leinen 140 – package price: EUR 250 net Hfedpsy Akzdsfx Ag Isg

Condition: excellent (used), Year of construction: 1992, functionality: fully functional, Weiler Matador VS-2 Lead and Feed Screw Lathe with 3-Axis Digital Readout by K&C NEW in Special Light Grey Finish!!! Technical Data: >> Machine No. 92-028 Year of manufacture: 1992 >> Centre height: 140 mm >> Centre distance: 500 mm >> Spindle speed: 15 – 3550 rpm >> Spindle bore: 36 mm >> Short taper spindle nose DIN 55022-5 with bayonet lock >> Tailstock MK 3 >> Feeds: 0.012 to 0.9 mm/rev >> Possible threads: Metric, Imperial, Module, and Diametral Pitch >> Metric thread pitches from 0.25 to 12 mm >> Weight approx. 700 kg >> Length 1.4 m, Height 1.2 m, Depth 0.55 m Accessories and Equipment: >> 3-axis digital readout by K&C, new, 12-month manufacturer warranty with operating manual Functions: Switchable mm/inch, coordinate selection ABS/INC, display value halving, reference point, tool programming for 200 tools, taper calculation, radius/diameter, quick zeroing, change of counting direction, >> 1 piece 3-jaw chuck, 1 set of jaws >> 1 piece 4-jaw chuck, 1 set of jaws >> Electronic spindle guard >> Multifix size A with 2 tool holders >> Motor brake >> Bed stop Hodoyyb T Sopfx Ag Iofg About the machine: Offered here is a Weiler Matador VS-2 in very good condition. The machine is, of course, fully functional and has been repainted in light grey. A very nice machine. The 3-axis digital readout from K&C has been retrofitted. All measuring scales are new and equipped with cover plates to protect them from dirt. The slides move freely and smoothly. Take the opportunity to inspect this machine under power on site and see its condition for yourself.

Condition: excellent (used), Year of construction: 2007, operating hours: 8,000 h, functionality: fully functional, turning length: 750 mm, turning diameter: 330 mm, spindle bore: 41 mm, spindle speed (max.): 4,500 rpm, spindle speed (min.): 1 rpm, spindle motor power: 11,000 W, quill diameter: 50 mm, quill stroke: 110 mm, turning diameter over bed slide: 435 mm, overall weight: 1,400 kg, center height: 165 mm, Equipment: documentation/manual, rotational speed infinitely variable, For sale: cycle-controlled WEILER E30X750 CNC lathe with Siemens 810 D control. Manufacturer/Model: WEILER E30x750 Year of manufacture: 2007 Control: Siemens 810 D Condition: Good, fully functional Location: Austria (Graz) Inspection: On site or via video call by arrangement Pictures/Video: Additional photos and videos of the machine in operation available upon request. Hfjdpovphv Tofx Ag Ijg Power-on hours (machine energized): 26,492 h The actual operating hours are significantly lower. Based on experience, spindle run time (actual turning) accounts for approx. 30% to 50% of this (i.e. approx. 8,000 to 13,000 hours). Technical specifications: Working area: Center height: 165 mm Swing diameter over bed: 330 mm Swing diameter over cross slide: 160 mm Center distance: 750 mm Lathe spindle: Spindle nose DIN 55027 / DIN ISO 702-3: Size 5 Spindle bore: 40.5 mm Spindle diameter at front bearing: 70 mm Max. torque at spindle: 180 Nm Main drive: Drive power 100% / 60% duty cycle: 9 / 11 kW Speed range: 1–4,500 rpm Number of speeds: stepless Feed / rapid traverse Feed drive: Three-phase AC feed motors Feed range (stepless): Longitudinal: 0.001–50 mm/rev (Note: also specified 0–20 mm/rev) Face: 0.001–50 mm/rev Feed force: Longitudinal: 6,000 N Face: 3,000 N Max. rapid traverse speed longitudinal/face: 8 / 4 m/min (Note: also specified 10 / 7.5 / 5 / 3.5 m/min) Thread cutting range: Metric threads: 0.1–2,000 mm Inch threads: 112–1/64 tpi Tailstock / quill: Quill diameter: 50 mm Quill stroke: 110 mm Internal taper DIN 228: MK 3 Dimensions / weight: Machine weight: approx. 1,400 kg Dimensions (L × W × H): 1,800 × 1,350 × 1,700 mm Interested? Contact us for further information or to arrange a viewing appointment.
