Used Linear Module for sale (6,902)

Condition: used, Chemagen chemagic Magnetic Separation Module I The chemagic Magnetic Separation Module I (chemagic MSM I) automates the isolation of nucleic acids within one hour. Viral RNA from 96 nasal swab samples can be isolated simultaneously. The Chemagen MSM-1 is an automated system for high-throughput isolation of nucleic acids (DNA/RNA). It utilizes a patented magnetic bead technology, in which magnetizable metal rods are immersed in the process solutions to efficiently collect and re-suspend the bound particles. Technical Features & Capacity Dkedpeyk Uu Njfx Aiiew Throughput: The system has a modular design and can process 12, 24, or 96 samples simultaneously, depending on the rod head used. Sample Volume: It offers high flexibility for volumes from 10 µl to 10 ml. Processing Time: 96 samples (small volumes): approx. 15–60 min. 24 samples (medium volumes): approx. 35–60 min. 12 samples (large volumes): approx. 45–60 min. Technology: The particles are re-suspended by rotating the metal rods at up to 2,000 rpm, which enables high yield and purity without cross-contamination. System Components & Extensions Automation: The MSM-1 can be integrated into standard liquid handling units and often features a 6-axis industrial robot for fully automated sample tracking. Software: The system is controlled via the chemagic QA software, which is LIMS-compatible. Applications The device is primarily used in research and diagnostics, including: Biobanking and human genetics HLA typing Detection of viruses and bacteria Extraction from various materials such as whole blood, saliva, serum, or plasma System Components Actuators: High-precision linear axes for vertical movement and a rotary axis for mixing Electromagnet: Central unit for controlling the magnetic attraction to the metal rods Interfaces: Integrated PC with screen, keyboard, and barcode scanner for sample tracking Software: chemagic QA software (LIMS-compatible, logging, user management) Special Features Cross-Contamination Protection: The use of disposable protective sleeves (tip combs) for the metal rods prevents contact between samples. Automation: Can be combined with the chemagic Dispenser for automated buffer filling or integrated into liquid handling robots (e.g., Hamilton, Tecan). Rod Heads: 96 Sampling Volume: 10 - 400 μL Number of Samples: 1 to 96 samples TFT monitor, keyboard, and mouse Year of manufacture: 2007 Dimensions & Structure Base machine (W/D/H): approx. 600 x 640 x 950 mm. Carrier axis (W/D/H): 1940 x 170 x 200 mm (in the fully expanded configuration with rail system). Total space requirement: A fully configured system can occupy up to 2000 x 740 x 800 mm (L/W/H). You can find more new and used items in our shop! International shipping costs on request!

Condition: as good as new (ex-display), functionality: fully functional, Year of construction: 2026, operating hours: 50 h, control type: CNC control, degree of automation: automatic, actuation type: electric, laser source manufacturer: MAX Photonics, laser power: 1,500 W, laser wavelength: 1,080 nm, sheet thickness (max.): 6 mm, sheet thickness steel (max.): 6 mm, sheet thickness stainless steel (max.): 6 mm, sheet thickness aluminum (max.): 5 mm, sheet thickness brass (max.): 4 mm, table length: 600 mm, table width: 800 mm, travel distance X-axis: 600 mm, travel distance Y-axis: 800 mm, workpiece weight (max.): 50 kg, input voltage: 400 V, input frequency: 50 Hz, type of input current: three-phase, type of cooling: water, overall weight: 2,500 kg, total length: 1,600 mm, total width: 2,000 mm, total height: 2,000 mm, door opening width: 600 mm, door opening height: 800 mm, height adjustment type: electric, Equipment: CE marking, cabin, centralized greasing system, cooling unit, documentation/manual, dust extraction, emergency stop, fume extraction, safety light barrier, Laser cutting machine with 1.5 kW fiber laser Exhibition machine / immediately available Djdpfx Aex I D Nxsiiskw Our goal is to offer highly precise, long-term stable, and yet affordable laser machines. Our machines are ideal for workshops and repair shops. A perfectly developed cutting parameter library is included in the scope of delivery, as is first-class service. Please also note our attractive leasing/hire-purchase offers. - Highest precision - Machine bed made of natural stone - Drives via YASKAWA linear motors (and, of course, linear guides) - Axes measured and adjusted with Renishaw measuring system (with protocol) - Pneumatic sheet metal clamping - Highly precise cutting machine - 1.5 kW laser source from MaxPhotonic - Extremely fine fiber (20 µm) - Travel range approx. 600 x 800 mm - Machine control in German - Incl. shuttle module - Very easy to operate. - Powerful laser chiller - Table support The following options are also available: - Raw material recognition and part nesting via CypVision camera system (optional) - Import of 3D files (.stp) and unfolding (optional) - Direct import of SolidWorks, SolidEdge, Inventor, etc. (optional) - Nesting, calculation, scrap management, etc. (optional) - ERP system combinable with all your other sheet metal processing machines (optional) Leasing or hire purchase is possible via our financing partner. Sales are exclusively to commercial businesses. Machine dimensions approx.: Width: 190 cm Height: 190 cm Depth: 180 cm Weight: approx. 2500 kg

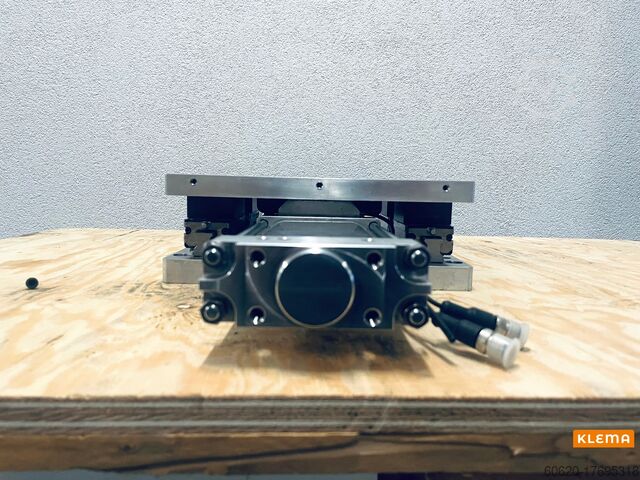

Condition: used, 2-axis linear guide with linear motors - Slide arm pick and place with linear guides for automation Loading unit such as Scara robot, manipulator, handling device, handling system, placement gripper, loading gripper for automation Manufacturer SCHUNK - GEMOTEC - AFAG - LINMOT Type PS01-37x240-M + E1100-MT + T01-/72/420 + EPM 37-780 Year of construction approx. 2005 Horizontal axis with linear motor Gemotec type EPM 37-780 Actuator type: EPM 37x780-M Axis module: LinMot type E1100-MT-HC Horizontal movement: 780 mm Nominal force horizontal: 160 N Horizontal speed: 2.1 m/s Horizontal acceleration: 12.4 m/s² Repeat accuracy: +/- 0.05 mm Horizontal load capacity: max. 7000 g Horizontal guide column: Ø 20 mm Vertical axis with LinMot linear motor type PS01-37x240-M Actuator type: LM01-23x80/160 Axis module: LinMot type E1100-MT Vertical movement 160 mm Nominal vertical force: 44 N Max force vertical: 203 N Vertical speed: 2.2 m/s Vertical acceleration: 50.4 m/s² Repeat accuracy: +/- 0.05 mm Horizontal guide column: Ø 20 mm Power supply unit LinMot type T01-/72/420 (for motor supply) Input voltage: 3 x 400 V AC 50/60 Hz Output voltage: 72 V DC 420 Watt Base frame Support columns: 4 pieces Ø 55 mm Support column height adjustment: 200 mm (manual height adjustment) Mounting foot: 2 x 175 x 90 mm Control voltage: 24 V DC - Can be moved in two axes - Mounting plate for tool holder 66 x 56 mm - Integrated path measurement - Axis modules with integrated positioning control Dedpfx Asu H R Iweiiokw - Festo pneumatic cylinder as holding brake on the vertical axis - Horizontal axis with 3 external fans - Axis modules configurable via LinMot MPC Configurator 3.2 software Space requirement L x W x H: 1120 x 720 x 740 mm Weight: approx. 65 kg Very good condition

Condition: new, Festo pneumatic linear actuator Festo DGC-25-500-KF-YSRW-A – Part number/module number 532447 The specifications mean: • DGC = rodless pneumatic linear actuator • 25 = piston diameter 25 mm Djdpozylndsfx Aiiskw • 500 = 500 mm stroke • KF = slide with recirculating ball bearing guide • YSRW = self-adjusting, progressive shock absorbers • A = for position detection/proximity switch This is not a cheap standard pneumatic cylinder. The exact model DGC-25-500-KF-YSRW-A is offered in the spare parts trade, for example, for €2,500 net. Festo itself continues to list 532447 / DGC-25 in its documentation database as a linear actuator. Festo DGC-25-500-KF-YSRW-A linear actuator, 500 mm stroke, recirculating ball bearing guide, part no. 532447.

Condition: like new (used), Year of construction: 2015, operating hours: 1,000 h, functionality: fully functional, Equipment: documentation/manual, DMG MORI / SAUER GmbH ULTRASONIC 20 Machine Data Control system Heidenhain Axes 5 (X / Y / Z / A / C) Travel ranges X / Y / Z 200 / 200 / 280 mm Dsdpfoz Tc Tvox Aiiskw Spindle speed max. 42,000 rpm Tool holder HSK-E32 Tool magazine 24 Rotary table Ø 190 mm Table load capacity, center 10 kg A-axis -5° / +130° C-axis 360° Rapid traverse 40 m/min Footprint L × W × H 2,020 × 2,196 × 2,385 mm Fuse rating 63 A Feed drive X / Y / Z Synchronous linear motors Feed rate max. 40,000 mm/min Input resolution 0.001 mm C-axis speed max. 150 rpm Table clamping Pneumatic / mechanical Tool length max., from spindle nose 200 mm Tool diameter max., automatic tool changer 40 mm Compressed air supply 6–10 bar Air consumption without tool blowing 12 m³/h Additional consumption with continuous tool blowing 25 m³/h Connection, weight, and dimensions Electrical connection 400 V / 50–60 Hz Machine weight 3,900 kg Tool weight max., automatic tool changer 1 kg Total weight of magazine tools max. 24 kg Compressed air connection min. Ø 12 mm Equipment and scope of supply 15 tool holders and other related accessories as shown in the offer photos are included. Technical data is subject to change without notice. Errors and prior sale are reserved. The specifications and scope of supply agreed upon in the purchase contract shall be the basis.

Condition: good (used), MBO T500-2/4 folding module + T-500-2-X cross-folding knife unit Machine in very good condition, ready for production. From the original owner. Dsdpfsz S Uptex Aiiskw This is a secondary (cross-folding) module for an MBO folding machine, complete with an additional knife-folding unit. Includes 4 folding cassettes and one cross-folding knife. Equipped with sound-dampening cassettes. Can be connected to virtually any MBO machine model or used as an add-on unit for other machinery. Mounted on casters for easy mobility. Independent control system.

Condition: good (used), Year of construction: 2011, operating hours: 46,500 h, functionality: fully functional, travel distance X-axis: 3,600 mm, travel distance Y-axis: 1,100 mm, travel distance Z-axis: 900 mm, feed length X-axis: 3,600 mm, feed length Y-axis: 1,100 mm, feed length Z-axis: 900 mm, nominal power (apparent): 130 kVA, controller manufacturer: Siemens, controller model: 840SE, workpiece length (max.): 3,600 mm, workpiece width (max.): 1,100 mm, workpiece diameter (max.): 1,100 mm, workpiece weight (max.): 5,000 kg, total height: 3,042 mm, total length: 9,280 mm, total width: 4,608 mm, table width: 1,100 mm, table length: 4,200 mm, table load: 5,000 kg, rotary table diameter: 1,050 mm, rotational speed (max.): 50 rpm, overall weight: 32,050 kg, spindle speed (min.): 20 rpm, spindle speed (max.): 18,000 rpm, operating hours of spindle: 21,500 h, coolant supply: 40 bar, spindle nose: HSK 63, number of slots in tool magazine: 120, mount diameter: 1,050 mm, input voltage: 400 V, type of input current: three-phase, Equipment: chip conveyor, documentation/manual, DMF 360 linear, manufactured in 2011, with Siemens 840D Solutionline control 120-position tool changer HSK 63 tool interface Spindle speed 18,000 rpm Chip conveyor Coolant system, 1000 liters, 80/40 bar Work area enclosure 3D probe, Heidenhain Blum laser Handwheel Air blow through the spindle Coolant nozzle Automatic doors A-axis, Lehman EA 420 Hydraulic clamping system for rotary table Robot interface Oil and emulsion mist separator Dkjdoz Riy Ropfx Aiiow

Condition: ready for operation (used), Year of construction: 2004, operating hours: 22,636 h, travel distance X-axis: 1,040 mm, controller manufacturer: HEIDENHAIN, spindle speed (max.): 12,000 rpm, number of axes: 3, This 3-axis DECKEL MAHO vertical machining centre was manufactured in 2004. It features a Heidenhain CNC controller with a full QWERTY keyboard and an automatic tool changer for enhanced efficiency. The machine has a power requirement of 39 kVA and a total of 37,124 power-on hours. If you are looking to get high-quality machining capabilities, consider the DECKEL MAHO vertical machining centre we have for sale. Contact us for further details. - Total Operating / Power-on Hours: 37,124 h - Spindle / Cutting Hours: 22,636 h - Apparent Power: 39 kVA - Nominal Current (Jn max): 56 A - Full Load Fuse Rating: 63 A - Mains Supply Voltage: 400 V - Control / Secondary Voltages: 230 V / 24 V Dedpfx Aj Aih Igeiijkw

Condition: good (used), A good used linear weigher with Digiway controls - this machine is a single head weigher with 4 vibratory feed trays - loadcell technology and Digiway controls for fast accurate weighing and filling or granular free flowing products. Dksdpfx Aeu U Ai Hsiiew

Condition: good (used), Year of construction: 2011, Demag robot DR 8110876 Year of manufacture: 2011 X 420 Y 1200 Dodps Aibn Uefx Aiiekw Z 1500

Condition: good (used), Year of construction: 2018, Wittmann robot W918-0110 Year of manufacture: 2018 X: 420 Y: 1200 Z: 2000 Djdpfxj Ah Ivcs Aiijkw

Condition: ready for operation (used), Year of construction: 2008, functionality: fully functional, turning diameter: 20 mm, spindle motor power: 5,500 W, spindle speed (max.): 8,000 rpm, spindle bore: 25 mm, travel distance X-axis: 50 mm, travel distance Y-axis: 350 mm, type of input current: three-phase, bar passage: 20 mm, overall weight: 4,200 kg, spindle diameter: 20 mm, Equipment: documentation/manual, rotational speed infinitely variable, Steuerung: Fanuc 310i Hauptspindel Drehzahl: 10.000 U/min Leistung: 5,5 kW Drehmoment: 14 Nm Stangendurchlass: max. 20 mm C1-Achse: 0,001 Verfahrweg Z1-Achse: 80 mm Gegenspindel Bjjgsn8yaky Drehzahl: 10.000 U/min Leistung: 5,5 kW Drehmoment: 14 Nm C2-Achse: 0,001 Verfahrwege X2 / Z2-Achse: 240 / 300 mm Eilgang in X2 / Z2 Achse: 40 m/min Werkzeugträger I (X/Y) Technologie: Linearer Schlitten Innenbearbeitung: 6 Stationen Werkzeughalter: 20 mm Außenbearbeitung: 6 Stationen Werkzeughalter: 12 x 12 mm Angetriebene Werkzeugstationen: 5 Werkzeugantrieb: 3.450 / 6.000 U/min Werkzeugaufnahme: Spannzangenfutter, ESX 16 Verfahrwege in X/Y-Achse: 50/350 mm Eilgang in der X/Y-Achse: 40/30 m/min Stangenlader BOSS 332 E Werkzeugträger II (Y) Technologie: Linearer Schlitten Innenbearbeitung: 4 Stationen Werkzeugaufnahme: 20 mm Dsdpfx Aiozz I Dkeiskw Außenbearbeitung: 4 Stationen Werkzeughalter: 12 x 12 mm Angetriebene Werkzeugstationen: 5 Werkzeugantrieb: 3.450 / 6.000 U/min Werkzeugaufnahme: Spannzange, ESX 16 Verfahrweg in Y2-Achse: 120 mm Eilgang in der Y2-Achse: 40 m/min DETAILS ZUR MASCHINE Gewicht: 4200 kg Angeschlossene Last: 30 kVA Betriebsspannung: 400 V / 50 Hz AUSRÜSTUNG Spänemanagement: Späneförderer Kühlmittelmanagement: Kühlmittelpumpe Weitere Ausstattung: Signallamp

Condition: ready for operation (used), Year of construction: 2003, functionality: fully functional, machine/vehicle number: 02260002571, The Gildemeister CTX 420 Linear is a powerful and highly precise CNC universal lathe (or turning-milling center) designed for demanding series and mass production. It is particularly characterized by its linear motor technology in the X-axis, which, compared to conventional ball screw drives, ensures extremely high dynamics, rapid positioning, and wear-free operation. Equipment: -Single spindle, three-jaw chuck, 11-position tool turret, automatic tailstock, chip conveyor Dedpfsz N Etksx Aiiokw Control: -Heidenhain Accessories: -Work bench, under-mounted telescopic drawer cabinet (7 drawers) Contents: Hand tools, analog/digital measuring instruments, indexable inserts Attractive offer – flexible & worry-free We offer you not only a high-quality product but also tailor-made financing options that adapt to your needs. Whether it's a down payment, installment payments, or individual financing models – together we will find the best solution. Upon request, we also take over the complete transport organization. From planning to reliable delivery, we ensure a smooth and on-time process so that you don't have to worry about anything. 📞 Please contact us for more information or a non-binding offer. We will advise you personally and competently. Subject to prior sale, changes, and errors!

Condition: ready for operation (used), Year of construction: 2005, operating hours: 48,000 h, functionality: fully functional, turning length: 1,080 mm, turning diameter: 600 mm, spindle speed (max.): 2,500 rpm, total height: 2,140 mm, total length: 5,300 mm, total width: 2,160 mm, overall weight: 9,000 kg, spindle diameter: 530 mm, Equipment: documentation/manual, Gildemeister CTX 620 — это тяжёлый токарно-фрезерный ЧПУ-станок, предназначенный для обработки крупных и сложных деталей. Станок оснащён гидравлическим патроном 21″, системой управления Siemens Sinumerik 840D, а также осью C, осью Y и приводным инструментом, что позволяет выполнять на одном станке токарную обработку, фрезерование, сверление, нарезание резьбы и другие операции. Большая рабочая зона, высокая жёсткость конструкции и мощный шпиндель позволяют выполнять как тяжёлое черновое точение, так и точную чистовую обработку деталей большого диаметра и длины. CTX 620 особенно хорошо подходит для серийного производства, где важно сократить количество установок детали и обеспечить стабильную точность обработки. Dodpfx Aisz Ehgqsiekw

Condition: excellent (used), functionality: fully functional, Year of construction: 2020, For sale is an automation cell from the brand EROWA, type Robot Dynamic 150 Linear (ERD 150L), including the process control system JMS 4.0 MoldLine. With the exception of the gantry eroding machine, all production and measuring machines have already been sold. Only the EROWA automation is offered; the Gantry Eagle 500 can be offered separately. The system was put into operation in mid-2020 and is in very good and well-maintained condition. Technical data: Year of construction: 2020 Control / control system: JMS 4.0 MoldLine from Certa Systems Magazine capacity (total): - 20 pallet spaces for PARTOOL clamping system - 360 spaces for EROWA ITS 50 Turret rotation radius: -30° to +300° Transfer weight max.: 150 kg Identification system: EWIS 10 (ID chips) Dodez Szh Nspfx Aiiokw Loading station: Yes, with rotary table Safety enclosure: Yes, according to layout Acceptance: Complete CE acceptance Included in the offer: 3 gripper arms and grippers with RCS coupling, as well as RCS gripper S, support gripper for ITS 50, collection tray on the rotary turret, gripper station (Gripper Dock), software license for Robot Dynamic 150 L, machine interface box including interfaces, loading station, enclosure including all elements and doors, CMM - light curtain system. Note regarding tooling & coaching: The chucks, adapter pallets, vices, Partool tooling, and EROWA ITS holders are NOT included. Coaching by EROWA Automation is not included in the scope of delivery. Upon request, transport and loading can be organized throughout Europe for an additional charge. Prices do not include VAT. Inspection is possible by appointment. Contact us, our team will be happy to assist you. Trade-in or exchange possible! Machine buying and selling PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MORE. Do you need a high-quality but affordable metalworking machine for your production? Or do you want to sell yours? For more information or contact options, visit our website.

Condition: used, Year of construction: 2024, x-travel 400 mm y-travel 400 mm Dkedpezvhm Isfx Aiisw z-travel 375 mm control Siemens 840D sl Linear b-axis -5 till +110 °

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, travel distance X-axis: 500 mm, travel distance Y-axis: 450 mm, travel distance Z-axis: 400 mm, workpiece length (max.): 630 mm, workpiece width (max.): 630 mm, workpiece height (max.): 500 mm, workpiece weight (max.): 200 kg, total height: 2,590 mm, total length: 4,780 mm, total width: 4,410 mm, table height: 390 mm, table length: 390 mm, overall weight: 5,900 kg, spindle speed (max.): 18,000 rpm, spindle motor power: 25 W, number of slots in tool magazine: 30, Equipment: chip conveyor, Year of construction: 2010 CNC controller: Heidenhain iTNC 530 Axes X-axis travel mm: 500 Y-axis travel mm: 450 Z-axis travel mm: 400 C-axis degrees: 360º (0,001) B-axis degrees: 0º/108º (0,001) Rapid traverse m/min: 80/50/50 Milling/turning table nc: Table dimensions mm: Ø390 Maximum workpiece size (D x H) mm: Ø630x500 Dsdpfx Aioz Dp Dbsiokw Max. workpiece weight kg: 200 Spindle Spindle speed rpm: 18000 Spindle drive power kW: 35/25 (40%ED/cont) Spindle torque Nm: 130/87 Tool system Tool holder: HSK-A 63 Tool magazine slots: 30 With free neighboring places mm: 130 With occupied neighboring places mm: 80 Max. Tool Length mm: 300 Chip-to-chip time s: 5 Equipment Chip conveyor Infrared probe Rinsing gun blowing air through spindle center selectable via M-function Signal lamp Laser tool measurement for measuring tool length and diameter Programmable coolant nozzles Heat compensator Direct measuring system XYZ Electrical cabinet active cooling unit Oil skimmer Ready for internal cooling (40/80 bar) RENISHAW Measuring probe Automatic door Machine running times Under power: 54257 Spindle Working: 32498 Rated power kVA: 48 Basic machine dimensions / weight Length mm: 4780 Width mm: 4410 Height mm: 2590 Weight kg: 5900

Condition: like new (used), Year of construction: 2011, operating hours: 20,000 h, functionality: fully functional, travel distance X-axis: 300 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,900 mm, Here, we offer the following well-maintained, used injection molding machine for sale as part of our injection molding machine trading business. We also purchase well-maintained injection molding machines, with a focus on models manufactured from 2010 onwards. We have been a wholesaler of used injection molding machines and peripheral equipment for injection molding applications for over 27 years. Handling unit in top condition. Manufacturer: Geiger Type: Midliner 3.O V5.0 Year of manufacture: 2011 Operating hours: approx. 20,000 hours Dimensions: Dodpfx Aoz Spq Ssiiokw X-axis, ejector stroke: 300 mm Y-axis, vertical stroke: 1000 mm Z-axis, traverse stroke: 1900 mm Includes programming unit: HT320Z Tried-and-tested line-based programming PC interface via USB Program assistant - Available for immediate loading onto the buyer's truck from our warehouse in Hanover/Germany, or available for delivery to your location with shipping costs covered – worldwide delivery possible. - The machine was tested before dismantling. - The machine is our sole property. - The requested machine is available in our warehouse in Hanover and will be offered after a functional test and can be inspected while powered on. For information about the machines we offer and our company: - We only sell machines that we have purchased from ongoing production and that are stored in our warehouse in Hanover. - All machines offered are inspected and tested before dismantling. - We do NOT sell insolvency goods. We are NOT an intermediary that deals with third-party property. - All machines offered come from successful companies for whom maintenance and care are a matter of course. - All machines offered can be inspected at our warehouse.

Condition: used, Year of construction: 2011, operating hours: 26,476 h, functionality: fully functional, workpiece height (max.): 500 mm, workpiece diameter (max.): 630 mm, workpiece weight (max.): 200 kg, total height: 2,590 mm, total length: 4,780 mm, total width: 4,410 mm, table height: 390 mm, table length: 390 mm, overall weight: 5,900 kg, spindle speed (max.): 18,000 rpm, spindle motor power: 25 W, number of slots in tool magazine: 30, Equipment: chip conveyor, Year of construction: 2011 CNC controller: Heidenhain iTNC 530 Axes X-axis travel mm: 500 Y-axis travel mm: 450 Z-axis travel mm: 400 C-axis degrees: 360º (0,001) B-axis degrees: 0º/108º (0,001) Rapid traverse m/min: 80/50/50 Milling/turning table nc: Table dimensions mm: Ø390 Maximum workpiece size (D x H) mm: Ø630x500 Max. workpiece weight kg: 200 Spindle Spindle speed rpm: 18000 Spindle drive power kW: 35/25 (40%ED/cont) Spindle torque Nm: 130/87 Tool system Tool holder: HSK-A 63 Tool magazine slots: 30 With free neighboring places mm: 130 With occupied neighboring places mm: 80 Max. Tool Length mm: 300 Chip-to-chip time s: 5 Equipment Chip conveyor Infrared probe Rinsing gun blowing air through spindle center selectable via M-function Signal lamp Laser tool measurement for measuring tool length and diameter Djdpfxez Dku Us Aiiokw Programmable coolant nozzles Heat compensator Direct measuring system XYZ Electrical cabinet active cooling unit Oil skimmer Ready for internal cooling (40/80 bar) RENISHAW Measuring probe Automatic door Machine running times Under power: 43774 Spindle Working: 26476 Rated power kVA: 48 Basic machine dimensions / weight Length mm: 4780 Width mm: 4410 Height mm: 2590 Weight kg: 5900

Condition: used, Year of construction: 2006, spindle speed (max.): 5,000 rpm, spindle bore: 65 mm, total width: 1,990 mm, total length: 4,500 mm, total height: 2,300 mm, travel distance X-axis: 165 mm, travel distance Y-axis: 80 mm, overall weight: 9,000 kg, Gildemeister Sprint 65 Linear - CNC Lathe (with 2nd spindle, 3 turrets and Y-axis) Dkjdpfxj Aawvws Aiijw Technical details: Spindle bore diameter 65 mm Spindle speed 5.000 R/min Spindle motor 25/20 kW Spindle speed counter spindle 5.000 R/min X-axis movement 165 / 165 / 165 Y-axis movement 80 mm Z-axis movement 220 / 150 / 650 mm W-axis movement (subspindle to mainspindle) 690 mm C-axis indexing 0,0001° Number of turret 3 Number of tools on turret 12 (3x 12) Tool taper VDI 30 Bar feeder LNS Quick Load Servo 65 If you have any questions concerning the machine, please do not hesitate to contact us by phone or e-mail. Feel free to view our other advertisements for a complete overview of our stock.

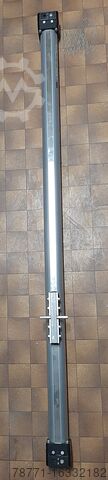

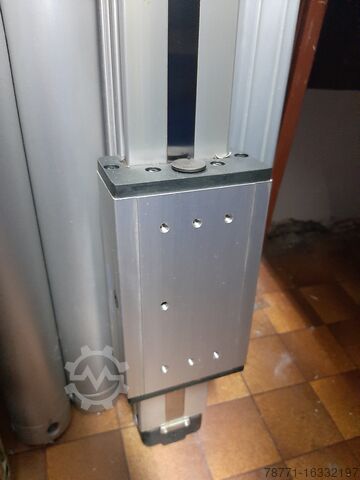

Condition: used, functionality: fully functional, Koganei ORGA40X2750 Linear actuator. Dedpfjtwqqgex Aiiekw Good working condition. Please check out our other listings as well.

Condition: used, Year of construction: 2002, functionality: fully functional, CNC lathe Gildemeister Type: CTX 420 V6 Linear Year of manufacture: 2002 Serial number: 02260000631 Control system: Siemens PowerLine Technical data: Working area: Max. swing diameter over X-axis guide 680 mm Swing diameter over X-axis guide 565 mm Chuck diameter 200/250 mm Travel in Z-axis 260 mm Travel in X-axis 635 mm Spindle head: Spindle head (flat flange) 170 main spindle, 140 counter spindle Spindle diameter in the front bearing 120/90 mm Spindle bore 79/57 mm Main drive: Power of the AC main drive (100% duty cycle) 25 kW Torque max. 270 Speed range 25-5000 rpm Counter spindle Drive power AC 25 kW Torque max. 7000 Nm Speed range 35-7000 rpm Dkedpfoz I T Avjx Aiisw Tool carrier Number of tool stations 12 Tool interface according to DIN 69880 Cylindrical shank diameter 40 mm Indexing time 30 ° 0.15 sec. Number of driven tools 5 Drive power 13.2 kW Torque 28 Nm Speed max. 4500 rpm C-axis, main spindle/counter spindle Speed range 0-250 rpm Torque 200/120 Nm Speed during point positioning 0.025 degrees Y-axis, vertical travel +/- 40 mm Hydraulics Capacity, total approx. 25 l Pressure max. 80 bar Pressure for clamping device max 70 bar

Condition: used, functionality: fully functional, overall weight: 1 kg, input voltage: 24 V, Siemens SIMATIC ET 200SP CPU 1512SP F-1 PN with Bus Adapter and Server Module Fail-safe PLC central module from the SIMATIC ET 200SP series with a PROFINET interface, including a bus adapter and server module. Manufacturer: Siemens Product series: SIMATIC ET 200SP Model: CPU 1512SP F-1 PN Device type: Fail-safe PLC central module Components: 1. CPU 1512SP F-1 PN: 6ES7512-1SK01-0AB0 2. Bus Adapter BA 2xRJ45: 6ES7193-6AR00-0AA0 3. Server Module ET 200SP: 6ES7193-6PA00-0AA0 Technical data CPU: Program memory: 300 KB Data memory: 1 MB Interface: PROFINET IRT PROFINET ports: 3 Bit performance: 48 ns Supply voltage: 24 V DC Permissible voltage range: 19.2–28.8 V DC Safety level: SIL 3 / PL e Memory card: SIMATIC Memory Card required Firmware version according to device marking: V2.6.1 Dedpfxe Ah Etro Aiiekw Device marking: 2019 Technical data Bus Adapter: Model: BA 2xRJ45 Connections: 2 x RJ45 Interface: PROFINET Connection type: Ethernet Server Module: Model: SIMATIC ET 200SP Server Module Function: Termination module for the ET 200SP station Condition: Used

Condition: excellent (used), Year of construction: 2002, spindle bore: 90 mm, spindle speed (max.): 4,000 rpm, travel distance X-axis: 315 mm, travel distance Z-axis: 1,350 mm, spindle motor power: 36,000 W, total height: 2,600 mm, total length: 4,200 mm, total width: 2,300 mm, overall weight: 8,000 kg, CNC Lathe with c-axis DMG MORI - CTX 520 Linear MACH-ID 9890 Make: DMG MORI Type: CTX 520 Linear Control: SIEMENS 840D YOP: 2002 Max. turning Ø: 440mm X-Axis: 315mm Z-Axis: 1350mm Spindle bore: 90mm Dkedpfx Aie Ahgqcjiow Speedrange: 4000Rpm Spindle power: 36kW ATC / revolver: 12 B-Axis Toolsystem:VDi-40 Chip conveyor: Yes Pinole taper: 5Mk Stroke pinole: 120mm Length: 4200mm Width: 2300mm Height: 2600mm Weight: 8000kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: used, functionality: fully functional, High-speed analog input module from the SIMATIC ET 200SP series for acquiring voltage and current signals, including a matching base unit. Manufacturer: Siemens Series: SIMATIC ET 200SP Module type: AI 2xU/I 2-/4-wire HS Article number, analog module: 6ES7134-6HB00-0DA1 Article number, base unit: 6ES7193-6BP00-0BA0 Dksdpfxs Ah T Tgo Aiijw Base unit type: BU15-P16+A0+2B Number of analog inputs: 2, differential inputs Signal types: Voltage and current Connection technology: 2-/4-wire Voltage measurement ranges: 0 to 10 V, 1 to 5 V, -5 to +5 V, -10 to +10 V Current measurement ranges: 0 to 20 mA, 4 to 20 mA, -20 to +20 mA Resolution: Up to 16 bits Measurement accuracy: ±0.3% relative to the input range Minimum cycle time: 125 µs Conversion time per channel: 10 µs Oversampling: Up to 16 values per cycle Nominal supply voltage: 24 V DC Permissible supply voltage range: 19.2–28.8 V DC Current consumption: 39 mA (without sensor supply) Typical power dissipation: 0.95 W (without sensor supply) Sensor supply: 24 V DC, short-circuit proof Diagnostic function: Channel diagnostics Operating mode: Clock-synchronized operation possible Parameterization: STEP 7 / TIA Portal Base unit connection technology: Push-in terminals Base unit connection terminals: 16 Base unit nominal voltage: 24 V DC Base unit current carrying capacity P1/P2: Max. 10 A Base unit current carrying capacity, process terminals: Max. 2 A Base unit potential group: Continuation of the potential group from the left Installation width: 15 mm Dimensions, analog module (W x H x D): 15 x 73 x 58 mm Dimensions, base unit (W x H): 15 x 117 mm Permissible ambient temperature during horizontal installation: -30 to +60 °C Permissible ambient temperature during vertical installation: -30 to +50 °C Scope of supply per unit: 1 analog input module with 1 base unit Available quantity: 6
