Used Hermle Uwf 800 for sale (126)

Condition: used, Travel ranges and axes • X-axis (longitudinal): 600 mm • Y-axis (transverse): 400 mm • Z-axis (vertical): 420 mm • Arbor stroke (vertical): 75 mm Working spindle • Speed range: 20 to 4,000 rpm • Tool holder: SK 40 (ISO 40) • Milling head: Manually or program-controlled, swiveling by ±90° Hedpozh Evwofx Aahop • Spindle drive power: approx. 6 – 7 kW Work table • Clamping surface: 900 x 460 mm • Max. table load: 400 kg • T-slots: 7 pieces (standard 14 mm H7, spacing 63 mm) Feeds and speeds • Working feed (X/Y/Z): 1 to 5,000 / 6,000 mm/min • Rapid traverse X and Y axes: 7 m/min • Rapid traverse Z axis: 6 m/min Electrical connection values and dimensions • Total power requirement: approx. 12 – 13 kW • Machine weight: approx. 2,300 kg • Space requirement (L x W x H): approx. 4.0 x 3.8 x 2.0 m (including guard/cabin) Control system • CNC control: Heidenhain HS412 Technical data subject to change without notice.

Condition: repair required (used), functionality: not functional, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 420 mm, The control unit is defective, but otherwise it functioned perfectly. Hsdszhulhspfx Aahep

Condition: used, Year of construction: 1995, CNC Milling Machine, Universal Manufacturer: HERMLE Type: UWF 902 S Year of Manufacture: 1995 Operating Hours: 65,071 Control System: HEIDENHAIN TNC 426 Working Area X/Y/Z: 600 x 450 x 500 mm Spindle Speed Range: 20 - 6,300 RPM Tool Holder: SK 40 M & H 3D Probe (for workpiece probing) Vertical-Horizontal Milling Attachment Drilling Spindle Coolant System Hedpfx Aaev Rxa Sjhjp Rotary Table: 900 x 458 Weight: 4,000 kg Machine Dimensions (L x W x H, approx.): 3,900 x 2,000 x 2,000 mm ä23626

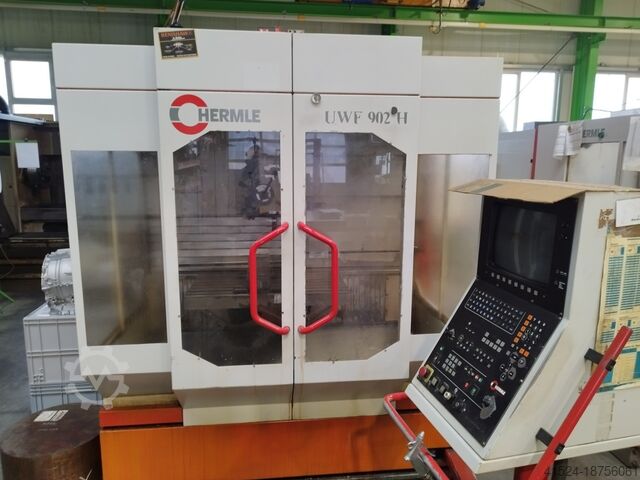

Condition: used, Year of construction: 1995, CNC Milling Machine, Universal Manufacturer: HERMLE Type: UWF 902 H Year of Manufacture: 1995 Operating Hours: 46,680 Control System: HEIDENHAIN TNC 426 Hedpfx Aev Rpr Ssahjp Travel distances X/Y/Z: 600 x 450 x 500 mm Rotary Table: 900 x 458 mm Renishaw 3D probe Spindle Speed Range: 20 to 6,300 rpm Tool Holder: SK 40 Coolant Tank Drive Power: 8.6 kW Weight approx.: 4,500 kg Machine Dimensions L x W x H approx.: 2,950 x 2,200 x 2,300 mm 23626

Condition: good (used), Year of construction: 1983, travel distance X-axis: 410 mm, travel distance Y-axis: 310 mm, travel distance Z-axis: 400 mm, Control: Positioning and travel control including display HEIDENHAIN TNC 135, 3-axis manual control TECHNICAL DATA Working area X-axis (longitudinal), manual/automatic: 410/390 mm Y-axis (transverse), manual/automatic: 310/290 mm Z-axis (vertical), manual/automatic: 400/380 mm Arbor stroke, vertical: 63 mm Tilting table clamping surface: 700 x 285 mm Drive power (at 1500 rpm): 2.2 kW Speed range: 45 – 2000 rpm Number of speeds: 12 Step ratio (geometrically stepped): 1.4 Tool holder (DIN 2079): ISO 40 EQUIPMENT/ACCESSORIES  Manual operation and CNC program control  Vertical and horizontal machining  Tilting vertical milling head  Angle-adjustable vertical milling head  Vertical quill feed, manual  Tilting table  Coolant system  Coolant and chip tray  Chip guard in the working area  Mounting elements  Documentation Hjdpfxeht Hbuo Aahep

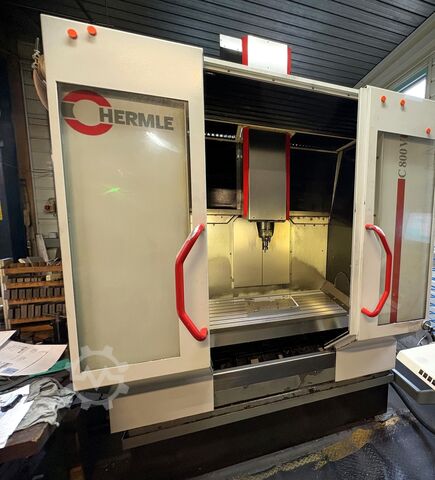

Condition: excellent (used), Year of construction: 2002, functionality: fully functional, Manufacturer: HERMLE Model: C 800 V Machine Type: CNC Vertical Machining Center Year of Manufacture: 2002 Control System: Siemens SINUMERIK Configuration: 3-Axis Machining Center Location: France Condition: excellent, can be demonstrated while powered on Origin: technical university / training and research environment Technical Data: Travel Ranges: X-axis: 800 mm Y-axis: 600 mm Z-axis: 500 mm Spindle: Hjdpfjzd Sr Rsx Aahop Tool Interface: HSK-A 63 Max. Spindle Speed: 16,000 rpm Max. Spindle Power: 15 kW Max. Torque: 130 Nm Internal Cooling / Coolant Through Spindle: 40 bar Axes / Feed Rates: Max. Axis Speed: 35 m/min Acceleration: 5 m/s² Tool Changer: Tool Magazine: 30 positions Tool System: HSK-A 63 Equipment: Siemens SINUMERIK CNC control system HERMLE control panel 3-axis configuration Vertical milling spindle HSK-A63 spindle 16,000 rpm spindle speed Internal cooling / High-pressure cooling through the spindle, 40 bar 30-position tool magazine Enclosed work area Fixed machine table with T-slots Machine light Coolant system / Pump unit available External high-pressure pump visible Renishaw system / Measuring probe system visible Electronic hand-held device / Handwheel Control cabinet integrated Extraction / Exhaust connection visible Machine vise visible in photos, scope of delivery to be agreed Manuals / technical documentation available Description: For sale is a HERMLE C 800 V CNC vertical machining center, manufactured in 2002, with a Siemens SINUMERIK control system. The machine comes from a technical university or training and research environment in France. It is therefore not a conventional production machine from heavy series production, but a machine from a technically well-maintained environment. The HERMLE C 800 V is a very stable and high-quality 3-axis milling machine with a large working area, HSK-A63 spindle, 16,000 rpm, 30-position tool magazine, and internal cooling / high-pressure cooling through the spindle at 40 bar. The following combination is particularly noteworthy: * HERMLE machine construction quality * Siemens SINUMERIK control system * HSK-A63 tool interface * 16,000 rpm spindle * Internal cooling / High-pressure cooling 40 bar * 30-position tool magazine * Renishaw measuring system visible * Origin from a technical university environment The machine is very well suited for toolmaking, mold making, prototype construction, training, research, single-part production, and precise general CNC milling operations. The machine is currently set up and can be inspected or demonstrated while powered on, by arrangement. Note on peripherals: According to the current photographic documentation, a coolant / pump unit and an external high-pressure pump are available. A large separate KNOLL chip conveyor, KNOLL paper band filter, or a large central KSS filter system is not available. The exact scope of delivery of peripherals, accessories, clamping devices, tool holders, measuring probes, and documentation will be finalized before the sale. Sold as a used machine, as is, without warranty. Technical specifications are subject to change without notice. Subject to prior sale.

Condition: used, Year of construction: 1988, Tool CNC Milling Machine HERMLE type UWF 1000 CNC Year of construction: 1988 Travel X: 700 mm Travel Y: 550 mm Travel Z: 500 mm Numerical Command: HEIDENHAIN TNC 155 Hodpfx Aaozg Ibyohep Spindle ISO 40 Spindle: Ø 70 mm Spindle speed: from 25 to 3150 RPM Table size: 1000 x 500 mm Vertical sleeve travel: 100 mm Swivel head Spindle motor: 6,9 kW Weight: 3,3 T

Condition: good (used), Year of construction: 1991, Control: Heidenhain TNC 407 Travel range: X = 600, Y = 400, Z = 420 mm Spindle speed range: 20 – 4000 rpm Gear stages: 3 Tool holder: SK 40 Quill stroke: 75 mm Spindle motor: 5.9 kW Hodpfx Aajwvif Uehjp Feed rate range: 1 – 5000/6000 mm/min (manual/program) Rapid traverse rate x, y: 7 m/min Rapid traverse rate z: 6 m/min Clamping surface: 900 x 458 mm Weight: approx. 2300 kg With coolant system, electric handwheel, and measuring probe (defective).

Condition: good (used), Year of construction: 1997, functionality: fully functional, machine/vehicle number: 11734, travel distance X-axis: 600 mm, travel distance Y-axis: 450 mm, travel distance Z-axis: 500 mm, rapid traverse X-axis: 10 m/min, rapid traverse Y-axis: 10 m/min, rapid traverse Z-axis: 10 m/min, feed length X-axis: 10,000 mm, feed length Y-axis: 10,000 mm, feed length Z-axis: 10,000 mm, controller manufacturer: HEIDENHAIN, controller model: TNC 426, total height: 2,200 mm, total length: 3,000 mm, total width: 2,400 mm, table width: 528 mm, table length: 900 mm, overall weight: 5,000 kg, mount diameter: 40 mm, input voltage: 400 V, input frequency: 50 Hz, input current: 23 A, Equipment: documentation/manual, HERMLE UWF 902 H CNC Vertical Machining Center - Connection: 16 kVA - Tool holder: SK 40 - Incl. 30-position tool changer - Incl. documentation and a RENISHAW measuring probe Note: The item must be collected between July 27th and July 30th, 2026, on a date to be determined. Hsdpszdpz Asfx Aahjp FCA D-71364 Winnenden – loaded onto a truck.

Condition: used, Year of construction: 1990, x-travel 400 mm y-travel 330 mm Hedpfx Ajt Hxbweahjp z-travel 350 mm total power requirement 6,3 kW weight of the machine ca. 2 t dimensions of the machine ca. 736 m

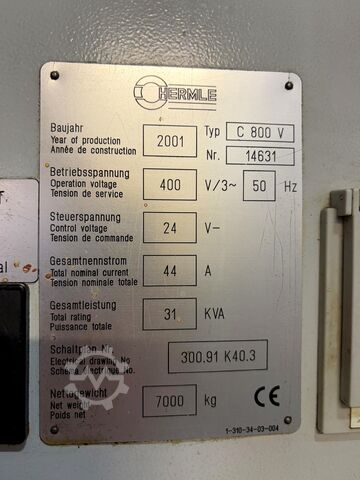

Condition: ready for operation (used), Year of construction: 2002, operating hours: 35,816 h, travel distance X-axis: 800 mm, travel distance Y-axis: 600 mm, travel distance Z-axis: 500 mm, controller manufacturer: HEIDENHAIN, overall weight: 7,000 kg, spindle speed (max.): 10,000 rpm, spindle motor power: 16,800 W, number of axes: 3, This 3-axis HERMLE C 800 V was manufactured in 2002. It features a spindle speed range of 20 to 10,000 rpm and a spindle power of 25 kW. The machine has a net weight of 7,000 kg and includes additional equipment such as a cooling unit and a jib crane. If you are looking to get high-quality machining capabilities, consider the HERMLE C 800 V vertical machining centre we have for sale. Contact us for further details. Hedpfxozcylqo Aahjp - Control Unit: Heidenhain (Control On: 114,325 hours)- Machine On Time: 111,736 hours- Program Run Time: 40,346 hours- Spindle On Time: 35,816 hours- Drive On Time: 76,783 hours- Axes In Motion: 37,963 hours- Operation Voltage: 400 V / 3 ~- Frequency: 50 Hz- Control Voltage: 24 V =- Total Nominal Current: 63 A- Total Rating: 43 KVA- Spindle Speed Range: 20 to 10,000 rpm- Spindle Diameter at Front Bearing: 70 mm- Tool Taper/Spindle Interface Options: HSK A63 (DIN 69063)- Tool Clamping Retention Force (HSK A63): 18 kN- Spindle Power (40% / 100% ED): 25 / 16.8 kW- Spindle Torque (40% / 100% ED): 159 / 107 Nm- Maximum Spindle Speed with Open Guard Doors: 3,000 rpm- Additional Equipment Included:* Cooling Unit / Chiller (FLKS 170)* Line Filter (LF BN/HC 110 G 5 B 1.0)* Ventzki Chip Hopper / Dumpster (Model LC-805-500 L, Max Capacity 1500 kg, Tare 156 kg)* ABUS Jib Crane (Load capacity 500 kg) mounted near or to the machine site* Floor cooling fan

Condition: used, Year of construction: 1996, x-travel 850 mm y-travel 630 mm z-travel 500 mm Control Heidenhain TNC 426 rapid traverse 10 m/min table dimensions 1.200 x 550 mm spindle tunring speed 20 - 4.200 U/min spindle drive 7 kW Hedpfx Aoy Dh U Dsahop tool taper SK 40 In our assessment, the machine is in good used condition and can be inspected under power by appointment. Technical features & accessories: - Dividing head, 4th axis Accessories, tools, and workholding devices shown are included in the scope of delivery only if specified in the additional information. Subject to change, errors in technical data and specifications, and prior sale.

Condition: good (used), BHG Hermle CNC milling machine Type: UWF 1000 Control: Heidenhain TNC 355 X-path: 700 mm Y-path: 550 mm Z-path: 500 mm Bed: 490 x 1000 mm Spindle: ISO 40 Speed: 3150 rpm Year of manufacture: 1988 Including documentation and parameters Hsdpfx Aoqwgzboahop Dimensions: 230x200x220 cm LxWxH Weight: approx. 4000 KG

Condition: good (used), Year of construction: 1983, functionality: fully functional, Universal Production and Tool Milling Machine Type: UWF 700 PH Machine No.: 5670 Serial No.: 034650 Year of manufacture:1983 Control system: Positioning and path control incl. display HEIDENHAIN TNC 135 3-axis manual input control TECHNICAL DATA Working area X-axis (longitudinal) manual/automatic: 410/390 mm Y-axis (transverse) manual/automatic: 310/290 mm Z-axis (vertical) manual/automatic: 400/380 mm Quill travel vertical: 63 mm Clamping surface, vertical: 830 x 224 mm Number of T-slots: 4 Angular table clamping surface: 700 x 285 mm 6 T-slots: 12 H8/45 mm Workpiece weight: 200 kg Distance table – spindle nose (vertical): 0 – 515 mm Distance table – spindle center (horizontal): 30 – 565 mm Drive power (at 1500 rpm): 2.2 kW Speed range: 45 – 2000 rpm Number of speeds: 12 Speed progression (geometric steps): 1.4 Tool holder (DIN 2079): ISO 40 Feed range (all axes): 2 – 1500 mm/min Rapid traverse (all axes): 1.5 m/min Operating voltage: 380 V/50 Hz Machine dimensions: 1.2 x 1.6 x 1.7 m Space required: 2.1 x 2.1 m Machine weight: 1100 kg EQUIPMENT / ACCESSORIES  Hand operation and CNC program control  Vertical and horizontal machining  Swiveling vertical milling head  Adjustable-angle vertical milling head  Various tool holders  Manual quill feed (vertical)  Angular table 700 x 285 mm  Coolant system  Coolant and chip tray  Electrically secured chip guard in work area  Mounting elements  Machine lamp  Documentation Hedpfjx Ry Atjx Aahsp Condition: Control system overhauled, workshop tested

Condition: excellent (used), functionality: fully functional, feed length X-axis: 700 mm, feed length Y-axis: 550 mm, feed length Z-axis: 550 mm, travel distance X-axis: 700 mm, travel distance Y-axis: 550 mm, travel distance Z-axis: 550 mm, HERMLE UWF 1001 CNC milling machine With CNC control, HEIDENHAIN / Type: TNC 155 Hsdpfjzcmz Esx Aahep Measuring probe / Coolant system / Chip conveyor Enclosure / Cabin / Control cabinet: 1260 x 500 x 1700 mm Travel paths: 700 x 550 x 550 mm / Clamping table area: 1000 x 490 mm

Condition: used, Year of construction: 1996, Technical details: x-travel: 600 mm y-travel: 450 mm z-travel: 400 mm control: Heidenhain TNC 425 spindle taper ISO: SK 40 DIN 69871 quill stroke vertical: 75 mm distance between column - table edge: 190 (fest) vertikal mm spindle head swivable left - right: 90° Vertikal-Spindel ° distance between table/spindle: min./max.: 165/565 Vertikal-Spindel mm distance between table/spindle: min./max.: 165/565 Horizontal-Spindel mm turning speed range: 20 ... 4500 U/min tool changer with: 32 tools (Typ HTC 32) feed:: 1 ... 5000 mm/min Table dimensions: 850x440 mm table swivelabel +/-: nein = starr ° table load: 500 kg total power requirement: 15 kW weight approx.: 3500 kg dimension machine xH: 2,5 x 3,0 x 2,1 m dimensions electric cabinet LxWxH: 1,6 x 0,6 x 1,7 m Universal Milling and Drilling Machine Equipment: Hsdpfou Nc T Rjx Aahep - cooling tank capacity 100 litres, flow rate 16 l/min - control panel with jib length arm - hand wheel control unit - 8 pieces machine base The machine can be demonstrated under power. i.D. *

Condition: used, Year of construction: 1992, Technical details: x-travel: 600 mm y-travel: 400 mm z-travel: 420 mm spindle taper ISO: SK 40 control: Heidenhain TNC 360 quill stroke vertical: 75 mm turning speed range: 20 ... 4000 U/min spindle head swivable left - right: 90° links / rechts ° feed:: X/Y/Z: 1...6000 mm/min. feed:: X/Y: 7 m/min. + Z: 6 m/min. Table dimensions: 900 x 460 mm table load capacity: 400 kg weight approx.: 2300 kg dimension machine xH: 4,0 x 3,8 x 2,0 m total power requirement: 13 kW Equipment: - separated production cell - coolant system - control panel with swivel-mounted boom - measuring probe SK 40 Heidenhain TS 120 Hedpfxeu Nc U Ij Aahsp - oil collecting basin *

Condition: used, Year of construction: 1996, Technical details: x-travel: 600 mm y-travel: 450 mm z-travel: 400 mm tool taper: IBAG SKI 25 control: Heidenhain TNC 425 quill stroke vertical: nicht bekannt mm Hjdpfxju Nc Uhj Aahep turning speed range: 2400 - 24.000 U/min feed:: 1 ... 5000 m/min m/min table surface area: 850 x 440 mm table swivelabel +/-: starr ° table load: 500 kg tool holder / places: 32 places für IBAC SKI 25 weight approx.: 3600 kg dimension machine xH: 2,5 x 3,0 x 2,1 m dimensions electric cabinet: L:1550 X B:550 x H:1700 mm Universal Milling and Drilling Machine - with IBAG high frequency spindle type HF 100A-30/24 - milling spindle taper Tool taper IBAG SKI with IBAG tightening bolt - cooling tank, capacity 16 l/min and 100 litre capacity Accessories: - 3-D push-button Heimer - Vertical head Hermle - Tool holders according to availability i.D. *

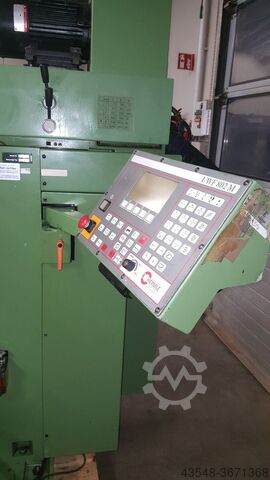

Condition: excellent (used), Year of construction: 1998, Hermle UWF 802 M Hermle UWF 802 M with Heidenhain TNC 124 NC control, cycle-controlled, year of manufacture 1998, in very good original condition. The machine comes from the training workshop of a renowned German mechanical engineering company. Technical data: Travel distances X: 500 mm, Y: 430 mm, Z: 400 mm Table size 800 x 390 mm Spindle connection ISO 40 Spindle speed 71 to 3550 rpm, 18 steps Feed rate X and Y 2 to 1600 mm/min, stepless Feed rate Z 2 to 1000 mm/min, stepless Rapid traverse X and Y 1.6 m/min Rapid traverse Z 1 m/min Spindle drive 3 kW Mains connection 400 volts, 50 Hz - Spindle speed via 18 gear stages Hodpjzbrz Iofx Aahop - Vertical milling head, swiveling to the right and left - Hydro-mechanical tool clamping, vertical and horizontal - Automatic central lubrication - Coolant system located next to the machine - Control cabinet fixed to the machine - Fixed angle table - Operating manual and wiring diagram Space requirement L x W x H 2000 x 1800 x 1950 mm Weight approx. 1750 kg Accessories and equipment: Operating manual, electrical diagrams Machine feet About the machine: We offer a Hermle UWF 802 M milling machine with Heidenhain TNC 124 NC control, cycle-controlled, year of manufacture 1998, in very good condition. The machine is fully functional, of course. All slides move very smoothly and evenly. Even at high speeds, the Hermle runs very quietly. This newer generation of milling machines is very user-friendly. Take advantage of the opportunity to inspect this machine on-site while it is powered up and see for yourself what condition it is in.

Condition: excellent (used), Year of construction: 1996, x-travel 800 mm y-travel 600 mm Hodpfx Aaey Tyznshep z-travel 500 mm

Condition: used, Year of construction: 1986, x-travel 390/410 mm y-travel 290/310 mm z-travel 380/400 mm Hedpovylkcefx Aahjp total power requirement 4 kW weight of the machine ca. 1,25 t dimensions of the machine ca. 2100x2100x1700 m technical data please see attachment!

Condition: used, Year of construction: 1990, x-travel 600 mm y-travel 400 mm z-travel 420 mm control TNC 355 Heidenhain Main spindle: turning speed range - main spindle 20 - 4.000 min/-1 power capacity - main spindel 7 kW transmission ratio 3 tool taper SK 40 distance spindle /table 127 - 567 mm spindle diameter in front bearing 55 mm stroke of quill vertical 75 mm tool clamping 10 kN swivellable +/- 90 ° work table: table surface area 900 x 458 mm T-slots 7x 63 x 14H7 feeds: feed range 1 - 5.000 mm/min Feed force 5,4 kN Hodpfx Astqmm Ajahop rapid traverse ( X / Y / Z ) 7 / 7 / 6 m/min total power requirement 13 kW weight of the machine ca. 3,0 t dimensions of the machine ca. 4,0 x 4,0 x 2,1 m Tool Room Milling Machine - Universal HERMLE - UWF 900 E - Spindle-Head swivable +/- 90°

Condition: used, Year of construction: 1986, x-travel 500 mm y-travel 360 mm z-travel 400 mm Control Siemens 810 tool taper SK 40 table surface area 800x390 mm T-slot - width 14H7 mm number of T-slots 6 T-slot - distance 63 mm turning speeds 20-4000 U/min transmission ratio 4 Feed 1-2000 mm/min rapid traverse 5 m/min total power requirement 9 kW weight of the machine ca. 2 t Hedpfx Aeyt R Eioahjp dimensions of the machine ca. 2,5x2,9x1,9 m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale; Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team

Condition: used, Year of construction: 1994, x-travel 850 mm y-travel 630 mm z-travel 550 mm table surface area 1200 x 550 mm spindle taper SK 40 spindle turning speed range 20 - 4200 U/min spindle drive 11,5 kW quill stroke 95 mm feeds longditudinal/cross/vertical 1 - 10.000 mm/min rapid traverse longitudinal and cross 10 m/min rapid traverse vertical 10 m/min control HEIDENHAIN, TNC 426 total power requirement 21 kW weight of the machine ca. 6 t Accessories: NC-dividing unit (= 4th axis) with tailstock, make HOFMANN, model RWNC-160; Hsdpfxsy Nnxaj Aahsp vertical head with hydr. tool clamping and quill retraction, solid table, electron. handwheel, coolant

Condition: used, Year of construction: 1989, x-travel 600 mm y-travel 450 mm z-travel 400 mm table-size 850 x 440 mm spindle taper SK 40 control HEIDENHAIN TNC 355 ATC 32 Pos spindle turning speed range 20 - 4000 U/min spindle drive 5,9 kW quill stroke 80 mm feeds longditudinal/cross/vertical 1 - 2000 mm/min power feed x/y/z 7200 N rapid traverse longitudinal and cross 10 m/min rapid traverse vertical 10 m/min total power requirement 12 kW weight of the machine ca. 3 t Acc.: NC-dividing unit (=4th axis) make WALTER with 3-jaw chuck 160 mmø, Hedpfoy Nnw Nsx Aahep vertical head with hydr. tool clamping and quill retraction, solid table, various tool fixtures, electron. hand wheel, coolant
