Used Guide Ruler for sale (4,871)

Condition: good (used), Guide cylinder, guide pneumatic cylinder, pneumatic cylinder, compact cylinder -Manufacturer: Festo, Guide cylinder type DFM-20-80-PA-GF 170845 -Piston: Ø 20 mm -Stroke: 80 mm -Max. pressure: 10 bar Djdoxlnnkjpfx Ab Tewf -Number: 6x cylinders available -Price: per piece -Dimensions: 165/85/H35 mm -Weight: 1.4 kg/piece

Condition: new, Year of construction: 2025, functionality: fully functional, 1.86 m Roller Conveyor with Measuring Guide – Precision Roller Table for Cutting and Transporting Metal Materials The 1860 mm roller conveyor with an integrated measuring guide is an advanced solution for supporting material cutting and feeding in industrial settings. Thanks to its high load capacity, sturdy construction, and precise length measurement system, this conveyor is perfect for use with band saws, circular saws, and other metalworking machines. Seven steel rollers ensure smooth movement of workpieces of various shapes and sizes. Key Features Built-in measuring guide – precise length control without the need for additional tools Dedpoxp Iy Ujfx Ab Towf 7 steel rollers (60 × 360 mm) – even weight distribution and smooth transport High load capacity of 900 kg – suitable for heavy pipes, profiles, bars, and shafts Adjustable height (650–1100 mm) – easy integration with different machines Modular extension capability – for building multi-segment roller tables Construction and Technology The CORMAK roller conveyor is made of deformation-resistant steel profiles. Stability is ensured by reinforced legs with crossbars. Each of the seven rollers is mounted on ball bearings, providing smooth and secure material guidance. The integrated measuring guide with a scale allows for quick length setting without the need for additional stops or measuring instruments. Precision and Work Efficiency The roller table with a measuring guide significantly shortens material preparation time by eliminating the need for manual measuring of each piece. Thanks to the precise measurement system, repeatable production can be carried out with high accuracy. Accurate material positioning improves cut quality, reduces material waste, and enhances workplace safety. Applications The 1.86 m roller conveyor with measuring guide is designed for production facilities, metalworking workshops, and companies involved in steel structure prefabrication. Especially recommended for: Precision cutting of pipes, bars, and steel profiles Operation with band saws and circular saws Feeding and receiving parts during batch processing Creating linear transport systems Standard Equipment 7 steel rollers with ball bearings Steel frame with cross reinforcements Height adjustment system (650–1100 mm) Integrated measuring guide Adjustable leveling feet Technical Specifications Roller diameter 60 mm Roller length 360 mm Number of rollers 7 Conveyor length 1860 mm Conveyor width 450 mm Height adjustment range 650–1100 mm Maximum load capacity 900 kg Weight 50 kg

Condition: excellent (used), Length of travel: 1 m Serial number: 1117445 Year of production: 2012 Weight: 1700 kg Universal without synchronization Dedpfx Aevncmqsb Tjwf

Condition: as good as new (ex-display), Rope guide ring Make steel type 8S Li Djdpfxsk D S Nao Ab Tewf unused from stock

Condition: good (used), Alignment plate Djdpfx Aegqpn Sob Tswf 1.000 x 400 mm Height 90 mm Weight 80 kg

Condition: used, 2-axis linear guide with linear motors - Slide arm pick and place with linear guides for automation Loading unit such as Scara robot, manipulator, handling device, handling system, placement gripper, loading gripper for automation Manufacturer SCHUNK - GEMOTEC - AFAG - LINMOT Type PS01-37x240-M + E1100-MT + T01-/72/420 + EPM 37-780 Year of construction approx. 2005 Horizontal axis with linear motor Gemotec type EPM 37-780 Actuator type: EPM 37x780-M Axis module: LinMot type E1100-MT-HC Horizontal movement: 780 mm Nominal force horizontal: 160 N Horizontal speed: 2.1 m/s Horizontal acceleration: 12.4 m/s² Repeat accuracy: +/- 0.05 mm Horizontal load capacity: max. 7000 g Horizontal guide column: Ø 20 mm Vertical axis with LinMot linear motor type PS01-37x240-M Actuator type: LM01-23x80/160 Axis module: LinMot type E1100-MT Vertical movement 160 mm Nominal vertical force: 44 N Max force vertical: 203 N Vertical speed: 2.2 m/s Vertical acceleration: 50.4 m/s² Repeat accuracy: +/- 0.05 mm Horizontal guide column: Ø 20 mm Power supply unit LinMot type T01-/72/420 (for motor supply) Input voltage: 3 x 400 V AC 50/60 Hz Output voltage: 72 V DC 420 Watt Base frame Support columns: 4 pieces Ø 55 mm Support column height adjustment: 200 mm (manual height adjustment) Mounting foot: 2 x 175 x 90 mm Control voltage: 24 V DC - Can be moved in two axes - Mounting plate for tool holder 66 x 56 mm - Integrated path measurement - Axis modules with integrated positioning control - Festo pneumatic cylinder as holding brake on the vertical axis - Horizontal axis with 3 external fans - Axis modules configurable via LinMot MPC Configurator 3.2 software Dwedeu H R Iwopfx Ab Tef Space requirement L x W x H: 1120 x 720 x 740 mm Weight: approx. 65 kg Very good condition

Condition: good (used), Guide cylinder, guide pneumatic cylinder, pneumatic cylinder, compact cylinder Dsdoxlnlvjpfx Ab Tjwf -Manufacturer: Festo, Guide cylinder type DFM-20-80-BPA-GF 532316 -Piston: Ø 20 mm -Stroke: 80 mm -Max. pressure: 10 bar -Number: 3x cylinders available -Price: per piece -Dimensions: 190/85/H35 mm -Weight: 1.5 kg/piece

Condition: new, Made in Italy. Center height: 300 mm Turning diameter over bed: 600 mm turning diameter over slide: 380 mm center width: 1.500 mm bed width: 400 mm spindle bore: 82 mm spindle nose: Camlock 8" Spindle speeds: (12) 16 - 1200 rpm motor power: 9,2 kW (special equipment / standard: 7,5 kW) feed Z-axis: (93) 0,028 - 6,43 mm/rev Dwsdpfx Abed Nk Nco Tef feed X-axis: (93) 0,012 - 2,73 mm/rev Thread, metric: (54) 0.5 - 224 mm Thread, Witworth: (55) 72 - 1/8 TPI Thread, modular: (54) 0.5 - 112 mm Thread, Diametral Pitch: (54) 64 - 1/4 D.P. Cross slide stroke: 340 mm Top slide stroke: 150 mm Tailstock quill diameter: 85 mm Tailstock quill stroke: 200 mm Tailstock taper: MK 5 Weight: approx. 3,200 kg Equipment: - 3-axis digital display - Automatic lubrication of the guideways - LED illumination - Micrometer bed stop - 9.2 kW motor instead of 7.5 kW - Quick change holder system Multifix with 4 inserts - Tailstock movement pneumatically assisted - Mechanical double clutch - Electromagnetic brake - Rapid traverse for X- and Z-axis - Electrical equipment from high quality brand components e.g. Siemens/Schneider - Lubrication of the guideways via hand pump - Reducing sleeve - 2 fixed center punches - All safety devices according to CE standards: Rotary chuck guard with plexiglass disc, micro limit switch secured. Rotating chuck guard with Plexiglas disc. Rear splash guard along the entire length. Lead screw and pull screw protection by light barrier (integrated in emergency stop circuit). Emergency stop pushbutton. - Swarf container on wheels - Electric coolant device - fixed steady rest - travelling steady rest - operating tool, acceptance protocol according to DIN, operating and maintenance manual, complete electrical installation, machine manufactured according to CE standard in the latest version EMO special price incl. 3-axis digital display.

Condition: excellent (used), Travel length: 3 m Serial number: 1117489 Year of production: 2012 Weight: 2800 kg Djdpfx Abevncm De Towf For FANUC robot

Condition: used, Offer 41414 Guide unit for punching tool suitable for AMADA type EMK 3612 Dwodpfx Abexhfhms Tef

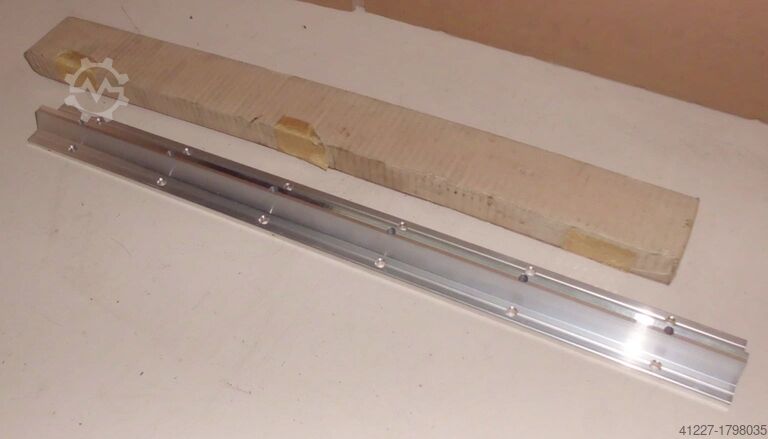

Condition: ready for operation (used), Length with support: 2280 mm Dsdjd Atqkjpfx Ab Towf Length of each extension piece: 710 mm 5 Carriages with overall height (lower edge of track to upper edge of carriage): 36 mm Runner rail mounting, hole: 6.5 mm at a distance of: 60 mm Carriage with 4 mounting holes: 6.5 mm

Condition: used, Linear guide, portal axis SCHNEIDER ELECTRIC / FESTO Dwodpfsw Uc Tzsx Ab Tsf Electric slide Motor type: ILS1B571PC1A0 Year of manufacture: 2010 Axis travel: 300 mm Power supply: 36 Volt (DC) Carriage: 86 x 54 mm - Synchronous servo motor / stepper motor SCHNEIDER ELECTRIC, type: ILS1B571PC1A0 - Linear guide FESTO, type EGSK-33-300-6P - Ball screw Ø 10 mm, pitch 6 mm - 2 adjustable position sensors Dimensions L x W x H: 580 x 120 x 57 mm Weight: 6.5 kg in good condition

Condition: good (used), Guide cylinder, guide pneumatic cylinder, pneumatic cylinder, compact cylinder -Manufacturer: Festo, Guide cylinder type DFM-20-80-BPA-GF-AJ 532316 -Piston: Ø 20 mm -Stroke: 80 mm Djdpfoxlnhdox Ab Towf -Max. pressure: 10 bar -Number: 3x cylinders available -Price: per piece -Dimensions: 270/85/H35 mm -Weight: 1.5 kg/piece

Condition: new, Year of construction: 2025, Vertical Bandsaw with Laser Guide Dedpevugwaefx Ab Tewf A simple-to-use bandsaw with a durable construction. It allows for precise adjustment of work parameters, which directly impacts cutting efficiency. The quick tensioning lever is also used for quickly removing the blade. Precise cast iron machine table. Adjustable table tilt from -10° to 45°. A window for easy reading of the blade tension. Two cutting speeds selected via a stepped pulley. Technical Data: Wheel diameter [mm]: 480 Maximum cutting height [mm]: 280 Maximum cutting width [mm]: 465 Blade width [mm]: 9.5 to 38.1 Blade length [mm]: 3605 Belt speed (2 speeds) [m/s]: 7/14 Worktable angle adjustment [°]: from -10 to +45 Worktable dimensions (L x W) [mm]: 630 x 480 Dimensions (L x W x H) [mm]: 830 x 550 x 2070 Weight [kg]: 162 Motor power [kW]: s1-2.2kW, s6-3.1kW Power supply: 3-phase, 400V Note: The price quoted is the net price. It does not include transportation costs.

Condition: excellent (used), DEMAG P-Hoist Rope drum with drum cover and rope guide, motor, brake and gearbox P hoist Very good used condition Djdpev Uvftefx Ab Towf Well below OEM price

Condition: as good as new (ex-display), different Schölly Flexilux fiber light guides - Ringlight - Gooseneck - single arm Prices from € 100,-- single) to € 350,-- (ring) Dodefr T Ihopfx Ab Tswf prices are EXW, bulk discount possible

Year of construction: 2008, condition: used, Roll lenght 350 mm Djdpfew Tm Tcox Ab Tewf number 3 Profilrollen 0 elektrisch kW 1 pair of used edge rollers, as fabric guides for rolled-in textile edges (knitted fabric), type LAM 6 S3, electrically driven, left + right version, price refers to the pair.

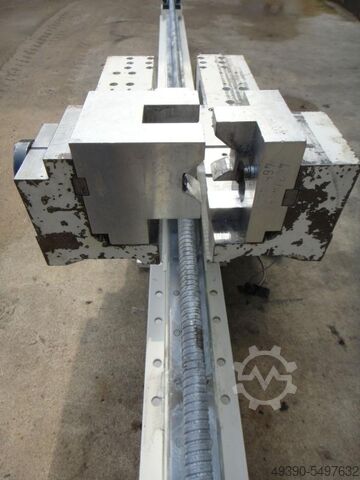

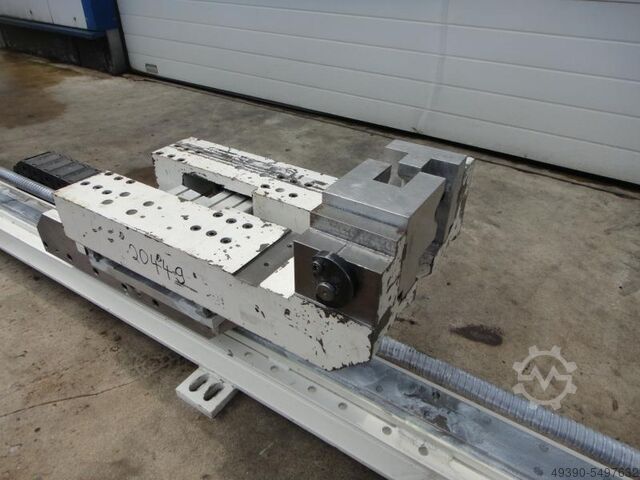

Condition: used, Linear unit, linear axis, gantry axis with servo drive, synchronous servo motor, electric slide, loading unit, linear guide with servo motor and pneumatic gripper REXROTH INDRAMAT Type: MKD0771B-061-KP1-KN Ident No. 247238 0001 Dwjdpfx Abogi E Has Tof Year of manufacture: 2000 Axis movement: 2400 mm Carriage length: approx. 500 mm Total length: 3520 mm - Pneumatic feed gripper (clamping gripper with 2 Festo compressed air cylinders) - Standard linear guide 65 x 25 mm - Steel base profile - Ball screw Ø 32 x 10 mm - pneumatic with position indicator - Permanent servo motor type: MKD071B-061-KP1-KN (Part no.: 261989, p. no. MKD071-50234, brake with 24 V DC) Overall dimensions L x W x H: 3520 x 400 x 580 mm Weight: 340 kg good condition possible drive controllers under stock no. 53628 and stock no. 53673

Condition: good (used), Guide cylinder, guide pneumatic cylinder, pneumatic cylinder, compact cylinder -Manufacturer: Festo, Guide cylinder type DFM-25-50-PA-GF -Piston: Ø 25 mm -Stroke: 50 mm -Max. pressure: 10 bar -Number: 4x cylinders available -Price: per piece -Dimensions: 135/95/H45 mm -Weight: 1.6 kg Dwjdpfx Abef Sl U De Tof

Year of construction: 2010, condition: used, Roll lenght 280 mm roll diameter 70 mm Weight 10 kg 1 pair of used edge guide, type KF 2020 pnuem. design left + right Dodjw Tdvbjpfx Ab Towf The price refers to 1 pair each.

Condition: good (used), Guide cylinder, guide pneumatic cylinder, pneumatic cylinder, compact cylinder -Manufacturer: Festo, Guide cylinder type DFM-25-30-PA-GF 170849 -Piston: Ø 25 mm Dwsdpoxlncuofx Ab Tsf -Stroke: 30 mm -Max. pressure: 10 bar -Number: 3x cylinders available -Price: per piece -Dimensions: 105/95/H45 mm -Weight: 1.4 kg/piece

Year of construction: 2010, condition: used, Roll lenght 280 mm roll diameter 70 mm Weight 10 kg 1 pair of used edge guide, type KF 2020 pnuem. Dwedpjw Tdu Rofx Ab Tjf design left + right The price refers to 1 pair each.

Condition: good (used), Tailstock, counter bearing for dividing head, dividing head, lathe Dsdpfxsxfguio Ab Tewf -Tailstock: with guide carriage -Centre height: 100 mm -Dimensions: see drawing in the photos -Dimensions: 580/100/H180 mm -Weight: 11.1 kg

Year of construction: 2010, condition: used, Roll lenght 280 mm roll diameter 70 mm Weight 10 kg 1 pair of used edge guide, type KF 2020 pnuem. design left + right The price refers to 1 pair each. Djdpfx Asw Tdu Deb Tewf

Condition: good (used), Marking ruler, planing ruler, test ruler, straightening ruler, straightening beam, clamping plate, marking-spotting plate, measuring plate, measuring table, straightening plate, marking plate, test plate, control plate, precision measuring table -Inking ruler: 145 x 1515 mm Djdjw H Nu Depfx Ab Tjwf -Dimensions: 145/1515/H265 mm -Weight: 99 kg
