Used Fitting Center for sale (15,642)

Condition: used, Year of construction: 2017, turning diameter max. 356 mm turning length 705 mm control M730 UM Mapps CELOS greates pass round over bed 920 mm Swing dia. over traverse guideway 742 mm turning speed range - main spindle 4.000 min/-1 power capacity - main spindel 18,5 / 15 kW spindle nose JIS A2-8 spindle bore 80 (91) mm C-Axis 0,001 ° Spindle speed range subspindle 6.000 min/-1 power capacity - Sub spindle 11 / 7,5 kW spindle bore 43 mm C-Axis 0,001 ° x-travel 260 mm z-travel 795 mm Y - Axis +/-50 mm rapid traverse ( X / Y / Z ) 30 / 10 / 30 m/min number of toolpositions 12 pos. Schank height for square tool 25 mm Drill shank diameter 50 mm turret change time 0,27 sec. Spindle speed - driven tools max. 10.000 min -1 power capacity - driven tools 5,5 / 4,2 kW total power requirement 41 kVA weight of the machine ca. 6,4 t dimensions of the machine ca. 4,0 x 3,0 x 2,3 m CNC - Turning- and MillingCenter DMG MORI - NLX 2500 SY / 700 - Subspindle - Tool-Drive - C, Y-Axis - only 1.237h Spindle hours Isdpfx Aexzk Ifjdnoa

Condition: good (used), Year of construction: 1999, functionality: fully functional, Okuma Macturn 30 1SW 1000, OSP 7000M, chip conveyor, ATC 24 BT40, coolant pump 8 bar, gear milling option, approx. 12,500 spindle hours, HS Big Bore, GS Standard Bore Neff The Okuma specialist and NeffBuy Ijdpfx Adjvta Rkenja We are also happy to provide you with the all-round carefree package, a tour of our showroom (30 Okuma machines) including demonstration and acceptance, loading, transport, assembly and commissioning of the machine as well as instruction and subsequent service. Bjsvkhv0lno We operate Okuma CNC service throughout Europe, both electronically and mechanically, and on top of that we have a 1200 m2 inventory of all Okuma spare parts, please visit us on our homepage.

Condition: good (used), Year of construction: 2015, 1 used portal machining center Manufacturer: Haas Model: Gr 510 Year of manufacture: 2015 Technical details X-axis: 3073 mm Y-axis: 1549 mm Z-axis: 279 mm Control: HAAS Table size: 3099 x 1346 mm Total power requirement: 11.2 kW Machine weight approx.: 9.2 t Shipping dimensions: 5.5 x 2.9 x 2.9 (3.2) m Space requirements approx.: 6 x 3 x 3 m Additional information Iodpfx Adjxzifvenea 4th axis NC rotary table with tailstock and swiveling bridge

Condition: ready for operation (used), Year of construction: 2000, travel distance X-axis: 500 mm, travel distance Y-axis: 420 mm, travel distance Z-axis: 380 mm, rapid traverse X-axis: 50 m/min, rapid traverse Y-axis: 50 m/min, rapid traverse Z-axis: 50 m/min, controller model: Heidenhain Mill Plus, table width: 500 mm, table length: 500 mm, rotary table diameter: 500 mm, spindle speed (max.): 18,000 rpm, operating hours of spindle: 17,618 h, coolant supply: 40 bar, spindle nose: SK40 (DIN69871), number of slots in tool magazine: 60, input voltage: 400 V, Equipment: chip conveyor, documentation/manual, rotational speed infinitely variable, The 5-axis DMU50 eVolution has been removed from production in working order and can also be seen in operation in our showroom (by appointment). The machine is equipped with 40 bar internal spindle cooling, chip conveyor, 60-tool changer, Renishaw tool setter, Heidenhain 3D probe, 18,000 RPM spindle, Visiport, and original factory extraction system. Iedpfxsxnixij Adnsa

Condition: used, TECHNICAL DETAILS x-travel: 1000 mm y-travel: 800 mm Iodexzdr Rspfx Adnsa z-travel: 1100 mm Control name: Siemens Feed force X-axis: at ED S3 -40% 15000 N Feed force Y-axis: at ED S3 -40% 15000 N Feed force Z-axis: at ED S3 -40% 20000 N Feed rate in X, Y and Z axes: 1 - 30000 mm/min Rapid traverse speed: 30000 mm/min Acceleration in X-, Y- and Z-axes: 3.0 m/s² Rotary indexing table: 20 l/min Tool holder: SK50 Spindle diameter in the front bearing: 100 mm Speed range: 45 - 4,500 rpm Pallet size: 630 x 800 mm Pallet change time: 21 s

Condition: used, Year of construction: 2008, travel distance X-axis: 1,700 mm, travel distance Y-axis: 1,400 mm, controller manufacturer: MAZAK, controller model: PC FUSION 640 M, CONTROLS .. CNC controls MAZAK PC FUSION 640 M WORKING RANGE -CUBIC- .. X-axis travel: 1700 mm .. Y-axis travel: 1400 mm .. Z-axis travel: 1400 mm TABLE .. - positioning/indexing: 360000 ° SPINDLE / HEAD .. spindle revolutions (max): 10000 /min .. drive power: 37 kW TOOL MAGAZINE .. number of positions: 120 AUTOMATIC WORKLOAD EQUIPMENT Isdpfx Adexzbrbsnja .. store type: pallet changer .. number of store positions: 6 .. pallet length: 1000 mm .. pallet width: 1000 mm .. number of pallets: 6 A high-quality Mazak FH 10800 is available for sale, equipped with a 6-fold pallet storage system, ideal for automated machining processes and high production output. The machine is in very good condition and is available immediately. With a large travel range, powerful spindle and extensive equipment, this horizontal machining centre is particularly suitable for demanding machining tasks in mechanical engineering or series production. NC4 laser Renishaw OMP60 probe Synchronised thread cutting Removable handwheel CNC performance package Mayfran Concep chip conveyor with drum filter 70 bar high-pressure pump

Condition: used, Year of construction: 2012, turning diameter max. 366 mm turning length 705 mm control M 730 BM MAPPS IV greates pass round over bed 920 mm Swing dia. over traverse guideway 742 mm turning speed range - main spindle 4.000 min/-1 power capacity - main spindel 18,5 / 15 kW spindle nose JIS A2-8 spindle bearing diameter 140 mm spindle bore 91 mm Spindle speed range subspindle 6.000 min/-1 power capacity - Sub spindle 11 / 7,5 kW spindle nose JIS A2-5 spindle bearing diameter 85 mm spindle bore 43 mm x-travel 260 mm Ijdpfx Aexzk H Uodnsa z-travel 795 mm Y - Axis +/-50 mm rapid traverse ( X / Y / Z ) 30 / 10 / 30 m/min number of toolpositions 12 pos. Schank height for square tool 25 mm Drill shank diameter 50 mm turret change time 0,27 sec. Spindle speed - driven tools max. 6.000 min -1 power capacity - driven tools 5,5 / 3,7 kW total power requirement 41 kVA weight of the machine ca. 6,4 t dimensions of the machine ca. 4,0 x 3,0 x 2,3 m CNC - Turning- and MillingCenter MORI SEIKI - NLX 2500 SY / 700

Condition: good (used), Year of construction: 2009, functionality: fully functional, travel distance X-axis: 900 mm, travel distance Y-axis: 780 mm, travel distance Z-axis: 780 mm, total height: 31,500 mm, Equipment: documentation/manual, rotational speed infinitely variable, Dear customer, we have an Okuma MA 500 HB 6APC in good condition in stock for you. We look forward to your inquiry and remain with best regards, Your Neff - The Okuma Specialist Team Data sheet: Control: OSP P200-M Travel paths X-axis: [mm] 900 Y-axis: [mm]: 780 Z-axis: [mm]: 780 B-axis: [degrees] 1; 360 degree incrementation Tool changer 200 ATC MAS BT50 Tool positions: 200 Tool holder: MAS BT50 Maximum tool weight: [Kg] 500 Maximum tool length: [mm] 450 Main spindle Max. speed: [1/min] 6,000 Drive power: [kW] 33 Pallet station 6 APC Isdpfxovta Sbo Adnea Pallet dimensions: [mm] 500×500 Workpiece weight: [Kg] 950 Workpiece size: [mm] 800×1000 Other features: – Renishaw Probe – Renishaw Tool Break Control – Mayfran Concept with high pressure pump Neff The Okuma specialist and NeffBuy We are also happy to provide you with the all-round carefree package, viewing in our showroom including demonstration and Acceptance, loading, transport, assembly and commissioning of the machine as well as instructions and subsequent service. We operate Okuma CNC service throughout Europe, both electronically and mechanically, and on top of that we have a 1200 m2 inventory of all Okuma spare parts, please visit our homepage.

Year of construction: 2025, condition: new, functionality: fully functional, sink 1400 x 700 x 900 mm WxDxH Ijdpfx Aefffhzodnja 1x basin on the left, drainer on the right Pool size 600 x 500 x 300 mm with base cabinet left; right open for dishwasher incl. standpipe valve and drain plug, without siphon Stainless steel sink center NEW

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, travel distance X-axis: 500 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, rapid traverse X-axis: 12 m/min, rapid traverse Y-axis: 12 m/min, rapid traverse Z-axis: 6 m/min, controller manufacturer: Heidenhain, controller model: TNC 426/430M, overall weight: 3,000 kg, spindle speed (max.): 9,000 rpm, operating hours of spindle: 10,292 h, spindle nose: SK40, number of spindles: 1, number of slots in tool magazine: 16, input voltage: 400 V, Equipment: documentation/manual, rotational speed infinitely variable, This Deckel Maho DMU 50T comes from a training department and has therefore never been used as a production machine. The machine is accordingly in a very tidy condition, and both the axes and spindle still run very smoothly! Equipped with Heidenhain electronic handwheel. Dimensions: 2200x2200x2300 mm (LxWxH) Weight: approx. 3000 kg Ijdpexzf Erofx Adnoa

Condition: used, Year of construction: 2006, Working area X-Y-Z: 5300 x 1700 x 180 mm Travel length X-Y-Z: 6040 x 1810 x 280 mm Drilling head with 30 + 8 spindles Iedoxy Tmzepfx Adnsa Speed: 6000 rpm Power: 2.2 kW Automatic central lubrication Worktable TV with 10 supports L=1500 4 working zones 2 cross lasers Vacuum pump 250 m³/h PC control Windows Vertical milling unit ISO 30 7.5 kW with tool changer RAPID 14 and vector axis Additional drilling unit (E-axis) Dongle for XILOG software Location: Nattheim

Condition: new, 0 ja Working width 3000 (3500) mm 0 ja Ruchser RU-BM-3000 (option: 3500) Wing assembly table ----- Herstellerbeschreibung: Item 1.0 Article 0610000 RU-BM-3000 Sash assembly table, for sashes up to max. 2500 mm height with RU-SH, special screwdriver length 3000 mm, width 1400 mm, inclination of working platform manually adjustable. Usable width 2500 mm Holder for hardware shears or hardware punch. 10 swivel-mounted pendants for hanging the sashes, completely pneumatically foldable for unhindered movement of the sashes on the table surface. Device for scanning the sash fitting length for constant and variable/centered handle fit Iedpst Tq Aajfx Adnja and any handle fit height for pre-drilled sashes, colour-coded dimension recognition for the fittings. Pendulum height can be set to 50 or 60 mm on one stop. RU-SH, special screwdriver with pneumatic depth cut-off mounted on carriage, safety control, pneumatic height adjustment, screw feeder with automatic switch-off of the filling container manual insertion for a second screw length on the special screwdriver, accessories. RA-8, turret stop for 8 screw levels mounted on the carriage. RA-4 commuter rail manually adjustable in depth against left and right one 4-fold turret stop each. PSF - Pneumatic clamping device for sashes against the lateral stops. Working height adjustable from 900 - 1000 mm. Please specify whether felt, sliding or brush strips should be used as a support. Item 1.1 Article 6315 RU-BM-... adjusted to customer's fitting specification Item 1.2 Article 0500000 Holder adjusted to customer punching press/ shear For mounting a customer-supplied punching press or shear (other manufacturer) on the sash assembly table. Please specify make when ordering !!! ----- Price RU-BM-3000 in the above version ex works: on request! ----- Fitting bearing options for RU-BM-3000: ----- Version with fixed fitting bearing: Price EUR 4,409.00 Article 0630000 RU-BL-30/30 Fixed fitting storage unit Mounted above the leaf assembly table Length 3100 mm, depth 1250 mm, with 3 shelves with 10 compartments each, divided by partitions. Freestanding version: Price EUR 5,291.00 Item 0710000 RU-SBL3000/30 Freestanding storage unit, Length 3100 mm, depth 1250 mm, height 2050 mm, upright frame on the front without supports, 30 compartments, 10 in a row, each divided by partitions and a continuous shelf at the top, size of the compartments: width 280 mm, height 150 mm 4 pcs. Angle supports for corner deflections: Price 614.00 EUR Side length 120x120mm; inclination approx. 3° The front edge of the angles is bent up 5mm to prevent accidental unloading. 2 pieces on the left and 2 pieces on the right under the first shelf of the fitting. ----- Surcharge for RU-BM-3500 ----- Article 0610300 RU-BM-3500 Sash assembly table for sashes up to max. 3000 mm height with RU-SH, special screwdriver length 3500 mm, width 1400 mm, inclination of working platform manually ble width approx. 3000 mm Surcharge RU-BM 3500 to RU-BM 3000: EUR 2,831.00 Fitting bearing for RU-BM-3500 (only free-standing possible): Price EUR 6,714.00 Item 0710007 RU-SBL3800/36, free-standing fitting storage Length 3800 mm, depth 1280 mm, height 2060 mm...

Year of construction: 2012, condition: excellent (used), functionality: fully functional, 4-axis machining centre 5 vices, 5 tool holders, working length of 4 metres or more in two passes, equipped with a probe for workpiece length measurement, with Schucam software. Iodpjxy Rniefx Adnoa

Condition: like new (used), Year of construction: 2020, MAZAK Integrex i-200S 1500U Max. turning diameter: 658 mm Max. turning length: 1,519 mm Max. milling speed: 20,000 rpm Max. main spindle speed: 5,000 rpm Max. sub-spindle speed: 5,000 rpm Max. bar diameter: 65 mm Machine is equipped with: - Mazatrol SmoothG CNC control - KITAGAWA three-jaw chuck BB-08 for main spindle, diameter 210 mm - KITAGAWA three-jaw chuck BB-08 for main spindle, diameter 210 mm - B axis 0.0001° (swivel head) - Y axis - Tool magazine for 72 tools (HSK) Isdjxy Rb Aspfx Adnoa - Prepared for workpiece measuring system RMP-60 - Sub-spindle with C axis 0.0001 degree incl. C1+C2 synchronization - KNOLL filter system including chip conveyor, high-pressure cooling 70 bar, 7 pressure stages, dual switching filter - Mazak API interface

Condition: used, Year of construction: 2012, CNC machining center Manufacturer: Unverzagt Model: UVA 550 Plus Iodpfx Adjwv Tm Nsnoa Year of manufacture: 2012 Control: Siemens 828D Operating hours: approx. 3,000 Travel distances X/Y/Z: 600 x 400 x 500 mm Tool stations: 20 Tool holder: SK40 Spindle speed range: 10,000 rpm Hexagon wireless probe Chip conveyor Spindle chiller ICS (internal cooling system) 251125ä

Condition: good (used), Year of construction: 2004, functionality: fully functional, Control system: Mazatrol 640 MT Pro Travel distances: X-axis = 630 mm Y-axis = ±230 mm Z-axis = 1,585 mm B-axis = 225° X2-axis = 230 mm Z2-axis = 1,530 mm Rapid traverse speed of the axes: X-axis = 38 m/min Y-axis = 26 m/min Z-axis = 38 m/min C-axis (spindle rotation): 400 rpm MAIN SPINDLE Drive power: 30 kW Max. torque: 1,200 Nm Isdpfx Adexy Nzujnea Speed range: 35 to 3,300 rpm COUNTER SPINDLE Drive power: 26 kW Max. torque: 500 Nm Speed range: 35 to 4,000 rpm MILLING SPINDLE Drive power: 18.5 kW Max. torque: 120 Nm Speed range: 15 to 12,000 rpm Max. turning diameter: 760 mm Max. turning length: 1,500 mm Tool magazine: 80 stations (Capto C6) Coolant/chip removal: - Oil mist extraction - Hinged belt chip conveyor - High-pressure package 70 bar - 7 pressure levels PLC - Dual change filter and oil skimmer Linear scale system for X/Y-axis MACHINE OPTIONS - Synchronous counter-rotation of turning and milling spindle - C-axis 0.0001 degree (counter spindle) - Overload monitoring system for the spindle and axis feed system - Automatic ON/OFF with warm-up function WORKPIECE HANDLING SYSTEM: - Gantry loader GL 200 F (1,500 U) - Hand type D3 (clamp jaws types A, B, C, D, E) - Maximum workpiece weight 2 x 20 kg - Shuttle loop type II (belt conveyor) - 12 pallets 750 x 440 mm - Safety fence - Automatic chuck open/close - Air blast device at the chuck CONTROL OPTIONS - Cylindrical interpolation - Interface set - Option package for 5-axis simultaneous machining - Synchronous tapping, MAZACC2D, - EIA/ISO, tool length compensation - Fully programmable B-axis 0.0001° - Software for 5-axis simultaneous mode - For main and sub spindle 3-jaw quick-change power chuck Ø 315 mm Type: SMW KNCSN315 91 The machine can be inspected under power at any time.

Condition: used, Year of construction: 2011, Basic machine Stk Volt 400 EU Stk #93.07.31 Series 800 TV working areas 5020x1905 Stk # 52.19.14 8 Matic supports (Y=1825 mm) with 3 basic modules Stk # 52.19.92 for automatic vacuum suction cups Additional basic module for automatic vacuum suction cups Matic Stk # 52.19.99 4 working areas H= 50 Stk # 52.21.63 Front and rear stops H=50- 8 traverse Stk # 52.24.11 Integrated additional stops H=50 mm for 8 traverse Stk # 52.24.15 Central double rail (removable) with 6 stops Stk # 52.24.18 H=50 mm suction cup TV 145 x 30 H50 Stk # 52.18.69 Suction cup TV 145 x 55 H50 Stk # 52.18.70 Suction cup TV 145 x 145 H50 Stk # 52.18.71 8 Posi-Aids H50 Stk # 52.21.66 Group 800 - Electrospindle Prisma K 11 kW Stk # 52.21.80 Drilling head F50L2 (38V-80X-40Y-L0/90°) Stk # 52.22.51 PBTC-On Pos.3 Electrospindle PB+Rapid 6 Stk # 52.21.96 Tool magazine Rapid 12 on board (X,Y-traveling) Stk # 52.22.90 Stk # 52.22.92 Vacuum pump with 250 (300) M3/H50(60) HZ Item # 52.21.97 Storage Location: Supplier Isdexy Tmnopfx Adnsa

Condition: excellent (used), Year of construction: 2003, operating hours: 48,302 h, functionality: fully functional, Manufacturer: Deckel Maho Model: DMU 70 eVolution Year of manufacture: 2003 Serial number: 1XXXX (on request) Operating hours (as of 08/2025): Power-on hours: 100,115 h Cycle/Production hours: 48,302 h Delivery time: End of January 2026 Equipment / Accessories Control: Heidenhain MillPlus (V530 / 00m) Touch probe: Renishaw MP10 (infrared) Motor spindle: SK40, 18,000 rpm, duty mode 4 Quick Set software (kinematic measurement) Blum laser system for tool measurement and breakage control Tool magazine: 92 positions Tebaron extraction system Internal coolant supply through spindle center, 80 bar Chip conveyor Photos & videos of the machine available via MONTRASIO WhatsApp Business Maintenance and repairs (periodical overview): Annual maintenance by Maschinen- und Industrieservice Ulrich Various repairs of individual components during the entire period due to wear 2022: Overhaul of motor spindle, replacement of guideways on Y and Z axes (€50,000+ investment) 2024: New monitor installed Ijdpjxy Nryefx Adnea Known defects: Only age-related signs of use Reason for sale: Acquisition of a new machining center Photos & videos of the machine available via MONTRASIO WhatsApp Business

Condition: used, Year of construction: 2007, CNC Turning-Milling Center CTX 410 - Year 2007 Heidenhain Plus IT control Isdpjxy Nqcofx Adnsa - 3-jaw chuck - Driven tool stations - Tailstock - Chip conveyor - Coolant tank

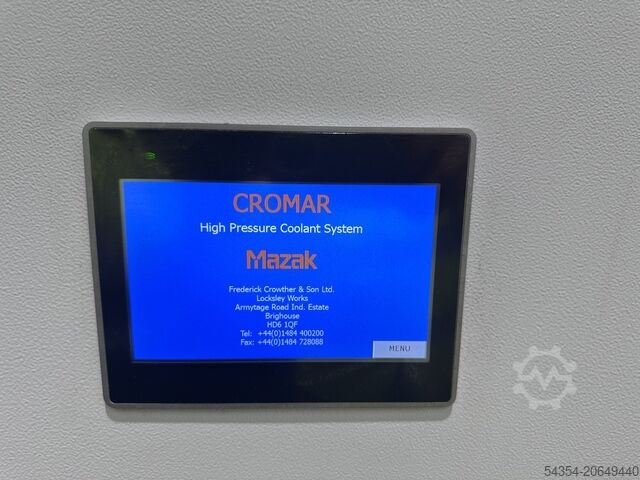

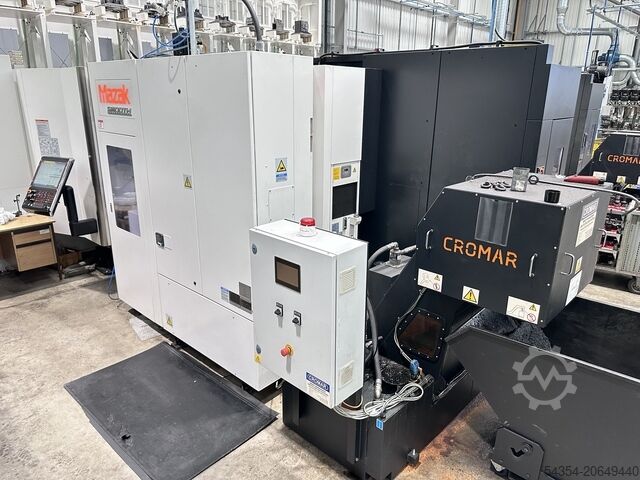

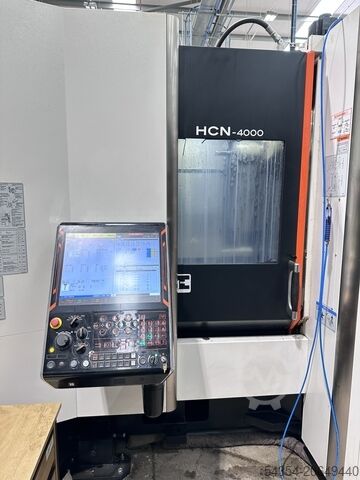

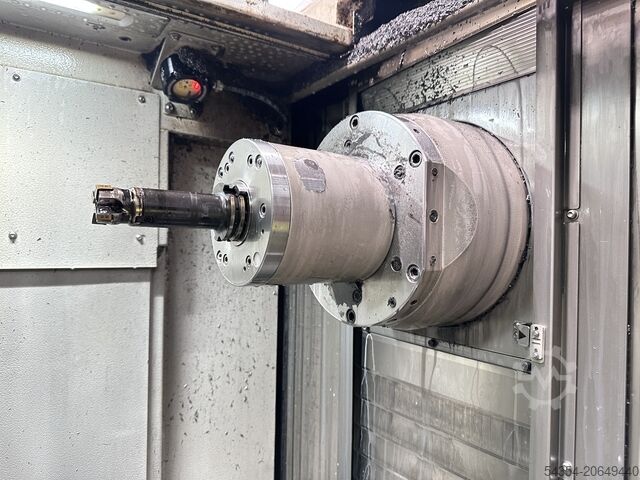

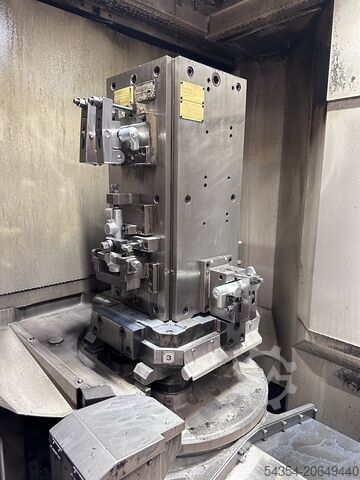

Condition: used, Year of construction: 2017, Mazak HCN - 4000 Machining Centre with Mazatrol Smooth G Control, 120 Station ATC, CAT40 Tooling, Travel X = 560mm, Y = 640mm, Z = 640mm, Max rpm = 18,000min, Swarf Conveyor, Absolent Filtermist. S/No. 283597 (09/2017) Iedpfx Adjx Agtasnoa Location: These lots are located in Leamington Spa, UK. Unfortunately, there are no loading facilities on-site, dismantling and loading will be at the cost of the purchaser. All/Any tooling is being offered as specifically described.

Condition: good (used), Year of construction: 1990, CNC Machining Center Manufacturer: MORI SEIKI Model: Partner M300 A-1 Year of manufacture: 1990 Control: FANUC O-M Travel paths X/Y/Z: 400 x 300 x 495 mm Distance between spindle center and pallet table (Y-axis): 25 – 325 mm Distance between spindle nose and pallet table (Z-axis): 125 – 620 mm Rapid traverse: 24 m/min Feed rate up to 5 m/min Spindle: Ball screw spindle: 36 mm diameter Feed drives: FANUC AC, X/Y-axis model 5, Z-axis model 10 Main spindle speed: 100 – 6,000 rpm Main spindle motor: AC 5.5 kW Main spindle taper: BT 40 Pallet: Pallet size: 315 x 315 mm Pallet indexing angle: 7.5 degrees Indexing accuracy: +/- 2 seconds Repeatability: +/- 1 second Pallet clamping force: 3,400 kg Max. workpiece weight: 150 kg Automatic tool changer: Number of tools: 30 Tool change time: 2.5 sec Collet clamp time: 7 sec Max. tool diameter: 110 mm Max. tool length: 250 mm Max. tool weight: 8 kg Ijdpfx Ajt Rg E Ssdnja Special accessories: End-of-work indicator with signal light Magazine for 30 tools Operating hours display Tool life monitoring Coolant system Work area lighting Weight: approx. 4,500 kg Space requirement: 1,900 x 2,300 mm

Condition: used, Year of construction: 2016, Working area: X=3300 mm Y=1280 mm Z=150 mm Pass-through height. Operator terminal: 24" LED color display. Handheld terminal for controlling axis speeds. Software: "Woodflash". Vacuum pump 90 m³/h, 50 Hz or 108 m³/h, 60 Hz. Milling spindle 12 kW HSK F63 (12,000 rpm). 12-position linear tool changer on the left side of the machine frame + pickup position. Drilling head DH 16 4H 2S: Vertically 12 spindles, horizontally 4 spindles, 2 grooving saws. Storage location: Supplier. Iodpfx Adoxy Tlwensa

Condition: used, Year of construction: 2005, CNC Turn-Mill Center CTX 410 - Year 2005 Heidenhain Plus IT control - 3-jaw chuck - Driven tool positions Iedpfx Aexlthvodnoa - Tailstock - Chip conveyor - Coolant tank

Condition: good (used), Year of construction: 2003, Machining centre Manufacturer: Matsuura Iedpfx Adoltlx Nsnea Type: H Plus 405 PC6 Year of manufacture: 2003 CNC control: Fanuc G-Tech 16i Travel X/Y/Z: 600 x 600 x 600 mm Table size: 500 x 500 mm 6-position pallet changer Tool magazine: 120 positions 4th axis Knoll high-pressure system Internal cooling 70 bar 251125ä

Condition: used, Year of construction: 2011, · Working area: 2,550 x 1,067 mm · X-Y travel: 2,980 x 1,450 mm · Z-axis travel length: 150 mm · Clearance height: 120 mm Drilling Unit F14: · Drilling head with 8 + 6 spindles · 5 individually selectable vertical spindles in X · 3 individually selectable vertical spindles in Y · 4 horizontal spindles in X (2+2) · 2 horizontal spindles in Y (1+1) · Speed: 4,000 rpm (6,000 rpm available as an option) · Power: 2.2 kW · Grid: 32 mm · Drill holder: M10 with 11 mm positive fit · Pneumatic feed stroke: 60 mm Grooving saw unit in "X": · Integrated in the drilling head · Grooving saw blade with a maximum diameter of 120 mm Main milling unit: · Tool interface HSK 63F · Speed: 1,500 – 24,000 rpm, infinitely variable via inverter · Motor power: 6.6 kW (9 HP) from 12,000 rpm (S1) · Motor power: 7.5 kW (10 HP) from 12,000 rpm (S6) · Right-/left-hand rotation · Ceramic bearings · Prepared for use with angle drives Tool changer TR10: Automatic lateral tool changer for 10 tools. · Number of tool positions: 10 · Maximum tool diameter: 120 mm · Maximum weight per tool: 4.5 kg · Maximum total tool weight: 28 kg A central extraction port collects all processing units into a single connection with D=200 mm. This reduces the required extraction capacity to approx. 3,200 m³/h. TVF worktable: The worktable is designed to provide the operator with maximum "freedom of movement." The vacuum quick-clamping system offers maximum flexibility for precise positioning and optimal holding of workpieces. · 4 TVF supports, L=1100 mm, infinitely adjustable in X · 12 TVF vacuum cups 120 x 120 mm, infinitely adjustable in Y · 2 stops in X (1 left / 1 right) · 1 stop in Y per support (total 4 pcs.) · Retractable reference stops controlled via CNC Automatic central lubrication: The correct amount of lubricating grease is distributed via an electronic CNC control unit (X, Y, Z axes) Vacuum system (base machine): · Vacuum pump: 90 m³/h · Power: 2.2 kW · Max. negative pressure (at pump): 0.9 bar PROGRAMMING SYSTEM XILOG PLUS Software features: - Import of DXF files - Import of ASCII files Ijdpjxy Ndijfx Adnsa - User interface in operator’s native language Safety devices with bumpers Machine technical data: · Total connected load max.: 18 kW · Recommended fuse: 64 A · Power supply: 400 V 50-60 Hz · Compressed air: 6-7 bar · System pressure (recommended): 8 bar · Compressed air consumption: 200 Nl/min · Central extraction port Ø: 200 mm · Extraction speed: 30 m/sec · Air consumption (central extraction): 3,200 m³/h · Negative pressure: 3,000 Pascal · Weight: approx. 2,500 kg Remote control of machine functions 6 TVF supports L=1,100 mm and 18 vacuum cups 120x120 mm Cross lasers for vacuum cup positioning Two cross lasers mounted on the unit carrier allow for easy positioning of the vacuum cups. Location: Nattheim
