Used Drilling Center for sale (18,485)

Condition: ready for operation (used), Year of construction: 2011, We are offering this ready-to-use CMA TRD38CN, manufactured in 2011. It is no longer needed due to the purchase of a tube laser. The machine is immediately ready for use, including clamping and workholding tools. (It had a maintenance service this year at Tuwi). Manufacturer: CMA Type: TRD38CN Year of manufacture: 2011 Cjdpfx Ajz Di Erefgehc Condition: ready for use If you have any questions or would like more information, please feel free to send us a message or call us.

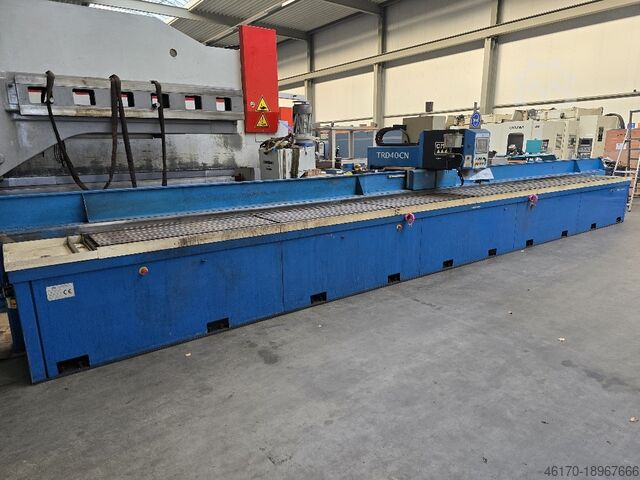

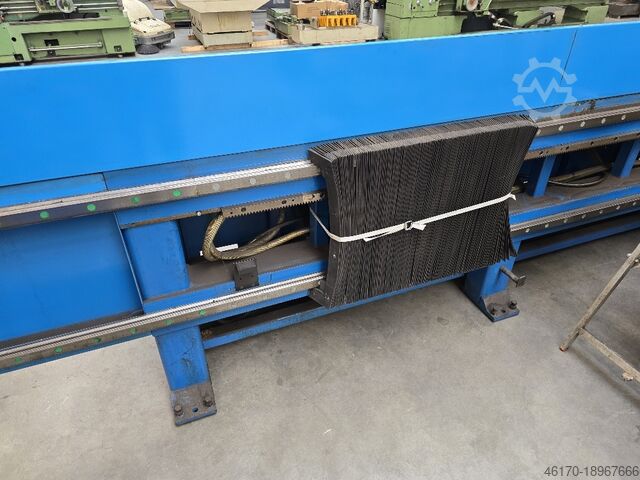

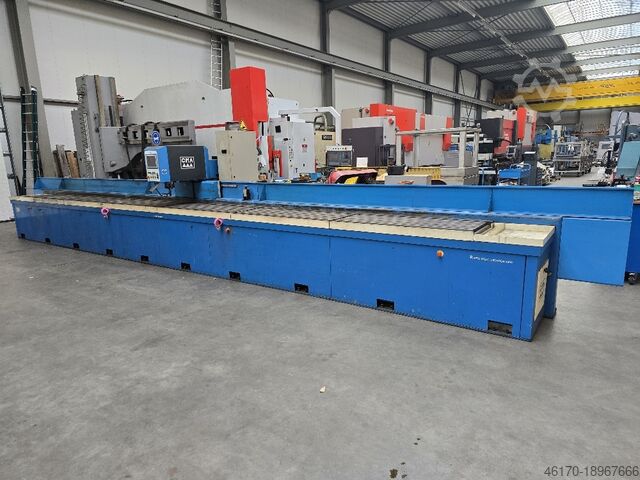

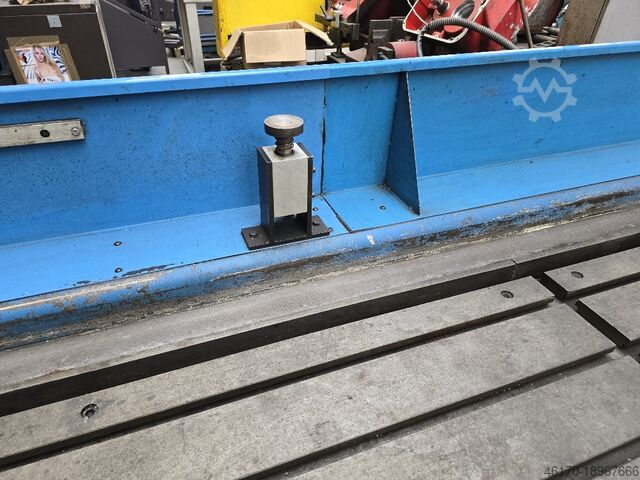

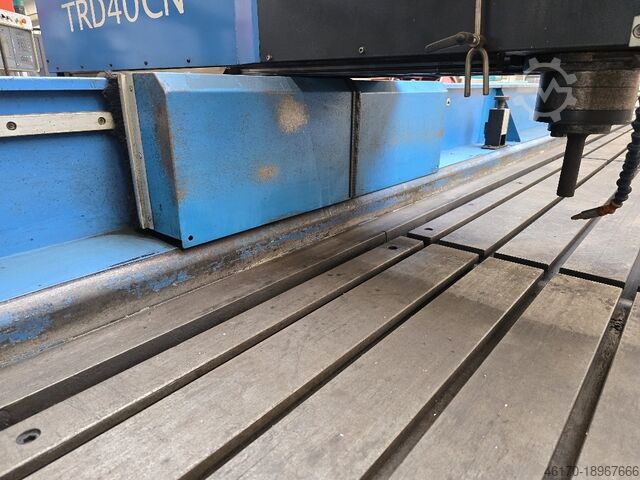

Condition: good (used), Year of construction: 2010, Used 6-meter CNC drilling machine by CMA Type: TRD 40 CNR 6000 Table length: 6000 mm Table width: 600 mm Max. drilling diameter: 40 mm Flow drill option Cjdpfx Afezz N T Tsgjhc Cooling system Year of manufacture: 2010

Condition: used, WFL M 35 G MILLTURN is a CNC Turning‑Milling‑Drilling Center delivering high precision, accuracy and reliability. Capacities: distance between centres 2000 mm, max turning Ø 520 mm, spindle bore 77 mm; travels Z1 1500 mm/X1 550 mm, Z2 1355 mm/X2 230 mm, Y 250(-100/+150), B 220°. Specs: main/back spindles up to 4000 rpm, 29/33 kW (551/630 Nm), driven tools 6/13 kW, milling spindle 9000 rpm 15/20 kW (165 Nm); rapid traverses Z 40 m/min X 30/10 m/min; weight ~20000 kg; size 7900×5700×3250 mm. Accessories: lamp, coolant system, paper filtration, oil mist extractor, chip conveyor, automatic load/unload, Renishaw measurement. Enables tight tolerances; suited for automotive, aerospace, medical, watchmaking and machine‑tool sectors. Chedpfx Afoz Dv Dbogjc

Condition: excellent (used), CNC-Gantry Flexible Automatic through-feed Boring Machine with Dowels inserting system Movable panel (horizontal position of workpiece/panel), movable working head Numerical Control Power Control, Software WoodWOP Overall integral safety cabin (enclosure) of the machine Panels (workpieces) feeding by motorized belts 3 Feeding speed (m/min) 1 - 90 (ca.) Minimum workpieces dimensions (X - Y - Z) mm 250 x 100 x 12 Maximum workpieces dimensions (X - Y - Z) mm 3000 x 1400 x 60 Maximum stroke of the axis (X - Y - Z) mm 3580 x 1838 x 125 Two panels simultaneously processables (in Y axe) mm 600 + mm 600 Total installed power (Kw) 38 WORKING GROUPS (TOP): Drilling heads with vertical spindles (No.) 1 Chodpfx Afjd Nvi Dsgjc Independent vertical boring spindles (No.) 38 + 3 special Independent horizontal boring spindles (No.) 6 Circular Grooving Saw (on X axis) dia. (mm) 100 Vertical electro-spindle (No.) 1 x SK 30 (Vertical electro-spindle motor power (Kw 6) Automatic Tools Changing System, Tools storage plate (No. 3 folds- positions) WORKING GROUPS (HORIZONTAL) Drilling heads with horizontal spindles (No.) 2 Horizontal drilling spindles - Right side (No.) 13 + Left side (No.) 13 Inserting nozzle and glue injectors (Right side) No. 2 + (Left side) No. 2 Storage tanks for automatic feeding of the dowels (No.) 1

Condition: ready for operation (used), Year of construction: 2018, functionality: fully functional, type of input current: AC, total length: 11,850 mm, total height: 4,016 mm, input voltage: 400 V, total width: 3,250 mm, Equipment: documentation/manual, The machine can be inspected during production. A spare spindle worth €10,000.00 and a computer with software worth €3,000.00 will be supplied. Cjdpfx Afezvattjgshc

Condition: used, Year of construction: 2015, functionality: fully functional, table length: 6,000 mm, positioning speed: 30 m/min, table width: 2,540 mm, working height: 1,092 mm, workpiece weight (max.): 5,000 kg, overall weight: 24,000 kg, sheet thickness steel (max.): 100 mm, cutting length (max.): 6,000 mm, cutting width (max.): 2,540 mm, drill diameter: 40 mm, FICEP TIPO B254 - CNC PUNCHING, DRILLING & THERMAL CUTTING CENTER | YEAR 2015 The Ficep Tipo B254 is a CNC-controlled punching, drilling and thermal cutting center for the complete processing of steel plates and flat products in a single pass. Punching, drilling, countersinking, tapping, marking and thermal cutting via plasma and oxy-fuel are carried out on one machine without intermediate handling. CONDITION Cedpfx Ajxn T H Djfgehc Used - technically sound. The machine is currently in productive operation and CAN BE INSPECTED UNDER POWER (by appointment). Handover as preferred: directly from ongoing production (cleaned and serviced) or - at additional cost - reconditioned by ASM. Details on the technical condition are disclosed individually upon serious interest. FUNCTION & APPLICATION The system combines three processing units in one CNC-controlled line: hydraulic punching unit (1000 kN), drilling head (20.1 kW) and thermal cutting unit with plasma torch (Hypertherm HPR 260) plus oxy-fuel torch. All processes run via the Mitrol CNC as automated machining cycles; the machine processes steel plates up to 2540 x 6000 mm. Typical applications: structural steel fabrication, structural engineering and prefabrication of gusset plates, end plates and connection plates. TECHNICAL DATA - Machine type: Automatic CNC punching and thermal cutting system for plates - Year: 2015 | Serial number: 34201 | Machine weight: 24,000 kg - Working height: approx. 1,090 mm | Max. positioning weight (plate): 5,000 kg - Max. plate size: 2540 x 6000 mm | Min. plate width: 508 mm - Punching force: 1000 kN | Stripping force: 100 kN | Punching tools: 8 - Max. punch diameter: 32 mm | Max. punching thickness: 20 mm - Drilling heads: 1 | Drilling tools per head: 8 - Max. drilling diameter: 40 mm | Max. drilling thickness: 100 mm - Spindle power: 20.1 kW | Max. spindle speed: 4000 rpm - Plasma torches: 1 | Oxy-fuel torches: 1 | Plasma source: Hypertherm HPR 260 - Max. plasma cutting thickness: 35 mm (pierce start) / 60 mm (edge start) - Max. longitudinal feed speed: 30 m/min - CNC control: Mitrol CNC (master/slave), online remote diagnostics - Processes: punching, drilling, countersinking, tapping, milling, marking, scribing, oxy-fuel and plasma cutting Min. plate length, max. overall material thickness and cross positioning speed are confirmed during inspection. SCOPE OF DELIVERY - 1 x Ficep Tipo B254 plate processing center (year 2015) - 1 x Hydraulic punching unit 1000 kN with 8-position tool changer - 1 x Drilling unit 20.1 kW with 8-position tool changer - 1 x Plasma cutting torch | 1 x Oxy-fuel cutting torch - 1 x Hypertherm HPR 260 plasma cutting system - 1 x Marking unit (configuration to be confirmed during inspection) - 1 x Chip conveyor - 1 x Donaldson Torit dust extraction system | 1 x Punching tool set LOGISTICS & LOCATION Location: Ulft (Netherlands), directly at the German border. Dismantling, transport, installation and commissioning by ASM by arrangement - individually calculated upon request. ABOUT ASM Arendsen Steel Machinery (ASM) specializes in Ficep structural steel machines. Further Ficep machines on request. CONTACT / INQUIRY Arrange a viewing under power | Price on request | Request a callback. Sale exclusively to commercial customers (B2B).

Condition: used, functionality: fully functional, machine/vehicle number: 106341-11, Year of construction: 2005, overall weight: 8,000 kg, total height: 2,700 mm, total length: 5,660 mm, total width: 3,956 mm, The drilling method of the deep hole drilling machine is single-lip drill deep hole drilling. Drilling Unit Information: - Number of spindles: 1 - Infinitely variable spindle speed: 300 – 8000 rpm - Spindle drive power: 7.5 kW - Max. drilling depth: 800 mm - Drilling diameter min/max: 3 – 25 mm based on ST 60 - Max. twist drilling: 25 mm - Max. thread tapping: M24x3 - Milling material removal rate: 150 cm³/min Travel Paths: - X-axis travel: 800 mm - Y-axis travel: 400 mm - Z-axis travel: 630 mm - W-axis travel: 800 mm Travel Speed: - X-axis speed: 15,000 mm/min - Y-axis speed: 15,000 mm/min - Z-axis speed: 15,000 mm/min - W-axis speed: 15,000 mm/min Csdpfx Asw E H E Rjfgjhc Fluid Information: - Coolant supply: deep hole drilling oil - Tank capacity: 800 liters - 1x scraper belt chip conveyor - 1x hydraulic unit and pneumatic system/equipment - 1x submersible pump: Pumping capacity: 200 l/min - 1x low pressure pump: Pumping capacity: 100 l/min Pump drive: 1.7 kW - 1x compact belt filter: Filtration capacity: 120 l/min for processing steel/non-ferrous metals - 1x radial piston pump with remote adjustment: Pumping capacity: 2 – 94 l/min Pump drive: 7.5 kW Spindle Unit: - Cartridge spindle design with drive housing and spindle drive with gearbox. Spindle bearing with precision angular contact ball bearings and lifetime grease lubrication. Milling and Drilling Spindle Unit: - For conventional machining - Spindle head with HSK 50 tool holder Drill Bush Holder: - Design as 2-position turret with electric swivel mechanism - Locating position via Hirth coupling - Turret head with fixtures for: Guide bushes for deep hole drilling Milling and drilling spindle unit for conventional machining Pickup Tool Changer: - For conventional tools and drill bushings - Disc magazine design with 20 stations including feed stroke Automatic Tool Changer for Deep Hole Drilling Tools: - Fixed ELB column magazine for at least 5 tools including automatic tool clamping for HSK holders Clamping Table with W-Axis and NC Rotary Table: - Length/width: 800 x 600 mm - Positioning accuracy: B-axis +/- 30" - Centric payload: 1,500 daN Workpiece Clamping Device: - 1x tailstock with manual clamping movement - 1x NC dividing unit (A-axis) with manually operated two-jaw chuck for workpiece clamping - 1x base plate for mounting and clamping drill bushings + supporting prisms Electrical Equipment Information: - 1x CNC control Sinumerik 840D (digital complete system), including PLC S7-300 Connection Data: - Operating voltage: 3AC 400V ±10% – Frequency: 50 Hz - Control voltage: 24 V DC - Total connected load: 25 kW

Condition: ready for operation (used), Year of construction: 2016, machine/vehicle number: 351.10.001.16, functionality: fully functional, workpiece length (max.): 3,000 mm, workpiece width (max.): 920 mm, workpiece height (max.): 50 mm, drilling depth: 55 mm, TECHNICAL DETAILS Maximum horizontal drilling depth: 30 mm Maximum vertical drilling depth: 55 mm Cedpfszcdkwsx Afgehc Horizontal spindles: 6 Vertical spindles: 9 Spacing between horizontal spindles: 32 mm Spacing between vertical spindles: 32 mm Maximum diameter of horizontal spindles: 15 mm Maximum diameter of vertical spindles: 8 x 15 mm, 1 x 35 mm Workpiece dimensions, X-axis: 280 - 3,000 mm Workpiece dimensions, Y-axis: 180 - 920 mm Workpiece dimensions, Z-axis: 10 - 50 mm Speed, X-axis: 25 m/min Speed, Y-axis: 25 m/min Speed, Z-axis: 15 m/min Motor power, drilling head: 1.5 kW Speed, drilling head: 3,600 rpm Speed, circular saw unit: 9,000 rpm Speed, milling spindle: 24,000 rpm Diameter of circular saw blade: max. 100 mm MACHINE DETAILS Operating/ambient temperature: 15–40 °C Humidity: max. 90 % at 20 °C Operating pressure: 6–8 bar Nominal compressed air consumption: 60 l/min Air consumption: 1,650 m³/h Diameter of compressed air supply: 5/8" Inner diameter: 16 mm Dimensions & Weight Dimensions (L x W x H): 2,100 x 1,605 x 1,950 mm Weight: 850 kg Operating hours (estimated): approx. 800 h EQUIPMENT Additional support roller tables

Condition: new, Year of construction: 2026, functionality: fully functional, Nanxing ND712D is a state-of-the-art 6-sided CNC drilling machine, equipped with two independent workstations, allowing for simultaneous processing of two panels and doubling productivity. This machine is designed for furniture manufacturers seeking speed, precision, and reliability within a compact footprint. Key Features - 2 independent workstations (1200 + 650 mm), each with a dedicated computer and processing units. - Optimized drilling blocks: up to 19 vertical drills + horizontal drills on the X and Y axes. - 4 main spindles (2 upper, 2 lower) with power up to 5.5 kW and 18,000 rpm. - Air-cushion tables for scratch-free panel handling. - Automatic dimension detector with alarm and panel compensation feature. - Servo-driven clamps and automatic side alignment system for maximum accuracy. - Advanced software + SYNTEC CNC control with user-friendly interface, supporting MPR, DXF, BPP, PDX, and XML file formats. - Barcode scanner for integration into automated production workflows. - Enhanced safety: side sensors, emergency stop, cable protection. Technical Specifications - Panel dimensions: Length 200–3000 mm / Width 30–650 mm / Thickness 10–60 mm - Max. traverse speed: X/U – 135 m/min, Y – 75 m/min, Z – 30 m/min - Total installed power: 43.8 kW - Weight: 6,300 kg - Machine dimensions: 6,620 × 4,620 × 2,378 mm - Power supply: 380V / 50Hz / 3 phase Application Areas - Medium and large-scale furniture manufacturing - Panel processing for kitchen cabinets, wardrobes, bathroom and office furniture - Complete 6-sided drilling + light milling in a single setup Csdpfx Ajxcwmqofgehc User Benefits - High productivity: processes two panels simultaneously - Error reduction: automatic dimension detection and precise positioning - Smart line integration: barcode scanner, compatible with ERP/CAD-CAM software - Optimal cost / maximum efficiency: one machine equals two drilling solutions

Condition: as good as new (ex-display), BORING AND MILLING MACHINE BFZ 3000 for the cost-effective production of profiles and long parts made of steel, stainless steel and aluminum Demonstration machine, year of manufacture 2018 Control system: Siemens SINUMERIK 808 D Advanced max. working area x-axis 3,000 mm max. working area y-axis 260 mm max. working area z-axis 300 mm Tool holder: BT 30 Spindle speed: 4,000 rpm at i=2 (various gear ratios possible) Spindle drive power: 7.5 kW Spindle torque: 48 Nm at 40% duty cycle Rapid traverse: 40,000 mm/min Drilling capacity in S355: 26 mm Threading capacity in S355: M16 Milling capacity in S355, 40% duty cycle: 200 cm³/min Repeatability: +/- 0.05 Workpiece support height: 850 mm Space requirement L x W x H: 6,000 x 1,600 x 2,400 mm Total weight: approx. 3,500 kg Tool changer: 11-position max. tool diameter: 80 mm max. tool length: 160 mm max. tool weight: 4 kg Connections: max. electrical power: 12 kW Slow-blow fuse: 32 A Compressed air: 6 bar Minimum quantity lubrication, 3 pcs. mechanical-hydraulic vises Cjdpfx Afezlyr Iegohc Inspection possible by appointment.

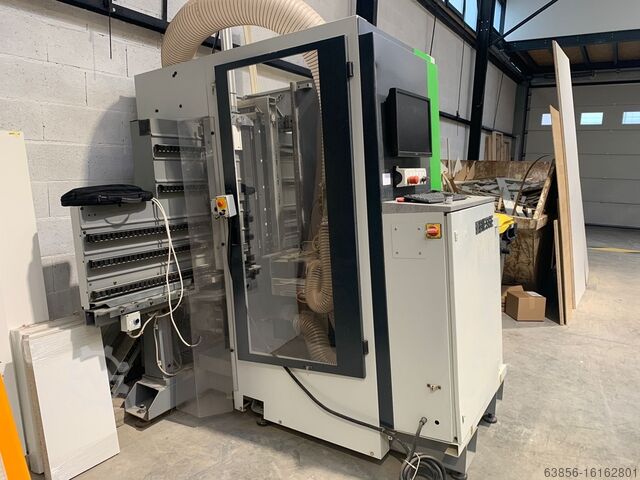

Condition: used, Year of construction: 2016, Vertical CNC drilling and machining center Manufacturer: Weeke Type: Optimat BHX Year of manufacture: 2016 Technical data - Working area X: max. 3,050 mm - Working area Y: 70,850 mm - Workpiece thickness Z: 12,60 mm - Workpiece weight: max. approx. 35 kg - Number of axes: 3 - Milling spindle: 5 kW - Milling spindle speed: max. 18,000 rpm - Tool holder: HSK-F63 or ETP 25, depending on the version - Tool change: automatic tool magazine - Tool positions: 4 - Vertical drilling spindles: 13 - Horizontal drilling spindles X: 4 - Horizontal drilling spindles Y: 2 - Drilling unit: V13 High Speed - Drilling unit power: 2.3 kW - Drilling speed: 1,500 - 7,500 rpm - Max. drilling depth: approx. 38 mm - Drilling diameter: max. approx. 35 mm - Spindle spacing: 32 mm - Dado saw: in X-direction Cjdpfx Aozy N E Hofgjhc - Dado saw blade: approx. 100 mm - Workpiece transport: throughfeed system / transport chain - Workpiece clamping: collet gripper, vacuum-free clamping system - Control system: HOMAG powerControl / powerTouch - Software: HOMAG woodWOP - Total connected load: approx. 11.5 kW - Dust extraction connection: approx. 160 mm - Dust extraction air requirement: approx. 2170 m³/h - Weight: approx. 1500 kg - CE Note: The technical data and descriptions are copies of the original order confirmation. The information is provided for informational purposes only and is not binding.

Condition: new, Year of construction: 2026, functionality: fully functional, ### High-Flexibility Processing for Custom Furniture Production The NANXING ND612DCT is an upgraded industrial CNC center engineered for high-precision six-sided drilling and multi-directional routing. This model is specifically designed to provide maximum flexibility for "Batch Size One" production, allowing manufacturers to handle individual custom orders with the same efficiency as mass production. ### Key Advantages & Technologies Versatile 6-Sided Processing: Capable of full six-sided drilling, front/back and side grooving, plus front/side routing in a single seamless cycle. Specialized Hardware Support: Pre-configured to process complex joinery and fittings, including Lamello joints, LogiClip connectors, wiring channels, and sky/floor door hinge mortises. Advanced C-Axis & ATC System: Features a 5.5 kW top ATC8 spindle paired with a 5.5 kW C-axis. This configuration includes a 2-slot interchangeable cross-head for 360° rotation and multi-directional side routing. Co-Linear Drilling Efficiency: The top and bottom drilling blocks are aligned co-linearly, significantly increasing processing speeds for through-holes. Industrial-Grade Build: The monolithic frame is stress-relief tempered and processed using precision Japanese SNK equipment to ensure lifetime structural integrity. ### Technical Specifications Panel Dimensions Length: 200 – 2,800 mm; Width: 50 – 1,220 mm; Thickness: 10 – 60 mm | | Max Travel Speed | X/U Axes: 135 m/min; Y Axis: 75 m/min; Z Axis: 30 m/min | | Drilling Configuration | Top: 19 vertical, 32 X-horizontal, 22 Y-horizontal; Bottom: 9 vertical | | Main Spindles | Top: 5.5 kW ATC8 + 5.5 kW C-axis; Bottom: 3.5 kW ER25 Cjdeygtidjpfx Afgshc | | Control System | SYNTEC CNC on Windows 10 platform | | Total Power / Weight | 29.2 kW / 4,900 kg | ### Standard Features & Smart Functionalities Intelligent Detection System: Equipped with high-precision sensors for automatic detection of panel length, width, and thickness to eliminate operator errors. Surface Protection: Features an automatic feeding and outfeed system with a brush device and conveyor belt to protect delicate or finished surfaces. Smart Tool Management: The user-friendly interface allows for easy tool setup and includes a life-cycle tracking function that alerts operators when tools need replacement. Open-Port Compatibility: Supports all major industry software formats, including MPR, DXF, BAN, BPP, PDX, XML, and XXL. Comprehensive Inclusions: The standard package comes with an overhead barcode scanner, mobile control console, and an air-conditioned electrical cabinet for consistent performance in any environment. ### About the Manufacturer NANXING Machinery (est. 1996) is a world-class leader in intelligent woodworking machinery. With professional assembly lines and rigorous quality control certified by CE specialists, Nanxing equipment delivers standardized performance and extreme durability for modern furniture factories.

Condition: excellent (used), Year of construction: 2013, functionality: fully functional, Year of manufacture: 2013 Milling head Working area X: 3000 Working area Y: 900 Working area Z: 50 Separate units: 1 Vertical drill: 12 Horizontal drill X: 4 Horizontal drill Y: 2 Grooving saw: Yes Stationary machine: Yes Clamping system: Clamps Safety feature: Photoelectric cell Chodpfxezxyfzj Afgsc Controls and software SCM XILOG Minimum dimensions: 3920x1170x2150

Condition: reconditioned (used), Year of construction: 2002, functionality: fully functional, travel distance X-axis: 2,900 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 700 mm, CNC Drilling and Milling Center Donau DANUSYS 2910, Year of manufacture 2002, overhauled Technical Data: Control: Heidenhain iTNC 530 Travel distances (X, Y, Z axis): 2900 / 1000 / 700 mm Milling capacity in St 60: 300 cm³/min Drilling in solid St 60: ø 40 mm Tapping: M30 Feed rate (X, Y, Z axis): 7 / 7 / 7 m/min Spindle: HSK 63, 15,000 rpm Chsdpszlx Axofx Afgjc Coolant: internal (IKZ) and external (AKZ) Tool changer with 32 positions, divided into 2 x 16 slots Overhauled components: - Spindle fully overhauled and rewound by the manufacturer - Spindle controller repaired - Overhaul of Heidenhain power supply unit - Main computer (MC422) and control unit (CC422) checked (Heidenhain) - Carriage and guide rail of the Y-axis replaced Additional accessories: Handwheel HR 410 Chip conveyor with integrated coolant tank Documentation (operating manual, various manuals for installed components, circuit diagram, etc.) Sale ex stock; Subject to prior sale

Condition: used, Year of construction: 2012, power: 20 kW (27.19 HP), working width: 1,300 mm, number of spindles: 82, plate height: 90 mm, working length: 3,000 mm, The pick-up deadlines specified in the General Terms and Conditions apply. The absolute latest pick-up date is August 31, 2026! TECHNICAL DETAILS Working area, X-axis: 3,000 mm Working area, Y-axis: 1,300 mm Maximum panel thickness: 90 mm Total number of drilling spindles: 82 Drilling units, Unit 1 (top) Spindles for vertical drilling: 31 Spindles for horizontal drilling in the X direction: 8 Spindles for horizontal drilling in the Y direction: 2 Drilling units, Unit 2 (bottom) Spindles for vertical drilling: 31 Spindles for horizontal drilling in the X direction: 8 Spindles for horizontal drilling in the Y direction: 2 Milling spindles Number of milling spindles: 2 Milling spindles, Unit 1 (top) Number of controlled axes: 3 Motor power: 4.5 kW Milling spindles, Unit 2 (bottom) Number of controlled axes: 3 Motor power: 4.5 kW Grooving units Number of grooving units: 2 Grooving units, Unit 1 (top) Unit: Fixed for creating channels in the X direction Max. tool diameter: 160 mm Motor power: 3.5 kW Grooving units, Unit 2 (bottom) Unit: Fixed for creating channels in the X direction Max. tool diameter: 160 mm Chedpozf Ibdjfx Afgsc Motor power: 3.5 kW MACHINE DETAILS Total installed power: 20 kW Machine programming software: BIESSEWORKS EQUIPMENT Automatic panel stacking system with motorized transfer Barcode scanner (manufacturer: SICK) CE marking Protective grating Safety mats The machine is sold and delivered in its actual and legal condition (“as is, where is”) based on photographic documentation and technical/commercial documents with a descriptive nature. The buyer has the right to inspect the goods before pick-up and assumes responsibility for the installation, securing, and use of the machine at the destination. External reference: 8565

Condition: excellent (used), MAZAK INTEGREX 400-3S is a CNC Turning-Milling-Drilling Center designed for precision, high accuracy and reliability. Capacities: distance between centres 1500 mm, swing 760 mm, max turning length 1524 mm, bar passage 102/77 mm, tool magazine 40 stations (Ø max 90 mm, L 400 mm). Main specs: main spindle A2-8 stepless 35–3300 t/min 30 kW 1200 Nm; back spindle A2-8 35–4000 t/min 26/22 kW 500 Nm; milling spindle CAPTO C6 15–12000 t/min 18.5 kW 120 Nm. Travels X630 Y±115 Z1585 mm; feeds 0–8000 mm/min; rapid X/Z 38 m/min Y26 m/min; weight ~13300 kg; footprint 5110x2196 mm; height 2798 mm. Equipment: coolant 444 l (15 bar through milling spindle), Forkhardt 3-jaw chucks Ø400/315 mm, linear scale for X, RS232, PCMCIA, spindle sync, chip conveyor, synchronized tapping, foot pedal. Enables tight tolerances; typical applications: automotive, aerospace, medical, machine tools, watchmaking. Cjdpfjyxn H Nsx Afgohc

Condition: excellent (used), INDEX ABC 65 is an INDEX CNC Turning‑Milling‑Drilling Center designed for high precision, accuracy and reliability. Capacity: 2 turning spindles, 2 turrets; spindle bore 65 mm; spindle diameters 140/110 mm; travels Z300 X140 Y100 mm; turret positions 10/9 (back 8). Specs: main spindle stepless 0–6000 rpm, 25/35 kW, torque 80/120 Nm; back spindle 6000 rpm, 5/9 kW; driven tools 7.5/9 kW; tool shank 45 mm; indexing 0.4 s; rapids X30/Z50 m/min; power supply 3x400 V 50 Hz; installed power 41 kW; weight ~6500 kg; dims 3600×1280×1950 mm. Accessories: 300 l coolant, 80 bar high‑pressure, paper filter, lamp, collet device, USB, parts conveyor, chip conveyor, toolholder set. Achieves tight tolerances; ideal for automotive, watchmaking, aerospace, medical and toolmaking. Csdpfxey S Dfus Afgjhc

Condition: used, NZX 1500/800SY is a CNC Turning-Milling-Drilling Center with high precision, accuracy and reliability. Capacities: 2 turning spindles, 2 revolvers, swing diameter over bed 800 mm, max. turning Ø 320 mm, max. bar Ø 52 mm; travels Z 810 mm, X 210 mm, Y 110 mm (both carriages). Specs: spindle speeds 0–6000 t/min, spindle power 22/18.5 kW, driven tools power 7.5/5.5 kW, spindle nose JIS A2-5, spindle hole 61 mm; rapid traverse X 30 m/min, Z 50 m/min, Y 20 m/min; weight ~8100 kg; overall dims L4396×W2835×H2320 mm. Accessories: direct measuring system X axis, lamp, coolant system, coolant through counter spindle, loader interface, parts catcher, workpiece conveyor, chip conveyor. Delivers tight tolerances; typical applications: automotive, aerospace, medical, watchmaking and machine tools. Chedpfxeyxn I Hs Afgoc

Condition: used, Year of construction: 2006, functionality: fully functional, TECHNICAL DETAILS Components ADVANTAGE C transverse loader: automatic ROTATING DEVICE (flipper): available BIESSE FTT: with 4 heads, drilling and milling, automatic tool change BIESSE FHT: 2 WORKING UNITS horizontal drilling and dowel insertion WANDRES: brush cleaning from top ADVANTAGE SC transverse unloader: automatic Plate dimensions Plate length: 240 - 3,200 mm Single panel width: 140 - 1,550 mm Plate width: 140 - 800 mm Plate thickness: 12 - 60 mm Drilling units Drill heads FTT 800: 2 machining centres with 4 boring units - 5 working tables Vertical spindles (X-direction): 14 independent per head Vertical spindles (Y-direction): 18 independent per head Horizontal spindles (X-direction): 3 independent, with double output Horizontal spindles (Y-direction): 3 independent, with double output Tool change system Revolver cartridges: 2 Positions per cassette: 56 Application: Automatic tool change of the vertical spindle centers on 4 drilling units of the two machining centers A and B. Chsdpfxjy Ui Rnj Afgjc Milling spindles Electro spindle 1: 3.7 kW (5 HP), ISO 30, with inverter and 3-way tool change rack Electro spindle 2: 3.7 kW (5 HP), ISO 30, with inverter and 3-way tool change rack Lateral positioning units Workstations: 2 for parallel processing of identical or mirror-inverted panels left positioning element: fixed for lateral reference Right positioning element: movable in X-direction, on lower supports, linearly guided Adjustment: automatic according to the X-dimension of the panel Drive: Brushless with digital control Function: Detection of the actual X Length in the machining center, automatic correction of the drilling positions Max. travel speed: 120 m/min Loading and unloading Infeed system: 1 belt conveyor with cross feed, single drive Unloading system: 1 belt conveyor with cross feed, single drive Additional: Cleaning fan in the unloading area Drill heads FHT (horizontal): machining centres with 2 working units (1 LH unit / 1 RH unit) - 3 working tables. HORIZONTAL BORING UNITS with 24 independent spindles to be installed onto 2 operating units HORIZONTAL INSERTING UNITS WITH 5+5 GLUE INJECTORS AND 8 mm. DIAMETER DOWEL INSERTERS TOOL-HOLDER ADAPTOR for the quick change spindles of the boring units. GLUE INJECTION AND DOWEL INSERTING UNIT for 8 mm. dia. dowels to be added to the standard ones. The unit is prearranged for the insertion of 8 mm. diameter and 25-35 mm. long dowels.* The 8 mm. diam. dowel inserting units are required. NOTE: Dowel inserting unit was never used and not tested. Not possible to be tested ADVANTAGE C 3200 TRASV. 1 POS - loading ADVANTAGE SC 3200 TRASV. 1 POS - unloading Security features Standards: CE compliant Safety equipment: Extensive protective enclosures

Condition: used, Year of construction: 2021, CNC MACHINING CENTER Morbidelli N100 KEY FEATURES "BUMPERS": THE PERFECT COMBINATION OF SAFETY AND PRODUCTIVITY "PRO-SPACE" SAFETY DEVICES: SAFE AND COMPACT "HE" TABLE - FOCUS: EFFICIENCY AND SAVINGS AXES Morbidelli N100 12 Morbidelli N100 15 Morbidelli N100 18 Morbidelli N100 22 Working area in X-Y-Z axis * mm 2486-1255-150 3686 TECHNICAL DATA -1555-150 3686-1860-150 22-31 = 30862185-150 22-43 = 42862185-150 Travel X-Y-Z axes mm 3120-1685-250 4320-1985-250 4320-2285-250 22-31 = 37702585-250 22-43 = 49702585-250 Traverse speed of X-Y axes m/min 35 WORK TABLE Type Multifunction table made of aluminum Stops for "A" working area No. 4 Vacuum pump (Opt.) m³/h 250/300 DRILLING UNIT Vertical spindles No. – RPM 7 (4X-3Y) 8000 – 12 (8X-4Y) 8000 Horizontal spindles (Opt.) No. – RPM 4 (2X-2Y) 8000 – 6 (4X-2Y) 8000 Integrated saw blade in X (Opt.) Ø mm – RPM 125 – 10000 Motor power kW (HP) 2.2 (3) ELECTROSPINDLE Motor power Std. (S6) kW (HP) 6.6 (9) – 9.5 (13) Max. speed RPM 24000 Lateral tool changer 8 positions 10 positions 11 positions 13 positions INSTALLATION Installed power kVA 23÷28.5 Compressed air requirement l/min 400 Extraction air requirement m³/h 5300 Extraction air speed m/s 30 Extraction nozzle diameter (electrospindle + drilling unit + kit) mm 250 Machine weight kg 1950 2200 2500 22-31 = 2550 22-43 = 3200 * X Distance between stops - Y Max. panel width - Z Workpiece passage only electrospindle or electrospindle + drilling unit: diameter 200 mm; Extraction air requirement 3,400 m³/h In conjunction with the strip for panel ejection, the extraction nozzle diameter is always = 250 mm GENERAL FEATURES CNC machining center for processing panel materials. Self-supporting structure and work table Box construction made of cold-rolled steel, consisting of rectangular sections welded together; multifunctional work table made of aluminum with a single working area. Holes in a grid of 120 mm for vacuum connection, easily removable via a magnetic device (patented system). The entire surface is grooved at a distance of 20 mm so that the workpieces can be clamped using rubber seals, MODULSET or suction cups. Automatically retractable reference stops that ensure accurate positioning of the workpieces to be machined. Moving gantry It is a gantry structure made of cold-rolled steel in a box construction, consisting of rectangular sections. The working units are installed on the gantry. Working unit consisting of a drilling head with vertical spindles, horizontal spindles, an integrated grooving and sawing unit and an SCM electrospindle with a quick-change tool system of type HSK63F. Travel of the gantry and aggregate carrier The movement in the X, Y and Z axis takes place on linear prismatic recirculating ball guides by means of pre-tensioned ball screws. The movement transmission of the X and Y axes (moving column and carriage) takes place via a reduction gearbox with rack and pinion drive. The movement of the aggregate carrier in the Z direction takes place via pre-tensioned ball screws. Positioning of the working units and control of the machine functions takes place via "Brushless" three-phase servo motors and digital control units. CONTROL The control unit consists of a numerical control. Codpfez Iyvpex Afgehc

Year of construction: 1989, condition: excellent (used),

Condition: used, Year of construction: 2007, functionality: fully functional, power: 20 kW (27.19 HP), input voltage: 415 V, input current: 50 A, input frequency: 50 Hz, type of input current: three-phase, workpiece length (max.): 2,500 mm, workpiece width (max.): 1,000 mm, workpiece height (max.): 80 mm, Equipment: documentation/manual, We offer this used WEEKE OPTIMAT BHX 500 throughfeed machining center, year of construction 2007. The Homag Weeke Optimat BHX 500 is a compact CNC Horizontal drilling centre designed for high-precision processing of furniture panels, cabinet parts, and joinery components. Its horizontal machining design allows efficient processing with minimal floor space while maintaining high production speed and accuracy. _____ Key Features • Horizontal CNC drilling centre for efficient panel processing • Large processing capability • High-speed axis movement for fast production cycles • Integrated clamping system for precise panel positioning • Designed for drilling, routing, and grooving operations • Built by HOMAG / Weeke, a leading manufacturer of CNC woodworking machinery _____ Axis Speeds • X axis speed: up to 138 m/min • Y axis speed: up to 80 m/min • Z axis speed: up to 50 m/min • Pressure plate axis: 27 m/min _____ Workpiece Dimensions • Length: Min 300 max 2500mm • Width: Min 100 max 1000mm • Thickness: Min 4 max 80mm _____ Machine Dimensions • Length: approx. 6500 mm • Width: approx. 2300 mm • Height: approx. 2700 mm _____ Electrical Requirements • Operating voltage: 3 × 415 V ±5% • Frequency: 50 Hz • Total connected load: approx. 19.5 kW • Recommended fuse protection: 50 A _____ Cjdpfx Asyr Utnsfgohc Pneumatic Requirements • Compressed air pressure: minimum 7 bar • Air consumption: approx. 2500 NL/min _____ Dust Extraction • Dust extraction connection: 2 × 280 mm ports • Airflow requirement: minimum 4450 m³/h • Vacuum pressure: approx. 3000 Pa _____ If you have any questions or need more information, feel free to send us a message or give us a call.

Condition: as good as new (ex-display), Year of construction: 2023, functionality: fully functional, Holz-Her 5-Axis Nesting Machining Center DYNESTIC 7535 LIFT ATTENTION: The machine is located in Sydney / Australia! Nesting with lifting table + labeling station + pusher conveyor, including a manual labeling station for small parts. Machining area: 3700 x 2200 mm. Chsdpfx Ajz Hvy Iefgsc The milling spindle has a power of 13.0 kW / 18 HP (S6) and accepts tools with a maximum diameter of 350 mm via an HSK interface. Drilling with 24 spindles, 18 vertical and 6 horizontal. The maximum drilling diameter is 35 mm. For grooving, the drilling head has an integrated sawing unit for a saw blade with a maximum diameter of 125 mm and a maximum width of 4 mm. 18-position tool changer, pneumatically liftable, with a cover to protect the HSK 63F collet, as well as a 1-position pick-up changer for saw blades with a maximum diameter of 350 mm. Pneumatic stops, which can be recessed into the table, for special machining operations on the nesting table, or also with vacuum suction cups. 1000 m³/h vacuum capacity via VariAir pump (frequency-controlled). To be able to use the vacuum capacity in a concentrated manner, the table has a 16-zone vacuum system. Power Label above the lifting table for panels up to X=4200 x Y=2200 mm. Touch Label Light - extra label printer under the operator screen for labeling small parts. The pre-installed pusher unit is connected to the extraction system and can clean the panels and the nesting table. Overhead laser for complex contours (laser color green). Screen: 21.5'' / 16:9 touch screen Software: 1x Campus V7 (machine) + 1x Campus V7 (office), including high-speed curve and 5-axis simultaneous milling. Barcode scanner Touch Tool - tool length measurement Cold Gun - tool cooling Delivery, installation, and training for the machine can be carried out directly by us for an additional charge. The machine is currently located at our branch in Sydney / Australia. In the event of discrepancies between the German version and a foreign language version, only the German version shall be binding. Our general terms and conditions can be found on our website at holzher.de/de/agb.

Condition: new, Year of construction: 2024, feed rate X-axis: 25 m/min, feed rate Y-axis: 25 m/min, feed rate Z-axis: 25 m/min, total length: 7,600 mm, total height: 3,000 mm, total width: 2,650 mm, overall weight: 14,000 kg, spindle speed (min.): 50 rpm, spindle speed (max.): 4,000 rpm, DYAS 3 BDC CNC Beam Profile Machining Center Chedpfxsgbdpks Afgoc Operating Range for Section Min. 200 x 80 mm / Max. 1200 x 500 m Operating Range for Length Min. 2000 mm / Max. 12000 mm (Gross: 12500 mm ) Drilling Head (Spindle) 3 Spindle Speed 50-4000 (stepless) rpm Spindle Power 22 Kw Spindle Torque 280 Nm Tool Changer 6 for each spindle , total 18 Tapping Capacity M10-M30 Bandsaw (Optional) Cutting Speed 20-100 m/min / Mitering Angle +60°/-45°

Condition: ready for operation (used), Year of construction: 2004, functionality: fully functional, travel distance X-axis: 560 mm, travel distance Y-axis: 410 mm, travel distance Z-axis: 410 mm, controller manufacturer: Siemens, spindle speed (max.): 12,000 rpm, TECHNICAL DETAILS Travel range X: 560 mm Travel range Y: 410 mm Travel range Z: 410 mm Clamping area: 650 × 410 mm Table load: 250 kg Chsdpfxsz Ahxqo Afgsc Spindle speed: 12,000 rpm Tool holder: SK 40 MACHINE DETAILS Control system: Siemens
