Used Ermak for sale (75)

Condition: ready for operation (used), functionality: fully functional, Year of construction: 2004, machine/vehicle number: P-1843, actuation type: hydraulic, controller model: Siemens Sinamics G110, bending force (max.): 80 t, overall weight: 5,500 kg, TECHNICAL DETAILS Bending force: 80 t Lowering speed: 80 mm/s Safety distance: 1,500 mm MACHINE DETAILS Lodpfxsxlthco Af Eoru Control: Siemens Sinamics G110 Dimensions & Weight Dimensions (L x W x H): 2,800 x 2,150 x 2,700 mm Machine weight: 5,500 kg IP protection class: 54

Condition: used, Year of construction: 2004, The bending press is made in 2004 in Turkey, in the ERMAKSAN factory. The folding press is in good condition, sold with tools. The machines are connected and can be tested and inspected. Specification: Model. Lodpjq U Sdrofx Af Eeru Year: 2004 Working length: 2600 mm Bending capacity: 80 T Axles: Y1-Y2-X Tools: Yes Weight: 5.5 T Motor: 7,5 kW If you have any further questions, we will be happy to answer them.

Year of construction: 2011, condition: like new (used), Universal Grinding Machine from Chevalier apply for toolmaker , mold maker, education and Locksmith Pressure: 60.0 t Square steel: 35.0 mm Pressure: 60.0 t Square steel: 35.0 mm Ljdpfx Afoiitwno Esru Angle steel: 120x120x12 mm Round steel: 40.0 mm Punching cross-section in qmm: Ø28 in 15 / Ø38 in 11 mm Throat: 220 mm Flat steel: 200x20 / 300x15 mm Blade length: 317 mm Oil capacity: 45,0 ltr. Working height: 940 / 1140 mm Strokes per minute: max. 26 Working stroke: 55,0 mm Total power requirement: 4.0 kW Machine weight approx.: 1425 kg. Dimension HxWxD: 1510 x 590 x 1570 mm

Year of construction: 2014, condition: excellent (used), functionality: fully functional, Ermak Model EKM80/150MTB universal ironworking machine., Serial number 51273-B690FC. Year 2014. PUNCHING 80-Ton punching pressure Max diameter 40mm at 14mm thickness Max thickness 24mm at 24mm diameter. Throat depth 510mm Stroke length 70mm Cycles/min at 15mm stroke 35 pieces Table size 625 x 550mm Working height to die 1200mm FLAT SHEARING Flat Bar (Max. thickness) 300 x 20mm Flat Bar (Max width) 450 x 15mm Blade Length 475mm Angle Flange Trim 80mm Working Height 1020mm ANGLE SHEARING At 90 Degree shearing 130 x 130 x 13mm At 45 Degree miter shearing 70 x 70 x 7mm Working height 1225mm BAR SHEARING Round Bar Shearing 45mm Square Bar Shearing 45mm Working height 1355mm NOTCHING Material thickness 12mm Ledpfovmzlcex Af Esru Rectangular notching width 52mm Rectangular notching depth 52mm V notcher ( side x side x T) 52 x 52 x 12 Working height 1015mm

Year of construction: 2006, condition: ready for operation (used), General Data Measurements width 2550 mm Measurements depth 5450 mm Measurements height 3150 mm Machine weight 24500 kg Main Drive Pressing force 400 t Stroke 300 mm This ERMAK CNC HAP 4100x400 was manufactured in 2006. It features a CYBELEC DNC 60 control system, a maximum working length of 4100 mm, and a press force of 400 t. The internal distance between columns is 3550 mm, and it includes a laser safety system. Consider the opportunity to buy this ERMAK CNC HAP 4100x400 hydraulic press. Contact us for more information about this machine. Ljdsxnd Thepfx Af Esru Application Types Bending

Condition: as good as new (ex-display), functionality: fully functional, Year of construction: 2025, Exhibition machine Tube laser Fibertube ECO 6kW Length 6500 mm 5-axis servo Beckoff control LCD monitor Errors excepted Lodoxn N Ahopfx Af Eeru

Condition: new, table length 3000 mm table width 1500 mm burner heads Precitec ProCutter laser capacity in Watt 6000 x-axis 3050 mm z-axis 150 mm y-axis 1550 mm total power requirement 21 kW dimensions 9190 x 3710 x 2200 mm weight of the machine ca. 11200 kg Furnishing: - Resonator Ytterbium YLS 4000 compact - Beckhoff controller - Precitec ProCutter Automatic cutting head - autom. Lubrication system Lredpfx Afegvq D Uo Eeu - CAD / CAM software LANTEK EXPERT CUT - 17 "touchscreen, keyboard, control panel - Collective conveyor under the cutting table - additional loading unit Cutting capacities: - normal steel 25 mm - stainless steel 15 mm - aluminum 12 mm - brass 8 mm - copper 8 mm Axes: - Machine axes: 4 axes (X, Y, Z, U) - s speed: 100 m / min (simulated) - Axis speed X / Y: 100 m / min (single) - Positioning accuracy: + - 0.03 mm / min - Burning height: 125 - 200 mm Loading table: - Number of pieces 2 (35 seconds for changing) - automatic change of tables - d 2,500 kg. assisting gases: - mild steel - oxygen (0.5 - 25 bar) - stainless steel - nitrogen (0.5 - 25 bar) - Aluminum - compressed air or nitrogen (0.5 - 25 bar) including: - Compatible suction system - Sick light barrier safety device - Spare part basic supply package Why Fibermak? - Up to 3 times faster cutting compared to other laser technologies - Machines for cutting thin sheets - axes equipped with linear motors / Servo motors reach up to 141 m / min. - Accelerations up to 2G - Fiber laser is the green laser technology (Saving of at least 50% energy costs) - There is no need for laser gas mixing - There is no need for optical Components / therefore very low-maintenance - Save up to 50% per part through more efficient production - Extended options: cutting from reflective materials like aluminum, copper, brass etc., - In addition, precise cuts and smooth surface quality - Heavy-duty constructed frame, equipped with world-famous, durable, high-quality components - ERMAK passes the price advantage on to its customers thanks to its fast and high quality production - Creative design, constant, highest technology and quality - High reliability - High efficiency - High quality - CE declaration

Condition: like new (used), Year of construction: 2013, control type: CNC control, degree of automation: automatic, controller manufacturer: Delem, working width: 3,100 mm, distance between stands: 3,000 mm, travel distance X-axis: 3,500 mm, BLECKEN HYDRAULIC PRESS BRAKE 3100 X 260 TONS Lodpfexl R Uyex Af Eoru TECHNICAL SPECIFICATIONS Brand: Blecken - Ermaksan Model: PPE SE 3260 CNC: Delem – 4 axes Year: 2012 Bending length: 3100 mm Pressing force: 260 tons Axes: X / Y1 / Y2 / R PRICE AND FURTHER INFORMATION UPON REQUEST (CNC, SIEMENS, HASS, LAGUN, FAGOR, CINCINATI, HEIDENHAIN, MACHINING, PINACHO, MORISEIKI, MILLING MACHINE, LATHE, GRINDER, BORING MACHINE, PRESS, LASER, SHEAR, PRESS BRAKES)

Condition: new, table length 3000 mm table width 1500 mm burner heads Precitec ProCutter laser capacity in Watt 4000 x-axis 3050 mm z-axis 150 mm y-axis 1550 mm total power requirement 22 kW dimensions 9190 x 3710 x 2200 mm weight of the machine ca. 11200 kg Furnishing: - MOMENTUM GEN - 2 fiber laser cutting machines 3,000 x 1,500 mm - Ytterbium YLS 4000 compact resonator (4 kW) - PRECITEC PROCUTTER laser cutting head - CAD / CAM software BECKHOFF - Controller CP 6242 - 17 "touchscreen, keyboard, control panel, alphanumeric keyboard - Collective conveyor under the cutting table - additional loading unit Cutting capacities: - normal steel ... 20 mm - stainless steel ... 12 mm - aluminum ... 10 mm - brass ... 6.0 mm - Copper ... 5.0 mm Workspace: - max .: 3,000 x 1,500 mm Axes: - Machine axes: 4 axes (X, Y, Z, U) - s speed: 100 m / min (simulated) - Axis speed X / Y: 100 m / min (single) - Positioning accuracy: + - 0.03 mm / min - Burning height: 125 - 200 mm Loading table: - Number of pieces 2 (35 seconds for changing) - automatic change of tables assisting gases: - mild steel - oxygen (0.5 - 25 bar) - stainless steel - nitrogen (0.5 - 25 bar) - Aluminum - compressed air or nitrogen (0.5 - 25 bar) included : - Compatible suction system - Light barrier safety device - Spare part basic supply package Why Fibermak / Fiberlaser? - Up to 3 times faster cutting compared to other laser technologies - Machines for cutting thin sheets - Axis speed: reach up to 141 m / min. - Accelerations up to 2G - Fiber laser is the green laser technology - Saving of at least 50% energy costs) - There is no need for laser gas mixing - There is no need for optical components - therefore, among other things, very low-maintenance - Save up to 50% per part through more efficient production - Extended options: cutting reflective materials * like aluminum, copper, brass etc., - In addition, precise cuts and smooth surface quality - Heavy-duty constructed frame - equipped with world-famous, durable, high-quality components - Creative design, constant, highest technology and quality - High reliability - High efficiency - High quality - CE declaration Lrodpfxogvq A Ee Af Eju

Condition: ready for operation (used), Year of construction: 2010, pressure 220 t chamfer lenght 3720 mm distance between columns 3020 mm column arm 400 mm ajustment speed 125 mm/sec working feed 10.0 mm/sec return speed 132 mm/sec back stop - adjustable 800 mm stroke 275 mm dayligth 550 mm table height 900 mm oil volume 300 ltr. total power requirement 18.5 kW weight of the machine ca. 12800 kg. range L-W-H 5850 x 2220 x 2820 mm Good condition Current new price approx. 100.000 euros Special price on request Features: - Electro-hydraulic CNC press brake - With DELEM CNC control model DA 66W * 2D graphic programming * Automatic bend sequence calculation and collision detection * High-quality color LCD screen (TFT) - Swivel control panel, front left - CNC-controlled axes: Y1 + Y2 + X + R + crowning - CNC electric motor-driven backgauge (X axis) - CNC electric motor height adjustment of the backgauge (R axis) - CNC electric motor-driven bending table crowning - 2x manually adjustable stop fingers - AMADA/PROMECAM upper tool holder - 1x reversible MULTI-V die block - 2x front sliding support arms (“sliding” system) - Side guard * Swivel doors + FIESSLER laser safety device - Rear safety device (light barrier) - 1x freely movable foot control - Original operating instructions * Special accessories included in delivery: - 1x NEW complete upper tool set - split (currently not installed) Lrsdpfx Afexfwc Do Eeu * ROLLERI PS.135.85.R08 * Height 135 mm / 85 degrees / R 0.8 mm

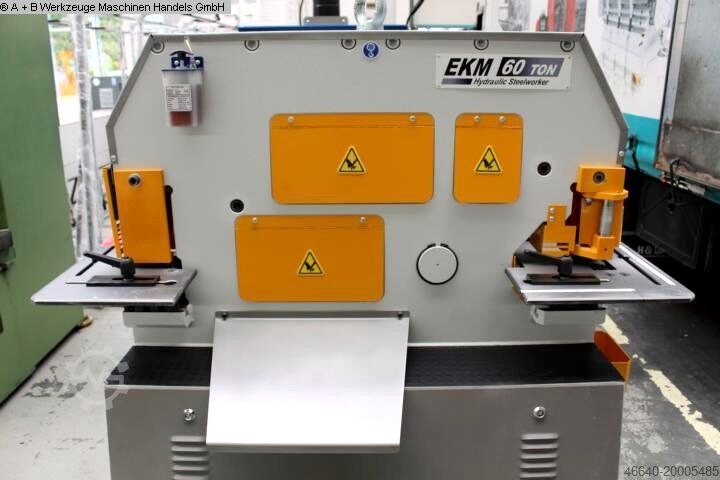

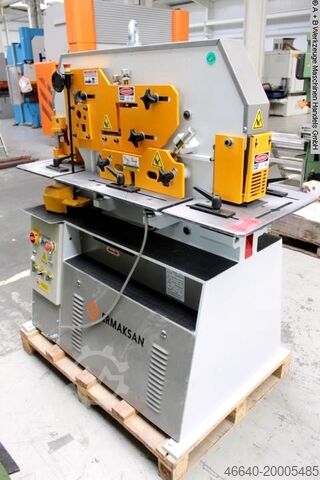

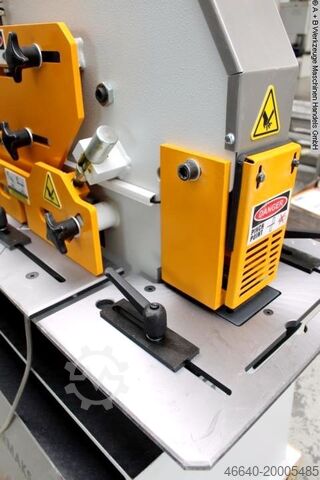

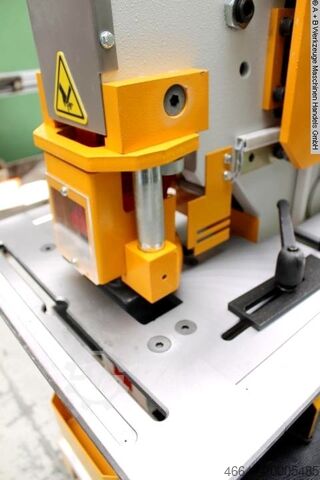

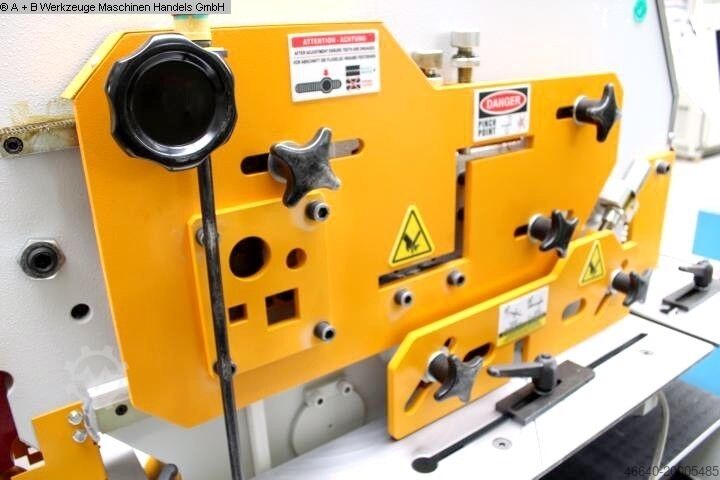

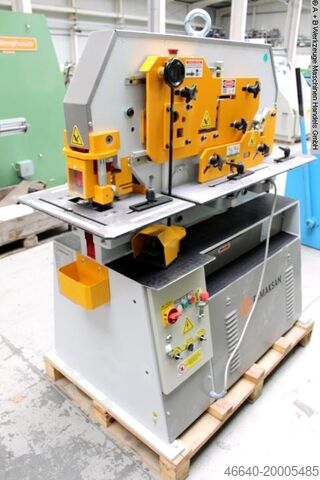

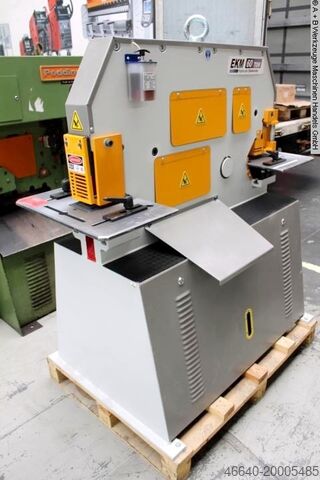

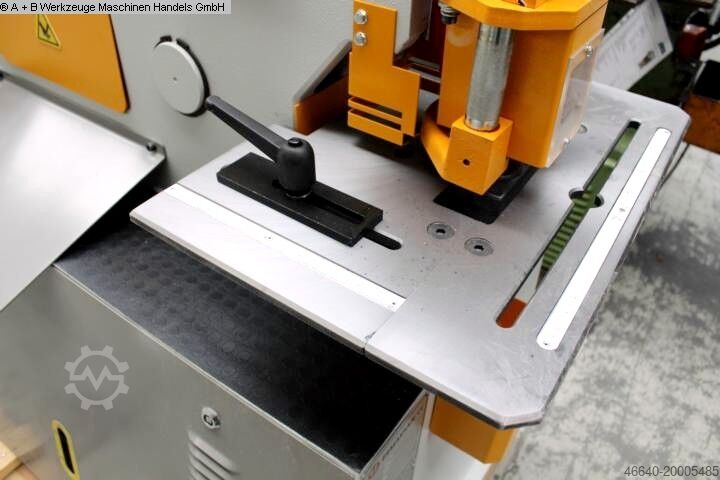

Condition: new, pressure 60,0 t square edge steel 35,0 mm L-beam 120x120x12 mm round bar steel 40,0 mm punching cross-cut in cmm Ø28 in 15 / Ø38 in 11 mm throat 220 mm flat steel 200x20 / 300x15 mm blade length 317 mm Lrodpfx Afexcuxqs Esu oil volume 45,0 ltr. work height max. 940 / 1140 mm strokes per minute max. 26 work stroke 55,0 mm total power requirement 4,0 kW weight of the machine ca. 1425 kg. Dimensions (HxWxD) 1510 x 590 x 1570 mm Furnishing: - Support table at the hole punch - Support table on the square notcher - foot switch - Bed. Instructions - CE declaration + MUBEA - punch and die holder

Condition: new, table length 4000 mm table width 2000 mm Lredpfx Afexabn Hs Eou burner heads Precitec Procutter x-axis 4050 mm z-axis 150 mm y-axis 2050 mm total power requirement 18,0 kW weight of the machine ca. 18.150 kg dimensions of the machine ca. 12430 X 5664 X 2310 m

Condition: used, Year of construction: 2003, sheet width 3100 mm plate thickness 8.0 mm thickness at "Niro-steel" 6.0 mm down holder 14 Stück no. of strokes 20 Hub/min cutting angle 1.2 ° control ELGO "P9521" work height max. 800 mm oil volume 150 ltr. total power requirement 15.0 kW weight 7000 kg range L-W-H 3900 x 2300 x 1600 mm Current new price approx. 40.000 Euro Special price upon request Equipment: - NC electro-hydraulic swing beam shear - ELGO NC control unit "P9521", front left - NC electro-motorized backgauge * Travel range = 5.0 - 1,000 mm (X axis) Ledpfsxach Usx Af Eoru * On recirculating ball screws * Positioning accuracy 0.1 mm * Travel speed 80.0 mm/sec. - Manual lateral cutting gap adjustment - 1x side stop, with T-slot and mm scale - 2x front support arms, with T-slot and mm scale - Ball transfer units in the front support table - Hinged finger guard with safety switch - BOSCH/HOERBIGER hydraulic system - SIEMENS electrical system - 1x freely movable foot switch - 2x front emergency stop buttons - Rear safety guard - Operating instructions (PDF)

Condition: used, Year of construction: 2022, sheet width 3100 mm plate thickness 10.0 mm thickness at "Niro-steel" 6.0 mm down holder 14 Stück no. of strokes 13 Hub/min cutting angle 2.0 ° throat 350 mm back stop - adjustable 1000 (+) mm oil volume 260 ltr. engine output 22.0 kW weight 10.575 kg range L-W-H 4100 x 2400 x 2170 mm Demonstration/demo machine (!!) from our exhibition (like NEW) with very few operating hours ----- heavy electr. / hydraulic CNC swing cut shears * with CYBELEC CNC touch screen control * with electr. / hydr. Kerf adjustment ----- Furnishing: - CNC electr. / hydraulic swing cut shears - CYBELEC CNC touch screen controller, model CybTouch 8 * Backgauge preselection - X axis * Cutting gap adjustment * Number of pieces * Cutting length limitation * Material preselection, including sheet thickness * Cutting line lighting - motorized backgauge, travel = 1,000 mm (X axis) * on ball screws * autom. can be folded up at vel, for longer cuts - 1x side stop - 2x front support arms - Ball rollers in the front support table - hinged finger protection, with safety switch - BOSCH / HOERBIGER hydraulic system - SIEMENS electrical system - Light barrier behind the machine (safety device) - foot switch Ledsxab I Hopfx Af Esru - CE mark / declaration of conformity - User manual: machine and control in German including special equipment: - pneumatic sheet metal holding device

Condition: new, pressure 160 t chamfer lenght 3100 mm distance between columns 2600 mm column arm 250 mm ram stroke speed 90.0 mm/sec work speed 7.5 mm/sec return speed 80.0 mm/sec work stroke 160 mm dayligth 395 mm Ljdexab Hispfx Af Esru table height 900 mm back stop - adjustable max. 800 mm oil volume 200 ltr. voltage 400 Volt total power requirement 11.0 kW weight 7524 kg range L-W-H 4250 x 1900 x 2550 mm Furnishing: - DELEM CNC control model DA-66T graphic/touch screen * 2D graphical programming * 17" TFT color screen with high resolution * Bending sequence calculation * Product programming and real size display * USB interface * intuitive, graphical entry of profiles * Automatic calculation of features: tool safety zones, Press force, bending tolerance, crown setting, stretched Length, embossing force, flattening, automatic rounding calculation * Radius programming * Graphic tool and product library * Collision monitoring * 3D visualization * 1GB memory - controlled axes : Y1 - Y2 and X - manual table crowning - AKAS - laser protection device f. d. machine - Upper tool, deer foot - Lower tool, die block with 4V's - Light barrier behind the machine - 2 front support arms - SIEMENS - electrical system - BOSCH/HOERBIGER hydraulic system - CE mark/Declaration of Conformity - Operating manual : machine and control - Safety manual : press brakes

Condition: new, sheet width 2600 mm plate thickness 8,0 mm thickness at "Niro-steel" 5,0 mm down holder 12 Stück no. of strokes 18 Hub/min oil volume 200 ltr. cutting angle 1,5 ° engine output 15,0 kW weight of the machine ca. 6.300 kg range L-W-H 3525 x 2350 x 1700 mm ----- electr. / hydraulic CNC swing cut shears * with CYBELEC CNC touch screen control * with electr. / hydr. Kerf adjustment ----- Lrodoxab D Iepfx Af Esu Furnishing: - CNC electr. / hydraulic swing cut shears - CYBELEC CNC touch screen controller, model CybTouch 8 * Backgauge preselection - X axis * Cutting gap adjustment * Quantity * Cutting length limitation * Material preselection, including sheet thickness * Cutting line lighting - motorized backgauge, travel = 1,000 mm (X axis) * on ball screws * autom. Can be folded up at vel, for longer cuts - 1x side stop - 2x front support arms - Ball casters in the front support table - hinged finger protection, with safety switch - BOSCH / HOERBIGER hydraulic system - SIEMENS electrical system - light barrier behind the machine (safety device) - foot switch - CE mark / declaration of conformity - User manual: machine and control in German

Condition: new, sheet width 3100 mm plate thickness 6,0 mm thickness at "Niro-steel" 4,0 mm distance between columns 3100 mm down holder 14 Stück no. of strokes 18 Hub/min oil volume 150 ltr. cutting angle 1,2 ° control CYBELEC CybTouch total power requirement 11,0 kW Ljdpfjxabzgex Af Esru weight 6300 kg range L-W-H 4.000 x 2.100 x 1.640 mm ----- electr. / hydraulic CNC swing cut shears * with CYBELEC CNC touch screen control * with electr. / hydr. Kerf adjustment ----- Furnishing: - CNC electr. / hydraulic swing cut shears - CYBELEC CNC touch screen controller, model CybTouch 8 * Backgauge preselection - X axis * Cutting gap adjustment * Number of pieces * Cutting length limitation * Material preselection, including sheet thickness * Cutting line lighting - motorized backgauge, travel = 1,000 mm (X axis) * on ball screws * autom. Can be folded up at vel, for longer cuts - 1x side stop - 2x front support arms - Ball casters in the front support table - hinged finger protection, with safety switch - BOSCH / HOERBIGER hydraulic system - SIEMENS electrical system - light barrier behind the machine (safety device) - foot switch - CE mark / declaration of conformity - User manual: machine and control in German including special equipment: - pneumatic sheet metal holding device (monoblock)

Condition: new, sheet width 4100 mm plate thickness 10,0 mm thickness at "Niro-steel" 6,0 mm down holder 28 Stück no. of strokes 18 Hub/min oil volume 260 ltr. cutting angle 0,5 - 2 ° control CYBELEC Cybtouch engine output 22,0 kW back stop - adjustable 1000 mm range L-W-H 6100 x 2580 x 2460 mm weight 15.100 kg. ----- electr. / hydraulic CNC guillotine shears - guided by a backdrop * with CYBELEC CNC touch screen control * with electr. / hydr. Cutting gap and cutting angle adjustment ----- Furnishing: - CNC guillotine guillotine shears - with electr. / hydr. Cutting gap and cutting angle adjustment - CYBELEC CNC touch screen controller, model CybTouch 8 * Backgauge preselection - X axis * Cutting gap adjustment * Number of pieces * Cutting length limitation * Material preselection, including sheet thickness * Cutting line lighting - motorized backgauge, travel = 1,000 mm (X axis) * on ball screws * autom. Can be folded up at vel, for longer cuts - 1x side stop - 2x front support arms - Ball rollers in the front support table - hinged finger protection, with safety switch - BOSCH / HOERBIGER hydraulic system - SIEMENS electrical system - light barrier behind the machine (safety device) - foot switch Lsdpfx Afsxabwuo Eoru - CE mark / declaration of conformity - User manual: machine and control in German including special equipment: - pneumatic sheet metal holding device * Monoblock design

Condition: used, Year of construction: 2024, pressure 60.0 t chamfer lenght 1270 mm distance between columns 1000 mm column arm 410 mm ram stroke speed 160 mm/sec work speed 10.0 mm/sec return speed 165 mm/sec work stroke 275 mm dayligth 530 mm table height 900 mm table width 90.0 mm back stop - adjustable max. 800 mm oil volume 150 ltr. voltage 400 V engine output 7.5 kW Weight 4320 kg range L-W-H 2250 x 1960 x 2750 mm Demonstration/demo machine (!!) From our showroom (like new) With very few operating hours ----- CNC press brake with special equipment * Version "ERGO" - knee room for the operator * flexible articulated arm mount for the controller Lodsxabt Aepfx Af Eoru * increased installation height * increased cylinder stroke * as well as increased bending beam speeds ----- Furnishing: - DELEM CNC control model DA-66T graphic/touch screen * 2D graphical programming * 17" TFT color screen with high resolution * Bending sequence calculation * Product programming and real size display * USB interface * intuitive, graphical entry of profiles * Automatic calculation of features: tool safety zones, Press force, bending tolerance, crown setting, stretched Length, embossing force, flattening, automatic rounding calculation * Radius programming * Graphic tool and product library * Collision monitoring * 3D visualization * 1GB memory - Motorized backgauge with R-axis, on ball screws - X = 800 mm R = 250 mm with 2 stop fingers - controlled axes : Y1 - Y2 - X - R - Deer foot upper tool with PS 135.85-R08, system "A" with quick-change clamp - additional crowning device in the tool holder of the upper tool - 4V universal die block M 460 R with die shoe 60 mm mount - BOSCH/HOERBIGER hydr. components - SIEMENS electrical system - LEUZE light barrier behind the machine - FIESSLER AKAS laser with FPSC protection device v.d. machine - Swiveling control panel, mounted on the left - Front, foldable sheet metal support - Double foot control - CE mark / declaration of conformity - Operating manual: Machine and control in German - Safety manual : press brakes

Condition: new, sheet width 3100 mm plate thickness 13,0 mm thickness at "Niro-steel" 8,0 mm down holder 14 Stück no. of strokes 11 - 20 Hub/min oil volume 310 ltr. cutting angle 0,05 - 2,0 ° throat 350 mm table height 900 mm total power requirement 22,0 kW weight of the machine ca. 13.300 kg Lsdpfx Afjxabikj Esru range L-W-H 5.110 x 2.570 x 2.400 mm ----- heavy electr. / hydraulic CNC guillotine shears - guided by a backdrop * with CYBELEC CNC touch screen control * with electr. / hydr. Cutting gap and cutting angle adjustment ----- Furnishing: - CNC guillotine guiding shears - with electr. / hydr. Cutting gap and cutting angle adjustment - CYBELEC CNC touch screen controller, model CybTouch 8 * Backgauge preselection - X axis * Cutting gap adjustment * Number of pieces * Cutting length limitation * Material preselection, including sheet thickness * Cutting line lighting - motorized backgauge, travel = 1,000 mm (X axis) * on ball screws * autom. Can be folded up at vel, for longer cuts - 1x side stop - 2x front support arms - Ball casters in the front support table - hinged finger protection, with safety switch - BOSCH / HOERBIGER hydraulic system - SIEMENS electrical system - light barrier behind the machine (safety device) - foot switch - CE mark / declaration of conformity - User manual: machine and control in German

Condition: new, pressure 175 t chamfer lenght 3100 mm distance between columns 2600 mm column arm 410 mm ram stroke speed 180 mm/sec Lrsdpexabfxofx Af Eeu work speed 12.0 mm/min return speed 190 mm/sec work stroke 275 mm dayligth 550 mm oil volume 300 ltr. table height 900 mm table width 90.0 mm voltage 400 Volt total power requirement 15.0 kW weight 9800 kg range L-W-H 4150 x 2150 x 2800 mm ----- HIGH-SPEED hydraulic press brake with increased installation height increased cylinder stroke enlarged projection ----- Furnishing: - DELEM CNC control model DA 66T - swiveling touchscreen control unit - 7 controlled axes: Y1 - Y2 - X - R - Z1 and Z2, as well as CNC crowning - electr. controlled backgauge X-axis = 800 mm / R-axis = 250 mm - on ball screws - controlled electr. Stop fingers Z1 + Z2 - split upper deer foot tool Roleri 135.85.R08, "System A" - with additional crowning of the upper wedge - Split universal die block M 460 R, including die shoe C 1050-R - LEUZE light barrier behind d. machine - BOSCH / HOERBIGER hydr. Components - SIEMENS - electrical system - FIESSLER AKAS laser protection device in front of the machine (including FPSC) - 2 front support arms with SLIDING system (plain bearings) - Double foot operation - CE mark / declaration of conformity - User manual: machine and control in German - Safety manual: press brakes

Condition: new, pressure 320 t chamfer lenght 3100 mm distance between columns 2600 mm column arm 410 mm ram stroke speed 140 mm/sec work speed 10.5 mm/sec return speed 150 mm/sec work stroke 375 mm dayligth 650 mm table height 900 mm table width 240 mm oil volume 400 ltr. voltage 400 Volt total power requirement 30.0 kW weight 17082 kg Dimensions (HxWxD) 4550 x 2450 x 3200 mm ----- HIGH-SPEED hydraulic press brake with increased installation height increased cylinder stroke enlarged projection ----- Furnishing: - DELEM CNC control model DA 66T - swiveling touchscreen control unit - 7 controlled axes: Y1 - Y2 - X - R - Z1 and Z2, as well as CNC crowning - electr. controlled backgauge X-axis = 800 mm / R-axis = 250 mm - on ball screws - controlled electr. Stop fingers Z1 + Z2 - split upper deer foot tool Roleri 135.85.R08, "System A" - with additional crowning of the upper wedge - Universal die block - LEUZE light barrier behind d. machine - BOSCH / HOERBIGER hydr. Components - SIEMENS - electrical system - FIESSLER AKAS laser protection device in front of the machine (including FPSC) Ljdpfsxabdzsx Af Esru - 2 front support arms with SLIDING system (plain bearings) - Double foot operation - CE mark / declaration of conformity - User manual: machine and control in German - Safety manual: press brakes Special equipment including: - electrical central lubrication

Condition: new, sheet width 3100 mm Lrodpfx Afexabdbj Eeu plate thickness 10,0 mm thickness at "Niro-steel" 6,0 mm down holder 14 Stück no. of strokes 13 Hub/min oil volume 260 ltr. cutting angle 2,0 ° throat 350 mm engine output 22,0 kW back stop - adjustable 1.000 mm weight 10.575 kg. range L-W-H 4,05 x 2,5 x 2,17 m ----- heavy electr. / hydraulic CNC swing cut shears * with CYBELEC CNC touch screen control * with electr. / hydr. Kerf adjustment ----- Furnishing: - CNC electr. / hydraulic swing cut shears - CYBELEC CNC touch screen controller, model CybTouch 8 * Backgauge preselection - X axis * Cutting gap adjustment * Quantity * Cutting length limitation * Material preselection, including sheet thickness * Cutting line lighting - motorized backgauge, travel = 1,000 mm (X axis) * on ball screws * autom. Can be folded up at vel, for longer cuts - 1x side stop - 2x front support arms - Ball rollers in the front support table - hinged finger protection, with safety switch - BOSCH / HOERBIGER hydraulic system - SIEMENS electrical system - light barrier behind the machine (safety device) - foot switch - CE mark / declaration of conformity - User manual: machine and control in German

Condition: new, sheet width 3100 mm plate thickness 6,0 mm distance between columns 3.100 mm down holder 14 Stück no. of strokes 16 - 24 Hub/min oil volume 150 ltr. cutting angle 0,5 - 1,5 ° thickness at "Niro-steel" 4,0 mm column arm 350 mm engine output 11,0 kW weight of the machine ca. 7.060 kg range L-W-H 4,1 x 2,2 x 2,19 m ----- electr. / hydraulic CNC guillotine shears - guided by a backdrop * with CYBELEC CNC touch screen control * with electr. / hydr. Cutting gap and cutting angle adjustment ----- Furnishing: - CNC guillotine guillotine shears - with electr. / hydr. Cutting gap and cutting angle adjustment - CYBELEC CNC touch screen controller, model CybTouch 8 * Backgauge preselection - X axis * Cutting gap adjustment * Number of pieces * Cutting length limitation Lrodpfx Afexabcqj Eou * Material preselection, including sheet thickness * Cutting line lighting - motorized backgauge, travel = 1,000 mm (X axis) * on ball screws * autom. Can be folded up at vel, for longer cuts - 1x side stop - 2x front support arms - Ball rollers in the front support table - hinged finger protection, with safety switch - BOSCH / HOERBIGER hydraulic system - SIEMENS electrical system - light barrier behind the machine (safety device) - foot switch - CE mark / declaration of conformity - User manual: machine and control in German including special equipment: - pneumatic sheet metal holding device

Condition: new, pressure 60.0 t chamfer lenght 2100 mm distance between columns 1700 mm column arm 410 mm ram stroke speed 160 mm/sec work speed 10.0 mm/sec return speed 165 mm/sec work stroke 275 mm dayligth 530 mm table height 900 mm table width 90.0 mm oil volume 150 ltr. voltage 400 Volt total power requirement 7.5 kW Lrsdpfx Aoxabckof Eou weight 5640 kg range L-W-H 3250 x 1960 x 2750 mm ----- Press brake with special equipment * increased installation height * increased cylinder stroke * as well as increased bending beam speeds ----- Furnishing: - DELEM CNC control model DA 53T (touchscreen) - Motorized backgauge with R-axis, on recirculating ball spindles - X = 800 mm R = 250 mm with 2 stop fingers - controlled axes Y1 - Y2 - X - R - C (crowning) - electr. Crowning controlled by CNC - Upper deer foot tool with PS 135.85-R08, system "A" with quick-change clamp - Additional crowning device in the tool holder of the upper tool - 4V universal die block M 460 R with die shoe 60 mm holder - BOSCH / HOERBIGER hydr. Components - SIEMENS electrical system - LEUZE light barrier behind the machine - FIESSLER AKAS laser with FPSC protective device v.d. machine - Swiveling control panel, mounted on the left - 2x front support arms "sliding system", with T-slot and tilting cam - 1x double foot control - CE mark / declaration of conformity - User manual: machine and control in German - Safety manual: press brakes
