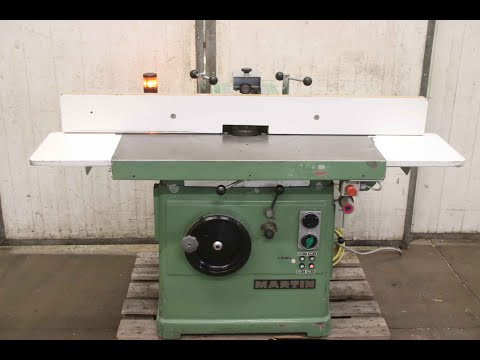

Table milling machine

Martin T 21

Condition: used, Used machine Equipment and technical data: - Table size: 800 x 1000 mm - Diameter of table opening: 480/380/170/125 mm - Taper of milling spindle: MK 5 - Spindle speed: 3000 + 4500 + 6000 + 9000 rpm - Height adjustment range of spindle: 150 mm - Distance from spindle center to front edge of table: 400 mm - Maximum permitted tool diameter: 250 mm - with wooden fence jaws (can be exchanged for metal fence jaws upon request) - with Holz Her 3-roller feed unit - with heavy-duty sliding table; runs on ball bearings on precisely milled, parallel guideways Csdpeyq T Ihjfx Agvjrc Weight: approx. 800 kg Availability: short-term Location: 63934 Röllbach

Condition: good (used), Year of construction: 1984, SAC used jointer planer SAC FS 430 - 430 mm planing width - 2.90 m table length - 120 mm cutterhead with 4-knife strip knives - 3 kW, 380 volt motor - Automatic motor brake - 8 mm depth of cut - Fence tiltable up to 45° - Swing-away Aigner auxiliary fence - Bridge-type knife guard (cutter cover) Credpjx Nrvvofx Agvsc - Low-noise design with serrated steel table lips - Extraction port - Weight: approx. 650 kg Location: at customer site - immediately available - Subject to prior sale

Condition: excellent (used), Angle adjustment Speed control Central spindle lubrication 5 kW motor Spindle diameter 30 mm Table length 240 cm Table width 35 cm Support extendable up to 80 cm Credpfxswtl N Ds Agvoc Request more information

Condition: used, Year of construction: 2007, functionality: fully functional, Machine for drilling holes for dowels URBAN DB 3100, year 2007 Condition: very good Crodpfx Aewinq Nogvjc - Profile clamping system and drill feed operated by foot switch - Electric drilling motor switches off automatically at the end of the drilling process - Drill feed speed and drilling depth individually adjustable - Quick-clamp chuck for standard drill bits up to max. Ø13mm - Left and right support tables

Condition: new, Year of construction: 2024, TECHNICAL DATA Table size 1100 x 760 mm table height 870 mm milling spindle not interchangeable 30 mm clamping height 140 mm height adjustment 125 mm suction socket 2 x Ø 120 mm Credpfxsfpb Nmj Agvec speed 3000 / 4500 / 6000 / 9000 rpm Colour RAL 7035 light grey and RAL 5000 violet blue Net weight approx. 800 kg TECHNICAL DESCRIPTION Solid German mechanical engineering Table milling machine with one-sided swivelling fixed milling spindle for swivelling range from -5° to +45.5 Positioning control for height and swivel adjustment with zeroing of the height and offset measurement travel Electronic position and speed displays 4 speeds 3000 / 4500 / 6000 / 9000 rpm Belt quick tensioning device Push button for spindle start and stop Left and right rotation Cutter quick clamping device Fine planed cast iron table with rigid frame support Control panel at the bottom of rigid frame support Milling stop 216 total adjustment via handwheel and LCD display incl. cast stop plates and aluminium splitter tongues Machine socket Lockable main switch Mechanical motor brake Milling protection and pressure device GAMMA V 1629 Curved milling fence 1639 Tapoa Milling spindle 30 mm, not exchangeable CE-conform GS tested

Condition: new, functionality: fully functional, input voltage: 400 V, planing width: 310 mm, number of blades: 30, rotational speed (max.): 4,000 rpm, total length of planing tables: 1,300 mm, overall weight: 180 kg, Equipment: CE marking, Application of a helical cutterhead with replaceable carbide knife inserts, which reduces noise levels by approximately 50% and extends sharpness more than 20 times compared to a conventional straight knife cutterhead. The advantage of carbide inserts is that, in case of damage, individual knives can be replaced or rotated, which significantly reduces operating costs. The carbide-tipped blades provide tear-free planing and optimal smoothness with every type of wood. Quick and hassle-free folding tables allow fast conversion to thicknessing mode. Integrated, tiltable chip extraction device - connection diameter 100 mm. Both tables are equipped with precision adjustment systems and noise-reducing covers. The planer table is centrally mounted on the guide column with a support bracket. Stable fence with prismatic guide, tiltable from 90° to 45°. Tables are made of cast iron with polished work surfaces. Cutterhead guard included. Technical Specification Voltage: 400 V Crjdpfeyt I H Dex Agvjc Dimensions (W x D x H): 1300 x 900 x 1180 mm Weight approx.: 180 kg Planer Planing width: 310 mm Cutterhead speed: 4000 rpm Working height: 990 mm Number of knives/inserts: 30 pieces Cutterhead diameter: 75 mm Planing fence: 1110 x 130 mm Fence tilting range: 90° - 45° Max. chip removal in planer: 5 mm Planer table length: 1300 mm Thicknesser Thicknesser table length: 600 mm Thicknesser planing width: 305 mm Minimum workpiece height: 5 mm Maximum workpiece height: 180 mm Max. chip removal in thicknesser: 2.5 mm Feed speed: 8 m/min Dust extraction port diameter: 100 mm Motor power: 3 kW Motor power S1 100%: 2.2 kW

Condition: new, functionality: fully functional, planing width: 530 mm, number of planer blades: 4, Equipment: motor brake, Houfek R 530 surface planer - 400V/50Hz, 5.5 kW (7.5 HP), width 530 mm 1.1 Motor 5.5 kW (7.5 HP), Tersa cutterhead 1.2 Total work table length 3100 mm 1.3 Dimension of the guide ruler 1300x150 mm with tiltable auxiliary ruler 1.4 Planed table 1.5 Upper control panel with ELGO Z60 digital display Electronic adjustment of the take-off 0 - 7 mm Tilt angle of the tiltable ruler 0°- 45° - Digital display Adjustment of the input table inclination (pointed/hollow joint) 1.6 Cover for the SUVAMATIC planing roller 1.7 4-knife planing roller D=120 mm 1.8 Automatic star/delta start of the motor 1.9 Electromagnetic brake Csdpfx Agou Rnqqevorc 1.10 Suction nozzle with outlet D=150 mm 1.11 Blade setting gauge 1.12 Voltage 400V/50Hz 1.13 Packed in PE film as standard 1.14 Machine built according to CE power and safety standards

Condition: used, Year of construction: 1995, Swivel spindle: Yes -5 to 45° Height adjustment: Handwheel Swivel adjustment: Handwheel Milling jaw adjustment: manual Height display: mech. counter Swivel angle display: mech. counter Milling stop display: mech. counter Milling spindle diameter: 30mm / new milling spindle Speeds: 3000, 4500, 6000, 9000 Motor power: 5.5 kW Motor brake: Yes, automatic Suction connection: 2 x 120mm Machine length: 2000mm Crjdpfxeuzkwze Agvoc Machine depth: 1400mm weight: 900kg

Condition: reconditioned (used), Year of construction: 2000, machine/vehicle number: KK052469, functionality: fully functional, Connected load 380V 4kW table size 1070 x 620 mm swiveling with hand crank 45 height adjustment with hand crank right/left rotation motor brake socket for feed unit Protective covers for hand milling spindle Ø 30 mm Aigner stop suction connection 2x 120 mm speeds: 1400/3500/6000/8000 rpm Csdpfeiinm Hox Agvjrc Instruction manual

Condition: good (used), Swivel Spindle Milling Machine, Table Milling Machine, Bench Milling Machine -Spindle adjustment: height and angle -Swivel: -3° to 45° -Drive: 4.5/5.5 kW -Speed: 3000/4500/6000/9000/12000 rpm Crjdpfsh Nvyzjx Agvjc -Feed apparatus Holz-Her 3 rolls -Useful shaft length: 100 mm -Spindle: Ø 30 mm -Max. Milling cutter: Ø 220 mm -Dimensions: 1540/1100/H1520 mm -Weight: 962 kg
