Automatic bar lathe

Citizen L20

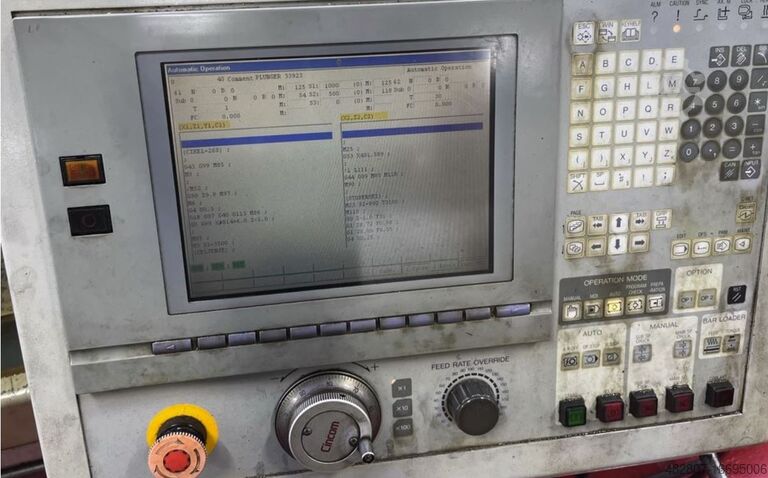

Condition: ready for operation (used), Year of construction: 2016, overall weight: 2,220 kg, total height: 1,835 mm, controller manufacturer: MITSUBISHI, controller model: Meldas 700, This 8-axis Citizen Cincom L20E-2M8 was manufactured in 2016, designed for precision Swiss-type turning come with FMB bar feeder and LNS chip conveyor. It features a main spindle with a speed of up to 10,000 rpm and a counter spindle operating at 8,000 rpm. The machine accommodates up to 37 tools, enhancing its capability for complex machining tasks. It includes a Mitsubishi Meldas 700 controller for efficient operation. Consider the opportunity to buy this Citizen Cincom L20E-2M8 Swiss type turning machine. Contact us for more information. CITIZEN Cincom L20E-2M8 with FMB Bar feeder and LNS chip conveyorThe machine is suitable for efficient turning up to 20 mm in machine is designed to accommodate up to 37 tools for machining complex products. Tool sub-assemblies set:Vertical holder with 5 tools4–7 rotating tools for transverse radial machiningDrilling tools 3–9 for front machining0–4 rotating tools for counter spindle4–10 drilling tools for counter spindleBasic configurationBasic bed: block casting with strong linear guides (thermal and vibration stability)Main spindle: 10,000 rpm, C-axis, Ø passage 26 mm (max. bar Ø20 mm)W1: vertical holder with 5 tools (12 × 12 × 130 mm)3× GSC1310 radial rotating tools ER16 (1 kW, 7,500 rpm)GSE3210 rotating unit adjustable 0°/90° for milling unit (3× GSC1310 ER16)U124B drilling block (2+1) for deep holesCounter spindle: 8,000 rpm, optional C-axis, power 0.75/1.5 kWU153B driven tool unit for counter spindle (0.75 kW) + 4× SAU819 adapters Ø19.05Controller: Mitsubishi Meldas 700 (Windows OS, improved processor, LCD 8.4")Simultaneous machining on main and auxiliary spindlesNew sliding door cover design, space-savingTechnical dataMain spindleMax. turning length: 200 mmThroughput Ø: 26 mmMax. bar Ø: 20 mmSpeed: 200–10,000 rpmPower: 2.2 / 3.7 kWPositioning: C-axis (0.001°)Counter spindleMax. bar Ø: 20 mmSpeed: 200–8,000 rpmPower: 0.75 / 1.5 kWPositioning: C-axisMax. workpiece length in collet: 80 mmDriven toolsSpeed: 200–7,500 rpmPower: 1 kW5 tools (vertical holder) + 4–7 radial + 3 in Z-directionTools5 tools (12 × 12 × 130 mm)3-position drilling block on counter spindle (3× Ø25.4 mm)Back machining holders: 3–6 (Ø19.06 mm)GuidesCollets: E145Guide bushing: Neukomm 22.001Machine ER16 / ER11 Additional equipment • Clamping unit Ø25 mm • Pump 15 bar for rinsing the counterspindle • SAU819 adapters up to Ø8 mm • Transformer 3×400V/3×200V, 10 kW Bjdpfjx D Iltjx Aafslc • Swarf conveyor LNS MH-HB • FMB Minimag 20/3200 bar feeder Dimensions Machine Depth 2300 mm

Condition: used, Year of construction: 1987, Technical details: turning diameter over bed: 500 mm turning diameter over support: 280 mm turning length: 1500 mm centre distance: 1500 mm turning dia. in gap: 730 mm spindle bore of work spindle: 65 mm range of revolution per miute: 25-1250 / 32-1600 / 36-1800 - 18 step U/min feed:: 0,05 - 8,5 mm rapid motion - x-axis: 4 m/min rapid motion - y-axis: 1,26 m/min tailstock quill taper MT: 5 tailstock quill adjustment:: 200 mm total power requirement: ca. 8,2 kW weight of the machine ca.: 2,5 t dimension machine xH: 3,2 x 1,3 x 1,5 m Bsdpfsu Ixznex Aafolc Thread cutting possible Cross slide travel 300 mm, feed 0.015 - 2.8 mm (clutch end position switching not functional, manual switch-off necessary) Top slide with 4-fold tool holder Steel plate Ø 705mm with offset threaded holes *

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, machine/vehicle number: 16380, CNC automatic lathe CITIZEN CINCOM L-20 VIII with Fedek STM-326 bar feeder, year 2008. Machine is fully controlled by Citizen. Supplied with geometric protocol. Bjdpfx Aasw T Stzefelc

Condition: used, CITIZEN CINCOM L 20 VIII is a CNC automatic lathe, engineered for precision, high accuracy and reliability. Capacities: 2 spindles, max turning diameter 20 mm, max turning length 200 mm; spindle speeds 200–8000 t/min, back spindle 200–6000 t/min. Specifications: tool-holder 3 positions with 12 tools (5 turning, 3 drilling, 4 transverse), spindle motor 3.7 kW, back spindle power 1.5 kW, voltage 3x380 V 50 Hz, weight ≈2150 kg, dimensions 2050×1085×1800 mm. Accessory: bar feeder IEMCA BOSS 332 (2006). Delivers tight tolerances; typical applications: automotive, watchmaking, machine tools, aerospace, medical. Bljdpfx Aajxx U E Nofsc

Year of construction: 1970, condition: good (used), machine/vehicle number: 528, Capacity (mm): 8x80 Production (max): 250 ppm Bododv T E Rspfx Aafolc

Condition: excellent (used), Year of construction: 2008, operating hours: 9,000 h, functionality: fully functional, TECHNICAL DETAILS Control: Mitsubishi Meldas 700 Main Spindle Machining diameter: 20 mm Machining length without repositioning: 200 mm Spindle bore: 24 mm Spindle speed: 200 - 10,000 rpm Spindle indexing C-axis: 0.001° Motor power (built-in motor): 2.2 / 3.7 kW Sub-Spindle Machining diameter: 20 mm Spindle speed: 200 - 8,000 rpm Spindle indexing C-axis: 0.001° Motor power: 0.75 / 1.5 kW Driven Tools at Vertical Holder Speed: 200 - 4,500 rpm Motor power (AC servo motor): 1.0 kW Number of tools: 6 Tool System Turning tools (12x12x130): 5 Tool holder/parting-off blade (16x12x130): 1 Drilling tools (front): min. 3 Drilling tools (rear): 5 Tool holders, quills (diameter): 19.05 mm Tool holders, turning tools (shank cross-section): 12 mm Collets and Guide Bush Collet main/sub-spindle: F25 (145E) Guide bush (Neukomm): T223 (22.001) Rapid Traverse All axes: 32 m/min Machine Specification Required space (without magazine) L/W/H: 2,430 x 1,085 x 1,770 mm Spindle height: 1,050 mm Machine weight: 2,150 kg Power supply: 8 kVA EQUIPMENT - 6 turning tools (12 mm shank cross-section), - 3 driven tools for cross machining - 3 driven tools for face machining on the main spindle Bedpfx Ajxf Hqqoafelc - 3 driven tools for face machining on the sub-spindle - Main spindle with C-axis - Sub-spindle with C-axis - 3x powered tool rear side machining - Yellow warning light - Interior lighting - Workpiece conveyor belt - FMB Turbo 3-26 bar feeder - Option for long parts - Spindle flushing (Scherzinger pump)

Condition: used, TECHNICAL DETAILS - Number of axes : 7 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 20 [mm] Bjdpfx Aaouhazmofolc - Max. machining length : 200 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 3,7 [kW] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 8000 [rpm] - Spindle power : 1.5 [kW] - C axis indexing precision : 0.001 [°] GUIDE BUSH HOLDER 1 - Number of positions : 7 - Number of motorized positions : 3 - Live tools speed : 5000 [rpm] END ATTACHMENT - Number of positions : 4 SECONDARY OPERATION - Number of positions : 3 POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine floor space : 2.110 x 1.085 [mm] - Machine height : 1.832 [mm] - Machine weight : 2.200 [kg] MACHINE HOURS - Number of working hours : 44.325 [h] EQUIPMENT - CNC : Meldas - Rotating guide bush - Parts catcher - Parts conveying strip - Ejection of workpiece - Coolant tank : CoolBlaster * with high-pressure pump : 138 [bars] - Bar loader : LNS Alpha ST320 - Fire extinguisher * * NB : working order not guaranteed. To have it checked by a qualified organization of the buyer. - Electric transformer

Condition: good (used), Year of construction: 2000, Machine come without tool holders and any additional equipement. Parts shown by hand not come. Bedpsw Tc S Uefx Aafelc Technical details are shown on picture.

Condition: ready for operation (used), Year of construction: 2005, operating hours: 56,729 h, functionality: fully functional, spindle speed (max.): 10,000 rpm, bar diameter (max.): 20 mm, No minimum price – guaranteed sale to the highest bid! TECHNICAL DETAILS Max. spindle speed: 10,000 rpm Number of spindles: 2 Bar through-hole: 20 mm Driven tools: yes Main spindle speed range up to: 10,000 /min Counter spindle speed range up to: 8,000 /min Cross-slide speed range up to: 4,500 /min MACHINE DETAILS Bedpfxowqgwde Aafslc Total weight: 2,150 kg Total height: 2,000 mm Required space length: 3,000 mm Required space width: 1,400 mm Connection voltage: 400 V Mains frequency: 50 Hz Operating hours: approx. 56,729 h EQUIPMENT - CNC control CINCOM M7 - Bar loader LNS Hydrobar Express 220 - Fire extinguishing system

Condition: like new (used), Year of construction: 2018, functionality: fully functional, turning diameter: 20 mm, overall weight: 2,350 kg, For sale Citizen L20E-2M12 lathe with 3 meter bar feeder. Bljdsvdyi Uspfx Aafjc

Condition: used, Year of construction: 2008, max. wheel diameter 300 mm max. module 8 min. module 0,7 Control SINUMERIK 840 D min/max. pitch cone angle - 90 / + 90 ° workpiece spindle - bore 127 mm grinding wheel diameter 50 - 230 mm spindle speeds (infinitely variable) 7.500 U/min total power requirement 146 kW work piece spindle speed 700 U/min weight of the machine ca. 21 t dimensions of the machine ca. 9,5 x 3,6 x 3,1 m Bjdpfx Asvxww Ssafslc Measuring probefor tooth gap(integrated on the grinding head) External grinding spindle cooling system ELBARON oil mist extraction (integrated in the machine) Hoffmann coolant filter system Was used for the serial production of spiral-toothed ring gears No clamping devices No grinding wheels / grinding wheel flanges No dressing wheels

Condition: good (used), Year of construction: 2014, operating hours: 17,300 h, functionality: fully functional, turning length: 200 mm, spindle speed (max.): 10,000 rpm, turning diameter: 20 mm, spindle bore: 26 mm, TECHNICAL DETAILS Control: Mitsubishi Main and counter spindle diameter: 20 mm Spindle bore: 26 mm Maximum machining length for long turning: 200 mm Maximum machining length for short turning: 50 mm Blodpfx Aswhmrcjafoc Main spindle speed: 10,000 rpm Counter spindle speed: 8,000 rpm Rear side machining Rear block: with Y-axis Stations for rear side machining: 8 units Deep hole drilling stations on counter spindle: 6 units MACHINE DETAILS Operating hours: approx. 17,300 h Bar loading magazine: FMB Turbo 2-20 EQUIPMENT - Conversion kit D20 - Müller CL3 high pressure system with 8-way switchable valves, 130 bar, and automatic backwash filter - Automatic fire extinguishing system Kraft + Bauer included Fire damper - Angle-adjustable driven holder 3-way

Condition: used, TECHNICAL DETAILS - Number of axes : 7 - Number of spindles : 2 MAIN SPINDLE - Max. bar diameter : 20 [mm] - Max. machining length : 200 [mm] - Spindle speeds : 10000 [rpm] - Spindle power : 3,7 [kW] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Max. bar diameter : 20 [mm] - Spindle speeds : 8000 [rpm] - Spindle power : 1.5 [kW] - C axis indexing precision : 0.001 [°] GUIDE BUSH HOLDER 1 - Number of positions : 10 - Number of motorized positions : 5 - Live tools speed : 5000 [rpm] END ATTACHMENT - Number of positions : 4 SECONDARY OPERATION - Number of positions : 3 POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine floor space : 2.110 x 1.085 [mm] - Machine height : 1.832 [mm] Bledpfx Aasuhazgjfjc - Machine weight : 2.200 [kg] MACHINE HOURS - Number of working hours : 32.264 [h] EQUIPMENT - CNC : Meldas - Rotating guide bush - Parts catcher - Parts conveying strip - Ejection of workpiece - Chips conveyor - Coolant tank * with high-pressure pump - Bar loader : FMB MINIMAG 20

Condition: used, Year of construction: 1961, ram hammer weight 750 kg ram hammer stroke 660 mm no. of strokes 100 /min impact energy 2040 kJ distance lower die block / ram gudeway 6600 mm Throat 750 mm steel forging - rectangular up to 240 mm steel forging - diameter up to 270 mm power requirement 75,0 kW weight of hammer 16,5 t weight of anvil 15,5 t weight 32,0 t Bodovuullopfx Aafslc dimensions (WxDxH) 3,2 x 1,45 x 3,45 m SPECIAL OFFER Forging hammer as is where is, WITHOUT putting into operation / WITHOUT additional work, free loaded to truck video at seller's site before dismantling available
