Single Column Drawing Press - Hydraulic

ZEULENRODA PYE 160 SSM

Condition: used, Year of construction: 2003, pressure 250 t stroke 20 - 190 mm no. of strokes 25 - 140 /min Iiodpfxjvuun Ts Ag Ijb throat 460 mm passage to the back 590 mm dayligth 690 mm table surface area 1500 x 880 mm hole in the table 950 x 250 mm table height over floor 900 mm ram surface 870 x 725 mm ram adjustment 120 mm power requirement 30,0 kW Weight 32,0 t dimensions of the machine ca. 2,34 x 2,38 x 3,99 m x m x m with infinitely variable drive, light guard (make Sick), hydraulic clutch/brake combination, hydraulic overload protection in ram, automatic stroke adjustment, motoric ram adjustment, pneumatic counterbalance in ram, fix table, drawing cushion in table (20 t), motoric centralized lubrication, operator's console with two-hand operation Width between the tie rods in front 940 mm Side passage 900 mm

Year of construction: 1976, condition: good (used), strip width: 300 - 1.350 mm strip thickness: 0,35 - 3 mm coil weight: 12,5 t Isdjbh Ubwjpfx Ag Isib mandrel Ø: 508 mm

Condition: used, Year of construction: 2004, functionality: fully functional, Amada HFE 220- L Year of construction 2004 Laser height adjustment Working width 3100mm Iiodpfx Ageuiwypo Ijb pressing force 220 tons with many tools

Year of construction: 1967, condition: good (used), strip width: 300 - 1.250 mm Ijdpod Ha Irefx Ag Ieib strip thickness: 0,5 - 3 mm blade shaft Ø: 180 mm

Year of construction: 2024, condition: new, New mechanical and electromagnetic clutches and brakes for Bulgarian machine tools of the following types: CU400, CU500, CU502, CU580M, CU582, C11MT, C11MB, C11, C13B… We also offer a wide selection of various spare parts for the above-mentioned machine tools, most of which are available from stock, while for the rest we offer the fastest possible delivery times. Iedpfov Rpn Tex Ag Isib We cordially invite you to cooperate!

Condition: ready for operation (used), Year of construction: 2013, operating hours: 5,446 h, spindle speed (max.): 12,000 rpm, travel distance X-axis: 762 mm, travel distance Y-axis: 508 mm, travel distance Z-axis: 508 mm, spindle motor power: 22,000 W, table load: 300 kg, number of slots in tool magazine: 41, number of axes: 5, This 5s HAAS UMC 750 was manufactured in 2013. It features a spindle speed of 12,000 rpm and a tool capacity of 41 tools, making it suitable for various machining tasks. The machine offers a maximum table load of 300 kg and includes advanced coolant systems for efficient operation. If you are looking to get high-quality machining capabilities, consider the HAAS UMC 750 universal machining center we have for sale. Contact us for further details. • Spindle type: Inline direct drive • Tool holder: SK40 • Tool changer: SMTC • Rotary technology: 2 axes with support bearing Ijdjyid Hvepfx Ag Isib • B-axis range: −35° to +110° • C-axis range: 360° • Clamping surface: Ø 630 × 500 mm • Coolant system: standard coolant, P-Cool, through-spindle coolant (TSC) • Renishaw probing: WIPS system with workpiece probe and tool measurement • Control functions: 8M functions, rotate and scale • Memory: 16 MB • HSM: High Speed Milling • Rigid tapping: yes • Cycle time hours: 5,446 h • Power-on hours: 21,246 h Technical Specification Taper Size SK 40

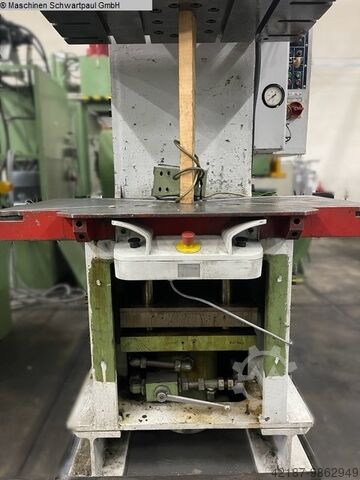

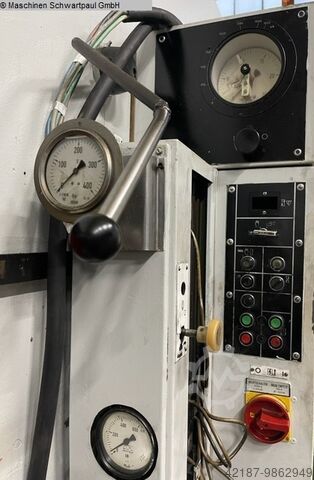

Condition: used, Year of construction: 1983, Technical details: Pressure: 160 t throat: 360 mm max. ram stroke: 500 mm distance table/ram: 800 mm clamping plate on table: 1250x630x100 mm passage opening in table: 4x Ø 62mm mm ram speed - forward: 200 mm/s ram speed - reverse: 125 mm/S ram surface area: 450 x 850 mm mortise hole in ram: Ø 49 mm height over floor: 810 mm total power requirement: 17 kW weight of the machine ca.: 7200 kg dimension machine xH: 2,1 x 1,4 x 3,4 m Iodpfx Agou Nfvuj Ioib manual counter *

Condition: used, Year of construction: 1982, spindle diameter 90 mm x-travel 900 mm y-travel 900 mm z-axis 1200 mm w-axis 800 mm table surface area 900 x 1200 mm rotation movement 360 Grad table load 6,0 t turning speeds 25 - 1400 U/min spindle taper ISO 40 voltage 380 V / 50 Hz drive milling spindle 9,2 kW total power requirement 35 KVA weight of the machine ca. 10 t dimensions of the machine ca. 4,5 x 2,8 x 2,5 m • Machine had been completely refurbished in 1994 by the manufacturer Iisdpfstv H Ucjx Ag Ieb • new switch cabinet, • new Servo-drive BOSCH and HEIDENHAIN-control TNC 360,(3D control) • valve plate Ø 600 mm. • traverse distance: 150 mm The machine is currently not ready for demonstration due to a fault in the electrical system.

Condition: new, carrying capacity 500 kg number of suction cups 6 suction cup dia. 215 mm Vacuum lifter VH 6-500 for the horizontal transport of smooth, dry and airtight panels. Robust supporting structure made of steel, painted in RAL 2000 with low Own weight. consisting of: - 1x galvanized longitudinal beam with a length of 2,400 mm - 3x galvanized crossbeams with a length of 1,000 mm - 6x Springy, articulating and adjustable suction cup holders Iiodpfx Aoq Sc Aujg Ieb - 6x suction cups Ø 215 mm, the seal can be separated in case of wear whose metal supports can be changed inexpensively and without tools - 6x ball valves to switch off individual suction cups, thus also smaller formats can be lifted without having to move suction cups or traverses. - 1x spiral connection cable small helix: * with an extension length of 3,500 mm, designed as an extension cable with CEE plug and coupling. * is routed to the lifting device next to the load chain. - Low-maintenance, very high-quality, dry-running rotary vane vacuum pump a suction capacity of 8 m³/h and a final vacuum of 85% (150 mbar) - Electrical connection: 3 phases 230/400 V + PE, 50 Hz, with cable (approx. 0.5 m long) and CEE plug (16 A). Integrated into the control with isolating transformer (necessary if the vacuum lifter is connected via the crane trolley and this has no neutral conductor) - Operating handle can be extended to 1,000 mm from the center of the traverse. Sturdy sheet metal bag for your crane control incl. at no extra charge. - Operation "suction / release" using manual slide valve: The wear-free and very robust manual slide valve ensures safe Suction and release after pressing the release button. (twice loosening according to EN 13155) - Control and safety device for vacuum lifters: * Robust control box. * Contactor circuit for the vacuum pump. * Safety warning device with audible alarm. * Vacuum gauge with danger zone indicator. * Large vacuum storage tank with safety check valve * Double actuation when releasing the load. - Fine dust filter to protect the vacuum pump - Detailed and easy to understand documentation. One year warranty against material and manufacturing defects One-shift operation (without wearing parts). Initial test UVV 18, VBG 9a with CE declaration of conformity - according to EN 13155 - Packing for truck transport.

Year of construction: 1965, condition: used, pressure 150 t throat 550 mm stroke 10 - 140 mm table surface area 1180 x 980 mm no. of strokes 40 Hub/min dayligth 500 mm ram surface 1040 x 800 mm ram adjustment 70 - 150 mm tool shank hole (depth x diameter) 435 x 55 mm required power 15 kW weight of the machine ca. 12 t dimensions of the machine ca. 3 x 1,7 x 3 m Iiodpfx Aocubatjg Isb - with additional brake - slide weight compensation - motorized slide adjustment - central grease lubrication (manual) - table mounting plate - safe for manual inlay work
