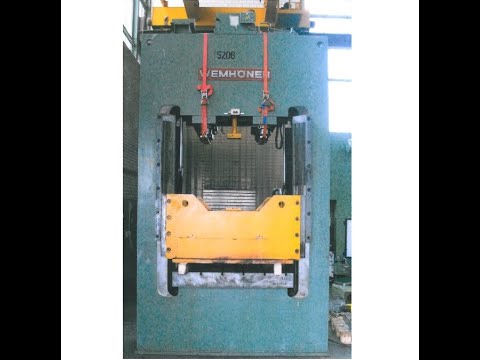

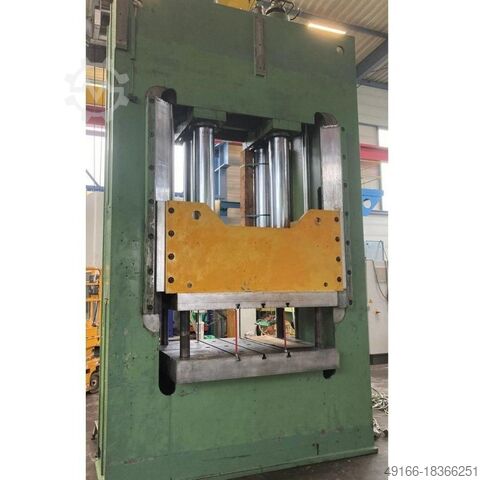

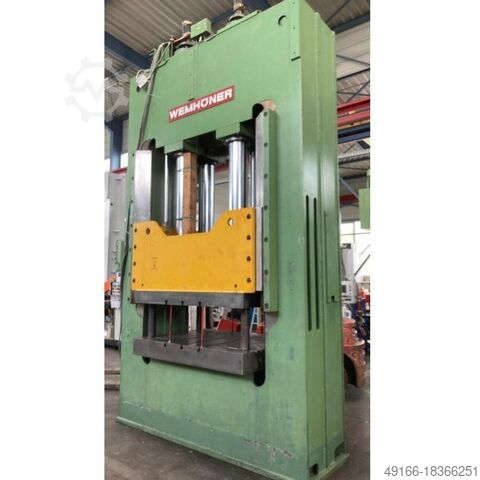

Double-Column Presse

WEMHOENER 300K 300 SO (UVV)

Condition: used, Year of construction: 2004, Pressure 630 t stroke 800 mm distance between columns 2600 mm Nedov Svarjpfx Ahvjwc Distance table/ram, max. stroke up, adjustment up 1500 mm Table surface area 2500 x 1300 mm pressure of drawing cushion in table 300 t Die cushion stroke in table 300 mm Ram surface 2500 x 1300 mm Side window 1040 mm feed down 600 mm/s feed up 360 mm/s working feed 14 - 42 mm/s power requirement 145,0 kW Weight 85,0 t dimensions (WxDxH) 4,2 x 4,0 x 7,8 m height over floor 6,80 m height beneath floor 1,0 m Demonstration machine from technical university with approx. 920 operating hours! Mint condition! permitted for manual loading according to the CE-norm with oil-hydraulic drive, controllable dependent on pressure/time and way, upper and lower stroke limitation, light-guard (Sick) on front and back, hydraulic drawing cushion in table with ejector function, hydraulic cutting impact cushioning, mechanical depth stop via 4 motor-adjustable spindles, hydraulic ram interlocking, two-hand operation 2 tool changing consoles, 4 hydraulic ball roller tracks, 4 dampening elements

Year of construction: 2025, condition: new, Bulk Bag unloading system. INCLUDING lifting crane (HITACHI), stainless steel version and INCLUDING screw conveyor (capacity 8-10t/h); max. bulk bag size: L1200xW1200xH1100mm; 380V, 2kW; electric chain block speed: 10.05m/min; lifting speed: 6.8m/min; Machine dimensions: L3200xW1700xH5000mm; weight: 400kg. Nedpfx Ahov Nk A Aevewc Please note that our new prices are often below the usual used prices. Please feel free to inquire and tell us your packaging task. - Usually 30-50 different new machines are available immediately from stock. In addition, we have very short delivery times from approx. 3 weeks for customized machines. Deviations from the sample photo are possible. - All machines are available with full warranty.

Year of construction: 2009, condition: good (used), Load capacity: 30 t Fine lift Nwsdpeqiz N Rofx Ahvec Lifting height 9 meters

Condition: as good as new (ex-display), Year of construction: 2022, Press design double column press Thermally neutral 80 - 120 °C Number of operating sides 1 side Forces Pressing force max. 4000 kN Free ripping force max. 400 kN Pressure build-up time Closed die steel to steel Max. 4 sec. Dimensions 3,800 mm long and 4,475 mm wide Max. Opening width 800 mm Stroke 800 mm Table height above floor 1100 mm Height above floor (headroom) approx. 4300 mm Hall height min. 5500 mm parallel deviation at 20°C +/- 0,1 mm Deflection Determined at max. clamping force with 70% occupancy < = 0.2 mm/m Weight Total weight of press without operating materials and table plate approx. 28 t Press table Table size 1500x1500 mm Speeds Fast closing with 100 mm sec. Nwsdpfx Ahoph Uk Nsvjc Pressing speed 8 - 3 mm sec. Sound pressure Sound pressure level, measured at 1.5m height at the control panel according to DIN 45635-T16-KL3 max. 78 db(A) Hydraulics Number of pressing cylinders/driving cylinders 1 pc. Operating pressure max. 300 bar Pressing pressure build-up time 4 sec. Pressure accuracy during pressing stroke +/- 3 bar Main pump BOSCHREXROTH axial piston pump approx. 145 L/min Oil volume approx. HLP 46 MW 1000 liters Ambient temperature max. 40 °C Oil temperature max. 55 °C Flow temperature °C Auxiliary pump BOSCHREXROTH, gear pump 10 L/min Pressure stabilization for up to 300 sec. Electrical system Main supply 400 V AC Control voltage 24 V DC Frequency 50 Hz Connection hydraulics main motor 40 kW Sliding table press with 400 T capacity, Closing speed up to 100 mm/ ( adjustable via touch screen ) Opening speed up to 100 mm/sec ( adjustable via touch screen ) Starting press speed 10 mm/sec ( adjustable via touch screen ) table top size 1500x1500mm ram size approx. 1600x1500mm Oil temperature monitoring 55 degree warning, 60 degree shutdown Automatic lubrication ( adjustable via touch screen ) Free positioning of the ram ( adjustable via touch screen ) SICK/PILZ light barriers 14 mm, front, up to 1800 mm height Hydraulic and mechanical ram protection Circuit oil cooling ( adjustable via touch screen ) Ejector in table, 20 T press force, 350mm travel Ejector moves outwards with the table Table plate milled flat, with DIN 22 T grooves Pressure adjustment from 60 T to 400 T ( adjustable via touch screen ) Travel limitation either by pressure or position Set-up mode, single stroke and cycle sequence ( adjustable via touch screen ) Swiveling control panel on the cabinet Two-hand operation, with opening button, manual/single stroke/cycle switchover button Installation, commissioning, instruction against separate charge The control is supplied by SIEMENS. ( S 7 1200 ) Also the touch screen monitor with 9 inch. The remote maintenance unit SECOMEA -Ethernet is included in the delivery. The side of the press has two 1000 mm high and 800 mm wide windows with double doors. (sliding table press, hydraulic press, hydraulic press, double column press)

Condition: refurbished (used), Year of construction: 1974, functionality: fully functional, machine/vehicle number: 1276, CNC Hot Radial Forging GFM SX-13 New in 1974 / 2022 New control system PLC SIEMENS S7 Machine number: 1276 No. of Hammers: 4 Forging force each hummer: 160 Ton Hammer stroke / min: 700/min Hammer lenght: 240 mm Diameter setting range: 80 mm Maximum forging diameter: Structural steel, round-cross section: Ø 130 mm square cross section: Ø 115 mm Smallest dimensions forged: Ø 25 mm Manipulator A max. displacement: 6820 mm Manipulator B max. displacement: 7150 mm Maximum workpiece length: 6000 mm Rapid speed manipulator: 400mm/sec Total connected power: 300 kW 380 V, 50 Hz Machine dimensions: Forging height over floor: 615 mm Total height pf the machinr over floor: 1665 mm Nwsdpfjq U R T Nex Ahvjc Total machine lenght: 32670 mm Total foundation lenght: 33400 mm Tot. machine width (without auxliary equipments): approx 3885 mm Total foundation width: 16000 mm Total weight of the machine: 84.000 Kg

Condition: not inspected (used), Year of construction: 2008, Parker Hannifin Instron Hydraulic power unit Year of construction 2008 Power 90KW Main fuse 200A Working pressure 285bar Njdpoq Nyw Aefx Ahvjwc flow rate 165L/min Tank 850 litres The offer is aimed exclusively at traders within the meaning of § 14 BGB No sale to private individuals!

Condition: excellent (used), Year of construction: 2010, functionality: fully functional, machine/vehicle number: CDE:D09C236, CORIS /HERMES 9600 Vial Blower & Filler Line, made in France. Consisting: - a bottle pack blowing machine, with 2 formats (60ml and 30ml), - a HERMES 2009 filling machine with 2 drive rings 10 slots, - a cap dispenser, Nodpfx Ahertnlasvewc - laminar flow, - spare parts, - belt conveyor 2200mm x 40mm, sold without peristaltic pump. YOM 2010 EXCELLENT CONDITION

Year of construction: 1990, condition: like new (used), Used Schuler hydraulic press for sale Brand : Schuler Schuler EB 2-500- 2.75-0.85 H-frame hydraulic press Power ( ton ) : 500 tons Table dimensions ( x-y/mm) : 3000×1800 Slide dimensions ( x-y/mm) : 3000×1800 Nwodpfx Ahehcnxrsvsc Stroke ( x/mm) : 850 Stroke per minute from 12 to 24 Control Siemens S7 New hydraulic presses for sale

Condition: used, Year of construction: 1985, grinding length 600 mm Nedpfx Aewd Tx Uohvewc grinding width 200 mm total power requirement 7,5 kW weight of the machine ca. 2,3 t

Year of construction: 2002, condition: ready for operation (used), With two machining modules, X-axis: -50 to 725mm, Y-axis: -200 to 300 / -250 to 250mm, rapid traverse X-, Y-, Z-axis: 18/12/30m/min, control: Siemens Sinumerik, temperature range: 5–40°C, power type/frequency: 3 PEN / 50Hz, rated voltage: AC 400V, control voltage: DC 24V, auxiliary voltage: AC 230V, connected load: 102kVA, rated current: 148A, rated current (fast): 148A, fuse (slow): 160A, length: 8000mm, width: 3000mm, height: 4000mm, weight: approx. 17t, operating hours: approx. 80,000h. The machine is fully functional, the ball screw drive (recirculating spindle) of the Z-axis was renewed in 2024 and it has been regularly maintained. Comes with documentation, control cabinet, hydraulic unit, filter elements, and chip conveyor. An on-site inspection is possible. Nsdpswbuyzjfx Ahvjwc
