Paint booth wall

Schuko

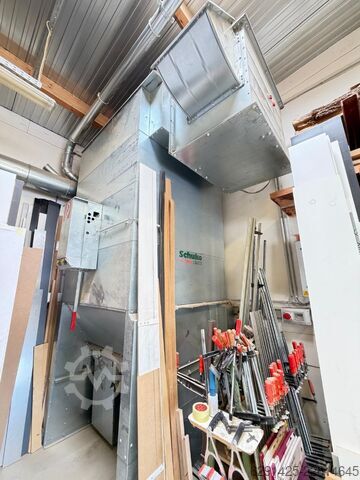

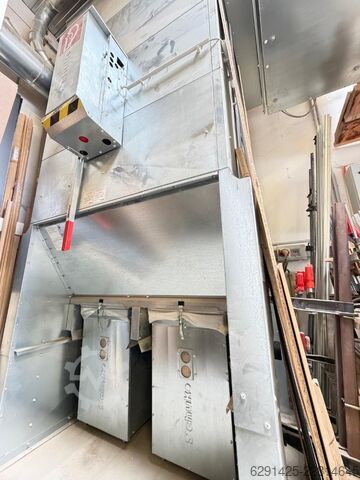

Condition: used, Filter system, extraction unit, clean-air extraction unit SCHUKO type STA + S 140 / 0 / S1 Extraction filter for wood chips, dust extraction, central extraction, bagging unit Fan type S 140 / 0 / S1 Serial no. Year of manufacture 12 / 2004 Nominal air flow 1,451 m³/h Negative pressure 1,398 Pa Filter area 18 m² Extraction connection Ø 140 mm, reduced to Ø 120 mm Air outlet 480 x 480 mm Motor power 1.1 kW Power supply 400 Volt, 50 Hz - Equipped with 24 filter bags (Ø 160 mm, length 1,500 mm) - Mechanical filter cleaning via vibratory motor - 2 discharge pipes at the bottom for dust collection bags, each Ø 500 mm reduced to Ø 300 mm - Dry extinguishing line with C-hose connection, fire department connection in case of filter fire - Differential pressure switch for filter contamination detection Fjdpfsr R Ewlsx Aa Espd - Without control system (no control system present) - Mounted on 4 steel pipe legs (square tube 40x40 mm) Overall height as shown in pictures: 3,050 mm Space requirement L x W: 1,850 x 1,000 mm Weight approx. 400 kg Very good condition Ideal for wood dust, wood chips, plastic dust or plastic chips.

Condition: new, Year of construction: 1985, Blow-in diameter: 300mm Spähesacks: 4 Filter area: 16 Filter cleaning: manual Dimensions: approx.: 1900 x 670 x 2800 mm (L x W x H) Fedpfourv Hbox Aa Espd

Condition: used, Year of construction: 1996, Suction nozzle diameter: 120mm Nominal volume flow: 980 m³/h Volume flow monitoring: Pressure difference display Negative pressure: 1100 pa Filter area: Filter cleaning: manual Motor power: 2.2 kW Machine length: Fsdpfx Aotqv Ixja Eepd Machine width: Machine height: Weight:

Condition: used, Year of construction: 1993, used dust extractor Year of manufacture: 1995 with H 2 filter Motor 2.2 kW Extraction nozzle 200 mm Fodsvymgfepfx Aa Eopd 20 m² filter area Nominal airflow rate 1900 m³/h with automatic pneumatic cleaning with 2 filter cartridges and 2 dust collection bins Height 2500 mm Length 2200 mm Availability: short notice Location: Röllbach

Condition: new, Vacomats are mobile dust extractors that extract large quantities of dust and chips in the smallest of spaces. in the smallest of spaces. These clean air extraction systems (vacuum) for indoor installation can be installed indoors as single or multi-machine extraction systems for air volumes of up to 10,000 m³/h. can be used. Manufactured in accordance with the new EU standard EN 16770 they are particularly suitable for wood processing operations in which special safety requirements due to the risk of dust explosion. Materials of dust explosion class St1 are suitable. The Vacomaten XPe filters are cleaned purely Fpjdpfx Aou T Hrija Eod electro/mechanical via an efficient vibration motor, which - as soon as all machines are switched off - starts starts automatically. It is controlled via the the woodworking machine by means of potential-free contacts. The control of the motorized jogging is included in the scope of delivery. Supplied without coils Motorized filter regeneration, mobile, Suction side on right or left, can be reassembled, Height reduction possible for transportation ----- Technical data ----- Extraction nozzle Ø: 180 mm, Volume flow: 2,610 m³/h, Nominal volume flow: 1,832 m³/h, max. negative pressure: 2,450 Pa, Filter area: 13.5 m², Residual dust content: < 0.1 mg/m², Number of bags: 2 pieces, Motor: 3.0 kW, Dimensions (LxWxH): 2,085 x 900 x 2,130 mm, Weight: 414 kg, Sound pressure level: 76 dB(A), Dust class: M incl.: an attached control cabinet

Condition: ready for operation (used), Year of construction: 1997, functionality: fully functional, volume flow: 9,400 m³/h, power: 15 kW (20.39 HP), input frequency: 50 Hz, Three fans are offered; the price is for one fan each. All three fans are identical in design. Fpjdpsxcv Ndefx Aa Ejd

Condition: used, Year of construction: 2018, Nominal flow rate: 5087 m³/h Negative pressure Pa: 2300 Motor: 7.5 kW Dimensions: 1080 x 820 x 860 mm Weight: 154 kg Storage location: Nattheim Fpsdpfevxk Anox Aa Eed

Condition: used, Year of construction: 2005, power: 5.5 kW (7.48 HP), volume flow: 4,400 m³/h, intake manifold diameter: 250 mm, total height: 2,600 mm, total length: 3,500 mm, total width: 1,600 mm, overall weight: 800 kg, Equipment: CE marking, No. 04523 Mobile extraction unit / mobile dust extractor Schuko Vacomat 250 Used, year of construction 2005 Nominal volume flow 4400 m3/h Minimum volume flow 3533 m3/h Negative pressure 2850 Pa Suction nozzle diameter 250 mm Motor power 5.5 kW Nominal speed 2880 rpm Automatic or manual operation Approved for installation in workrooms Residual dust content level H3, 0.1 mg/m3 Type B1, Suitable for extracting combustible dusts in zone 22 Filter bags made of antistatic polyester needle felt Pneumatic filter regeneration, automatic or manual Automatic extinguishing device with powder extinguisher GS-tested CE-compliant Including electrical connection cable with 32 A plug Transport dimensions approx. 3500 x 1600 x 2600 mm LWH Weight approx. 800 kg To avoid possible misunderstandings, an on-site inspection is possible and recommended by appointment Sold as is Technical specifications, condition description, year of construction and scope of delivery according to manufacturer's brochure or previous owner, without guarantee Subject to prior sale Fpodpfx Aasyl Nc De Esd For used machines, any warranty is excluded, the following applies: “sold as seen” Terms of payment: Prices plus VAT, payment before collection or dispatch Terms of delivery: ex warehouse

Condition: good (used), Year of construction: 2000, Mobile extraction unit Schuko VacoMat 200 Fsdpoyl Ik Hofx Aa Ejpd

Condition: good (used), Year of construction: 2011, Compact dust extractor, dust extractor, dust extraction blower, extraction, dust blower, extraction system, dust blower, dust extraction device, separator, filter system Cartridge dust extraction system, clean air system, clean air dust extractor -Filter system: Höcker Polytechnik Vacomat 200 XPE mobile dust collector -Nominal flow rate: 2260 m³/h -Exhaust fan: 3.7 kW -Intake manifold: Ø 200 mm -Individual components: electric filter cleaning, 3 chip containers, see photos -Dimensions: 890/2620/H2120 mm Fpodpfoxu Dybox Aa Eod -Weight: 440 kg
