Panel saw

SCHEER GB-PA 7004 HUBTISCH

SCHEER PA 7004 – 4200 x 4681 mm
LIKE-NEW panel dividing system DIRECTLY FROM THE MANUFACTURER with lifting table, optimization software, and new PC control

LIKE-NEW
1 year warranty

For sale is a fully overhauled SCHEER PA 7004 panel dividing system with a processing capacity of 4200 x 4681 mm. The system has been technically and visually refurbished and features a new industrial PC with a Linux operating system, network connectivity, and remote maintenance capabilities.

Ideally suited for industrial carpentry workshops, furniture manufacturers, interior design companies, and panel processing companies that value precision, performance, and high availability.

Equipment and highlights:
New PC control
New industrial PC with Linux operating system
Network connectivity (LAN/WLAN)
TeamViewer remote maintenance
USB interfaces
Graphical cutting plan display
Multilingual user interface
15" flat screen in the swiveling control panel
Optionally available with label printing system
Panel saw FM 22-4200
Hardened guides
Servo-driven saw unit
Feed speed 2–70 m/min
Return speed up to 100 m/min
Automatic lowering of the saw unit
Main saw 11 kW
Scoring saw 2.2 kW
Automatic cut height adjustment
Cut-off device
Lamella protection curtain
Safety guard locking
Workpiece clamping protection

Technical data:

Cutting length: 4,200 mm
Fence depth: 4,681 mm
Cutting height: 115 mm
Fully automatic angle pressing device

For precise cross cuts with automatic workpiece fixing.

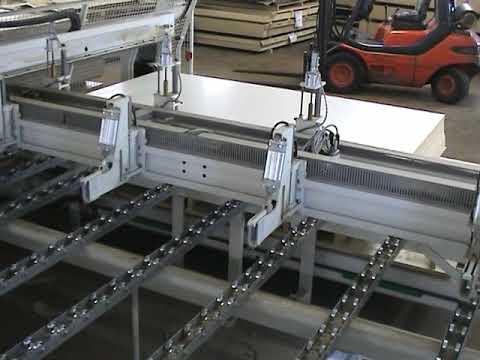

Material feed table HP 5100
Servo-driven material pusher
2 top guides
Rack and pinion guide
7 retractable clamping fingers
3 controlled extraction bolts
11 triple roller tracks
Feed speed 25 m/min
Return speed 50 m/min
Four-spindle lifting table TE 5085
Table length 4,200 mm
Table depth 2,800 mm
Lifting height 640 mm
Lowering height 280 mm
Motor-driven roller tracks
Right and left operation
Recesses for rear loading
Automatic alignment systems
Longitudinal alignment WP 5038
Double execution
Two motor-driven alignment fingers
For panel lengths up to 4,800 mm
Cross alignment WP 5037
3 pneumatic stop and alignment cylinders
Integrated braking system
Workpiece support
Angle stop table HP 5094
2 workpiece support tables HP 5095
Air cushion system LK 5161
Radial fan and piping system included
Optimization software OPTIMIN

The system features the proven OPTIMIN cutting plan optimization. Bills of materials are entered directly into the machine, automatically optimized, and immediately made available for processing.

Advantages:

Material savings
Shorter processing times
Optimal utilization of the system
Easy operation
Additional equipment:
Powered roller track on the right
Set of carbide saw blades
Operating manual
Hardware key for optimization software
Conclusion

A powerful and extensively equipped panel dividing system with modernized control technology, automatic alignment, lifting table, and optimization software. The machine has been completely overhauled and is ready for immediate use.
Rsdpfxsza Efwj Aizeu

✓ LIKE-NEW
✓ New industrial PC with Linux
✓ Network compatible & TeamViewer
✓ Optimization software OPTIMIN
✓ 1 year warranty

The listing was translated automatically. Translation errors are possible.
