Single-blade stroke circular saw

RAIMANN Flexirip 6200 "Jrionline"

Cutting height max. 140 mm
Motor output 11 kW
cutting width 600 mm
Cutting length 6200 mm
Dimensions (L/W/H) 8400x1900x2090 mm
Weight 3500 kg
Number of working hours 3331 h

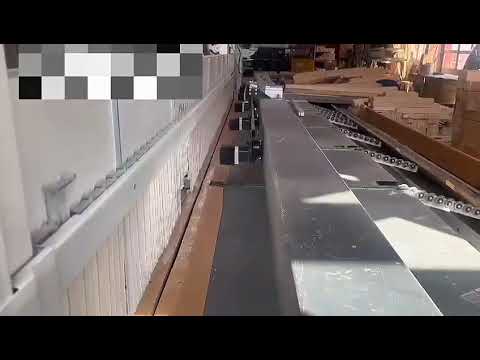

Raimann FlexiRip "Jrionline" Automatic Longitudinal Circular Saw
-----
Cutting length 6200 mm
Chjdpswk N U Esfx Adkoc

Machine base, carriage, feed
-----
- Motor according to IE3 standard: 11 kW (15 HP)
- Precise cutting thanks to the self-supporting, torsion-resistant steel
construction and carriage guides on generously dimensioned, hardened, and
ground round steel tracks. Extra-long and wide carriage with ball-bearing
rollers, precisely adjustable and play-free via eccentric axes.
- Clean cutting thanks to the stepless height adjustment of the saw blade
for quick and optimal adjustment of the saw blade projection to the
workpiece thickness. (Levels 1-18)
- Continuously adjustable feed speed
via pedal across the entire cutting length from 1-80 m/min
- Potentiometer for presetting the maximum feed speed
- Anti-blocking system for FlexiRip: If the maximum permissible load is
exceeded, the saw blade automatically lowers to prevent jamming. The saw
carriage then returns to the start position. Your advantage: Reliable
protection against machine overload and sawblade jamming
- Saw shaft speed: 2,900 rpm
- Maximum cutting height:
Sawblade diameter 400 mm: Max. cutting height 65 mm
Sawblade diameter 450 mm: Max. cutting height 90 mm
Sawblade diameter 500 mm: Max. cutting height 115 mm
Sawblade diameter 550 mm: Max. cutting height 140 mm

Width stop and machine table
-----
- Width stop adjustment via several control levers on the front of the machine
for precise positioning of the stop with a large digital display, easy to
rotate and tilt.
- Width stop in a cantilever design with 6 pneumatically pivoting stop cams
- Smooth, even, and backlash-free operation of the stop
- Width stop driven by 2 hardened, ground ball screws, 32 mm diameter
- Maximum usable width (standard): 600 mm
- 6 cross chains in the rear machine table, including an extension to the
vibrating feeder with roller conveyor transfer (L = approx. 600 mm) to
the vibrating feeder.

Chain distribution according to the layout plan

Control System
-----
- Electronic machine and stop control
"PLC control" with easy-to-read touchscreen on the left side at the start
of the cut, mounted at eye level, easily adjustable for rotation, tilt,
and height.

Ten different cutting lists can store 10 width dimensions each and easily
retrieved by touching the screen. These dimensions can be accessed either
absolutely or as consecutive dimensions, the latter for working from back
to front.

Furthermore, for the consecutive sequence from back to front, five different
dimensions with target quantities can be stored for automatic board cutting.
- The width stop's free travel function can be selected via the touchscreen.
- Error diagnostics via error display and cause note in plain text on the
screen. Hour and cut counters for precise recording and output of
production output.
- Rotatable control panel on the swivel arm is particularly advantageous
when cutting large-format panels.

Operation and Tools
-----
- Workpiece clamp
mounted on the upper guard beam, inside the slats.
...
