CNC lathe

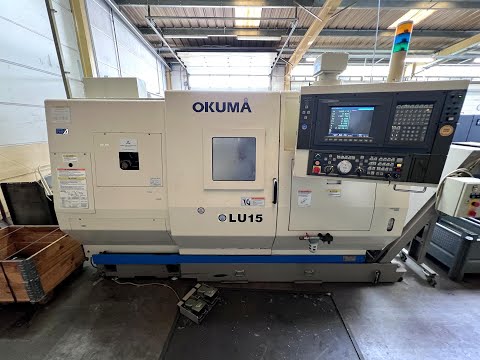

Okuma LU 15

Condition: used, 4 Axis Year Of Manufacture: 1998 8” Chuck 2 Turrets – Turret 1 – 12 Stations Turret 2 – 8 Stations Programable Tailstock 750mm Between Centres Kjdpoy Drunsfx Ah Eedt Live Tooling C Axis Touch setter Y axis Swarf Conveyor Okuma OSP 7000L Control

Condition: like new (used), Year of construction: 2016, operating hours: 3,641 h, functionality: fully functional, travel distance X-axis: 850 mm, travel distance Y-axis: 700 mm, travel distance Z-axis: 500 mm, feed rate X-axis: 35 m/min, feed rate Y-axis: 35 m/min, feed rate Z-axis: 35 m/min, controller manufacturer: Heidenhain, controller model: TNC 640, workpiece weight (max.): 2,000 kg, table width: 700 mm, table length: 1,070 mm, table load: 2,000 kg, overall weight: 10,000 kg, spindle speed (max.): 18,000 rpm, operating hours of spindle: 3,641 h, spindle motor power: 20,000 W, spindle nose: HSK-A63, number of spindles: 1, number of slots in tool magazine: 38, Equipment: documentation/manual, This HERMLE C400 is in like-new condition and has seen very little use, with only 3641 spindle hours. The machine comes from a repair/prototype workshop and was primarily used to machine plastics and aluminum. The machine is located in our showroom and can be inspected while running! Additional options & accessories: - Air through the spindle. - Heidenhain TS460 measuring probe. - Electronic handwheel. - Approx. 20 HSK-A63 tool holders (in the tool changer). - Manual cabinet roof. - Preparation for mist extraction system. - Coolant gun. Kdsdpfjzyq Ebex Ah Ejt - Original HERMLE + Heidenhain documentation. Weight & dimensions: approx. 10,000 kg

Condition: excellent (used), Year of construction: 2001, functionality: fully functional, turning length: 1,000 mm, turning diameter: 340 mm, Okuma LU15-MY Year of manufacture: 2001 Commissioned: 2002 Control system: U100L A video of the machine can be viewed on our website. Machine features: ▪ IGF dialog programming ▪ Movable tailstock ▪ Powered tools – 12 stations on the A-turret Kjdozh Iwkopfx Ah Ejdt ▪ C-axis ▪ Y-axis ▪ Touch probe ▪ Preparation for steady rest on the B-turret ▪ Internal chuck ▪ Signal tower ▪ Mayfran chip conveyor Technical details: • Max. turning diameter: 340 mm • Max. turning length: 1000 mm • X-axis travel: upper 260 mm (170+90); lower 140 mm (90+50) • Z-axis travel: upper 1,040 mm; lower 1,015 mm • C-axis travel: 360° • Spindle – number of speed steps: 2 – automatic • Bore diameter: 62 mm • A-turret (upper): 12 tools, all suitable for M-tools, VDI 40 • B-turret (lower): 8 tools, VDI 40 • Rotating tool speed: 45~4500 min -1 • Rapid traverse feed rate: mm/min X: 15,000 Z: 20,000 C: 200 min -1 • Tailstock quill diameter: 90 mm • Tailstock quill stroke: approx. 100-120 mm ▪ Machine dimensions including chip conveyor L x W: approx. 4300 x 2200 mm ▪ Machine height: approx. 2230 mm ▪ Weight: approx. 7900 kg Optional: ▪ Transportation organization and execution ▪ Machine delivery and installation ▪ Machine commissioning

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, machine/vehicle number: 1938, turning length: 850 mm, turning diameter: 340 mm, spindle speed (max.): 4,500 rpm, workpiece length (max.): 850 mm, workpiece diameter (max.): 300 mm, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Turning length: 850 mm Turning diameter: 340 mm Spindle speed max.: 4,500 rpm Workpiece diameter max.: 300 mm Workpiece length max.: 850 mm Workpiece clamping: 3-jaw chuck, Kitagawa B-210 MACHINE DETAILS Control system: Okuma OSP 7000L Power max.: 22 kW Ksdpfsy R Uxisx Ah Eedt Rated voltage: 400 V Number of phases: 3 Frequency: 50 Hz Power consumption max.: 30.1 kVA Total current consumption: 43.4 A Motor current consumption max.: 106 A Current interruption at: 10 kA Note: Since other machines need to be moved to allow for loading, the stated disassembly and loading costs apply.

Condition: good (used), Year of construction: 1995, functionality: fully functional, travel distance X-axis: 10,000 mm, travel distance Y-axis: 1,500 mm, travel distance Z-axis: 3,000 mm, - CNC control Heidenhain TNC 415B - controlled 2-axes NC-milling head 2,5° - coolant device -plate fields: 2x 4970mm x 1940mm Accessories: Kdsdpfswrzkzox Ah Eot ca. 20 pieces tool tapers DIN 2080 with bolts DIN 69872 some spare parts like bevel gears for the milling head and ball screw for X-axis. Technische Daten / technical details: Verfahrweg X längs / X-travel longitudinal 10000 mm Verfahrweg Y quer / Y-travel cross 1500 mm Verfahrweg Z vertikal / Z-travel vertical 3000 mm Werkzeugschaft / spindle taper SK50 Drehzahlbereich (2-stufig) / spindle speed (2-steps) 35-3000 UpM /rpm Vorschub / infeed 6-10000 mm/min Eilgang X,Y,Z / rapid feed X,Y,Z 10, 15, 10 m/min Antriebsleistung Hauptmotor 100%ED / drive capacity main motor 100%ED 37 kW Gewicht der Maschine ca. / weight 54700 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.

Year of construction: 2002, condition: good (used), Make: Matsuura Type: LX-O Control: YASNAC Year: 2002 Specifications Metric US Standard X - Travel 330 mm Y - Travel 300 mm Z - Travel 250 mm Table Length 540 mm Table Width 320 mm Table load 100 Feed rate X-Axis 90000 mm/min. Feed rate Y-Axis 90000 mm/min. Feed rate Z-Axis 90000 mm/min. Spindle Taper Kdodpfx Aelz Rvloh Eet 30 ISO/Bt/Mk Power on spindle 7.5 kW Speeds / ranges 40000 Rpm ATC / revolver 30 Chip conveyor Yes Dimensions (Estimate) Length 2800 mm Width 2600 mm Height 28000 mm Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Year of construction: 1981, condition: excellent (used), faceplate diam 1300mm max turning diam 1100mm range of turning diam 460-1250mm Kdsdpfx Ask Dz N Ieh Eot

Year of construction: 2011, condition: excellent (used), Cloos welding robot Qirox QRC 320 incl. control system V 6, stand base for vertical arrangement, Cloos welding machine Quinto II 603 (600 A), wire feeder, welding torch, torch hose package, mechanical cleaning, pressure amplifier Kdodpfoizwv Nsx Ah Ejt 1 tilting and rotating table WPK 5000, load capacity 500 kg, 1 start pre-selection, 1 control unit for customer-supplied sliding door Gas nozzle sensor, arc seam tracking, point editor System will be completely overhauled and serviced before delivery. A second station with another identical tilting and rotating table is possible.

Condition: like new (used), Year of construction: 2022, MAZAK QUICK TURN 250MY SmoothG Ksdpfx Ahszk I Tqj Esdt Max. turning diameter: 380 mm Max. turning length: 504 mm Max. milling speed: 5,000 rpm Max. spindle speed: 4,000 rpm Max. bar diameter: 80 mm The machine is equipped with: - CNC control: Mazatrol SmoothG - KITAGAWA 3-jaw chuck, BB-210, diameter 254 mm - Tool Eye - C-axis - Y-axis - Interface for bar feeder - Automatic parts catcher - NC tailstock - Reinforced coolant pump - Chip conveyor - 8 pcs. fixed tool holders - 2 pcs. powered tool holders The machine has only 900 hours of pure machining time!!!

Condition: good (used), Year of construction: 2009, functionality: fully functional, CNC Lathe TRAUB TNX 65/42 Year of manufacture: 2009 Control: Traub TX 8i-s TECHNICAL DATA - Number of spindles: 2 - Number of axes: 12 - Number of turrets: 2 MAIN SPINDLE Kdedpfx Aoyw H Szsh Eet - Spindle nose: A2-6 - Spindle drive power: 24 kW - Spindle speed: 5,000 rpm - Max. bar diameter: 65 mm - Max. diameter of main spindle chuck: 175 mm - Minimum C-axis resolution: 0.001 degrees SUB SPINDLE - Spindle nose: A2-5 - Spindle drive power: 28 kW - Spindle speed: 7,000 rpm - Max. bar diameter: 42 mm - Minimum C-axis resolution: 0.001 degrees - Travel: 700 mm LEFT UPPER TURRET - Number of stations: 10 - Number of live stations: 10 - X/Z-axis travel: 175 / 650 mm - Y-axis travel: +/- 40 mm - Tool type: VDI 30 - Driven tools speed: 6,000 rpm - Driven tools power: 5.5 kW RIGHT LOWER TURRET - Number of stations: 10 - Number of live stations: 10 - X/Z-axis travel: 175 / 650 mm - Y-axis travel: +/- 40 mm - Tool type: VDI 30 - Driven tools speed: 6,000 rpm - Driven tools power: 5.5 kW ELECTRICAL SUPPLY - Supply voltage: 400 V - Total power: 95 kW WEIGHT AND DIMENSIONS - Footprint: 5,450 x 2,318 mm - Machine height: 2,258 mm - Machine weight: 10,000 kg New spindle since 04/26 ACCESSORIES - 3-color status signal lamp - Coolant tank: RESY * with high-pressure pump * with paper filter - Chip conveyor - Parts extraction - Parts belt conveyor
