Used Tos Fn 32 for sale (26,363)

Condition: used, Mirror diameter: 3200 mm Max. folding diameter: 3500 mm Power via shaft: 120 kW Control unit: Siemens 840D Speed (2-stage variable speed gearbox): 1–22 rpm / 22–80 rpm Maximum load on faceplate: 50 tonnes Hydrostatic table Torsional force: 132 kN Vertical movement of beam: 2100 mm Maximum workpiece height: 2550 mm CNC-controlled, 2 sets of heads on crossbeam Horizontal travel of tool head no. 1: 1400 mm Vertical travel of tool head no. 1: 1500 mm Horizontal travel of tool head no. 2: 1980 mm Vertical travel of tool head no. 2: 1350 mm Rotational angle of tool head: -/+30° Required power: 195 kVA Length: 10,045 mm Width: 8,120 mm Kjdpfxjx H Izie Affsnf Height: 7,155 mm

Condition: used, total height: 2,150 mm, total length: 3,200 mm, total width: 1,900 mm, Empty weight: 3.500 kg Kodpjx A Tudofx Affenf - Documentation available: No - CE certificate present: No - Serial number: 179997 - Drive system: Conventional - Power [kW]: 4.0 - X-axis travel [mm]: 1000 - Y-axis travel [mm]: 350 - Z-axis travel [mm]: 500 - Table width [mm]: 1100 - Table depth [mm]: 350 - Magnet width [mm]: 1000 - Magnet depth [mm]: 300 - Max. grinding wheel diameter [mm]: 300 - Control: Conventional - Motor power: 4.0kW - Transport dimensions: 3200mm x 1900mm x 2150mm (l x w x h) - Transport weight [kg]: 3500kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: good (used), functionality: fully functional, Table dimensions 1250 × 290 mm, 800 mm X travel Kedpfsx E Atkjx Affjnf 370 mm Y travel 450 mm Z travel automatic feed on drilling quill, 3 settings: 0.035 / 0.070 / 0.140 automatic feed and rapid traverse on X and Y axes electric rapid traverse on Z axis Spindle ISO 40 with speed range 56–4500 rpm, table load capacity up to 200–500 kg, Machine dimensions: 1.90 m (length) × 1.70 m (depth) × approx. 2.3 m (height) machine weight approx. 1.7 tons. year of manufacture: 1986 Please note: The information on this page has been obtained and compiled to the best of our knowledge, but accuracy cannot be guaranteed. Accordingly, it does not constitute representation or a contract and we recommend you verify all relevant details. Financial information VAT/margin: VAT: The price shown is exclusive of VAT (VAT deductible for businesses).

Condition: used, Technical details: clamping surface area: 630x400 mm no. of flutes: 8 rotatability of the table - manual/mechanic: 360 v. Hand ° weight of the machine approx.: 175 kg Angular table - machine table- machine clamping table for milling machine TOS such as FNG or FNGJ Ksdou Nkrbjpfx Affenf The frame is swiveable via hand wheel 360° (scale 360°) T-slots according to DIN 650 and 508 a=14mm; h=24mm; b=25mm; c=9mm foot plate: size 380x300mm with 6 clamping slots WxL=14x20mm *

Condition: good (used), Year of construction: 1999, functionality: fully functional, travel distance X-axis: 600 mm, travel distance Y-axis: 400 mm, travel distance Z-axis: 400 mm, space requirement width: 1,975 mm, space requirement length: 1,800 mm, space requirement height: 1,900 mm, Equipment: documentation/manual, Machine is in very good condition - used as a training machine until 2018; since then, the machine has hardly been in operation. Operating voltage 400 V Spindle mount ISO 40 Quill stroke 100 mm Knsdpow U Aahefx Affjf Spindle speeds 63 – 3150 rpm Fixed table

Condition: ready for operation (used), chuck outer diameter: 3,200 mm, total height: 7,155 mm, controller model: Siemens 840D, empty load weight: 65,000 kg, Type: SKD 32B Siemens 840D CNC-besturing 2017 Tafeldiameter: 3200 mm Maximale zwenkhoek: 3500 mm Maximale belasting op tafel: 50 ton Hydrostatische tafel!! Vermogen op tafel: 120 kW Torsiesterkte: 132 Kn 2 variabele snelheidsversnellingsbak: ,8 80 tpm Verticale verplaatsing van de dwarsbalk: 2100 mm Maximale werkstukhoogte: 2550 mm 2 gereedschapskoppen op dwarsbalk CNC gestuurd - horizontale beweging van gereedschapskop nr. 1: 1400 mm - verticale beweging van gereedschapskop nr. 1: 1500 mm - horizontale beweging van gereedschapskop nr. 2: 1980 mm - verticale beweging van gereedschapskop nr. 2: 1350 mm - rotatiehoek van de gereedschapskop: -/+ 30° Max turningdia -- passage: 3500 mm Power on the spindle: 120 kW Number of speeds: 1 > rpm / > 80 rpm Power needed: 195 kVa Knedpfxsv Rwh Ie Affef Long: 10045 mm Wide: 8120 mm

Condition: good (used), I sell the multirip saw of czech production TOS Svitavy PKSN32. Cutting height under the blade 120mm / possibility of adjustment Width of cut on the feed belt max. 350mm. Open design / possibility to insert wider workpieces Motor approx. 45 KW. Diameter of main saw blade max. 350mm. Kjdjmk E D Ijpfx Affjnf Feed speed controlled by variator up to 36 m/min. Total weight approx. 3500kg. Blades and adjusting rings included. The machine is in stock in Kežmarok, Slovakia. Available immediately.

Condition: used, Year of construction: 1984, total height: 2,350 mm, total width: 1,850 mm, total length: 1,600 mm, Empty weight: 2.500 kg - Year: 1984 - Documentation available: No Knjdewnhkyepfx Affof - CE certificate present: No - Drive system: Conventional - Power [kW]: 2.5 - Number of axes [pcs]: 3 - X-axis travel [mm]: 840 - Y-axis travel [mm]: 360 - Z-axis travel [mm]: 440 - Table length [mm]: 290 - Table width [mm]: 1250 - Tool holder: SK40 - Min. spindle speed [rpm]: 56 - Max. spindle speed [rpm]: 4500 - Options: Digital readout - └ Type of digital readout: MKS - Transport dimensions: 1600mm x 1850mm x 2350mm (l x w x h) - Transport weight [kg]: 2500kg Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: repair required (used), functionality: not functional, workpiece weight (max.): 300 kg, grinding length: 2,000 mm, Used Cylindrical grinding machine TOS BHU 32A/2000 Ksdpjwbiw Iofx Affonf grinding diameter 320 mm, grinding length 2,000 mm, without electrics, in need of repair, ideal for companies specializing in general overhauls.

Condition: used, machine/vehicle number: 186137200089, used TOS tool milling machine model FNG 40 CNC Year of manufacture: 1988 with Heidenhain path control TNC 155 with fixed angular table 800x400mm Travel paths: X/Y/Z = 500/400/400mm Speed range: 10-3150 rpm Spindle: SK40 Chip guard, attachable Documentation for the machine and control is available. Knsdsxf Inkspfx Affef The machine is located in 71334 Waiblingen-Beinstein and can be inspected by appointment.

Year of construction: 1986, condition: excellent (used), machine/vehicle number: 12024, table mounting size: 290 x 1250 mm table movement x: 800 mm table movement y: 360 mm table movement z: 450 mm milling head swivelling by: 90/45 ° spindle taper: ISA 40 spindle turning taper: 56 - 4500 rpm tailstock stroke: 125 mm tailstock carriages: 0,035; 0,14; 0,7 mm/min spindle drive: 1,8/2,4 kW space needed: 2000 x 1900 x 2300 mm weight: 1700 kg Knodpfjf Tc R Usx Affsf

Condition: excellent (used), feed length X-axis: 450 mm, feed length Y-axis: 300 mm, feed length Z-axis: 300 mm, CNC TOS INTOS ZEBRAK FNG30 milling machine TNC310 Heidenhain control X450mm Y300mm Z300mm tool clamping hydraulic inverter on spindle SK40 machine in very good condition Knsdpferq D Ukjx Affof

Year of construction: 1969, condition: used, Drill press, bench drill, column drill, pillar drill -Manufacturer: TOS, high-performance column drilling machine type 40 TF / C -Motor: MEZ 2.2 kW -Speeds: 56 - 2240 rpm -Table size: 400 x 315 mm, travel 600 mm -spindle taper: MK4 -Spindle stroke: 165 mm -Projection: 290 mm Knedpfxshck U Ij Affef -Pillar Ø: 140 mm -Dimensions: 1200/650 / H1990 mm -Weight: 602 kg

Condition: excellent (used), functionality: fully functional, center height: 160 mm, workpiece weight (max.): 250 kg, grinding length: 1,500 mm, grinding wheel diameter: 203 mm, total width: 23,500 mm, total length: 62,500 mm, total height: 17,000 mm, grinding diameter: 320 mm, spindle speed (max.): 1,470 rpm, table speed: 5 mm/min, overall weight: 5,900 kg, year of last overhaul: 2016, power: 7.5 kW (10.20 HP), BHU 320 x 1500 roller grinder. Prod. by TOS Hostivar Czech Republic - Major overhaul 2016. Grinding diameter 320 mm Grinding length 1500 mm Center height 160 mm Dimensions of the grinding wheel 500 x 80 x 203 mm Speed of the grinding spindle 1470 rpm. Grinding spindle - quick adjustment 60 mm Knjdpfx Afetzwy Isfof Table speed - return 0.005 - 0.05 mm Automatic feed 0.1 - 5 mm/min Workpiece weight max. 250 kg Grinding head rotatable +/- 45° Taper in tailstock MK 5 Workpiece advancement rotatable 90 degrees Grinding spindle drive 7.5 kW Weight of the machine 5900 kg Overall dimensions (L X W X H) 6250 x 2350 x 1700 mm

Condition: excellent (used), control: Heidenhain Positip 850; tool taper: SK 40; hydr. clamping; stroke: 100 mm; Ksdpfx Afslkgvbjfjnf table: 800x480 mm travel: x-600 mm, y-400 mm, z-400 mm rapid motion feed: 63-800 mm/min (18 steps) spindle speed: 63-3150 rpm (18 steps) accessories: coolant equipment, collet chuck incl chucks

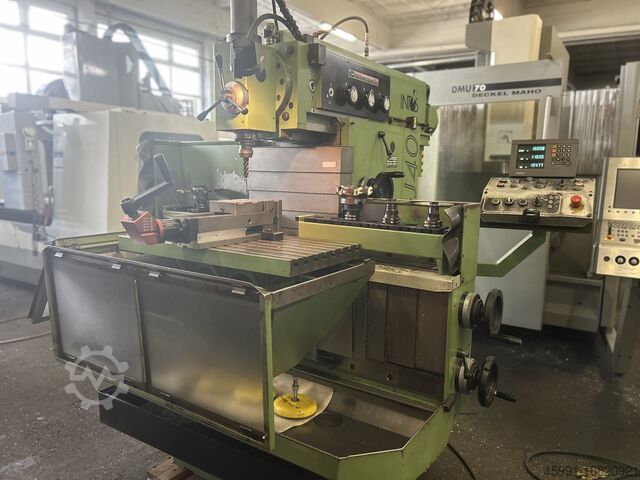

Condition: ready for operation (used), Year of construction: 2000, Universal tool milling machine TOS FNGJ 40 TECHNICAL DATA: Year of manufacture 2000 X,Y,Z travels: 600,400,400 mm Table clamping area 800 x 480 mm Table load max. 400 kg Speed range 63 – 3150 rpm Quill travel 100 mm SK 40 Total power requirement 4 kW Space requirement approx. 2.2 x 2.2 x 1.9 m Machine weight approx. 2200 kg Accessories/options: Tool holders Hydraulic vice Documentations Heidenhain digital readout system for 3-axis Knedpfxev Tn H Hj Affef Under power in our warehouse!

Condition: good (used), Year of construction: 2003, INTOS Žebrák FN 20 Universal milling machine + accessories Manufacturer: INTOS Žebrák Type: FN 20 Condition: used Year of construction: 2003 Weight of the machine: 910 kg Dimension: - Length mm: 1690 - Width mm: 1270 - Height mm: 1175 Clamping surface of the vertical table: 216 x 680 Clamping surface of the angled table: 240 x 600 Width and distance of the T-slots mm: 12H8 x 45 0.1 Ksdpfx Afexwl R Hsfjnf Spindle diameter in the front bearing mm: 45 Spindle taper: ISO 40 Spindle speed: 18 RPM range: 50 - 2000 Feed rates : 18 Range mm: 8 - 400 Rapid feed mm/min: 1340 Movement of the headstock: - manually: 200 - independently: 190 Achieved by adjusting the holder Design mm: 42 Longitudinal table movement: - manually mm: 300 - independently mm: 290 Vertical movement of the table: - manually mm: 350 - independently mm: 340 Scope of delivery: - INTOS Žebrák FN 20 universal milling machine - accessories - operating instructions

Condition: good (used), – MK4 – Automatic feed – 56/2240 rpm Kodpfx Afjwmzqkofonf – Forward and reverse rotation – 200 mm throat – Lighting – 400V

Condition: ready for operation (used), Year of construction: 1997, functionality: fully functional, machine/vehicle number: HB32-287, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Station 1: Sawing Station 2: Drilling Station 3V: Drill Station 3H: Drilling Station 4: CNC Station 5: CNC Knedpfow Upuljx Affsf Station 6V: Threading Station 6H: Drilling Station 7: Turning (reversal) Station 8: CNC Turning (overturning) Station 9: CNC Threading Station 10: Drill Station 11: Drilling Station 12: No unit Station 13: CNC Station 14: Milling 45° Station 15: Drilling 45° Station 16: Drilling 45° MACHINE DETAILS Condition: Dismantled Storage since: August 2024 Connected load: 400 V, 40 kW EQUIPMENT - Loading magazine - Knoll chip conveyor - Knoll vacuum rotary filter VRF 500 - The machine is being sold without the black platform

Condition: used, Year of construction: 2013, Article: Rotary transfer machine Manufacturer: Pfiffner Type: Hydromat HB 32-45/16 CNC Yob: 2013 Electro-hydraulically controlled, fully automatic Extract from offer: Coolant system with chip conveyor and Knoll vacuum rotation filter High pressure pump 50 bar Second coolant ring Water cooler type 1600 Collets type B32-45 UP Control: Siemens Sinumerik 840D - CNC / S7-PLC incl. modem (for teleservice) 1 bar loading magazine type IEMCA: bundle loader (yob. 2011) 1 Sawing unit: Saw blade D250mm 2 Feed unit VE 26/80-HSK: Spindle stroke max. 80mm; spindle speed max. 7200 rpm; drive power up to 2.2kW; HSK 32 2 Vertical support 26/80 with 36° angular position 2 drilling head 26/80-HSK: HSK 32 Kodpfx Afsruvaqjfjnf 1 feed unit VE 36/100-HSK: spindle stroke max. 100mm; spindle speed max. 5430 rpm; drive power up to 2.2kW; HSK 40 4 Feed unit VE 36/100-HSK internal cooling: Spindle stroke max. 100mm; spindle speed max. 5430 rpm; drive power up to 2.2kW; HSK 40; central coolant supply 6 Drilling head 36/1000-HSK: HSK 40 2 CNC X-Y-Z turning device outside the collet disc: NC 26/100 pick-up unit; 2 deburring spindles 1 CNC horizontal cross slide 26100-HSK: X/Y stroke 1 CNC feed unit VE 36/100-HSK internal cooling: spindle stroke max. 100mm; spindle speed max. 5430 rpm; drive power up to 2.2kW; HSK 40; central coolant supply 2 CNC turning unit 50/100-PSK: with ES-PDK-12 facing head (slide-in 2 tool holders); Z-axis 100mm; X-axis 12mm; n max. 5000 rpm; 4kW 1 turning unit WDE 30/60 1 turning tube with insertion bar 3 chip breaker valve SBV-100 Tool monitoring Please, contact us for getting more information and pictures on mail(at) or *

Condition: used, TECHNICAL DETAILS - Posts number : 16 - Indexing time : 0,7 [s] - Max. bar diameter : 32 [mm] - Clamping type : collet VB 32 - Max. part length : 150 [mm] - Max. number of horizontal units : 16 - Max. number of vertical units : 24 - Max. number of all units : 24 - Electrical supply : 400 [V] - Installed power : 40 [kW] - Dimensions : 9,8 x 4 x 2,9 [m] - Weight : 6 500 [kg] EQUIPMENT - CNC SIEMENS Sinumerik 805 - Bar feeder HYDROMAT - 2 turning units CNC 2 axes - Band part conveyor - Chip conveyor - Lubricating tank Knedpjuhbwiefx Affof - Filtration

Condition: ready for operation (used), Length: 8225mm, width: 3200mm, with documentation. Knedji Ew Dpopfx Affjf

Condition: ready for operation (used), Year of construction: 2001, operating hours: 58,134 h, functionality: fully functional, machine/vehicle number: 25 03 - 01104608, turning length: 330 mm, turning diameter: 33 mm, rotational speed (max.): 8,000 rpm, feed length X-axis: 70 mm, feed length Y-axis: 225 mm, feed length Z-axis: 140 mm, Equipment and axis systems Turrets: 3 units with driven tools Gantry: 1 unit with driven tools C-axes: main and sub spindle with C-axis TECHNICAL DETAILS Turning diameter: 33 mm Turning length: 330 mm Number of axes: 17 Controller: SIEMENS 840D Main Spindle Working area – max. bar capacity: Ø 32 mm Headstock travel: 350 mm Spindle bore: Ø 37.5 mm Spindle drive – AC motor power (100/40%): 8 / 12.5 kW Max. spindle speed: 8,000 rpm Spindle movement: left and right Spindle Feed Max. feed rate: 18 m/min Torque: 10.5 Nm Max. speed: 3,000 rpm Max. thrust: 3,000 daN Turret Heads (3 units) Rotary drive: gear motor Torque: 25 Nm Hydraulic locking – force: 2,500 daN Number of stations: 8 Tool clamping: VDI 30 Number of rotating tools: 4 Tool speed: 7,500 rpm Drive Motor power (100/40%): 5.5 / 7.5 kW Direction of rotation: left and right C-axis: included Feed Feed rate: 30 m/min Rated torque: 10.5 Nm Max. speed: 1,500 rpm Max. thrust: 3,000 daN Cross-Slide X1 – U1 Number of cross-slides: 1 Cross-slide travel: 70 mm Max. feed rate: 18 m/min Rated motor torque: 6 Nm Knsdjwm I Ntepfx Affsf Max. motor speed: 3,000 rpm Max. thrust: 500 daN Rear Tool Slide Number of slides: 2 U1 Slide travel: 70 mm Y1 Slide travel: 225 mm Max. feed rate: 18 m/min Number of stations: 6 Tool section: 20 x 20 Max. thrust: 500 daN Rated torque: 6 Nm Number of rotating tool holders: 1 / 4 Motor drive: 8,000 rpm Motor torque: 4.2 Nm Max. speed single spindle ER32: 2,000 rpm – 12.6 Nm 1 modular double spindle ER20: 6,000 rpm – 4.2 Nm 1 modular double spindle ER20: 8,000 rpm – 3.2 Nm Cross-Slide Number of slides: 2 X2 cross-slide travel: 140 mm Z2 feed slide travel: 120 mm Max. feed rate: 18 m/min Max. thrust on X2: 500 daN Rated torque: 6 Nm Max. thrust on Z2: 900 daN Rated torque: 10.5 Nm Turret Slide X3 Number of slides: 1 Travel: 80 mm Max. feed rate: 18 m/min Rated motor torque: 6 Nm Max. motor speed: 3,000 rpm Max. thrust: 500 daN MACHINE DETAILS Supply voltage: 3 x 400 V – 50 Hz Total power consumption: 30 kVA Continuous sound pressure level at workplace – machine only: 76 dB(A) Machine Dimensions Machine weight: approx. 6 t Space requirement: approx. 3,850 × 2,000 × 2,100 mm Operating Data Operating hours: 58,134 h EQUIPMENT - Bar loader - Equipment and axis systems - Turrets: 3 units with driven tools - Gantry: 1 unit with driven tools - C-axes: main and sub-spindle with C-axis

Condition: ready for operation (used), Year of construction: 2000, functionality: fully functional, machine/vehicle number: HB32-571, Equipment: chip conveyor, documentation/manual, TECHNICAL DETAILS Number of CNC units: 8 Control system: Siemens Chip conveyor: Knoll Filter system: Vacuum rotation filter High pressure system: Combiloop Loading magazine: 3 m UNIT LAYOUT PLAN Station 1: Sawing Station 2: Drilling hydraulics Station 3 H: CNC turning Station 3 V: Drilling hydraulics Station 4: CNC turning Station 5: CNC turning Station 6 H: Drilling hydraulics Station 6 V: CNC turning Station 7: No unit Station 8: CNC turning Station 9: CNC turning Station 10: Drilling hydraulics Station 11: Drilling hydraulics Station 12: CNC turning Station 13: CNC turning Station 14: Milling Kedpfx Afowkd A Djfjnf Station 15: Drilling hydraulics Station 16: Drilling hydraulics EQUIPMENT - Pedestal - Declaration of conformity

Condition: good (used), Gear milling cutter, modular milling cutter, hob cutter, tooth form milling cutter, modular milling head, shell end mill, roller milling cutter, milling cutter, hob cutter, spline shaft hob cutter -Manufacturer: WMW PWS, 17 hob cutters -Hole: Ø 27 mm 4 pieces, Ø 32 mm 7 pieces, Ø 40 mm 6 pieces -Different types: see photos, more pictures can be sent -Price: complete -Dimensions: 400/400/H150 mm -Total weight: 52.5 kg Ksdegd Uv Depfx Affsnf
