Used Hydraulic Ramp for sale (16,664)

Condition: used, Technical details: pressure: 25 t distance between columns: 360 mm stroke: 500 mm daylight dimension : table/slide up: 800 mm throat: 360 mm ram stroke: 500 mm ram speed - forward: 0,200 m/s ram speed - reverse: 0,45 m/s Table dimensions: 630 x 500 x 71 mm passage inside table: Ø 182 mm surface area of ram: 450 x 360 mm mortise hole in ram: Ø 32 x 72 mm ram diameter: Ø 125 mm height over floor: 710 mm total power requirement: 12,5 kW weight of the machine ca.: 2,4 t dimension machine xH: 1,7 x 1,1 x 2,95 m Operation via two-hand control panel (and one-hand operation in set-up mode) Laedpfxou U D I Rj Afish Continuous and single stroke TÜV until 05/2024 *

Condition: used, Hydraulic machine vice, high-pressure clamp ARNOLD / FRESMAK Jaw width: 160 mm Jaw height: 50 mm Ljdpfx Ajxp R E Tjfisah Clamping force: 5 tons Clamping range: 0 to 305 mm Maximum opening: 308 mm Guideway height: 112 mm - 2 clamping ranges adjustable via locking pin, 0 to 158 and 148 to 308 mm - with rotary plate Dimensions (L x W x H): 580 x 325 x 165 mm Own weight: 65 kg Good condition

Condition: used, Year of construction: 1990, pressure 160 t stroke 200 mm throat 500 mm dayligth 500 mm table surface area 1140 x 980 mm table height over floor 860 mm ram surface 1000 x 800 mm oil volume 1000 l power requirement 50,0 kW Weight 18,0 t dimensions of the machine ca. 1,3 x 2,6 x 3,4 mxmxm hole in the table 180 mm Lajdpfx Ajwvva Ssfioh yom 1981 - modernization 1990 permitted for manual loading according to the German Safety Regulations (UVV) with oil-hydraulic drive, controllable dependent on pressure/time and way, hydraulic cutting impact cushioning, mechanical depth stop, two-hand operation can be offered without putting into operation or alternatively with new control Siemens S 7-1500 F

Condition: used, Year of construction: 2003, Technical details: Pressure: 60 t stroke: 400 mm table surface area: 700 x 700 mm passage opening in table: Ø 100 mm distance between columns: 700 mm distance between columns: 700 x 1300 mm table height over floor: 850 mm dayligth: max. 1150 mm daylight dimension : table/slide up: 400 - 800 mm cylinder diameter: Ø 110 mm total power requirement: 4,8 kW machine weight approx.: 930 kg dimension machine xH: 1,2 x 0,7 x 3,0 m HYDRAULIC DOUBLE COLUMN PRESS Special construction welded from 25 mm sheet steel Operating mode: single stroke Punch holder: pin M 70 x 2.5mm and punch Ø 128 x 440mm Ledpevrygiefx Afijah Table protection housing Round punch Ø 130 x 120 mm Hydraulic unit *

Condition: used, Year of construction: 1985, pressure 40 t stroke 500 mm throat 360 mm dayligth 1000 mm table surface area 630 x 500 mm table height over floor 1060 / 720 mm ram surface 450 x 360 mm feed down 60 mm/s feed up 300 mm/s Laodpfsvzxrpsx Afieh power requirement 7,5 kW Weight 2,75 t dimensions of the machine ca. 1,0 x 1,8 x 3,05 mxmxm hole in the table 200 mm permitted only for safe tools or fixed screen according to the German Safety Regulations (UVV) with oil-hydraulic drive, intermediate plate (height 340 mm) as is where is, WITHOUT putting into operation Price for commissioning (in given condition) on request

Condition: used, Technical details: tank capacity: - l overpressure : - bar motor: 1400 U/min total power requirement: 3,0 kW weight: 312 kg dimensions L x W x H: 1,05 x 0,67 x 1,94 m application use of hydraulic components operation pressure min/max.: 60/70 bar - nitrogen 54 bar - hydr. tank size L: 630 x W: 440 x H: 380mm with 100 Liter content * Lajdpfxju N E Nho Afieh

Condition: used, pressure 25 t stroke 500 mm throat 355 mm dayligth 800 mm table surface area 500 x 500 mm table height over floor 700 mm ram surface 250 x 250 mm power requirement 7,5 kW Weight 2,1 t dimensions of the machine ca. 1,45 x 0,9 x 2,55 mxmxm hole in the table 180 mm permitted only for safe tools or fixed screen according to the German Safety Regulations (UVV) Lodpfxovzxq Ss Afioah with oil-hydraulic drive as is where is, WITHOUT putting into operation, in given condition

Condition: used, Technical details: pressure: 160 t table surface area: 1.260 x 600 (vertical) mm table plate diameter: 1260 x 600 x 70 (vertical) mm ram surface area: 700 x 360 mm throat: 300 mm weight of the machine approx.: 9000 kg dimensions L x W x H: 3,7 x 1,5 x 2,2 m distance base - ram: 1.000mm mounted ram construction: L:660 x W:300 x H:370mm rollers 1x on the right and 1x on the left with vertical adjustment 250mm. (Ø 80x300mm) Lodpfx Aju Nfpujfijah *

Condition: used, Year of construction: 1998, pressure 315 t stroke 500 mm throat 425 mm dayligth 1000 mm table surface area 1200 x 815 mm table height over floor 800 mm ram surface 1100 x 700 mm feed down 48 mm/s feed up 330 mm/s Lsdpfevzxphex Afijah working feed 19 mm/s oil volume 1600 l power requirement 82,0 kW Weight 23,0 t dimensions of the machine ca. 2,4 x 2,8 x 4,0 mxmxm permitted for manual loading according to the CE-norm with oil-hydraulic drive, controllable dependent on pressure/time and way, light-guard at front (Sick), two-hand operation

Condition: used, Year of construction: 1997, Technical details: tube diameter: 4,75 - 8,0 mm wall strength: - mm bending radius min.: unterschiedlich, various, variada mm bending angle max.: 180 ° compressed air: min 4,5 bar Total power requirement: ca. 10 kW Weight approx.: 6,0 t dimension machine xH: 6,3x3,7x2,0 m dimensions electric cabinet: 1,8x0,5x2,7 m dimension control panel: 0,85x0,68x1,65 m fully automatic numeric control for bending of hydraulic supply pipes, car brake pipes various length - various numbers of bending possible (max. 100 bendings per pipe) - 2 independent bending module, every modul has 2 NC axis with functions: " longitudinal process (axis 1 and 3) and " turning of bending head" and bending (axis 2 & 4) - program memory for 250 pipes (lines) - the feeding unit consits of manual a manually filled drum magazine (drum magazine pipe dia.=4,75mm up to dia=8,0mm with 500/1000 pcs) - load swiveling arm Laedpfxou Ibuko Afioh - control panel Bundy GHF 60134 accessories: - div. single and add-on parts *

Condition: used, Year of construction: 1993, pressure 100 t throat 320 mm stroke 160 mm dayligth 480 mm table surface area 630 x 550 mm Ledpjvuuflsfx Afisah hole in the table 200 mm table height over floor 860 mm ram surface 560 x 450 mm oil volume 500 l total power requirement 30,5 kW weight of the machine ca. 6,4 t required space 1,6 x 2,0 x 2,9 m year of manufacture 1979 - overhaul 1993 permitted for manual loading according to the German Safety Regulations (UVV) with oil-hydraulic drive, controllable dependent on pressure/time and way, hydraulic cutting impact cushioning, mechanical depth stop, two-hand operation press can be inspected in running condition in our warehouse - can also be offered with new control on request

Condition: used, Year of construction: 1993, Technical details: sheet width: 3150 mm plate thickness: 13 mm distance between columns: 3670 mm Knife length: 3150 mm down holder: 18 Stück back gauge: motorisch 1000 height over floor: 850 mm operating hours: 3256 Table dimensions: LxB: 3770 x 500 mm total power requirement: 30 kW weight of the machine ca.: 12,9 t dimensions of machine: 4,4 x 2,8 x 2,4 m Lodpeu Icnfsfx Afijah Short stroke Continuous run Gap lighting Hydraulic sheet metal lifting device rear light curtain Positionable backgauge *

Condition: used, Year of construction: 1993, pressure 2 x 6,3 t stroke 307 mm throat 180 mm dayligth 900 mm table surface area 470 x 360 mm table height over floor 810 mm ram surface 45 mm feed down 137 mm/s feed up 33 mm/s working feed 540 mm/s Ledpfxsvut Rmj Afisah oil volume 140 l power requirement 3,0 kW Weight 1,5 t dimensions of the machine ca. 1,2 x 1,2 x 2,8 mxmxm permitted for manual loading according to the German Safety Regulations (UVV) with oil-hydraulic drive, controllable dependent on pressure/time and way, two-hand operation Press has 2 Press shafts - press force 2 x 6,3 t

Condition: used, Year of construction: 2004, Technical details: throat: 510 mm Laedpfx Aeu Ick Tsfish working pressure: 250 bar Punching capacity: 1000 kN t round bar steel: bis Ø 65 x 12 und bis Ø 90 x 8,5 mm electr. connected load: 400V / 50Hz total power requirement: 7,5 kW weight of the machine ca.: ges. 2,6 t dimension machine xH: 1,9 x 1,0 x 2,1 m dimensions L x W x H: Wkz.-Schrank: 0,7 x 0,35 x 0,9 m hydraulic section steel shear Heavy-duty, robust electro-hydraulic hole punch with large throat depth -Punching device: punch holder with punch quick-change device up to Ø 31 mm, stripper size L: 360 x W: 300 mm -Punching table: LxW: 360 x 300 mm, punching support 360 x 300 mm with adjustment device and die holder Ø 50 x 25 mm (equipped with die Ø 16 mm) Number of strokes: -with 10 mm stroke = up to 45 strokes/min. -with 30 mm stroke = up to 22 strokes/min. -with 50 mm stroke = up to 14 strokes/min. Punching stroke: min. 10 mm and max. 50 mm Stroke length and stroke position adjustable Equipped with punch Ø 16 mm Foot switch The punching capacities refer to a material strength of 400 N/mm². Accessories: Various punching tools Punches and dies i.D. *

Condition: used, Year of construction: 2000, pressure 25 t stroke 150 mm throat 420 mm dayligth 450 mm table surface area 700 x 820 mm table height over floor 850 mm ram surface 600 x 600 mm feed down 370 mm/s feed up 370 mm/s working feed 18 - 33 mm/s oil volume 300 l power requirement 5,5 kW Weight 5,8 t dimensions of the machine ca. 1,1 x 2,0 x 2,4 mxmxm permitted for manual loading according to the CE-norm with oil-hydraulic drive, controllable dependent on pressure/time and way, cutting impact cushioning, mechanical depth stop, two-hand operation Ledpfx Aovut N Nofioah

Condition: used, Year of construction: 2022, Technical details: Ljdpfxou N A Eao Afieah Pressure: 30 t stroke: 142,5 mm table surface area: 500 x180 mm passage opening in table: 500 x160 mm distance between columns: 1000 mm daylight dimension : table/slide up: 120 - 1020 mm machine weight approx.: 176 kg dimension machine xH: T: 0,8 x 0,8 x 1,8 m Simple hydraulic double column press - special construction welded from 20mm sheet steel. Table support with prism 260 x 205mm Lower beam installation height max./min.: 1031 / 151mm Table height above floor max./min.: 1290 / 300mm Vertical lower beam, adjustable, manual, 10 steps, 100mm distance between steps Plunger cheek Lifting cylinder Ø 63mm with plunger holder Trunnion bore Ø 25 x 25mm *

Year of construction: 1997, condition: used, Technical details: pressure: 250 t stroke: ca. 400 mm pass through width: 640 mm table above floor: 900 mm ram stroke speed: regulierbar/adjustable passage between the side columns: 470 mm table clamping surface LxW: 570x550 mm clamping area of ram: 570x550 mm Laodpfx Aeu Nfn Rjfijh total power requirement: 56 kW weight of the machine ca.: ca. 9,0 t dimension machine xH: 2,5x1,8x3,8 m transport dimensions LxWxH: 2,6x1,8x3,1 m - control manual and via automatic via SPS Allen Bradley - one hand and two hand control - ram guidance column, zero backlash - set up mode and automatic mode via SPS controlled - light curtain type "Sick" and safety curtains installed - no CE certification available i.D. *

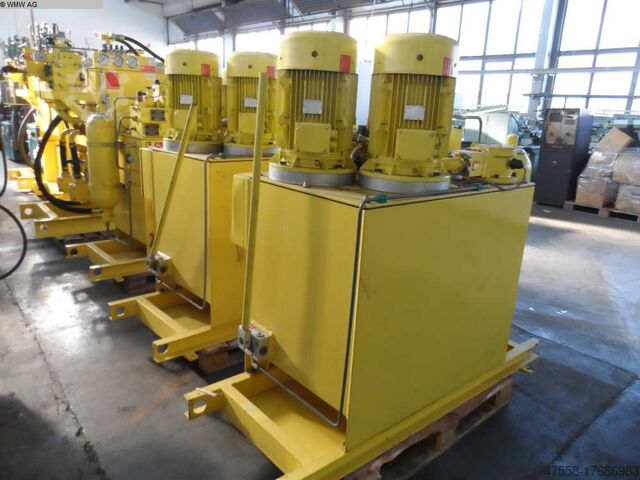

Condition: used, Technical details: feed pressure: 60 bar drive power: 22 kW liter capacity: siehe Typenschild l feed pressure: 50 bar drive power: 11 kW 5 hydraulic power units for sale. - 3 units with 60 bar and 22 kW (SA779/24 vane pump type PV2R3-66) - 2 units with 50 bar and 11 kW (SA 780/38) Laodpfx Aeu N Eriefioh Prices vary according to aggregate size. *

Condition: used, Year of construction: 2001, Technical details: pressure capacity: 145 bar charging voltage: 24 V / 12 V V weight: 185 kg Laodpeu N E Hgefx Afish dimensions L x W x H: 1,0 x 0,5 x 0,8 m Hydraulic pressure 145 bar Input 230 v / AC Output 12 V / 200A or 24 v / 100A *

Condition: used, Year of construction: 1991, Technical details: pressure: 40 t daylight dimension : table/slide up: 450 mm throat: 375 mm ram stroke: max. 300 mm Table dimensions: 900 x 500 x 85 mm passage inside table: Ø 120 mm Laedpfx Afeu Nfp Ijish height over floor: 900 mm total power requirement: 15,0 kW weight of the machine ca.: 5,8 t dimension machine xH: 2,3 x 1,45 x 2,40 m further technical data: -size of the ram plate W: 900 x D: 500mm -pivot hole in ram Ø 40 x 75mm -Hydraulics: tank capacity approx. 500Liter; operating pressure 275 bar; pump capacity 22,9 l/min. Two-hand operation and/or control panel *

Condition: used, Year of construction: 1960, Technical details: pressure: 10 t throat: 255 mm Lasdju Nfudepfx Afijh max. ram stroke: 400 mm ram speed - reverse: 0,180 m/sec. m/sec. ram speed - forward: 0,080 m/sec. m/sec daylight dimension : table/slide up: 630 mm daylight dimension : table/slide low: 230 mm table clamping surface:: 420 x 400 mm passage opening in table: 220 mm surface area of ram: 200 x 200 x 65 mm total power requirement: 1,6 kW weight of the machine ca.: 1,1 t dimension machine xH: 1,1 x 0,5 x 2,1 m

Condition: used, Technical details: tank capacity: 800 l overpressure : zul./max.=ca.100 bar motor: 5 weight: ca. 2,4 t Lodpfxju N Erve Afisah Hydraulic Pressure Storage Plant - aggregate= LxWxH=2,48x1,73x2,13m - oil tank :LxWxH=2,0x1,1x0,5m - 5 motors ( from 3,8 up to 66 kW) - coolant: nitrogen - 5 pumps iD. *

Condition: used, Technical details: Lajdpfju N E H Hox Afieh tank capacity: 17 l motor: 1380 Flow rate: 2,54 l / min pressure capacity: : 340 und Pw: 310 bar total power requirement: ca. 1,5 kW weight: ca. 21 kg dimensions L x W x H: 0,5 x 0,2 x 0,6 m 4x directional valve 1x pressure relief valve 2x pressure switch 1x pressure gauge 2x bubble accumulator *

Condition: used, Technical details: pressure: 100 t daylight dimension : table/slide up: 800 mm throat: 360 mm ram stroke: 500 mm ram speed - forward: 200 m/s ram speed - reverse: 200 m/s Table dimensions: 750 x 560 x 90 mm passage inside table: Ø 26 mm clamping surface ram: BxT: 530 x 400 mm mortise hole in ram: Ø 50 mm cylinder diameter: Ø 250 mm height over floor: 720 mm Ljdpfx Afjvc Ax Nsioah total power requirement: 17,0 kW weight of the machine ca.: 5,5 t dimension machine xH: 1,8 x 1,2 x 3,2 m

Condition: used, Year of construction: 1993, Technical details: sheet width: 3050 mm plate thickness: 6,0 mm distance between columns: 3460 mm no. of strokes: min./max.: 9 / 17 Hub/min back gauge: 750 mm (motorisch) mm cutting angle: 0,5° - 3,0° ° cutting gap adjustment: manuell mm down holder: 18 Stück (hydraulisch) Stück Table dimensions: 380 x 3100 mm total connected load: 7,5 kW weight of the machine ca.: 4,56 t dimensions of machine: L: 2,3 x B: 3,7 x H: 1,8 m Lajdpfsu Rni Hjx Afish Equipment: With side stop L: 1000 × W: 100 × H: 60 mm and stop bar 990 mm, with 8 supports Operation via control panel and foot switch Cutting zone lighting Stroke counter Machine feet *
