Used Frame Milling Machine for sale (70,063)

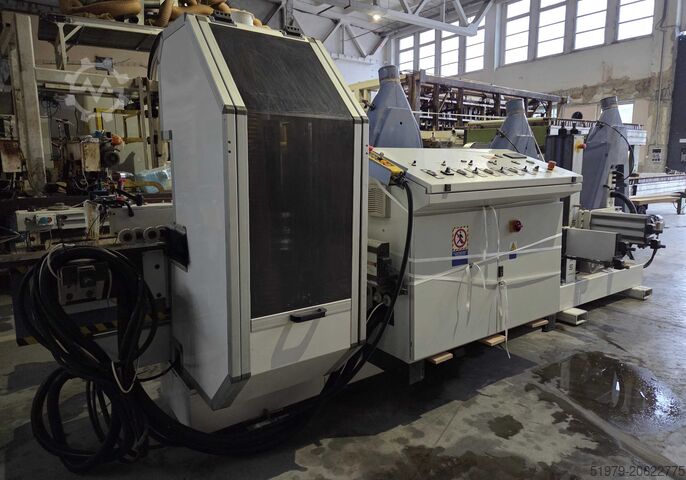

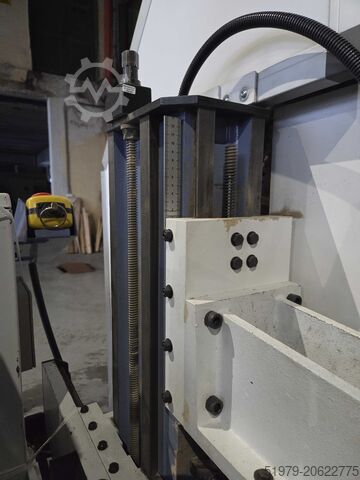

Year of construction: 1994, condition: used, Used machine Year of manufacture: 1994 Equipment and technical specifications: Working width: 300 mm Sanding belt oscillation: mechanical Roller guide: rubber-coated Sanding unit: with sanding shoe Feed speed: 2-stage Feed direction: reversible (forward/reverse) Motor start: star-delta Power supply: 380 V Weight: approx. 450 kg Availability: short-term Location: Baden-Württemberg Kljdpfoxq Ua Rsx Ah Njl

Condition: good (used), Year of construction: 2013, travel distance X-axis: 3,000 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 1,250 mm, GANTRY MILLING MACHINE The Techmill Laborshape (2013) is a large-capacity 5-axis machining center, primarily designed for high-speed machining of composites, resins, and light alloys—highly sought after in the aerospace and automotive prototyping sectors. CNC Control: The Siemens 840DSL with Shopmill is an industrial standard still relevant in 2026, ensuring straightforward maintenance and good compatibility with modern CAD/CAM software. Cutting Capacity: The HSK 63A taper is ideal for High-Speed Machining (HSM). Limiting use to 12,000 rpm (from 18,000 theoretical) has preserved the bearings and geometric accuracy. Kljdoyak Dxopfx Ah Nsl Key Benefit: The spindle reconditioning in 2023 is a crucial selling point, eliminating the main financial risk for a used buyer of a 13-year-old machine. Working Envelope: The travel dimensions (3000 x 2000 x 1250 mm) are highly sought after in aerospace and marine industries.

Condition: excellent (used), Year of construction: 1999, functionality: fully functional, Milling Machining Center - Vertical / Brand: DECKEL MAHO / Type: DMC 63V / Year of construction: 1999 The machine can be inspected by appointment under power. Well-maintained and very good functional condition. Spindle replacement: 18.03.2022 Spindle hours (03/13/2025): 51.206 h The machine has a Lehmann A-axis and counter bearing (as new). TECHNICAL DATA: Working area: - X-axis: 630 mm - Y-axis: 500 mm - Z-axis: 500 mm Feed/axis drives: - Advancing force X, Y, Z (100 % ED): 6.000 N - Feed rate: 0 - 30.000 mm/min - Rapid feed X, Y, Z: 30 m/min - Diameter ball screw/pitch (X, Y, Z): 40/20 mm Kjdpsv Nxbyjfx Ah Nell Positioning accuracy: - Pmax in X, Y, Z-axis to VDI/DGQ 3441: 0,015/0,010 mm (indirect/direct measuring system) Distance measuring system: - Input unit: 0,001 mm Working spindle: - Drive power (40/100 % ED): 13/9 kW - Torque (40/100 % ED): 83/57 Nm - Speed range: 1 - 10.000 rpm - Tool holder DIN 69 871-A: SK40 - Tool clamping force: 12.000 N Tool magazine: - Tool changing system: Pick-up - Number of magazine positions: 24 - max. Tool-Ø with vacant neighboring spaces: 80/140 mm - max. Tool length: 300 mm - max. Tool weight: 7 kg - Chip-to-chip time: 6,5 sec - Rotational speed/tool magazine: 47 rpm - max. Maximum loading weight of the tool magazine (24 x 3 kg): 72 kg Machine/Working table: - Clamping surface with T-slots DIN 650-14: 800 x 500 mm - Table load (set-up weight): 500 kg - Loading height: 850 mm - max. Workpiece height (at max. tool length): 240 mm EQUIPMENT: - CNC-Control: Siemens 810D powerline - Lehmann A-axis and counter bearing (as new) - Direct measuring system - Internal cooling through the spindle, 15 bar - Coolant system (emulsion) - Electronic hand wheel - Chip conveyor - Documentation - CE marking There is no guarantee for correctness and completeness of the technical details and accessoires. - Subject to prior sale -

Condition: good (used), Year of construction: 2008, Ref. -No.: 10621 Manufacturer: PAMA Type: Speedmat 3/TR16 Year of construction: 2008 Type of control: CNC Control: SIEMENS SINUMERIK 840 D PL Storage location: Halberstadt Country of origin: Italy X-Travel: 3500 mm Y-Travel: 2500 mm Z-Travel: 2200 mm W-Axis: 800 mm Bore Spindle Diameter: 160 mm Table Load: 12000 kg Table surface: 1600 x 2000 mm Tool Taper: ISO 50 BIG PLUS Kjdpfx Ajyagiksh Noll Turning Speeds: 3500 RPM Max. Torque: 2.765 Nm Rapid Travel X/Y/Z: 25000 mm / min Drive Capacity - Spindle Motor: 46 kW Internal cooling: 15 / 45 bar External cooling: 50 / 4 bar Spindle speed gear stage 1: 2.120 1 / min Spindle speed gear stage 2: 2.765 1 / min Further information: Automatic tool changer SK50 DIN 69871, 80 positions. Automatic angle milling head TS 35 with 360 positions, speed 2,000 rpm and torque 2,000 Nm. Automatic universal milling head TU25C (2-axis), speed 3,000 rpm and torque 800 Nm. Automatic accessory changer, 2+1 units. Touch probe (Renishaw). The machine can be inspected under power.

Condition: good (used), Year of construction: 1997, Ref. -No.: 10620 Kledoyagidopfx Ah Njl Manufacturer: SKODA Type: W 200 T Year of construction: 1997 Type of control: CNC Control: SIEMENS SINUMERIK 840 Storage location: Halberstadt Country of origin: Germany X-Travel: 16000 mm Y-Travel: 5150 mm Z-Travel: 1600 mm W-Axis: 2100 mm V-axis: 2000 mm B-Axis: 0 - 360 ° Spindle Diameter: 200 mm Table Load: 80.000 kg Tool Taper: SK 60 / SK 50 Turning Speeds: 1000 RPM Rotary table diameter: 3500 x 3000 mm Further information: Including angle head Machine can be inspected under power.

Condition: new, The Mark Super SV, part of the Conventional Vertical Milling Machines category, excels as a mill drill with robust capabilities. This versatile machine is perfect for a wide array of applications, including drilling and milling of steel and non-ferrous metals. With its motorized cutter head movement and hand-wheel for precise positioning, the Mark Super SV ensures that you can achieve accurate results every time. It features an infinitely variable feed on the X-axis, coupled with an automated depth display, making it ideal for both single-piece machining and small series production. The digital display provides critical information like spindle speed, enhancing operational efficiency and reducing error rates. Standard equipment includes a 3-axis position indicator and a 13 mm drill chuck, ensuring that you have everything needed for high productivity. After 15 years, the Mark Super SV remains a top choice for workshops and training departments. Request a quote today to explore the capabilities of this reliable mill drill in the Milling Machines category. Kjdsqcuc Eepfx Ah Nell

Condition: used, Year of construction: 2003, x-travel 4.000 mm y-travel 1.000 mm z-travel 1.500 mm control Heidenhain iTNC 530 spindle tunring speed 5.000 U/min tool taper SK 50 number of tool places 40 Pos. Number of working hours ca. 15.829 h In our assessment, the machine is in good used condition and can be inspected under power by appointment. Technical features & accessories: Klodpsxylqrjfx Ah Nel - Automatic swivel head with B-axis, infinitely variable - Internal coolant supply 20 bar - Air blower through spindle - Chip conveyor - Chip flushing Accessories, tools, and clamping devices shown are only included in the scope of delivery if this is noted in the additional information. Technical data and specifications are subject to change without notice. Prior sale reserved.

Condition: used, Radial drilling machine with plate field WEBO type HRH 100 / 3000 Machine. No. 10009555/7 -- 1110185 -- 6046 Year of manufacture 1979 Drilling capacity Ø 100 mm in ST 60 at feed rate 0.5 mm/rev. Nominal throat depth 3000 mm Max. throat depth max. 3100 mm Spindle holder MK 6 Klsdpfxofbt Hue Ah Njl Spindle speed 22.4 - 1600 rpm 36 steps Feed rate 0.05 - 2.5 mm/rev 18 steps Spindle - base plate distance 970 - 2335 mm Pinol stroke 325 mm Swivel range of the arm 360 movable on bed, bed length 7500 mm Clamping area panel field 8000 x 2100 mm - Electrical central clamping - Drilling unit can be moved lengthwise on the machine bed by electric motor - Panel field consisting of 2 clamping plates with 7x T-slot, (length 4000 x width 2100 x panel thickness 360 mm) Space requirement L x W x H 8000 x 4550 x 4300 mm Maximum height 4300 mm Transport height (bed with drilling machine) approx. 3150 mm Transport weight (bed with drilling machine) approx. 20 tons Transport dimensions of panel section L x W x H 4000 x 2100 x 900 mm (2 panels stacked on top of each other) Transport weight panel field approx. 14 ton. good condition

Condition: used, Radial drilling machine CSEPEL type RFh 75 / 1500 Machine no. No. 13704 Year of construction 1985 Drilling capacity in steel Ø 75 mm Drilling capacity in cast iron Ø 90 mm Spindle holder MK 5 Nominal throat depth 1500 mm Largest projection of the spindle 1500 mm (to the column) Smallest projection of the spindle 440 mm (to the column) Distance spindle nose - clamping surface 370 - 1700 mm Cantilever height adjustment 950 mm Klsdpolhwr Refx Ah Nsl Table size / clamping surface 1800 x 1100 mm Column diameter 450 mm Pinol stroke 380 mm Spindle speed 19-1900 rpm 21 steps Feed rate 0.047-2mm/rev. 12 steps Motor power 11 kW Mains connection 380 Volt, 50 Hz, 15 kW - Clockwise/anticlockwise rotation of the drilling spindle via hand lever switch - Hydr. gear shift for spindle speed and feed speed - Hydro-mechanical central clamping - Motorized boom height adjustment - Without coolant device - Machine light - Operating instructions Space requirement: Length 2720 mm x width 1170 mm x height max. 3770 mm Transport height with motor on the column: 3500 mm Transport height without motor on the column: 3250 mm Weight: 6.3 tons good condition

Condition: used, Box column drilling machine WEBO Series- No 132 Machine No: 9 Drilling capacity 50 mm Spindle cone MK 5 - long quill throat 430 mm spindle stroke 280 mm Height adjustment of drill head 500 mm Kodpfxeqa Txqo Ah Noll Table size Ø 725 mm Distance between drill spindle and table max. 740 mm Distance between drill spindle and clamping surface on machine base max. 1240 mm Spindle speed 55-820 rpm Feed rate level 1 0.13 - 0.2 - 0.27 - 0.4 mm/rev. Feed rate stage 2 0.6 - 0.83 - 1.17 - 1.8 mm/rev. Column diameter 300 mm Motor power 2.8 / 3.6 kW pole-changing Mains connection 380 Volt, 50 Hz - Spindle speed via 2 motor speeds and infinitely variable via variator - Manual drill head height adjustment via hand crank, clamping with clamping screws - Rotatable drill table with mechanical clamping - Table height adjustment via hand crank - Clamping surface on machine base 600 x 550 mm Top height of drill head 3020 mm Overall height drill head bottom 2520 mm Space requirement L x W x H 1400 x 780 x 2520 mm Weight 1600 kg good condition

Condition: used, CNC Universal Coordinate Drilling and Milling Machine FEHLMANN type PICOMAX 100-CNC 3 CNC control HEIDENHAIN TNC 155 make no. 16186651 year of construction 1986 spindle holder FEHLMANN SF32 drilling capacity Ø 30 mm in steel threading up to M20 in steel travel X: 850 mm, Y: 435 mm pinol stroke Z: 210 mm vertical movement milling head 580 mm Feed X and Y 1 to 8000 mm/min. Feed Z 1 to 4000 mm/min. Rapid traverse X and Y 8 m/min. rapid traverse Z 4 m/min. Table clamping surface 1570 x 500 mm distance spindle nose - table 130 - 720 mm projection spindle - column 450 mm Spindle speed 50 - 7100 rpm. Stepless spindle drive 10 kW Total connected power 20 kW Mains connection 400 Volt, 50 Hz - CNC control HEIDENHAIN TNC 155 with TFT monitor - 3 axes controlled, X, Y and Z pinol adjustment - hydro-mechanical tool clamping FEHLMANN SF32 - thread cutting device - cable remote control for machine operation and axis movements - motorized vertical movement of the milling head with shut-off via adjustable cams - 3D probe RENISHAW, type MP 11F with holder Fehlmann SF32 - 20 tool holders FEHLMANN SF32 - swivelling tool holder with 21 tool places - Coolant device in the machine column - control cabinet fixed to the machine - Documentation Operating manual, control manual and E-circuit diagrams space requirement L x W x H 2350 x 2000 x 2300 mm weight 3,2 ton. very good condition Klsdpjhik Ezsfx Ah Nsl

Condition: good (used), Year of construction: 1972, functionality: fully functional, overall weight: 1,200 kg, x-travel: 290 mm y-travel: 170 mm z-travel: 310 mm Millung spindle number of milling spindle turning speeds: 16 Kledpfx Asyaadnoh Nsl milling spindle turning speeds: 40 - 2000 U/min inner taper of milling spindle: ISO 40 max. diameter of the vice bore: 25 Vertical milling head inner taper of milling spindle: ISO 40 spindle turning speed range: 50 - 2.500 U/min max. diameter of the vice bore: 25 dimensions: 1.100 x 1.100 x 1.660 mm

Condition: good (used), Year of construction: 1972, functionality: fully functional, travel distance X-axis: 290 mm, travel distance Y-axis: 170 mm, travel distance Z-axis: 310 mm, spindle speed (max.): 2,000 rpm, spindle speed (min.): 40 rpm, overall weight: 1,200 kg, x- travel: 290 mm y-travel: 170 mm z-travel: 310 mm Klodpfeyaacwjx Ah Nsl Milling spindle number of milling spindle turning speeds: 16 milling spindle turning speeds: 40-2000 U/min inner taper of milling spindle: ISO 40 max. diameter of the vice bore: 25 mm dimensions: 1066 x 1048 x 1330 mm

Condition: used, Technical data: Working range X axis: 500 mm Y axis: 400 mm Z axis: 300 mm Work spindle Tool holder: ISO 40 Automatic feeds: 0.2 - 0.6 - 0.12 mm/min Spindle speeds: 20 - 4000 1/min, directly programmable Klodpfjqbq Ufjx Ah Nsl Feed range: X / Y / Z = 1 - 3000 mm/min Rigid table: 700 x 350 mm, 5 T-slots Fixed table: max. load capacity 250 kg Connection: 400 V Weight, approx.: 1900 kg Machine dimensions, approx.: 2400 x 1850 x 1850 mm Space requirement: 3200 x 4100 mm, height 1920 mm Features: - CNC control - Fixed table - Milling head swivels +/- 90 - Hydr. clamping device - Coolant device - Emergency stop button

Condition: refurbished (used), Year of construction: 2000, functionality: fully functional, travel distance X-axis: 2,000 mm, travel distance Y-axis: 800 mm, travel distance Z-axis: 800 mm, table width: 700 mm, table load: 3,500 kg, table length: 2,000 mm, total height: 2,700 mm, total width: 2,400 mm, total length: 3,700 mm, rotational speed (max.): 3,000 rpm, rotational speed (min.): 20 rpm, overall weight: 9,000 kg, power: 24 kW (32.63 HP), 🔹 Nicolas Correa CF17D Milling Machine – Undergoing Complete Overhaul in Our Saulnes Workshops 🔹 Are you looking for a reliable, high-performance milling machine professionally refurbished by experts? This Nicolas Correa CF17D is currently undergoing a comprehensive overhaul in our LMIR workshops and will soon be available for sale. 🔧 Work performed: • Head fully reconditioned with original CORREA bearings and gears replaced; • Complete mechanical overhaul; • Ongoing paintwork and cosmetic refurbishing: protective windows, guarding, aesthetic components; • Thorough cleaning and full technical inspection prior to delivery. 💡 It will be delivered with: • HEIDENHAIN TNC-410 CNC control; • Hydraulic tool clamping system; • Tool kit and complete technical documentation. 💡 Guaranteed precision and reliability—perfect for immediate return to production once refurbishment is complete. 📍 Available for viewing in our Saulnes (France) workshops – Visits by appointment. 📦 Delivery upon request. 📞 Contact us now to schedule a visit or to request further information. Photos after overhaul coming soon. Kledpoycdbpsfx Ah Nel 🔹 LMIR – Your partner in industrial machine tools for over 50 years 🔹

Condition: good (used), Hello, For sale: Coordinate drilling machine and universal milling machine, type 6T83-1. The machine is fully operational and in continuous use; inspection and testing on site are possible. Kledpfsxyi Stex Ah Nsl The price listed in the advertisement is net and is subject to VAT. The machine can be viewed in Starachowice, Kwiatkowskiego 13. Telephone contact available from 7:00 to 16:00.

Condition: good (used), Hello, For sale: Vertical milling machine FSS-400/1600. The machine is operational, in continuous use, and available for inspection. The listed price is net; VAT must be added. The machine can be viewed in Starachowice at 13 Kwiatkowskiego Street. Telephone contact available from 7:00 to 16:00. Kledpfx Ahsxyi U Ie Njl

Condition: good (used), Hello, For sale: Vertical milling machine FSS-315x1250. The machine is fully operational and in continuous use, available for inspection. The price listed in the advertisement is net; VAT must be added. The machine can be viewed in Starachowice at 13 Kwiatkowskiego Street. Phone contact available from 7:00 to 16:00. Kjdexykarjpfx Ah Njll

Condition: good (used), Hello, Ksdpfx Ajxykbioh Nell Universal milling machine FY-321 for sale. The machine is fully operational and in continuous use, with the possibility to test on site. The price stated in the advert is net and is subject to VAT. The machine can be inspected in Starachowice, at 13 Kwiatkowskiego Street. Telephone contact available from 7:00 to 16:00.

Condition: excellent (used), Year of construction: 2005, functionality: fully functional, travel distance X-axis: 2,000 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 1,100 mm, Rotary table 1,250 x 1,400 mm (interference circle 1,700 mm) Heidenhain 530 Diagonal milling head with 1° x 1° indexing Speed up to 5,000 rpm Tool holder SK50 Tool changer with 40 positions Internal coolant supply with 19 bar Chip conveyor in longitudinal direction Kledpfx Ajx Iuccjh Nol

Condition: used, Year of construction: 1993, 2 pallet changers and 4th axis Year of manufacture: 1993 X-travel: 1,020 mm Y-travel: 560 mm Z-travel: 400 mm Table-to-spindle distance: 550 mm Control: Yasnac M80 Table size: 1,200 x 660 mm 2 pallets: 1 pallet with 2 Chick clamps – 1 pallet with 4th axis Tsudakoma RNCV201 Table load: 600 kg Tool holder: SK 40 Rapid traverse X-Y axes: 25,000 mm/min Rapid traverse Z: 15,000 mm/min Spindle speed: 200–20,000 rpm Motor power: 11/15 kW Tool magazine: 40 Internal coolant supply: 20 bar Coolant tank Timer Scraper conveyor Renishaw probe Kjdpfx Aswxbg Ash Njll Spindle cooler Air cooler Electronic handwheel Machine weight: 9 t Required space: approx. 7 m x 4.5 m x 2.85 m Total power requirement: 40 kVA

Condition: new, Year of construction: 2024, functionality: fully functional, FIVE STAR THM-460 Horizontal dual-head milling machine with indexing axis Ideal machine for milling and chamfering P-plates for toolmaking from 4 sides in one clamping. Basic technical equipment: Control system - FANUC 0i-MF - User-friendly touch screen, 10.4" color display - Dialog-supported data input Machining capacities - Workpiece length min./max.: 20 - 460 mm - Workpiece width min./max.: 20 - 460 mm - Workpiece height min./max.: 12 - 150 mm (opt. 180 mm) - Workpiece corner chamfer Cmax.: 10 mm Travel paths - X-axis (machine table): 620 mm - Y/Z-axis (infeed axis/headstock): 330 mm / 330 mm Drive power of the axes - X-axis motor: 2.5 kW - Y/Z-axis motor: 1.4 kW - B-axis motor: 1.4 kW Speeds - Rapid traverse X (machine table): 15 m/min - Rapid traverse Y (infeed axis): 10 m/min - Rapid traverse Z (headstock): 10 m/min - Manual feed: 0 - 1,500 mm/min - Automatic feed: 0 - 5,000 mm/min Main spindles - Two horizontally opposed milling spindles, designed for heavy-duty cutting - Drive type: Belt drive - Speed range: 100 to 1,000 min-1 each - Drive power: 11 kW each - Spindle interface: 2" / Ø50.8 mm each - Oil-cooled with separate spindle oil cooler (optional) Tools (standard) - Cutter head: Ø160 mm (opt. Ø200 mm) Note: Tools not included in the standard scope of delivery! Rotary axis (B-axis) - Indexing: (standard 5° pitch) - Indexing angle: 0°, 45°, 90°, 135° and 180° (for 2-sided machining) - Table size: Ø320 mm - Max. Max. load: 320 kg Workpiece alignment - 90° stop for easy positioning of the workpieces by the operator - Automatic measuring unit for detecting the workpiece position Guides - X-axis: Linear roller guide - Y-axis: Flat guide, TURCITE-B coated - Z-axis: Flat guide, TURCITE-B coated - 2 chip spirals (left and right) in the machine - Automatic spiral chip conveyor Miscellaneous - Central lubrication oil / air - Switch cabinet with heat exchanger - Machine sheet metal partial cladding - Support work table - Hand tool box - LED work light - 3-color warning light - CE declaration of conformity according to European directives Machine dimensions and weight Klsdpfxjvi I Nmj Ah Nel - Machine size: 2,800 x 3,410 x 2,200 mm - Machine weight: approx. 7,500 kg Spindles - Power-Up spindle motor 15kW - Spindle interface 1-7/8" each, suitable for face cutter head Ø200 mm arbor diameter: Ø47.625 mm tools - Face cutter head Ø200 mm, MAROX-Tools Taiwan Type: SE545R/L0810, DC200 Rotary axis (B-axis) - Indexing axis, 5° increments, standard option Indexing angle: 0°, 45°, 90°, 135° Table size: Ø320 mm Max. Load capacity: 320 kg Compressed air, coolant and chip management - Chip compressed air nozzle, 1 piece each, external to the spindles, standard option (metal compressed air articulated tube) - Coolant system with separate cooling lubricant tank and low-pressure pump, as well as paper filter, tank capacity: 600 liters Filter capacity: 80 l/min. - Chip spirals (left and right) in the machine, standard option - Automatic hinged belt chip conveyor

Condition: excellent (used), Year of construction: 2014, functionality: fully functional, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,700 mm, travel distance Z-axis: 1,500 mm, Heidenhain 530 Diagonal milling head with 2.5° x 2.5° indexing Spindle speed up to 6,000 rpm Kljdox I A Hvjpfx Ah Nsl Tool holder SK50 Internal cooling with 36 bar Longitudinal chip conveyor + cross conveyor

Condition: good (used), Year of construction: 2003, functionality: fully functional, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,270 mm, travel distance Z-axis: 1,500 mm, Heidenhain 530 Diagonal milling head with 2.5° x 2.5° indexing Spindle speed up to 4,000 rpm Kjdpex I A Hiefx Ah Nsll Tool holder SK50 Internal coolant supply with 22 bar Longitudinal chip conveyor

Condition: excellent (used), Year of construction: 2018, operating hours: 19,394 h, functionality: fully functional, machine/vehicle number: 2522027, travel distance X-axis: 2,500 mm, travel distance Y-axis: 2,200 mm, travel distance Z-axis: 1,250 mm, total length: 5,900 mm, table length: 2,500 mm, table width: 2,500 mm, total width: 6,139 mm, total height: 5,980 mm, rapid traverse X-axis: 60 m/min, rapid traverse Y-axis: 60 m/min, rapid traverse Z-axis: 50 m/min, distance between stands: 3,225 mm, table load: 4,000 kg, workpiece weight (max.): 16,000 kg, rotational speed (min.): 1 rpm, rotational speed (max.): 15,000 rpm, distance table center to spindle nose: 1,500 mm, tool weight: 8,000 g, Equipment: rotational speed infinitely variable, Control: Heidenhain TNC640 Number of controlled axes: 5; simultaneous Commissioned: 2019 Spindle run time (h): 12,629 Tool holder: HSK 100 Tool changer: 30 positions Linear motor Kedpfx Ahexx Svxo Noll Internal coolant supply (IKZ): 65 bar incl. chip conveyor incl. special operator panel
