Used Elumatec End Milling for sale (105)

Condition: excellent (used), Year of construction: 1997, functionality: fully functional, Cutter diameter max. 280 mm Cutter bore 40 mm Manual feed Profile height max. 200 mm Milling area: Ledowpchvopfx Af Eeru Length 400 mm Depth 110 mm Height up to 150 mm Power 2.5 kW at 400 V/50 Hz Spindle speed 2,800 rpm Compressed air connection 7 bar Air consumption 10 l per cycle, with minimal quantity lubrication 20 l Length 1,540 mm, Depth 905 mm, Height 1,200 mm, Weight 248 kg

Year of construction: 2007, condition: used, functionality: fully functional, Equipment: CE marking, For Sale: Elumatec SBZ 122/10-30 CNC Profile Machining Centre (2007) The Elumatec SBZ 122/10-30 is a reliable and versatile CNC machining centre designed for processing aluminium, PVC, and thin-walled steel profiles. This 2007 model offers precise 3-axis CNC control combined with a rotating angle head, allowing machining on five sides of the profile without repositioning. With its robust construction, proven Elumatec technology, and automatic tool changer, the SBZ 122/10-30 remains a valuable machine for window, door, façade, and general profile machining applications. 🔧 Technical Specifications Year of manufacture: 2007 Axes: 3 CNC-controlled (X, Y, Z) Working range: X-axis: approx. 3,850 mm Y-axis: approx. 350 mm Z-axis: approx. 280 mm Max profile length: Without end machining: approx. 3,750 mm With end machining: approx. 3,650 mm Spindle power: ~6 kW (S6) Spindle speed: up to 21,000 rpm Tool system: HSK-F63 Tool changer: 4 positions + angle head (5 tools total) Accuracy: ±0.1 mm 📐 Dimensions & Weight Machine dimensions (L × W × H): approx. 4,600 × 3,230 × 2,420 mm Weight: approx. 1,690 kg 💻 Control PC-based CNC control (Windows environment) Programming via Elusoft Lsdpfx Aew Syy Tef Eeru Automatic clamping system for secure and flexible profile positioning ✅ Highlights: Five-sided machining without manual repositioning Automatic tool change for increased efficiency Suitable for aluminium, PVC, and light steel applications Trusted Elumatec design with long-lasting performance

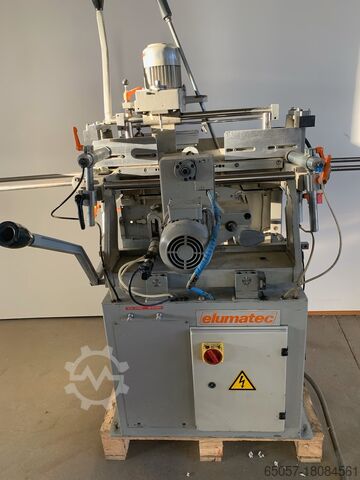

Condition: excellent (used), Year of construction: 1998, functionality: fully functional, machine/vehicle number: 20496, Large cutting range despite compact design Copy routing using side stops or templates at a ratio of 1:1 Pneumatic tracer point with two levels for two different cutter diameters Our patented copy lever suspension ensures precision routing with a minimum of effort The table height is adjustable to accommodate very high profiles of up to 400 mm The “Spindle Lock” feature makes tool changing easy Pneumatic material clamping unit Pulsed coolant system Horizontal cutting range using a stop 300 x 120 mm Horizontal cutting range using a copy template 285 x 110 mm Spindle speed 12,000 rpm Clamping range for profiles 150 x 130 mm, adjustable up to 400 mm Travel 105 mm Power supply 230/400 V, 3~, 50 Hz Power output 0.74 kW Compressed air supply 7 bar Air consumption per working cycle 12 l without spraying, 24 l with spraying Length 780 mm, depth 790 mm, height 1,545 mm, weight 210 kg Lredjxmux Espfx Af Esu -New spindel bearings -Machine is operation ready -Shipping possible

Year of construction: 1995, condition: excellent (used), functionality: fully functional, Elumatec KF 78/23 – 2-Spindle Copy Router Professional milling machine for aluminium, plastic, and light metal profiles Horizontal machining area (with stop): 300 × 100 mm Horizontal machining area (with copy template): 270 × 70 mm Horizontal travel: 80 mm Vertical machining area (with stop): 290 × 100 mm Vertical machining area (with copy template): 230 × 70 mm Vertical travel: 120 mm Lsdpoxl Hp Tsfx Af Eoru Spindle speed: 12,000 rpm Profile clamping range: 150 × 150 mm Motor power: 0.74 kW Power supply: 230 / 400 V, 3-phase, 50 Hz Compressed air connection: 7 bar Air consumption per cycle: approx. 12 l (without cooling), 24 l (with spray operation) Machine dimensions (L × W × H): 940 × 1,150 × 1,600 mm Weight: approx. 260 kg

Condition: good (used), functionality: fully functional, Elu AS 70 with roller conveyers. Ledow Nxcuspfx Af Esru

Condition: used, Transport 300 Eur Lrodpfjwna Rxex Af Eeu

Condition: used, Copy milling machine, copy milling machine, hand lever milling machine, hand lever milling machine, single spindle copy milling machine -Manufacturer: Elu, copy milling machine type AS 70 -Travel path: manual X//Y 230/80 mm -Stop depths: see photos -Workpiece clamping: pneumatic -Coolant device -Dimensions: 600/520/H1280 mm Ljdpfxep Swvke Af Eeru -Weight: 111 kg with pallet

Condition: excellent (used), Year of construction: 2024, operating hours: 193 h, functionality: fully functional, travel distance X-axis: 7,200 mm, travel distance Y-axis: 480 mm, travel distance Z-axis: 340 mm, cutting width (max.): 335 mm, workpiece length (max.): 6,000 mm, milling spindle speed (max.): 6,000 rpm, section length (max.): 6,000 mm, TECHNICAL DETAILS - Profile Milling Machine Processing length: 7,200 mm Number of axes: 4 Control: eluCAM graphical, Windows XP user interface Lrjdpjwprmzefx Af Eju Workstations: 2 independently operating stations Turret tool changer: 8 tools, servo motor driven Tool holder: BT 30 Disc mill diameter: 180 mm Tool length: 150 mm (from point of attachment) Travel distances Travel X-axis: 7,200 mm (without end-face processing), 7,080 mm (with end-face processing) Travel Y-axis: 480 mm Travel Z-axis: 340 mm Rapid traverse X-axis: 60 m/min Rapid traverse Y-/Z-axis: 30 m/min Positioning accuracy: ±0.1 mm/m Spindle Milling spindle speed: 1 to 6,000 rpm Milling spindle power: 6.0 kW Supply Air connection: min. 7 bar Air consumption: 100 l/min Electric connection: 400 V, 3~, 50 Hz, 35 A EQUIPMENT two independent workstations with light barrier and camera system Non-swiveling inclined milling head for 2 tools, Er20A, up to 18,000 rpm Inclined milling head swiveling 4 × 90°, Er20, up to 22,000 rpm Inclined milling head non-swiveling for steel, Er20A, 1,554 rpm Fixed saw head i=1:1, for D=300 mm saw blade, suitable for 90° cross cuts Carbide saw blade Z=100, D=300 mm, cutting width 3.2 mm Tool holder i=1:3.86 for 18,000 min⁻¹, ER25 Cooling/lubricating unit for steel processing Disc milling holder BT30, D=16 mm Disc cutter D=92 × 6 mm, Z=14, D=16 mm, carbide teeth TECHNICAL DETAILS - Double Mitre Saw Max. cutting length: 6,000 mm Min. cutting length at 90°: 335 mm Min. cutting length at 45°: 335 mm Saw blade diameter: 420 mm Cutting angle (rotation): pneumatically adjustable 90° and 45° inside, intermediate angles and 22.5° acute manually adjustable with digital display Cutting angle (tilt): pneumatically adjustable 90° and 45° inside Saw direction: saw blades move from bottom to top Control Control type: E580/1 Length adjustment: automatic with positioning control Saw blade tilt: pneumatically automatic between 90° and 45° Positioning accuracy: ±0.1 mm/m Positioning: pneumatic locking Operating system: Windows Saw unit Speed: 2,800 rpm Power per motor: 4,000 W (5.5 HP) Saw blade cooling: available Air consumption per cycle without cooling: 40 l Air consumption per cycle with cooling: 64 l Supply Electric connection: 230/400 V, 3-phase, 50 Hz Air connection: 7 bar Dimensions and Weight Length: 7,550 mm Width: 1,600 mm Height: 1,450 mm Weight: 1,750 kg EQUIPMENT Automatically closing protective covers Electronic positioning of the heads with +/- 0.1 mm/m accuracy Digital angle display for manually adjustable special angles Pneumatically adjustable saw blade rotational and tilt angles Operation via Windows control with 8.4" display and handwheel Cooling system for saw blades included Saw unit with bottom feed for optimal cutting force

Condition: excellent (used), Year of construction: 2020, functionality: not functional, machine/vehicle number: 222100410, milling height: 150 mm, spindle diameter: 280 mm, milling length: 400 mm, milling spindle speed (max.): 2,800 rpm, No reserve price - guaranteed sale at the highest bid! For milling transom and door profiles made of aluminum and PVC TECHNICAL DETAILS Milling height: max. 150 mm Milling depth: max. 110 mm Milling length: max. 400 mm Profile height: max. 200 mm Milling cutter diameter: max. 280 mm Material stop swivel range: up to 60° to the right and left Drive Milling motor: 2.5 kW Speed: 2,800 rpm Ledpfx Aowaa Syjf Eoru MACHINE DETAILS Maintenance has been performed by the manufacturer

Condition: good (used), Year of construction: 2009, functionality: fully functional, machine/vehicle number: 122009984, travel distance X-axis: 3,850 mm, travel distance Y-axis: 350 mm, travel distance Z-axis: 280 mm, rotational speed (max.): 24,000 rpm, number of slots in tool magazine: 8, No reserve price - guaranteed sale at the highest bid! For milling, drilling and thread cutting work on aluminum, PVC and thin-walled steel profiles for applications in window, facade and metal construction! CONDITION Spindle: New bearings Frequency converter: Recently replaced Tool change: Automatic tool change requires a new sensor - little effort TECHNICAL DETAILS Areas of application: Aluminum, PVC and steel processing Software/control: PC-based EluCam software Processing area X-axis travel: 3,850 mm Y-axis travel: 350 mm Z-axis travel: 280 mm Feed rates (rapid traverse) X-axis: 60 m/min Y-axis: 30 m/min Z-axis: 30 m/min Spindle Power: 7 kW Max. speed: 24,000 rpm Tool holder: HSK-F63 angle head (as new, hardly used) Tool changer Type: Automatic tool changer Places: 8 Vices Lredjvyg Szspfx Af Eju Number: 12 pneumatic double vices Safety equipment Included: light barrier and safety fence MACHINE DETAILS Machine weight: approx. 2,000 kg Dimensions: approx. 5.1 x 3.4 x 2.6 m

Condition: excellent (used), Milling and copying machine Elumatec type KF 78/60 Ljdpevi R Avsfx Af Eeru shipping EU - 300 euro

Condition: excellent (used), Shipping EU 300euro Ljdpol Sklgefx Af Esru

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, machine/vehicle number: 1500050123, rotational speed (max.): 18,000 rpm, working length: 12,000 mm, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Max. speed: 18,000 rpm Machining length: 12 m Pneumatic collets: 20 pcs MACHINE DETAILS Electrical data Voltage: 400 V Phases: 3 ~ Frequency: 50 Hz Current draw: 76 A Lsdpjxnz Ivsfx Af Esru Operating pressure: approx. 8 bar EQUIPMENT Automatic tool changer Angle head

Year of construction: 1999, condition: used, Used machine Year of manufacture: 1999 Large milling area despite compact design Copy milling using lateral stops or templates at a 1:1 ratio Pneumatic copy pin, two-stage, for two different cutter diameters The patented suspension of the copying lever ensures precise milling with minimal effort Table height adjustment for extremely high profiles up to 400 mm Easy tool change via spindle lock Pneumatic material clamping device Ledjxqihiepfx Af Ejru Metering spray unit Options: Copy templates milled for standard handle holes and PZ milling Copy pin Collet chuck Stop system Material clamping device with 2 clamping cylinders Milling cutter 8 mm Availability: short-term Location: Flörsheim

Condition: used, Year of construction: 1994, Cutting length scale up to 5000 mm, saw blade 420 mm, roller conveyor 1500 mm Lsdsw Sadrepfx Af Ejru Storage location: customer

Condition: refurbished (used), Year of construction: 2024, Overhauled: 2024 Control: SPS Siemens S7 Saw blade max: 500 mm motor power 4,0 KW Saw blade feed: 0-40 mm/ s continuously adjustable Saw height control electronic Working range square 90° max.: 130 x 130 mm Working range flat 90° max.: 190 x 130 mm Working range round 90° max.: 170 mm The machine has been completely overhauled in our company and is in mint condition. Among other things, the following points were renewed: Conversion to Siemens S7 PLC control Conversion to Siemens HMI user interface Conversion to pusher with servo control New electrical components New pneumatic lines New pneumatic components Conversion to valve terminal Optimization of the suction capacity New minimum lubrication system Replacement of general wear parts Overhaul of the cab Lrodpfx Aouiy Ngjf Eeu The machine also has Minimum quantity lubrication Splitting extension (for a high-quality cutting surface without return marks) Pre-loading magazine for gentle handling of painted/anodized surfaces Offcut ejector in the pusher Foldable offcut tray Optional: Magazine width 3000mm Pusher length 6000mm Pusher length 8000mm Reinforced motor 5.5 kW Mass clamping device for parallel sawing of several workpieces Online support connection Delivery and installation on your premises Training of your employees

Year of construction: 2016, operating hours: 10,900 h, condition: excellent (used), functionality: fully functional, The machine is in very good condition and fully operational. We don't need it anymore so it is for sale. It is regularly maintained. Dismantling and load on truck are included in price. Some other informations: 4-axis profile machining centre Designed for flexible and efficient machining of aluminium Autonomous clamp positioning Max. working lenght: 7.600 mm 8 pneumatic clamps Tool magazine with 8 tools capacity Spindle working hours 5100h Additional tehnical specifications available on request Lrodpfxswwtylj Af Eeu

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, CNC Bar Machining Centre | elumatec SBZ 130 - 8-position tool changer turret with driven tools Lrsdpfx Afoxn Scwo Esu - Material support with automatic clamping system - Operator console with touch panel - Separate Rittal control cabinet with cooling unit - Safety enclosure with SICK light curtain system Inspection is possible at any time by appointment. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - #Tags: elu | SBZ | Bar Machining Centre

Condition: good (used), Year of construction: 2008, functionality: fully functional, Technical information – Elumatec DG 244/2 year 2008 Control unit model: E355 Main electrical connection: 3/PEN/400V - 50 Hz Power consumption: 12.8 kW Additional information Advantages of the machine Technical advantages of the machine: Lrjdpfx Asw A Iubsf Eju - Saw blade diameter: 550 mm - Saw blade speed: 2,800 rpm - Compressed air supply: 7 bar - Weight: 1,850 kg Machine can be inspected in operation in department 76 Available from week S38/S39 Price includes loading

Condition: excellent (used), Year of construction: 2016, operating hours: 1,395 h, functionality: fully functional, machine/vehicle number: 1400040877,  4-axis (X, Y, Z, A) center,  For economical and efficient machining of aluminum profiles and thin-walled steel profiles,  Version with air-cooled milling spindle,  All machining processes such as milling, drilling and threading take place on a stationary profile,  Smooth machining using all tools,  Simultaneous tool magazine ensures short tool change times and, as a result, optimal machining cycles,  Magazine can be equipped with eight tools,  Windows operating system  Machine equipped with eluCam program Lrsdpfxjuc U S No Af Esu  Max. length of machining fields with front machining: 4200 mm  Max. length of machining fields without front machining: 4320 mm  Automatic length measurement on both sides,  Barcode reader,  Stationary tool magazine (8 slots),

Condition: refurbished (used), Year of construction: 2024, Manufacturer: Elumatec Type SA/ SAS 142 Overhaul year: 2024 Saw blade max. carbide: 500 mm Drive power saw motor: 4 KW Saw motor speed: 2800 min-1 Cutting speed saw blade 500 mm: 4400 m/min Saw height control: infinitely variable, fully electronic Working range square 90° max.: 130 x 130 mm Working range flat: 90° max.: 190 x 130 mm Working range round: 90° max.:150 mm Pneumatic feed length: 5-560, 10-1120 mm Compressed air connection, on site 6 bar Weight(saw)approx.: 800 kg Dimensions LxWxH (saw)approx.:2900mm x 1400mm x 1500mm Installation area LxW: 2900mm x 1400mm Additional description Elumatec SA/ SAS 142 4KW Retrofit Elumatec SA 142 4KW Retrofit Fully automatic sawing machine for non-ferrous metal and plastic After completion of the retrofit, the machine is in mint condition, both technically and visually. The machine will be overhauled in our company at the customer's request. Among other things, the following Ledpfx Afjuiy Nyj Ejru points were renewed: - Conversion to Siemens S7 PLC control - Conversion to Siemens HMI control panel - New electrical components - New pneumatic lines - Maintenance or replacement of all pneumatic cylinders and valve terminals - Maintenance of minimum lubrication system - Replacement of general wear parts - Overhaul of the cab Warranty: Unless otherwise agreed, we provide a 6-month warranty on all parts overhauled or replaced by us. Working time and wearing parts are excluded from the warranty. Optional: - Extension of the sawing area to flat 90° max.: 300 x 120 mm - Splitting extension (for a high-quality cut surface without return marks) - Servo-controlled material feed - Saw blade feed Servo-controlled - Mass clamping device Feed vice - Delivery and installation on your premises - Training of your employees

Year of construction: 2007, operating hours: 4,100 h, condition: good (used), functionality: fully functional, The machine is not more needed for our production and therefore its for sale. The machine is in our ownership from 2007 and it is regularly maintained. Everything works normal. Dismantling and load on truck are in price. Lodpfxewwtw Dj Af Ejru Some more informations: 5-axis profile machining centre Designed for flexible and efficient machining of aluminium Autonomous clamp positioning Max. working lenght: 9.300 mm 12 pneumatic clamps Tool magazine with 20 tools capacity and saw blade 500mm Spindle working hours 4100h Additional tehnical specifications available on request

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, CNC profile machining centre | elumatec SBZ 131 - 8-position tool turret with driven tools - Material support with automatic clamping system - Operator panel with touchscreen - Separate Rittal control cabinet with cooling unit - Mesh enclosure, SICK light curtain system An inspection is possible at any time by appointment. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Lodsxn Sbmopfx Af Eoru #Tags: elu | SBZ | profile machining centre

Year of construction: 2006, condition: good (used), functionality: fully functional, Technical Specifications - Elumatec SBZ 122/20 Year 2006 16KW General Data Measurement width: 4622.8 mm Measurement depth: 1828.8 mm Measurement height: 2489.2 mm Machine weight: 1814.9 kg Main Drive Spindle speed range: 21,000 rpm Lrodjw A Ipfjpfx Af Eou Spindle motor power: 8.5 HP Axis Travel X-AXIS Travel: 3777 mm Y-AXIS Travel: 350.5 mm Z-AXIS Travel: 279.4 mm Machine can be seen in operation in department 76 Available from week S38/S39 Price includes loading

Condition: excellent (used), Year of construction: 2007, functionality: fully functional, CNC Profile Machining Centre | elumatec SBZ 610 - Power: 30 kW Lsdpfexn Nfcsx Af Ejru - Control: Beckhoff CP7032 - with material feed, automatic end stop, downstream material buffer An inspection is possible at any time by appointment. #Tags: elu | SBZ | Profile Machining Centre
