Used Centre Grinding Machine for sale (92,321)

Condition: good (used), Year of construction: 2008, functionality: fully functional, grinding wheel diameter: 508 mm, total height: 2,500 mm, total width: 3,000 mm, total length: 4,000 mm, overall weight: 8,000 kg, TECHNICAL DATA & EQUIPMENT: Operating voltage: 400 V Frequency: 50 Hz Rated current: 82 A Connection: 17 kVA Max. grinding wheel speed: 63 m/s Incl. loading system NOTES ON COLLECTION: Lredpfxexni Tys Af Eou Collection must take place bindingly between December 10th and 12th FCA Winterlingen, loaded onto truck

Condition: good (used), Year of construction: 2006, functionality: fully functional, grinding length: 4,000 mm, Main Technical Features Technical / Dimensional Data Max. swing diameter over bed: 900 mm Max. grinding diameter (with new wheel): 820 mm Max. grinding length: 4000 mm Max. static workpiece weight on steadies: 3,000 kg Max. workpiece weight in chuck: 300 kg (max. overhang 250 mm from spindle nose) External grinding wheel dimensions (Ø × width × bore): 915 × 100 × 305 mm Peripheral speed of grinding wheel: 45–60 m/s Plunge grinding feed rate roughing: 0.5–50 mm/min Plunge grinding feed rate fine: 0.001–0.01 mm/min Longitudinal grinding feed rate roughing: 0.01–0.05 mm/min Longitudinal grinding feed rate fine: 0.001–0.01 mm/min Machine length: 9,200 mm Machine width: 3,800 mm Machine height: 2,630 mm Total weight (approx.): 25,800 kg Max. noise level with motors running: 80 dB Workhead Centre angle: 60° Quill taper: Morse 6 Spindle mounting: ASA 6 Spindle motor power (S1): 22 kW Speed range: 3–250 rpm Electric Tailstock Centre angle: 60° Quill taper: Morse 6 Total quill stroke (stroke + centre eject): 78 + 15 mm Force transducer (maximum display value): 10,000 kg Quill adjustment motor: 6.1 Nm Tailstock body longitudinal displacement motor: 0.18 kW Grinding Wheel Dimensions Outer diameter: 915 mm Width: 100 mm Bore: 305 mm Max. wheel width: 130 mm Min. permissible wheel diameter (worn wheel): 630 mm Grinding Slide / Feed Axes Peripheral speed of grinding wheel: 45–60 m/s Max. grinding spindle speed: 2,000 rpm Grinding spindle drive (brushless, AC): 37 kW Cross-axis X – servomotor (brushless): 7 Nm Cross-axis X – rapid traverse manual: 7,000 mm/min Cross-axis X – rapid traverse automatic: 10,000 mm/min Cross-axis X – travel: 510 mm Longitudinal axis Z – servomotor (brushless): 14.7 Nm Longitudinal axis Z – rapid traverse manual: 7,000 mm/min Longitudinal axis Z – rapid traverse automatic: 15,000 mm/min Longitudinal axis Z – travel: 4,300 mm Auxiliary slide Z2 (taper grinding) – servomotor: 7 Nm Z2 – rapid traverse manual/automatic: 7,000 mm/min Z2 – travel: 360 mm Grinding head swivel B-axis: ±7° B-axis fast swivel speed manual: 0.3 mm/rev B-axis fast swivel speed automatic: 0.4 mm/rev B-axis drive (brushless, with gearbox): 2.15 Nm Standard Equipment CNC control Siemens Sinumerik 840D, PCU50, Windows XP Pro SP2 Marposs E82 gap control safety device Hydraulic power unit for various machine functions Hydraulic unit for automatic lubrication Oil unit for hydrodynamically mounted grinding spindle Hydrodynamic grinding spindle Electric tailstock with force transducer and digital display of contact force 1 grinding wheel flange Ø 305 mm 2 dead centers with carbide, Morse 6, with extraction nut Balancing arbor for grinding wheel Tie rod and mounting brackets for machine anchoring Modem for remote access and data transfer from the CNC Service tool set Geometry inspection protocol Hook for wheel change Glass linear scale on X-axis (additional backup encoder) Ljdpfx Afexni Sis Ejru Optical rotary encoder for B-axis angular positioning Optional Equipment (included in scope of delivery) Raised center height 450 mm 1 additional grinding wheel flange Ø 305 mm Special grinding head for taper grinding in longitudinal grinding mode

Condition: ready for operation (used), Well mainteined grinding machine Ledpfxjxpyhqs Af Eoru

Year of construction: 1984, condition: ready for operation (used), Grinding dimensions X/Y/Z: 500mm/300mm/350mm, grinding wheel dimensions X/Y/Z: 300mm/50mm/76.2mm, magnetic table dimensions X/Y: 500mm/200mm, pole pitch: 5mm, machine dimensions X/Y/Z: approx. 3050mm/1600mm/2400mm, weight: approx. 3000kg. Including coolant system, paper band filter, sine table, digital display, and grinding wheel flange. Documentation available. An on-site inspection is possible. Lredpsxpw Ubjfx Af Eeu

Condition: used, grinding length 4000 mm grinding width 1450 mm workpiece height 1250 mm control Siemens 840 D workpiece weight 11000 kg column daylight 1460 mm table surface area 4000 x 1250 mm table feed 1 - 45 m/min cross rail - adjustment 1250 mm total power requirement 40 kW Lsdpfjwa Dx Dex Af Esru dimensions of the machine ca. 12,3 x 6 x 4,8 m Equipment/Accessories: - 1 universal grinding support, 7.5 kW Swivel range grinding spindle +/- 110° grinding disc dimensions Ø 500 x 60 mm Vertical adjustment 350 mm with puller - 1 peripheral grinding support, 22.5 kW Grinding wheel dimension Ø 600 x 100 mm Vertical adjustment 150 mm with puller - with 6 magnetic plates arranged on the table - seperate clamping table - various grinding wheels and flanges - Technical documentation

Condition: used, Surface Grinding Machine BLANCHARD type 20D Shelf diameter: Ø 915 mm Shelf speed: from 5 to 27 RPM Grindstone diameter: Ø 500 mm Maxi height under wheel: 450 mm Spindle motor: 30 CV - 715 RPM Electromagnetic chuck Rapid Up/Down Lodpfx Aexpwaqjf Eoru Voltage 220 V Tri Dimensions (L x W x H): 3700 x 2000 x 2600 mm Weight: 6 T

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, machine/vehicle number: 16010799, grinding length: 600 mm, grinding width: 350 mm, table load: 400 kg, grinding spindle speed: 3,000 rpm, No minimum price – guaranteed sale to the highest bidder! The payment deadline for the machine is 20/11/2025! Submission of a bid obligates timely collection between 01/12/2025 and 05/12/2025! TECHNICAL DETAILS Max. grinding area: 600 x 350 mm Magnet dimensions: 600 x 350 mm Max. longitudinal table travel: 660 mm Max. cross travel: 360 mm Max. distance table to spindle centre: 525 mm Max. table load: 400 kg Table speed: 2 to 28 m/min Rapid traverse cross: 1 m/min Automatic cross feed: 3 to 40 mm Cross handwheel per revolution: 1.2 mm Cross handwheel increment: 0.01 mm Vertical rapid feed: 180 mm/min Grinding wheel dimensions: 300 x 25 x 76.5 mm Spindle speed: 100 to 3,000 rpm MACHINE DETAILS Electrical Data Operating voltage: 400 V Frequency: 50 Hz Connected load: 8 kW Dimensions & Weight Lrsdpjxni Abofx Af Eeu Dimensions (L x W x H): 3,000 x 2,300 x 2,500 mm Weight: 2,500 kg EQUIPMENT Includes three-axis digital readout

Condition: refurbished (used), Year of construction: 2008, functionality: fully functional, External cylindrical grinding machine Made in Germany featuring a robust structural design. Extremely precise and ready for operation. Previously owned by a German machine builder. The machine underwent a complete overhaul including a CNC control and drive RETROFIT in 2008. Manufacturer: SCHMALTZ Model: R 5-3000 Year of manufacture: 1971 Max. workpiece diameter: 630 mm Max. workpiece length: 3000 mm Grinding wheel diameter: 800 mm Grinding wheel motor power: 30 kW Grinding wheel speeds: 500 / 1000 rpm Workpiece spindle speeds: 12 – 150 rpm Total weight: 15 tons Equipment and accessories: Overhauled and retrofitted in 2008 Fully equipped with: EMAG grinding wheel profiler with Siemens 840 D CNC control Heidenhain digital readout (DRO) Marposs E9 measuring unit 11 steadies Coolant tank with filtration system Lrjdpfxsxnhxzo Af Esu

Condition: as good as new (ex-display), Year of construction: 2017, functionality: fully functional, machine/vehicle number: 1735072, grinding length: 600 mm, grinding width: 300 mm, total height: 1,800 mm, total length: 2,630 mm, total width: 1,550 mm, distance table to spindle center: 500 mm, table load: 300 kg, grinding wheel width: 38 mm, spindle speed (max.): 1,450 rpm, overall weight: 1,750 kg, power: 3.75 kW (5.10 HP), input voltage: 400 V, disc diameter: 355 mm, Exhibition machine for sale – top condition - Designed for precision surface grinding tasks in industrial applications - Maximum rigidity and stability thanks to stress-relieved annealed and hardened cast iron construction - High-quality spindle with precision tapered roller bearings (runout accuracy 2 µm) - Electromagnetic chuck for securing workpieces, including automatic demagnetization function - Automatic central lubrication system for all guideways and spindles - Hand-scraped and Turcite-B-coated V-flat guideways ensure extremely smooth, low-friction movement and highest precision - Halogen work lamp: dustproof, fully touch-protected, and protected against water jets according to IP65 - A second grinding wheel flange is included in the delivery AD 5 automatic feed control The FSM series models are equipped with an automatic feed control (AD 5). Various grinding cycles are available: surface grinding with infeed at the starting point, slot grinding with infeed at the starting point, and slot grinding with infeed at both the start and end points. The infeed of the grinding wheel can be individually configured depending on the workpiece. The total grinding dimension is divided into rough and fine infeed steps, which can be freely programmed with a minimum increment of up to 0.001 mm, depending on the application. The system also allows dwell times after a defined number of infeed steps and spark-out passes after reaching the grinding dimension, ensuring optimal grinding results. Lodpfxsxpvxro Af Ejru

Year of construction: 2014, condition: ready for operation (used), X-axis: 350mm, z-axis: 1000mm, grinding diameter: 290mm, grinding length: 800mm, center height: 150mm, x-axis speed: 0.0001–10m/min, z-axis speed: 0.0001–12m/min, control: CNC Fanuc Oi-TD, connected load: 25kVA, length: 3340mm, width: 2660mm, height: 2325mm, weight: 8t. equipment/accessories: software functions for grinding spline shafts for gear pumps, external grinding cycles: plunge, straight, taper, multiple plunge, straight, taper, oscillation, straight, taper, shoulder plunge, shoulder with K-value, shoulder oscillation, DIN ISO. dressing cycles: dressing of radii as well as concave and convex shapes possible, periphery, left flank, right flank, profiles according to DIN ISO. measuring system: measuring device tec, diameter measuring head measuring range: 1mm, measuring accuracy: 0.5μm, not suitable for measuring an interrupted cut, length measuring head measuring range: -/+2mm, measuring accuracy: 0.5μm, use of two length measuring heads (2 measuring probes). operating hours: approx. 7847h. documentation available. an on-site inspection is possible. Lodpfx Afsv Exr Rs Esru

Condition: used, grinding length 12000 mm grinding width 2800 mm workpiece height 2510 mm control Siemens 840 D workpiece weight 24000 kg column daylight 2820 mm table surface area 11990 x 2500 mm table feed 1 - 40 m/min cross rail - adjustment 2510 mm total power requirement 110 kW dimensions of the machine ca. 32,5 x 9 x 6,73 m weight of the machine ca. 151 t Equipment/Accessories: - 1 universal grinding support, 22 kW swivel range of grinding spindle +/- 110° grinding wheel dimensions Ø 700 x 130 mm vertical adjustment 1000 mm with puller - 1 peripheral grinding support, 30 kW grinding wheel dimension Ø 600 x 150 mm vertical adjustment 230 mm Lredpfxowa Dxwo Af Eou with puller - Coolant and filter unit - Various grinding wheels and flanges - Technical documentation

Condition: used, Surface Grinding Machine BLANCHARD No 18 Shelf diameter: Ø 925 mm Shelf speed: 5 / 7,5 / 10 / 15 / 21 / 27 RPM Grindstone speed rotation: 750 RPM Max height pieces: 300 mm Grinding wheel dimensions:Ø 500 x 125 x 406 mm Maxi loading capacity: 1300 kg Motor power: 25 CV Voltage: 380 V Dimensions (L x W x H): 3200 x 1800 x 2400 mm Weight: approx 5,3 T Lsdpjxpv Tiofx Af Eoru

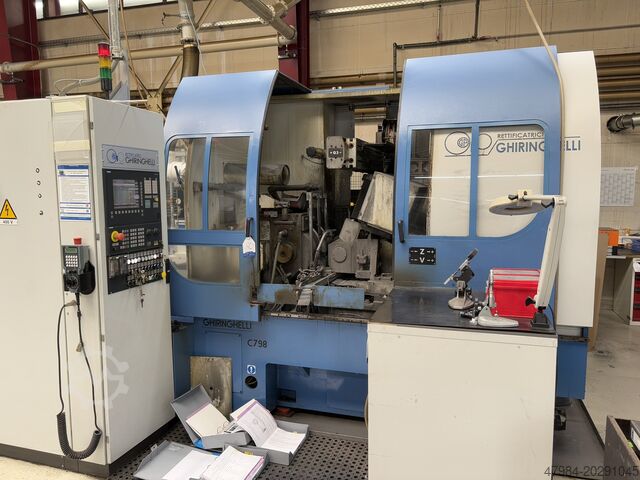

Condition: good (used), Year of construction: 2010, functionality: fully functional, machine/vehicle number: C798.10, grinding wheel diameter: 508 mm, total height: 2,500 mm, total width: 4,000 mm, total length: 5,000 mm, overall weight: 12,000 kg, controller manufacturer: SIEMENS, controller model: SINUMERIK 840 D, TECHNICAL DATA & EQUIPMENT: Max. speed: 63 m/s Includes conveying and loading system and a band filter unit NOTES ON COLLECTION: Ledpfx Afsxnitgo Eeru Collection must be carried out between December 10 and 12 FCA Winterlingen, loaded onto truck

Condition: repair required (used), functionality: not functional, workpiece weight (max.): 300 kg, grinding length: 2,000 mm, Used Cylindrical grinding machine TOS BHU 32A/2000 Ledpfxewbiw Io Af Eoru grinding diameter 320 mm, grinding length 2,000 mm, without electrics, in need of repair, ideal for companies specializing in general overhauls.

Condition: used, Year of construction: 2025, A universal mobile belt grinder designed for grinding/polishing elements that may be impossible to transport due to their size or weight. Machine description Excellent device stability. Adjustable depth stop Easy and convenient operation Designed for grinding/polishing elements that are difficult to transport due to their dimensions Highly effective in grinding or polishing welds near the floor Technical parameters Motor (kW) 2.8 Contact wheel (mm) 195x150 Steering roller (mm) 195x150 Flat grinding (mm) 150x450 Tape size (mm) 2000x150 Belt speed (mm) 15/30 m/s Working height (mm) 475-1240 Weight (kg) 85 Lodpjxpvknofx Af Esru Packaging (cm) 750x1100x800 WARNING!!! THE MACHINE IS RETURNED, COMPLETE. NO ORIGINAL PACKAGING. NO WARRANTY.

Year of construction: 2023, condition: used, Swivel range: approx. 200 mm, machining length travel: approx. 100 mm, number of axes: 3 axes (X/Y/Z), SIEMENS Sinumerik control, IFS IFMC 1800 air filter unit, year of manufacture: 2021, serial no.: 565760-02, HYFRA E-Chilly 5-400V-S cooling unit, year of manufacture: 2022, serial no.: 10129303PC01240522, cooling capacity: approx. 5,480 m³/32° Celsius, LEHMANN UMT KSS0119 hydraulic unit, year of manufacture: 2022, net weight: approx. 610 kg, comprising: 1 HYFRA TRK-Chilly-45-EF-S cooling unit, year of manufacture: 2022, serial no.: 10132616PC01290722, 1 LEHMANN UMT FB100 chip conveyor, year of manufacture: 2022, serial no.: AUF007093-1, net weight: approx. 80 kg, 1 LEHMANN UMT VMA 100S GM WA magnetic unit, year of manufacture: 2022, serial no.: AUF007093-1, net weight: approx. 60 kg, 1 JOTKEL two-door steel cabinet, contents: various consumables. Lodpfx Ajxnah Ujf Eeru

Condition: good (used), Surface Grinding Machine ELB-Schliff Model SW 6 VA Year of manufacture: 1962 Machine no.: 30800662 Grinding area: X 600 mm Y 300 mm Z 400 mm Clamping area: 840x250 mm Lsdpfx Afoxm Ugcs Esru Coolant system The machine was in use until recently and is fully operational. Net price, loaded free from stock.

Condition: ready for operation (used), Year of construction: 1976, functionality: fully functional, machine/vehicle number: 5100, grinding wheel diameter: 250 mm, table length: 1,300 mm, table width: 300 mm, overall weight: 3,000 kg, No reserve price – guaranteed sale to the highest bidder! The payment deadline for the machine is 20/11/2025! Placing a bid obligates you to collect the machine within the specified period between 01/12/2025 and 05/12/2025! TECHNICAL DETAILS Grinding wheel diameter: 250 mm Table length: 1,300 mm Table width: 300 mm MACHINE DETAILS Dimensions & Weight Dimensions (L x W x H): 2,600 x 2,400 x 2,200 mm Total weight: 3,000 kg EQUIPMENT Lodpfxexnaq No Af Eeru Lifting magnet (600 x 320 x 900 mm)

Year of construction: 2022, condition: used, Max. grinding wheel diameter: approx. Ø 915 mm, max. workpiece diameter: approx. Ø 440 mm, max. workpiece weight: approx. 250 kg, max. grinding wheel speed: approx. 80 m/s, operating pressure: approx. 6 bar, control system, manufacturer: DANOBAT/SIEMENS/MARPOS, type: Sinumerik/P7, 1 automated workpiece removal station JOVI 1113B, year of manufacture: 2022, net weight: approx. 300 kg, 1 air filter unit IFS M 1600, year of manufacture: 2022, serial no.: 567663, net weight: approx. 85 kg, connected load: 380-460 V, 50/60 Hz, 0.7 kW, 1.5-2.1 A, 1 hydraulic unit REXROTH Depósito HE-16120, 1 coolant filtration unit MICRONFILTER Easy 250/KMT350, year of manufacture: 2022, serial no.: 0201, tank capacity: approx. 2,300 l, connected load: 400 V/50 Hz, 2.44 kW, 1 immersion cooler HASCH MCS-120ST-05AOP6R7S7UZ1-3405C, year of manufacture: 2022, serial no.: 1003220300954, net weight: approx. 206 kg, 1 magnetic separator MICRONFILTER KMT350, serial no.: 0211, 1 tool loading unit, DANOBAT rotary table lift, year of manufacture: 2022, serial no.: 3130490901, net weight: approx. 350 kg, max. payload: approx. 360 kg Ledpfx Afoxnai Eo Esru

Condition: good (used), Year of construction: 2016, functionality: fully functional, machine/vehicle number: 80042, grinding wheel diameter: 500 mm, total width: 3,500 mm, total length: 8,500 mm, total height: 2,900 mm, overall weight: 10,000 kg, controller manufacturer: FANUC, controller model: SERIES OI-TD, TECHNICAL DATA & EQUIPMENT: Operating voltage: 400 V Frequency: 50 Hz Control voltage: 24 V Rated current: 3 x 125 A Grinding wheel: Segment width: max. 32 mm Cutting disc: Permissible diameter: max. 520 mm Segment width: max. 3 mm Segment height: max. 5 mm Workpiece clamping: Left workpiece spindle, chuck type: hydraulic actuation Right workpiece spindle, chuck type: hydraulic actuation Including bar feeder from manufacturer FMB Type: MINIMAG 20 Year of manufacture: 2016 NOTES ON COLLECTION: Lsdpfx Afexm T Ewe Eeru Attention: only available from week 3 of 2026 FCA Winterlingen, loaded onto truck

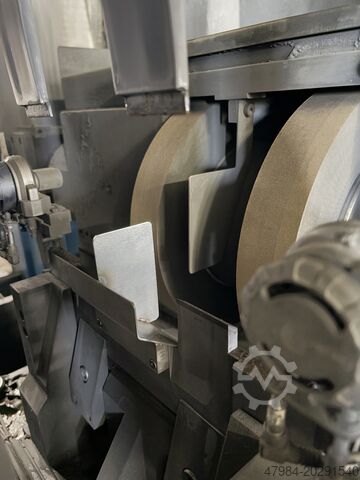

Year of construction: 2018, condition: used, Through-feed grinding, grinding range Ø: 10 cm, plunge grinding, grinding range Ø: 15 cm, weight: 9,000 kg, FANUC 0i-MF control, 2 handling robots YASKAWA YR-MH005LS-E000, serial numbers: R17507-979-3 / R19033-789-1, automation system/workpiece storage EGS Automation Tschudin, year of manufacture: 2018, serial number: 180100, 4-way, oil cooling and filtration system ARO, year of manufacture: 2018, serial number: PRA0032086, protective guard Lrsdpfx Ajxnag Rsf Eeu

Condition: good (used), Year of construction: 2021, functionality: fully functional, machine/vehicle number: 80171, total width: 3,500 mm, total length: 8,500 mm, total height: 2,900 mm, grinding diameter: 500 mm, overall weight: 10,000 kg, controller manufacturer: FANUC, controller model: SERIES OI-TF, TECHNICAL DATA & EQUIPMENT: Lining width: max. 32 mm Cutting disc: Permitted diameter: max. 520 mm Disc width: max. 3 mm Disc height: max. 5 mm Workpiece clamping: Left workpiece spindle, chuck type: hydraulic clamping Right workpiece spindle, chuck type: hydraulic clamping The machine includes a bar feeder Manufacturer: FMB Type: MINIMAG 20 Year of manufacture: 2021 Lodpexm Tyhofx Af Eoru Also with extraction unit and various documentation NOTES ON COLLECTION: Attention: available from week 3, 2026 FCA Winterlingen, loaded onto truck

Year of construction: 2021, condition: used, max. centre distance: 60 cm, max. grinding diameter: 44 cm, max. workpiece weight: 500 kg, control: SIEMENS Sinumerik/Balance Systems VM25, handling robot YASKAWA YR-1-06VXH12-A00, year of manufacture: 2022, serial number: 6V2272528290001, automation system/workpiece storage EGS Automation Danobat CG600-BL1, year of manufacture: 2023, serial number: 190605-6, 2-fold, filter 3FS M1600, no.: 565209, year of manufacture: 2021, weight: 85 kg, oil band filter MICROFILTER Easyband 150, serial number: 0202, year of manufacture: 2021, pump REXROTH HM-46, safety enclosure Lodoxnahnepfx Af Eoru

Condition: good (used), Year of construction: 2022, functionality: fully functional, machine/vehicle number: OE-70109, workpiece weight (max.): 500 kg, grinding length: 2,500 mm, grinding wheel diameter: 760 mm, total width: 4,500 mm, total length: 5,000 mm, total height: 2,900 mm, spindle speed (max.): 2,200 rpm, overall weight: 9,000 kg, workpiece spindle speed (max.): 500 rpm, controller manufacturer: FANUC, controller model: SERIES OI-TF, clamping length: 2,600 mm, grinding wheel bore: 304 mm, spindle mount: MK 6, tailstock quill stroke: 60 mm, workpiece diameter (max.): 850 mm, TECHNICAL DATA & EQUIPMENT: Operating voltage: 400 V Frequency: 50 Hz Rated current: 3 x 100 A Connection: 63 kVA Grinding spindle: Feed X-axis Feed Z-axis Ledpoxm Tvcefx Af Eeru Peripheral speed of grinding wheel: 45 m/s Incl. robotic cell from manufacturer XACTOOLS with loading unit and vibratory bowls, as well as an industrial robot from manufacturer EPSON, max. payload: 8 kg Incl. documentation NOTES ON COLLECTION: Collection must take place definitively between December 10 and 12 FCA Winterlingen, loaded onto truck

Year of construction: 2022, condition: used, Grinding wheel speed: up to 120 m/s, workpiece weight: up to 80 kg, control system, manufacturer: SIEMENS/MARPOS, type: Sinumerik/P7, 1 automated workpiece unloading station, manufacturer: JOVI, type: 1113A, year of manufacture: 2022, net weight: approx. 300 kg, 1 air filter unit, manufacturer: IFS, type: VARIO M 2000, serial number: 568113, year of manufacture: 2022, net weight: approx. 120 kg, connected load: 400/460 V, 50/60 Hz, 0.7 kW, 1.7/1.6 A, 1 water cooling unit, manufacturer: HASCH, type: MCW-50CT-17AUZ1-3407C, serial number: 1001220302582, year of manufacture: 2022, net weight: approx. 150 kg, tank capacity: approx. 15 l, 1 coolant filtration system, manufacturer: MICRONFILTER, type: Easy 250/KMT350, serial number: 0201, year of manufacture: 2022, tank capacity: approx. 2,300 l, connected load: 400 V/50 Hz, 5.34 kW, 1 immersion cooler, manufacturer: HASCH, type: MCS-120ST-05AOP6R7S6UZ1-3407C, serial number: 1003220400836, year of manufacture: 2022, net weight: approx. 206 kg, 1 coolant tank, manufacturer: MICRONFILTER, type: VR200L/MIN-150L, serial number: 0201, year of manufacture: 2022, tank capacity: approx. 150 l, connected load: 400 V/50 Hz, 1.1 kW, 1 magnetic separator, manufacturer: MICRONFILTER, type: KMT350, serial number: 0212, 1 loading unit, manufacturer: DANOBAT, type: rotary table lift, serial number: 3810490908, year of manufacture: 2022, net weight: approx. 170 kg, max. load capacity: approx. 230 kg, 1 rotary table transport trolley Ljdexnaixepfx Af Eoru
