Used Box Column Drill for sale (20,405)

Condition: new, Drilling capacity max.: 30 mm Thread cutting: M 16 Tool rear ham: MK 3 Spindle speeds, infinitely variable: 150 - 2500 rpm Extension: 265 mm Drilling depth: 150 mm Pinole feed: 0.05 / 0.1 / 0.2 mm/U Column diameter: 92 mm Table size / T-slot size: 500 x 400 mm / 14 mm Engine power: 1.5 kW Machine dimensions (W x D x H): 640 x 850 x 1850 mm Weight approx.: 265 kg Characteristics: - Vario drive for infinitely variable adjustment of the desired speed - Pinole delivery either by hand or by mechanical feed - Set speed by means of digital display quickly and easily readable - Stable casting table with T-slots and coolant gutter - Adjustable drilling depth stop, drilling depth can be read by scale - Thread cutting device - CE / IEC, German Documentation and German Service Delivery: Lsdpfsd R Nv Isx Ad Nohb - Quick-clamp chuck 1 - 16 mm / B 18 - Drill chuck mandrel MK 3 / B 18 - Coolant device - Digital speed display - Reducing sleeves MK 3/2, MK 3/1 - LED machine light - Height-adjustable protective cover

Condition: like new (used), Gillardon column drilling machine type GB 30 V, speed 60-1800 rpm, automatic feed, very good condition Lhedpfxjxpxbce Ad Nob

Condition: new, Drilling capacity cast iron / steel ----- 28 / 25 mm Tapping capacity cast iron / steel ----- 22 / 18 mm Motor ----- 1.1 kW Speed range ----- 75 ~ 3200 o/min Spindle stroke ----- 130 mm Spindle mounting ----- MK3 Drilling table ----- 380 x 380 mm Foot ----- 535 x 360 mm Maximum distance spindle - table ----- 825 mm Maximum distance spindle - foot ----- 1220 mm Weight ----- 210 KG INCLUDED * LED worklight * Tap function * 2-speed motor 75-3200 r/min Lodpfxega T D No Ad Nehb * CE plug * Various tools in case

Condition: excellent (used), Year of construction: 1985, Column Drilling Machine ALZMETALL AX2 Cone: CM2 Spindle exit: 100 mm Rotation: from 200 to 500 RPM Table size: Length 370 mm x Width 350 mm Year of construction: 1985 Maxi distance spindle nose/table: 480 mm Throat depth: 250 mm Lodpfsxu H T Dsx Ad Njhb 2 R5247921 speeds motor Voltage: 380 V Width: 500 mm Depth: 900 mm Total height: 1700 mm Weight: approx 250 kg

Condition: like new (used), CNC: FAGOR 8055 (retrofit option with Heidenhain Tnc640) Spindle diameter: 110 mm Tool holder taper: ISO 50-7388/1 - DIN 69871 Milling arbor mounting diameter: 221.44 mm Tool clamping force: 1,600 daN Travel Spindle horizontal stroke (Z-axis): 550 mm Spindle vertical stroke (Y-axis): 1,500 mm Table traverse stroke (X-axis): 3,000 mm Column longitudinal stroke (W-axis): 1,300 mm Table Size: 1,500 x 1,220 mm Maximum load capacity: 4,000 kg Max contouring torque: 250 daN T-slots: No. 7, 22 mm, H7 Rapid table rotation: 3 rpm Table clamping torque: 674 daN Speeds and feeds Spindle motor power: 22 kW Speed ranges: 2 Max torque low range: 105 daN Max torque high range: 31 daN Spindle speed range: 15 - 3,000 rpm Constant torque, low range: 15 – 203 rpm Constant torque, high range: 50 – 680 rpm Constant power, low range: 203 – 895 rpm Constant power, high range: 680 – 3,000 rpm Working feedrates: 2 – 10,000 mm/min Rapid feedrates: 10,000 mm/min Maximum axis thrust: 1,600 daN Tool magazine Lodpsxukfqofx Ad Nshb Number of tools: 60 Chain pitch: 140 mm Max tool diameter: 138 mm Max tool diameter (adjacent pockets empty): 400 mm Max tool length (excluding taper): 400 mm Max allowable tool weight: 30 kg Tool holder taper: ISO 50-7388/1 - DIN 69871 Overall weight: 24,500 kg Machine dimensions (L x W x H): 5,350 x 4,770 x 3,700 mm Machine equipped with: • Brushless motors • Through-spindle coolant • Quill stiffener • Heidenhain linear scales • Operation and maintenance manuals

Condition: new, drilling capacity: 32 mm, - MK4 - 80/2130 tons - 2-speed engine - Rotates clockwise and counterclockwise Lodpfxjtttlfj Ad Nshb - Table 385 x 335 mm - Table can be rotated - Emergency stop - Protective cap - Documentation - 400V

Condition: good (used), - MK4 - Automatic feed - Variomatic - Rotates clockwise and counterclockwise - Cooling - Machine vise Lhodpfx Asxc N T Asd Njb - Lighting - 380V

Condition: as good as new (ex-display), Year of construction: 2019, functionality: fully functional, spindle speed (max.): 2,440 rpm, spindle speed (min.): 200 rpm, total height: 1,725 mm, drilling capacity: 25 mm, column diameter: 80 mm, total width: 410 mm, total length: 750 mm, table width: 308 mm, table length: 308 mm, quill stroke: 209 mm, type of input current: AC, input voltage: 400 V, Exhibition machine like new Year of manufacture 2019 - Heavy-duty construction of the entire machine - High running smoothness thanks to new spindle design - Industrial motor - Separate emergency stop button - Digital depth gauge Lhedjxrz Dfopfx Ad Neb - LED machine light integrated in the drill head - Precisely machined, stable drill table with diagonal T-slots and surrounding coolant channel - Drill table tiltable ±45° and rotatable 360° - V-belt cover with safety switch - Precision spindle bore - Machine operation with 24 V DC safety electrics - Guaranteed concentricity accuracy ≤ 0.02 mm measured at the drill spindle - Thick-walled steel column for high load capacity and stability - Massive, large-scale base plate with T-slots

Condition: ready for operation (used), Year of construction: 1989, functionality: unexamined, machine/vehicle number: 1441, spindle speed (max.): 3,000 rpm, spindle speed (min.): 200 rpm, total height: 1,500 mm, total width: 560 mm, total length: 800 mm, table width: 240 mm, table length: 250 mm, overall weight: 250 kg, With 2 grooves, including frequency converter for stepless speed use. Lhjdpfov Iqqdex Ad Nob

Condition: used, Year of construction: 1970, Webo Gradua 40 Column Drilling Machine Lodpfxjxq S Ire Ad Nehb Details: Drilling capacity in steel (diameter): 40 mm Throat: 360 mm Drilling stroke: 240 mm Tool holder: MT 4 Speeds: 56 - 1250 rpm Drill motor: 2.0 / 2.4 kW Feeds: 0.12 - 0.19 - 0.26 - 0.4 mm/rev Table size: Ø 625 mm Column diameter: 240 mm Drill head vertical adjustment: 400 mm Total power requirement: 2.5 kW Space requirement approx.: 1.1 x 0.8 x 2.3 m Machine weight approx.: 1100 kg Control: conventional The machine was in operation until dismantling. Pickup in 75053 Gondelsheim. Forklift available for loading. Shipping by freight carrier possible; please inquire with your postcode.

Condition: good (used), spindle speed (max.): 9,600 rpm, spindle speed (min.): 200 rpm, – MK3 Lhjdpfxoxq Rwfs Ad Nob – 200–9600 rpm – Right- and left-hand rotation – Thread cutting function – Throat depth 120 mm – Steplessly adjustable speed – Thread cutting function – Protective cover – Emergency stop switch – 40V

Condition: new, Year of construction: 2025, Continuous/standard drilling capacity 15/18 mm (in E335/St60) 17 Nm Tapping capacity M12 (pitch-dependent) Spindle taper MK II Drilling depth 70 mm Throat 220 mm Max. distance spindle/work surface: 750 mm Column diameter 70 mm Usable work surface W x L 300 x 250 mm T-slot size (arm), spacing (mm), width (mm) Number 2, 125, 14/26 Speed display: Digital Drilling depth display: Digital Drilling depth stop: adjustable stop ring Feed: manual Table height adjustment: hand crank/rack and pinion Motor, three-phase 230V with Quefren frequency inverter: 0.75 kW Spindle speed: 40–4,000 rpm Machine dimensions: 420 x 540 x 1,780 mm Weight: 88 kg Optional Accessories Drill package 3 consisting of: Lhodpfoxgdn Ajx Ad Nsb - Machine vice [felix] 2.0 100 mm - Quick-action drill chuck 3–16 mm (accuracy 0.17 mm) - Taper shank MK 2 B18 and reducing sleeve MK 2 to MK 1 €490.00 Factory warranty: 3 years Free delivery including packaging (within Germany only) NOT THE RIGHT MACHINE? WE ARE AN OFFICIAL FLOTT DISTRIBUTION PARTNER AND CAN OFFER YOU THE COMPLETE FLOTT PRODUCT RANGE! REQUEST A QUOTE!

Condition: new, ALZMETALL column drilling machine Alzstar 23 S Manufacturer: Alzmetall Type: Alzstar 23 S Condition: NEW Drilling capacity steel E335 (St 60) 23 mm Thread cutting Steel E335 (St 60) M 14 Cast EN-GJL-200 (GG20) M 16 Short spindle MK 2 Spindle stroke 100 mm Thrust 250 mm Lodpfx Aexd Tt Ajd Njhb Column diameter 90 mm Machine table, usable support 370 x 300 mm T-slots, number x width x distance 2 x 14 x 160 mm Distance spindle-table min./max. 140/670 mm Hand feed Machine height without options approx. 1770 mm Net weight approx. 175 kg Drive stepless Motor 750 / 1500 rpm Power 0.6 / 0.95 kW Spindle speed rpm 225-4300 Standard equipment: Mushroom push button (latching) for EMERGENCY STOP Reversing switch for clockwise and counterclockwise rotation Motor protection switch Stepless speed adjustment Digital speed display Protection class IP 54 Connection plug (fully assembled, cable length 2m) Spindle protection with electrical fuse Paint: DD structural paint light gray RAL 7035, anthracite RAL 7016

Condition: as good as new (ex-display), Year of construction: 2025, functionality: fully functional, ALZMETALL AX 4 / SV pillar drilling machine 3KW Manufacturer: Alzmetall Type: AX 4 / SV Condition: NEW Year of manufacture: 2025 Drilling capacity steel E335 (St 60) 55 mm Thread cutting Steel E335 (St 60) M 42 Cast EN-GJL-200 M 56 Short spindle MK 4 Spindle stroke 140 mm Usable projection 300 mm Column diameter 145 mm Machine table, usable support 615 x 430 mm Distance spindle-table min./max. 150/735 mm T-slots, number x width x distance 2 x 14 x 224 mm Feed 0.1 + 0.3 mm/rev Machine height approx. 1850 mm Net weight approx. 380 kg Drive stepless Motor 1500 rpm Power 3.0 kW Spindle speed rpm 70-2400 Standard equipment: Main switch with motor protection switch, lockable Mushroom push button (latching) for EMERGENCY STOP Speed adjustment stepless Speed display digital Feed overload protection Protection class IP 54 Spindle protection with electrical protection Paint: DD structural paint signal white RAL 9003, PANTONE 7545c, black Machine oil: initial filling; Container supplied loose Lhodpfx Aoxd Ttped Neb Available options: - LED machine light - Thread cutting device with soft start (from 2025) - Coolant device in the base - Digital drilling depth display - Drilling depth fine adjustment 0.1 mm

Condition: new, As a machine dealer in Offenburg, we have new and used ALZMETALL table drilling machines and column drilling machines in our range. You can find an overview of the drilling machines on our homepage. If you have any questions, just call us. Here we offer the new series of ALZMETALL pillar drilling machines with TOUCH display: ALZMETALL AX3 iTRONIC-V pillar drilling machine Condition: NEW Standard equipment 7“ TFT - LCD display with touch function: - Manual input of spindle speed setpoint - Speed display actual value - Integrated drilling depth display with touch zero point transfer - Virtual drilling depth scale in the display - Machine status displays and warnings in the display - Service information - Selectable operating language: DE/EN/FR/ES/IT/NL/RU - Continuous speed setting using adjustment lever - Spindle protection with electrical protection - Three separate buttons for clockwise rotation - anti-clockwise rotation - stop - Mushroom push button (latching) for EMERGENCY STOP - Lockable main switch - Clockwise and anti-clockwise rotation via contactor control - Control voltage 24 volts - Protection class IP 54 - Paint finish: DD structural paint signal white RAL 9003, PANTONE 7545c, black Technical data: Manufacturer: ALZMETALL Type: AX 3 iTronic-V Drilling capacity steel E 335 (St 60) (mm): 40 Thread cutting steel E 335 (St 60): M 24 Thread cutting cast iron EN-GJL-200 (GG 20): M 30 Short spindle: MK 3 Spindle stroke (mm): 120 Usable projection (mm): 293 Column diameter (mm): 115 Machine table (mm): 515 x 360 T-slots (mm): 2 x 14 x 224 Distance spindle-table (mm): 117 / 701 Feed: 0.1 + 0.2 mm/rev Machine height (mm): approx. 1840 Drive: stepless Speed range (r/min): 160 - 2250 Motor (kW): 1.45 / 1.9 Weight (kg): approx. 270 Special equipment included: - Foot switch in addition to the thread cutting device Other options can be retrofitted: - LED machine light - Coolant system B - Technology calculator in the display - Maximum drilling depth display Optional accessories: - Machine vice size 3/125mm BB type BON3 - Machine vice size 4/160mm BB type BON4 - Keyless drill chuck Supra 1-13mm or 3-16mm MK3 Ledsxd Trlepfx Ad Nohb Available at short notice. For self-collection. Forklift available. Shipping also possible Subject to errors, changes and prior sale. Not the right machine? Then please contact us.

Condition: new, ALZMETALL AX3/SV pillar drilling machine NEW Manufacturer: Alzmetall Type: AX3 SV Condition: New Drilling capacity steel 40 mm Thread cutting steel M24 Cast M30 Short spindle MK 3 Spindle stroke 120 mm Ljdpfx Adjxd Trfo Nshb Usable projection 293 mm Column diameter 115 mm Machine table 515 x 360 mm Distance spindle-table 117/701 mm T-slots 2 x 14 x 224 mm Feed 0.1 + 0.2 mm/rev Machine height approx. 1840 mm Net weight approx. 270 kg Drive continuously variable Motor 750/ 1500 rpm Power 1.0 / 1.6 kW Spindle speed rpm 80-1125 Additional equipment: - Reversing switch - Machine light LED - Thread cutting device - Coolant device B Available immediately from stock

Condition: new, functionality: fully functional, Equipment: lighting, Alzmetall AB 40 iTRONIC 70-4000rpm pillar drill Condition: new Drilling capacity steel E335 (ST 60): 50 mm Thread cutting steel: E335 (ST 60): M 30 Spindle mount: MK 4 Spindle stroke: 160 mm Throw: 300 mm Column diameter: 145 mm Spindle speed L rpm: 70 – 4,000 Power: 1.8 / 2.9 KW Equipment: 7" TFT - LCD display with touch function Thread cutting device Infinitely variable speed setting Automatic speed control Spindle protection Three separate buttons for clockwise - counterclockwise - stop Mushroom push button Main switch Clockwise and counterclockwise rotation Control voltage 24 volts Protection class IP 54 Motor insulation class "F" (155°) Ledpfsxd Tp Djx Ad Nehb Painting Electromagnetic feed overload protection Machine oil initial filling Equipment options: - Alzmetall option no. 12 LED machine light - Alzmetall option no. 20.4 Comfort grip switch - Alzmetall option no. 20.5 Foot switch - Alzmetall option no. 24 Coolant device A - Alzmetall option no. 37.3 Automatic drilling depth control - Alzmetall option no. 37.5 Technology computer - Alzmetall option no. 37.6 Maximum drilling depth display - Alzmetall option no. 38.1 Automatic spindle stop - Alzmetall option no. 38.2 Workpiece counter / spindle hour counter - Alzmetall option no. 50.6 Drilling depth fine adjustment 0.1mm

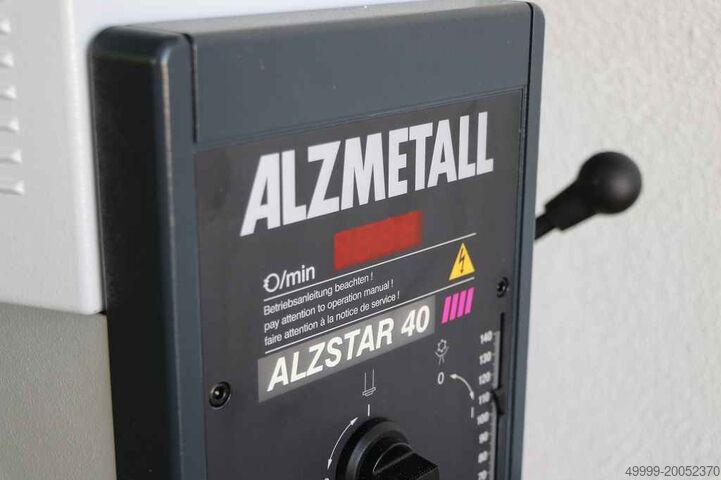

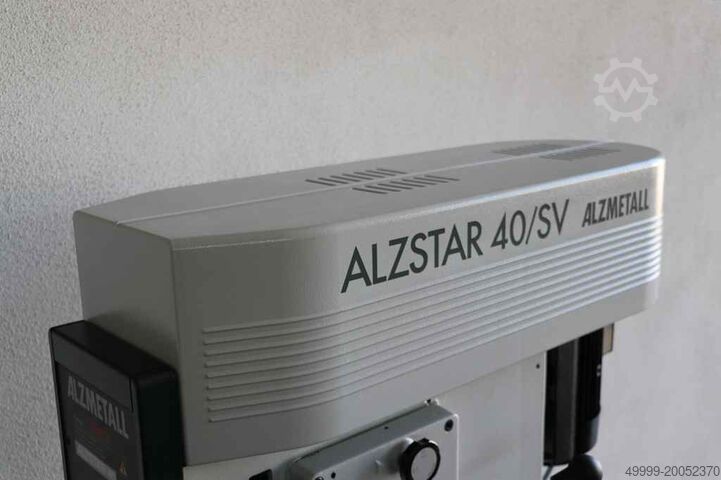

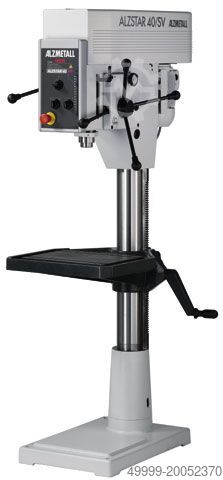

Condition: new, Alzmetall Alzstar 40/SV pillar drilling machine Manufacturer: Alzmetall Type: Alzstar 40/SV Condition: new Technical data: Column diameter: 115 mm Machine table (usable support): 514 x 360 mm T-slots (number x width x distance): 2 x 14 x 224 mm Distance spindle-table (min./max.): 117 / 701 mm 2 feeds: 0.1 + 0.2 mm/rev Height (mm): approx. 1840 Drilling capacity St 60 (mm): 40 Spindle stroke (mm): 120 Thrust (mm): 293 Motor (kW): 1.45 / 1.9 Lodpfx Ajxd Tpwod Njhb Speed range (r/min): 160 - 2250 Weight (kg): 285

Condition: new, Alzmetall Alzstar 30/s pillar drilling machine Manufacturer: Alzmetall Type: Alzstar 30/S Condition: new Drilling capacity steel E335 (St 60) 30 mm Thread cutting Steel E335 (St 60) M 16 Cast EN-GJL-200 (GG20) M 20 Short spindle MK 3 Spindle stroke 140 mm Lhedpjxd Tlxefx Ad Njb Thrust 293 mm Column diameter 115 mm Machine table, usable support 514 x 360 mm T-slots, number x width x distance 2 x 14 x 224 mm Distance spindle-table min./max. 132/724 mm Feed manual Machine height without options approx. 1770 mm Net weight approx. 260 kg Drive continuously variable Motor 750 / 1500 rpm 750 / 1500 rpm Power 1.0 / 1.6 kW 1.0 / 1.6 kW Spindle speed rpm 225-4300

Condition: refurbished (used), Year of construction: 2003, functionality: fully functional, For sale is a refurbished Gillardon pillar drill press. The machine has been completely disassembled and refurbished (including a new spindle bearing). Gillardon GB 40 VE Year of manufacture 2003 Electromagnetic feed 0.1/0.16/0.25 on the joystick at the touch of a button Infinitely variable speeds 2-speed motor Work light Emergency stop button 200mm spindle stroke 350mm throat Table size 630x535mm Clamping surface 400x500mm MT 4 chuck Keyless chuck 3-16mm Total height 2060mm Weight 500 kg Lhjdpfoxn T Syox Ad Nsb Pickup and inspection in 89558 Böhmenkirch possible by arrangement. Shipping for an additional charge. Forklift available for loading.

Condition: as good as new (ex-display), Year of construction: 2025, Power: 0.85, 1.5kW Speed range: 300 - 4000 rpm Lsdpfx Adshpmbbo Nehb Speed steps: stepless spindle mounting: MK-3 Drilling stroke: approx. 105 mm spindle throat: 200 mm Weight: 152 kg

Condition: new, Year of construction: 2025, Power: 750 W / 400 V Drilling capacity in steel: 25 mm Speed range: 60 – 3050 rpm Spindle taper: MK3 Quill stroke: 95 mm Lsdpfx Adeir Embj Nehb Spindle reach: 209 mm Table size: 308 mm x 308 mm Quick-action chuck: 1 – 16 mm Weight: 107 kg

Condition: new, Year of construction: 2022, Power: 1,1kW Drilling capacity steel / continuous drilling capacity: 30mm / 25mm diameter Speed range: 120 - 1810 rpm Speed steps: 9 Spindle mounting: MK-4 Lsdpfjgulr Hox Ad Njhb Drilling stroke: 120 mm spindle throat: 254 mm table size: 475 mm x 425mm Drilling table lateral tilting / rotating: 45° left / 360°. column diameter: 80 mm Quick chuck: 1 - 16 mm Weight: 132 kg

Condition: as good as new (ex-display), Year of construction: 2013, functionality: fully functional, machine/vehicle number: F130507, throat depth: 320 mm, spindle speed (max.): 2,600 rpm, spindle speed (min.): 65 rpm, total height: 2,050 mm, drilling capacity: 30 mm, column diameter: 120 mm, total width: 510 mm, total length: 870 mm, spindle mount: MK 3, drilling depth: 135 mm, table width: 450 mm, table length: 500 mm, input voltage: 400 V, height adjustment type: mechanical, Dear Sir or Madam, We are offering a demonstration pillar drill "HXMC model Z5030A" with paint damage. We are happy to answer any questions. Lsdev T Atnjpfx Ad Njhb This sale is made without any warranty or guarantee. Errors and typos cannot be ruled out. Please check the information in the PDF. No returns accepted.

Condition: used, functionality: fully functional, machine/vehicle number: 127963, throat depth: 230 mm, spindle speed (max.): 1,880 rpm, spindle speed (min.): 160 rpm, total height: 1,800 mm, column diameter: 102 mm, total width: 420 mm, total length: 800 mm, spindle mount: MK 3, drilling depth: 130 mm, overall weight: 190 kg, type of input current: three-phase, input voltage: 400 V, Dear Sir or Madam, We are happy to answer any questions. This sale is made without any warranty or guarantee. Errors and typos cannot be ruled out. Lodpfjv T Ax Dsx Ad Nehb Please check the information in the PDF. No returns accepted.
