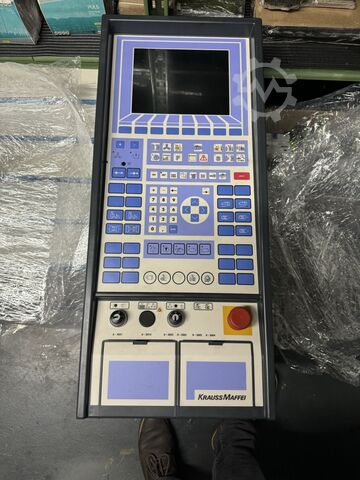

MC 4 complete

KraussMaffei MC4

Condition: ready for operation (used), Year of construction: 2005, operating hours: 59,000 h, clamping force: 4,200 kN, screw diameter: 60 mm, displacement volume: 769 cm³, injection pressure: 2,200 bar, total length: 6,830 mm, total width: 2,330 mm, total height: 2,480 mm, overall weight: 23,090 kg, Clamping force: 4200 kN Tie bar spacing (H x V): 800 x 800 mm Platen size (H x V): 1270 x 1200 mm Min. installation height: 580 mm Max. platen distance: 1300 mm Opening stroke: 720 mm Screw diameter: 60 mm Shot volume: 769 ccm Injection pressure: 2200 bar Equipment Display language: German Hydraulic core pull 4x Machine without handling Kdodjyv E Daspfx Ahvoi Machine without material hopper Levelling elements Mould heating 12x Machine dimensions (LxWxH): 6.83m x 2.33m x 2.48m Total weight: 23090 kg

Year of construction: 1999, condition: excellent (used), injection molding machine krauss-maffai 150-700 c1 year 1999 Screw diameter 55 mm In top condition, still in operation Kdjdpoh S Dncofx Ahvsi

Condition: used, Krauss Maffei SE502 MC4 sequence controller- removed from KM 18 C3 - removed from running machine - fully functionalmanufacturer: Krauss Maffei type: SE502 Kedpfxorr Eh Ao Ahvsdi spare part no.: 5 Dition: gebraucht

Condition: used, Krauss Maffei IPC 5-133 for MC4 control system- removed from KM not testedmanufacturer: Krauss Maffei spare part no.: 5 Kdsdpfjrr Egwjx Ahvoi Dition: gebraucht

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, machine/vehicle number: 693068, overall weight: 7,300 kg, power: 30 kW (40.79 HP), Walter Helitronic Vision CNC Tool & Cutter Grinder with Pallet Loader Universal tool and cutter grinder (CNC controlled) Made by Walter, model Helitronic Vision, s/n 693068, year 2008 Description: Suitable to manufacture and regrind metal and woodworking tools of all kinds. Can be viewed under power. Specifications: • Longitudinal movement (X-axis) 480 mm • Y axis vertical movement 320 mm • Z-axis transverse movement 700 mm • Rotary table swivel range C-axis +/- 200 ° • Workpiece Holder ISO 50 • Max. Workpiece diameter 320 mm • Workpiece length circumferential grinding 370 mm • Workpiece length for face machining 320 mm • Accuracy linear resolution 0.0001 mm • Radial resolution 0.0001 ° • Diameter of the spindle 100 mm • Grinding wheel mount: HSK50 • Diameter of the grinding wheel 200 mm • Grinding spindle speed 0 – 12,000 rpm., • Top performance 30 kW • Connected load 35 kW (460 V / 60 Hz) • Weight approx. 7,100 kg • Dimensions L x W x H 3649 x 2490 x 2301 mm Accessories: • Does not include wheel opening stick fixture seen in the pictures • Stepless speed control, probe, pneumatic workpiece clamping Kdsdpfxjuqzdpj Ahvoi • Electrostatic mist extractor • Fire extinguishing system • Oil collecting pan, 2 grinding wheel flanges, Complete set of Manuals • Turmoil Drive Chiller • Loader Pallets: 8pcs – 3/16”, 1/4”, 5/16”, 3/8”, 1/2”, 5/8”, 3/4”, 1-1/4” • 10pcs - HSK Wheel Arbors Software: • Windows XP Pro Svc Pack 3 • Tool Studio V3.3 • The computer was upgraded & is very fast rendering tools in Tool Studio Condition: • Excellent condition, very accurate & consistent. October 2023 Y axis Complete rebuilt, Linear motor, rails, Compensation Cylinder, Festo Booster Pump done by United Grinding. • 1 Micron Filtration system was used on the machine (not included), so it’s been kept extremely clean • We can load onto a flatdeck for shipping for $1200. We can also provide shipping quotes if you would like & crating for Sea Freight shipping.

Condition: good (used), Year of construction: 1995, operating hours: 60,000 h, functionality: fully functional, screw diameter: 40 mm, clearance between the columns: 470 mm, Krauss Maffei injection moulding machine type KM110-390 C1 for sale. The machine is in very clean condition, as it was used for manufacturing medical products (see clean room in the photos). Maintenance was carried out by Krauss Maffei up to the end. The machine is immediately ready for use and has already been dismantled. Loading by forklift. Kjdpfx Aexbar Hohvodi - Approx. 60,000 operating hours - Serial no. 114104 - Year of manufacture: 1995 - 40mm screw - 1,100 kN clamping force - 470x470 mm tie bar distance - Core pull connector: 1 - Dimensions: 4.5x1.5x2.2 meters - Weight: 5,800 kg If you have any questions, please feel free to contact us at any time.

Condition: reconditioned (used), Year of construction: 2015, Used injection molding machine directly from the manufacturer! We as manufacturer KraussMaffei offer here one of our used injection molding machines. CONTROL - MC4 TECHNICAL DATA CLAMPING UNIT - injection force: kN 5000 - distance between columns (h x v): mm 900 x 800 - distance of mold opening max: mm 1170 - mold installation height min: mm 480 - opening stroke of the clamping platen: mm 1650 - Ejector stroke: mm 250 - Ejector force: kN 95 ( Backward: 48 ) SCREW UNIT - Screw diameter: mm 90 - Ratio Ls/D: 20 - Injection pressure: bar 1742 - Injection volume: cm3 1953 - Injection size for PS: g 1777 - Injection capacity: cm3/s 649 - Closing force of the nozzle: kN 115 ELECTRICAL PARAMETERS - capacity of pump motor: kW 90 - heating power: kW 44 Kjdpfenh Rnuex Ahvjdi WEIGHT AND DIMENSIONS - net weight: t 25,8 - dimensions of the machine (L x W x H): m 7,65 x 2,33 x 2,55 Basically, we deliver this machine in a functioning basic condition. In addition, we as the manufacturer of these systems can offer various add-ons depending on the individual case, such as: - Updates for energy optimization of the machine - Possible connection to digital products from KraussMaffei - Plasticizing conversions - Optional: Organization and arranging of delivery (Not included in the price) - Optional: Installation and commissioning (not included in the price) You will receive from us first-class service as well as the possibility to purchase immediately desired spare parts packages of wear parts in order to ensure a continuous production of your new used machine. Do not hesitate and ask us right away!

Condition: used, X Axis 30.0 in 762 mm Kdjdjiypzdopfx Ahvsi Y Axis 16.0 in 406 mm Z Axis 16.0 in 406 mm Read for inspect Ready for delivery

Condition: new, Year of construction: 2023, functionality: fully functional, machine/vehicle number: 61037337, clamping force: 800 kN, screw diameter: 30 mm, displacement volume: 113 cm³, injection pressure: 2,500 bar, injection weight: 103 g, mold height (min.): 400 mm, ejector force: 22,600 N, ejector stroke: 150 mm, opening stroke: 900 mm, total length: 3,960 mm, total width: 1,480 mm, total height: 2,020 mm, overall weight: 3,550 kg, heating capacity: 10.9 kW (14.82 HP), drive type: Hadraulisch, clear span: 470 mm, tool weight: 1,000,000 g, Injection molding machines direct from the manufacturer! As the manufacturer KraussMaffei, we offer you our tested and flexible stock machines here: The fully hydraulic CX series offers a particularly compact, efficient and flexible two-platen machine. The very compact two-platen concept with cantilevered clamp offers generous space for peripheral equipment and excellent accessibility. Efficient and intelligent energy management with BluePower servo drive continues to provide a powerful basis for the highest demands and the right solution for every application. TECHNICAL DATA: KM 80 / 380 CX G06 (order 38655610) CONTROL  MC 6 with 21.5" TFT color screen with multi-touch functions CLAMPING UNIT  Clamping force kN 800  Mold opening force, max kN 55  Clear width (h x v) mm 470 x 420  Clamping platen (h x v) mm 670 x 670  Tool installation height min. - max. mm 400 (increased by 150 mm)  Opening width mm 900 (increased by 150 mm)  Mold opening stroke max. mm 500  Hydraulic ejector drive  Ejector stroke mm 150  Ejector force forwards/backwards kN 22.6 / 9.8  Ejector speed forwards/backwards mm/s 760 / 800  Max. Mold weight kg 1000 SPRING UNIT  Screw diameter / type mm 30 / standard (customization possible)  Effective Ls/D ratio 26.7  Injection pressure bar 2500  Stroke volume cm³ 113  Shot weight at max. stroke for PS g 103  Injection speed mm/s 100  Injection flow rate cm³/s 71  Screw drive/speed 1/min 295  Plasticizing flow (standard) g/s 12.3  Nozzle contact force kN 50 ELECTRICAL PARAMETERS Connected load kW 15.0  Installed heating capacity kW 10.9  Power supply V / Hz 380 / 50 3 phases with neutral conductor WEIGHT AND DIMENSIONS  Net weight with switch cabinet t 3.55  Length x width x height m 3.96 x 1.48 x 2.02 Ksdpfxsud N Hdj Ahvedi ADDITIONAL EQUIPMENT  Low-wear plasticizing  BluePower fully insulated plasticizing cylinder  Open nozzle  1 additional temperature control point for nozzle heating  Air valve 1 - compartment (BWAP)  Pneum. Control hot runner valve gate 1 - compartment  Hydraulic core pull 1 - compartment (BWAP)  Euromap interface handling E18, E63  Euromap interface (central computer) E67, E77  Adaptive Process Control (APC)  Injection stamping circuit  Graphic analysis package The machine is located in our factory in Parsdorf and is available at short notice. Further additional options can be offered on request. We look forward to your inquiry.

Condition: good (used), Year of construction: 2003, travel distance X-axis: 13,000 mm, travel distance Y-axis: 4,500 mm, travel distance Z-axis: 1,000 mm, spindle speed (max.): 30,000 rpm, distance between stands: 6,500 mm, spindle nose: HSK A63, X-axis: 13.000 mm Y-axis: 4.500 mm Z-axis: 1.000 mm Distance between columns: 6.500 mm C-axis: 190º A-axis: 110º Positioning speed XYZ: 15.000 mm/min. Positioning speed AC: 10 tpm CNC Controller: Siemens 840D Spindle nose: HSK A63 Spindle speed: 30.000 rpm Spindle power: 20 kW Toolchanger: 20 Pockets Ksdpfx Ahjtt I Sfovjdi Torrestool tables: 16x X-axis: 11.500 mm Y-axis: 3.500 mm Z-axis: 750 mm Country of origin: Spain Machine size LxWxH: 19.000 x 11.000 x 6770 mm Machine weight: 70.000 kg The Torresmill Gantry is a 5-axis CNC milling and drilling machine, specially designed to work on aeronautical materials (Composite, Aluminum, Titanium, Steel, ...). The Torresmill gantry is perfectly combined with the Torrestool universal clamping device, guaranteeing flexibility and process time.
