Band Saw - Automatic - Horizontal

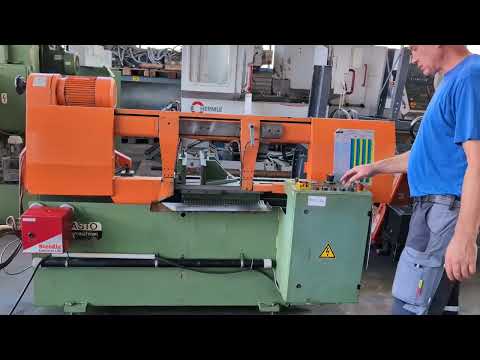

KASTO SBA 260/400 U

Condition: good (used), Year of construction: 2019, machine/vehicle number: 24451.19, Offer 25359 Technical Data: - Cutting capacity at 90° (round): 250 mm - Cutting capacity at 90° (flat): 275 x 180 mm - Miter adjustment to the left - Cutting capacity at 45° (round): 200 mm - Cutting capacity at 45° (flat): 190 x 180 mm - Cutting capacity at 30° (flat): 130 x 110 mm - Material support height: approx. 920 mm - Saw band dimensions: 3100 x 27 x 0.9 mm - Infinitely variable cutting speed: 15 to 100 m/min - Hydraulic lifting and lowering of the saw frame - Upper travel limit of the saw frame - Infinitely adjustable cutting pressure: 0 – 10 m/min Rcodpjxup Rfefx Acdob - Hydraulic material vice - Micro-spray cooling system - Total drive power: 400 V / 2.2 kW - Required space approx.: W 2400 x H 1600 x D 1800 mm - Weight approx.: 1300 kg - 3 x Roller conveyor, each 1500 mm

Condition: used, Year of construction: 1994, cutting diameter 520 mm saw band length 7239 mm cutting width 1,3 mm Control POSIMOD cutting range - square - 520 x 520 mm feed length 500 mm feed length: multiple 4500 mm min. cut-off length 6 mm length of rest piece min/max 10 / 100 mm cutting speed 20 - 130 m/min dimensions of saw-band 7239 x 50 x 1,3 mm sawing motor 5,5 kW total power requirement 10,0 kW Rodpfx Acjwm Rm Ijdocb weight of the machine ca. 3,8 t dimensions of machine L x W x H 3,42 x 2,30 x 2,40 m - 2 column guided - Accessories: roller track 2500 mm length, chip conveyor, coolant

Condition: used, Year of construction: 1986, cutting diameter 460 mm saw band length 5334 mm cutting width 1,3 mm cutting range - square - 320 x 320 mm cutting range - flat - 500 x 320 mm control minipos 807 cutting speed 16 - 80 m/min dimensions of saw-band 5334 x 41 x 1,3 mm feed length 580 mm feed length: multiple 5800 mm total power requirement 8 kW weight of the machine ca. 3,5 t Redpfxetqqrfo Acdjcb dimensions of machine L x W x H 2,7 x 2,95 x 2,15 m Accessories: roller track 4150 mm length, roller track 2150 mm length, bundle clamping device, chip conveyor, coolant

Condition: good (used), Year of construction: 2018, machine/vehicle number: 68892, Offer 26014 Hydraulic, Two-Column Guided Mitre Band Saw Automatic Machine Technical Data: - Automatic work cycle for cutting operation, hydraulic lifting / lowering of the saw frame, manual mitre adjustment with hydraulic clamping Redpfxsytn Dio Acdocb - Automatic material feed system, motorized mitre adjustment - Saw band dimensions: 4400 x 34 x 1.1 mm - Cutting speed, infinitely variable: 15 - 150 m/min - Cutting pressure regulation, infinitely variable: 10 - 15 bar - Lowering speed: 0 - 300 mm/min - Cutting range: - 30° to 90° - at 90° round: 335 mm - square-flat: 500 x 335 mm - at 45° round: 330 mm - square-upright: 320 x 335 mm - at 30° square-upright: 170 x 335 mm - Material feed automaton - Discharge roller conveyor: 4000 mm - Infeed roller conveyor: 4000 mm - Drive: 400 V / 6.5 kW - Required space (approx.): W 2300 x H 1750 x D 2200 mm - Weight (approx.): 1800 kg

Condition: new, capacity 90 degrees: round 680 mm capacity 90 degrees: square 640 mm 820x610 saw band length 5850 x 41 x 1,3 mm band speed 15 - 100 m/min table height 800 mm total power requirement 5,5 kW weight of the machine ca. 4,45 t dimensions of the machine ca. 5,85 x 3,6 x 2,7 m 2-column band saw for quick cutting, K-tech 800H with pusher system P 15. P 30 (option), Fast, quiet and ergonomic cutting Special development for cutting profiles and beams as well as solid material. The material is fixed vertically on and section sides. The machine is from K-tech 800 H standard with an additional horizontal vice equipped. The interaction of the hydraulic Saw frame lowering, material positioning and the Pusher system is CNC controlled. The machines come standard with the environmentally friendly “B&S-Clean Cut cutting system” with minimal quantity lubrication equipped. This saves cleaning effort and is gentle Resources. CNC Control A CNC control allows programming of up to up to 90 cutting programs with different cut lengths, Quantities and mitres. The B&S pusher system, feeding and positioning system, is marked “on both sides “Opening gripping tongs” which are hydraulically controlled. This ensures safe gripping and transport of materials and Bundles that deviate slightly from the ideal shape. The pusher system is separate constructed and ground using ball-bearing linear guides Rack and guided by a frequency-driven, robust geared motor. Rsdpfx Acofgyifodscb

Condition: used, Year of construction: 1991, Technical details: cutting diameter: 240 mm saw band length: 3000 mm saw band width: 20 x 0,8 mm cutting range 90 degrees: round: 240 mm band speed: 20; 35; 50; 70 m/min total power requirement: 1,8 kW machine weight approx.: 330 kg dimension machine xH: 1,9 x 1,1 x 1,1 m hydraulic operation clamping jaw size 150 x 100mm, manual clamping (hand wheel) 1 transport roller each before and after vice support incl. 4 pieces band saw blades Rodpfx Acju Nihujdecb incl. 2 pieces roller tables (2000 x 520 x 750mm and 1000 x 520 x 750mm) incl. limit 3000mm *

Condition: used, Year of construction: 1986, Technical details: Rcsdpfsu Nii Ssx Acdob cutting diameter: 320 mm saw band length: 5320 mm saw band width: 32 mm cutting range 90 degrees: round: 320 mm cutting range 90 degrees: flat: 320 x 320 mm control: Serie P 9521 height over floor: 730 mm band speed: 15 - 110 m/min total power requirement: 4,9 kW machine weight approx.: 2200 kg dimension machine xH: 1,9 x 2,95 x 1,8 m Heavy-duty hydraulic production band saw in 2-column design - fully automatic Application for: Solid and profile materials made of steel as well as cast iron, light and non-ferrous metal Hydraulic material feed, hydraulic clamping of the clamping jaws Length measurement via precision glass measuring rod length 400mm Max. cut-off length preselectable 9999.9mm Automatic multiple stroke Saw band cleaning brush + 1x spare brush Chip conveyor Coolant device *

Condition: good (used), Year of construction: 2011, machine/vehicle number: 152855, Item 25078 Technical specifications: - Cutting area at 90°: round 550 mm - flat 570 x 550 mm Redpfx Acov Say Asdjcb - Cutting speed continuously adjustable from 20 to 100 m/min - Hydraulic raising and lowering of the saw frame - Cutting pressure continuously adjustable from 0 to 10 m/min - Automatic material feeder - Stop length 500 mm - Total drive power approx. 400 V / 5.7 kW - Stop - 2 x roller conveyors 1000 + 3000 mm - Space requirement approx. W 3400 x H 2100 x D 1300 mm - Weight approx. 2100 kg

Condition: good (used), Metal band saw, fully automatic, band saw machine, band saw, vertical band saw, horizontal band saw, hydraulic horizontal band saw machine, automatic band saw, automatic metal band saw -Manufacturer: MEP, Horizontal band saw, Automatic band saw -Drive: 4.4/5.7 kW -Cutting data flat 90°: 320 x 200 mm -Cutting data for 90° square: 250 mm -Cutting data flat 45°: 240 x 200 mm -Cutting data for 45° square: 210 mm -Saw blade speed: 2x speeds -Saw blade: 3150 mm -Coolant system -Transport dimensions: 3 meters -Weight: 1300 kg Redpey Hu H Ejfx Acdecb

Condition: ready for operation (used), Siemens 6AV6645-0CC01-0AX0 MOBILE PANEL 277 without key, version: 13, SN: 16459078 + 6XV1440-4BH50 PN connection cable for Mobile Panels, 5m, used, normal signs of wear, 100% functional, scope of delivery as per photos. Rodpfox Dw Uqsx Acdecb
