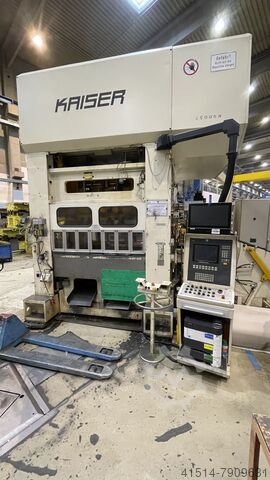

Punching machine

KAISER KSTU 2500

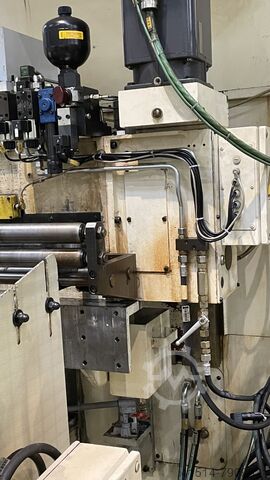

Condition: excellent (used), Year of construction: 1981, functionality: fully functional, equipped with: 1 Right hand feeding system 1 Eccentricpress 250 kN 4 Standard slide unit 1 Narrow slide unit working range: wire diameter range: up to 6,0 mm Rjdper D N Eqofx Adajn stripmetal width: up to 80 mm feeding length: up to 520 mm output: 10 - 250/min

Condition: used, Tube bending machine, mandrel bending machine, bending machine for tubes and profiles Tube bending unit with SIEMENS servo motor and planetary gearbox Year of construction: 2003 Bending capacity: max. Ø 20 x 1 mm Bending radius: max. R 70 mm Bending angle: max. 200° - last used for round tube Ø 15.4 x 0.8 mm, R60 mm - Bending tools and bending jaws interchangeable - Bending tool drive via AC servo motor and Alpha spur gear, planetary gearbox - 2-part bending tool opens and closes via hydraulic stroke movement - MERKLE hydraulic round block cylinder, item 014445 for hydraulic tool opening Redpfxjd E A I Io Adaon - Pneumatic height adjustment of the bending jaw via Festo compressed air cylinder - without electrical control - without hydraulic unit Dimensions L/W/H 760 x 400 x 150 mm weight: approx. 60 kg good condition Removed from a functional special machine, tested before removal. Drive: Brushless permanent magnet servo motor SIEMENS Typ:1FK6061-7AF71-1EG0 Nominal torque = MO: 6.4 Nm Rated current = Io: 6.1 A Speed = n. max.: 5500 rpm - Brushless permanent magnet servo motor SIEMENS ----- 5 pieces available in right-hand version. 5 pieces available in left-hand version. The price quoted refers to 1 bending unit with servo motor. If required, we also sell individual assemblies of the bending unit. We also offer the electrical components for controlling the servo motor. We also offer hydraulic units.

Condition: good (used), Year of construction: 1988, voltage 380 V connected load 7,5 kVA dimensions 2725 x 1930 x 1773 mm weight of the machine ca. 2500 kg --> Technical data Main data: --> Table surface: 605 x 300 mm Rodpfxew Dvkae Adajn --> Table longitudinal movement max. (manual): 750 mm --> Table transverse movement: 340 mm --> Grinding height between table/new grinding wheel min/max: 22.5 / 322.5 mm --> Standard size of magnetic clamping plate: 600 x 300 mm --> Workpiece weight incl. magnet: 420 kg --> X-axis / longitudinal movement: --> T-slots (number x width): 3 x 17 mm --> Table feed, hydraulic: 0.3 - 25 m/min --> Travel per handwheel revolution: 47 mm --> Y-axis / height movement: --> Automatic vertical feed - coarse in 12 steps: 0.001 - 0.03 mm --> Automatic vertical feed - fine in 8 steps: 0.001 - 0.01 mm --> Distance per handwheel revolution (x1/x10): 0.1 / 1.0 mm --> Graduation on handwheel (x1/x10): 0.001 / 0.1 mm --> Trigger strokes: 0 - 5 --> Rapid traverse: 400 mm/min --> Z-axis / transverse movement: --> Automatic transverse feed intermittent: 0.5 - 20 mm --> Automatic transverse feed / rapid traverse continuous: 0.1 - 1.0 m/min --> Distance per handwheel revolution: 5.0 mm --> Scale mark on handwheel: 0.02 mm --> Standard grinding wheel: --> Ø x width: Ø 355x38 (50) mm --> Bore: Ø 127 mm --> Speed: 1500 rpm --> Accessories Various grinding wheels --> Documentation

Condition: used, Year of construction: 1977, pressure 250 t stroke 40 - 190 mm Rsdpfevuuaisx Adaon no. of strokes 40 /min throat 500 mm passage to the back 1050 mm dayligth 615 mm table surface area 1380 x 880 mm hole in the table 450 mm table height over floor 800 mm ram surface 1200 x 800 mm ram adjustment 125 mm power requirement 22,0 kW Weight 24,0 t dimensions of the machine ca. 2,0 x 2,5 x 3,95 m x m x m permitted for manual loading according to the German Safety Regulations (UVV) with motor, pneumatic clutch/brake combination, hydraulic overload protection in ram, pneumatic counterbalance in ram, motoric ram adjustment, manual stroke adjustment, motoric centralized lubrication, bolster plate, two-hand operation

Condition: like new (used), Year of construction: 1991, functionality: fully functional, overall weight: 35,000 kg, pressing force: 250 t, type of input current: three-phase, power: 30 kW (40.79 HP), punching force: 250 t, input voltage: 200 V, Equipment: documentation/manual, safety light barrier, AIDA NC2-250(1) 250t eccentric press in excellent condition /ctA2/ Manufacturer: AIDA Type: NC2-250(1) Push force: 160t Year of manufacture: approx. 1991 Redju Dxb Tepfx Adajn Stroke length: 170mm Distance above table: (adjustable) 280-400mm Table size: 2700x760mm Bear size: 2100x700mm Electrical power: 3x200V(!!), 30kW - Japanese standard Net weight: 35000kg Size: 2760x2800x3980mm Automatic greasing system. Automatic cutting oil dosing - RAZIOL EST-02 Optionally with disc winder and straightener.

Condition: new, Year of construction: 2023, cutting diameter 1100 mm saw band length 11000 x 67 mm cutting width 1,6 mm Redpfx Astq Dw Esdaon capacity 90 degrees: square 1100 x 1100 mm capacity 90 degrees: flat 1100 x 1300 mm total power requirement 7,5 kW / 3100 Nm weight of the machine ca. 8700 kg dimensions of the machine ca. 2800 x 1700 x 5200 mm The KSY 550 x 700 is a semi-automatic and column-guided horizontal bandsaw. The chips are transported away via a spiral conveyor. A chip trolley approx. 60 x 50 x 40 is included in the scope of delivery. The roller tables can be moved forwards and backwards via the control panel. There is a 1.40 x 1.00 metre roller table on the outfeed side. There is a motorised roller table 2 x 1.40 m on the infeed side. Optional Specifications - Motorized System For Roller Table - Laser Line - Extra Double Roller Table - PLC-Screen - Anti-Vibration System The pictures are for orientation only and do not represent a true-to-scale image of the machine.

Condition: used, Year of construction: 1988, functionality: unexamined, available Berstorff Mill 400 x 900mm more details in attached description! Rodpfer A Dfyex Adasn

Condition: new, sheet width 2050 mm plate thickness 3 mm distance between columns 2100 mm back stop - adjustable 600 mm connected load kW weight of the machine ca. 1,1 t dimensions 2,7 x 2,1 x 1,4 m The machine works quietly and it is energy-saving by its gear motor and brake system. Our machine is manufactured as steel construction monoblock body welded from ST42 quality material. Rsdpfjfv H Dkex Adasn The blades on the machine are of 2379 quality and the brand’s name is BOHLER. These high-quality blades ensure quality and precise cutting. Emergency stop button and finger guard grill are standard equipment of foot pedal machine.

Condition: used, Year of construction: 2009, Technical details: basket dimensions: 1160 x 600 x 500 mm heating capacity: 4 kW rated capacity: 16 kW rated current: 400V / 50/60 Hz A heating capacity: 4 kW temperature range: 0 - 60 °C weight of the machine ca.: 0,308 to dimensions L x W x H: 1,5 x 1,0 x 0,95 m Industrial Washing Plant Rjdju Nu Iyspfx Adaon The ultrasonic washing system (bath) is composed of external generator for two inserts. Type MW 2000 GT with 25 kHz sound power 2x2000 Watt with 9 levels adjustable continuous/pulse operation ultrasonic time adjustable The housing, the insert basket and the cover are made of stainless steel. The washing unit stands on a lower tub. Inner dimensions: L:1160 x W:600 x D:500mm (to drain 410mm) Protection class IP23 *

Condition: good (used), Year of construction: 2001, functionality: fully functional, Grinding wheel 508x254 (305) mm, regulating wheel 330x254 (305) mm, regulating wheel speed 0-115 rpm, grinding wheel rotation speed 45 m/sec, grinding diameter 2-150 mm, grinding wheel drive 45 kW, machine weight 6.5 tons, space requirement approx. 3.0x1.5 m Rjdpsuy Ifgjfx Adaon The machine will be equipped with a new Siemens S7 control system with new control panel, dressing quill SS electrically controlled via servo motor. Machine will be completely checked, defective parts repaired or replaced. Various options possible (KM system, infeed/outfeed, workpiece rulers etc.)
