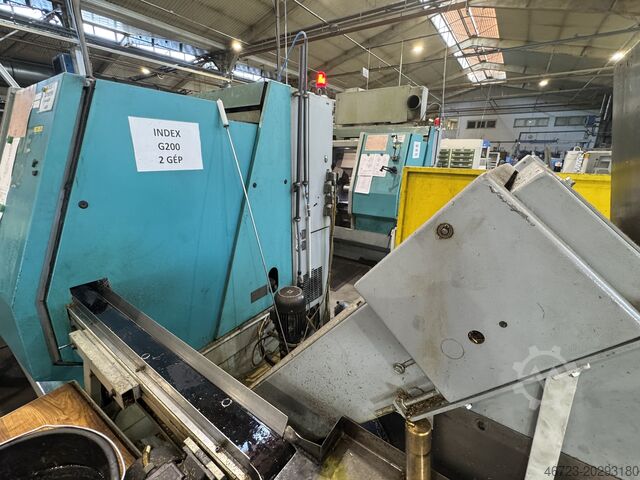

CNC turning and milling center

INDEX G200

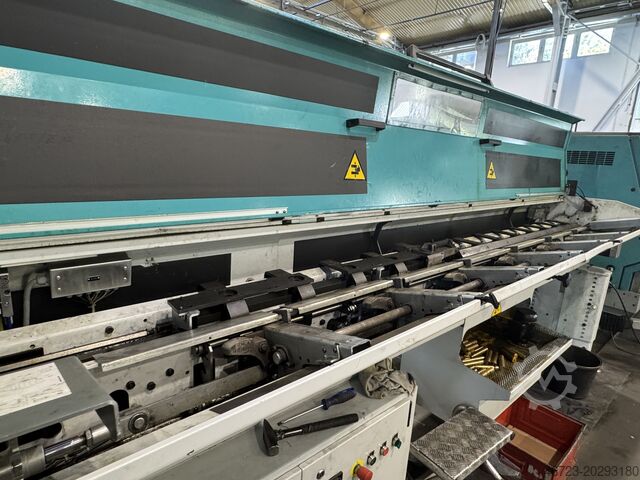

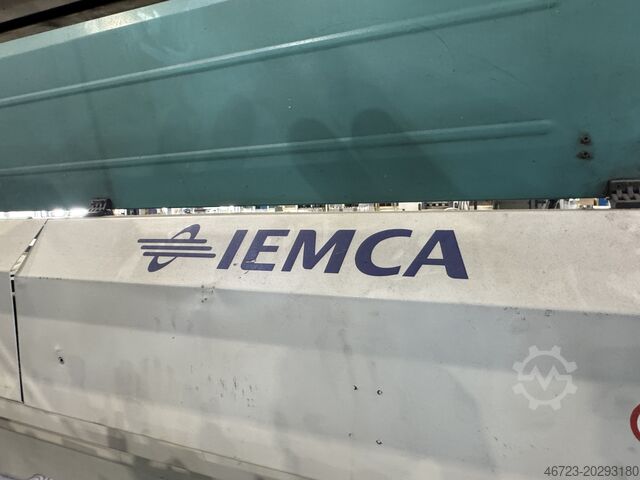

Condition: used, Year of construction: 2001, Technical Specifications: • Power supply: 3 Ph / 50 Hz • Voltage: 400 V • Control voltage: 24 V • Rated current: 76 A • Total power: 42 kW • Machine weight: 4,800 kg • Electrical cabinet weight: 440 kg Included Equipment: • Bar feeder IEMCA Master 880/33R P Serial number: 0200141S02 Year of manufacture: 2001 Supply voltage: 380 V / 3 Ph / 50 Hz Control voltage: 220 V / 24 V Power consumption: 6 A Machine weight: 120 kg Psdexnlk Ujpfx Adnjgw

Condition: used, Year of construction: 2017, turning diameter 550 mm turning length 800 mm control FANUC Series 31i Model B spindle passage 76 mm turning speed range - drive spindle 3500 U/min drive capacity - spindle motor 40/25 kW max. torque on the spindle 864 Nm Number of tools 16 St. tool adaptor BMT rapid traverse 30 m/min Pjdpfx Aow U U Idodnjgw dimensions 2,9 x 2,1 x 2,25 m weight of the machine ca. 6,5 t Used CNC- lathe with boxway system in very good condition Only 9.100 h power on. - 3- jaw chuck Ø 315 mm - chip conveyor - some tool holders - tailstock programmable - oil dust collector -"Build In" motor

Condition: used, Year of construction: 2007, controller manufacturer: SIEMENS, controller model: SINUMERIK, number of spindles: 2, CONTROLS .. CNC controls SIEMENS SINUMERIK BASIC FUNCTIONS .. design principle: inclined bed .. number of spindles: 2 .. - counter spindle: yes .. live positions: yes Pgedpfx Adexwty Nensw .. number of c-axes: 2 .. number of y-axes: 1 WORKING RANGE TURNING .. swing diameter (max): 420 mm .. turning diameter (max): 200 mm .. bar diameter (max): 60 mm .. worpiece length max.: 400 mm MAIN SPINDLE .. spindle revolutions (max): 5000 /min .. spindle bore diameter: 60 mm .. c-axis: yes COUNTER SPINDLE .. spindle revolutions (max): 5000 /min .. c-axis: yes X/Z SLIDE .. number of tool positions (total): 14 .. - rotation speeds (max): 6000 /min .. - drive power: 5.5 kW TOOL MAGAZINE .. number of positions: 14 ELECTRICAL SPECIFICATIONS .. total power consumption: 44 kW .. mains voltage: 400 V .. mains frequency: 50 Hz DIMENSIONS / WEIGHTS .. space requirements -left/right-: 2450 mm .. space requirements -front/back-: 1400 mm .. total height: 1850 mm .. total weight approx.: 5500 kg ATTACHMENTS (TURNING) .. chip conveyor: yes Accessories - Chip conveyor - Iemca Master 880MP bar feeder

Condition: used, Year of construction: 1997, turning diameter 420 mm turning length 400 mm spindle tunring speed 5.000 U/min power capacity 44 kW Podpsxp R Etsfx Adnsgw bar material dia. 60 mm In our opinion, the machine is in good used condition and can be inspected under power by appointment. Accessories, tools, and clamping devices shown are only included in the scope of delivery if noted in the additional information. Subject to changes and errors in the technical data and information, as well as subject to prior sale!

Condition: used, Year of construction: 2016, feed length X-axis: 711 mm, feed length Y-axis: 406 mm, feed length Z-axis: 394 mm, Traverses X Y Z ; 711 x 406 x 394mm, Table size 864 x 381mm, table load 113 kgs, rapid feedrates 61m/min, spindle power 15Hp, spindle speed 15,000rpm, spindle taper BT40, 18 station ATC, Haas control, coolant, swarf auger. Pedpfxov Sut Rs Adnjgw

Condition: ready for operation (used), Year of construction: 2000, operating hours: 45,000 h, General Data Measurements width 1910 mm Measurements depth 3580 mm Measurements height 2050 mm Machine weight 4000 kg Pgjdpfx Aoxfwzmednow Control Unit Brand INDEX Model C200-4 / C200-8 Additional Equipment Synchronous device for counter spindle machining Tool carrier 3 for synchronous spindle (rear end machining) Additional milling spindle Thread milling and polygon turning device Gripperless tool changer (6 tools, HKS-50 B, KM40) Workpiece handling WHU100 This 5-axis Index G200 C turn-mill centre was manufactured in 2000. Consider the opportunity to buy this Index G200 C turn-mill centre. Contact us for more information. Application Types Turning

Condition: good (used), Year of construction: 1995, Automatic lathe INDEX G200, no. 510268, year 1995, control SIEMENS Sinumerik with filter system and bar feeder IEMCA TAL/Auto 65/32, no. 88071908 Pgedpfx Aeunwiijdnjw

Condition: excellent (used), Year of construction: 2000, DESCRIPTION Hermle C 800 V CNC vertical machining center was built in 08.2000 in Germany. The milling center operates in three axes and the maximum X / Y / Z travels are 800, 600 and 500 mm. The machine is equipped with a Sinumerik 840D numerical control with a LAN cable to an external computer. In addition, the lathe is equipped with, among others: Chip conveyor, Hydraulic clamping, Magazine for 87 tools, Turning finder and Control cabinet air conditioning. The spindle rotates at a maximum speed of 15,000 rpm. Spindle hours approx. 4500 h. The total weight of the milling center is approx. 7 tons. Technical data of the Hermle C 800 V CNC milling center - Travel X / Y / Z axis: 800/600/500 mm - rapid traverse: 35 m/min - maximum spindle speed: 15.000 rpm oil mist extraction - spindle power: 19 kW - operating voltage: 400V; 3PH; 50Hz - control voltage: 220V AC; 24V DC - machine dimensions (L x W x H): 2,3 x 3 x 2,65 m - Total weight: 7000 kg Pgjdpfjiva Dkox Adnjw Equipment of the Hermle C800V CNC milling center - CNC control: Sinumerik 840D - Tool magazine capacity: 87 pieces - Lamp sockets: SK40 - cooling pump through the tool: 40 bar - control cabinet air conditioner - rotating viewfinder - chip conveyor Separately additionally available with to see on the photos! tool presetter Various SK40 holders Touch probe Heidenhain TS32 Neuwetig

Condition: refurbished (used), Year of construction: 2017, functionality: fully functional, machine/vehicle number: 510864, turning length: 200 mm, CNC lathe INDEX G200 Overhauled: 2017 Machine number: 510864 max. turning length: 200 mm Bar loading magazine INDEX MBL Main spindle Spindle passage collet clamping: 42mm Spindle diameter in front bearing: 85mm Spindle nose ISO702/1: 5 Chuck diameter: 140/160 Max. Nominal turning diameter: 200mm Max. Rotation diameter: 420mm Power Pmax 100%: 7.5/13/20 Torque Mdmax 100%: 35/61/95 Speed: 6300 Counter spindle Spindle passage collet clamping: 42mm Podoulhinepfx Adnjgw Spindle diameter in front bearing: 85mm Spindle nose ISO702/1: 5 Chuck diameter: 140/160 Power Pmax 100%: 7.5/13 Torque Mdmax 100%: 35/61 Speed: 6300 Min. distance collet: 15mm Longitudinal travel: 445mm Rapid traverse: 22.5mm Cross slide 1 XZ (top) XZ: 120x400mm Feed force: 5000N Cross slide 2 (bottom) XZ: 105x400mm Feed force: 5000N Further information on request!

Condition: used, TECHNICAL DETAILS - Number of axes : 9 Pgodsuhaf Eepfx Adnsw - Number of spindles : 2 - Number of turrets : 2 MAIN SPINDLE - Spindle nose : A2-5" - Spindle power : 20/29 [kW] - Spindle speeds : 5.000 [rpm] - Max. bar diameter : 65 [mm] - Max. turning diameter : 200 [mm] - C axis indexing precision : 0,001 [°] COUNTER-SPINDLE - Spindle nose : A2-5" - Spindle power : 13/22 [kW] - Spindle speeds : 5.000 [rpm] - Max. bar diameter : 60 [mm] - C axis indexing precision : 0,001 [°] - Travel : 445 [mm] TURRET - Number of positions : 14 - Number of motorized positions : 14 - X/Z stroke : 155/590 [mm] - Y stroke : 120 [mm] - B Axis stroke : 360 [°] - Tool holder type : VDI 25 - Live tools speed : 6.000 [rpm] MILLING SPINDLE - Spindle speeds : 6.000 [rpm] - Spindle power : 5,5 [kW] LOWER LEFT TURRET - Number of positions : 14 - Number of motorized positions : 14 - X/Z stroke : 105/400 [mm] - Tool holder type : VDI 25 - Live tools speed : 6.000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] - Total installed power : 39 [kW] WEIGHT & DIMENSIONS - Machine floor space : 3.450 x 2.520 [mm] - Machine height : 2.650 [mm] - Machine weight : 4.800 [kg] EQUIPMENT - CNC : INDEX C200-4 (Siemens 840D) - Tailstock option with counterspindle - Coolant tank - Chips conveyor : Droite KNOLL - Tool probe : Renishaw - Tool breakage detection - Parts catcher - Chuck 3 jaws : SMW 210BH - Collet chuck : HAINBUCH Spanntop 65 - Number of fixed tool holders : 28 - Number of turning tool holders : 5

Year of construction: 1974, condition: refurbished (used), functionality: fully functional, machine/vehicle number: 1293, CNC Radial Forging Machine GFM mod. SX-16 Manufacture: GFM (Austria) YOM: 1974 / 2022 Model: SXL-16 Machine number: 1293 PLC: Siemens S7 - Technology V4.2 with CNC Bosch Rexroth XM Numbers of Hammers: 4 Forging force: 800 Ton (200 t per Hammer) Strokes per minute: 580 Hammer length: 320 mm Maximum hammer setting scope - calculated by diameter: 100 mm Pgsdpfxoq U Sa Se Adnsw Maximum diameter of forging regarding: - structural steel: circular cross section – Ø 160 mm square cross section – 130 mm - high alloy steel: circular cross section – Ø 120 mm square cross section – 100 mm Extreme quadrangle: 12 x 120 mm Maximum length of forging: 6000 mm Min and Max diameter of mounting in manipulator: 30 - 160 mm Feed of manipulator A: 6800 mm Feed of manipulator B: 7200 mm Passage through manipulator: Ø 130 mm Manipulators speed in fast move: 400 mm/s Feed speed of manipulators (stepless adjustment): 10 ÷ 115 mm/s Cooling water pressure: 3 ÷ 5 bar Temperature of inlet water: max. 30˚C Cooling water consumption: 34m3/h Pipe diameter for cooling water: 2” Compressed air pressure: min. 5 bar Pipe diameter for compressed air: Ø20 mm Consumption of compressed air: 1,5 Nm3/h Power supply (nominal power): 350 kW Motor voltage: 500 V Control voltage 220 V Power of main engine: 200 kW Power of pump motors: 185 kW Power of manipulators motors: 2 x 22 kW Dimensions of the machine Axis height of forging above the hall level: 750 mm Maximum height of machine above the hall level: 2.050 mm Maximum length of machine on the hall level: 33.740 mm Foundation length: 34.200 mm Maximum width of machine on hall level without loading equipment: 4350mm Foundation width: 15.600mm Machine net weight: 124.490 kg

Year of construction: 1995, condition: ready for operation (used), Max. speed range: 5000 rpm, bar capacity: 65 mm, max. turning diameter: 200 mm, max. turning length: 400 mm. Number of spindles: 2, tool changer: 2x 14, Siemens control. Including outfeed conveyor, KNOLL 400S-1 chip conveyor (year of manufacture: 2016), switch cabinet with cooling unit, CO2 extinguishing system and INDEX bar loader. General overhaul in 2016. Pgjdpfx Ajtdwwmjdnjw

Condition: used, TECHNICAL DETAILS - Number of axes : 7 - Number of spindles : 2 - Number of turrets : 1 MAIN SPINDLE - Spindle nose : A2-5 - Spindle power : 22 [kW] - Spindle speeds : 6000 [rpm] - Max. bar diameter : 60 [mm] - Max. turning diameter : 200 [mm] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Spindle nose : A2-5 - Spindle power : 22 [kW] - Spindle speeds : 6000 [rpm] - Max. bar diameter : 60 [mm] - C axis indexing precision : 0.001 [°] - Z stroke : 445 [mm] TURRET 1 - Number of positions : 14 - Number of motorized positions : 14 - X/Z stroke : 105/400 [mm] - Y stroke : 120 [mm] - B Axis stroke : +90/-270 [°] - Tool type : VDI 25 Podpfsu Hadhex Adnegw - Live tools speed : 6000 [rpm] - Live tools power : 5.5 [kW] POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine floor space : 4.975 X 2.890 [mm] - Machine height : 2.050 [mm] - Machine weight : 4800 [kg] EQUIPMENT - CNC : Siemens 840C - Coolant tank * with high-pressure pump - Chips conveyor - Parts catcher - Parts conveying strip - Bar loader : LNS

Condition: excellent (used), Year of construction: 2018, Control Fanuc 32I-B, Podpsw Rct Hofx Adnegw bar capacity 32mm, maximum cutting diameter 32mm, maximum cutting length 310mm, maximum drilling diameter 13mm, maximum tapping capacity M12, milling speed 5,000rpm, spindle speed 7,000rpm, Sub spindle C axis 0.001 degree, FMB Turbo 3-36/3200 barfeed, number of controlled axis Z, ZB, X, XB, C1, C2, Y. swarf conveyor,

Year of construction: 2003, condition: ready for operation (used), Max. turning diameter: 200mm, max. turning length: 400mm, spindle speed: 6000rpm, bar capacity: 42mm, weight: approx. 4300kg. Pgjdpfotdwwqsx Adnsw
