CNC turning and milling center

INDEX G200

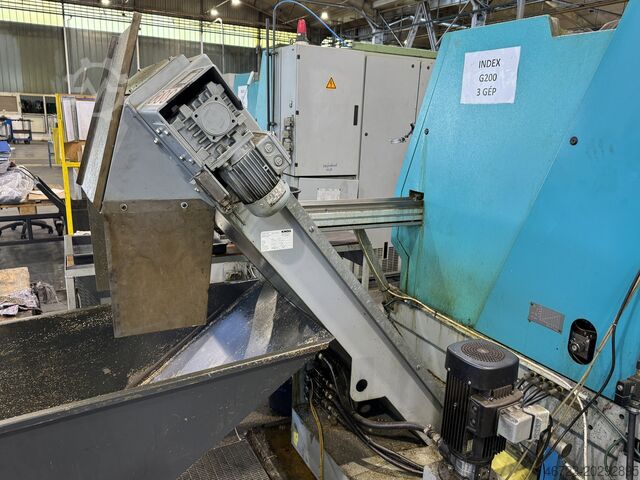

Condition: used, Year of construction: 2007, Technical Specifications: • Power supply: 3-phase / 50 Hz • Voltage: 400 V • Control voltage: 24 V • Rated current: 68 A Included Equipment: • Bar feeder IEMCA Master 880 MP/33 L Serial number: 020721SA07 Year of manufacture: 2007 Air pressure: 6 bar Voltage: 400 V / 3 ~ / 50 Hz Current: 6 A Weight: 1,360 kg Manufacturer: IGMI S.p.A. (BUCCI Industries), Faenza, Italy Pedpfx Aexnlv Rsdnjgw

Condition: used, Year of construction: 2016, feed length X-axis: 711 mm, feed length Y-axis: 406 mm, feed length Z-axis: 394 mm, Traverses X Y Z ; 711 x 406 x 394mm, Table size 864 x 381mm, table load 113 kgs, rapid feedrates 61m/min, spindle power 15Hp, spindle speed 15,000rpm, spindle taper BT40, 18 station ATC, Haas control, coolant, swarf auger. Psdpfx Asv Sut Rodnegw

Condition: used, Year of construction: 2007, controller manufacturer: SIEMENS, controller model: SINUMERIK, number of spindles: 2, CONTROLS .. CNC controls SIEMENS SINUMERIK Pgsdpfoxwty Nsx Adnew BASIC FUNCTIONS .. design principle: inclined bed .. number of spindles: 2 .. - counter spindle: yes .. live positions: yes .. number of c-axes: 2 .. number of y-axes: 1 WORKING RANGE TURNING .. swing diameter (max): 420 mm .. turning diameter (max): 200 mm .. bar diameter (max): 60 mm .. worpiece length max.: 400 mm MAIN SPINDLE .. spindle revolutions (max): 5000 /min .. spindle bore diameter: 60 mm .. c-axis: yes COUNTER SPINDLE .. spindle revolutions (max): 5000 /min .. c-axis: yes X/Z SLIDE .. number of tool positions (total): 14 .. - rotation speeds (max): 6000 /min .. - drive power: 5.5 kW TOOL MAGAZINE .. number of positions: 14 ELECTRICAL SPECIFICATIONS .. total power consumption: 44 kW .. mains voltage: 400 V .. mains frequency: 50 Hz DIMENSIONS / WEIGHTS .. space requirements -left/right-: 2450 mm .. space requirements -front/back-: 1400 mm .. total height: 1850 mm .. total weight approx.: 5500 kg ATTACHMENTS (TURNING) .. chip conveyor: yes Accessories - Chip conveyor - Iemca Master 880MP bar feeder

Condition: used, Year of construction: 1997, turning diameter 420 mm Pjdexp R Etjpfx Adnogw turning length 400 mm spindle tunring speed 5.000 U/min power capacity 44 kW bar material dia. 60 mm In our opinion, the machine is in good used condition and can be inspected under power by appointment. Accessories, tools, and clamping devices shown are only included in the scope of delivery if noted in the additional information. Subject to changes and errors in the technical data and information, as well as subject to prior sale!

Condition: excellent (used), Year of construction: 2000, DESCRIPTION Hermle C 800 V CNC vertical machining center was built in 08.2000 in Germany. The milling center operates in three axes and the maximum X / Y / Z travels are 800, 600 and 500 mm. The machine is equipped with a Sinumerik 840D numerical control with a LAN cable to an external computer. In addition, the lathe is equipped with, among others: Chip conveyor, Hydraulic clamping, Magazine for 87 tools, Turning finder and Control cabinet air conditioning. The spindle rotates at a maximum speed of 15,000 rpm. Spindle hours approx. 4500 h. The total weight of the milling center is approx. 7 tons. Technical data of the Hermle C 800 V CNC milling center - Travel X / Y / Z axis: 800/600/500 mm - rapid traverse: 35 m/min - maximum spindle speed: 15.000 rpm oil mist extraction - spindle power: 19 kW - operating voltage: 400V; 3PH; 50Hz - control voltage: 220V AC; 24V DC - machine dimensions (L x W x H): 2,3 x 3 x 2,65 m - Total weight: 7000 kg Pjdpfxjiva Dke Adnsgw Equipment of the Hermle C800V CNC milling center - CNC control: Sinumerik 840D - Tool magazine capacity: 87 pieces - Lamp sockets: SK40 - cooling pump through the tool: 40 bar - control cabinet air conditioner - rotating viewfinder - chip conveyor Separately additionally available with to see on the photos! tool presetter Various SK40 holders Touch probe Heidenhain TS32 Neuwetig

Condition: ready for operation (used), Year of construction: 2000, operating hours: 45,000 h, General Data Measurements width 1910 mm Measurements depth 3580 mm Measurements height 2050 mm Machine weight 4000 kg Control Unit Brand INDEX Model C200-4 / C200-8 Additional Equipment Synchronous device for counter spindle machining Tool carrier 3 for synchronous spindle (rear end machining) Additional milling spindle Thread milling and polygon turning device Gripperless tool changer (6 tools, HKS-50 B, KM40) Workpiece handling WHU100 This 5-axis Index G200 C turn-mill centre was manufactured in 2000. Consider the opportunity to buy this Index G200 C turn-mill centre. Contact us for more information. Application Types Pgedpfexfwzmox Adnsw Turning

Condition: good (used), Year of construction: 1995, Automatic lathe INDEX G200, no. 510268, year 1995, control SIEMENS Sinumerik with filter system and bar feeder IEMCA TAL/Auto 65/32, no. 88071908 Pgsdpfxsunwiio Adnew

Condition: good (used), Year of construction: 2008, functionality: fully functional, Control: OSP-P20L-R Swivel diameter over bed: 450 mm Swivel diameter over longitudinal slide: 350 mm Swivel diameter over cross slide: 300 mm Spindle bore: 43 mm Spindle speed range: 75 - 3,000 rpm X-axis feed: 0.00001 - 39.37 mm mm/rev X-axis rapid traverse: 20 m/min Z-axis feed: 0.00004 - 38.37 mm/rev Z-axis rapid traverse: 25 m/min Tool turret: 12-way Driven tools Tool holder: VDI30 Machine weight: approx. 3,800 kg Pjdpfx Adsvk Sqkonogw Bar loader BREUNING IRCO

Condition: refurbished (used), Year of construction: 2017, functionality: fully functional, machine/vehicle number: 510864, turning length: 200 mm, CNC lathe INDEX G200 Overhauled: 2017 Machine number: 510864 max. turning length: 200 mm Bar loading magazine INDEX MBL Pgjdpfx Aoulhinsdnsw Main spindle Spindle passage collet clamping: 42mm Spindle diameter in front bearing: 85mm Spindle nose ISO702/1: 5 Chuck diameter: 140/160 Max. Nominal turning diameter: 200mm Max. Rotation diameter: 420mm Power Pmax 100%: 7.5/13/20 Torque Mdmax 100%: 35/61/95 Speed: 6300 Counter spindle Spindle passage collet clamping: 42mm Spindle diameter in front bearing: 85mm Spindle nose ISO702/1: 5 Chuck diameter: 140/160 Power Pmax 100%: 7.5/13 Torque Mdmax 100%: 35/61 Speed: 6300 Min. distance collet: 15mm Longitudinal travel: 445mm Rapid traverse: 22.5mm Cross slide 1 XZ (top) XZ: 120x400mm Feed force: 5000N Cross slide 2 (bottom) XZ: 105x400mm Feed force: 5000N Further information on request!

Condition: used, TECHNICAL DETAILS - Number of axes : 9 - Number of spindles : 2 - Number of turrets : 2 MAIN SPINDLE - Spindle nose : A2-5" - Spindle power : 20/29 [kW] - Spindle speeds : 5.000 [rpm] - Max. bar diameter : 65 [mm] - Max. turning diameter : 200 [mm] - C axis indexing precision : 0,001 [°] COUNTER-SPINDLE - Spindle nose : A2-5" - Spindle power : 13/22 [kW] - Spindle speeds : 5.000 [rpm] - Max. bar diameter : 60 [mm] - C axis indexing precision : 0,001 [°] - Travel : 445 [mm] TURRET - Number of positions : 14 - Number of motorized positions : 14 - X/Z stroke : 155/590 [mm] - Y stroke : 120 [mm] - B Axis stroke : 360 [°] - Tool holder type : VDI 25 - Live tools speed : 6.000 [rpm] MILLING SPINDLE - Spindle speeds : 6.000 [rpm] - Spindle power : 5,5 [kW] LOWER LEFT TURRET - Number of positions : 14 - Number of motorized positions : 14 - X/Z stroke : 105/400 [mm] - Tool holder type : VDI 25 - Live tools speed : 6.000 [rpm] POWER SUPPLY - Supply voltage : 400 [V] Podpfx Adsuhaf Eonegw - Total installed power : 39 [kW] WEIGHT & DIMENSIONS - Machine floor space : 3.450 x 2.520 [mm] - Machine height : 2.650 [mm] - Machine weight : 4.800 [kg] EQUIPMENT - CNC : INDEX C200-4 (Siemens 840D) - Tailstock option with counterspindle - Coolant tank - Chips conveyor : Droite KNOLL - Tool probe : Renishaw - Tool breakage detection - Parts catcher - Chuck 3 jaws : SMW 210BH - Collet chuck : HAINBUCH Spanntop 65 - Number of fixed tool holders : 28 - Number of turning tool holders : 5

Condition: excellent (used), Year of construction: 2017, operating hours: 6,050 h, functionality: fully functional, travel distance X-axis: 213 mm, travel distance Y-axis: 572 mm, Haas turning center Type: ST 25 Year 2017 Pgodpfx Aderdg H Henew Hours of operation 6047h Maximum power rating, drive system 22.4 kW, belt drive Bar capacity, maximum speed 76.0 mm, 3400 r p m Axis movement range (X, Z) 213 mm, 572 mm Chip extraction Spindle clearance 75mm

Year of construction: 1995, condition: ready for operation (used), Max. speed range: 5000 rpm, bar capacity: 65 mm, max. turning diameter: 200 mm, max. turning length: 400 mm. Number of spindles: 2, tool changer: 2x 14, Siemens control. Including outfeed conveyor, KNOLL 400S-1 chip conveyor (year of manufacture: 2016), switch cabinet with cooling unit, CO2 extinguishing system and INDEX bar loader. General overhaul in 2016. Pgjdstdwwmjpfx Adnow

Condition: used, TECHNICAL DETAILS - Number of axes : 7 - Number of spindles : 2 - Number of turrets : 1 MAIN SPINDLE - Spindle nose : A2-5 - Spindle power : 22 [kW] - Spindle speeds : 6000 [rpm] - Max. bar diameter : 60 [mm] - Max. turning diameter : 200 [mm] - C axis indexing precision : 0.001 [°] COUNTER-SPINDLE - Spindle nose : A2-5 - Spindle power : 22 [kW] - Spindle speeds : 6000 [rpm] - Max. bar diameter : 60 [mm] - C axis indexing precision : 0.001 [°] Psdpfxou Hadhe Adnjgw - Z stroke : 445 [mm] TURRET 1 - Number of positions : 14 - Number of motorized positions : 14 - X/Z stroke : 105/400 [mm] - Y stroke : 120 [mm] - B Axis stroke : +90/-270 [°] - Tool type : VDI 25 - Live tools speed : 6000 [rpm] - Live tools power : 5.5 [kW] POWER SUPPLY - Supply voltage : 400 [V] WEIGHT & DIMENSIONS - Machine floor space : 4.975 X 2.890 [mm] - Machine height : 2.050 [mm] - Machine weight : 4800 [kg] EQUIPMENT - CNC : Siemens 840C - Coolant tank * with high-pressure pump - Chips conveyor - Parts catcher - Parts conveying strip - Bar loader : LNS

Condition: new, 2021 Durma 15 kW Fiber Laser Make: DURMA Type: HD-F(L) 3015 Working range X-Y-Z: 3060x1530x160 mm Laser power: 15000 Watt IPG Control: Siemens Sinumerik 840D sheet thickness mild steel: 40 mm Sheet thickness stainless steel: 30 mm Sheet thickness aluminium: 30 mm Sheet size: 3048x1524 mm Loading weight: 200 kg/m² Speeds X-Y axes: 100 m/min. Speeds X-Y axes simultaneous: 280 m/min. positioning accuracy: +/- 0,05 mm Repeating accuracy: +/- 0,05 mm Installation area L/W/H: approx. 14500x7500x2420 mm weight: approx. 12000 kg Standard equipment Automatic pallet changer Control Sinumerik 840D Auto-focus cutting head Precitec Procutter F150 focus Automatic sheet position and sheet size measuring system Automatic nozzle cleaning Position laser diode Central lubrication Simple user interface parameter page (power-speed-pressure) External CAD/CAM programming software with autonesting optional Lantek software Work area lighting Podpfx Adegk Nlpjnsgw Warning light Multi-chamber exhaust system Special laser cutting options Remote maintenance CE marking IPG fiber laser source 15000 Watt including cooler Extended equipment possible: Filter, compact dust collector Vanterm Motorized chip conveyor for small parts/waste Laser Service Set Cloud License Lantek Expert Inside Software Lantek software with positioning - laser diode with automatic sheet metal position detection, measurement Camera Inside Linear drive We will be pleased to send you further information on request.

Year of construction: 2003, condition: ready for operation (used), Max. turning diameter: 200mm, max. turning length: 400mm, spindle speed: 6000rpm, bar capacity: 42mm, weight: approx. 4300kg. Pgsdpjtdwwqjfx Adnsw
