ES 2550/500 KG

ENGEL

Condition: ready for operation (used), Year of construction: 2004, operating hours: 70,029 h, functionality: fully functional, machine/vehicle number: 51561, clamping force: 2,300 kN, screw diameter: 135 mm, injection pressure: 1,600 bar, opening stroke: 3,800 mm, tool height: 1,890 mm, TECHNICAL DETAILS Clamping force: 2,300 kN Platen size (H x V): 2,900 x 2,500 mm Tie bar distance (H x V): 2,000 x 1,600 mm Minimum/maximum mould height: 700 mm/1,890 mm Maximum opening stroke: 3,800 mm INJECTION UNIT Screw diameter: 135 mm Bedpey T Hx Hjfx Aizodc Shot volume: 8,870 cm³ Shot weight (PS): 8,071 g Injection pressure: 1,600 bar MACHINE DETAILS Net weight (with control cabinet): 113 t + 18 t Operating hours: 70,029 h

Condition: used, Year of construction: 1999, power: 3 kW (4.08 HP), input voltage: 400 V, cutting height (max.): 200 mm, saw blade diameter: 520 mm, overall weight: 350 kg, cutting length (max.): 420 mm, mount diameter: 50 mm, saw drive: 3,000 W, No. 04511 Crosscut and mitre saw Graule ZS 200 N Used, year of construction 1999 Saw can be swiveled and tilted 3 kW three-phase brake motor 400 V Saw blade diameter 520 mm Saw blade holder 50 mm Cutting height 200 mm Saw blade tilted to 45°: Cutting height 140 mm Cutting length 420 mm Table dimensions 900 x 700 mm LW Aluminium fence back With machine stand and hand crank at the rear for tilt adjustment Hydraulic feed brake Pneumatic material clamping on both sides from above Saw blade spray device for coolant or lubricant Carbide circular saw blade for aluminium and plastics, diameter 520 mm Roller conveyor type RLK 4000 mm, with fold-away material fence and scale Roller conveyor 4000 mm long after the saw Roller conveyor width 350 mm Transport dimensions machine approx. 1650 x 1200 x 1850 mm LWH, roller conveyors approx. 4500 x 400 x 1950 mm LWH Weight approx. 350 kg To avoid possible misunderstandings, an on-site inspection is possible and recommended by appointment Sold as is Technical specifications, condition description, year of construction and scope of delivery according to manufacturer's brochure or previous owner, without guarantee Subject to prior sale For used machines, any warranty is excluded, the following applies: “sold as seen” Terms of payment: Prices plus VAT, payment before collection or dispatch Bdsdpfxsyh Nfuo Aizoc Terms of delivery: ex warehouse

Condition: ready for operation (used), Year of construction: 2011, operating hours: 61,666 h, functionality: fully functional, clamping force: 6,500 kN, screw diameter: 90 mm, column diameter: 175 mm, injection weight: 2,520 g, opening stroke: 1,400 mm, The machine is in excellent condition; all hydraulic hoses were replaced in the fourth quarter of 2024! TECHNICAL DETAILS Clamping force: 6,500 kN Column spacing (H x V): 1,100 x 960 mm Platen size (H x V): 1,510 x 1,440 mm Tool height (min./max.): 650 / 1,150 mm Opening stroke: 1,400 mm Maximum distance between platens: 2,050 mm Bdedpfsy T Hfyox Aizec Maximum tool weight: 11,000 kg Ejector force: 95 kN Ejector stroke: 250 mm Column diameter: 175 mm Injection unit (unit 5550) Screw diameter: 90 mm Maximum shot volume: 2,740 cm³ Maximum shot weight (PS): 2,520 g Injection pressure (max./increased): 2,180 bar Injection pressure (standard): 1,910 bar L/D ratio of the screw: 20 Screw stroke: 430 mm Maximum screw speed: 148 rpm Plasticizing volume: 77 g/s Nozzle closing force: 150 kN MACHINE DETAILS Control: CC200 Drive and Supply Installed drive power: 90 kW Cylinder heating power: 56 kW Number of heating zones: 6 Hydraulic tank capacity: 1,000 l Installed drive power: 90 kW Operating hours: 61,606 h EQUIPMENT Robot: Viper 40 Key features: 6 hydraulic circuits on the moving platen 2 hydraulic circuits on the fixed platen Cascade valves: 4 units (mounted on the fixed platen)

Condition: good (used), Year of construction: 2009, ENGEL EM 440/100T Clamping force: 1000 kN Opening stroke: 400 mm Ejector stroke: 130 mm Ejector force: 37 kN Screw diameter: 40 mm Bsdpjyktp Sofx Aizjdc Max. swept volume: 220 cm³ Screw speed max: 420 rpm Injection rate: 224 cm³/s Specific injection pressure: 2200 bar Nozzle stroke: 305 mm Nozzle contact force: 40 kN

Condition: excellent (used), functionality: fully functional, Year of construction: 2010, machine/vehicle number: 1005/40200317/2010, color: grey, macchina perfetta in ogni sua parte, pronta per essere messa in produzione composta da : sfilatore a cassetto / 3 mettifogli dei quali 1 con dischi di lancio 1 sdoppiabile per doppio inserimento inserti, 1 pivottante a 90 gradi per inserimento inserti in linea di senso di marcia, incollatore abbinato ad etichettatrice elettronica per inserimento indirizzi da 1 pollice a 4 pollici da 2 a 4 piste oltre anche per conti correnti, confezionatrice predisposta con apparato stirofilm per riduzione del lasco sacchetto, staker di raccolta e conteggio prodotti con espulsioone laterale e nastro meccanico di uscita prodotto. Bdjdpfx Aieuxmliszec

Condition: new, Year of construction: 2025, clamping force: 6,500 kN, Equipment: documentation/manual, Clamping force: 650 t Screw diameter: 80 mm Distance between tie bars V: 1440 mm Distance between tie bars H: 1510 mm Opening min max: 450-950 Bdedpjza Au Nofx Aizjc Shot volume: 1810 cm3 Type: Horizontal Drive: Hydraulic

Condition: used, Year of construction: 2005, Technical details: screw size: 70 mm Bdodpfx Aowftr Djizjc injection shot weight in Polysterol: 687 g/PS closing pressure: 3000 kN weight of the machine ca.: 19,4 t PreHeating unit and airsoaking unit is not in package !! *

Condition: excellent (used), Year of construction: 2004, Angel Victory 80/45 Tech Bedpfx Aeh Rawbeizjdc Closing 45 TOnnen, tie-bar-less Scrow 22 mm YEAR 2004 CC 200

Condition: excellent (used), Year of construction: 2018, ENGEL duo 8160H/860W/1700 combi Machine type: ENGEL duo 8160H/860W/1700 combi Year: 2018 Machine version: 2-component machine Injection unit arrangement: H/W arrangement, one above the other, distance 300 mm Clamping force: 17,000 kN Min./max. mould height: 800 / 1,600 mm Max. opening stroke: 2,550 mm Max. platen distance: 3,350 mm Rotary table diameter: 2,250 mm Mould weight: DS: 30,000 kg AS with rotary table: 21,590 kg Total: 36,586 kg AS without rotary table: 25,790 kg Rotary table weight: 4,200 kg Injection unit 1 / 3660H Nozzle: hydraulic shut-off nozzle Nozzle radius: R35 Nozzle bore: Ø8 mm Screw diameter: 105 mm Max. stroke volume: 4,070 cm³ Bjdpfxszatkho Aizjdc Max. shot weight PC-ABS: 4,600 g Max. shot weight PP: 3,700 g Max. shot weight PA6 GF30: 5,500 g Max. shot weight TPU: 4,960 g Injection unit 2 / 500W Nozzle: open nozzle Nozzle radius: R35 Nozzle bore: Ø4 mm Screw diameter: 50 mm Max. stroke volume: 432 cm³ Max. shot weight TPV 55 Shore: 390 g Max. shot weight EPDM 65 Shore: 483 g Tie bars / platens Tie-bar spacing horizontal: 1,850 mm Tie-bar spacing vertical: 1,415 mm Tie-bar diameter: 265 mm Centring rings Nozzle side: 1K Ø250 mm / 2K Ø200 mm, pitch 300 mm Ejector side: Ø250 mm Centring groove DS: 300 mm below nozzle centre, 100 × 32H8, depth 18 mm Ejector Max. ejector stroke: 300 mm Central ejector: without Thread: M20 Ejector rod diameter: Ø50 mm Limit monitoring connector: 4-pin Core pullers AS: 4× + 1× proportional valve DS: 4× + 1× proportional valve Core in: SKM13IR3 / alternative SKM10IR2 Core out: SKS13IR3 / alternative SKS10IR2 Limit monitoring connector: 16-pin according to Euromap 13 Valve gate control Hydraulic: 16-fold / SKM10IR2 / SKS10IR2 Pneumatic valves Ejector side: 1× blow function Nozzle side: 1× blow function Mould temperature control Ejector side: 16 circuits Nozzle side: 16 circuits Machine-side water connection: Hasco N9 Tool-side water connection: USA system DME N9 / alternative N6 Mould heating 64 control zones 8 plugs for sensors and heating 16-pin Robot / handling Robot: ENGEL viper 60-RC 300 Travel Z: 3,320 mm Travel X: 1,500 mm Travel Y: 2,600 mm C-axis: 210 Nm B-axis: 210 Nm Automation Conveyor belt for parts deposit Belt width: 1,600 mm Light barrier Special features iQ weight control Gas-assisted processing / blowing agent processing Injection compression moulding Cavity pressure sensors MuCell prepared, not yet installed Electrical data Main connection A: 3×400V + N + PE / 50 Hz Nominal current A: 0 A Rating A: 250 kW Main fuse A: 630 A Short circuit current rating: 10,000 A Control voltage: 230V AC / 24V DC Main connection B: Nominal current B: 210 A Rating B: 150 kW Main fuse B: 250 A

Condition: excellent (used), Year of construction: 2019, Clamping force: 650 t Screw diameter: 60 mm Distance between tie bars V: 960 mm Distance between tie bars H: 1100 mm Shot volume: 890 cm3 Type: Horizontal Drive: Hydraulic Bdsdozaqygjpfx Aizec

Condition: ready for operation (used), Year of construction: 1989, An aluminum die casting system is available. Clamping force: 2200kN, opening force: 71kN, max. opening stroke: 430mm, mold closure: double toggle lever, pressure chamber: cold chamber, position: horizontal. Filling piston diameter min./max.: 40mm/70mm, pressure chamber filling volume min./max.: 293cm³/898cm³, casting pressure: 1990bar, blast area min./max.: 110cm²/338cm², output: 780 cycles/h. Clamping plate dimensions X/Y: 755mm/755mm, column spacing: 500mm/500mm, mold height min./max.: 250mm/600mm, min. mold dimensions X/Y: 296mm/296mm. Including crucible furnace, blow-out device, automatic dosing unit and 4x control cabinets. Documentation available. Bodeucfwpopfx Aizsdc

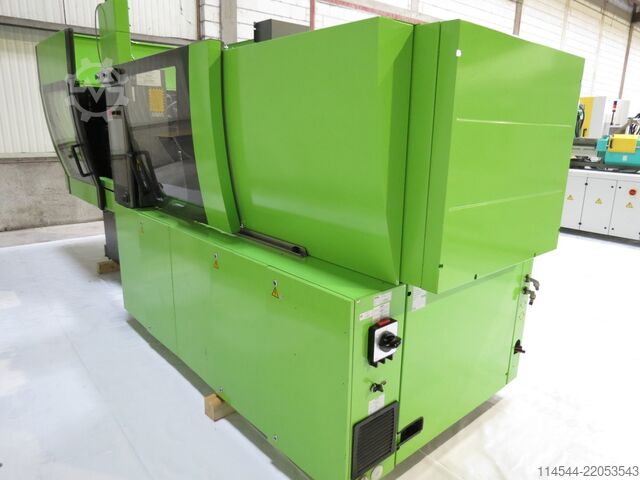

Condition: excellent (used), Year of construction: 2015, ENGEL victory 650/120 tech (25.109 h) (S&P 3793) Manufacture year: 2015 Operating hours: 25,109 Stunden Screw: 35 mm Injection pressure: 2400 bar Bdodozbazispfx Aizjc Stroke volume: 192 cm³ Clamping Force: 120 t Tie bar distance: 740 x 680 mm Mould installation height min.: 300 mm Plate distance max.: 800 mm Dimensions: 5100 x 1500 x 2350 mm Eeight: 7000 kg Connected load: 22 kW Automatic door, Corepuller 1x, Airvalve, Hotrunner, price when new 122.000,- € etc... Price: on request contact: Mr. Ralf Schulz

Condition: like new (used), Year of construction: 2024, clamping force: 2,700 kN, ENGEL DUO 36060/2700 TECH Manufacturer: ENGEL Model: DUO 36060/2700 TECH Clamping Force: 2,700 t (27,000 kN) CLAMPING UNIT Clamping force: 27,000 kN Opening stroke: 3,300 mm Max. daylight: 4,100 mm Min. mould height: 800 mm Max. mould height: 2,200 mm Tie bar spacing (H × V): 2,180 × 1,750 mm Platen dimensions (H × V): 2,970 × 2,640 mm Opening force: 770 kN Opening force with pressure pad: 1,600 kN Dry cycle time (Euromap 6): 5.6 s INJECTION UNIT Bsdpfx Aisy U Hu Rezjdc Screw diameter: 190 mm L/D ratio: 25:1 Screw stroke: 850 mm Shot volume: 24,100 cm³ Theoretical shot weight PS: approx. 21.9 kg Injection rate: 2,620 cm³/s Injection pressure (regenerative): 1,300 bar Maximum injection pressure: 1,600 bar Screw speed: 85 rpm Maximum screw speed: 100 rpm Screw torque: 24,000 Nm Reduced torque at max. speed: 20,400 Nm Plasticizing rate (3-zone screw): 238 g/s Plasticizing rate (barrier screw): 296 g/s NOZZLE Nozzle stroke: 1,300 mm Nozzle contact force: 210 kN EJECTOR Ejector stroke: 400 mm Ejector force forward: 420 kN Ejector force return: 420 kN HEATING SYSTEM Heating zones incl. nozzle: 12 Installed heating power: 160.9 kW DRIVE UNIT Installed motor power: 355 kW Reload pump motor: 3 kW Hydraulic oil tank capacity: 3,500 l COOLING REQUIREMENTS Cooling capacity: 66.9 kW Water consumption (32°C inlet): 5.88 m³/h Options: Engel VIPER 90 robot Rectable tie bar (movable) Hotrunners: 160 cores: 3+3 Cascades: 72

Condition: new, 04P-023-LF 04P-023-RF 004P014-L-A2 004P014-R-A2 004P023-LF-A2 004P023-RF-A2 04P033-LF-A2 04P033-RF-A2 044P-023-011LF 044P-023-011RF 044P049-021-LF-A2 044P049-021-RF-A2 044P049-033-LF-A2 044P049-033-RF-A2 06P-094-LF-A2 06P-094-RF-A2 064P-079-025-LF 064P-079-025-RF 064P118-017-LF-A2 064P118-017-RF-A2 064P135–049–L-M1268 064P135–049–R-M1268 064P-135-049-LF 064P-135-049-RF 064P-148-034-LF 064P-148-034-RF 066P079-L-A1-M1077 066P079-R-A1-M1077 066P094-L-A1 066P094-R-A1 066P-104-031-LF 066P-104-031-RF 066P-118-035-LF 066P-118-035-RF 066P104-056-LF-A1 066P104-056-RF-A1 066P135-L-A1-M1077 066P135-R-A1-M1077 644P 079-037-014-LF-A2 (M1239) 644P 079-037-014-RF-A2 (M1239) 066P135-063-L-A1, 066P135-063-R-A1 644P-069-026-014-LF-A2-M1239 644P-069-026-014-RF-A2-M1239 664P118-056-017-L-A2- M929 M1256 664P118-056-017-R-A2- M929 M1256 08P-197-LF 08P-197-RF 086P-197-056-LF 086P-197-056-RF 886P-226-226-104-LF 886P-226-226-104-RF and other types, as one package Bdsdpfx Aisf Ddzqezoc

Condition: like new (used), Year of construction: 2024, clamping force: 24,000 kN, ENGEL DUO 23060/2400 TECH Manufacturer: ENGEL Clamping Force: 2,400 t (24,000 kN) CLAMPING UNIT Bedpfjy U Hphsx Aizedc Clamping force: 24,000 kN Opening stroke: 3,200 mm Max. daylight: 4,000 mm Min. mould height: 800 mm Max. mould height: 2,000 mm Tie bar spacing (H × V): 2,020 × 1,620 mm Platen dimensions (H × V): 2,700 × 2,430 mm Opening force: 614 kN Opening force with pressure pad: 1,600 kN Dry cycle time (Euromap 6): 5.4 s INJECTION UNIT Screw diameter: 150 mm L/D ratio: 25:1 Screw stroke: 680 mm Shot volume: 12,020 cm³ Theoretical shot weight PS: approx. 10.9 kg Injection rate: 2,121 cm³/s Injection pressure (regenerative): 1,601 bar Maximum injection pressure: 1,900 bar Screw speed: 90 rpm Maximum screw speed: 115 rpm Screw torque: 18,600 Nm Reduced torque at max. speed: 14,550 Nm Plasticizing rate (3-zone screw): 235 g/s Plasticizing rate (barrier screw): 322 g/s NOZZLE Nozzle stroke: 1,100 mm Nozzle contact force: 210 kN EJECTOR Ejector stroke: 400 mm Ejector force forward: 420 kN Ejector force return: 420 kN HEATING SYSTEM Heating zones incl. nozzle: 10 Installed heating power: 97.4 kW DRIVE UNIT Installed motor power: 265 kW Hydraulic oil tank capacity: 1,600 l COOLING REQUIREMENTS Cooling capacity: 45.2 kW Water consumption (32°C inlet): 6.6 m³/h Cores: 3+3 Heating zones: 160 Cascades: 56
