Processing center

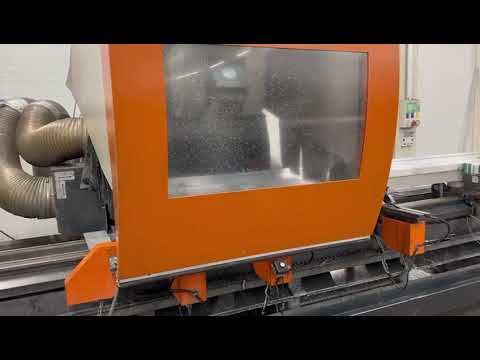

Elumatec SBZ 150

Condition: ready for operation (used), Year of construction: 2005, functionality: fully functional, machine/vehicle number: 1500050285, travel distance X-axis: 7,800 mm, travel distance Y-axis: 1,000 mm, travel distance Z-axis: 630 mm, spindle speed (max.): 24,000 rpm, number of slots in tool magazine: 14, Submitting a bid obligates the buyer to collect the item on time on 23.12.2025! TECHNICAL DETAILS Travel X-axis: 7,800 mm Travel Y-axis: 1,000 mm Travel Z-axis: 630 mm Rapid traverse X-axis: 70 m/min Rapid traverse Y-axis: 40 m/min Rapid traverse Z-axis: 40 m/min Klsdpfx Ahsxx Uf No Nel Max. workpiece length: 7,300 mm Max. spindle speed: 24,000 rpm Spindle motor power: 15,000 W Number of spindles: 1 Number of tool magazine slots: 14 Tool diameter: 100 mm MACHINE DETAILS Input voltage: 400 V Type of input current: Alternating current (AC) EQUIPMENT Documentation/manual included Magazine can be equipped with nine standard tools, five special tools, and one saw blade Ten clamping devices Two separate work areas for pendulum operation 15" color display Floppy disk drive DOS operating system

Condition: ready for operation (used), Year of construction: 1999, functionality: fully functional, machine/vehicle number: 1500050123, rotational speed (max.): 18,000 rpm, working length: 12,000 mm, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Max. speed: 18,000 rpm Machining length: 12 m Pneumatic collets: 20 pcs MACHINE DETAILS Electrical data Voltage: 400 V Phases: 3 ~ Frequency: 50 Hz Current draw: 76 A Operating pressure: approx. 8 bar Kljdoxnz Ivspfx Ah Njl EQUIPMENT Automatic tool changer Angle head

Year of construction: 2001, condition: used, Pictures to follow - machine is being overhauled Klodpfx Ahst Ea Tfs Nel Technical data: - X-axis travel: 7300mm - Y-axis travel: 1000mm - Z-axis travel: 650mm - Swivel angle A-axis: 0-90° freely programmable - Swivel angle C-axis: 0-355° freely programmable - Max. Machining length without end face machining: 7300mm - Max. Machining length with end face machining: 6980mm - Tool changer with 10 places and a saw blade holder - 9 material clamps - SK30 tool holder - 2-layer machining

Year of construction: 2000, condition: repair required (used), functionality: limited functionality, machine/vehicle number: 1500050136, Technical data: - Travel X-axis: 7300mm - Travel Y-axis: 1000mm - Travel Z-axis: 650mm - Swivel angle A-axis: 0-90° freely programmable - Swivel angle C-axis 0-355° freely programmable - Max. processing length without front-side processing: 7300mm Kjdev Avg Hspfx Ah Nsll - Max. processing length with front-side processing: 6980mm - Tool changer with 10 places and a saw blade holder Bo72Ttwr8E - 9 material clamps - Tool holder SK30 - 2-layer processing

Year of construction: 2005, condition: excellent (used), functionality: fully functional, elumatec SBZ150 Profile Machining Centre 6.0 m 5-axis control. Efficient machining of aluminium and steel profiles Working length: 6,000 mm Description: Short tool change times; Automatic tool changer for eight standard tools and three special tools (saw blade, special milling cutter diameter 50 mm, angle head or special milling cutter diameter max. 100 mm); Six-sided machining; Underside machining with angle head (option); Rapid base positioning (up to 60 m/min) of the processing unit in the X-axis; Low-wear direct drive; With automatic clamp detection and positioning; Dual-circuit clamping system with two pneumatically retractable stops; Standard with automatic central lubrication system; Robust machine bed for a working length of 6,000 mm; Continuous support table; Clamping system with integrated six-row recirculating roller units and linear guides. Kjdpew A Rv Iofx Ah Njll 5-axis industrial PC control, with 3 axes for path control; High-dynamic three-phase servo drives with resolver and digital servo controller; Swivel angles of the A and C axes freely programmable; With color screen and disk drive; Memory capacity of over 200,000 sets; 3 serial and 1 parallel interface for online connection; Barcode scanner, label printer, etc. Integrated network card 10/100 MBit, RJ 45 port (network connection by customer’s IT administrator) Analog modem (customer must provide an analog telephone line) Technical data: Travel range X-axis: max. 6,240 mm Max. travel speed 60 m/min. Travel range Y-axis: 1,000 mm Max. travel speed 30 m/min Travel range Z-axis: 635 mm Max. travel speed 30 m/min. Swivel angle A-axis: 0-90° freely programmable Swivel angle C-axis: 0-355° freely programmable Further details on the milling range see drawing no. 150 05 17 08 Max. processing length for face machining left + right: 6,000 mm (with tool length 150 mm) Positioning accuracy: X-axis +/- 0.1 mm / 1 m length Y-axis +/- 0.1 mm Z-axis +/- 0.1 mm Milling spindle: Speed [rpm]: up to 100–22,000 Power [kW]: 15 Tool holder: HSK-F 63 Milling cutter diameter: 100 mm max. Saw blade diameter: 400 mm Tool length: max. 150 mm from nominal taper. Included accessories: Automatic tool changer (without tool holders); Dual-circuit clamping system with 2 pneumatically retractable material stops; Automatic clamp detection and positioning; 8 horizontal pneumatic material clamping units; Tool presetting gauge Front light barrier Saw blade D400 with mount Angle milling head Important: The profile machining centre is fitted as standard with front light barriers. Any necessary side or rear guarding must be supplied on-site by the customer or please request an offer for safety fences from us. Incl. Angle milling head for underside machining
