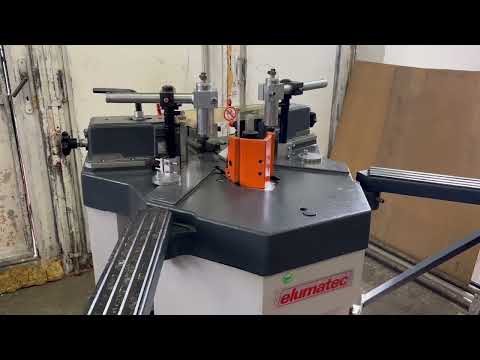

Corner crimping machine

Elumatec EP 124

Year of construction: 2024, condition: like new (used), The machine is like new, the previous owner went out of business. Hedpfx Agsy Rp D Ho Isnl

Condition: refurbished (used), Year of construction: 2024, Manufacturer: Elumatec Type SA/ SAS 142 Overhaul year: 2024 Saw blade max. carbide: 500 mm Drive power saw motor: 4 KW Saw motor speed: 2800 min-1 Cutting speed saw blade 500 mm: 4400 m/min Saw height control: infinitely variable, fully electronic Working range square 90° max.: 130 x 130 mm Working range flat: 90° max.: 190 x 130 mm Working range round: 90° max.:150 mm Pneumatic feed length: 5-560, 10-1120 mm Compressed air connection, on site 6 bar Weight(saw)approx.: 800 kg Dimensions LxWxH (saw)approx.:2900mm x 1400mm x 1500mm Installation area LxW: 2900mm x 1400mm Additional description Elumatec SA/ SAS 142 4KW Retrofit Elumatec SA 142 4KW Retrofit Fully automatic sawing machine for non-ferrous metal and plastic After completion of the retrofit, the machine is in mint condition, both technically and visually. Hnsdpfx Asuiy Nyjg Ijl The machine will be overhauled in our company at the customer's request. Among other things, the following points were renewed: - Conversion to Siemens S7 PLC control - Conversion to Siemens HMI control panel - New electrical components - New pneumatic lines - Maintenance or replacement of all pneumatic cylinders and valve terminals - Maintenance of minimum lubrication system - Replacement of general wear parts - Overhaul of the cab Warranty: Unless otherwise agreed, we provide a 6-month warranty on all parts overhauled or replaced by us. Working time and wearing parts are excluded from the warranty. Optional: - Extension of the sawing area to flat 90° max.: 300 x 120 mm - Splitting extension (for a high-quality cut surface without return marks) - Servo-controlled material feed - Saw blade feed Servo-controlled - Mass clamping device Feed vice - Delivery and installation on your premises - Training of your employees

Condition: excellent (used), Year of construction: 2005, functionality: fully functional, Corner crimping press Elumatec, Type: EP 124, Year: 2005 Pressing height: 140 mm Pressing force: 70 kN (7 t) Hjdpfjy Rfz Uex Ag Isnl Drive: pneumatic With support arms and pressing knives Electrical connection: 230 V 50/60 Hz Compressed air connection: 7 bar Air consumption: 35 l per working cycle Dimensions (L x W x H): 1100 x 950 x 1230 mm Weight: 545 kg (Technical data subject to change and error, as well as prior sale reserved)

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, machine/vehicle number: 1240024978, input voltage: 230 V, operating pressure: 7 bar, pressure: 7 bar, We are offering this used elumatec EP 124 corner crimping press, year of manufacture 2011. Model: EP 124 Machine No.: 1240024978 Voltage: 230 V Hnedpey D Nbfsfx Ag Ijl Frequency: 50 Hz Current: 1 A Power: 120 W Operating pressure: 7 bar If you have any questions or need further information, please feel free to send us a message or give us a call.

Condition: new, Year of construction: 2026, Fully automatic cutting of medium-large aluminium profiles with simple-to-use automation. Put down any aluminium profile, the machine will automatically detect it and cut it into jobs tasked with high-accuracy servo motor material positioning. Excel job lists WIFI input for streamlined input of large cutting lists. For every piece of aluminium you place down to cut, no matter what length, a laser sensor measures its length. Our powerful optimisation algorithm on-the-fly calculates the best order of parts to produce minimum waste. The machine automatically cuts the calculated list without stopping. No need for any inputs from you, just keep putting in new aluminium stock. Simple, high-speed alternative to double-headed saws. Just enter (or import) the lengths and angles you need and press GO. The machine continuously produces your angled parts, accurately and at high speed. • Fully-automatic cutting operation with bar feeding and cutting to length. • Simple user interface for automatic operation, enter job and cut in seconds. • Simplified part, batch, or large excel lists job cutting. • Bundled / multi-bar cutting and counting. • Remote WIFI excel job lists input with extensive data mapping capabilities. • Fully adjustable saw cutting and timber feeding rates for maximum process productivity. • Automatic optimiser mode with timber laser length measure and optimisation for minimum waste (optional). • Automatic labels printing for parts using data from the job list (manual label application, optional). • Inline direct-to-material printing with no operator action required (optional). • Bar codes or QR codes printing or scanning for jobs input (optional). • Automated servo positioning of the saw mitre angle up to ±75° (optional). Highly suitable for: • Windows and doors manufacture • Mitered aluminium structures manufacture • Aluminium fabricated structures manufacture • Composites manufacture • Blinds, shades and furniture manufacture • Aluminium retail sales Model: A550 Length: 6 m Linear Unit: ProfiStop Alpha Material Length: 4680 mm Pushing capacity: 20 - 40 kg Software: Optimiser QUALITY AUSTRALIAN-MADE MACHINES. Hnsdpfxef Ekn Ds Ag Ijl

Condition: used, Press height 140 mm Press force 70 kN (7 t) Hjdpfx Aeyvgm Asg Ijnl Hydropneumatic drive Compressed air connection 7 bar Air consumption per operating cycle 35 l Length 1,100 mm, Depth 950 mm, Height 1,230 mm Weight 550 kg

Condition: excellent (used), Year of construction: 2013, functionality: fully functional, Corner Crimping Press Elumatec, Type: EP 124, Year: 2013 Hnodpfoyyq Ekox Ag Iel Pressing height: 140 mm Pressing force: 70 kN (7 t) Drive: pneumatic With support arms and pressing knives Electrical connection: 230 V 50/60 Hz Compressed air connection: 7 bar Air consumption: 35 l per working cycle Dimensions (L x W x H): 1100 x 950 x 1230 mm Weight: 545 kg (Subject to changes and errors in technical data as well as prior sale.)

Condition: used, Year of construction: 2004, machine/vehicle number: P 04-09-002, neu U05 10 001, Spraying machine Venjakob VEN SPRAY-K All pictures only for example - Producer Venjakob - Year of construction 2004 - Current condition: not refurbished - Offer price for refurbished condition - Working width 800 mm (1000) mm - Operating side, right - Duo gun drive system - Dry filter system 4.000 m³/Std. - Diameter exhaust air pipe 400 mm - Transport belttransport System - Feed speed adjustable 3 - 8 m/min - Lacquer reclaiming system with v-belt - Gun control system LS 1 - Number of installed lacquer circles 1 Stk. - Airless spraying system 4 Stk. Krautzberger KAA 1300 - Number of lacquer pumps 1 Stk. - Producer lacquer pump Wagner 35-70 - Suitably for solvent based lacquer - Suitably for water based lacquer - Total connection power 7 kW, Stromaufnahme 17 A , Absicherung 35 A - Location, on stock - Voltage fluctuation max. +/- 5 % _____ Optionally, we can also provide you with a quotation for the assembly and start-up of the system, as well as training for your employees. Hodpfx Agjumvr Ts Ienl We also offer regular maintenance and servicing of the machine on request. For further information, get in touch with us!

Condition: ready for operation (used), Year of construction: 2013, overall weight: 2,492 kg, Circular Metal Saw manufactured in 2013. This Elumatec DG 244 features a cutting length of 6,000 mm and a saw blade diameter of 550 mm. It includes a motorized tilting range from 22.5° to 140° and comes with a mobile roller conveyor for efficient extraction. If you are looking to get high-quality cutting capabilities, consider the Elumatec DG 244 machine we have for sale. Contact us for further details. • Cutting Length (X-Axis Travel): 6,000 mm (6.0 m) • Saw Blade Diameter: 550 mm • Controller: E 355 (2-Axis Control) • Tilting Range: 22.5° to 140° (Motorized E-Axis) Hnedpfx Aeyv H Tijg Isl • Software: Module for chop cuts and overlengths (E355/E555) • Software Interface: Connection for window construction programs Additional equipment • Short length stop: Included for stationary unit • Profile lifting rail set: Included for stationary and mobile units • Roller conveyor: 1.5 m, mobile, 400 mm width for extraction • Workpiece support: Mobile type • Extraction Unit: Complete for DG 244, 230/400V, 50Hz, 2x 2.2kW

Condition: good (used), Year of construction: 2000, Schroeder Mosaic Press 160mm. Gluing patterns - brick / English pattern plate 640x274mm and halves 640x137mm glued in 6 variants: - single brick offset 50% - double brick offset 50 % - triple brick offset 50 % - single brick offset 25 % - double brick offset 25 % - triple brick offset 25 % Hodpor Iyvbsfx Ag Ijnl
