Gang saw full gang saw

BÖGLI KHV-700 Marathon

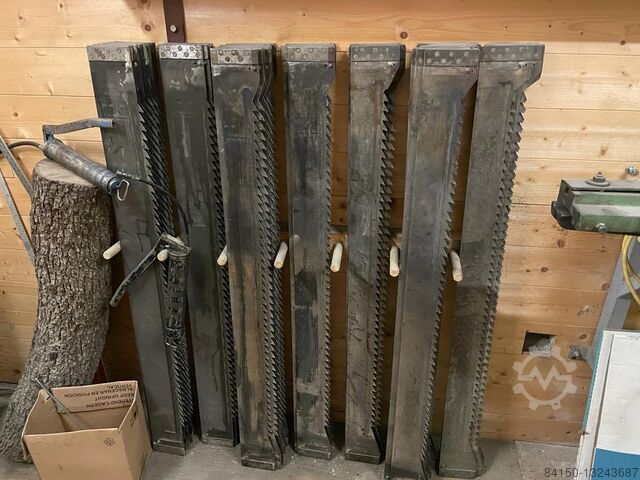

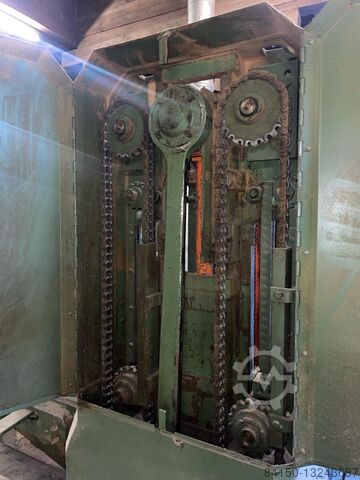

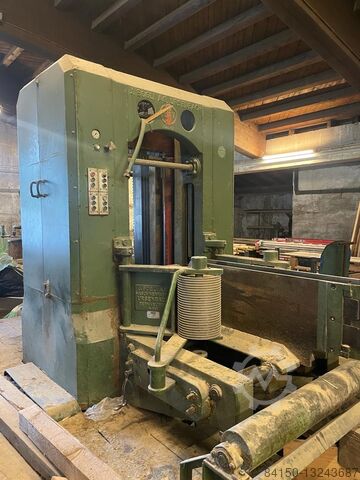

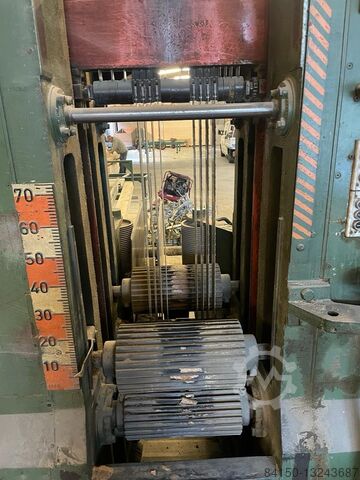

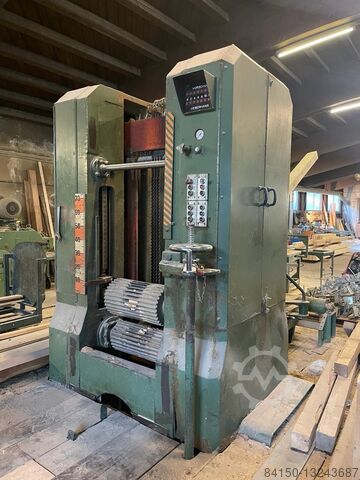

Condition: used, No. 3264 Complete sawmill Möhringer / Paul Used, still connected to power until 30.06.26 Consisting of: - Log crosscut table with driven tapered rollers Length measurement Hecht with remote-controlled photoelectric sensors - 1 cross conveyor to the frame saw, 7000 x 5500 mm LW Cam chains in mint condition - 1 cross conveyor, 3800 x 4000 mm LW - 1 roller conveyor in front of the frame saw, length 12400 mm, roller width 1400 mm With hydraulic lowering and lifting for sawn timber, cross-discharge with 2 flap gates - Quick-clamping frame carriage EWD with auxiliary carriage - 1 auxiliary conveyor for log feeding in front of the frame - Root reducer Möhringer - Frame saw Möhringer B 75-55 Multi-BV, year of construction 1994 Passage 700 mm, stroke 550 mm, saw blades hydraulically adjustable, conveyor belt, log loading device with adjustable laser, round timber measurement Hecht, clamps Jansen, hooks, 60 saw blades, adjustment gauge - Powered splitting wedge with chain bed Möhringer 230-292, year of construction 1994 With pre-cutting, photoelectric sensors, and laser for adjustment - 1 roller conveyor 4000 x 1400 mm LW, with grooved rollers, cross-feed with pneumatic cylinders - 1 S-conveyor with storage 3500 x 4000 mm LW, flights Albert made of square tube - 1 S-conveyor 3000 x 5500 mm LW, motor with adjustable slip clutch, function monitoring, drive elements made of angle iron - 1 under-table cross-cut saw Paul 15 AO, year of construction 1992 - 1 double edger Paul KME 2 / 750 R, year of construction 1988 With splinter separator, right-hand side unit electrically adjustable, through-feed cross-cut unit, length sorting system, preselection programs Österle - 1 conveyor belt 7400 x 400 mm LW - 1 conveyor belt 4000 x 400 mm LW - 1 conveyor belt 3000 x 500 mm LW - 1 trough conveyor approx. 6500 x 500 mm LW, ascending, for sawdust - 1 trough conveyor HOLTEC approx. 6500 x 500 mm LW, ascending, for wood chips - 1 trough conveyor HOLTEC, horizontal, with left and right rotation as a distributor over the boxes - Drum chipper HAAS, feed width 600 mm, feed height 150 mm, with vibrating chute - Frame saw sharpening machine OPL - Saw blade tooth setting machine VOLLMER GSA, year of construction 1996 - Frame saw sharpening machine VOLLMER (needs minor repairs, push cylinder bent) Sale on behalf of customer, ex location near 34125 Kassel, without dismantling, without transport and assembly Dismantling, loading, and transport by us optionally available Subject to errors in the description and price To avoid possible misunderstandings, an on-site inspection is possible and recommended by appointment Sold as is Hsdpfx Aeyzr Tfem Asfh Technical specifications, condition description, year of construction and scope of delivery according to manufacturer's brochure or previous owner, without guarantee Subject to prior sale For used machines, any warranty is excluded, the following applies: “sold as seen” Pictures and videos serve as examples and do not represent the actual scope of delivery Terms of payment: Prices plus VAT, payment before collection or shipment Terms of delivery: ex location

Condition: new, Year of construction: 2024, CASOLIN electronic squaring machine mod. ASTRA 400 5CNC brand new 5 controlled axes version roller carriage mm. 3200 width mm. 360 parallel guide with controlled axis positioning - max opening mm. 1300 telescopic flag with linear guide Hsdpfsu At Sdsx Am Aofh blade motor HP 7.5 with automatic star/delta starting saw speed rpm 3200/4200/5000 cross slide with tilting register controlled axis blade lifting and tilting motorized engraver two-axis control max. blade diameter mm. 400 parallelogram blade protection Processing materials: wood, plastics, special materials

Year of construction: 2021, condition: ready for operation (used), functionality: unexamined, Basic package Selector 800 Lower belt BB 1350 mm AA 6.4m -profiled belt- Hfedpfevm Upnex Am Ash SPIRAL SHAFT SCREEN COVER AA254-150 - 16 shafts

Condition: like new (used), Through feed double end trimmer saws. 2x 3kW saw motors. Hedpfxsif N Sxe Am Ajfh Feed motor with variator. 300mm to 3100mm end trimming capacity. Suitable for use with a moulder infeed or similar.

Condition: excellent (used), Year of construction: 1999, 1. Block conveyor 2. Transverse conveyor 3. Linck FWK quick-release carriage Track gauge: 900 mm Travel speed (forward/reverse): 80/180 m/min Clamp opening: 750 mm Log length: 2.5–13.5 m 4. Sawing unit Linck KCSU-6 Round timber diameter: 120–650 mm Drive per side: 160 kW Max. cutting height (triple): 405 mm Residual: 370 mm Log length: 2.5–13.5 m Max. feed-through width: 750 mm Cutting width min/max: 18–720 mm Split wedge opening: 560 mm Saw blade diameter: 620 mm Hodoxtwwkspfx Am Aefh Edger distance: 370 mm Net weight approx.: 15,000 kg Stepless feed rate adjustment: 10–35 m/min 3. Timber removal device BM 1/MBH 4. Edger cross-cut saw Linck KA 1/ACF 5. Complete hydraulic system 6. Complete electrical/control system 7. Complete circulating conveyor technology 8. Discharge mechanisation 9. Waste removal underneath KCSU Year of manufacture: 1998. Commissioned in 2000 Various tools Sale according to customer order.

Condition: used, No. 3176 Automatic planer and moulder WEINIG Hydromat 1000 Used, year of construction 2007 6 spindles: bottom-right-left-top-top-bottom Electronic feed 6 - 60 m/min Working width 80 - 150 mm Working height 23 - 65 mm Finished slat widths 4 - 15 mm Max. Max. number of slats 16 pieces Slat lengths 400 - 4000 mm 1st spindle horizontal at the bottom Brake motor 11 kW, 6000 rpm Spindle diameter 45 mm Tool flight circle 125 - 180 mm 2nd spindle vertical right Brake motor 7.5 kW, 6000 rpm Diameter 45 mm Tool flight circle 112 - 250 mm Max. Moulding depth 35 mm Axial adjustment travel 80 mm 3. spindle vertical left 7.5 kW, 6000 rpm Diameter 45 mm Tool flight circle 112 - 250 mm Max. Moulding depth 35 mm Axial adjustment travel 80 mm Pressure shoe in front of the spindle, swiveling away, pneumatic roller contact pressure 4. spindle horizontal top 15 kW, 6000 rpm, diameter 45 mm Tool flight circle 112 - 250 mm Max. Moulding depth 35 mm Axial adjustment path 45 mm Split pressure shoe in front of upper spindle, adjustable and swiveling away, pneumatic 5. horizontal top spindle as saw spindle Brake motor 37 kW, 5000 rpm Diameter 45 mm Axial adjustment travel reduced to 25 mm Tool flight circle 112 - 250 mm Max. Sawing depth 35 mm Axial adjustment path 45 mm Split pressure shoe in front of upper spindle, adjustable and swiveling away, pneumatic 6. horizontal spindle at the bottom as saw spindle Brake motor 30 kW, 5000 rpm Axial adjustment travel reduced to 25 mm Diameter 45 mm Tool flight circle 112 - 250 mm Max. Sawing depth 35 mm Axial adjustment path 45 mm All moulder spindles with high-performance bearings Electronic feed 7.5 kW Adjustment travel of the feed rollers compared to the left-hand spindle, axial 35 mm Shorter roller distance compared to the right-hand spindles Running meter counter, electric, with 2 counters Short infeed table (1.2 m) with 2 driven rollers above the table 1 driven, toothed roller in the table, lateral pressure roller Automatic waxilite pump / lubricant pump Machine with 4-roller extension, pendulum shafts extended to 200 mm 2 driven, toothed rollers in the outfeed table 2 driven, toothed rollers in the machine table Hfsdpfx Amou Agh Ss Ash Pressure beam before and after upper spindle with mechanical digital display DigiSet (digital double display) for left and top spindles Electrical height adjustment of the upper spindles and the feed Machine already dismantled and stored Sale on behalf of customer, ex location near South Tyrol, without transportation and assembly Subject to errors in the description and price Transportation and loading by us optionally possible To avoid possible misunderstandings, an on-site inspection by appointment is possible and recommended Sold as is Technical details, condition description, year of construction and scope of delivery according to manufacturer's brochure or previous owner, without guarantee Subject to prior sale For used machines, any warranty is excluded, the following applies: “purchased as seen” Images and videos serve as examples and do not represent the actual scope of delivery Terms of payment: Prices plus VAT, payment before collection or dispatch Terms of delivery: ex location

Condition: like new (used), Manufacturer: Flender Type: K2S-2,5 Backstop: Yes Power: 78 kW Ratio: 44,16:1 RPM in/out: 1.400 / 31,7 Shaft ø in: 65 mm Hfsdpfxog Stz Ao Am Aoh Shaft ø out: 140 mm

Condition: used, Year of construction: 2000, functionality: fully functional, Trimming line consisting of: centering table H42 (factory-overhauled EWD 2000), chipper canter FZ 3 (factory-overhauled EWD 2000), converted to servo cylinder; infeed BNK with square timber centering, BNK 200/6, year of manufacture 2000; board separator ASV, year of manufacture 2000; hydraulic unit; central lubrication. Without electrical control equipment. Dismantled, chipper canter and BNK stored in the hall. Hjdpsx Tpzdefx Am Aefh

Condition: excellent (used), Year of construction: 2001, Complete Parquet painting shop Manufacturer - SORBINI/ VIET Year - 2001 Capacity - 800 m2/shift Time of one cycle - 8 min. Lenght of the line - 42 m Hsdsrdgrvopfx Am Aofh

Condition: good (used), Remote-controlled quick clamping cars fully hydraulic with hydraulic Hedpsd Nqrqsfx Am Asfh Help car. Track width 840 mm. Control Panel and electric control cabinet.
