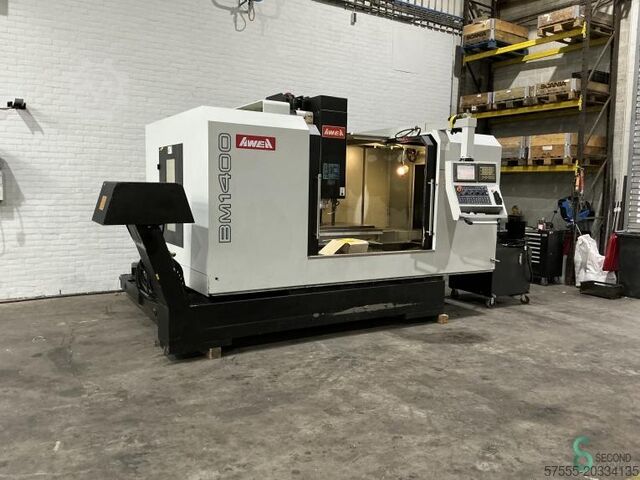

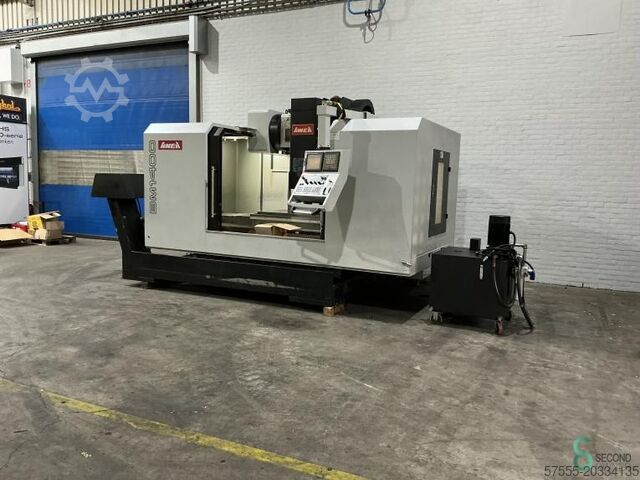

Milling machines AWEA BM1400 2008

AWEA BM1400

Condition: new, Year of construction: 2023, functionality: fully functional, travel distance X-axis: 1,400 mm, travel distance Y-axis: 650 mm, travel distance Z-axis: 610 mm, rapid traverse X-axis: 30 m/min, rapid traverse Y-axis: 30 m/min, rapid traverse Z-axis: 24 m/min, workpiece weight (max.): 1,400 kg, total height: 2,492 mm, total length: 4,367 mm, total width: 3,070 mm, table width: 650 mm, table length: 1,500 mm, spindle speed (min.): 40 rpm, spindle speed (max.): 8,000 rpm, spindle motor power: 11 W, spindle nose: Iso 40, tool length: 250 mm, tool diameter: 75 mm, type of input current: three-phase, Equipment: documentation/manual, rotational speed infinitely variable, NEW vertical machining center "AWEA BM-1400 II" with FANUC 0i-MF Plus CNC Accessories present: 4th axis interface Air blow system Left side auger chip conveyors Coolant through spindle ( CTS ) at 20 bar Iodpfxsrg Htpe Affetr Coolant gun Fairing bottom washing system 390 liter refrigerant collection tank Automatic power-off system Alarm light & work light

Condition: refurbished (used), Year of construction: 2004, measuring range X-axis: 900 mm, measuring range Y-axis: 2,000 mm, measuring range Z-axis: 600 mm, Mitutoyo CMM Crysta Apex C9206 Measuring ranges 900x2000x600mm Accuracy 1,7 + 3L/1000µm Slightly damaged V-Axis covers (will be replaced or delivered without) Software MCOSMOS-1 V3.5, Windows 10 PC or selectable upgrade to: Itedof S Tmvjpfx Affer - Mitutoyo MCOSMOS 4.2 incl Geopak & MCAT1000S or new license - EasyCMM I++ Server plus Inca Professional Probe Renishaw PH10T with either: - Renishaw Touch probe TP200 - Renishaw Touch Probe TP20 Selectable options: - Scanning Probe Renishaw SP25 with PH10M - Probe Change Racks - New PH10M+ Head and Probe (upgrade) - MCOSMOS Offline license MCAT1000P - Bilz Pneumatic Vibration Damping System on demand Installation & Calibration (plus additional travel expenses) Including 3 Month Warranty (excl. travel expenses)

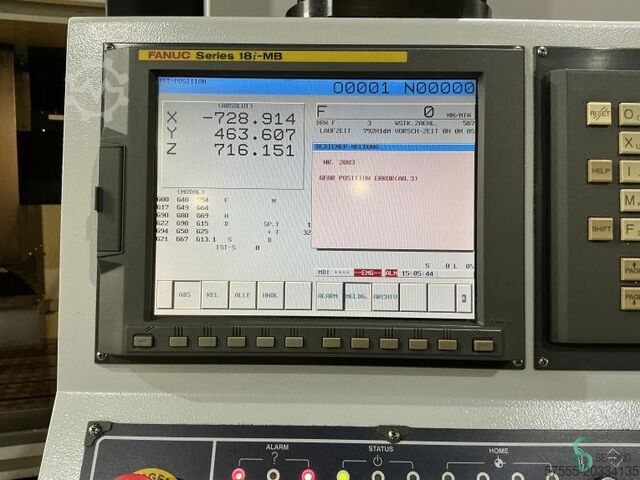

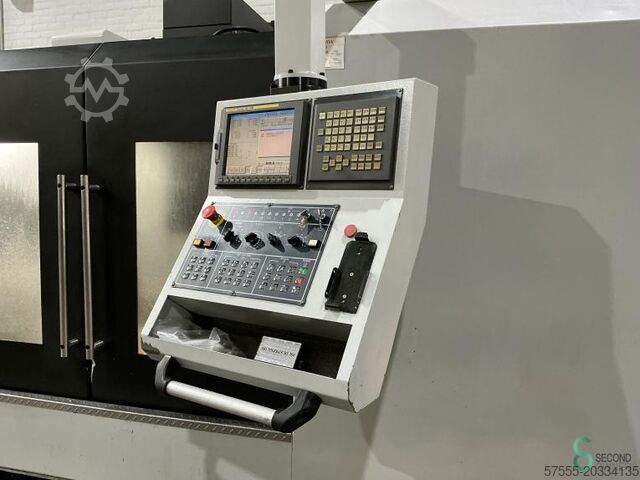

Condition: excellent (used), Year of construction: 2008, functionality: fully functional, Controller FANUC Series 18i-MB Table size 1300 x 650 mm Table load 1500 kgs X travel 1100 mm Y travel 650 mm Z travel 600 mm Spindle speed 12000 rpm Itedpfjuu Rzrex Affor Tool holder type MAS BT40 ATC magazin 30-fold Weight 7200 kgs Dimensions LxWxH = 3100 x 2300 x 3100 mm Features, accessories - Chip conveyor - Coolant unit - Spindle cooler - CTS - Manuals Very good condition.It will be sold because of liquidation of production.

Year of construction: 2017, condition: ready for operation (used), - USED - TRAVELLING COLUMN CNC MILLING MACHINE WITH AUTOMATIC A/B-AXIS HEAD LONGITUDINAL TRAVEL: 3500 mm TRANSVERSAL TRAVEL: 1100 mm VERTICAL TRAVEL: 1500 mm RAPID FEEDS L-T-V: 40 m/min TABLE SIZE: 3800 x 1000 mm HEAD: A/B AXIS AUTOMATIC ; MILLESIMAL POSITIONING ; ISO 50 ; 5000 rpm; 34 kW TOOL MAGAZINE: CHAIN-TYPE ; 40 POS CONTROL UNIT: HEIDENHAIN TNC 640 HIGH PRESSURE COOLANT: 40 Bar WEIGHT: 35020 Kg Isdpfx Afswla Hzsfjtr OVERALL DIMENSIONS: 8760 x 4950 x 3780 mm ACCESSORIES: SWARF CONVEYOR ; LASER TOOL SETTER ; TOUCH PROBE ; PORTABLE HANDWHEEL

Condition: used, TECHNICAL DETAILS - grinding diameter : 0.1 – 10 [mm] - total length : 10 [mm] - working stroke : 0-10 [mm] - working grinding wheel dimensions : 150 x 50 x 50 [mm] - driving grinding wheel dimensions : 100 x 50 x 40 [mm] - driving grinding wheel diameter : 100 [mm] - working grinding wheel speed : 4500 [Rpm] - driving grinding wheel speed : 20-50 [Rpm] Iedpfx Asuhb N Soffotr - power : 6 [kW] - min. pressure : 5.6 [bar] - dimensions : 1300 x 1100 [mm] - weight : 700 [kg]

Condition: good (used), Year of construction: 2002, travel distance X-axis: 1,050 mm, travel distance Y-axis: 610 mm, travel distance Z-axis: 600 mm, controller manufacturer: Heidenhain, 3-Axis Machining Center Manufacturer: Bridgeport Model: VMC-1000 XP Year of manufacture: 10-2002 Control type: Heidenhain iTNC-530 Operating hours: n/a Iodpfsw Nyfdex Affjtr S/N: 82XXXX Technical Data: ----- - Travel X-Y-Z: 1,050 x 610 x 600 mm - Spindle: max. 8,000 rpm - Tool holder: SK40 - Tool magazine: 22 positions - Coolant system - Through-spindle coolant (IKZ) - Glass scales on all axes X-Y-Z - Central lubrication - Weight: approx. 4.2 t - Dimensions LxWxH: 3,000 x 2,350 x 2,400 mm Accessories: ----- - Manuals - Tool holder package Special features: ----- - Through-spindle coolant (IKZ) deactivated due to defective flow tube in spindle - Spindle replaced in 2023, few hours of operation, precise concentricity

Condition: good (used), Year of construction: 2008, Traverses X Y Z: 3000 x 1300 x 2000mm, Table 2000 x 1600mm, Itedovz A Riopfx Affjr table load 13,000 kgs, B axis 360 degrees, Heidenhain iTNC530, ISO SK50 spindle taper, 5,000rpm Spindle Speed, 60 station toolchanger, coolant, Interlocked guards.

Condition: ready for operation (used), Year of construction: 2001, CNC milling machine TOS TV-1000 A CONTUR Manufacturer: Trens Model: MC 100 VA Year of construction: 2001 Condition: used Control unit: Heidenhain TNC 426 X-axis travel: 1000mm Y-axis travel: 600mm Z-axis travel: 760mm Table length: 1080mm Itedpshlp Iwsfx Affjr Table width: 580mm Tool changer with 40 positions Tool holder according to ISO 40 Spindle speed: 8000 rpm Overall dimensions: L 3200 x W 2100 x H 2900 mm Weight: 6200 kg Shipping possible throughout Germany and Austria. Surcharge 1000 € Sale excluding warranty.

Condition: excellent (used), Year of construction: 2011, axis stroke (X,Y,Z) 742 x 435 x 510 mm Number of spindle head vertical / St. Number of spindles head horizontal / St. The DOOSAN DNM 400 is a vertical CNC machining center designed for precise milling operations in metalworking. It is particularly suitable for small to medium-sized workpieces and offers a solid combination of performance, accuracy and reliability. All technical documents for the machine are available and included. Accessories included. Ijdpfxowmxfls Affetr Control: HEIDENHAIN iTNC 530 Travel ranges X-axis: 742 mm Y-axis: 435 mm Z-axis: 510 mm Rapid traverse X-axis: 36 m/min Y-axis: 36 m/min Z-axis: 30 m/min Max. cutting feedrate: 1~15,000 mm/min Ball screw (Diameter × Lead) X-axis: 40 × P12 mm Y-axis: 40 × P12 mm Z-axis: 40 × P10 mm Accuracy Positioning accuracy: ±0.005 mm over the full stroke Repeatability: ±0.002 mm Table size: 920 × 435 mm Min./Max. spindle-to-table distance: 150~660 mm Max. table load: 600 kgf Table surface configuration: 4-125 × 15H8 Max. workpiece height: 465 mm

Condition: like new (used), Year of construction: 1996, Retrofitted: 2025 Itodpjwfunyjfx Affor Numerical control: NUEVO/NEW HEIDENHAIN TNC-320 Technical features Dimensions Table dimensions: 6000 x 2000 mmNumber of T slots: 13T slots dimensions: 22 mm Traverses of axis X axis traverse: 6000 mmY axis traverse: 3800 mmZ axis traverse: 1000 mmVertical capacity (VC): 500 / 1500 mm (direct exit)Distance between columns: 3100 mm Milling head Universal head UM40 (Body B: manual / Body C: 3º auto-indexing) Direct spindleTool clamping system: HydraulicTaper nose: ISO50 (DIN-69871)  /  Pull stud: DIN-96872Speed range: 3000 rpmSpindle power: 30 kW Feedrates Rapid feedrate (X / Y,Z): 7200 / 12000 mm/min Weight and dimensions Machine weight approximate: 50000 KgMaximum weight on table: 15000 kgMachine dimensions approximate: 14740 x 5330 x 5050 mm Accesories Guarding: 2 sliding doors with a new perimetral wire-mesh safety fenceHead changer: automatic with lateral hinge/support in columnChip conveyor: 2 longitudinal palletsElectronic handwheel: New HR-510Coolant: External Internal high pressure through spindle (internal only with direct exit head) Sales conditions Guarantee: 6 months mechanical spare partsSale conditions and price: On request View all technical features
