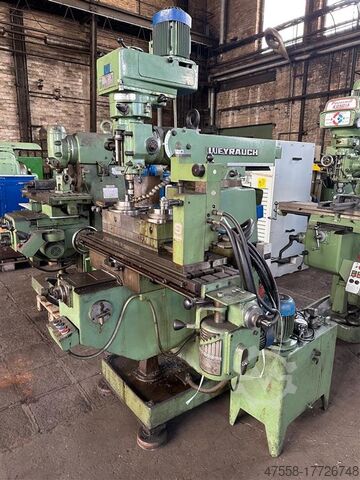

Universal Milling Machine

WEYRAUCH F10-V

Condition: used, Year of construction: 1973, x-travel:815 mm y-travel:400 mm Ijdpfxovimrmo Afuoba z-travel:410 mm quill stroke:130 mm turning speed range - stepless:67 - 2300 U/min :8 feed speeds:0,04 - 0,08 - 0,15 mm/min feeds of table:15 - 230 mm/min table surface area:1120 x 255 mm T-Slots:3 mm T-slot - width:16 mm T-slot - distance:63 mm distance spindle - column:260 mm ram adjustment:315 mm main drive motor:1,5 kW weight of the machine ca.:1,0 t dimensions of the machine ca.:1,75 x 1,80 x 2,10 m

Condition: excellent (used), Year of construction: 1991, swing diameter 400 mm Q U O T A T I O N We are pleased to offer you ex our stock, subject to prior sale, and error in technical data : Ibjdpfx Afjxyllvouja WMW - GLAUCHAU Hydraulic Internal Grinding Machine with Face Grinding Device model SI 6/1 AS-N x 315 year 1991 Internal grinding diameter 40 - 400 mm Internal Grinding depth, max. 315 mm Max. grindable External dia. 400 mm Weight of workpiece without steady, max. 630 kg Workpiece Swing Ø, with / without safety hood, max. 500 / 600 mm Height of centre above table 360 mm 16 step workpiece spindle speeds 40 – 400 rpm Workpiece spindle bore, approx. 53 mm Workpiece headstock swivelling max. 30 ° Adjustment of workpiece headstock position crosswise, max. 400 mm Automatic cross traverse of grinding head 70 mm Adjustment of grinding head position on slide crosswise, approx. 100 mm Feed of grinding head, intemittendly 0.001 – 0.025 mm/stroke Feed of grinding head, continually 0,1 – 1 mm/min Table stroke, max. 630 mm Table speeds infinitely variable 0,1 – 8 m/min (10 m/min) Distance workpiece headstock and grinding slide, max. 1,250 mm Adjustment of Grinding spindel stock on table 520 mm Spindle drive, approx. 7.5 kW Total electrical load, approx. 17 kW - 380 V - 50 Hz Weight, approx. 6,000 kg Accessories / Special Features: • Universal internal grinding spindle head with automatic cycles to grind cylindrical and conical bores with one or multiple diameters, external diameters and grinding of narrow end-faces. • Face grinding device, hydraulic swivel-in, with automatic cycles to grind end-faces, multiple end-faces and two tiered end-faces simultaneously • Electronic cycle control with control tableau to set up all the grinding and dressing cycles including ampere-meters for internal grinding spindle and face grinding spindle • Belt-type grinding spindle drive with mounted grinding spindle and 5 pieces separate interchangeable grinding spindles along with various pulleys with various diameters. • Dressing device for both grinding spindles • HEIDENHAIN Digital Read-Out for the cross adjustment of the Workpiece headstock • A large amount of operating tooling and accessories as : 4-jaw Faceplate Ø approx. 520 mm, 3-jaw chuck Ø approx. 380 mm, 3-jaw-chuck Ø approx. 130 mm, pulleys, spindle sleeves, grinding flanges, foot switch, • Separate hydraulic unit, built on switch cabinet, coolant device with magnetic separator. Condition : very good, universal machine for all sorts of grinding tasks ! Please click here to view a video of the machine running : ! Delivery : immediately available, FCA Metzingen Payment : 100 % Net, after conclusion of contract, before loading

Condition: used, total height: 1,800 mm, total length: 3,500 mm, total width: 2,300 mm, Empty weight: 5.800 kg Price: On request Grinding diameter: 315mm Grinding depth: 500mm Swing: 500/600mm Stroke of table: 800mm - Documentation available: No - CE certificate present: No - Serial number: 31577 - Drive system: Conventional - Grinding diameter [mm]: 315 - X-axis travel [mm]: 800 - Transport dimensions: 3500mm x 2300mm x 1800mm (l x w x h) - Transport weight [kg]: 5800kg - Transport packages [pcs.]: 1 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Isdowya A Sjpfx Afusba Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: used, Year of construction: 1980, saw blade diameter 380 mm pneumatic clamping ja 46893 weight of the machine ca. 1,3 t +++++ Please note: Isdsd N Sm Djpfx Afueba The machine is dismantled and ready for loading. It is not possible to show it under power or make a video. Our offer includes already the best pictures. So we don’t have and won’t send additional pictures. +++++

Condition: good (used), Year of construction: 2007, travel distance X-axis: 1,060 mm, travel distance Y-axis: 510 mm, travel distance Z-axis: 635 mm, table width: 500 mm, table length: 1,200 mm, Spindle speed 10.000 Rpm Coolant tank with IKZ 20 bar Chip conveyor X - Travel: 1060mm Y - Travel: 510mm Z - Travel: 635mm Table Length: 1200mm Table Width: 500mm Feed rate X-Axis: 20000mm/min. Feed rate Y-Axis: 20000mm/min. Feed rate Z-Axis: 20000mm/min. Spindle Taper: 40ISO/Bt/Mk Power on spindle: 15kW Iodpoxdxhrofx Afusba Speeds / ranges: 10000Rpm ATC / revolver: 24 Coolant through spindle / Bar:20 Number of controlled axis: 3 Chip conveyor: Yes Coolantsystem: Yes Length: 2915mm Width: 2361mm Height: 2800mm Weight: 7000kg Please Note: The information on this page has been obtained to the best of our ability and belief, and from the manufacturers where possible. It is given in good faith, but its accuracy can not be guaranteed. Accordingly, it will not form a representation or constitute contractual terms. We advise you to check any vital details!

Condition: used, Technical details: grinding diameter: 260 mm grinding length: 1000 mm centre height: 130 mm clamping length: 1000 mm feed:: per Hand headstock adjustment: 280 manuell mm total power requirement: ca. 6,0 kW weight of the machine ca.: 1,5 t dimension machine xH: 2580 x 1750 x 1630 mm Non-circular grinding machine - (crankshaft grinding machine) Used for grinding crankshafts, camshafts, etc. Machine table: - rotatable right/left: 6° each - clamping surface workpiece 1240 x156mm Grinding headstock: - headstock adjustment 150mm to workpiece axis - rotatable right/left 90° in two planes - feed by hand manual 280mm - grinding wheel/grinding wheel = 350x32x127mm internal grinding spindle type Fortuna SJ 60 x 250L Ibedeu Ng Dtjpfx Afuja Workpiece headstock: - speed 25 - 65 - 155 - 400 rpm - rotatable by hand adjustment, +/- 90°. - center height 130mm Equipment: Tailstock equipped with dressing device, quill quick clamp with center point. Machine is available for demonstration. *

Condition: excellent (used), With C-axis With driven tools FANUC 21i TB Manual Guide control Ijdpfezhmnbox Afujba Turning diameter max 355 mm Turning length -1330 mm Spindle speeds -2'800 rpm Top turret tool holders 12 driven positions Misc. accessories MARCELS MASCHINEN CH

Condition: used, WEBSTER & BENNETT EV 36” HIGH SPEED VERTICAL BORER MAKE WEBSTER & BENNETT, MADE IN ENGLAND MODEL EV 36” TABLE DIA 915 mm SWING 1168 mm HEIGHT UNDER RAIL 533 - 1016 mm SPEED 13.5 - 300 rpm FEED RATE 0.005-0.250 inch/min MAIN SPEED 40 HP PLUS HIGH SPEED TAABLE EV SERIES MACHINE Iodpjxp Na Nofx Afujba ELEVATING RAIL SAFETY GAURDING SET OF JAWS FULLY FUNCTIONAL GOOD SLIDES

Condition: ready for operation (used), Year of construction: 2013, functionality: fully functional, turning length: 532 mm, turning diameter over cross slide: 500 mm, turning diameter: 325 mm, spindle speed (max.): 3,500 rpm, spindle bore: 65 mm, travel distance X-axis: 195 mm, travel distance Z-axis: 430 mm, rapid traverse X-axis: 30 m/min, rapid traverse Z-axis: 30 m/min, rotational speed (max.): 5,000 rpm, total length: 2,875 mm, chuck outer diameter: 260 mm, total width: 1,675 mm, spindle nose: A2-8, overall weight: 4,650 kg, Equipment: documentation/manual, rotational speed infinitely variable, We have acquired this HWACHEON HI-TECH 200BL MC directly from production in working condition—see the video of the machine operating prior to dismantling. The machine is very comprehensively equipped and comes standard with: - C-axis + driven turret (both positions). - Renishaw probe. - Chip conveyor + collection bin. - Röhm 3-jaw chuck (DURO-NC 260/3) including 2 sets of top jaws. - 13 EWS toolholders, 4 of which are driven. - Various clamping sleeves and collets. - Original HWACHEON and FANUC documentation. The machine can be inspected under power in our showroom! Iedpsypc H Rsfx Afuoba

Condition: used, TECHNICAL DETAILS - center height : 100 [mm] - Distance between centers : 650 [mm] - Max. table orientation : [°] - Travel : 650 [mm] - Speed : 100 - 3500 [mm/min] GRINDING WHEEL HOLDER HEADSTOCK - Orientation : [°] Ijdpjyn R I Hsfx Afusba - T1 grinding wheel dimensions : 350 x 32 x 127 [mm] - Power : 3 [kW] - Speed : 1600 - 2200 [rpm] - Peripheral speed : [m/s] PART-HOLDER HEADSTOCK - Spindle speeds : - 1200 [rpm] - Power : 0.5 [kW] - Type of cone : CM4 - Max. part weight : 20 [kg] - Orientation : 0 - 90 [°] POWER SUPPLY - Supply voltage : 400 [V] - Power : 8 [kVA] WEIGHT & DIMENSIONS - Machine floor space : 00 x 00 [mm] - Machine height : 1650 [mm] - Machine weight : 1900 [kg] MACHINE HOURS - Number of hours under power : 01 [h] EQUIPMENT - Sony LG20-2 display - Automatic contact detection : SENSITRON 6 - 1 tailstock with fine adjustment - 1 internal grinding spindle - Fixed dressing device - Coolant tank - 1 three-key steady rest
