Planer and moulder
WEINIG Hydromat 23

Name: WEINIG Hydromat 23
Brand: WEINIG
Availability: InStock

Condition

Used

Location

Bovenden

Machine data

Machine type:: Planer and moulder

Manufacturer:: WEINIG

Model:: Hydromat 23

Condition:: excellent (used)

Price & Location

Location:: Am Handweisergraben 11, 37120 Bovenden, Deutschland

Call

Details about the offer

Listing ID:: A19445001

Update:: 04.07.2025

Description

WEINIG Hydromat H23 Line, S/N 87321, year 1999, Ref-No. 103437

WEINIG Cross Conveyor HighMech E-1, equipped with 6 flat chains approx. 2000 x 3500 mm

Hydraulic WEINIG Accelerator Model 814

Short infeed table with heavy-duty 4-roller feed unit

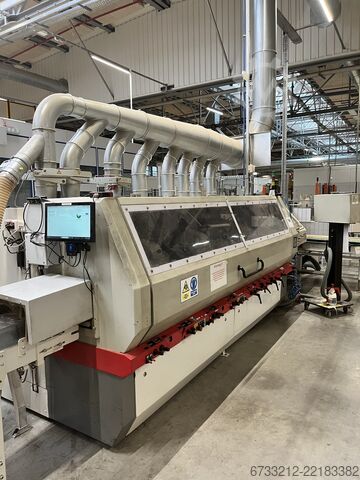

Planer/moulder with reinforced KASCHWIG three-sided soundproof enclosure

• Max. working width: 230 mm
• Max. working height: 160 mm

• Electronic feed, frequency-controlled, 8–80 m/min
• Feed motor 18.5 kW

• 1st spindle bottom 11.0 kW
• 2nd spindle right 11.0 kW
• 3rd spindle left 11.0 kW
• 4th spindle right 11.0 kW
• 5th spindle left 11.0 kW
• 6th spindle top 15.0 kW
• 7th spindle bottom 11.0 kW
• 8th spindle top 15.0 kW
• 9th spindle bottom 15.0 kW
• 10th universal spindle 11.0 kW (four-sided)

• Spindle speed 6,000 rpm
• Spindle diameter ø 50 mm
• All spindle motors equipped with NEW motor start/stop brake units

• Pneumatically supported top pressure rollers
• Feed rollers D=140 mm

• 6 driven rollers in the table
• Spindles 1 + 6 + 7 + 8 + 9 with counter bearings
• Spindles 8 + 9 with straight jointer
• Spindles 8 + 9 with profile jointer
• Spindles 6 + 8 with pneumatic pressure
• Reduced spacing between feed rollers

• Hard-chromed table plates
• Hard-chromed fences

• Pneumatically supported side pressure rollers
• Automatic table lubrication
• Centralized lubrication points
• Free-standing control panel

• Connected load approx. 145 kW / approx. 400 A
• Free-standing electrical cabinet
• Operating instructions, spare parts list and wiring diagram included
• Machine sold without cutterheads

Machine dimensions approx.:
• Length: 6,000 mm
Lsdpfx Aowvqklsnusac
• Width: 2,250 mm
• Height: 1,800 mm
• Weight: approx. 8,500 kg

Factory-new WEINIG components installed:

NEW horizontal/vertical spindle
NEW counter bearings
All spindles with HL bearings
All motors newly fitted
NEW electronic motor soft start/brake devices
NEW hard-chromed table plates
NEW hard-chromed fences
Many other new parts fitted in the machine

Condition: see attached photos – technically in excellent condition
Infeed mechanization unrefurbished – complete – fully functional

Payment: Net cash before loading
Delivery time: By arrangement
Delivery: EXW
Inspection: Anytime by appointment

Errors and prior sale excepted.

The listing was translated automatically. Translation errors are possible.
