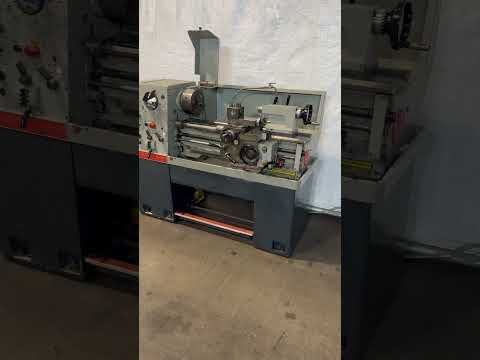

Center latheUsed Colchester
Student 1800 Straight Bed Centre Lathe
Machine data
- Machine type:
- Center lathe
- Manufacturer:
- Used Colchester
- Machine number:
- 4/0001/09472
- Year of construction:
- 1986
- Condition:
- used
- Functionality:
- fully functional
Price & Location
- Location:
- Europa Trading Estate, Fraser Road Unit 7, DA8 1PW Erith, GB
Details about the offer
- Listing ID:
- A20310590
- Update:
- 16.10.2025
Description
Distance between centres 635mm
Centre height 165mm
Swing
Swing over bed 335mm
Swing over cross slide 209mm
Spindle
Bored to pass 40mm dia
Nose D1-4 Camlock
Morse taper in nose N0 3
Width of bedways 231mm
Travel
Total travel of cross slide 209mm
Total travel of top slide 95mm
Total travel of tailstock barrel 146mm
Speeds
Spindle speeds (16)
22-1800rpm
Spindle motor 2.25kW
MACHINE SPECIFICATION Cont’d
Whitworth threads (45) 2-72tpi
Diametral threads (21) 8-44
Metric pitches (39) 0.2-14.0mm
Module pitches (18) 0.3-3.5
Feeds
Sliding feeds 0.001-0.040 ipr/spindle
Surfacing feeds 0.0005-0.020 ipr/spindle
Tailstock
Approx weight 800Kg
Machine in Imperial execution
Hfodpfx Asxn Iv Tjfijn
MACHINE EQUIPPED WITH
3 jaw chuck
Quick change toolpost and 6 off toolholders
Ainjest high speed screwcutting attachment
Single bedstop
5 Position turret bedstop
Apron dial
Chuck guard
Coolant system
Rear splashguard
