Table type boring mill, floor type boring mill

TOS VARNSDORF

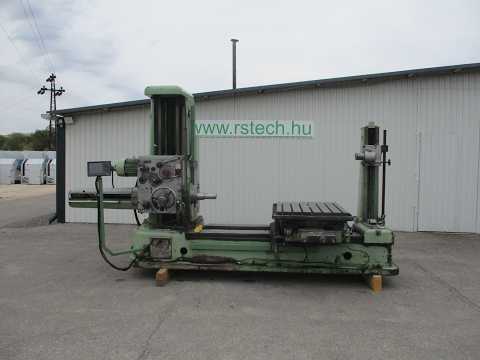

Year of construction: 1981, condition: ready for operation (used), Travel X/Y/Z/W: 1000mm/900mm/800mm/710mm, speed: 1400rpm, spindle diameter: 90mm, table dimensions: 1250mm/1250mm, max. table load: 3000kg, motor power: 7.5kW. X/Y dimensions: approx. 5500mm/7500mm, weight: approx. 11000kg, control: Newall DP700. Documentation available. Ndodpfx Aet Hkh Ajhkea

Condition: ready for operation (used), Year of construction: 2020, Make: HERMLE Type of machine: C 42 U Year of manufacture: 2020 Control system: Heidenhain TNC 640 Machine's weight: 13.000 kg Tool holder: HSK-A63* x-travel: 800 mm y-travel: 800 mm z-travel: 550 mm Speed range: 18.000 U/min max. Table load: 850 kg Table dimensions: 800 × 630 mm Number of tools in the magazine: 92 Pl. Internal coolant supply: 40 bar Ndjdpfxezv S Rqe Ahkea

Condition: refurbished (used), functionality: fully functional, spindle diameter: 130 mm, spindle speed (max.): 3,000 rpm, table length: 1,600 mm, table width: 1,800 mm, feed length X-axis: 3,500 mm, feed length Y-axis: 2,000 mm, feed length Z-axis: 1,250 mm, feed length W-axis: 800 mm, workpiece weight (max.): 12,000 kg, spindle stroke: 800 mm, year of last overhaul: 2025, Equipment: documentation/manual, WHN13-CNC, OVERHAUL 2025 | 3.0996 ■ HORIZONTAL BORING MILL – T-TYPE ■ PRODUCER: TOS VARNSDORF ■ OVERHAUL YEAR: 2025 RETOS ■ CONDITION: AFTER OVERHAUL ■ WARRANTY: YES ■ IN STOCK SPECIFICATION ■ HEIDENHAIN TNC 640 control system Njdpfeztqyfjx Ahkoda ■ Handwheel HR510 ■ HEIDENHAIN drives and SIEMENS motors ■ Ready for cooling through spindle axis and automatic tool changer ■ Can be equipped with other optional accessories - delivery on request

Condition: excellent (used), Year of construction: 1990, functionality: fully functional, spindle diameter: 128 mm, spindle speed (max.): 3,500 rpm, table length: 850 mm, table width: 850 mm, feed length X-axis: 1,600 mm, feed length Y-axis: 920 mm, feed length Z-axis: 950 mm, workpiece weight (max.): 5,000 kg, year of last overhaul: 2024, WFQ80CNC, Overhaul 2008 | 3.0585A ■ T-TYPE HORIZONTAL BORING MILL ■ PRODUCER: TOS VARNSDORF ■ OVERHAUL YEAR: 2008 (RETOS) ■ CONDITION: USED, EXCELLENT ■ WARRANTY: YES ■ IN STOCK SPECIFICATION ■ Heidenhain TNC426 control system with handwheel HR410 ■ SIEMENS motors and drives ■ operator housing against swarf and water ■ magnetic swarf conveying system SCOPE OF REPAIR 2024 ■ cleaning, revision and technical inspection ■ replacement of Heidenhain TNC426 control system ■ refurbish of electrical cabinet Njdpfsztqq Dox Ahkjda ■ exchange of damaged cables ■ repair of control panel ■ complete machine geometry repair (geometric accuracy protocol on request) ■ revision of drives (new ball screw bearings X+Z) ■ revision of headstock ■ revision of hydraulic power pac ■ revision of lubrication and clamping ■ new telescopic covers

Condition: used, Year of construction: 2015, total height: 5,000 mm, total length: 9,000 mm, total width: 6,000 mm, overall weight: 85,000 kg, Year of Manufacture: 2015 Machine No.: 12300000163 Control System Heidenhain iTNC 530 HSCI (3D path control) Travel Paths X: 2,700 mm Y: 2,700 mm Z: 1,600 mm B-axis: controlled universal swivel milling head C-axis: NC rotary table Ø 2,200 mm 5-axis simultaneous machining Spindle Motor spindle SK50 Speed: 20–12,000 min⁻¹ Power: 44 kW (40% duty cycle) / 32 kW (100% duty cycle) Nsdpjzqxkmofx Ahkeda Tool holder: SK50 according to DIN 69871 Tool Changer 63-slot wheel magazine Double gripper Equipment IKZ 40 bar Chip conveyor Electronic handwheel Rotating viewing window Minimum quantity lubrication (MQL) Coolant through spindle Coolant tank 980 l Mold making package Active chatter suppression (ACC) Adaptive feed control (AFC) Oil/emulsion mist separator Smartkey package Additional safety viewing windows (Visiport) Operating mode 4 (process observation) Dimensions (LxWxH) approx.: 9000 x 6000 x 5000 mm Weight approx.: 85,000 kg Year of construction: 2,015 Condition: in working order Terms of payment: 100% prepayment before pick-up Terms of delivery: EXW EX Works under power: No

Condition: used, Year of construction: 1983, functionality: fully functional, travel distance X-axis: 1,400 mm, travel distance Y-axis: 1,250 mm, travel distance Z-axis: 1,050 mm, spindle speed (max.): 1,400 rpm, year of last overhaul: 2014, Conventional lathe Brand: TOS Varnsdorf Type: W9A Year of manufacture: 1983 Electrical cabinet overhauled in 2014 (see photos) Spindle speed: 28–1400 RPM Nsdpfxjzlfl Tj Ahksda Travel (X-Y-Z): 1400x1250x1050 mm Digital readout

Condition: good (used), Year of construction: 2013, Ref. -No.: 10484 Manufacturer: TOS VARNSDORF Nedpfow Iu Nhex Ahkjda Type: WHN 13 CNC Year of construction: 2013 Type of control: CNC-Steuerung Control: HEIDENHAIN 530 Storage location: Halberstadt Country of origin: Czech Republic X-Travel: 3500 mm Y-Travel: 2000 mm Z-Travel: 1250 mm W-Axis: 800 mm B-Axis: 360 ° Table Load: 15.000 kg Tool Taper: SK 50 Turning Speeds: 1.400 RPM Spindle Speed: 2000 RPM Further information: The control system was converted to a HEIDENHAIN 530i in 2013. All drives were upgraded to digital. The thrust bearing tower was also replaced in 2013. Accessories: 3D probe - Heidenhain, large spindle support Additional table dimensions: 3850 x 900mm 1x axis module Heidenhain (overhauled), 1 new axis module is installed in the machine. Newly packed spare parts, covers from the machine. All bearings have been replaced by the machine in recent years. Tools and milling cutter heads are available. Machine is from 1st hand. The machine is still under power and in production. The machine can be viewed by appointment.

Condition: good (used), Year of construction: 2005, Universal machining center Machine type: DMG DMU 50 Evo linear Control: Heidenhain iTNC 530 Year: 2005 SPECIFICATIONS 5-axis-simultaneous Travel Nsdpfxezi Dzhs Ahksda X-Axis: 500 mm Y-Axis: 450 mm Z-Axis: 400 mm B-Axes: 108° C-Axis: 360° Rapid motion: (X/Y/Z): 80 / 50 / 50 m/min. Amount of controlled axes: 5 Spindle speeds: 18.000 rpm Tool: SK 40 Toolchanger Tool capacity: 30 NC-panning and rotary Table Table size: 500 x 380 mm Power consumption: 52 kVA KW Machine weight: 6,5 kg Req. space (LxBxH): 5,4 x 6,5 m Equipment No cooling through spindle No chip conveyor: Spänewanne Caliper Working mode: 4

Condition: good (used), Year of construction: 1995, Control system: Heidenhain TNC 415 Ndedpfxszff A Es Ahksa Spindle diameter: 130 mm Travel in X-axis: 3500 mm Travel in Y-axis: 2000 mm Travel in Z-axis: 1250 mm Travel in W-axis: 700 mm B-axis: 0.001° Rapid traverse rate: 10 m/min Table size: 1800 x 1600 mm Table load capacity: 12 tons Spindle power: 37 kW Spindle speed: 2000 rpm (2-speed gearbox) Chip conveyor

Year of construction: 2007, condition: ready for operation (used), travel distance X-axis: 3,500 mm, travel distance Y-axis: 2,000 mm, travel distance Z-axis: 1,220 mm, number of axes: 5, This 5-axis TOS Varnsdorf WHN130 was manufactured in 2007. It features a horizontal boring and milling machine with a table size of 1600 × 1800 mm and a spindle diameter of 130 mm. The machine includes a rotary table and is controlled by an NCT-104 system. Consider the opportunity to buy this TOS Varnsdorf WHN130 boring machine. Contact us for more information. • Control system: NCT-104 Spindle • Spindle diameter: 130 mm • Taper: ISO 50 (7:24) • Spindle speed range: 10 – 1500 rpm • Max spindle torque: approx. 2350 Nm • Main motor power: 37 kW Axis Travels Ndedpfex Imtaox Ahksa • X-axis travel: 3500 mm • Y-axis travel: 2000 mm • Z-axis travel: 1220 mm • W-axis (spindle quill travel): 570 mm Table • Rotary table size: 1600 x 1800 mm • Max workpiece weight: 12,000 kg • T-slots: 22 x 9 x 160 mm • B-axis table feed: 0.03 – 1.5 rpm Feed Rates • Rapid traverse (X / Y / Z / W): 2000 mm/min Power • Total power requirement: approx. 80 – 83 kVA

Condition: used, Year of construction: 1991, total length: 10,730 mm, total width: 1,600 mm, total height: 2,400 mm, Colour: Green Empty weight: 12.000 kg Price: On request - Year: 1991 - Documentation available: No - CE certificate present: No - Serial number: 0443848 - Drive system: Conventional - Power [kW]: 30.0 - Centre height [mm]: 625 - Swing over bed [mm]: 1250 - Carriage turning diameter [mm]: 1100 - Distance between centres [mm]: 8000 Ndedpfx Ahjy E Imvokea - Bed width [mm]: 800 - Spindle bore [mm]: 110 - Min. spindle speed [rpm]: 1.8 - Max. spindle speed [rpm]: 355 - Options: Fixed steady, Four-jaw chuck, Three-jaw chuck - Transport dimensions: 10730mm x 1600mm x 2400mm (l x w x h) - Transport weight [kg]: 12000kg - Transport packages [pcs.]: 3 Financial information VAT: The price shown is exclusive of VAT VAT/margin: VAT deductible for entrepreneurs Delivery and trade-in always possible for everything in the industrial sectors Lukas van Rossum

Condition: good (used), Year of construction: 2013, Ref. -No.: 10636 Manufacturer: TOS VARNSDORF Type: WHN 13 CNC Year of construction: 2013 Type of control: CNC-Steuerung Control: Heidenhain 530 Storage location: Halberstadt Country of origin: Czech Republic X-Travel: 3500 mm Y-Travel: 2000 mm Z-Travel: 1250 mm W-Axis: 800 mm B-Axis: 360 ° Table Load: 15.000 kg Tool Taper: SK 50 Turning Speeds: 1400 RPM Spindle Speed: 2000 RPM Table size: 1800 x 2200 mm Further information: Ndedpfozc D E Iox Ahkja - The control system was converted to a HEIDENHAIN 530i in 2013. - All drives were upgraded to digital. Thrust bearing replacement on the tower also renewed in 2013. - Accessories: - 3D probe - Heidenhain, large spindle support - 1x Heidenhain axis module (completely overhauled), - 1 new axis module is installed in the machine. - Newly packaged spare parts, covers from the machine. - All bearings have been replaced on the machine in recent years. - Tools and milling cutter heads are available. The machine is first-hand. The machine is still powered up and in production. The machine can be viewed by appointment.

Condition: good (used), Year of construction: 2004, Ref. -No.: 10520 Manufacturer: TOS VARNSDORF Type: WHNQ 13 CNC Year of construction: 2004 Type of control: CNC-Steuerung Control: HEIDENHAIN TNC 430 Storage location: Halberstadt Country of origin: Czech Republic Machine-No.: 23XX X-Travel: 3500 mm Y-Travel: 2500 mm Z-Travel: 1250 mm W-Axis: 800 mm Table Load: 12.500 kg Clamping Area: 1800 x 2500 mm Tool Taper: SK 50 Tool Piece Magazine With: 60 Pcs./pcs. Spindle Speed: 3.000 RPM Max. Torque: 3323 Nm Rapid Travel X/Y/Z: 10000 mm / min Drive Capacity - Spindle Motor: 37 / 1500 kW Weight Of The Machine Ca.: 40 t Njdpfx Ahew Nmw Hokoda Further information: - Tools + accessories - Angle head - Angle up to 2.5m - Chip conveyor - 3D measuring probe - Clamping device Machine is still in production and can be inspected under power by arrangement.

Condition: reconditioned (used), Year of construction: 1988, functionality: fully functional, This 2A576 radial drilling machine has been completely overhauled and restored to full producbon capacity. Basic technical data: Drilling diameter: in steel 80 mm / in cast iron 100 mm Headstock travel along the arm: 2000 mm Max drilling radius: 2500 mm Spindle travel: 500 mm Spindle: ISO50 Stepless sefng of spindle feed rates Spindle speed range: 2-1600 rpm. Njdpfx Aeur H I Nehkeda Column diameter: 500 mm Main drive engine power: 7.5 kW Dimensions L/W/H: 4180/1280/4125 mm Weight: 12 tons This drilling machine meets the minimum safety and health requirements set out in Direcbve 2009/104/EC, known as the "Tools Directive". Machine ready for checking under power in our warehouse in central Poland.

Condition: ready for operation (used), functionality: fully functional, travel distance X-axis: 1,250 mm, travel distance Y-axis: 1,100 mm, travel distance Z-axis: 950 mm, table load: 3,000 kg, spindle diameter: 100 mm, table length: 1,200 mm, table width: 1,000 mm, No minimum price – guaranteed sale to the highest bidder! TECHNICAL DETAILS Spindle diameter: 100 mm Spindle taper: ISO 50 Travel X-axis: 1,250 mm Travel Y-axis: 1,100 mm Travel Z-axis: 950 mm Travel W-axis: 630 mm Table size: 1,120 x 1,000 mm Table load capacity: 3,000 kg Njdpfxjzd Avye Ahkoda
