Plasma Cutting Device

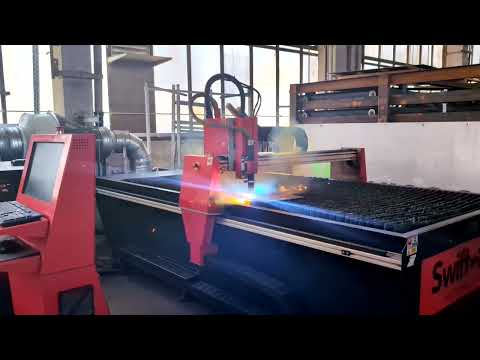

Swift-Cut Automation Ltd. Pro 3000

Condition: used, table length 2400 mm table width 1200 mm table height 880 mm diameter of holes 28 mm Plate thickness 26 mm Fpedpfszwg I Tsx Akyjn floor-plate height 200 mm

Year of construction: 2023, condition: new, PLASMA CUTTER MODEL MTX 2040 Construction: steel + aluminum Working area: 4000/2000/200 XY axis drive: double-sided gantry drive: 4Nm stepper motors with gearboxes, rack and pinion Z axis drive: stepper motor, ball screw Travel speed: up to 25 m/min Z axis control system: THC My plasm system Fsdpfsiphrlex Akyepn Linear guides: TBI IGUS guide Automatic material detection system Power supply: 240V Permissible load: 2000 kg Total weight: 800 kg net USB port for opening projects and transferring files via external pen-drive Sheet detection system THC height control system TBI linear guides Double-sided gantry drive: X axis: stepper motor and rack and pinion Y axis: stepper motor and rack and pinion Z axis: stepper motor and ball screw Drives implemented using TBI HGR 20 rails Table equipped with a water table (water table, providing cleaner cutting, material cooling, and reduced gas emissions during processing) INCLUDED: - water table - replaceable grating - control program in Polish - CE declaration of conformity - technical documentation - warranty - commissioning and training included in the price The latest control system available in our cutters: Integrated THC height regulator Anti-torch dive function Accepted file types: DXF, PLT (hpgl), G-Codes (.tap) Integrated CAM module: MyMini CAM Automatic recognition of external objects Path analysis in advance Cutting parameter database Project angle correction to material Ability to cut from any location Ability to cut from the end Import DXF, PLT or G-CODES Automatic generation of paths with offset, entry and exit points The program can be used with an external CAM program Separate speed for holes Parameter database Project correction to the material layout angle Soft and Hardware limits THC anti-dive functions Game Pad control possible Material detection via touch system, floating head WHY IT'S WORTH IT WE ARE A POLISH MANUFACTURER OF PLASMA CUTTERS CLOSE COOPERATION WITH PROMA-ELEKTRONIKA (THC MANUFACTURER) PROFESSIONAL GUIDES FROM THE RENOWNED HIWIN COMPANY; THESE GUIDES ARE CHARACTERIZED BY VERY LONG LIFESPAN, HIGH CUTTING QUALITY, AND DO NOT REQUIRE FURTHER PROCESSING COMPONENTS SUCH AS GEARBOXES, FASTENERS, HOLDERS, ETC. ARE MADE BY US USING CNC TECHNOLOGY, WHICH ENSURES HIGH QUALITY AND REPEATABILITY OUR STRENGTHS HIGH-QUALITY SHIELDED CABLES INDUCTIVE SENSORS ON ALL AXES, WHICH ARE NOT SUSCEPTIBLE TO DUST OR JAMMING ADVANCED THC MY PLASM, SMOOTH TORCH OPERATION CPC INTERFACE (VOLTAGE DIVIDER) MOUNTED IN CUTTERS WE MOUNT CUTTERS SUPPLIED BY THE CUSTOMER OR PURCHASE CUTTERS THAT MEET CUSTOMER REQUIREMENTS WE HELP IN ARRANGING LEASING Possibility to select the appropriate cutter to meet the individual needs of the company. We offer other table sizes.

Year of construction: 2014, condition: ready for operation (used), A complete CNC double gantry plasma cutting system Microstep with oxyfuel torch for nesting, bevel cutting and tube processing is available. 1) Plasma cutting system, max. processing length: 16500mm, max. processing width: 2500mm, max. processing width including shaft: 3700mm, max. material thickness VA/structural steel: 20mm/40mm, number of gantries: 2. Gantry 1: with a plasma rotator and a Kjellberg HiFocus 280i neo plasma cutting source. Gantry 2: fully automatic oxy-acetylene torch for possible equipment of a second torch carriage. Pipe cutting device: pipe diameter range: 30mm-700mm, max. pipe length: 16500mm, operating hours: approx. 15000h. 2) Filter system Donaldson Cyclopeel DFPRO 16, volume flow: 16000m³/h, filter elements: 16. Documentation available. On-site inspection is possible. Expected to be available from the end of 2025/beginning of 2026. Pictures are from commissioning in 2014. Fsdpewmqwyjfx Akyopn

Year of construction: 2010, condition: ready for operation (used), Max. sheet dimensions: 6050x2550mm, max. cutting speed: 10m/min, length: 8125mm, width: 3800mm, height: 1900mm, with documentation, an on-site inspection is possible. Fodpjri Skajfx Akyopn

Condition: used, Year of construction: 2017, functionality: fully functional, machine/vehicle number: 2202, travel distance X-axis: 3,000 mm, travel distance Y-axis: 1,500 mm, type of input current: three-phase, input voltage: 400 V, input current: 50 A, Microstep Mastercut Eco Plus 3001.15 Year of manufacture: 2017 Control system: IMSNC Oxy-fuel cutting table: 3000 x 1500 mm Extraction duct left / right Plasma source: Kjellberg HiFocus 161i, adjustable 10 - 160 A Power source HiFocus 161i PLUS • Flexible adaptation of the cutting process to required conditions thanks to soft-switch inverter and microprocessor control • Optimal process control with ultra-fast regulation of cutting current • Process monitoring for torch cooling, ignition time, pilot arc time, short circuit time during torch ignition, and power source • Operating status and error display via LED and screen • Analog and serial interfaces for adaptation to CNC controllers • Infinitely adjustable cutting current from 10 - 160 A and during marking from 5 - 25 A • Optimal piercing through infinitely variable delay time for the main arc and adjustable current rise • Adjustable current reduction for cornering, start, and end signals of the guidance system • Automatic display of the preset cutting current • Serial data transmission for PC-based diagnostics Plasma cutting technology: Contour Cut • Further development of HiFocus technology for mild steel • Optimized for cutting fine internal and external contours • High cutting quality and contour accuracy • Holes with angular deviations according to DIN EN ISO 9013 range 2-4 • Minimal angular deviations and smooth cut surfaces • Excellent repeatability and dimensional accuracy • No tedious post-processing – high productivity and low costs • No additional equipment, software, or new consumables required • Standard equipment Plasma torch PerCut 200/210 • PerCut 200 plasma machine torch for standard applications and high-precision bevel cutting • Quick-change PerCut 210 torch with threaded lock for quick and convenient tool swapping • Special torches available for special applications • Higher cutting speeds reduce cost per meter • Long service life of consumables conserves resources • Narrower kerf means fewer emissions and less waste • Significantly lower gas consumption compared to competitors thanks to efficient liquid cooling up to the nozzle tip Fpsdpey Nd Hysfx Akyen • Lower noise levels due to reduced gas consumption • Bevel cutting up to 50 degrees with standard consumables • Cutting and marking possible with the same consumables Power source HiFocus 161i Power supply: 400 V; 3 Ph; 50 Hz Max. power input: 28 kVA (100% duty cycle) Main fuse, slow-blow: 50 A Protection class: IP22 Open circuit voltage: 330 V Cutting current: 10 – 160 A (100% duty cycle) Marking current: 5 – 25 A (100% duty cycle) Cutting range: Max. 50 mm Recommended: 0.5 – 38 mm Max. piercing thickness: 30 mm Weight: 206 kg Plasma machine torch PerCut 200 Quick-change torch PerCut 210 Clamping diameter: 50.8 mm Plasma gases: O2, N2, Ar/H2 Marking gases: Ar Swirl gases: O2, N2, Air, N2/H2 (F5)

Condition: new, sheet length: 3100sheet thickness: 6,0total power requirements: 11weight approx.: 7000messurements (LxWxH): 4110x2195x1770 Our strong brand KK Kletzer                    TAFELSCHER Vibration cut version Model SWT has everything you need for cutting.  We have also raised the standard in the vibration cutting design and deliver ours as well  Plate shears with automatic cutting adjustment via the touchscreens Control ELGO P40T without surcharge.  NC slotted table shears KKI Technological advantages Fast and precise cuts Stable,  durable frame construction Automatic kerf adjustment Easy handling Low maintenance costs High safety standard Use of components from well-known manufacturers Low unit costs   Technical specifications:  Sheet thickness: 6 mm  Cutting length: 3.100 mm Cutting angle: 1,5°  number of hold-downs 15 Backgauge: 1,000 mm via CNC  Motor power: 11 kW  Strokes per minute 15 Projection: 50 mm  Length: 4110 mm  Width: 2195 mm  Height: 1770 mm  Weight: 7000 kg  • Stable swing cut design Cutting gap adjustment via the control - backgauge - kerf - Cutting length  • Ball screws for the back gauge • balls in the table  • Side stop 1,500 mm • 2 pcs. Support arms 1.000 mm  Fsdpfxed Eqrnj Akyepn • Cut line lighting • Foldable up to 1,000 mm finger protection  Option:  pneumatic sheet support, EURO 3.900, -  We have many references!

Year of construction: 2015, condition: ready for operation (used), A CNC gantry flame cutting machine ESAB is available. Track width: 4000mm, cutting dimensions X/Y: 3000mm/6000mm, track length: 8000mm, track height: 465mm, table height: 700mm, cutting speed: 24m/min, flame cutting table dimensions X/Y: 3100mm/6180mm. Cutting process: Oxyfuel/plasma, Torch: Cooljet-Pro, Plasma source: m3 202 EPP 202 GEN 2, Plasma torch: PT-36. Filter capacity: 9000m³/h, Filter area: 180m², Particle size: 0.1µm. The plasma source cooling system must be repaired. Documentation available. On-site inspection is possible. Fpjdpfx Aksw Azu Isyen

Condition: used, Roller conveyor, conveyor belt, roller conveyor belt, roller conveyor -Roller conveyor: powered -Roll width: 600 mm -Rollers: O 80 mm -Roll distance: 150 mm Fsdpfjdkt Iwex Akyjpn -Total height of roller conveyor: 300 mm -Total length: 80 m -without motor -Price per meter: 45 EUR net / m

Condition: used, Year of construction: 2021, CNC portal flame cutting machine Manufacturer: Messer Type: MultiTherm Eco 3600 Year of manufacture: 2021 CNC control: Global Control Track gauge: 3,600 mm Fpedezyabljpfx Akyon Working tables: 2,300 x 6,200 mm 4 oxy-fuel torches, type ALFA MS 4452/250 Cutting thickness: max. 150 mm Bevel cutting possible Automatic gas control (OmniFlow) for cutting oxygen (max. 15 bar) Extraction system: Keller dry dust collector, type Vario 2 Software: OmniWin2021 051026ä

Condition: excellent (used), Year of construction: 2021, functionality: fully functional, CNC oxy-fuel cutting machine in very good condition, lightly used. Fpsdpfx Aozhby Sskyon
