Laser cutting machine

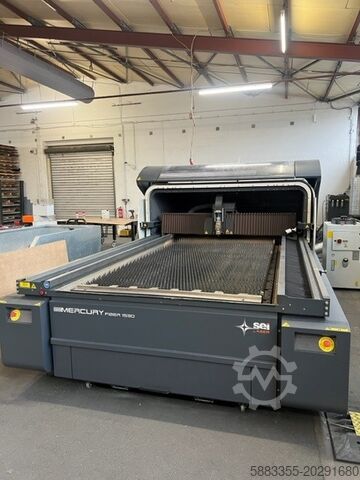

Sei Laser Mercury Fiber

Year of construction: 2021, condition: ready for operation (used), - USED - FIBER LASER CUTTING MACHINE WITH PALLET CHANGER and LOADING/UNLOADING SYSTEM Itjdpswwxuzefx Ah Neb X-AXIS TRAVEL: 4064 mm Y-AXIS TRAVEL: 2032 mm Z-AXIS TRAVEL: 70 mm WORKING AREA: 4000 x 2000 mm ADMITTED LOAD ON TABLE: 1270 Kg SOURCE: FIBER 6000 ; 6000 W CONTROL UNIT: ByVISION ACCESSORIES: PORTABLE HANDWHEEL ; FUME EXHAUSTER NOTE: WITH SYSTEM ANTIL SPA 4020 yom 2021

Year of construction: 2018, condition: ready for operation (used), - USED - FIBER LASER CUTTING MACHINE WITH PALLET CHANGER X-AXIS TRAVEL: 3048 mm Y-AXIS TRAVEL: 1524 mm Z-AXIS TRAVEL: 150 mm RAPID FEEDS X-Y-Z: 100 - 100 m/min WORKING AREA: 3000 x 1500 x 150 mm Itjdpfx Asvghb Dsh Nob SOURCE: IPG Fiber 4000 ; 4000 W CONTROL UNIT: PRIMACH 30L WEIGHT: 10000 Kg OVERALL DIMENSIONS: 10500 x 3400 x 2200 mm

Condition: ready for operation (used), Year of construction: 2013, sheet thickness steel (max.): 25 mm, power: 6 kW (8.16 HP), Working area 3000x1500. Loadmaster system included.Due to not using machine for longer time,the service is required. Itjdpfx Ajwh R R Nsh Nsb

Condition: new, Year of construction: 2025, table length 3048 mm Iedjwnt Eijpfx Ah Nstb table width 1524 mm burner heads 1 Control CNC workpiece weight 911 kg traversing speed 180 m/min weight 4150 kg dimensions of the machine ca. 9392 x 2232 x 2307 mm Laser cutting machine with automatic shuttle table Configuration 1. Bodor Power 3kW laser source 2. Bodor Genius laser cutting head with autofocus 3. Bodor Thinker 3.0 control system 4. Mortise-and-tenon type plate welded segmented bed 5. Stretched aluminum gantry 6. Bodor servo motor and driver 7. Bodor rack and pinion 8. One-click processing 9. Bodor Lightning perforation technology 10. Expert database for high-speed cutting 11. Automatic cutting gas pressure adjustment 12. Open door protection 13. Cutting malfunction alarm function 14. Ergonomic remote control (Bodor Mango®) 15. Active anti-collision function 16. Intelligent anti-shake 17. Gas-saving continuous flow nozzle 18. Intelligent maintenance reminder 19. WIFI internet connection 20. Water cooler 21. Extraction system 22. Wear parts set CUTTING CAPACITY: STRUCTURAL STEEL 14 mm STAINLESS STEEL 10 mm ALUMINUM 6 mm OPTIONAL: LANTEK EXPERT II CUT software incl. postprocessor Translated with (free version)

Condition: new, Year of construction: 2025, Base sheet fiber laser metal cutting machine with full protection Maximum cutting area reaches up to 12000mm*2500mm, suitable for a variety of cutting options. Isdpfxsh S H Rrj Ah Njtb The special fiber laser nozzle and cutting process ensure faster carbon steel oxygen cutting, more gas-saving low-pressure stainless steel nitrogen cutting, and better-quality carbon steel air cutting. Cutting performance and efficiency are improved by maintaining gas flow steady with little turbulence. Fiber laser heads are able to detect jutting obstacles to effectively reduce the damage rate and save the maintenance cost of a laser cutter. The cutting process works even at the edge of thin sheets, and ensures no chatter marks. With One-click Processing, one laser cutter is able to process multiple sheets in batches with a one-off setup, achieving batch processing. Condition: New Laser Type: Fiber Laser Laser Power: 1000W - 40000W Cutting Area: 3048*1524mm - 12500*2600mm Cutting Speed: 0-110m/min Positioning accuracy: ±0.05mm Repositioning accuracy: ±0.03mm Graphic Format Supported: AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT CNC or Not: Yes Cooling Mode: WATER COOLING

Condition: used, Year of construction: 2013, Used machine in good condition. Available for immediate delivery. - Laser Type: fiber TruDisk 3001 - Working area (X x Y x Z): 3.000 x 1.500 x 115 mm - Max. workpiece weight: 900 kg - Simultaneous positioning speed: 140 X+Y m/min - Laser Output: 4 kW - Maximum material thickness mild steel: 20 mm - Maximum material thickness cupper: 6 mm - Maximum material thickness brass: 6 mm - Maximum material thickness stainless steel: 15 mm - Maximum material thickness aluminium: 15 mm Iodsvczy Ejpfx Ah Nstb - Control: SIEMENS SINUMERIK 840D - Machine ON Working hours: 40.500 h - Beam ON Working hours: 26.000 h - Electric consumption entire unit: 14 kW - Weight: 12.000 kg - Dimensions (long x wide x high): 9.300 x 4.700 x 2.200 mm

Condition: used, functionality: fully functional, Equipment: CE marking, angle stop, centralized greasing system, documentation/manual, emergency stop, finger protection, foot remote control, safety light barrier, Amada Promecam Guillotine Shear Type GPX 630 For more information, please contact us BT MACHINES BUYING AND SELLING Isdsxgpqvjpfx Ah Nstb ALL TYPES OF INDUSTRIAL EQUIPMENT ALL TYPES OF MACHINE TOOLS

Condition: new, Year of construction: 2025, All-round sheet fiber laser metal cutting machine Equipped with automatic functions of nozzle changing and one-click processing, P-Series is competent for all cutting demands. Flake graphite in the cutting machine bed improves greatly the shock absorption and wear resistance, and residual stress almost disappears after age hardening, therefore, precision and lifetime of the equipment are improved, and costs saved. The special fiber laser nozzle and cutting process ensure faster carbon steel oxygen cutting, more gas-saving low-pressure stainless steel nitrogen cutting, and better-quality carbon steel air cutting. Fiber laser heads are able to detect jutting obstacles to effectively reduce the damage rate and save the maintenance cost of a laser cutter. The fully closed-loop control adjusts according to feedback to ensure that the actual motion position is consistent with the theoretical input value. With One-click Processing, one laser cutter is able to process multiple sheets in batches with a one-off setup, achieving batch processing. Condition: New Itodpfohwhf Uox Ah Njb Laser Type: Fiber Laser Laser Power: 1500W - 30000W Cutting Area: 3048*1524mm - 6100*2500mm Cutting Speed: 0-169m/min Positioning accuracy: ±0.03mm - ±0.05mm Repositioning accuracy: ±0.02mm - ±0.03mm Graphic Format Supported: AI, BMP, Dst, Dwg, DXF, DXP, LAS, PLT CNC or Not: Yes Cooling Mode: WATER COOLING

Condition: new, functionality: fully functional, Year of construction: 2025, table width: 4,120 mm, working width: 2,530 mm, travel distance Y-axis: 6,020 mm, travel distance Z-axis: 450 mm, type of input current: three-phase, overall weight: 14,200 kg, warranty duration: 24 months, working range: 6,225 mm, Equipment: CE marking, centralized greasing system, cooling unit, documentation/manual, dust extraction, emergency stop, fume extraction, nozzle changer, safety light barrier, All New Full Cover Fiber Laser Cutting Machine | GS-CE PRO Series | 6000-40000W MACHINE AVAILABLE ON HAND This GS-CE series FULL COVER FIBER LASER CUTTING MACHINE offers maximum safety for metals cutting. Thanks to its full cover structure and protective glass observation window, you can observe the operation and avoid hazards such as laser radiation, sparks, etc. It also has a fast exchange table, and the exchange is within 10s. It will be your ideal solution for safe and efficient metal cutting! Working platform size: 3000mm*1500mm, 4000mm*2000mm, 6000mm*2000mm, 6000mm*2500mm;8000mm*2500mm;12000mm*2500mm; Laser power 6KW-40KW GS-6225CE PRO Max. Acceleration：3G Intelligent anti-collision function Automatic lubrication Laser fault alarm Cooling fault alarm Laser protection glass Water cooler TÜV CE certificate Iedpjvzwh Nsfx Ah Njtb Optional function: automatic loading and unloading system Control unit supports graphic formats: AI, BMP, Dst, Dwg, DXF, DXP External programming System complete incl. cooler, extraction system and safety light barriers Demonstration machine as good as new

Condition: good (used), machine/vehicle number: 334, Year of construction: 2006, Offer 25428 Height-adjustable aluminum double-girder gantry crane - mobile Itedpfxexwm A Do Ah Nob Technical specifications: - Electric chain hoist by ABUS, type GM 6, year 2018, 1500 kg capacity - Electric chain hoist with two lifting speeds: 4 and 1 m/min - Operation via electric hand remote control - Electric chain hoist equipped with manual lateral travel brake - Min. / max. total height approx. 3100 / 4350 mm - Min. / max. clearance height (lower edge of gantry): 2780 / 4020 mm - Min. / max. hook height approx. 2150 / 3430 mm - Clearance between end frames approx. 4800 mm - Total width approx. 5000 mm - Total depth approx. 2200 mm - 4 swivel castors - Total weight – crane plus hoist: approx. 300 kg - Power supply: 400 V
