Used Weinig Unicontrol 12 for sale (490)

Condition: excellent (used), Year of construction: 2011, functionality: fully functional, Unicontrol 12 Consisting of: Cut-off unit (item A), Tenon and slotted spindle (item C), Transfer belt (Pos. I), profiling spindle (Pos L), profiling spindle (Pos. N), Profile shaving unit vertical right (Pos. P) For the production of individual parts and elements in frame-by-frame or serial production. Consisting of a cross processing unit and a longitudinal processing unit connected to a transfer belt. Working width 40-140mm (See pressure ruler left 40 - 140 mm) Working height 40-120mm Workpiece length min. approx. 275 mm + 1 x end profile length Long machining: approx. 220 mm + 2 x end profile length Workpiece length max. 3500 mm The part dimensions depend on the machine equipment, production type and tool assignment. A final definition of the part dimensions is only possible after receipt, inspection and approval of the complete and final layout drawings. Cross machining: Table feed Motor power 0.3 kW (0.4 HP) Pre-set feed speed for cutting, profiling and return 3-25 m/min Vario table with (studio window production possible) The clamping length of all tenoning and slotting spindles can be used without a tool blank. Workpiece clamping by means of a clamping bridge. Operated by a clamping cylinder installed under the table. NC-controlled long fence mounted on the slotting table. Studio window device Swivel angle max. +/- 75° The minimum workpiece length for slanted windows depends on the angle and the width of the wood. Possible part dimensions for slanted window production Angle Max. Min. Iodpfsumci Sjx Ag Ijat Working width Workpiece length +/-75° 80 mm 800 mm +/-70° 120 mm 490 mm +/-60° 240 mm 360 mm +/-90° 350 mm 185 mm For angles greater than 60° only counter processing Commission not documented 1)NC automatic angle adjustment for machining angled parts Splinter protection by means of overtravel counter Over the entire spindle length of the tenoning and slotting spindle for 90° machining Manually trackable counter-rail for angled part machining 2) Additional counter-rails

Condition: used, Year of construction: 2004, Tenoning spindle 2 St. Number of milling agregates 7 St. Spindle diameter 50 mm # 6726 Weinig Unicontrol 12 CNC ----- Sale on behalf of a customer. Machine connected and ready for demonstration. Including used window tools for Unicontrol 12, OERTLI for various wood thicknesses ----- Brief Summary: ----- - 2 x tenoning spindles each 640 mm length, CNC controlled - "Vario-Table" - 3 x profile spindles each 400 mm length, CNC controlled - FItting spindle + grooving units (top and bottom) - Includes used window tools for Unicontrol 12, OERTLI programmed and set up for various wood thicknesses and systems (see pdf attached). Detailed Description: ----- crosscut saw ----- Crosscut saw electronically, horizontally infinitely adjustable Number of tools: 1 pc. Spindle speed: 3000-6000 rpm Spindle diameter: 40mm Tool diameter max.: 400 mm Motor power: 3 kW Laser guide light to identify the saw section rounding aggregate ----- Position: horizontally below Motor power: 1 kW Spindle diameter: 20mm Spindle speed: 9000 rpm Tool flight circle max.: 130 mm electronic length stop, length: 3500 mm ----- 1. tenoning Spindle ----- Number of tools: variable, CNC-controlled Tool clamping length: 640 mm Vertical spindle stroke: variable, CNC-controlled Spindle speed: 2800-4000 rpm Spindle diameter: 50mm Tool diameter max.: 380 mm Motor power: 15 kW 2. Tap and Slot Spindle ----- Number of tools: variable, CNC-controlled Tool clamping length: 640 mm Vertical spindle stroke: variable, CNC-controlled Spindle speed: 2800-4000 rpm Spindle diameter: 50mm Tool diameter max.: 380 mm Motor power: 15 kW 1. Profiling spindle ----- Position: vertical right Number of tools: variable, CNC-controlled Tool clamping length: 400 mm with upper bearing Vertical spindle stroke: variable, CNC-controlled Horizontal spindle stroke: variable, CNC-controlled Spindle speed: 6000 rpm Spindle diameter: 50mm Tool flight circle max.: 232 mm Iaodpfoyyqm Isx Ag Iet Motor power: 11 kW 2. Profiling spindle ----- Position: vertical right Number of tools: variable, CNC-controlled Tool clamping length: 400 mm with upper bearing Vertical spindle stroke: variable, CNC-controlled Horizontal spindle stroke: variable, CNC-controlled Spindle speed: 6000 rpm Spindle diameter: 50mm Tool flight circle max.: 232 mm Motor power: 11 kW 3. Profiling spindle ----- Position: horizontally above Tool clamping length: 40 mm Spindle speed: 9000 rpm Spindle diameter: 40mm Tool flight circle max.: 130 mm Motor power: 3.7 kW 4. Profiling spindle ----- Position: vertical right Number of tools: variable, CNC-controlled Tool clamping length: 400 mm with upper bearing Vertical spindle stroke: variable, CNC-controlled Hori...

Condition: used, Year of construction: 2004, Tenoning spindle 2 St. Number of milling agregates 7 St. Spindle diameter 50 mm control CNC, Weinig PC-Nexus Weinig Uncontrol 12 with radial and axial CNC spindles and VARIO table ..... The machine has already been professionally dismantled and stored in 73447 Oberkochen Specifications summary (please inquire about any additional accessories included) ..... crosscut saw ..... > Crosscut saw electronically, horizontally infinitely adjustable > Number of tools: 1 pc. > Spindle speed: 3000-6000 rpm > Spindle diameter: 40 mm > Tool diameter max.: 400 mm > Motor power: 3.7 kW > Laser guide light for detecting the sawing section > Axial adjustment path 150 mm NC axis, electronically stepless > Adjustment path, radial, pneumatic, 8 positions, e.g. for edge rounding from above rounding aggregate ..... > Position: horizontally below > Axial adjustment path together with the crosscut saw. electronic length stop ..... > Length 4500mm 1. Tap and Slot Spindle ..... > Number of tools: variable > Motor power: 15 kW > Spindle diameter: 50 mm > Tool clamping length: 640 mm, with counter bearing > Axial adjustment range: 580 mm NC axis, stepless > Spindle speed: 2,800-4,000 rpm > Tool diameter: 380-400mm > Overrun counter, complete clamping length is countered 2. Tap and Slot Spindle ..... > Number of tools: variable > Motor power: 15 kW > Spindle diameter: 50 mm > Tool clamping length: 640 mm, with counter bearing > Axial adjustment range: 580 mm NC axis, stepless > Spindle speed: 2,800-4,000 rpm > Tool diameter: 380-400mm > Overrun counter, complete clamping length is countered transfer tape ..... Included for transferring the parts to longitudinal processing Separation of double parts before entering longitudinal processing. 1. Profiling spindle (synchronous and counter-rotating) ..... > Position: vertical right > Number of tools: variable > Motor power: 11 kW > Spindle diameter: 50 mm > Tool clamping length: 400 mm, with counter bearing > Axial adjustment range 350 mm NC axis, stepless > Radial adjustment range 80 mm NC axis, stepless > Spindle speed: 6000 rpm > Minimum tool flight circle: 140 mm > Tool flight circle max.: 232 mm 2. Profiling spindle ..... > Position: vertical right > Number of tools: variable > Motor power: 11 kW > Spindle diameter: 50 mm > Tool clamping length: 400 mm, with counter bearing > Axial adjustment range 350 mm NC axis, stepless > Radial adjustment range 80 mm NC axis, stepless > Spindle speed: 6000 rpm > Minimum tool flight circle: 140 mm > Tool flight circle max.: 232 mm 3. Profile milling unit (grooving device from above) ..... > Position: horizontally above > Motor power: 3.0 kW > Spindle diameter: 40 mm Iajdpfx Aoyrtzkog Ijt > Tool clamping length: 40 mm > Axial adjustment range 30 mm NC axis, stepless > Radial adjustment range 125 mm NC axis, stepless > Spindle speed: 9000 rpm > Tool flight circle max.: 130 m...

Condition: used, Tenoning spindle 2 St. Number of milling agregates 7 St. Spindle diameter 50 mm control Weinig, PC-Nexus Weinig Unicontrol 12 with radial and axial CNC spindles as well as VARIO table and milling carriage ..... Machine dismantled professionally and in our warehouse in 73447 Oberkochen. Video and pictures were taken before dismantling. Technical data summary (please inquire about any additional accessories included) ..... crosscut saw ..... > Electronic crosscut saw, horizontally infinitely adjustable > Number of tools: 1 piece. > Spindle speed: 2,800 rpm > Spindle diameter: 40 mm > Tool diameter max.: 400 mm > Motor power: 3.7 kW > Laser directional light to detect the saw section > Axial adjustment path 150 mm NC axis, electronically infinitely variable > Radial pneumatic adjustment path 8 positions for e.g. edge rounding from above Rounding aggregate ..... > Position: horizontally below > Motor power: 1.5 kW > Spindle diameter: 20 mm > Tool clamping length: 25 mm > Spindle speed: 9,000 rpm > Tool diameter: max. 130 mm Ijdox H Al Nspfx Ag Ijat > Axial adjustment path mechanically coupled with crosscut saw. > Radial adjustment pneumatically controlled on/off electronic length stop ..... > Length 4500 mm 1. Tap and slot spindle ..... > Number of tools: variable > Motor power: 15 kW > Spindle diameter: 50 mm > Tool clamping length: 640 mm, with counter bearing > Axial adjustment path: 580 mm NC axis, continuously variable > Spindle speed: 2,800 rpm > Tool diameter: max. 400 mm > Overtravel counter, complete clamping length is countered 2. Tap and slot spindle ..... > Number of tools: variable > Motor power: 15 kW > Spindle diameter: 50 mm > Tool clamping length: 640 mm, with counter bearing > Axial adjustment path: 580 mm NC axis, continuously variable > Spindle speed: 2,800rpm > Tool diameter: max. 400 mm > Overtravel counter, complete clamping length is countered Transfer tape ..... Included for transferring the parts to longitudinal machining Separation of double parts before the start of longitudinal processing. 1. Profiling spindle (synchronous and counter-rotation) ..... > Position: vertical right > Number of tools: variable > Motor power: 11 kW > Spindle diameter: 50 mm > Tool clamping length: 400 mm, with counter bearing > Axial adjustment path 350 mm NC axis, infinitely variable > Radial adjustment path 80 mm NC axis, infinitely variable > Spindle speed: 6000 rpm > Tool flight circle min.: 140 mm > Tool flight circle max.: 232 mm > 2 feed rollers axially pneumatically controlled opposite the spindle, 8 positions > Table top pneumatically controlled to the tool diameter 2. Profiling spindle ..... > Position: vertical right > Number of tools: variable > Motor power: 11 kW > Spindle diameter: 50 mm > Tool clamping length: 400 mm, with counter bearing > Axial adjustment path 350 mm NC axis, infinitely variable > Radial adjustment path 80 mm NC axis, infinitely variable > Spindle speed: 6000 rpm > Tool fli...

Condition: used, Used control cabinet from a Weinig Unicontrol 6, suitable as a source of spare parts or for building a new control cabinet. Contents include, among others: - Brake unit Hilger & Kern Ijdpfxot Na Drs Ag Ieat - Transformer Rathgeber type ET 1000.

Condition: used, Used control cabinet from a Weinig Unicontrol 10, suitable as a spare parts donor or for building a new control cabinet. Contents include, among others: - Siemens Simatic S5 - Siemens EMG 45 Iasdjrrk I Hspfx Ag Ijt

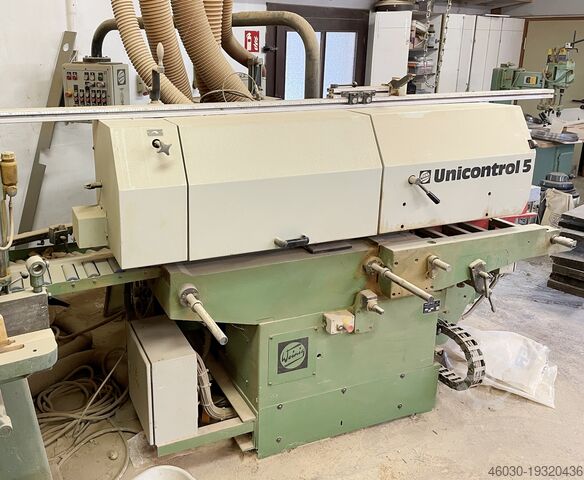

Condition: excellent (used), Year of construction: 1989, functionality: fully functional, WEINIG Unicontrol UC 10-5 Window Production Machine 1. Electronically controlled crosscut saw with laser switching between saw cutting and zero-point wheel, 3 kW motor 2. Grooving spindle 50 x 630 mm for tools 6 x 80 mm, 15 kW motor Isdpjxmr N Ijfx Ag Isat 3. Longitudinal/synchronous profiling spindle 50 x 320 mm for tools 4 x 80 mm, 11 kW motor 4. Grooving spindle (between 1st and 2nd lifting spindle), D = 40 x 40 mm, axially indexed, 3 kW motor 5. Longitudinal profiling spindle 50 x 320 mm for tools 4 x 80 mm, 11 kW motor 6. Longitudinal profiling spindle 50 x 320 mm for tools 4 x 80 mm, 11 kW motor 7. Clamping spindle 40 x 150 mm, 3-position axial cycle, 2-position radial cycle, 3 kW motor Saw and grooving spindle on the right side, 3 kW motor Hardware spindle 40 x 150 mm, 3 kW motor Adjustable feed speed 6-12 m/min, 1.1 kW motor 4-position counter changer Electronic length stop, 3600 mm Workpiece return system with automatic rotating mechanism Automation package Interval-controlled sash support Double parts package Laminated fabric tables (for sanded surfaces) Pressure guide on the left, max. wood width difference 100 mm Machine in very good technical and visual condition

Condition: ready for operation (used), Year of construction: 1997, travel distance X-axis: 3,000 mm, travel distance Y-axis: 100 mm, travel distance Z-axis: 142 mm, controller manufacturer: SIEMENS, controller model: WS 400-20, CNC processing center manufactured in 1997. This WEINIG / DIMTER Unicontrol 10 features a maximum workpiece length of 3,600 mm and a maximum workpiece height of 100 mm. It includes a powerful cross-cut saw with a spindle speed of up to 3,000 rpm and a tenoning spindle motor power of 15 kW. If you are looking to get high-quality CNC processing capabilities, consider the WEINIG / DIMTER Unicontrol 10 machine we have for sale. Contact us for further details. • Max. workpiece height: 100 mm • Min. workpiece height: 40 mm • Min. workpiece width: 40 mm • Max. workpiece width: 140 mm Iedpfoy Ixpajx Ag Isat • Max. workpiece length with CNC stop: 3,500–3,600 mm • X-axis stroke: 3,000–3,500 mm (version dependent) • Cross-cut saw motor power: 3.7 kW • Cross-cut saw spindle speed: 2,800–3,000 rpm • Cross-cut saw max. tool diameter: 400 mm • Cross-cut saw spindle diameter: 40 mm • Tenoning/slotting spindle quantity: 2 pcs • Tenoning spindle diameter: 50 mm • Tenoning spindle clamping length: 400–640 mm • Tenoning spindle max. tool diameter: 400 mm • Tenoning spindle motor power 1: 11 kW • Tenoning spindle motor power 2: 15 kW • Tenoning spindle speed: 2,900–3,250 rpm • Profiling spindle quantity (vertical): 2–3 pcs • Profiling spindle diameter: 50 mm • Profiling spindle clamping length: 320–400 mm • Profiling spindle max. tool diameter (flight circle): 232 mm • Profiling spindle motor power: 11 kW (each) • Profiling spindle speed: 6,000 rpm • Horizontal profiling unit (top) motor power: 3 kW • Horizontal profiling unit spindle diameter: 40 mm • Horizontal profiling unit max. tool diameter: 130 mm • Horizontal profiling unit speed: 5,850 rpm

Condition: used, The machine is for sale together with all tools as shown in the pictures. Iaedpfxey Rumte Ag Ist

Condition: used, Year of construction: 2000, Storage location: Nattheim Iedpfx Ajvwdmweg Isat

Condition: used, Year of construction: 1993, Tools IV 68, 78, and preservation protection. Tenoning and slotting spindle – 3 tools Motor 7.5 kW Profiling spindle – 3 tools Iajdpfx Agoy Hrrxe Ist Motor 5.5 kW

Condition: reconditioned (used), functionality: fully functional, 430 mm chain width 120 mm Cutting height Iaodpet Aad Ssfx Ag Iet 55 KW saw motor infinitely variable feed speed Machine workshop checked Machine cleaned and repainted

Condition: excellent (used), WEINIG Window Production Line, Unicontrol 6, S/N 035-823, year 1997 Crosscut saw, pneumatically indexed (3 kW) with laser alignment light Slotting spindle 50 x 320 mm for 4 tools at 80 mm each – 11 kW motor Parallel spindle 50 x 120 mm – 7.5 kW motor Longitudinal profiling spindle 50 x 320 mm for 4 tools at 80 mm each – 11 kW motor Fitting spindle, pneumatically indexed, 40 x 160 mm – 3 kW motor Saw/grooving spindle, horizontal top, pneumatically indexed – 3 kW motor Feed speed adjustable from 6–12 m/min – 1.1 kW motor Screen control for 99 window types Support bar for muntin production, pneumatically indexed Studio window setup with digital angle display Iajdpsy Dud Esfx Ag Ist Length stop up to approx. 3,500 mm Corner jointing unit with support rail Return conveyor to operator side Machine complete with operating manuals, circuit diagrams, spare parts lists LEITZ tool set, IV-78 THE SYSTEM IS IN VERY GOOD TECHNICAL AND COSMETIC CONDITION Delivery: EXW Delivery time: Prompt by arrangement Inspection: By appointment Payment: Upon notification that the goods are ready for dispatch Subject to prior sale and errors excepted.

Year of construction: 1998, condition: ready for operation (used), spindle motor power: 11,000 W, spindle speed (max.): 6,000 rpm, This Weinig Unicontrol 10-5 was manufactured in 1998. A robust used window manufacturing machine, it features a working width of 40-220 mm and motor powers up to 15 kW for various machining units. It includes advanced features like a synchronization device, electronic height adjustment, and an automatic turning system for efficient one-man operation. If you are looking to get high-quality milling capabilities, consider the Weinig Unicontrol 10-5 machine we have for sale. Contact us for more information. • Capacities • Working width: 40–220 mm • Working height (longitudinal machining): 40–100 mm • Working height (cross machining): 40–100 mm (counter wood height 80 mm) • Workpiece length (longitudinal): min. 220 mm + 2 x tenon length • Workpiece length (cross): min. 275 mm + 1 x tenon length with 320 mm tool diameter • Feed (cross machining) • Motor power: 0.3 kW • Feed speed: 3–25 m/min • Workpiece clamping: 2 clamping claws • Length stop: with scale and reading magnifier for frame or sash outer dimensions • Counter: pneumatically clocked, 4 positions (not for studio windows), up to wood height max. 80 mm • Double part package: single or double part feeding, with cross separation and retention system • 1st piece (lying on the stop) wood width: 55–90 mm • 2nd piece wood width: 130 mm • Feed (longitudinal machining) • Motor power: 2.2 kW • Feed speed: 4–18 m/min (infinitely variable via frequency converter) • Feed roller spacing: 100/120 mm • Feed roller width: 30/50 mm • Feed roller diameter: 95 mm • Machining units • Crosscut saw • Motor power: 3 kW • Spindle diameter: 40 mm • Spindle speed: 2800 rpm • Tool swing: max. 400 mm • Axial adjustment: pneumatic against 4-fold turret • 1st spindle with tenon and slot • Motor power: 11 kW • Spindle diameter: 50 mm Iaedpfx Agsx S Sk Ee Iet • Spindle speed: 3250 rpm • Tool swing: max. 320 mm • Tool clamping length: 320 mm • Axial adjustment range: 240 mm • Number of tools: 4 x 80 mm • Axial adjustment: hydraulic • 1st profiling spindle • Motor power: 11 kW • Spindle diameter: 50 mm • Spindle speed: 6000 rpm • Tool diameter: max. 232 mm • Tool zero swing circle: 130–140 mm • Tool clamping length: 320 mm • Axial/radial adjustment range: 240/80 mm • Number of tool positions: 4 x 80 mm • Axial adjustment: hydraulic • 2nd profiling spindle • Motor power: 11 kW • Spindle diameter: 50 mm • Spindle speed: 6000 rpm • Tool diameter: max. 232 mm • Tool zero circle: 130–140 mm • Tool clamping length: 320 mm • Axial/radial adjustment range: 240/80 mm • Number of tool positions: 4 x 80 mm • Axial adjustment: hydraulic • Mechanical spindle brakes • For profiling spindle(s) • For crosscut saw and profiling/sawing units • Profile milling unit (horizontal, top; in front of last profiling spindle) • Radially indexed: 2 positions • Axially indexed: 2 positions • Motor power: 3 kW • Spindle diameter: 40 mm • Spindle speed: 5850 rpm • Tool swing: 130 mm • Tool clamping length: 40 mm • Axial adjustment range: 52 mm • Radial adjustment range: 125 mm • Profile milling unit (vertical, right; at end of machine) • Radially indexed: 2 positions • Axially indexed: 2 positions • Motor power: 3 kW • Spindle diameter: 40 mm • Spindle speed: 5850 rpm • Tool swing: 210 mm • Tool clamping length: 160 mm • Axial adjustment range: 90 mm • Radial adjustment range: 100 mm • Length tenoning and slotting spindle (640 mm tool clamping length, instead of 320 mm spindle) • Motor power: 15 kW • Spindle speed: 2925 rpm • Number of tool positions: 8 x 80 mm

Condition: used, Tenoning spindle 1 St. Number of milling agregates 4 St. Spindle diameter 50 mm # 2809 Weinig Unicontrol 6 ----- Technical Data Summary (Please inquire about any additional accessories included) Item 1: Cut-off saw ----- > Number of tools: 1 pc. > Spindle speed: 2,800 rpm > Spindle diameter: 40 mm > Maximum tool diameter: 400 mm > Motor power: 3.0 kW > Laser guide light for identifying the saw cut CNC-controlled length stop ----- > Length: 3,600 mm > Electronic length stop including positioned cut-off saw Item 2: Tenoning spindle ----- > Number of tools: 3 (stroke 2 x 100 mm) or 4 (Stroke 3 x 80 mm) > Tool clamping length: 320 mm > Pneumatic vertical spindle stroke: 240 mm for wood thicknesses 68 - 92 mm > Spindle speed: 3000 rpm > Maximum tool swing diameter: 320 mm > Spindle diameter: 50 mm > Maximum tool diameter: 360 mm > Motor power: 11 kW Item 3: 1. Profiling spindle (co-rotation and conventional) ----- > Position: vertical right > Number of tools: 1 pc. > Tool clamping length: 120 mm > Spindle speed: 6000 rpm > Spindle diameter: 50 mm > Maximum tool swing diameter: 232 mm > Motor power: 7.5 kW Item 4: 2. Profiling spindle ----- > Position: Vertical right > Number of tools: 3 (stroke 2 x 100 mm) or 4 (stroke 3 x 80 mm) > Tool clamping length: 320 mm > Pneumatic vertical spindle stroke: 240 mm for wood thicknesses 68 - 92 mm Iaodpfsxtvgkox Ag Iet > Spindle speed: 6000 rpm > Spindle diameter: 50 mm > Maximum tool swing diameter: 232 mm > Motor power: 11 kW 2 axially indexed feed rollers opposite the profiling spindle, for the production of narrow, short parts (e.g., glass-dividing muntins) Munch guide consisting of: Munch support strip from above in the area of ??the vertical right-han d profile milling unit and profiling spindle. Item 5: Horizontal top profile milling unit ----- > Clamping length: 40 mm > Spindle diameter: 40 mm > Motor power: 3.0 kW > Spindle speed: 5,850 rpm > Maximum tool swing diameter: 130 mm > Axial travel: 52 mm, indexed in 2 positions > Radial travel: 125 mm, indexed in 2 positions Item 6: 3rd profiling spindle (fitting spindle) ----- > Position: Vertical right > Tool clamping length: 160 mm > Axial travel: 90 mm, indexed in 3 positions > Radial travel: 100 mm, indexed in 2 positions > Spindle speed: 5,850 rpm > Spindle diameter: 40 mm > Maximum tool swing diameter: 210 mm > Motor power: 3.0 kW Further features ----- > Electric feed height adjustment including mechanical digital display and manual feed bar clamping > Rebating device for tear-out-free rebating > Double part package > Return conveyor for 1-person operation: swivel conveyor > Screen control > Angled window device > Electronic angle display for angled windows > Industrial PC with Windows PC control/NEXUS Extraction nozzle diameter: ----- Crosscut saw 80 mm Tenoning spindle 140 mm Profile spindle 1 140 mm Profile spindle 2 140 mm Grooving device from above 80 mm Hardware spindle 120 mm ----- Price of The above-men...

Condition: used, device 10 spindle diameter 40 und 50 mm engine 1x15 kW, 4x11 kW, 5x3 kW Iajdpfev Ag Tdox Ag Ijt Weinig Unicontrol 10 (UC 10) mitre saw for the production of windows, elements, and doors. Frame-by-frame, series production, or individual parts production with 2 tenon and slot spindles, including Oertli tool set - Aggregates: 1. Crosscut saw, NC axis, 3 kW, ø 40 mm, 2,800 rpm 2. First tenoning and slotting spindle, NC axis, ø 50 mm, 15 kW, clamping length: 640 mm (8 x 80) mm 3. Second tenoning and slotting spindle, NC axis, ø 50 mm, 11 kW, clamping length: 400 mm 4. Profiling spindle 1, NC axis, ø 50 mm, 11 kW, clamping length: 4 x 80 mm 5. Profile milling unit, horizontal from above, 3 kW 6. Profiling spindle 2, NC axis, ø 50 mm, 11 kW, clamping length: 4 x 80 mm 7. Profiling spindle 3, NC axis, ø 50 mm, 11 kW, clamping length: 400 mm 8. Profile milling unit, vertical right, 3 kW 9. Profile milling unit, vertical right from above, 3 kW 10. Profile milling unit, horizontal from below, NC axis 3 kW - Double part package - Re-milling package with re-milling carriage - Automatic turning system - NEXUS PC control - CNC-controlled length stop - Studio window setup - Unit for edge rounding from below with crosscut saw - Rung support strip - Includes extraction pipe system - Includes Oertli tool set - Further technical data and tool drawings available on request.

Year of construction: 1998, condition: ready for operation (used), An angular system for Weinig window and door production is available. Max. tool outside diameter: 320mm, max. tool flight circle: 232mm, slotted spindle length: 640mm, profiling and synchronized spindle length: 285mm-320mm, control: Siemens WS400. Including complete tooling and style window. Documentation available. Isdpotq U A Iofx Ag Ieat

Condition: used, Tenoning spindle 1 St. Number of milling agregates 4 St. Spindle diameter 50 mm 1 used Weinig Unicontrol 6 window system ----- Manufacturer's description: For the production of individual parts, elements, and small series. Spindle arrangement: One cross-cutting saw, one single-sided tenoning and slotting spindle, one right-hand profiling spindle, one tenoning and slotting spindle, and profiling spindle suitable for holding multiple tools stacked on top of each other, with pneumatic spindle movement. Slotting table with motorized table movement and automatic transfer to the continuous, chainless rubber roller feed of the profiling unit. Feed height adjustment manually. Workpiece clamping via 2 pneumatic clamping cylinders. Length stop with scale and magnifying glass for frame or sash external dimensions. Tool positions (longitudinal and transverse machining) controlled via selector switch on the control panel. Technical Specifications ----- Crosscut Saw ----- Number of Tools: 1 Spindle Speed: 2,800 rpm Iaedex Tu N Hjpfx Ag Iot Spindle Diameter: 40 mm Max. Tool Diameter: 350 mm Motor: 3 kW Mortise and Slot Spindle ----- Number of Tools: 3/4 pcs. for wood thicknesses IV 68 - IV 92 Spindle Speed: 3,500 rpm Spindle Diameter: 50 mm Tool Clamping Length: 320 mm Max. Tool Diameter: 320 mm Motor: 11 kW Profile Spindle ----- Number of Tools: 3/4 pcs. for wood thicknesses IV 68 - IV 92 Spindle Speed: 6,000 rpm Spindle Diameter: 50 mm Tool clamping length 320 mm Max. tool diameter 232 mm Motor 11 kW Special equipment: Synchronous spindle ----- Pneumatically timed forward/backward for tear-free rerouting of window sashes, frames, and doors. Spindle diameter 50 mm, 4 kW Tool clamping length 120 mm, zero tool diameter 112-140 mm Max. tool diameter 232 mm, spindle speed 6000 rpm Motor boost for synchronous spindle from 4 kW to 7.5 kW Screen control for 99 window types. One type can contain up to 8 different parts, each with 2 end profiles and 2 longitudinal profiles. Production options: single parts, double parts, frame-by-frame, series, rerouting. Data entry via keyboard with integrated operator guidance and error diagnostics. 1 Grooving spindle from above ----- Motor power: 2.2 kW Speed: 6000 rpm Spindle diameter: 40 mm, with 10 x 4 mm key Clamping length: 13 mm Clamping length: 40 mm Axial stroke, 2 positions Radial stroke, 2 positions Max. tool diameter: 130 mm Grooving spindle motor boost from 2.2 to 3 kW 1 Fitting milling unit, right: ----- For milling fitting grooves in the circumferential milling pass or for grooving in the longitudinal profile. Pneumatic horizontal movement with selector switch on the control panel. Motor power: 2.2 kW Speed: 6000 rpm Spindle diameter: 40 mm Clamping height: 125 mm Tool cutting radius: min. 140 mm, max. 180 mm Home position below table level: 10 mm Special design of the fittings milling machine: Clamping length 150 mm Axial stroke 80 mm, 3 positions 3 tools Radial cycle, 2 positions Motor booster for the hinge milling spindle from 2.2 to 3 kW Hinge milling spindle for 230 mm tool diameters in and above the table Electric height adjustment of the feed with selector switch on the co...

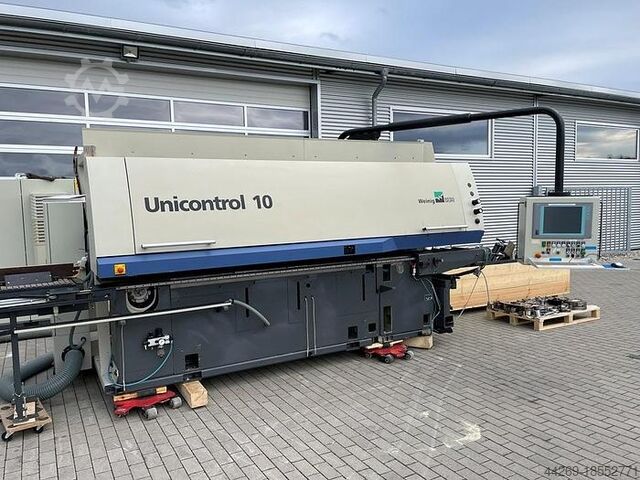

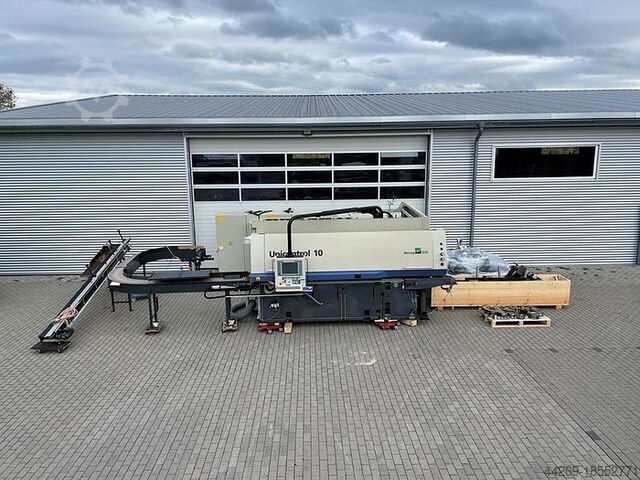

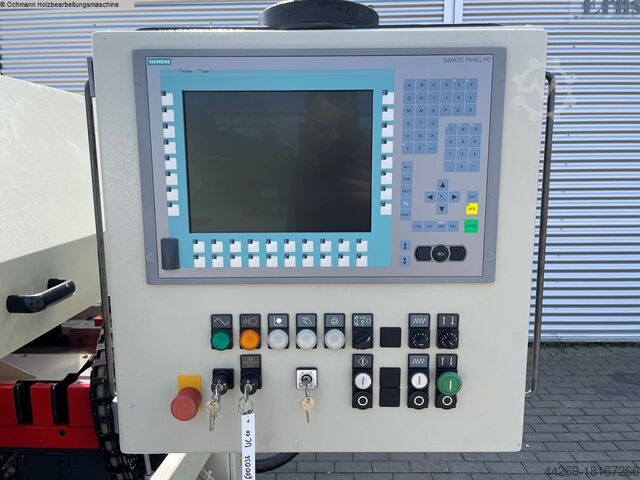

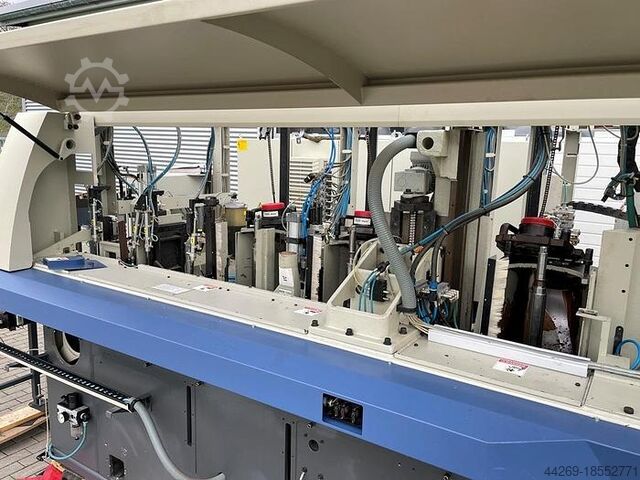

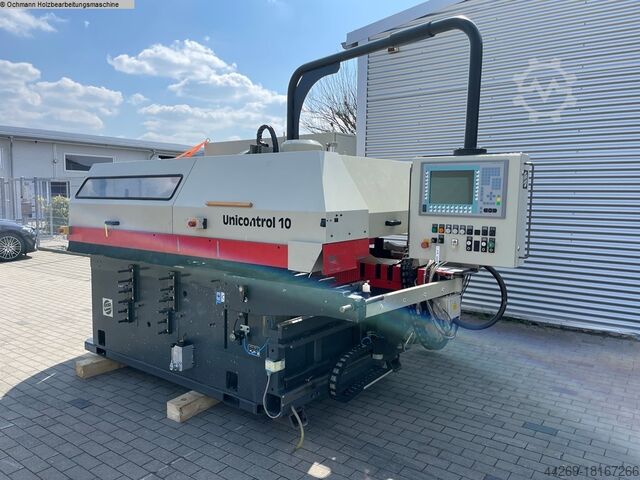

Condition: used, Tenoning spindle 1 St Number of milling agregates 4 St. Spindle diameter 50 mm Control Weinig, PC-Nexus Weinig Unicontrol 10 CNC - Spindles radially and axially CNC-controlled ----- The machine was factory overhauled by Weinig in 2024. The control system was also upgraded to a Siemens S 7 677 C, with a new membrane panel "Touch". With the following machining units: Crosscut saw ----- with laser alignment light, motor power 3 kW, spindle diameter 40 mm, spindle speed 3,000 Axially adjustable via NC axis Radial pneumatic adjustment to 8 positions for edge rounding from above Unit from below for edge rounding ----- Axially adjustable with crosscut saw Tenon and slotting spindle ----- Motor power 15 kW Spindle diameter 50 mm Spindle speed 2,925 rpm Tool travel radius min. 380, max. 400 mm Tool clamping length 640 mm Axially adjustable CNC axis Axially adjustable travel 580 mm Adjustment speed 100 mm/sec. 1. Profile spindle (up- and down-rotation) ----- Motor power 11 kW Spindle diameter 50 mm Spindle speed 6,000 rpm Tool clamping length 400 mm with counter bearing Axially and radially adjustable via CNC axis 2. Profile spindle ----- Motor power 11 kW Spindle diameter 50 mm Spindle speed 6,000 rpm Tool clamping length 400 mm with counter bearing Axially and radially adjustable via CNC axis Profile milling unit horizontally mounted on top ----- Motor power 3 kW Spindle diameter 40 mm Spindle speed 9,000 rpm Pneumatically adjustable to 8 axial and radial positions Profile milling unit vertically mounted on the right side Machine end ----- Motor power 3 kW Spindle diameter 40 mm Spindle speed 5,850 rpm Pneumatic adjustment to 8 axial and radial positions Additional accessories ----- CNC-controlled length stop, mounted on the slotting table for lengths up to 3,500 mm, including a positioned cross-cutting saw integrated into the control system. Studio window device, pivots 60° on both sides Double-part package with automatic separation and transfer Synchronization device with automatic window rebating Rebating carriage for rebating small sash widths Iajdpfx Agoxpi Due Ist Air conditioning unit in the control cabinet PC control NEXUS Automatic turning system Slat conveyor, including conveyor belt for returning the workpieces to the operator (Technical specifications according to the manufacturer - without guarantee).

Condition: used, Tenoning spindle 1 St. Number of milling agregates 5 St. Spindle diameter 50 mm Control Weinig, PC-Nexus # 2774 Weinig Unicontrol 6 with NC spindles Machine will be cleaned and completely checked before delivery ----- Technical data summary (please enquire about any additional accessories included) Item 1: Cross-cut saw ----- > Number of tools: 1 pc. > Spindle speed: 2,800 rpm > Spindle diameter: 40 mm > Max. tool diameter: 400 mm > Motor power: 3 kW > Radial adjustment path pneumatically controlled to 8 positions, e.g. for edge rounding from above > Laser aiming light for detecting the saw section Item 2: Rounding unit horizontal below ----- > Position: horizontal below > Motor power: 1.5 kW > Spindle diameter: 20 mm > Clamping length 25 mm > Spindle speed: 9,000 rpm > Max. tool flight circle: 130 mm > Axial adjustment path mechanically coupled with Crosscut saw > Adjustment path radial pneumatically controlled on/off Length stop NC controlled ----- > Length 3500 mm > Electronic length stop Item 3: Tenon and slot spindle ----- > Number of tools: variable, stepless adjustment, NC > Tool clamping length: 320 mm > Vertical spindle stroke: variable 254 mm, stepless adjustment, NC-controlled > Spindle speed: 3500 rpm > Tool flight circle max. 320 mm > Spindle diameter: 50 mm > Tool diameter max.: 320 mm > Motor power: 11 kW Item 4: 1. Profiling spindle (same and opposite rotation) ----- > Position: vertical right > Number of tools: 1 pc. > Tool clamping length: 120 mm > Spindle speed: 6000 rpm > Spindle diameter: 50 mm > Tool flight circle max.: 232 mm > Motor power: 7.5 kW Item 5: 2nd profiling spindle ----- > Position: vertical right > Number of tools: variable, stepless adjustment, NC > Tool clamping length: 320 mm Isdsvu Hghopfx Ag Ioat > Vertical spindle stroke: variable 254 mm, stepless adjustment, NC-controlled > Spindle speed: 6000 rpm > Spindle diameter: 50 mm > Tool flight circle max.: 232 mm > Motor power: 11 kW 2 feed rollers axially pneumatic opposite the spindle controlled, 2 positions Rung guide consisting of: Guide ruler in the stop (area of ??the synchronous spindle), Rung support bar from above in the area of ??the profile milling unit vertically on the right and profiling spindle. Pos. 6: Profile milling unit horizontal top ----- > Clamping length: 40 mm > Spindle diameter: 40 mm > Motor power: 3.0 kW > Speed ??9,000 rpm > Tool flight circle max. 130 mm > Axial adjustment range 30 mm, 8 positions > Radial adjustment range 125 mm, 8 positions Pos. 7: 3rd profiling spindle (fitting spindle) ----- > Position: vertical right > Tool clamping length: 160 mm > Axial adjustment range 115 mm, 8 positions > Radial adjustment range 110 mm, 8-way turret > Spindle speed: 5850 rpm > Spindle diameter: 40 mm > Tool flight circle max.: 210 mm > Motor power: 3.0 kW Item 8: Profile milling unit/grooving unit from below ----- > Motor power: 3.0 kW > Tool clamping length: 125 mm > Axial adjustment range 100 mm, 8 positions > Radial adjustment range 1...

Condition: used, Tenoning spindle 1 St. Number of milling agregates 4 St. Spindle diameter 50 mm control Weinig, PC-Nexus # 2764 Weinig Unicontrol 6 with NC spindles ----- Machine will be cleaned and completely checked before delivery Technical data summary (please enquire about any additional accessories included) Isdjvu Hfqopfx Ag Ieat Item 1: Cross-cut saw ----- > Electronic cross-cut saw, infinitely adjustable horizontally > Number of tools: 1 piece > Spindle speed: 2,800 rpm > Spindle diameter: 40 mm > Max. tool diameter: 400 mm > Motor power: 3.0 kW > Laser aiming light for detecting the saw section > NC length stop, mounted on slot table included Positioning of the cross-cut saw integrated in the control system. > Length 3500 mm Item 2: tenoning spindle ----- > Number of tools: variable, infinitely variable adjustment NC axis > Tool clamping length: 320 mm > Vertical spindle stroke: variable, infinitely variable adjustment 254 mm NC axis > Spindle speed: 3500 rpm > Spindle diameter: 50 mm > Max. tool diameter: 320 mm > Motor power: 11 kW Item 3: 1st profiling spindle (synchronous spindle and counter-rotation) > Position: vertical right > Number of tools: 1 pc. > Tool clamping length: 120 mm > Spindle speed: 6000 rpm > Spindle diameter: 50 mm > Max. tool flight circle: 232 mm > Motor power: 7.5 kW Item 4: 2nd profiling spindle ----- > Position: vertical right > Number of tools: variable, infinitely variable adjustment NC axis > Tool clamping length: 320 mm > Vertical spindle stroke: variable, infinitely variable adjustment 254 mm NC axis > Spindle speed: 6000 rpm > Spindle diameter: 50 mm > Tool flight circle max.: 232 mm > Motor power: 11 kW 2 feed rollers opposite the spindle, axially pneumatically controlled, 2 positions Rung guide consisting of: Guide ruler in the stop (area of ??synchronous spindle), Rung support bar from above in the area of ??profile milling unit vertical right and profiling spindle. Pos. 5: Profile milling unit horizontal top ----- > Clamping length: 40 mm > Spindle diameter: 40 mm > Motor power: 3.0 kW > Speed ??5,850 rpm > Tool flight circle max. 130 mm > Axial adjustment range 30 mm, 8 positions using pneumatic turret > Radial adjustment range 125 mm, 8 positions using pneumatic turret Pos. 6: 3rd profiling spindle (fitting spindle) ----- > Position: vertical right > Tool clamping length: 160 mm > Axial adjustment range 115 mm, 8 positions using pneumatic turret > Radial adjustment range 100 mm, 8 positions using pneumatic turret > Spindle speed: 5,850 rpm > Spindle diameter: 40 mm > Max. tool flight circle: 210 mm > Motor power: 3.0 kW Other features ----- > online-capable > rebating device for tear-free rebating > double parts package > return conveyor for 1-man operation: tilting belt > screen control > inclined window device > electronic angle display for inclined windows > industrial PC, PC control/NEXUS > Weinig type production program > without processing tools No original images available yet. Images show identical machines from our archive. ----- Price of the above-mentioned machine upon request! ----- Optional with additional charge: EUR 6.500,00 Note on used tools: We currently ha...

Condition: ready for operation (used), Year of construction: 1993, functionality: fully functional, WEINIG, Type UNICONTROL 10/3, Machine No. 032-1136, Year 1993 Technical Specifications: Crosscut saw with 4-station turret, laser alignment light Vertical stroke 125 mm Speed 2800 rpm Spindle ø 40 mm Tool ø 350 mm Clamping length 40 mm Iaodswk U Rlspfx Ag Iet Horizontal stroke 160 mm Motor 4 kW Extraction ø 80 mm UNITEC slotting spindle 50 x 300 mm 3 tools Vertical stroke 2 x 100 mm Speed 3500 rpm Spindle ø 50 mm Tool ø 300-320 mm Clamping length 300 mm Motor 11 KW Extraction ø 140 mm UNIVAR milling spindle 50 x 285 mm (co-rotating spindle) 3 tools Vertical stroke 2 x 95 mm Speed 6000 rpm Spindle ø 50 mm Tool ø 232 mm Clamping length 285 mm Horizontal stroke 80 mm Motor 11 KW Extraction ø 140 mm UNIVAR milling spindle 50 x 285 mm 3 tools Vertical stroke 2 x 95 mm Speed 6000 rpm Spindle diameter 50 mm Tool diameter 232 mm Clamping length 285 mm Horizontal stroke 80 mm Motor 11 KW Extraction diameter 140 mm Design: Working width min. 30 mm / Working height min. 30 mm Working height max. (with stroke) 100 mm / Working height max. (without stroke) 120 mm Feed speed 1.1 KW / continuously variable 6-12 m/min. LEITZ Dufix IV-68 EURO window tool set Digital display for studio windows Mechanical length stop Screen control Double parts package Return roller conveyor Machine is technically and visually in good working condition NET PRICE: EUR 7,400 + VAT Delivery: EXW Delivery time: shortly upon request Inspection: upon request Subject to errors and prior sale.

Condition: used, Bore: 40 mm Cutting circle (ø): 125 mm Length: 240 mm Material: aluminium Blades: strip planer blades Z2 Iodpfx Agjwma T Rs Ioat

Condition: used, engine 0,18 kW band length 4.500 mm Iedpfx Agjlf I I Ee Ieat band width 120 mm Infeed conveyor belt, outfeed conveyor belt or connecting conveyor belt Weinig LTB 120/4500

Condition: excellent (used), CATALOG NUMBER 7890 Technical specifications: - Track width: 245 mm - Shaft width for edger: 380 mm - Shaft width for multi-blade saw: 320 mm - Max. blade diameter: 350 mm - Blade bore diameter for edger: 80 mm - Blade bore diameter for multi-blade saw: 65 mm - Max. cutting height: 120 mm - Table width (clearance): 900 mm - Table length: 1,780 mm Top components: - Pawls/kickback devices - Smooth pressure roller - Pawls - Smooth pressure roller - Short element insert - Shaft with saw blades - 2 smooth pressure rollers Iedpfx Ajy Rtbisg Ijat Bottom components: - Guide - Pawls/kickback devices - Track - Centralized lubrication - Laser - Stepless feed speed adjustment - Feed motor: 1.1 kW - Main motor: 30 kW - Manual body height adjustment - Manual saw shaft adjustment - Extraction outlet diameter: 210 mm - Overall dimensions (L x W x H): 1900 x 1500 x 1800 mm - Approximate weight: 2,000 kg ADVANTAGES – Made in Germany – Stepless feed speed adjustment – Shaft with floating blade for edging – Sleeve for multi-blade saw included – Laser – Short element insert – Used multi-blade saw, in very good condition Net price: PLN 55,900 Net price: EUR 13,300 (based on exchange rate of 4.2 EUR/PLN) (Prices are subject to change depending on exchange rate fluctuations)
