Used Punching Press for sale (13,269)

Condition: new, Year of construction: 2025, neu 2025 090185 prompt, Zwischenverkauf v Polen 7950 € 153.44 € 1 Isdpewirmbefx Ah Njtb 47 to 110 mm 27 mm 25x18 mm 8 s 16 mm 700 bar 479 mm 135 mm 388 mm 117 kg MOBILE HYDRAULICS-POWERSTATION Double action - fully automated process of punching and return Wide range of hole diameters up to 27mm Intelligent control system with inching and automatic load detection Mode indicator light Protection against accidental start-up OPTIONAL: Gantry punching station for increased productivity and operation comfort € 710,-

Condition: used, Single-Column Eccentric Press RASTER ZEULENRODA Type PDA 100 Year of manufacture: 1995 Pressing force: 100 tons Throat depth: approx. 360 mm Table size: 1200 x 710 mm Iedjx U Eiaepfx Ah Nstb Ram area: 900 x 500 mm Table opening: 400 x 120 mm Stroke adjustment: 6 to 82 mm Ram adjustment: 100 mm Installation height, max. stroke, ram Top Dead Center (TDC): max. 469 mm Installation height, max. stroke, ram Bottom Dead Center (BDC): max. 387 mm Strokes per minute: 50-200 s.p.m. Main drive motor power: 18.5 kW Power supply: 400 Volt, 50 Hz - Hydraulically actuated multiple-disc wet clutch and spring-loaded safety brake - Infinitely variable drive via PIV gearbox with inching mode for automatic stroke adjustment and setup operations - Hydraulic overload protection in the ram - Press force and process monitoring via UNIDOR APS - Pneumatic, steplessly adjustable ram weight compensation - Roller feeder MABU WE16, 160 x 3 mm, programmable feed length - Central grease lubrication - Operating manual and documentation for the press Included: Roller feed unit MABU Type WE16 Strip width: 160 mm Strip thickness: max. 3 mm Strip cross-section: max. 300 mm² Roller diameter: 63 mm Strip speed: 40 m/min - Adjacent feeder control MABU Space requirements for eccentric press L x W x H: 270 x 240 x 350 cm Weight of the press: 13.5 tons

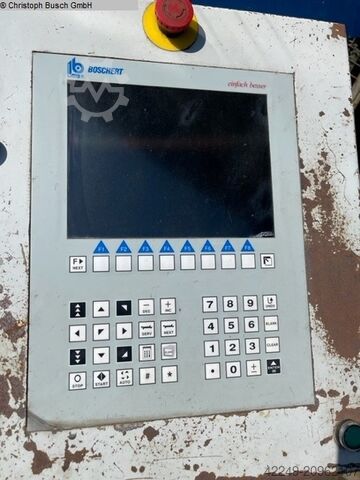

Condition: used, Year of construction: 1980, control panel Boschert Stanze Year 1990 +++++ Please note: The machine is dismantled and ready for loading. It is not possible to show it under power or make a video. Itedpfx Ahsx U A H No Neb Our offer includes already the best pictures. So we don’t have and won’t send additional pictures. +++++

Condition: used, functionality: fully functional, Year of construction: 2016, punching force: 22 t, Equipment: CE marking, TRUPUNCH 5000 S12 LARGE FORMAT with ACTIVE DIE Advanced equipment: 1 Productivity package  Function MultiTool  Sensor for part chute  Die spray lubrication  Variable vacuum slug removal 2 Punch quality package  Function MultiShear Iodpfeyak Tmox Ah Njtb  Function deburring and roller technology  Adaptive stroke calibration  StripLine 3 Function engraving 4 Function SoftPunch 5 Smart Punch Monitoring with sheet format detection 6 Active die incl. function marking from below 7 Integrated flattening (active die) 8 Retractable clamps - 4 pieces 9 Repositioning cylinders 10 Installation on air cushions

Condition: used, functionality: fully functional, Year of construction: 1999, machine/vehicle number: HIQN99034, control type: CNC control, actuation type: hydraulic, punching force: 22 t, stroke length: 50 mm, 37 Stations 3 Auto index stations 22 ton capacity Max sheet size - 2500 x 1260 mm Regularly serviced with recent lead screw replacements (Both axis plus bearings) Full set of tooling included 4 point Sick laser guard included Itjdpfoyahifox Ah Njb Machine Tables included if needed Viewing and inspections welcome Machine will be in use until mid February after which it will be put into storage Please don't hesitate to contact us for further information

Condition: excellent (used), Hydraulic Swing Arm Punch Press Manufacturer: Pedersen Stock no.: 3751 Model: 273 M * Pressing force: 20 tons Isdpfxox A Hwls Ah Netb * Stroke: 150 mm * Throat depth: mm * Table size: 1020x505 mm * Punch size: 760x530 mm * Motor power: kW * Weight: approx. 650 kg

Condition: excellent (used), Year of construction: 2002, Model .Amada. Vipros 368 King Stock number 01967 Year of manufacture 2002 Frame Construction ... Bridge Type Press Capacity ... 30 Tonnes (294 kN) Press Type ... High Speed Hydraulic Servo Ram Axis Traverse Distance ... 1525 x 2000 mm Workable Max. Sheet Size ... 1525 x 4000 mm (with auto repositioning) Max. Material Thickness ... 3.2 mm mild steel Max. Hole Dia. Max. Material ... . (shearing strength 36 kg/mm2) 82 mm dia Max. Material Weight ... 75 Kg Max. Material weight ( Max. Speed) ... 60 Kg Max. Hole Dia. ... 114.3 mm Number Of Stations ... 58 stations:24 x 12.7 mm 24 x 31.7 mm 4 x 50.8 mm 2 x 88.9 mm Auto Index 2 x 31.7 mm 2 x 114.3 mm Ijdpovn D Tfjfx Ah Netb Axis Speed ... 113.0 m/min Hits Per Minute (2mm pitch) ... 860 H.P.M./3 mm stroke (8mm pitch) ... 560 H.P.M./3 mm stroke (25mm pitch) ... 460 H.P.M./3 mm stroke Turret Speed Bi-Directional ... 30 R.P.M. Punching Accuracy ... ± 0.1 mm (incl. 1 reposition) Ram Stoke Length (maximum) ... 40 mm Tool Lubrication ... Air Blow System Axis Drive ... AC Servo Motor Turret Drive ... AC Servo Motor Electric Power Required ... 28 kVA 400V +/- 10% 50Hz Air Pressure Required ... 5.0 Kgf/cm2 Air Flow ... 250 1/min Cooling Water Flow ... Min 40 1/min. Machine Length ... 5025 mm Machine Width ... 4120 mm Machine Height ... 2630 mm (3190 mm to mirror) Machine Weight ... 18000 Kg

Condition: refurbished (used), Year of construction: 2026, functionality: fully functional, machine/vehicle number: 8923, total height: 4,200 mm, ram adjustment: 100 mm, installation height: 650 mm, total width: 3,100 mm, total length: 2,000 mm, pressing force: 320 t, stroke length: 20 mm, stroke adjustment: 160 mm, clearance between the columns: 1,530 mm, overall weight: 38,000 kg, DGUV certified until: 01/2027, year of last overhaul: 2026, punching force: 320 t, The machine is completely overhauled and finished. The control system is built according to customer requirements (Siemens control). Delivery time is approximately 3–4 months after the new control system is designed based on the customer's specifications. Itedpox U Tudjfx Ah Njb

Condition: new, punching pressure 28.0 t punching cross-cut in cmm 31 in 7.0 mm ST throat 250 mm dayligth 223 mm no. of strokes 10 - 30 Hub/min Itjdpfx Aew U U S Noh Njb oil volume 32.0 ltr. work height max. 1033 mm total power requirement 3.0 kW weight of the machine ca. 553 kg dimensions of the machine ca. 730 x 540 x 1530 m Furnishing: - Punch quick-change device up to Ø 31 mm - green series - installed: round punch no. 5 Ø 25.0 mm and round die no. 3 Ø 25.7 mm - Free: LED lighting in the punching area - Swiveling scraper (plates exchangeable) - Various material support tables are available separately - Brace - 2-step foot switch, with double press for grain search function - electrical controls - Stroke length and stroke position continuously adjustable - integrated hydraulic unit with oil filling - Performance specifications apply to a material strength of 450 N/mm² - Main connection cable and plug for 16 amps are not included in the scope of delivery

Condition: used, pressure 30.0 t punching cross-cut in cmm 30.0 in 9.0 mm stroke ca. 35 Hub/min throat 610 mm stroke - stepless adjustable 0 - 28.0 mm oil volume 35.0 l work height max. 1010 mm total power requirement 4.0 kW Itedpfxjxaaips Ah Nsb weight of the machine ca. 1200 kg. range L-W-H 1400 x 700 x 1600 mm good condition (!!) with a lot of application tools (stamps/dies) Furnishing: - electro-hydraulic hole punch, with large throat - Material/sheet metal scrapers including scraper plates - Large material support table, with adjustable depth stops - continuous stroke adjustment - freely movable foot switch including protective cover - Forklift pockets for easy transport - side storage area - lots of accessories + tools - including tool cabinet - Matrix base (for special size matrices) - Stamp holders (for special size stamps) - original user manuel

Condition: used, pressure 100 t punching cross-cut in cmm Ø 31 in 25 mm stroke 10 - 50 mm column arm 510 mm work height max. 1100 mm no. of strokes 14 - 45 Hub/min punch diameter max. Ø 90.0 mm oil volume 103 l total power requirement 7.5 kW weight of the machine ca. 2400 kg. range L-W-H 1750 x 1020 x 2050 mm maintained condition (!!) New price without accessories approx. 25.000 euros Special price on request Furnishing: - heavy / robust electro-hydraulic hole punch, with large throat - Punching station with material/sheet metal scraper Iodpsxabrfjfx Ah Nstb - stepless stroke adjustment .. 10-50 mm - freely movable foot switch including protective cover - hydraulic low pressure finder for foot switch operation - Crane hanging eye for easy transport - side storage area - Hydraulic unit, integrated - Three-phase motor, 400 volts, 50 Hz - original instruction manual

Condition: used, Year of construction: 1991, pressure 70.0 t punching cross-cut in cmm 27 in 20 mm Itedpfx Ajxabu Tjh Nsb punching cross-cut in cmm 32 in 14 mm work height max. 1060 mm column arm 500 mm weight of the machine ca. 1500 kg. total power requirement 7.0 kW range L-W-H 1550 x 1200 x 1950 mm good / well-maintained condition (!!) New price approx. 21.000 euros Special price on request Equipment: - electro-hydraulic hole punch, with large projection - large GEKA stop table with movable stop system - sheet metal stripper with stripper plates - stepless stroke adjustment - die base - 1x freely movable foot switch - operating instructions (PDF)

Condition: used, functionality: fully functional, Year of construction: 2001, Brand: GEKA Model: 55 SD Year: 2001 Serial No.: 15330 The GEKA Hydracrop 55 SD is a hydraulic ironworker with two cylinders, allowing two operators to work simultaneously at different stations. The SD designation indicates this is the deep throat version (500mm), ideal for processing large-scale sheet metal. This machine features 5 independent workstations: - Punching: For round holes, square holes, and special shapes. - L-profile (Angle) cutting: 90° and 45° cuts without deformation. - Flat bar cutting: Shearing of flat steel bars. - Bar cutting: For solid round and square bars. - Notching: Rectangular notches (optionally triangular). Punching force: 55Tn Motor power: 5KW Punch stroke: 60mm Weight: 1,750kg Cutting and Punching Capabilities: - 40mm dia. x 10mm thickness / 20mm dia. x 20mm thickness - Flat bar cutting: 300x15mm / 200x20mm - Angle cutting at 90 degrees: 120x120x10mm - Solid bar cutting: 40mm round / 40x40mm square - Rectangular notching: Thickness 10mm / width 90 x depth 42mm Includes: Itodpfx Ahox Rw Hpj Njb - Electric backgauge - All sets of used punches and dies shown in the photographs - Includes accessories for mounting punches and dies No. 6 (up to 28mm) and No. 8 (up to 40mm) from GEKA

Condition: used, Year of construction: 2000, pressure 130 t no. of strokes 50-250 Hub/min sheet width 250mm mm stroke 8-120 mm ram - range of adjustment 100 mm table surface area 1600x800 mm ram surface 1600x800 mm hole in the table 1100x250 mm table height 1000 mm Itodpoxh Sypjfx Ah Njb 370 mm weight of the machine ca. 24 t dimensions of the machine ca. BxTxH 3900x2500x3800 mm

Condition: ready for operation (used), functionality: fully functional, FOR SALE: BRUDERER BSTA 60 High-Speed Stamping Press With Automatic Strip Feeder BBV 300/200 600 kN | 100–800 spm | Fully automatic | Top-tier Swiss quality Technical Highlights: Nominal force: 600 kN Stroke rate: 100–800 strokes per minute Max. feed length: 200 mm. Year: Unknown (No ID Plate) / Tested under power: 2025 Drive power: 30 Hp Control voltage: 24V AC Power connection: 440VAC / 50Hz Adjustable stroke: 20 / 25 / 31 / 38 / 45 /51 / 58 / 64 / 70 / 76 mm Shut/Ram height adjustment: 80 mm Working Dimensions: Max tool installation width: 620 mm Strip pass width: up to 320 mm Ram area: 800 × 500 mm Table area: 620 × 680 mm Max strip width: 300 mm Max feeding pitch: 200 mm Max material thickness: 6 mm Feeding angle: 180 Deg Machine Dimensions: Machine footprint (L × W × H): 2210 × 2075 × 2190 mm Weight (approx.): 8,000 kg Equipment Includes: Feeder BBV 300 – fully synchronized mechanical strip feeder system Integrated control cabinet Itodpfjxz Ugxox Ah Nob Pneumatic clutch and brake Adjustable stroke and shut height Compressed air connection: 6–10 bar Oil cooling unit included Ready for integration with peripheral systems Machine in excellent technical and visual condition Fully tested Immediate availability from Europe Worldwide shipping available Contact us today for pricing and further technical details. Let us help you upgrade your production line with Swiss precision engineering.

Condition: used, Year of construction: 1994, Technical details: air pressure - required: 8 bar total power requirement: 14 kW machine weight ab.: 80-170/je Maschine kg MULTIFUNCTION PUNCH PRESS for alloy windows construction 3 pieces: - for Schüco alloy window frame, post and beam profiles S65 - for Schüco alloy wing profiles for alloy window system ROYAL S 55, S 65 and S 70 - for Schüco alloy door profiles Royal S65 door base profiles - foot operation Iodpsu Icyhjfx Ah Netb - pneumatic air gun AND - drilling automat for window construction application: - drill automat for door hinge - drill taper: for 8 pcs, usable tools 6 pcs, countersink drills with dia. 11/15mm approx. 80mm long - clamping operation via foot control and drilling via manual - accessories: diverse installation parts i.D. *

Condition: used, Year of construction: 1990, Technical details: Pressure: 63 t distance between columns: 200 mm stroke: 150 mm dayligth: 430 mm no. of strokes: 400 Hub/min T-slots H 12 650: 18 mm hole in table: 420x160 b x l mm ram surface area: 650 x 450 mm control: Wanske Tronicpress CNC passage of columns: 550x540 mm tank: 200 l stroke of ram - fixed: 100 mm ram diameter: 40 mm table height over floor: 1000 mm table: 600x450 mm table height over floor with metal base stand: 880 mm total power requirement: 30 kW weight of the machine ca.: 3,9 t Hydraulic automatic punching press for precision work (high-speed press) - for punching, drawing, pressing, minting, bending, riveting, straightening, assembling - with hydraulic gripper feed type HS 150 and 7-roller straightener (moving) - Normal strips of approx. 0.4mm - 2.5mm thickness x approx. 160mm width, as well as narrow strips up to approx. 4mm can be processed. Feed length can be adjusted as required via the control unit. - with ram round column guide Itedpfxju Icxqo Ah Njb - with automatic central lubrication - High-speed: up to 400 strokes min-1 - motorized adjustable fixed stop (bottom can be adjusted by hand/motorized) - Operating modes such as continuous stroke and/or single stroke Equipment: - 1x hydraulic unit - 2x control cabinets *

Condition: used, Technical details: punching cross section in mm²: 45 kp/mm² table-size: 120x100 mm throat: 80 mm Iodpfxeu Icw He Ah Notb weight of the machine ca.: 15 kg space requirements of the machine approx.: 0,3x0,2x0,95 m Punching Press *

Condition: excellent (used), Year of construction: 1997, functionality: fully functional, total height: 1,350 mm, installation height: 130 mm, total length: 800 mm, total width: 950 mm, overall weight: 560 kg, power: 0.8 kW (1.09 HP), Swingbeam die-cutting machine, hydraulic, capacity 16 to, stroke 90 mm, throat 560 mm, table size 800x400 mm, motor 0,8 KW, dimension die 460x350 mm, dimension 800x900x1350 mm, weight ca. 550 kg Itedpfx Ahou R Nx Nj Neb

Condition: good (used), functionality: fully functional, Year of construction: 2006, operating hours: 47,000 h, laser power: 2,000 W, punching force: 76 t, workpiece weight (max.): 120 kg, working range: 2,500 mm, Equipment: cooling unit, safety light barrier, Special features: + Thread forming function with thread breakage detection + MultiTool function + Marking/Fast beading function + Repositioning cylinder + Sensor for part chute Standard features: - Stable C-frame - Coordinate guide with integrated linear magazine - 21 pockets for tools and clamps - 2 clamps Isdswcq Hgopfx Ah Njtb - Drives: maintenance-free three-phase servo motors - Brush tables - TCF1 laser (2000W) - HI-LAS high-pressure cutting - Fast machining with SprintLas - Programmable Cutting gas selection/pressure adjustment - Laser cutting head with 5" lens - Cutting head quick-change device - APC capacitive height control - Lens monitoring sensors - Laser logbook function - Compact dust extractor - Rotating tool holder - Automatic repositioning device with hold-down clamp - Automatic part chute for parts 300x500 mm - Automatic tool changer with 19 stations - 2 clamps - Good parts container - Spray lubrication for punches - 2nd lubricant container - Punch slug extraction system - Chip bucket - Hydraulic quick shut-off system - External control panel - 15" TFT touch color screen - USB stick interface - 3.5" floppy disk drive - Safety features - RJ45 network connection - Network connection - Detailed operating instructions - Remote diagnostics system

Condition: good (used), functionality: fully functional, Year of construction: 2014, laser power: 3,000 W, X Working area max.: 2500 mm Y Working area max.: 1250 mm Control: IndraMotion MTX Laser power: 3000 watts Standard equipment: Machine - Coordinate guide for high-precision machining - Stable, easily accessible C-frame - Linear magazine with 21 tool positions and 4 clamps - Drives with maintenance-free three-phase servo motors Iedewld Suopfx Ah Njtb - Repositioning device with programmable hold-down device - Foot switch for clamp closing - Ball tables - 2 part flaps 500 mm x 500 mm - FocusLine - NitroLine - FastLine - Ejection cylinder for laser parts - Slag cone detection TRUMPF laser - TruDisk 3001 solid-state laser with 1 LLK outlet - Excitation via pump diodes - LLK according to standard layout (10m) - TruControl laser control 1000 - Cooling unit - Laser logbook function Cutting head - Solid-state laser compact cutting unit - ControlLine Punching head - Electro-hydraulic punching head - Rotatable mono tool holder - Tool length compensation - Programmable hold-down device (active / passive / repositioning) - Punch stroke counter and thread stroke counter - Spray lubrication of punch - Punch slug extraction - Calculation of filling level in the punching console - Level monitoring of thread forming and tool lubrication Control - Open control based on Rexroth IndraMotion MTX - Control panel with 17" touch control panel - Program management - Production plan - Integrated technology data - Teleservice via Internet - Programmable cutting gas pressure - Automatic switch-off with wake-up mode Data transfer - USB interface - RJ-45 network connection Safety - CE marking - Two-beam light barriers - Monitoring system for, among others Gas pressure, temperature, cooling water - Quick shutdown hydraulics - Protection against scattered radiation - Compact dust extraction system - MultiTool function - MultiBend function - Thread forming function - Engraving function - Deburring and rolling technology function - SoftPunch function - StripLine - Lowerable die - Spray lubrication die including level monitoring - Additional clamping claw - 4 pcs. Height-adjustable clamping claws - Vibration-damped installation - Chip conveyor with tilting container - Blow-out device for small parts - Warping detection SheetMaster - Unloading platform - Suction frame with 36 suction cups - Peeling suction cup - Vacuum sensors for each suction cup - Double sheet detector for double sheet control - Central lubrication - TRUMPF control based on Rexroth IndraMotion MTX - Automatic clamp closing machine - Loading and unloading parallel to production time - Peeling system including positioning aid medium format (2500x1250) - First additional suction cup package standard - Second additional suction cup package standard - Unloading monitoring laser parts GripMaster - Parts conveyor belt punching station - Parts conveyor belt laser station ToolMaster with 70 stations (only for punching operation) - ToolMaster set-up parallel to production time

Condition: excellent (used), Year of construction: 2004, functionality: fully functional, overall weight: 55 kg, ❇️ Schüco Base Press 280 226 + Punch Units | Window Construction | Pneumatics | Fully Functional For sale is a Schüco base press designed for professional use in aluminium window and façade construction. The machine originates from a window manufacturing business and is in very good, well-maintained, and fully operational condition. Ideally suited for punching and profile processing with interchangeable tool holders. Inspection and functionality testing on site possible at any time. ⸻ ❇️ Technical Data Base Press (Manufacturer Specifications) • Manufacturer: Schüco • Model: Base Press • Item No.: 280 226 • Year of manufacture: 2004 • Max. operating pressure: 0.8 MPa • Air consumption: approx. 4 l / stroke • Stroke: 20 mm • Weight: approx. 55 kg • Design: pneumatic • CE marking present ⸻ ❇️ Features & Scope of Delivery • Schüco base press 280 226 • Several punch units / tool holders (incl. item no. 280 612 / 280 614) • Foot pedal • Pneumatic connections • Accessories and tools as shown in the photos ➡️ Sale as a complete package, tools can be sold individually by arrangement ⸻ ❇️ Condition & Notes • Fully functional • Well-maintained industrial use, normal signs of wear • No known outstanding repairs or maintenance ⸻ ❇️ Price & Processing 2,500 € negotiable, net plus VAT (complete package) • Sale on behalf of customer • Invoice with VAT shown possible • Delivery can be arranged at cost • Location: 72229 Rohrdorf Iedpfxsx Rpdgo Ah Njtb • On-site loading possible via overhead crane ⸻ ⚠️ Please see my other listings for additional accessories and other machinery for workshop, window, and metal construction. ‼️ Be sure to check my other offers – it’s worth it!

Condition: used, Year of construction: 2001, operating hours: 13,030 h, machine/vehicle number: 090038, punching force: 2,200 t, We are offering our Trumatic 5000R laser punch press for sale. The machine is used and in very good condition. Basic data from the type plate: Max cutting force: 220 kN Type 9121 No. 090038 Year of manufacture: 2001, spare parts Network: 400 V/50 Hz Connected load: 29kVA Supply voltage: 400V Control voltage: 24V= Necessary protection: 3x50A Compressed air connection: 7-14 bar Machine weight: 17500kg Main features of the machine: - Tool rail - 21 tools and 4 handles - working area 3070x1660mm - max. sheet thickness 8mm - Rotation axis of the tool head C1 and C2 - Forming function - Thread function - Multibend function - Pneumatic press - automatic sliding of the details 500x500mm - water-cooled servomotors Additional equipment of the machine: - light barrier Softpunch function - Details slide sensor Isdpfx Aounh D Doh Notb - Device for blowing out small details - System for chip extraction - Separate lubrication of punching and threading tools Number of NC units: 13030h We sell machines without tools. Machine regularly maintained by authorized Trumpf service with original spare parts, last machine maintenance on 21.02.2024r.

Condition: new, New in Ready for delivery except for the sold. Combined hydraulic shear with 5 working stations, punching station with mechanical stop and adjustable piston stroke, notching, shearing of plates, bars and profiles with adjustable stop with automatic cutting control, foot pedal, centralized lubrication system, working light. Machine supplied with safety guards according to EC regulations, EC declaration of conformity, user manual. Power : Ton 45. Engine power : 4 Kw. Dimensions : mm 1.450 x 900 x 1.450 mm ( L x W x H ). Weight : 1.215 Kg PUNCHING : Punching capacity : mm Ø 22 x Thickness 15 mm. Recess depth: mm 175. Itsdsgygfvepfx Ah Neb Punching stroke : mm 50. Working height : mm 935. SHEARING : Plates : mm 200 x 15. mm 300 x 12. Length of blades : mm 316. Round bars : mm Ø 30. Square bars : mm 45. 90° corner profiles : 100 x 100 x 10 mm. 45° corner profiles mm 70 x 70 x 6 SKIRTING : Max thickness : mm 8. Width : mm 35. Depth : mm 75. Working height : mm 935.

Condition: new, SAHINLER HKM 65 hydraulic punch-cutter Exerted power : Ton 65. Engine power : Kw 5.5 Dimensions (mm) : mm 1.700 x 900 x 1.670 ( L x W x H ). Weight: 1.600 Kg: 1.600 Kg PUNCHING : Punching capacity : mm Ø 2 x Thickness 20 mm. Recess depth: mm 305. Punching stroke : mm 55. Working height : mm 1.030. SHEARING : Plates : mm 300 x 20. mm 375 x 15. Length of blades : mm 380. Round bars : mm Ø 45. Square bars : Itedpfx Ahsggbuhs Njb mm 45. 90° corner profiles : 120 x 120 x 12 mm. 45° corner profiles: mm 70 x 70 x 10 SKIRTING : Max thickness : mm 10. Width : mm 45. Depth : mm 90. Working height : mm 900.
