Used Plate Compactor for sale (13,781)

Condition: used, Technical details: table length: 1000 mm Lrjdpfxju Nkkks Af Eeu table width: 1000 mm weight of the machine ca.: 0,531 t space requirements of the machine approx.: 1,0x1,0x0,8 m marking plate is on a robust welding construction 60mm steel angle. *

Condition: used, Technical details: floor-plate length: 660 mm floor plate width: 450 mm floor plate height: 70 mm passage opening in table: Ø 115 mm weight of the machine approx.: 111 kg space requirements of the machine approx.: 660x450x70 mm fall trough hole 115mm T-slots : according to DIN 650 and 508 Lodpou Nkpyofx Af Esru a=22mm b=38mm h=40mm c=17mm *

Condition: used, Technical details: floor-plate length: 2000 mm plate width: 1500 mm plate height: 820 mm Plate thickness: 185 mm weight of the machine ca.: ca. 2,1 / 2,2 pro Platte t Lsdpfx Asu N D Rdef Esru transport dimensions LxWxH: ca. 2,0 x 1,5 / pro Platte m There are 6 of these clamping plates for sale. (price per piece) Material cast steel/profile casting T-slots according to DIN 650: a=43; h=105; b=76; c=50 mm; center distance 375 mm 4x passage holes Ø 90 mm 10x fixing holes Ø 25 mm with countersink Ø 85 x 135 mm with base frame for shelf no. 1+3+4+5+6: L: 1990 mm x W: 1490 mm x H: 185 mm with base frame for panel no. 2: L: 2020 mm x W: 1515 mm x H: 520 mm *

Condition: used, Technical details: Lrjdpfx Afsu R A A Uo Esu floor-plate length: 640 mm plate width: 330 mm Plate thickness: 65 mm

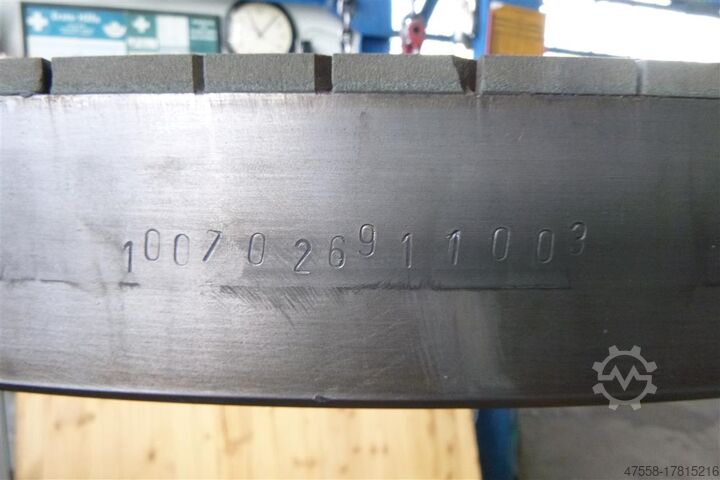

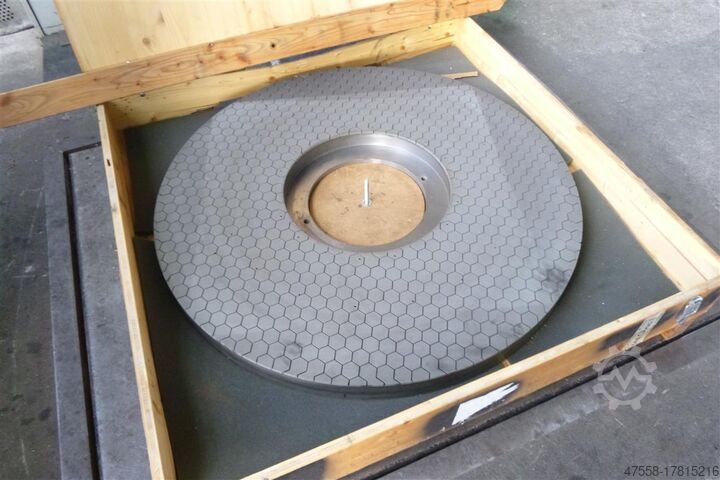

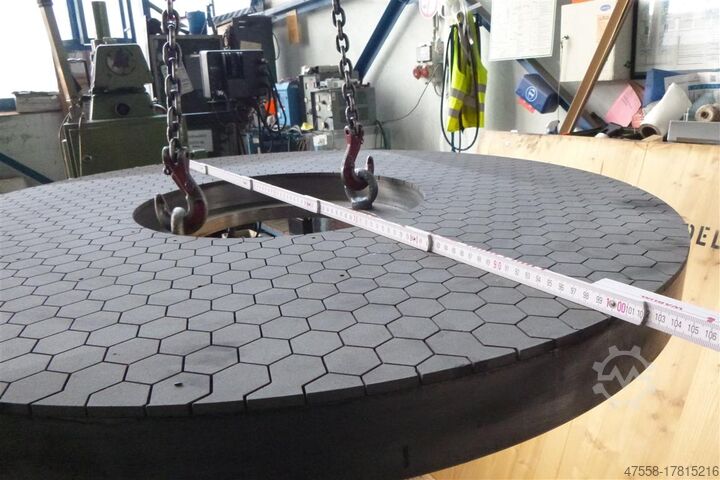

Condition: used, Technical details: lapping tool diameter: Ø 1000 mm material thickness: Auftrag ca. 8,0 mm Plate thickness: ca. 75 mm internal diameter: 400 mm Weight approx.: 0,37 t dimensions: 1,2 x 1,2 x 0,3 mm boring diameter: Ø 290 mm Flange mounting: Ø 320 mm This work wheel can be used, for example, on a disk sanding, fine sanding and/or lapping machine. Application: Material removal for “gentle” processing of the workpiece surface, as well as keeping the tools flat The pattern (honeycomb) improves stock removal due to the additional cutting edges. This results in a good surface finish and evenness. Diamond and CBN lapping wheel/lapping plate Die Mittenbohrung Ø 290 mm weist eine Senkung mit Bohrung Ø 400 mm x 47 mm Tiefe auf. Lsdju Uzzujpfx Af Eoru Verpackt in Holzkiste 11500 x1150 x 166 mm. *

Condition: used, Technical details: floor-plate length: 3000 mm plate width: 1775 mm Lrsdpju N Dglsfx Af Eju plate height: 350 mm Material of the plate = cast steel. incl. 6x adjustment screws M30 7pcs. T-slots according to DIN 650 a=35; h=60; b=62; c=26mm; center distance 250mm The clamping plate is equipped with a side fixing on the longitudinal side and on the front side. *

Condition: used, Year of construction: 1999, Technical details: Lsdpfou N Dnvjx Af Eeru floor-plate length: 5500 mm plate width: 1500 mm plate height: 250 mm weight of the machine ca.: 6,5 t space requirements of the machine approx.: 5,5x1,5 m - distance of T-slots = 542 / 500mm in a parallel offset order - T-slot according DIN 650 - a=28,0mm; h=48,0mm; b=48,0mm; c=22,0mm - incl. adjustment screws and covering caps i.D. *

Condition: used, Year of construction: 1979, Technical details: floor-plate length: 6400 mm plate width: 1870 mm plate height: 415 mm weight of the machine ca.: 8600 kg transport dimensions LxWxH: 6,4 x 1,9 x 0,42 m Very high quality (no damage) Steel Plate Lredpfou N Dqdjx Af Eou - T-groove DIN 650 - a=36; h=69; b=59; c=25mm; Groove distance= 315mm - included: 26 cover plates Ø 147 x 3mm *

Condition: used, Year of construction: 1974, Technical details: voltage: 220 V clamping surface area: 630 x 210 mm current: 0,55 A weight of the machine approx.: 84 kg dimensions L x W x H: 0,63 x 0,270 x 0,10 m Magnetic clamping plate 120 watts 13x induction loops, width 20mm spacing 43mm Lredpfx Aeu N D Ntjf Eou *

Condition: used, Technical details: Length: 400 mm width: 200 mm weight of the machine approx.: 24 kg dimensions L x W x H: 0,4 x 0,22 x 0,08 m Lsdpfx Aeu Nklhof Eoru MAGNETIC CLAMPING PLATE Magnetic core quantity 21 pieces, width 4x60mm and 1x80mm, distance to each other 80 / 90mm. The plate has a T-slot guide on the side. (WidthxDepth: 16 / 5mm) *

Condition: used, Technical details: floor-plate length: 1100 mm plate width: 800 mm plate height: 100 mm Lrodpfxeu Nklus Af Eju number of T-slots: 3 Stück distance between Columns: 300 mm weight of the machine approx.: 650 kg T-Slots according to DIN 650 und 508 - width a:30mm - width b:50mm - height c:30mm - height h:50mm *

Condition: used, Technical details: length: 640 mm width: 465 mm thickness of clamping plate: 90 mm weight of the machine approx.: 70 kg Lrjdpfx Afeu Nkrns Eou

Condition: used, Technical details: floor-plate length: 2600 mm plate width: 380 mm plate height: 115 mm Plate thickness: 115 mm weight of the machine ca.: ca. 0,4 / pro Platte t Lrsdpfxjval Ems Af Esu transport dimensions LxWxH: ca. 2,6 x 0,38 x 0,2 / pro Platte m There are 3 panels for sale together. (Price per panel) These can be connected to form a panel field. Material steel, milled surface Longitudinal groove Quantity 2 a=36mm,h=48mm,b=60mm,c=24mm Center distance 160mm Base fastening Quantity 4 Size D=32mm x 45mm Countersink D070x65mm Bore front side Quantity 1/front side M20 Position centered *

Condition: used, Technical details: floor-plate length: 4900 mm plate width: 1460 mm plate height: 300 mm Plate thickness: 300 mm Lsdpfxsval Hqj Af Eeru weight of the machine ca.: 5,3 / pro Platte t transport dimensions LxWxH: ca. 4,9 x 1,5 x 0,3 / pro Platte m There are two plate fields for sale. Material cast steel T-slots according to DIN 650: a=58; h=108; b=110; c=50 mm Center stand 295 mm 6x through holes Ø 40 mm 2 groove areas are broken out on the face of one panel. *

Condition: used, Technical details: sheet width: 1500 mm plate thickness: 2,25 mm distance between columns: 1600 mm back gauge: nein cutting angle: nicht bekannt ° cutting gap adjustment: nein mm down holder: über Druckleiste Stück height over floor: 850 mm Table dimensions: LXB 1800 x 350 mm weight of the machine ca.: 0,85 t dimensions of machine: 2,0 x 0,8 x 1,3 m Lrodpfx Aou Icn Eof Esu simple mechanical guillotine shear with shelf right/left 305 x 100mm operation via ON/OFF *

Condition: used, Year of construction: 1993, Technical details: sheet width: 3150 mm plate thickness: 13 mm distance between columns: 3670 mm Knife length: 3150 mm down holder: 18 Stück back gauge: motorisch 1000 height over floor: 850 mm operating hours: 3256 Table dimensions: LxB: 3770 x 500 mm total power requirement: 30 kW weight of the machine ca.: 12,9 t dimensions of machine: 4,4 x 2,8 x 2,4 m Short stroke Continuous run Gap lighting Ljdpfx Aju Icnfef Eoru Hydraulic sheet metal lifting device rear light curtain Positionable backgauge *

Condition: used, Technical details: table length: 870 mm table height: 420 mm table width: 680 mm weight of the machine ca.: auf Anfrage t Lodpeu N Dgxofx Af Eoru dimensions L x W x H: 0,91 x 0,71 x 0,42 mit Untergestell m Central hole Ø 180mm T-groove in accordance with DIN 650: a=22mm; h=38mm; b=40mm; c=16mm with foot support *

Condition: used, Technical details: Ledpfeu N D Nasx Af Eoru Length: 800 mm width: 315 mm voltage: 110 V clamping surface area: 795 x 315 mm current: 1 A weight of the machine approx.: 130 kg dimensions L x W x H: 0,85 x 0,35 x 0,09 m Magnetic clamping plate Magnetic strips 18x, width 20mm, distance 40mm *

Condition: used, Technical details: floor-plate length: 4600 mm plate width: 1450 mm plate height: 300 mm Plate thickness: 300 mm weight of the machine ca.: 7,2 / Platte t Ljdpjwtctgefx Af Ejru 2 clamping plates ( price per plate) Material cast steel Finished surface T-slots according to DIN 650: a=40; h=66; b=71; c=29 mm Center stand 300mm 6x through holes Ø 41.0 mm *

Condition: used, Technical details: floor-plate length: 2990 mm plate width: 1990 mm plate height: 190 mm Plate thickness: 190 mm weight of the machine ca.: ca. 7,0 / pro Platte t transport dimensions LxWxH: ca. 3,0 x 2,0 x 0,2 / pro Platte m There are 2 plates for sale. Material cast steel Surface milled/finished T-slots according to DIN 650: 8xT-slots large: a=36; h=70; b=55; c=25.5 mm 7xT-slots small: a=28; h=38; b=47; c=21 mm Center stand 123 mm 9x through holes Ø 80 mm 6x through holes Ø 33 mm Ledpfxsval H Ro Af Eeru *

Condition: used, Year of construction: 1960, Technical details: sheet width: 2000 mm plate thickness: 4 mm distance between columns: 2070 mm roll dia. top roll: Ø142 (getrieben) mm diameter of lower rolls: 1. Walze Ø 145 (getrieben) mm diameter of lower rolls: 2. Walze Ø 145 (mitlaufend) mm adjustment of lower rolls: manual/mech./hydr.: 1. Walze ca. 20 mm von Hand adjustment of lower rolls: manual/mech./hydr.: 2. Walze ca. 180 mm von Hand height over floor: 950 mm total power requirement: ca. 4,0 kW dimension machine xH: 3,0 x 1,0 x 1,2 m weight of the machine ca.: ca. 2,5 t Mechanical 3-roll plate bending machine Operation: Hand switch / foot switch forward/backward 2x EMERGENCY button Lrsdpju Icfwefx Af Esu *

Condition: used, Technical details: Length: 1530 mm width: 1180 mm height: 110 mm Lrjdpfxju Nkiye Af Esu weight of the machine approx.: 500 kg transport dimensions LxWxH: 1,55x1,18x0,1 m steel plate *

Condition: used, Technical details: floor-plate length: 3880 mm plate width: 1390 mm plate height: 300 mm number of T-slots: 4 Stück weight of the machine ca.: 3,2 t space requirements of the machine approx.: L:3,7xB:1,4xH:0,3 m dimensions L x W x H: 3,7 x 1,4 x 0,3 m Lredpju Nkl Iofx Af Eju distance of t-slots=250mm T-slot size: a=28mm b=50mm c=24mm h=52mm *

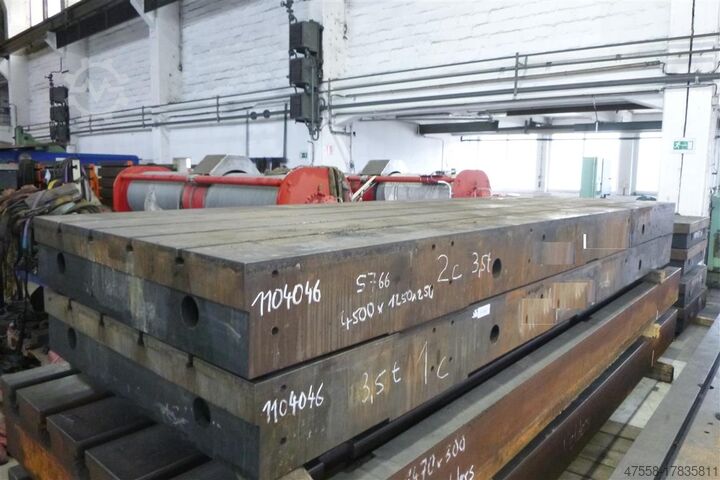

Condition: used, Technical details: floor-plate length: 4500 mm plate width: 1250 mm plate height: 250 mm Plate thickness: 250 mm weight of the machine ca.: 3,6 / pro Platte t transport dimensions LxWxH: ca. 4,5 x 1,3 x 0,3 / pro Platte m There are 2 plates for sale. Material: Cast steel Lredpfx Afsval Hdj Eou T-slots according to DIN 650 a=21; h=40; b=39.5; c=16mm; center distance T-slot to T-slot = 250mm *

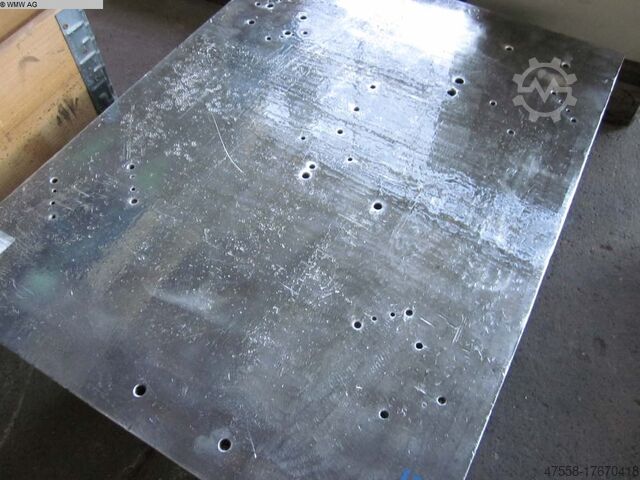

Condition: used, Technical details: table length: 800 mm table width: 300 mm table height: 130 mm weight of the machine approx.: 55 kg space requirements of the machine approx.: 0,8x0,3x0,13 m Lrjdpfxou Nkkwj Af Esu surface plate does have holes! *
